Lunasea LLB-53BK-01-00 Quick start guide

www.lunasealighting.com
Technical Data
Part #
LLB-53BK-01-00
Navigation Tri / Anchor Light / Flash
Voltage Range: 12VDC
Power Consumption: 5 Watt
Light Output: 2NM
Enclosure: Machined Aluminum
Removable Aluminum Bird-Spike
Wiring: 3 Wire
Infrared Light Sensor Daylight Auto-off for Anchor
(does not effect running or flash)

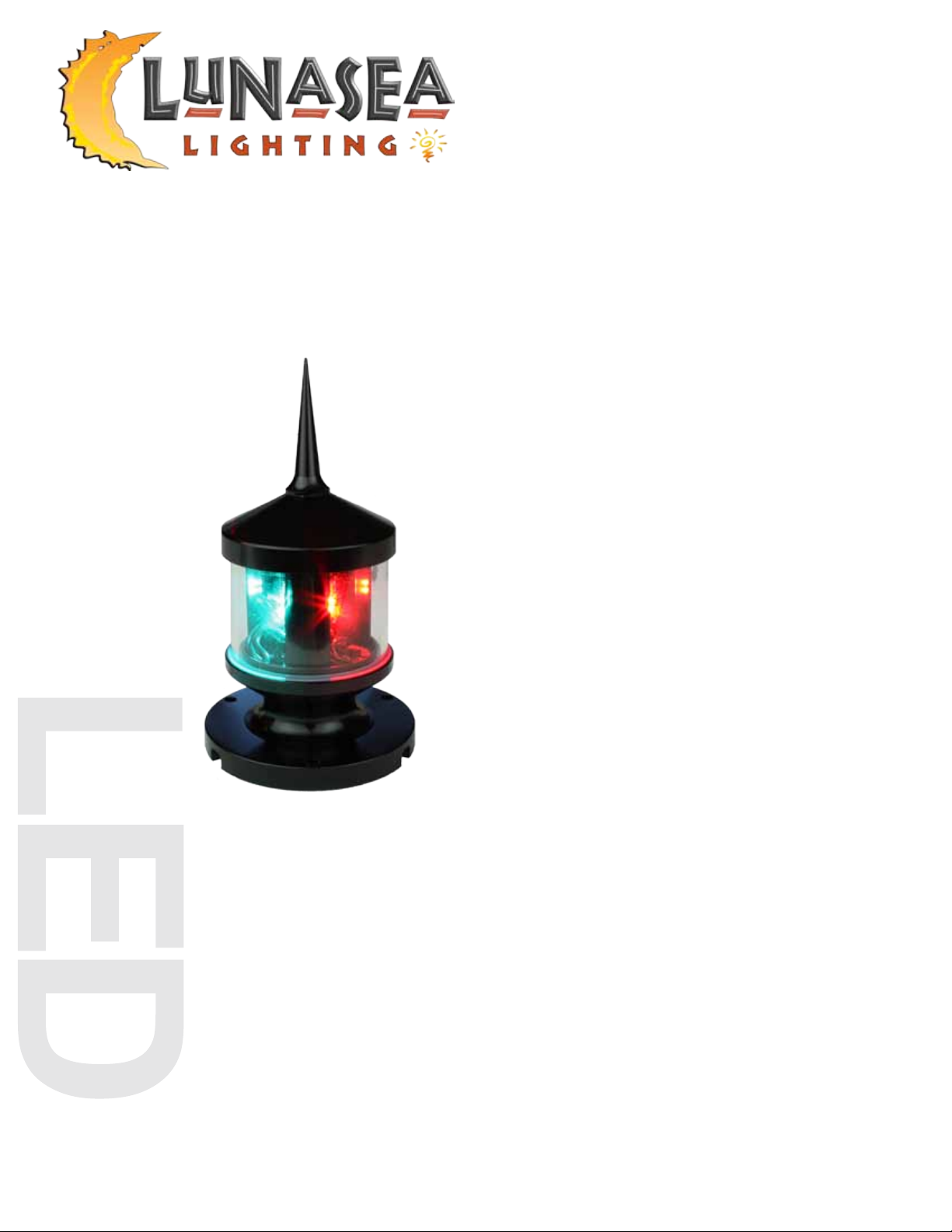

Introducing the new LLB-53Bx Series Navigation Fixtures that
produce zero EMI for the most sensitive equipment.
In keeping with AIS advances, Lunasea Lighting has developed a new
masthead light that utilizes Active Current Control technology that is
only available in 12-volt version. The masthead lamp eliminates all
high frequency noise without compromising optical capability or
mechanical and electrical specications.
Lunasea’s Tri-color/Anchor/Flash and Anchor/Flash LED navigation
models have the added features that you asked for, and more.
This lightweight xture, made of machined aluminum weighs just
140 grams (4.9 ounces). We’ve added emergency ash, auto
daylight turno for anchor, and a removable bird spike. The
waterproof connector is only 0.38 inch wide for easier cable routing.
The glass lens assures excellent light transmission for the life o the
product. 3 year warranty.
• Anodized Machined Aluminum
• Ultra-light Weight, only 4.9 Ounces
• Miniature Waterproof Connector
• Glass Lens
• Maintains Full Brightness as low as 10VDC
• Three Wire Hookup
• Removable Anti-Bird Spike
• Threaded hole can mount DavisTM Windex on top of light
•
Daylight Sensor automatically turns o Anchor Light during Day
ZERO EMI ULTRA LIGHT NAVIGATION FIXTURE
2 NAUTICAL MILE
Certified USCG
COLREG 72 & ABYC-A16

DIMENSIONS
NOTE: WHEN TESTING BE SURE TO BLOCK EXTERNAL LIGHT TO TEMPERARILY DISABLE AUTO ANCHOR TURN OFF
Cover “Green” starboard side of lens to test daylight sensor.
REMOVABLE
2.5 INCH (65MM)
3.1 INCH
(79MM)
1.5 INCH
(38MM)
WATERPROOF CONNECTOR
2.45 INCH (62MM)
0.38 INCH (9.7MM)
WIRING DIAGRAM
THREE WIRE CONFIGURATION (all features functional)
Three wires up mast - Anchor, Running and Ground
+ RED : Running
+ GREEN : Anchor
+ RED & + GREEN : Flash
- BLACK (ground)
TWO WIRE CONFIGURATION (running and anchor only)
+ RED / - GREEN Running
+ GREEN / - RED Anchor
(BLACK : NOT USED)
BOW
(FRONT)
cable in relation to screw
MOUNTING
Running
BATTERY
+BATTERY
+
Anchor
BATTERY
+
Flash
LLB-53BK-01-00 Rev2
Running
BATTERY
+BATTERY +
Anchor
To Boat Power
+-
To Nav Fixture
Green Red
User
Added
crossover
wires
CROSSOVER SWITCH FOR
TWO WIRE CONFIGURATION
Two wires up mast - Anchor and Ground (requires DPDT crossover switch)
+Tri Color Red Wire
+Anchor Green Wire
+Flash
If you have three existing switches you will need to
add diodes (IN4001 or silimar) to circuit

LLB-53BK-01-00 Rev2
WARNING: When printing below template please measure results for accuracy before drilling holes.
Printer may do scaling leading to wrong hole placement.
