1317:2
The FreeFlo wireless remote receiver unit is designed to provide highly dependable,functional,virtually maintenance-free
service over the lifespan of the unit.The FreeFlo Wireless control system is crafted using high quality components,with
long term service life and superior performance being the ultimate goal.It is our commitment to provide products that not
only meet needs and expectations,but exceed them.Thank you for choosing our product.
During standard operation of the wireless unit,when you depress a button on the key fob transmitter (any button
assigned a function) the LED indicator on the key fob will illuminate.Should the LED not illuminate,this is an indicator
that battery voltage has dropped below 2.0 volts,and it is time to replace the battery.It is suggested that you change the
battery (coin cell battery #CR2032) in the key fob transmitter at least once annually,prior to each operational season.The
key fob battery can be changed by simply removing the small screw on the back of the unit and splitting the transmitter
case.Once the case is open,slide the battery out of the battery holder and replace.It is important to be delicate during
battery replacement so no damage to the unit occurs;especially with regard to the solder points where the metal battery
holder connects to the transmitter board.Electrostatic discharge and/or contacting internal electronic circuitry with metal
tools can cause damage to components as well.For this reason,no screwdrivers or other hand tools should be used inside
of the transmitter case.Upon reassembly,make certain that the gray keypad is seated securely in the sealing channel.
If this is not done properly with care,the unit may be susceptible to water damage.To seat the pad properly, once the
battery is changed,position the keypad over the transmitter board,and ensure proper alignment.Place the top half of the
transmitter casing (the side with four button holes) down over the entire assembly.VERY IMPORTANT:DO NOT PLACE THE
RUBBER KEYPAD IN THE TOP HALF OF THE CASING BEFORE REJOINING THETWO HALVES.PLACE THE RUBBER KEYPAD OVER
THE BOARD,THEN PLACETHE TOP HALF DOWN OVERTHE ENTIRE ASSEMBLY.Following the above procedure will result in a
proper seal and ensure quality protection against environmental forces.
When purchased,the communication between the key fob transmitter and the receiver will already be established.Once
powered up,the unit should function properly with no further action required.(View the table below for the operational
characteristics of your configuration.) Occasionally during your period of ownership,there may be times when it is
necessary to reestablish the communication,or wireless communication between the key fob transmitter and the receiver
unit.This is accomplished by“learning”the transmitter into the receiver unit.It may be necessary to perform this action
after extended periods of storage,inactivity, key fob replacement,or the addition of extra key fob controls.It can also be
used as a troubleshooting measure whenever communication between the transmitter and receiver unit has been lost.
Battery Replacement :
Overview of Components :
About Frequency“Learning”:
INSTRUCTION MANUAL
FreeFlo Wireless Remote
Model 01T0DL - Double Latched Output
FreeFloWireless Receiver Unit
Receiver“Learn”Area
Receiver LED Window
FreeFlo Wiring Harness
Signal Transmission LED
Key Fob Transmitter Unit
(cont. next page)

© Lundell Plastics Corporation · 400 W Market St. · Odebolt, IA 51458 · P 712.668.2400 · TF 877.367.7659 · F 712.668.2402
1317:2
Page 2 of 2
(Do this only after the initial troubleshooting measure of transmitter battery replacement has been completed.) Each
transmitter generates a unique signal,and your receiver unit needs to be able to identify and respond to that signal in
order to operate.The use of a unique signal for each transmitter prevents your receiver from being susceptible to outside
interference, and protects against stray signals causing potentially undesirable operation.Some customers prefer to have
multiple key fob controls for their units.Each FreeFloWireless Remote is capable of handling and responding to multiple
(up to five) key fob transmitters;you simply have to“learn”each individual transmitter to your receiver unit.Additional key
fob controls are available through Lundell Plastics [phone].
To complete the“learn”procedure,simply do the following.Power up the unit.When you do so,the LED on the receiver unit
will flash RED four times.This indicates that the unit has received power.There is a magnetically controlled switching circuitry
embedded in the receiver unit.Place a fairly powerful magnet over the receiver“learn”area (see diagram on page 1 for location)
for a brief moment (3 seconds),and then remove it.(Learn magnets are available through Lundell Plastics.) The LED will go to
a constant RED state.Now immediately press any button on the transmitter you are attempting to“learn”.The LED will go to a
GREEN/YELLOW color.This confirms that the receiver has picked up a signal from the transmitter,and subsequently“learned”that
signal.Communication has been established,and it is now ready to function properly.
Should the above procedure not complete successfully, wait until the LED light goes out,and repeat the procedure.If for
any reason you experience a second failure of the“learn”procedure,do the following:place the magnet on the“learn”
area and the LED will go to a constant RED state,leave the magnet in place on the receiver until the LED light goes out
(approximately 10 seconds).This action completely clears the receiver’s memory.It’s akin to reformatting,or freeing up all
of the space on a computer hard drive.Once you have cleared the memory,proceed with the standard“learn”procedure
detailed above for each of the key fob transmitters you wish to use with the device.If,after all of the procedures detailed
above are completed,the unit is still not functioning,check the battery in the transmitter once again.(Occasionally,even
new batteries fail,or are defective from the factory. If you have a voltage meter,confirm that battery voltage is at least 2.7
volts.) If that still does not solve the problem,contact our wireless control customer service at [phone]
for assistance.
During standard operation,to confirm the receiver is picking up a signal from the transmitter,the receiver will respond to
keypad inputs by illumination of the receiver LED (see diagram on page 1) This system has a four button configuration
in which output voltage is available to two individual outputs. The two outputs supply latched/constant power to their
corresponding output wires. The control button configuration on your FreeFlo wireless system (01T0DL) is as follows:
Troubleshooting :
About Frequency“Learning”:
“Learning”Instructions :
Operational Parameters :
Visit us online at www.lundellplastics.com to see other innovative products!
INSTRUCTION MANUAL
FreeFlo Wireless Remote
Model 01T0DL - Double Latched Output
(cont. from prev. page)
The wiring harness has four wires coming out of the RF receiver
unit.The plug pin-out and wire colors are as follows:
Pin 1 – Yellow - Power Lead (+12V in)
Pin 5 – White – Output (+12V – constant\latched -
once button 1 is depressed)
Pin 7 – Black – Ground Lead (connect to ground)
Pin 8 – Gray – Output (+12V – constant\latched -
once button 3 is depressed)

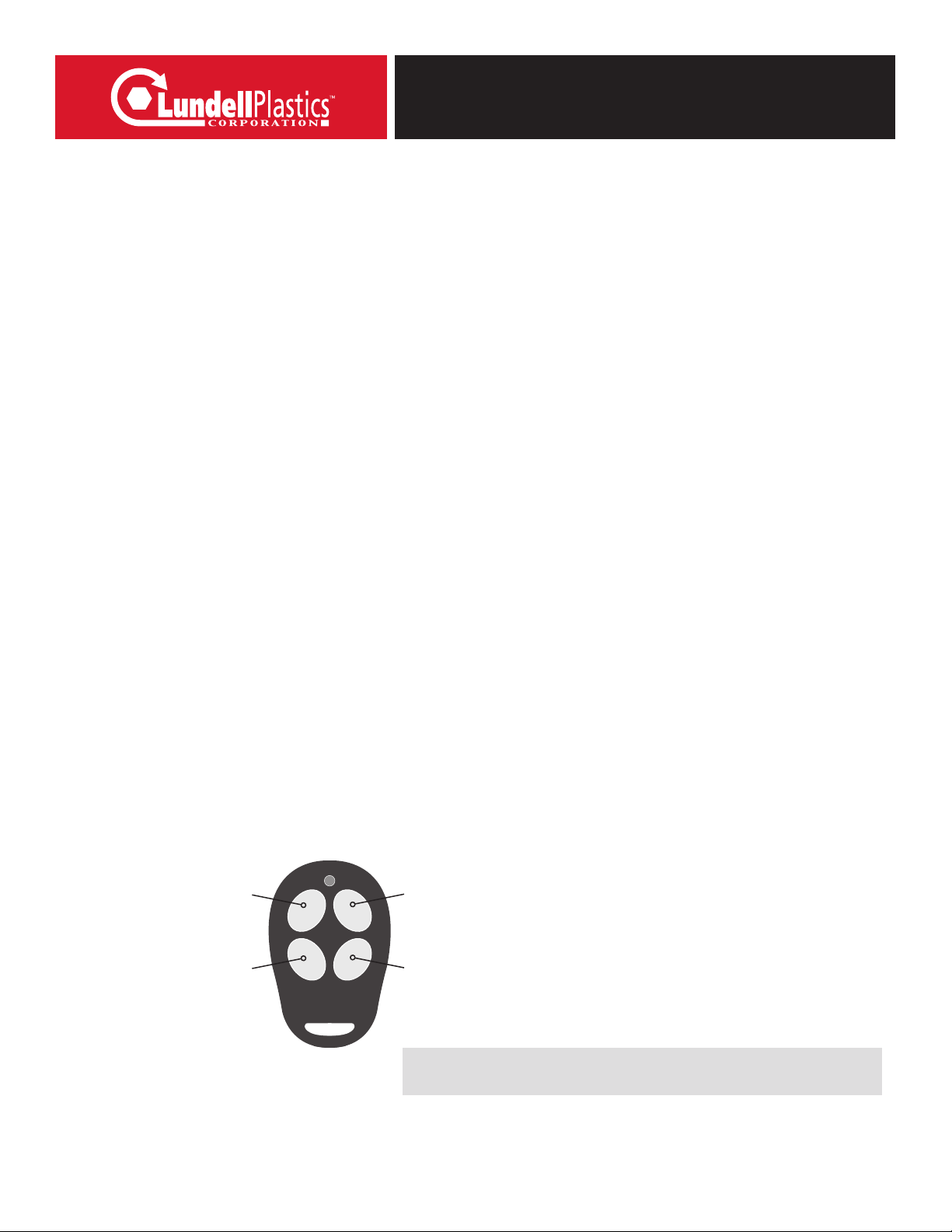

Button 2 – Off
(No Output)
Button 3 – On
(+12V Constant/Latched)
- GrayWire
Button 1 – On
(+12V Constant/Latched)
- White Wire
Button 4 – Off
(No Output)
IMPORTANT: The receiver is intended for 12 volt input and 7 amp max output.
Exceeding these limits will void any product guarantee and cause damage to the receiver.
