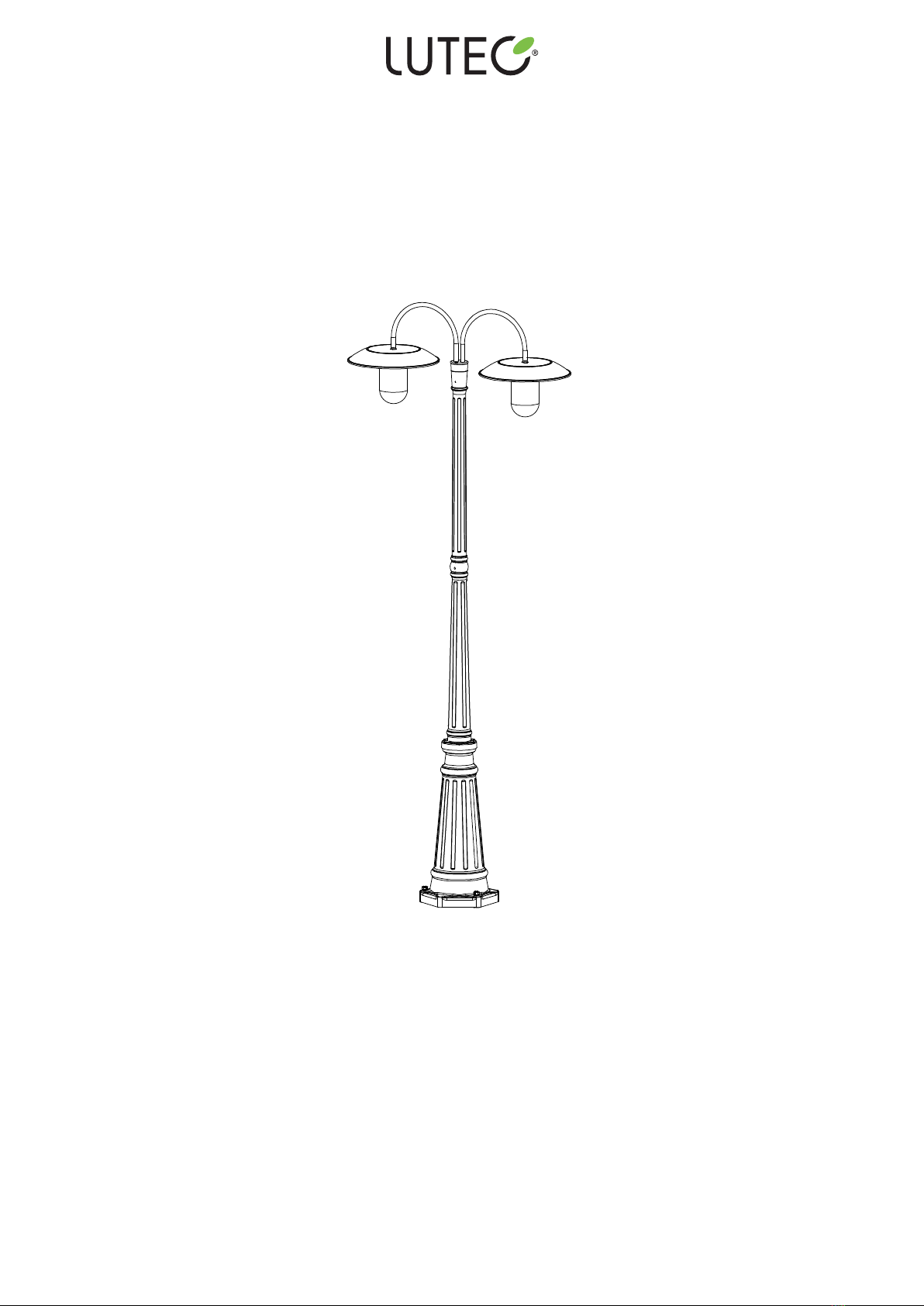

LED Solar Post Lantern
Owners Manual
Model #6940004012
IMPORTANT,
RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY

2

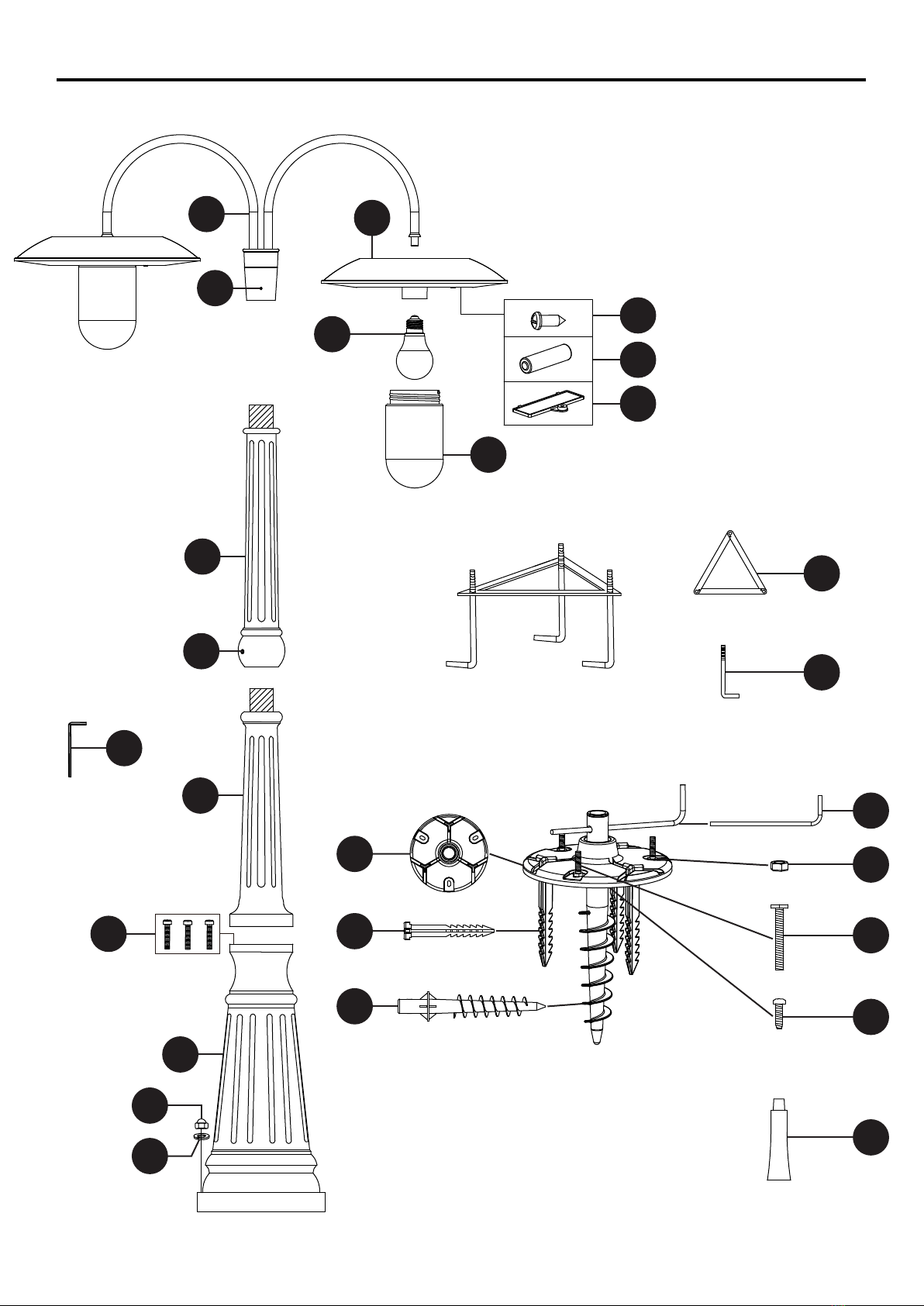

PACKAGE CONTENTS
I
J
K
L
M
N
O
P
Q
A
B
C
E
F
F1
G
H
D
A4
C1
A3
A1
A2
R
B1
A5

No
Note: Batteries may have become depleted due to lack of sunlight for an extended
period causing the bulbs to not illuminate. Please place the solar head in direct
sunlight for at least 6 hours prior to assembly.
te: Charging conditions differ by time zone locations and affects total hours of light discharge.
3
PART
DESCRIPTION
QUANTITY
A
Lampshade
2
A1
Diffuser
2
A2 Battery-Replacement model # 182107526 2
A3 Bulb-Replacement Model # 170200150 2
A4 Battery Cover 2
A5 Battery Cover Screw 2
B Elbow Components 1
B1
Set Screw 1
1
C
Top Pole
1
C1
Set Screw 2
1
D
1/8 in Allen Wrench
1
E Middle Pole 1
F Base 1
F1 Base Screws 3
G 13/32 in Cap Nuts 3
H 13/32 in Washers 3
I
Concrete Mounting Bracket
1
stloBrohcnAJ 3
K
Ground Base Insert
1
L
8 5/16 in Small Ground Stakes
3
M 17 1/2 in Large Ground Stake 1
N Turn Rod 1
stuNni23/31O 3
P 3
Q 3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
The solar panel “Post Light” requires sunlight to charge the batteries and should be installed in an
WARNING:
13/32 x 2 3/16 in Hex Bolts
3/16 x 7/8 in Ground Stake Screws
area with a minimum of 8 hours of direct sun exposure.
R 1Glue

25.4 cm / 10 in
12.7 cm / 4 in
5 cm / 2 in
Fill the hole with concrete and insert the Concrete Mounting Bracket (I) and Anchor Bolts (J) before
the concrete dries. Allow concrete to dry before installing Pole Assembly.
4

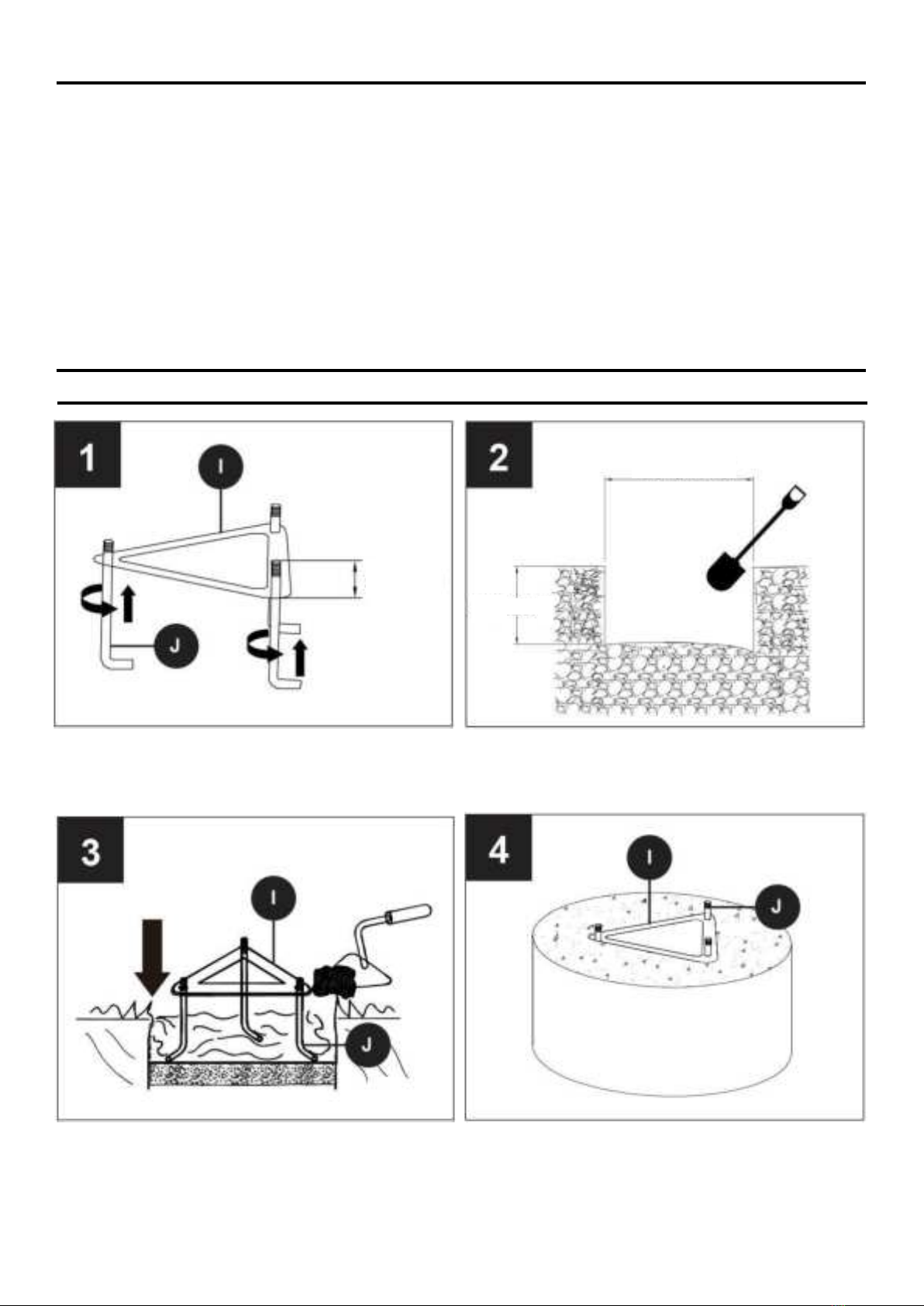

Thread three Anchor Bolts (J) into the Concrete Mounting Bracket (I) allowing for 5 cm (2 in) above
the Mounting Bracket. Excavate a hole in the ground that measures at minimum 25.4 cm (10 in) in
diameter and has a minimum depth of 12.7 cm (4 in).
DETERMINE DESIRED INSTALLATION-PERMANENT CONCRETE PAD OR GROUND STAKE
INSTALLATION: PERMANENT CONCRETE PAD
Note: The concrete and the Concrete Mounting Bracket (I) should be at GROUND LEVEL,
with the Anchor Bolts (J) 2 inches above the ground.
PREPARATION
Before beginning to assemble or installing lighting fixture, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing or damaged, do
not attempt to assemble, install or operate the product.
Estimated Assembly Time: 30-60 minutes.
Tools Required for Assembly: Flathead Screwdriver, Phillips Screwdriver, Adjustable Wrench/Pliers
1/2 in Wrench, ladder and hammer.

5
INSTALLATION: GROUND STAKE
Install three Hex Bolts (P) into Ground Base Insert (K), and tighten with Nut (O).
Attach the Large Ground Stake (M) to the Ground Base Insert (K) by screwing three Ground Stake
Screws (Q) tight with Phillips screwdriver. Then insert Turn Rod (N).
Turn ground stake assembly clockwise by using Turn Rod (N) into the dirt until Ground Base Insert (K)
is tight against the dirt. Insert and pound the three smaller Ground Stakes (L) into the dirt with a
hammer (not included).
Note: Make sure the bubble in the level found at the top of the Ground Stake (M) is centered and
level so the Post Assembly is in a perfect vertical position.

6
ASSEMBLY INSTRUCTIONS

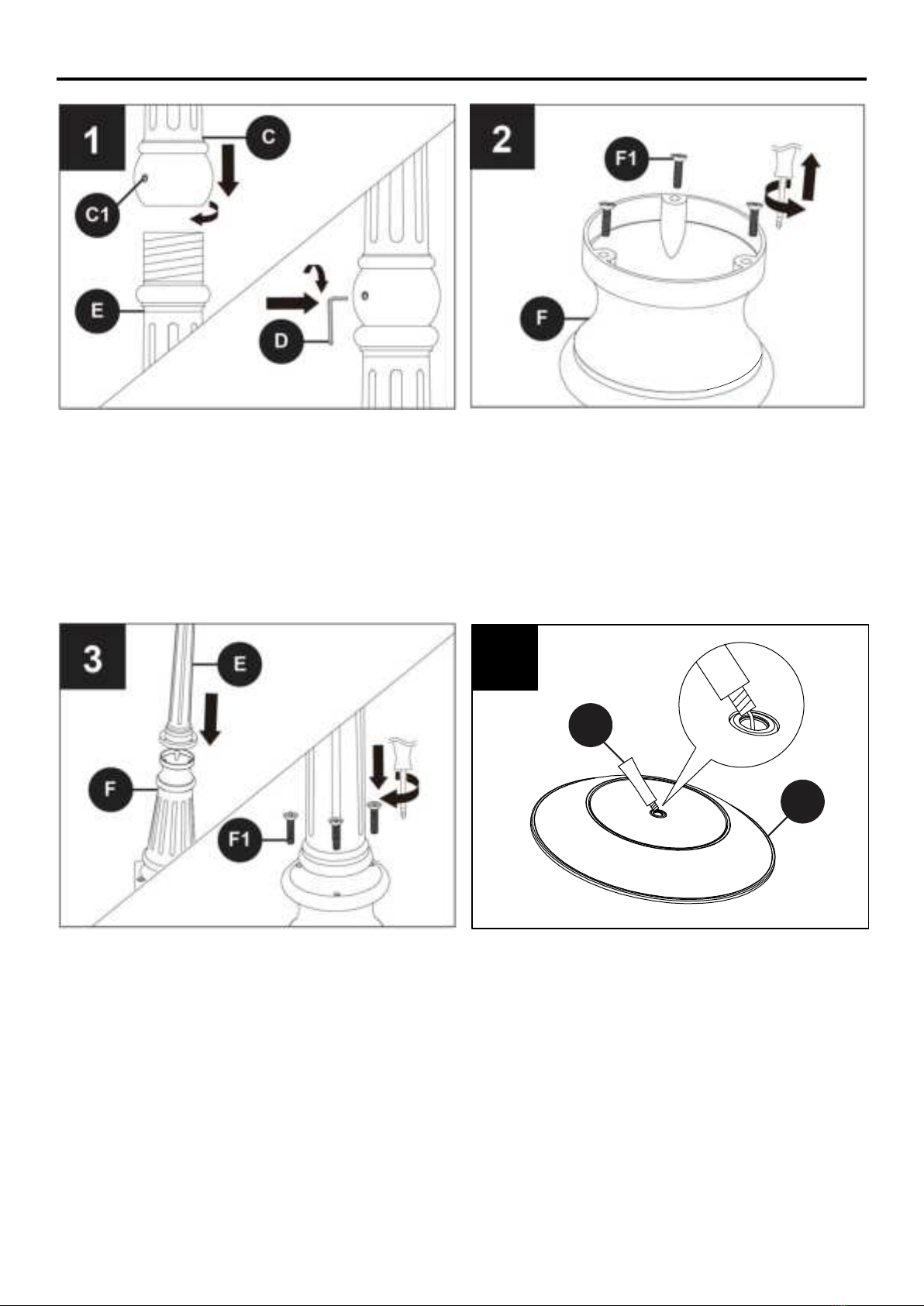

Remove the preassembled Set Screw (C1) from Top Pole (C) and screw Top Pole (C) clockwise
onto Middle Pole (E). Re-insert Set Screw (C1), then tighten with Allen Wrench (D). Remove the
preassembled 3 Base Screws (F1) from Base (F) with a Phillips screwdriver (not included).
Save for later use.
Secure Middle Pole (E) to Base (F) with Base Screws (F1) that were removed in the previous step.
Tighten with a Phillips screwdriver. Spread the Glue (R) into the hole in the middle of the
Lampshade (A).
A
4
R

5 6
7

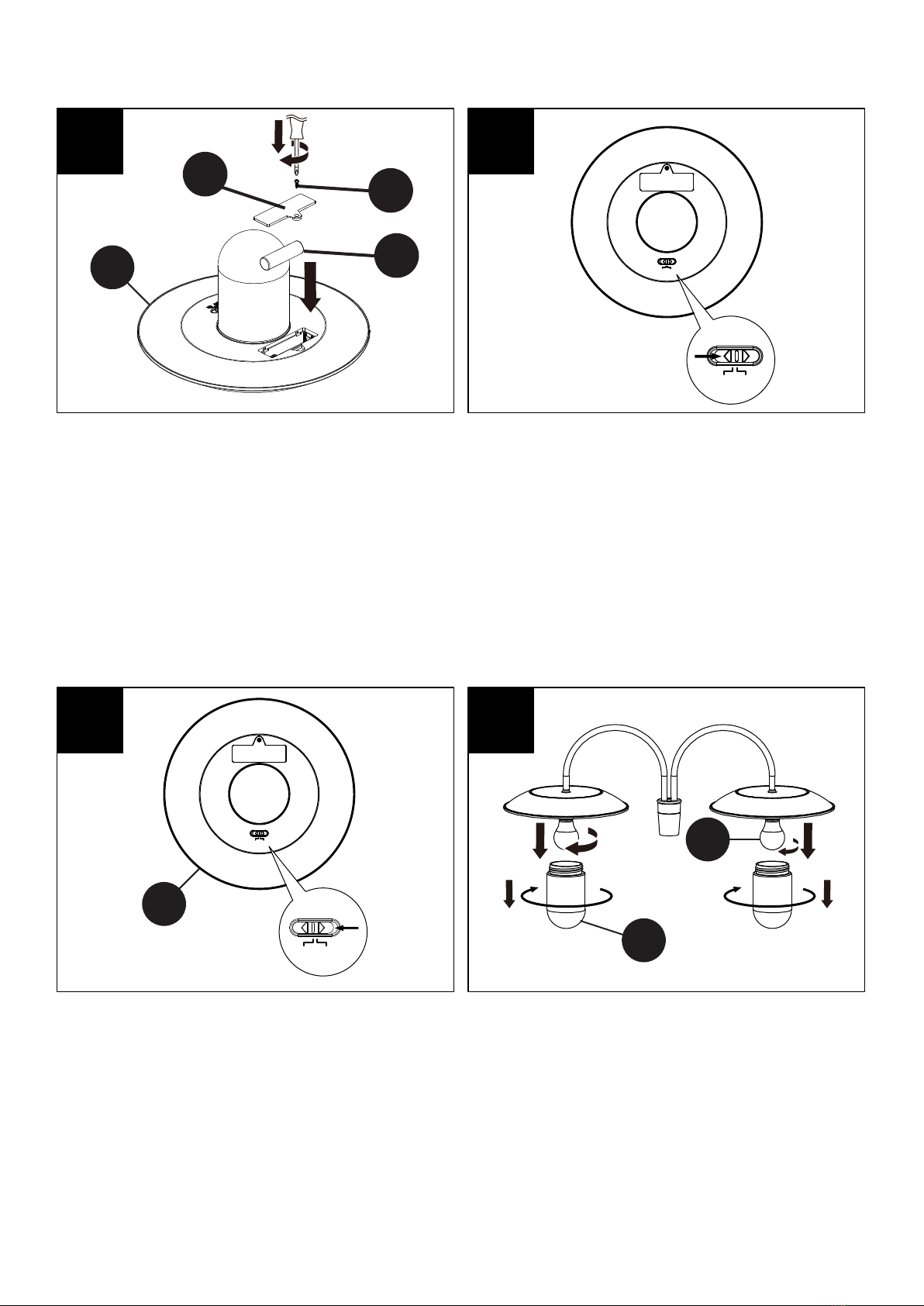

Attach the Lampshade (A) to the Elbow Components (B) by rotating the lampshade (A) clockwise.
Then install the Bulbs (A3) and the Diffusers (A1) by rotating clockwise.
LED lights will not automatically turn on unless the battery has been charged and it is
dark outside. You can test the lights by placing the empty box upside down over the Post Light Head.
Once dark, the LED lights should turn on in several seconds.

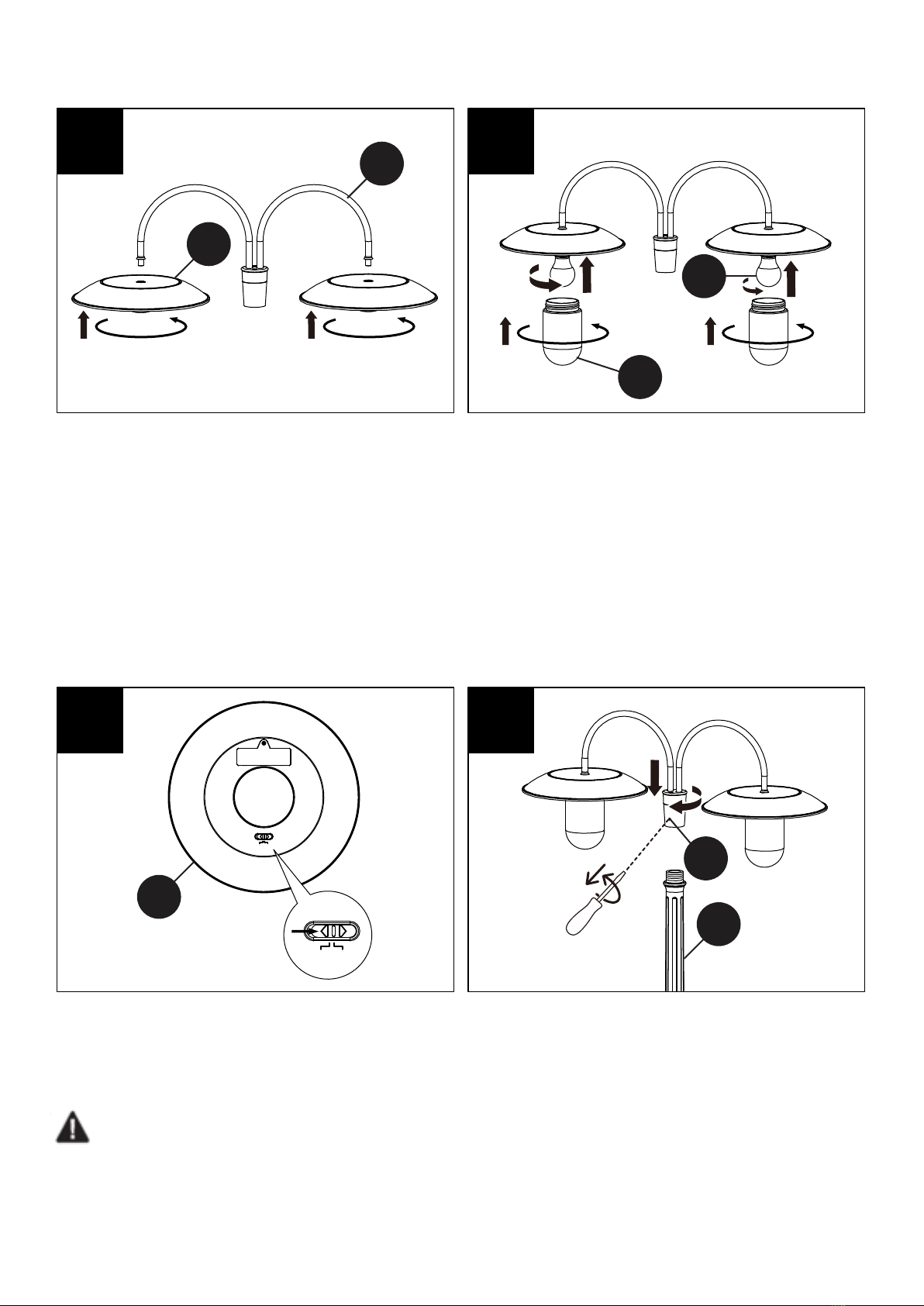

Turn ON the On/Off switch located on the underneath area of the Lampshade (A). Loosen
preassembled Set Screw (B1) counterclockwise from Lamp Head base. Do not remove set screw.
Carefully screw the lamp head onto Top Pole (C) by rotating clockwise. Secure by tightening the Set
Screw (B1) clockwise until tight with a flathead screwdriver (not included).
A3
Warning:
7 8
OFF ON
OFF ON
A
B
A1
A
C
B1

8
Installation: Concrete Pad Installation: Ground Stake
With the help of another person to hold the pole
steady, place the pole assembly over Concrete
Mounting Bracket (I) and Anchor Bolt (J). Place
Washer (H) over Anchor Bolt (J) and secure with
Cap Nut (G). Tighten with a 1/2 inch
wrench (not included).
Tighten with a 1/2 inch wrench (not included).
CAUTION: Allow the concrete to dry before
installing the pole assembly.
With the help of another person to hold the pole
steady, place the pole assembly over Ground
Base Insert (K). Place Washer (H) over Anchor
Bolt (J) and secure with Cap Nut (G).

9
Charging: Charge in direct sunlight for 8-10 hours.
Location: Choose location with minimum 6-8 hours sunlight. When choosing a spot for your solar
light, ensure that the device is not placed near nighttime light sources such as porch lighting,
landscape lighting or street lighting.
Dusk To Dawn: The light will not activate during daylight hours. At sundown the light will go on
automatically and last approximately 6-8 hours
Cleaning solar panels: It is important that dirt and debris is kept off of the solar panel to the greatest
extent possible. A dirty solar panel will not fully charge the battery and thus shorten the battery life.
Battery replacement: Generally speaking, the rechargeable battery should be replaced every two
years in order to maintain the maximum capacity. Please refer to the specs for max charge cycles.
Note: Run times and lighting performance will vary depending upon sunlight and weather conditions.
CAUTIONS: BATTERY INSTRUCTIONS
battery by ordering the replacement battery part
number found in the Parts Description page.
to be used for an extended period of time.
For recycling and disposal of batteries to protect the environment, please check the internet or your
local phone directory for local recycling centers and / or follow local government regulations.
MAXIMIZING SOLAR LIGHT POST PERFORMANCE
8 hrs

A
OFF ON
OFF ON
1 2
10
BATTERY/BULB REPLACEMENT
Warning: The supplied LED bulbs have been specially developed for use with the solar post
light model 6940004012 and must be replaced with model 170200150. The use of any other type
bulbs will not function in the fixture.

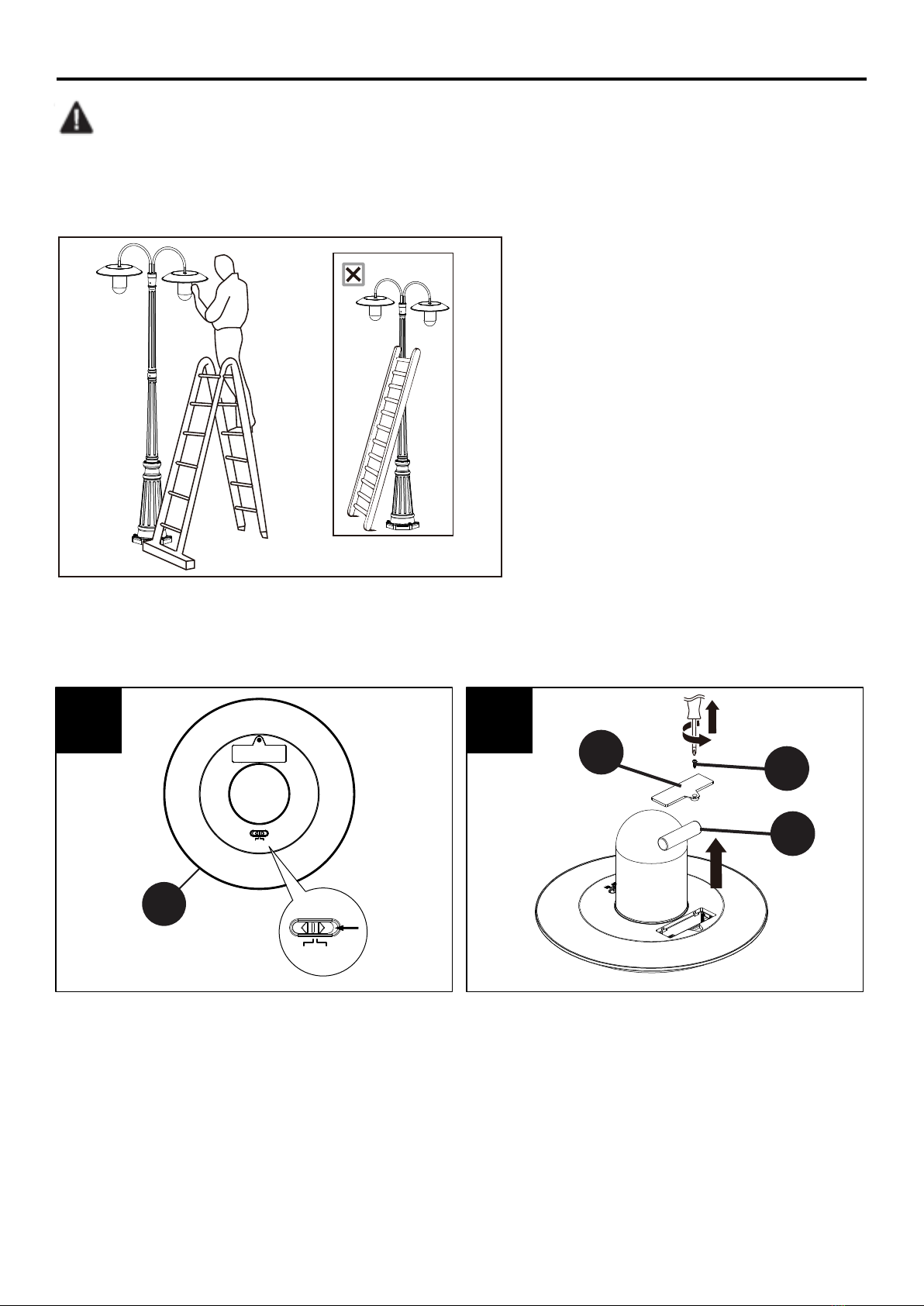

Turn OFF the switch found on the underside of the Lampshade (A). Remove the preassembled
Battery Cover Screw (A5) from the Battery Cover (A4) with a Phillips screwdriver (not included).
Then remove the Battery Cover (A4). Remove the old Battery (A2).
A5
A4
A2

A3
A1
A
OFF ON
OFF ON
A5
A4
A2
Insert new battery into battery compartment. Attach the Battery Cover (A4) to the Lampshade (A)
with Battery Cover Screw (A5) removed in step 2. Tighten with a Phillips screwdriver (not included).
Turn ON the switch.
3 4
1 2
11
If the LED Bulb (A3) is broken, turn OFF the switch found on the underside of the Lampshade (A),
then detach the Diffuser (A1) by rotating counterclockwise, remove the broken Solar LED Bulb (A3)
by rotating counterclockwise.
OFF ON
OFF ON
A

OFF ON
OFF ON
3 4
12

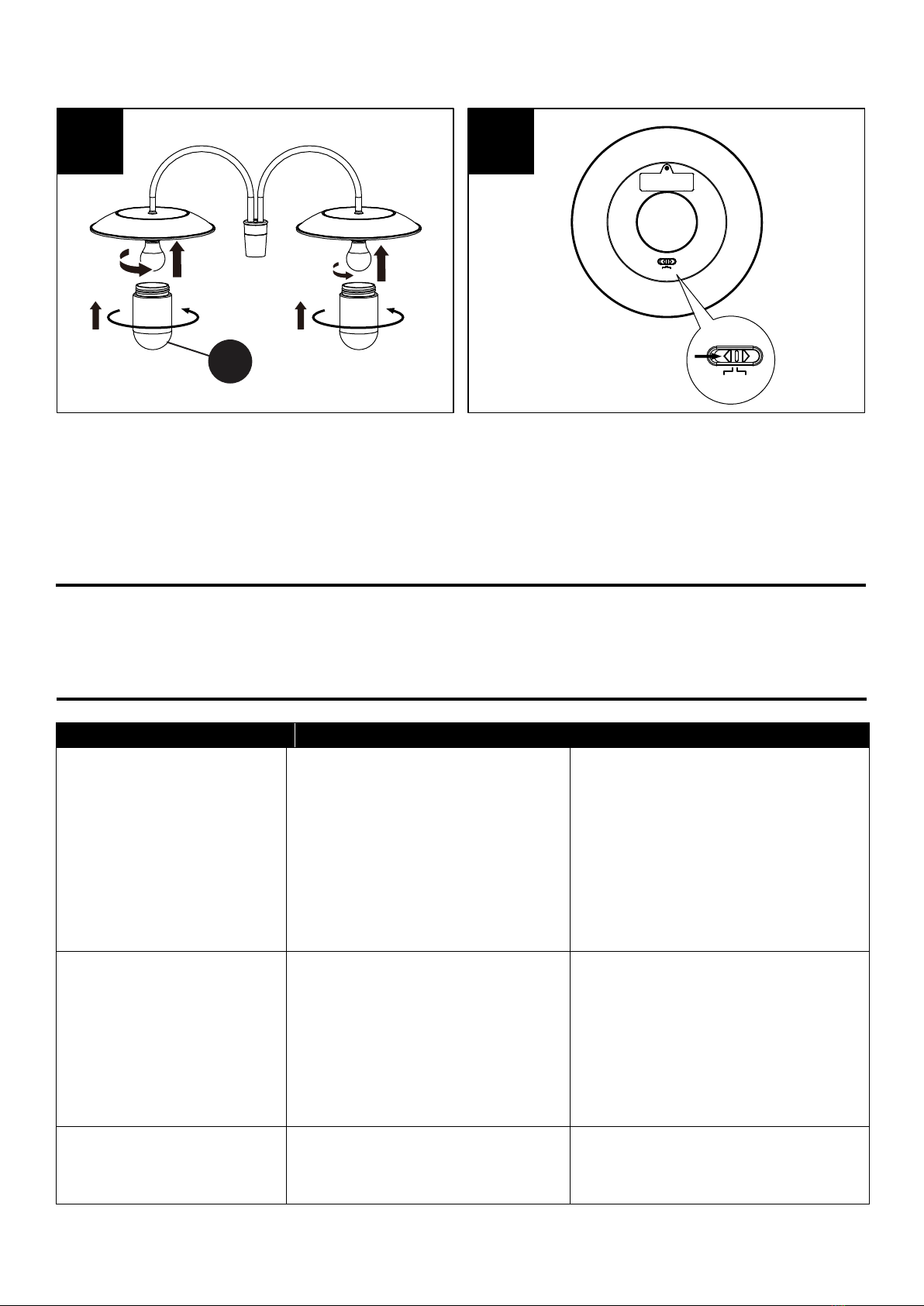

Install new LUTEC LED bulb and the Diffuser (A1) by rotating each clockwise. Turn ON the switch.
CARE AND MAINTENANCE
To clean, wipe with a damp, non-abrasive cloth.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The light will not go on.
1. Switch OFF.
2. The battery is completely
discharged.
3. DUSK TO DAWN activited.
4. The bulb is loose.
5. Interference from other light
source.
6. The battery is not charged
1. Set to ON.
2. Charge for 6-8 hours in direct
3. Check at night.
4. Re-tighten the bulb.
5. Relocate the solar post light.
6. Make sure the solar panel is in
direct sunlight.
The fixture shakes in high
winds.
1. The mounting bracket could
be loose.
2. The insert may be loose.
3. The screws and cap nuts
may be secured incorrectly.
1. Make sure the mounting
bracket screws are tightened.
2. Make sure the insert is
assembled completely and
tightly.
3. Make sure the screws and cap
nuts were secured tightly.
The lights come on during
the daylight.
1. The light may be installed
in a dark location.
1. Relocate to sunny location.
sunlight.
A1

LUTEC USA LLC:
149B Houston Rd Troutman NC 28166
Ningbo UTEC Electric Co.,LTD
CN8, Far East Industry Park, Yuyao, China
www.lutec.com
[email protected]
Please call our Customer Service line at 877-714-8669
for assistance Monday - Friday 9 a.m. to 5 p.m. EST
Printed in China
13
3-YEAR LIMITED WARRANTY
If this product fails due to a defect in materials or workmanship within three (3) years (Battery and
bulbs excluded) from the date of purchase, return it along with proof of date of purchase and it will
be replaced with the same or comparable model free of charge by LUTEC USA LLC..
This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.
This warranty gives you specific legal rights and you may have other rights that vary from state to
state.

14

IMPORTANT:
LIRE ATTENTIVEMENT ET CONSERVER
POUR CONSULTATION ULTÉRIEURE
Modèle #6940004012
Français
Lampadaire solaire à DEL
Manuel d’utilisation

CONTENU DE L’EMBALLAGE
15
I
J
K
L
M
N
O
P
Q
A
B
C
E
F
F1
G
H
D
A4
C1
A3
A1
A2
R
B1
A5

N.B. : La batterie peut s’être déchargée en raison d’un long manque d’exposition au soleil,
ce qui empêchera les ampoules de s’allumer. Placer la tête solaire directement au soleil
pendant au moins six heures avant le montage.
Mât supérieur
16
PIÈCE DESCRIPTION QUANTITÉ
A L'abat-jour 2
A1 Diffuseur 2
A2 Batterie (modèle de remplacement : 182107526) 2
A3
2
A4
Couvercle de la batterie
2
A5
Vis du couvercle
2
B
Composants du coude
1
B1
Ampoule (modèle de remplacement : 170200150)
1
1C
Vis de pression 1
1
C1 Vis de pression 2
1
D Clé hexagonale de 1/8 po
1
E Mât inférieur
1
F Base
3
F1
Vis de la base
3
G
Écrous borgnes de 13/32 po
3
H
Rondelles de 13/32 po
1
I Support de fixation pour béton
3
J Boulons d’ancrage
1
K Raccord de la base
3
L Petits piquets de sol de 21 cm (8 5/16 po)
1
M Long piquet de sol de 44,5 cm (17 1/2 po)
1
N Tige de rotation
3
O
Écrous de 13/32 po
3
P
Vis hexagonales de 13/32 x 2 3/16 po
3
Q
Vis pour piquet de sol de 3/16 x 7/8 po
1
CONSIGNES DE SÉCURITÉ
Lire attentivement le présent guide au complet et s’assurer de bien le comprendre avant de
monter, d’installer ou d’utiliser le produit.
Le lampadaire solaire doit être placé au soleil pour recharger sa batterie; il doit être installé à un endroit où il sera exposé
directement au soleil pendant au moins huit heures.
N.B. : L’exposition au soleil varie selon le fuseau horaire, ce qui peut avoir une incidence sur la durée d’éclairage totale.
AVERTISSEMENT
R
Colle

Visser les trois boulons d’ancrage (J) au support de fixation pour béton (I) en laissant
5 cm (2 po) dépasser au-dessus du support. Creuser un trou d’au moins 25,4 cm (10 po)
de diamètre et d’au moins 12,7 cm (5 po) de profondeur.
17
CHOISIR L’EMPLACEMENT DU SOCLE DE BÉTON PERMANENT OU DU PIQUET DE SOL
INSTALLATION DU SOCLE DE BÉTON PERMANENT
PRÉPARATION
Avant de monter ou d’installer le lampadaire, s’assurer qu’il ne manque aucune pièce. Comparer le contenu de l’emballage
avec la liste des pièces et des éléments de quincaillerie. Si des pièces sont manquantes ou endommagées, ne pas tenter
de monter, d’installer ou d’utiliser le produit.
Temps de montage estimé : 30 à 60 minutes.
Outils requis : Tournevis à tête plate, tournevis à pointe cruciforme, clé à molette ou pinces, clé de 1/2 po, échelle et
marteau.
Remplir le trou de béton et insérer le support de fixation pour béton (I) et les boulons d’ancrage (J)
avant que le béton ne sèche. Laisser le béton sécher complètement avant d’installer le lampadaire.
N.B. : La surface du béton et le support de fixation pour béton (I) doivent être RAS AU SOL,
et les boulons d’ancrage (J) doivent dépasser de 5 cm (2 po) du sol.
25,4 cm (10 po)
12,7 cm (5 po)
5 cm (2 po)

18
INSTALLATION DU PIQUET DE SOL
Insérer les trois vis hexagonales (P) dans le raccord de la base (K) et les serrer avec les écrous (O).
Attacher le long piquet de sol (M) au raccord de la base (K) en vissant les trois vis pour piquet de
sol (Q) avec un tournevis à pointe cruciforme (non compris), en serrant complètement. Insérer la
tige de rotation (N).
Insérer le piquet monté dans le sol en le tournant dans le sens horaire avec la tige de rotation (N)
jusqu’à ce que le raccord de la base (K) soit fermement appuyé sur le sol. Insérer les trois petits
piquets de sol (L) et les enfoncer dans le sol avec un marteau (non compris).
N.B. : S’assurer que la bulle du niveau au sommet du piquet de sol (M) est bien centrée et au niveau,
pour que le mât soit parfaitement vertical.

INSTRUCTIONS DE MONTAGE
Dévisser la vis de pression (C1) préinstallée sur le mât supérieur (C), puis visser celui-ci (C) sur le
mât inférieur (E) en tournant dans le sens horaire. Réinsérer la vis de pression (C1) et la serrer avec
la clé hexagonale (D). Retirer les trois vis (F1) préinstallées sur la base (F) à l’aide d’un tournevis à
pointe cruciforme (non compris). Les mettre de côté.
19
Fixez le poteau central (E) à la base (F) avec les vis de base (F1) retirées à l'étape précédente.
Serrez-les à l'aide d'un tournevis cruciforme. Répandez la colle (R) dans le trou situé au milieu de
l'abat-jour (A).
A
4
R

5 6
20
Fixez l'abat-jour (A) aux composants du coude (B) en faisant tourner l'abat-jour (A) dans le sens
des aiguilles d'une montre.
Installez ensuite les ampoules (A3) et les diffuseurs (A1) en les faisant tourner dans le sens des
aiguilles d'une montre.
Allumez l'interrupteur Marche/Arrêt situé sous l'abat-jour (A). Desserrez la vis de réglage
préassemblée (B1) de la base de la tête de lampe dans le sens inverse des aiguilles d'une montre.
Ne retirez pas la vis de réglage. Vissez délicatement la tête de lampe sur le poteau supérieur (C)
en le faisant tourner dans le sens des aiguilles d'une montre. Fixez-la en serrant la vis de
réglage (B1) dans le sens des aiguilles d'une montre à l'aide d'un tournevis à tête plate (non fourni).
A3
Avertissement : Les ampoules à DEL ne s’allumeront pas automatiquement si la batterie est
déchargée ou s’il fait clair à l’extérieur. Pour tester les ampoules, placer une boite vide sur la
lampe. À la noirceur, les ampoules à DEL devraient s’allumer après quelques secondes.
7 8
OFF ON
OFF ON
A
B
A1
A
C
B1
