Switch with Occupancy/Vacancy Sensor
Maestro®Occupancy sensing switch
To power the sensing circuit, occupancy sensing switches require a small flow of
current when the load is in the OFF state. This can be accomplished by connecting the
power supply return wire to ground or to neutral.
Local codes in certain municipalities require that a neutral conductor be run to the
switch box, regardless of construction. In one particular instance, installing occupancy
sensors that use the ground wire to function is not permitted.
The MS-OPS6M2U-DV and MS-VPS6M2U products allow the installer to configure the
device to connect to either ground or neutral.
• Toconnecttoground,simplyinstalltheproductinits"out-of-thebox"condition.
• Toconnecttoneutral,installthesuppliedwhitesleeveoverthegreenwire.
For more information about occupancy sensing switches and the National Electrical
code, see:
www.lutron.com/TechnicalDocumentLibrary/048469.pdf
Features
• PassiveinfraredsensorswithexclusiveLutron®XCTTM Technology for fine motion
detection
• 180°sensorfield-of-view
• Upto30ftx30ft(9mx9m)[900ft2(81m2)]majormotioncoverageand
20ftx20ft(6mx6m)[400ft 2(36m2)]minormotioncoverage
• OccupancyversioncanbesettoAuto-ON/Auto-OFForManual-ON/Auto-OFF
• VacancyversionavailabletomeetCATitle24requirements
• Adjustabletimeout(1,5,15,or30minutes)andhigh/lowsensitivityadjustment
• Occupancysensingswitchloads:incandescent,halogen,ELV,MLV,CFL,LED,magneticfluorescent,electronic
fluorescent, and fan.
Models available

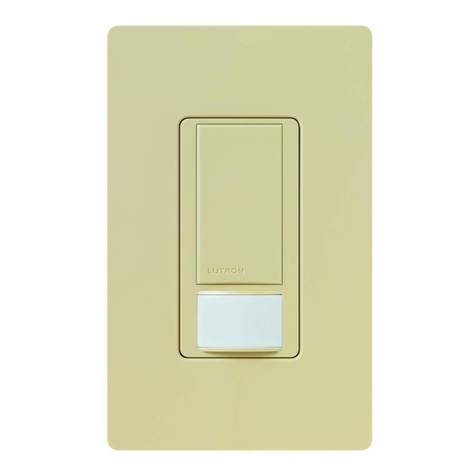

MS-OPS6M2U-DV
MS-VPS6M2U-DV
MS-OPS6M2U-DV
MS-VPS6M2U-DV
1

Maestro®Sensor
369741a 2 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Specifications
Regulatory Approvals
• UL®Listed to U.S. and Canadian safety
requirements.
• NOMCertification(pending).
Power
• 120–277V~50/60Hz1
Key Design Features
• Alllightingloads.
• Crush/tamperresistantlens.
• Smartambientlightdetection.
• Adaptiveswitchingalgorithmforextendedrelaylife.
• XCTTM Technology for fine motion detection.
Environment
• Ambientoperatingtemperature:32°Fto104°F
(0°Cto40°C),0%–90%humidity,non-condensing.
Indoor use only.
Warranty
• 5-YearLimitedWarranty.ForadditionalWarranty
information, please visit www.lutron.com/
TechnicalDocumentLibrary/Sensor_Warranty.pdf
Additional Information
• ForMaestro®Occupancy sensing dimmer models,
please see Lutron®P/N 369270.
• ForotherMaestro®Occupancy sensing switch
models, please see Lutron®P/N 369666.
• ForusewithMA-AS,MSC-AS,MA-AS-277,or
MSC-AS-277tocontroltheloadfrommorethantwo
locations, please see Lutron®P/N 048435.
• Formoreinformation,pleaseseewww.lutron.com/
occvacsensors
• LutronTechnicalHotline:1.800.523.9466.
Advanced Features
Switching
Adaptivezerocrossfeaturemaximizesrelaylifeby
switchingatthepointofminimumenergyontheAC
powercurve.Activelyadaptstovariationsinrelay
timing.
XCTTM Technology
Advancedsensingtechnologyforfinemotion
detection ensures that the lights stay on while the
room is occupied, and that the sensor does not
turn on falsely when there is no occupancy in the
room. For more information, see www.lutron.com/
TechnicalDocumentLibrary/white%20paper%20
XCT%204-23-09%20B.pdf
1Maximum current ratings for individual models are provided in the Selection Matrixonpage4.
2

Maestro®Sensor
369741a 3 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Custom Settings
Ambient Light Detection
• Lightsturnononlyifnaturallightinroomislow.
• Smart—Ambientlightthresholdadjustspreciselyto
the user’s preference.
Instructions: If switch turns on when there is enough natural light, or if
switch does not turn on when there is not enough natural light, press
thelargebuttonwithin5secondsofenteringtheroom.Overtime,this
interaction will “teach” the switch your preferred setting.
Sensor Operation
• Occupancy/Vacancy:Auto-ON/Auto-OFFor
Manual-ON/Auto-OFF
• Vacancyonly:Manual-ON/Auto-OFFonly
Timeout Options
(SeeAdditional Featuresonpage4fordefaultsettings)
• 1Minute
• 5Minutes
• 15Minutes
• 30Minutes
Sensitivity Options
• Highsensitivity(default)
• Lowsensitivity
Auto-ON Options
(MS-OPSonly)
• Occupancy(default):Auto-ON/Auto-OFF
• Vacancy*:Manual-ON/Auto-OFF
• LowLight:Lightsturnononlyifneeded(ifambient
lightisbelowthreshold)
 *Thereisa15-secondgraceperiodthatbeginswhenthelightsare
automatically turned off, during which the lights will automatically turn
back on in response to motion. This grace period is provided as a safety
and convenience feature in the event that the lights turn off while the
room is still occupied, so that the user does not need to manually turn
thelightsbackon.After15seconds,thegraceperiodexpiresandthe
lights must be manually turned on.
Manual Off-While-Occupied Options
(MS-OPSonly—seeAdditional Featuresonpage4fordefaultsetting)
• Enabled
– WhentheOccupancysensingswitchismanually
turned off, the Occupancy sensing switch will not
turn the lights back on automatically while the
room is occupied.
– Oncetheroomisvacated,theAuto-ONfeature
returns to normal operation after the timeout
period has expired.
– Thismaybethepreferenceinconferencerooms
or classrooms while viewing presentations. This
feature requires motion to keep the lights off.
• Disabled
– WhentheOccupancysensingswitchismanually
turnedoff,theAuto-ONfeaturewillreturnto
normaloperationafter25seconds.
– Thismaybethepreferenceiftheuseralways
wants the lights to turn on upon entering and the
lights to turn off when the room is vacant.
3

Maestro®Sensor
369741a 4 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Selection Matrix
1XXinmodelnumberrepresentscolor/finishcode.
2OccupancysensorscanbeconfiguredasAuto-ON/Auto-OFForManual-ON/Auto-OFF.
VacancysensorsareconfiguredasManual-ON/Auto-OFFonly.
3Standardmechanical3-wayswitchcannotbecombinedwithcompanionswitch.
4CompanionswitchMA-AS,MSC-AS,MA-AS-277,orMSC-AS-277isrequiredformulti-locationinstallations(morethantwolocationscontrollingthesame
lightingcircuit).Uptoninecompanionswitchesmaybeconnected.
5Thegreenwirecanbeconnectedtogroundor,whencoveredbythewhitesleeve,canbeconnectedtoneutral(seeillustrationsonpage7).
Crush/tamper-resistant lens
Ambient light detection
Switching
XCTTM technology
Manual off-while-occupied default setting
Default timeout (minutes)
Model Number1
MS-OPS6M2U-DV-XX Smart Adaptive Enabled 15
MS-VPS6M2U-DV-XX Smart Adaptive 15
Additional Features
1XXinmodelnumberrepresentscolor/finishcode.
Vacancy only2(Title 24 compliant)
Single-pole only Single-pole /
3-way
capability
Works with standard mechanical 3-way switch3
Works with companion switch3, 4
All lighting loads (120 V~only)
Max
current rating
All lighting loads (120 – 277 V~only)
Fan (120 V~)
Light + Fan (120 V~)
Neutral or ground wire required for functionality5
Off-state power
Minimum load required
Model Number1
MS-OPS6M2U-DV-XX   6A 3A 3A 
MS-VPS6M2U-DV-XX    6A 3A 3A 
4

Maestro®Sensor
369741a 5 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
5ft
(1.5m)
10ft
(3m)
15ft
(4.5m)
20ft
(6m)
25ft
(7.5m)
30ft
(9m)
Horizontal Beam Diagram
5ft
(1.5m)
5ft
(1.5m)
0
10ft
(3m)
10ft
(3m)
15ft
(4.5m)
15ft
(4.5m)
20ft
(6m)
20ft
(6m)
25ft
(7.5m)
25ft
(7.5m)
30ft
(9m)
30ft
(9m)
Vertical Beam Diagram
4ft
(1.2m)
00 10ft
(3m)
15ft
(4.5m)
20ft
(6m)
25ft
(7.5m)
30ft
(9m)
NEMA WD7 Coverage
5ft
(1.5m)
5ft
(1.5m)
0
10ft
(3m)
10ft
(3m)
15ft
(4.5m)
15ft
(4.5m)
5ft
(1.5m)
Majormotioncoverage:900ft2(81m2)
Minormotioncoverage:400ft2(36m2)
Occupancy Sensing Switch Placement and Operation
• TheabilityoftheOccupancysensingswitchtodetectmotionrequiresline-of-sightofroomoccupants.The
Occupancy sensing switch must have an unobstructed view of the room.
• HotobjectsandmovingaircurrentscanaffecttheperformanceoftheOccupancysensingswitch.
• TheperformanceoftheOccupancysensingswitchdependsonatemperaturedifferentialbetweentheambient
roomtemperatureandthatofroomoccupants.WarmerroomsmayreducetheabilityoftheOccupancysensing
switch to detect occupants.
Definitions
Major motion: movement of a person entering or passing through an area.
Minor motion:movementofapersonoccupyinganareaandengaginginsmallactivities(e.g.,reachingfora
telephone,turningthepagesofabook,openingafilefolder,pickingupacoffeecup).
5

Maestro®Sensor
369741a 6 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Dimensions
Measurementsshownas:in(mm).
Front View Side View
4
11⁄16
(119)
2
15⁄16
(75)
1
1⁄8
(30)
5/16(8)
1/8(3)
Mounting
WallplateAdapter/Wallplate
(soldseparately)
Occupancy Sensing SwitchWallbox
Mounting screws Adaptermountingscrews
Operation
MS-OPS6M2U-DV
MS-VPS6M2U-DV
Sensor Lens
Sensor LED(behindlens)
Pulses during configuration
of custom settings and in
the Test mode.
Tapswitch
Tapon/off




6

Maestro®Sensor
369741a 7 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Slide white sleeve over green wire until flush with
back cover.
White(connectstoNeutral)
Converting Ground Wire to Neutral Wire
The green wire can be connected to ground or, when covered by the white sleeve, can be connected to neutral.
Blue(3-way)
Black(hot/switchedhot)
Green(connectstoGround)
Whitesleeve
Bare: always connect to ground
7

Maestro®Sensor
369741a 8 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Continued on next page...
Wiring Diagrams: Single-Location Installations
Wiring Diagram 1: Connect occupancy sensing switch to ground
Single-Location Installation (120-277 V~)1, 2
-OPS6M2U-DV
3, -VPS6M2U-DV 3
120-277V~
50/60Hz
Green
Ground
Hot/Live
Neutral
Load
Blue
1
Bare
Black Black
Occupancy
sensing switch
Wiring Diagram 2: Connect occupancy sensing switch to neutral
Single-Location Installation (120-277 V~)1, 2
-OPS6M2U-DV4, -VPS6M2U-DV4
Occupancy
sensing switch
120-277V~
50/60Hz White
Ground
Hot/Live
Neutral
Load
Blue
1
Bare
Black Black
1 Whenusingcontrolsinsinglelocationinstallations,tightentheblueterminalorcapbluewire.DoNOTconnecttheblueterminal/wiretoanyotherwireortoground.
2 Fanloadappliesto120V~only(notforusewith277V~).
3Green wire is connected to ground.
4 Wirecoveredbywhitesleeveisconnectedtoneutral.
8

Maestro®Sensor
369741a 9 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
1Only one Occupancy sensing switch can be used per multi-location circuit.
2 Asinglestandardmechanical3-wayswitchorupto9companionswitchesmaybeconnectedtomostOccupancysensingswitches.Standardmechanical3-way
switchcannotbecombinedwithcompanionswitch.Totalblueterminalwirelengthmaybeupto150ft(46m).
3 Fanloadappliesto120V~only(notforusewith277V~).
4Green wire is connected to ground.
Wiring Diagram 3: Connect occupancy sensing switch to ground
3-way Installation with Standard Mechanical 3-way Switch (120-277 V~)1, 2, 3
-OPS6M2U-DV
4, -VPS6M2U-DV 4
Black
Blue
Green
Ground
Occupancy sensing
switch
Green screw
Ground
120-277V~
50/60Hz
Hot/Live
Neutral
Load
Standard
mechanical 3-way
switch
Black
Jumper wire
BareDifferent color screw
(Common)
OR
Black
Blue
Ground
Occupancy
sensing switch
Green
Ground
120V~
50/60Hz
Hot/Live
Neutral
Load
Standard
mechanical 3-way
switch
Black Jumper wire
Bare Different color screw
(Common)
Green screw
Wiring Diagrams: 3-way Installations with Standard Mechanical 3-way Switch
Continued on next page...
9

Maestro®Sensor
369741a 10 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Continued on next page...
Wiring Diagram 4: Connect occupancy sensing switch to neutral
3-way Installation with Standard Mechanical 3-way Switch (120-277 V~)1, 2, 3
-OPS6M2U-DV4, -VPS6M2U-DV4
Black
Blue
White
Ground
Occupancy sensing
switch
Green screw
Ground
120-277V~
50/60Hz
Hot/Live
Neutral
Load
Standard
mechanical 3-way
switch
Black
Jumper wire
BareDifferent color screw
(Common)
OR
Black
Blue
Ground
Occupancy
sensing switch
White
Ground
120V~
50/60Hz
Hot/Live
Neutral
Load
Standard
mechanical 3-way
switch
Black Jumper wire
Bare Different color screw
(Common)
Green screw
Wiring Diagrams: 3-way Installations with Standard Mechanical 3-way Switch (continued)
1Only one Occupancy sensing switch can be used per multi-location circuit.
2 Asinglestandardmechanical3-wayswitchorupto9companionswitchesmaybeconnectedtomostOccupancysensingswitches.Standardmechanical3-way
switchcannotbecombinedwithcompanionswitch.Totalblueterminalwirelengthmaybeupto150ft(46m).
3 Fanloadappliesto120V~only(notforusewith277V~).
4 Wirecoveredbywhitesleeveisconnectedtoneutral.
10

Maestro®Sensor
369741a 11 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Continued on next page...
Wiring Diagram 5: Connect occupancy sensing switch to ground
Multi-Location Installation (120 V~)1, 2, 3
-OPS6M2U-DV
4, -VPS6M2U-DV 4
Blue
Green
Ground
Occupancy sensing
switch3
Black
Ground
120V~
50/60Hz
Brass BrassBlack
Blue Blue
Green Green
Ground
Hot/Live
Neutral
Load
MA-AS or
MSC-AS
MA-AS or
MSC-AS
Bare
Black Black
1Only one Occupancy sensing switch can be used per multi-location circuit.
2 Asinglestandardmechanical3-wayswitchorupto9companionswitchesmaybeconnectedtomostOccupancysensingswitches.Standardmechanical3-way
switchcannotbecombinedwithcompanionswitch.Totalblueterminalwirelengthmaybeupto150ft(46m).
3Occupancy sensing switch can be installed in any location.
4Green wire is connected to ground.
5 Wirecoveredbywhitesleeveisconnectedtoneutral.
Wiring Diagram 6: Connect occupancy sensing switch to neutral
Multi-Location Installation (120 V~)1, 2, 3
-OPS6M2U-DV
5, -VPS6M2U-DV 5withMA-ASorMSC-AS
MA-AS or
MSC-AS
MA-AS or
MSC-AS
Blue
White
Ground
Occupancy sensing
switch3
Black
Ground
120V~
50/60Hz
Brass Brass
Black
Blue Blue
Green Green
Ground
Hot/Live
Neutral
Load
Bare
Black Black
Wiring Diagrams: Multi-location Installations
11

Maestro®Sensor
369741a 12 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
1Only one Occupancy sensing switch can be used per multi-location circuit.
2 Asinglestandardmechanical3-wayswitchorupto9companionswitchesmaybeconnectedtomostOccupancysensingswitches.Standardmechanical3-way
switchcannotbecombinedwithcompanionswitch.Totalblueterminalwirelengthmaybeupto150ft(46m).
3Occupancy sensing switch can be installed in any location.
4 Fanloadappliesto120V~only(notforusewith277V~).
5Green wire is connected to ground.
6 Wirecoveredbywhitesleeveisconnectedtoneutral.
Wiring Diagrams: Multi-location Installations (continued)
Occupancy sensing
switch3
Black
Blue
Green
Ground
Black
Blue
Green
Ground
277V~
50/60Hz
Black
Blue
Green
Ground
Hot/Live
Neutral
Load
RedRed
Bare
Black
MA-AS-277 or
MSC-AS-277
MA-AS-277 or
MSC-AS-277
Wiring Diagram 7: Connect occupancy sensing switch to ground
Multi-Location Installation (277 V~)1, 2, 3, 4
-OPS6M2U-DV
5, -VPS6M2U-DV 5withMA-AS-277orMSC-AS-277
Occupancy sensing
switch3
Black
Blue
White
Ground
Black
Blue
Green
Ground
277V~
50/60Hz
Black
Blue
Green
Ground
Hot/Live
Neutral
Load
Red
Red
Bare
Black
MA-AS-277 or
MSC-AS-277
MA-AS-277 or
MSC-AS-277
Wiring Diagram 8: Connect occupancy sensing switch to neutral
Multi-Location Installation (277 V~)1, 2, 3, 4
-OPS6M2U-DV6, -VPS6M2U-DV6withMA-AS-277orMSC-AS-277
12

Maestro®Sensor
369741a 13 11.15.12
®SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy/Vacancy Sensor
Colors and Finishes
• Duetoprintinglimitations,colorsandfinishesshowncannotbeguaranteedtomatchactualproductcolors
perfectly.
• Colorchipkeychainsareavailableformoreprecisecolormatching:
– GlossFinishes:DG-CK-1
– SatinFinishes:SC-CK-1
Satin Finishes
Taupe
TP
Turquoise
TQ
Plum
PL
Merlot
MR
Terracotta
TC
Sienna
SI
Midnight
MN
Hot
HT
Desert Stone
DS
Eggshell
ES
Biscuit
BI
Snow
SW
Palladium
PD
Greenbriar
GB
Bluestone
BG
Mocha Stone
MS
Goldstone
GS
Sea Glass
SG
Stone
ST
Limestone
LS
Gloss Finishes
White
WH
Ivory
IV
Almond
AL
LightAlmond
LA
Gray
GR
Brown
BR
Black
BL
13
