LUX LUMEN StarEye Maxi User manual

StarEye Maxi
10656
Integrated step down convertor
All manuals and user guides at all-guides.com
all-guides.com

StarEye Maxi p.2/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com
CONTENT
1 PICTURE .................................................................................. 3
1.1 G ENERAL ....................................................................................... 3
2 DIMENSIONS ........................................................................... 4
3 SAFETY INFORMATION ............................................................ 5
3.1 S YMBOLS ...................................................................................... 5
3.2 P ROTECTION FROM ELECTRIC SHOC ....................................................... 6
3.3 P ROTECTIONS FROM FIRE AND BURNS ...................................................... 6
3.4 P ROTECTION FROM INJURY .................................................................. 7
3.5 D ISPOSING OF THIS PRODUCT .............................................................. 7
4 P YSICAL INSTALLATION ....................................................... 8
4.1 U NPAC ING .................................................................................... 8
4.2 L OCATION AND ORIENTATION ............................................................... 8
4.3 M OUNTING ..................................................................................... 8
5 EXTERNAL CONNECTIONS...................................................... 10
5.1 DC POWER INPUT ........................................................................... 10

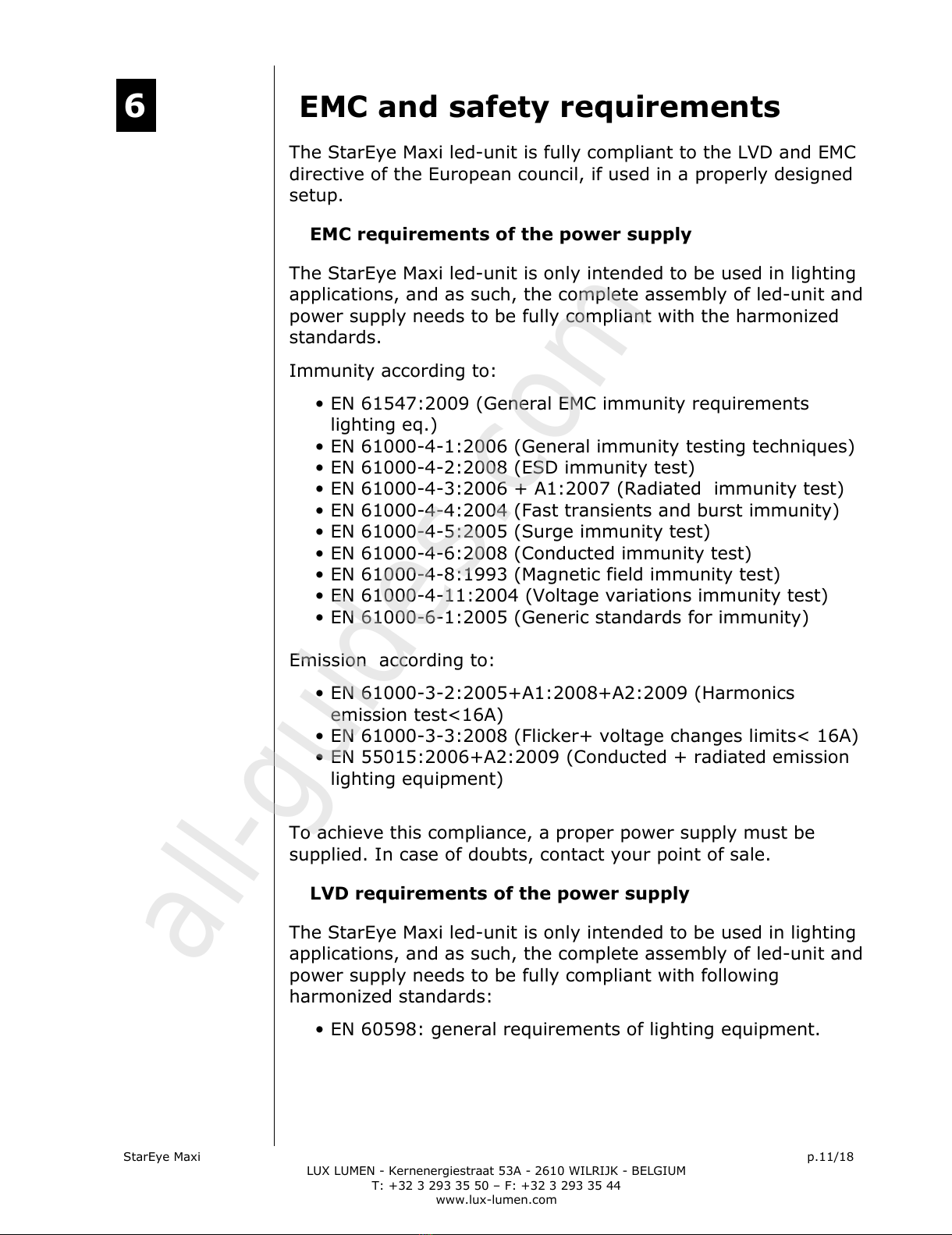

6 EMC AND SAFETY REQUIREMENTS ......................................... 11
7 INSTALLATION SETUP ........................................................... 12
7.1 S PECIFICATION .............................................................................. 12

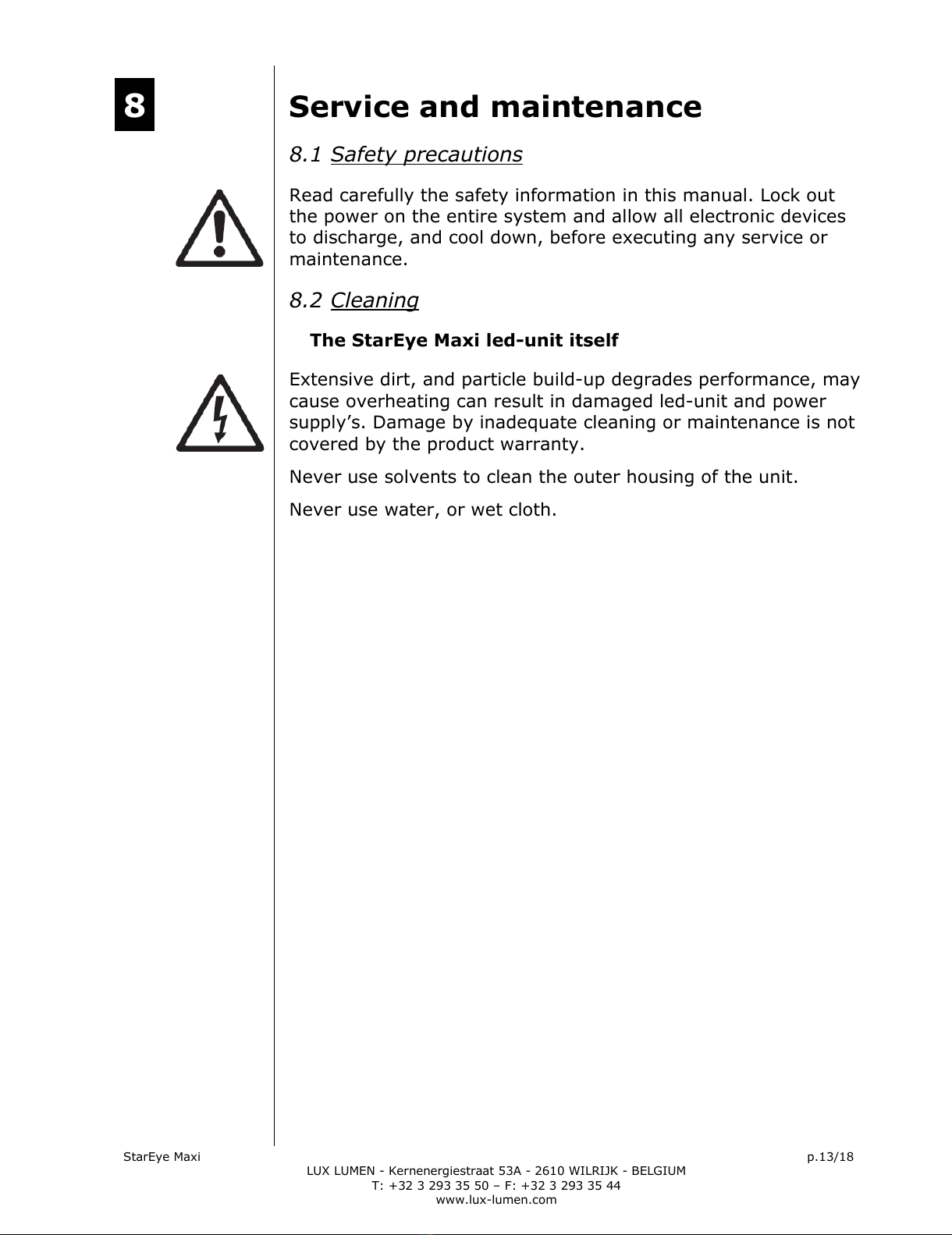

8 SERVICE AND MAINTENANCE ................................................ 13
8.1 S AFETY PRECAUTIONS ...................................................................... 13
8.2 C LEANING .................................................................................... 13

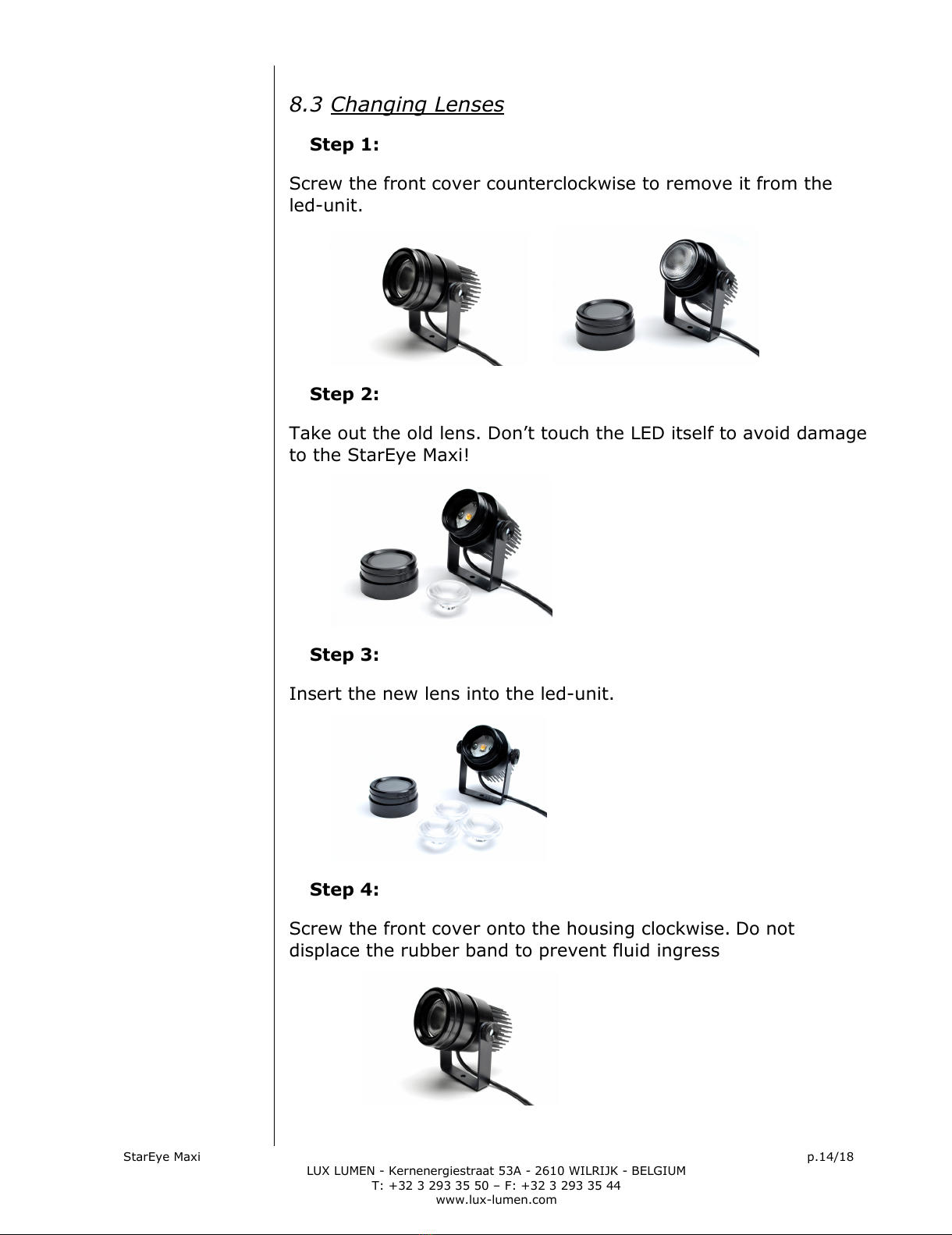

8.3 C HANGING L ENSES ......................................................................... 14

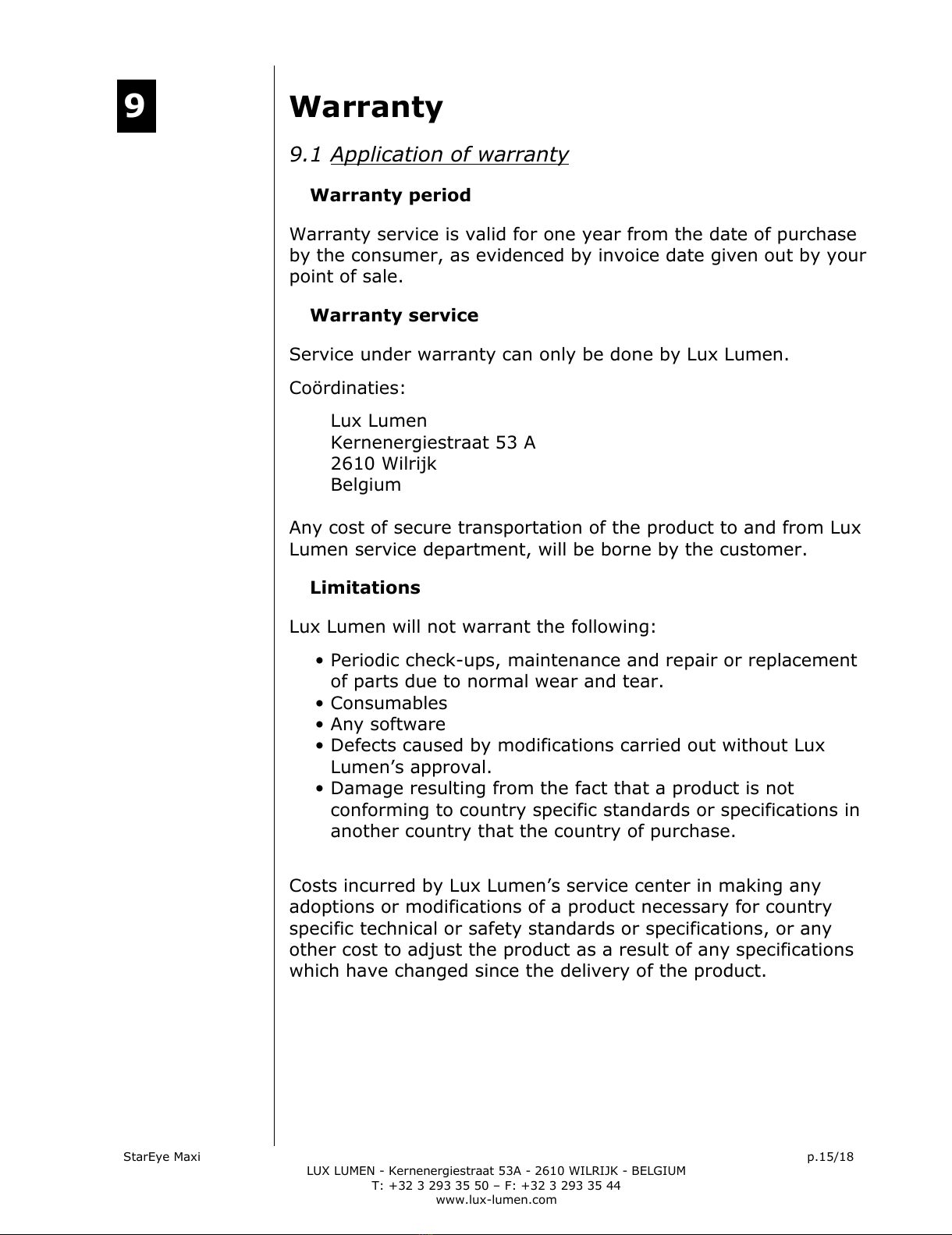

9 WARRANTY ............................................................................ 15
9.1 A PPLICATION OF WARRANTY ............................................................... 15
9.2 RMA PROCEDURE ........................................................................... 17
10 USED LIST OF ABBREVIATIONS .......................................... 18
All manuals and user guides at all-guides.com

StarEye Maxi p.3/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com
1 Picture
1.1 General
StarEye Maxi spot with bracket
StarEye Maxi spot with bracket and snoot
All manuals and user guides at all-guides.com

StarEye Maxi p.4/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com

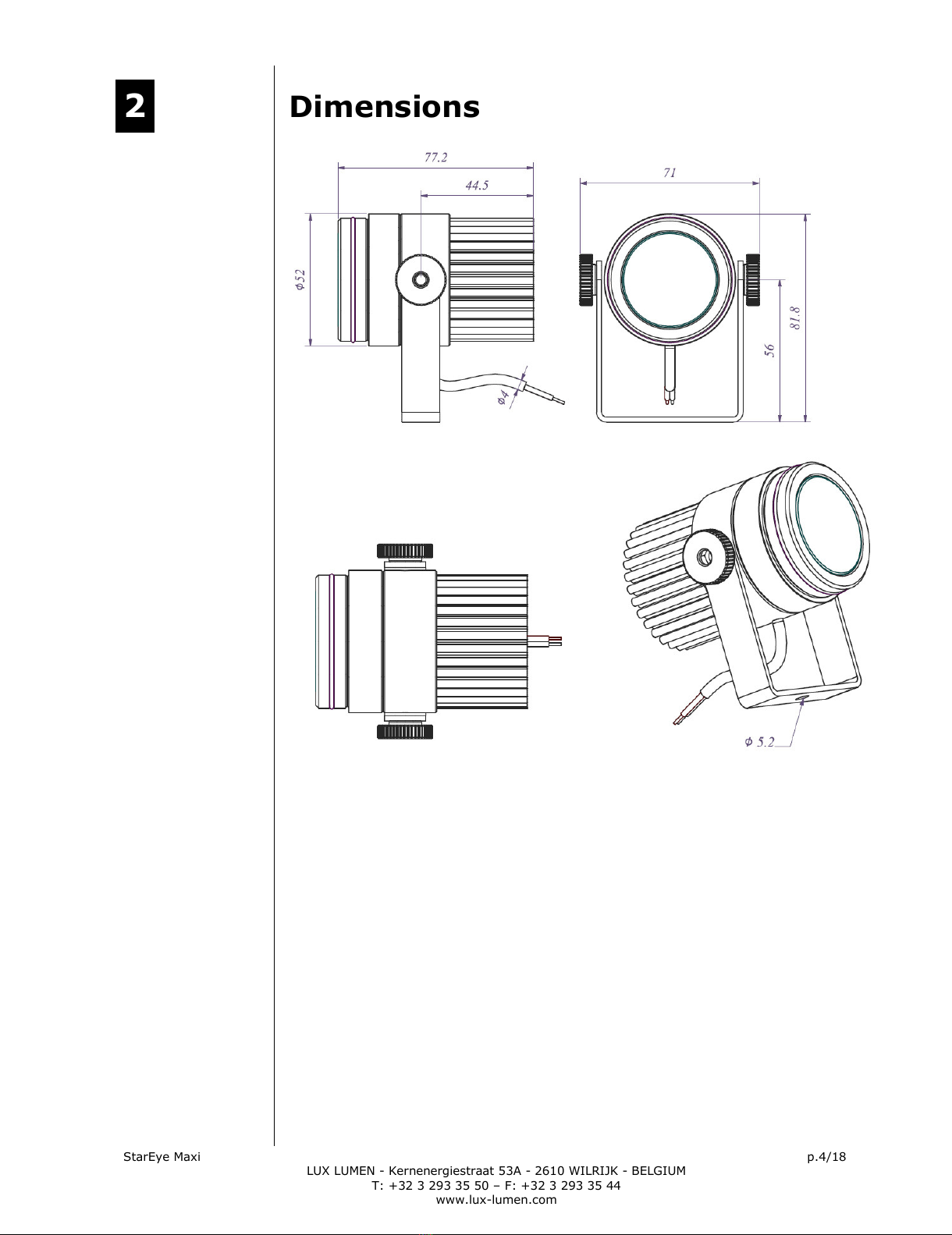

2 Dimensions
All manuals and user guides at all-guides.com

StarEye Maxi p.5/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com
3 Safety information
Before installing, powering up, or servicing the StarEye Maxi
led-unit, it is highly recommended that you read this manual and
ensure yourself that you completely understand its content.
Observe the safety precautions in this manual. Install and
operate the led-unit only as described in this manual, and in
conformity with local regulations. If you have any questions how
to operate this product safely, please contact your point of sale.
3.1 Symbols
Following symbols are used to identify important safety
information on the product and in this manual.
All manuals and user guides at all-guides.com

StarEye Maxi p.6/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com

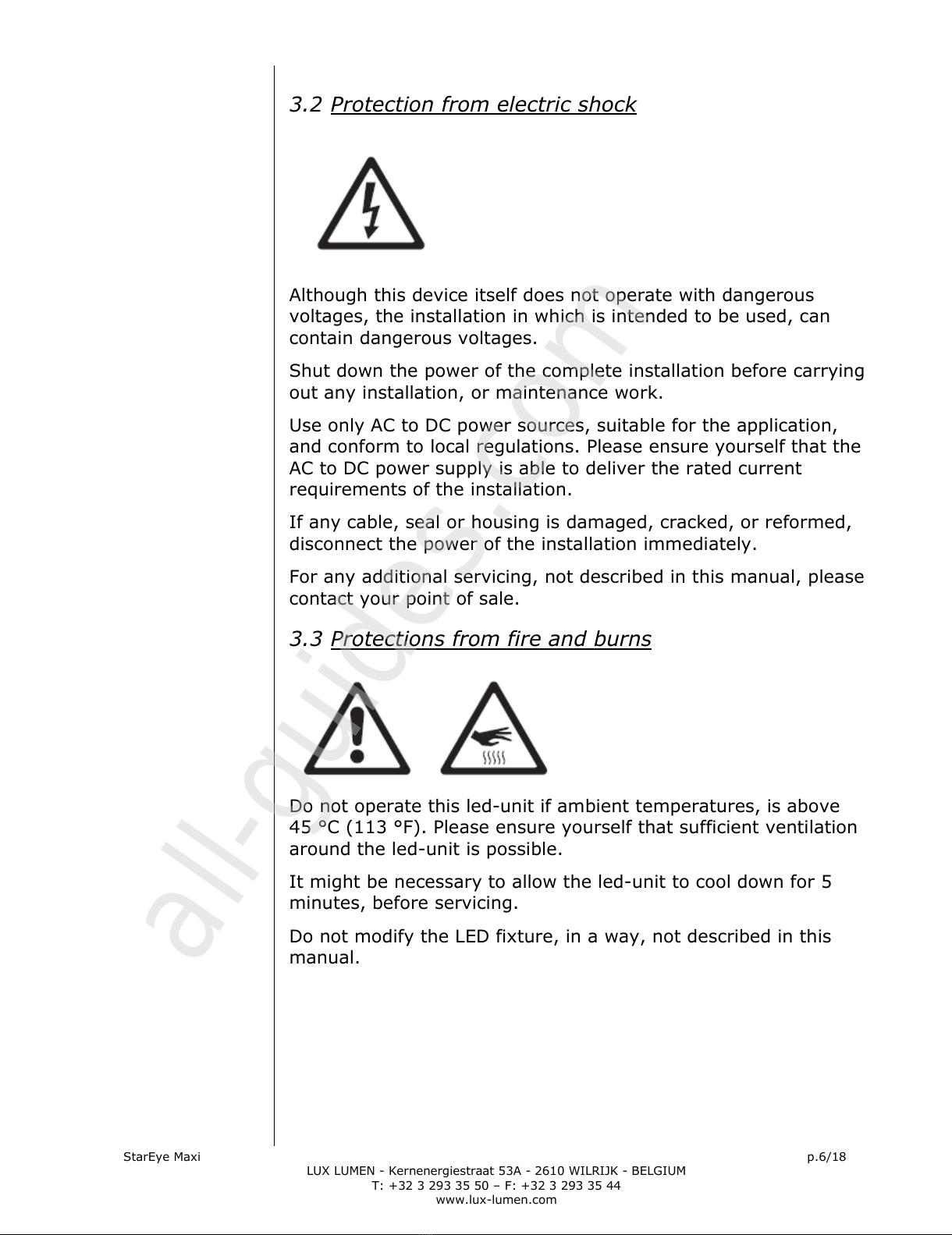

3.2 Protection from electric shock
Although this device itself does not operate with dangerous
voltages, the installation in which is intended to be used, can
contain dangerous voltages.
Shut down the power of the complete installation before carrying
out any installation, or maintenance work.
Use only AC to DC power sources, suitable for the application,
and conform to local regulations. Please ensure yourself that the
AC to DC power supply is able to deliver the rated current
requirements of the installation.
If any cable, seal or housing is damaged, cracked, or reformed,
disconnect the power of the installation immediately.
For any additional servicing, not described in this manual, please
contact your point of sale.
3.3 Protections from fire and burns
Do not operate this led-unit if ambient temperatures, is above
45 °C (113 °F). Please ensure yourself that sufficient ventilation
around the led-unit is possible.
It might be necessary to allow the led-unit to cool down for 5
minutes, before servicing.
Do not modify the LED fixture, in a way, not described in this
manual.
All manuals and user guides at all-guides.com
all-guides.com

StarEye Maxi p.7/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com

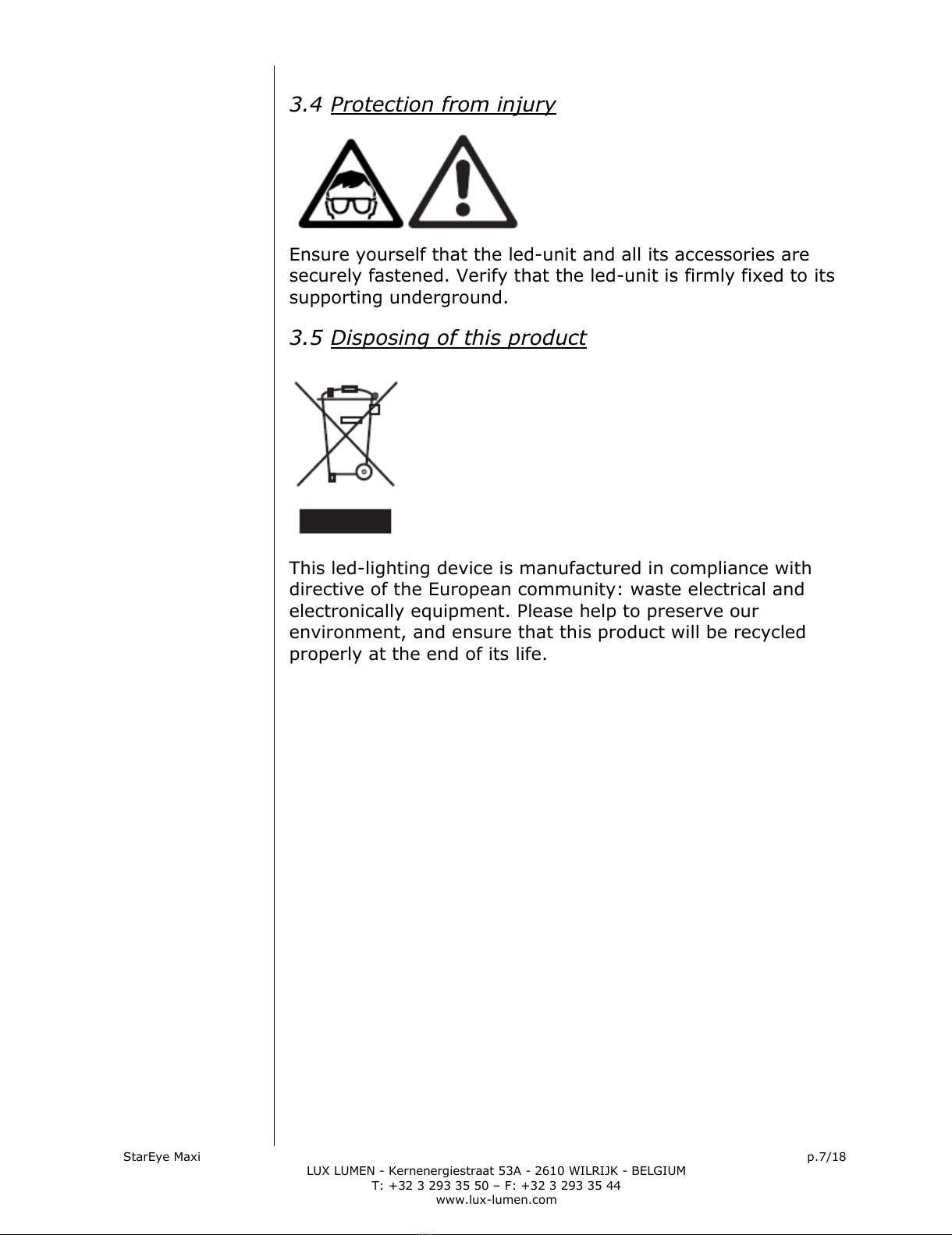

3. Protection from injury
Ensure yourself that the led-unit and all its accessories are
securely fastened. Verify that the led-unit is firmly fixed to its
supporting underground.
3.5 Disposing of this product
This led-lighting device is manufactured in compliance with
directive of the European community: waste electrical and
electronically equipment. Please help to preserve our
environment, and ensure that this product will be recycled
properly at the end of its life.
All manuals and user guides at all-guides.com

StarEye Maxi p.8/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com
4 Physical installation
Thank you for selecting this StarEye Maxi led-unit as best
solution in your setup.
Warning! Read the safety precautions in this manual before
integrating this led-unit into your installation.
Installation must be carried out by qualified professionals only.
Assure yourself that there is sufficient and unrestricted air flow
around the StarEye Maxi led-unit.
.1 Unpacking
The following items are included in your package:
•LED fixture, complete with focussing bracket.
•Protective antistatic packaging, with short form manual
.2 Location and orientation
This led-unit can be used in all directions.
.3 Mounting
Surface mounting
The StarEye Maxi led-unit can be mounted on all kind of non
combustible materials, but take in consideration that the module
can have a Tc of approx 30 °C higher as ambient temperature.
In case of problems, or doubts, please contact your point of sale.
All manuals and user guides at all-guides.com

StarEye Maxi p.9/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com

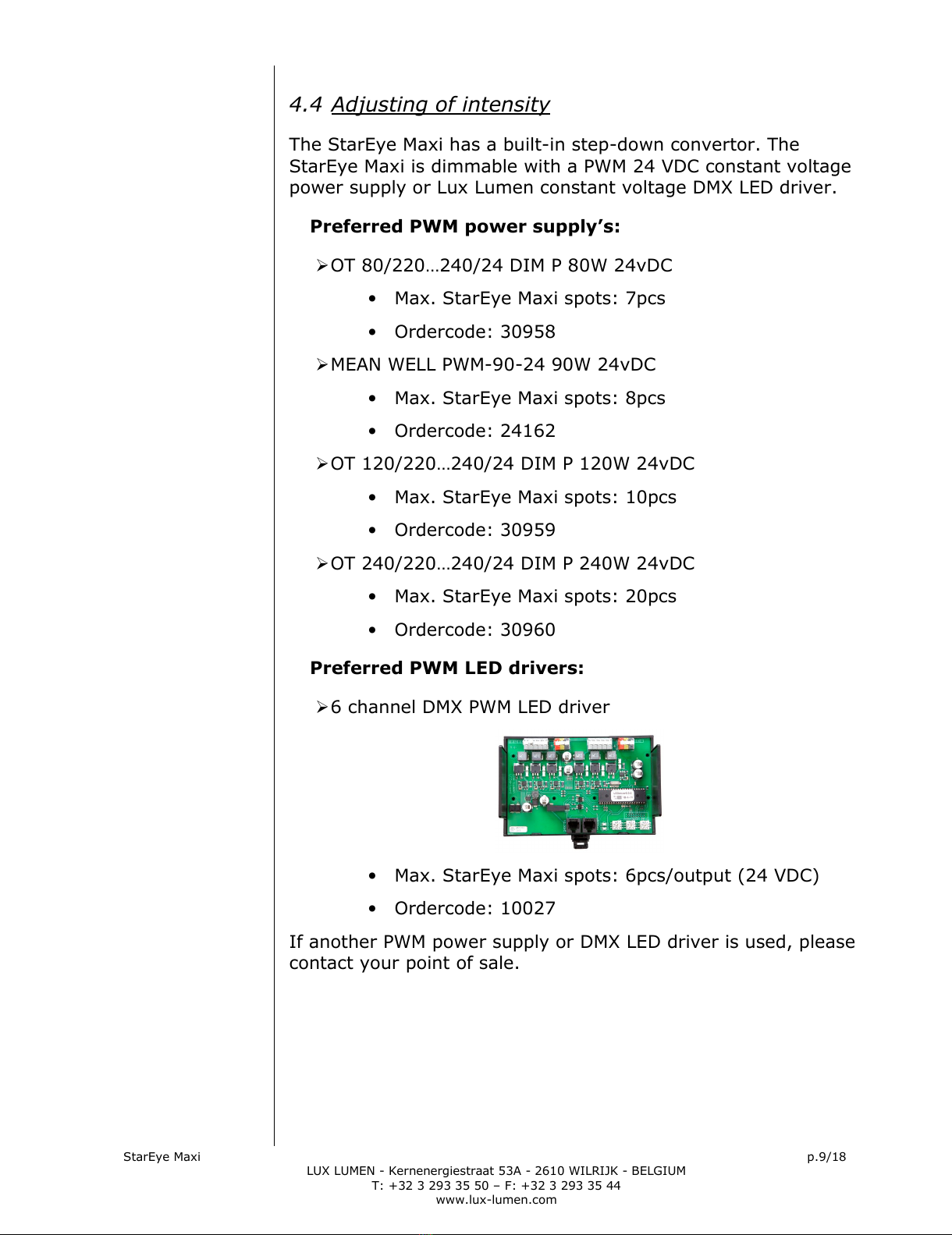

. Adjusting of intensity
The StarEye Maxi has a built-in step-down convertor. The
StarEye Maxi is dimmable with a PWM 24 VDC constant voltage
power supply or Lux Lumen constant voltage DMX LED driver.
Preferred PWM power supply’s:
OT 80/220…240/24 DIM P 80W 24vDC
•Max. StarEye Maxi spots: 7pcs
•Ordercode: 30958
MEAN WELL PWM-90-24 90W 24vDC
•Max. StarEye Maxi spots: 8pcs
•Ordercode: 24162
OT 120/220…240/24 DIM P 120W 24vDC
•Max. StarEye Maxi spots: 10pcs
•Ordercode: 30959
OT 240/220…240/24 DIM P 240W 24vDC
•Max. StarEye Maxi spots: 20pcs
•Ordercode: 30960
Preferred PWM LED drivers:
6 channel DMX PWM LED driver
•Max. StarEye Maxi spots: 6pcs/output (24 VDC)
•Ordercode: 10027
If another PWM power supply or DMX LED driver is used, please
contact your point of sale.
All manuals and user guides at all-guides.com

StarEye Maxi p.10/18
LUX LUMEN - ernenergiestraat 53A - 2610 WILRIJ - BELGIUM
T: [phone] – F: [phone]
www.lux-lumen.com
5 External connections
5.1 DC power input
Safety precautions
Never connect the live power on the input terminals of the
StarEye Maxi led-unit!
In case of doubts, contact your point of sale.
Polarity
The StarEye Maxi led-unit is polarity sensitive. So observe
polarity and cabling:
•Red inner conductor = positive
•Black inner conductor = negative
Improper connection, might damage the StarEye Maxi led-unit
and power supply permanently. In case of inversed polarity, the
warranty is void.
Power supply: Rated voltage
The rated input voltage range of the StarEye LED fixture is 24
volt DC. Due to the use of a step down-convertor, integrated in
the housing, a highly efficient system is created.
Cable
Please ensure yourself that the cable end is watertight sealed at
the connection. If this is not properly done, water can pass
through the inner conductors of the cable and damage the
internal electronics of the StarEye Maxi led-unit.
