LUX LUMEN StarEye User manual

StarEye Profile
Gobo projector
High power 45W –cold white
Ordercode: 10686

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.2/25
High Power 45W T: [phone] –www.lux-lumen.com
CONTENTS
1PICTURE.....................................................................................3
1.1 GENERAL....................................................................................... 3
2DIMENSIONS ...............................................................................4
3SAFETY INFORMATION ...................................................................5
3.1 SYMBOLS ...................................................................................... 5
3.2 PROTECTION FROM ELECTRIC SHOCK ....................................................... 6
3.3 PROTECTIONS FROM FIRE AND BURNS...................................................... 6
3.4 PROTECTION FROM INJURY .................................................................. 7
3.5 DISPOSING OF THIS PRODUCT .............................................................. 7
4PHYSICAL INSTALLATION................................................................8
4.1 UNPACKING.................................................................................... 8
4.2 MOUNTING..................................................................................... 8
4.3 LOCATION AND ORIENTATION ............................................................... 8
5EXTERNAL CONNECTIONS...............................................................9
5.1 DC POWER INPUT ............................................................................. 9
6EMC AND SAFETY REQUIREMENTS ..................................................10
7INSTALLATION SETUP ..................................................................11
7.1 SPECIFICATION.............................................................................. 11
8SERVICE AND MAINTENANCE .........................................................12
8.1 SAFETY PRECAUTIONS ...................................................................... 12
8.2 CLEANING.................................................................................... 12
8.3 GOBO CHANGING ........................................................................... 13
8.4 CHANGING ZOOM AND FOCUS:............................................................ 19
9WARRANTY ...............................................................................22
9.1 APPLICATION OF WARRANTY............................................................... 22
9.2 RMA PROCEDURE........................................................................... 24
10 LIST OF USED ABBREVIATIONS .......................................................25

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.3/25
High Power 45W T: [phone] –www.lux-lumen.com
1Picture
1.1 General

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.4/25
High Power 45W T: [phone] –www.lux-lumen.com
2Dimensions
The dimensions of the main LED housing, a cylindrical aluminum lathed part,
are Ø115mm with 301 mm length.
The height with bracket is max. 178 mm.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.5/25
High Power 45W T: [phone] –www.lux-lumen.com
3Safety information
Before installing, powering up, or servicing the StarEye Profile LED-unit, it is
highly recommended that you read this manual and ensure yourself that
you completely understand its content. Observe the safety precautions in
this manual. Install and operate the LED-unit only as described in this
manual, and in conformity with local regulations. If you have any questions
how to operate this product safely, please contact your point of sale.
3.1 Symbols
Following symbols are used to identify important safety information on the
product and in this manual.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.6/25
High Power 45W T: [phone] –www.lux-lumen.com
3.2 Protection from electric shock
Although this device itself does not operate with dangerous voltages, the
installation in which is intended to be used, can contain dangerous voltages.
Shut down the power of the complete installation before carrying out any
installation, or maintenance work.
Use only AC to DC power sources, suitable for the application, and conform
to local regulations. Please ensure yourself that the AC to DC power supply
can deliver the rated current requirements of the installation.
If any cable, seal or housing is damaged, cracked, or reformed, disconnect
the power of the installation immediately.
For any additional servicing, not described in this manual, please contact
your point of sale.
3.3 Protections from fire and burns
Do not operate this LED-unit if ambient temperature is over 40 °C (104 °F).
Please ensure yourself that sufficient ventilation around the LED-unit is
possible.
It might be necessary to allow the LED-unit to cool down for 5 minutes,
before servicing.
Do not modify the LED fixture, in a way, not described in this manual.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.7/25
High Power 45W T: [phone] –www.lux-lumen.com
3.4 Protection from injury
Ensure yourself that the LED-unit and all its accessories are securely
fastened. Verify that the LED-unit is firmly fixed to its supporting
underground.
3.5 Disposing of this product
This LED-lighting device is manufactured in compliance with directive of the
European community: waste electrical and electronically equipment. Please
help to preserve our environment and ensure that this product will be
recycled properly at the end of its life.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.8/25
High Power 45W T: [phone] –www.lux-lumen.com
4Physical installation
Thank you for selecting this StarEye Profile LED-unit as best solution in your
setup.
Warning! Read the safety precautions in this manual before integrating this
LED-unit into your installation.
Installation must be carried out by qualified professionals only.
Assure yourself that there is sufficient and unrestricted air flow around the
StarEye Profile LED-unit.
4.1 Unpacking
The following items are included in your package:
•LED fixture with focussing bracket included.
•Protective antistatic packaging, with short form manual
4.2 Mounting
The StarEye Profile LED-unit can be mounted on all kind of non-combustible
materials but take in consideration that the module can have a Tc of
approx. 30 °C higher as ambient temperature.
In case of problems, or doubts, please contact your point of sale.
4.3 Location and orientation
This LED-unit can be used in all directions.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.9/25
High Power 45W T: [phone] –www.lux-lumen.com
5External connections
5.1 DC power input
Safety precautions
Never connect the live power on the input terminals of the StarEye Profile
LED-unit!
In case of doubts, contact your point of sale.
Polarity
The StarEye Profile LED-unit is polarity sensitive. So observe polarity and
cabling:
•Inner conductor number 1 = positive
•Inner conductor number 2 = negative
Improper connection might damage the StarEye Profile LED-unit and power
supply permanently. In case of inversed polarity, the warranty is void.
Power supply: Rated voltage
The requested input is 12 volt DC. Never apply a higher voltage to the units.
This will damage the units permanently. The power supply should be able to
provide at least 50 watt.
Cable
Please ensure yourself that the cable end is watertight sealed at the
connection. If this is not properly done, water can pass through the inner
conductors of the cable and damage the internal electronics of the StarEye
Profile LED-unit.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.10/25
High Power 45W T: [phone] –www.lux-lumen.com
6EMC and safety requirements
The StarEye Profile LED-unit is fully compliant to the LVD and EMC directive
of the European council, if used in a properly designed setup.
The StarEye Profile LED-unit is only intended to be used in lighting
applications, and as such, the complete assembly of LED-unit and power
supply needs to be fully compliant with the harmonized standards:
LVD requirements of the power supply
•EN 60598: general requirements of lighting equipment.
EMC requirements of the power supply
Immunity according to:
•EN 61547:2009 (General EMC immunity requirements lighting eq.)
•EN 61000-4-1:2006 (General immunity testing techniques)
•EN 61000-4-2:2008 (ESD immunity test)
•EN 61000-4-3:2006 + A1:2007 (Radiated immunity test)
•EN 61000-4-4:2004 (Fast transients and burst immunity)
•EN 61000-4-5:2005 (Surge immunity test)
•EN 61000-4-6:2008 (Conducted immunity test)
•EN 61000-4-8:1993 (Magnetic field immunity test)
•EN 61000-4-11:2004 (Voltage variations immunity test)
•EN 61000-6-1:2005 (Generic standards for immunity)
Emission according to:
•EN 61000-3-2:2005+A1:2008+A2:2009 (Harmonics emission
test<16A)
•EN 61000-3-3:2008 (Flicker+ voltage changes limits< 16A)
•EN 55015:2006+A2:2009 (Conducted + radiated emission lighting
equipment)
To achieve this compliance, a proper power supply must be supplied. In
case of doubts, contact your point of sale.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.11/25
High Power 45W T: [phone] –www.lux-lumen.com
7Installation setup
7.1 Specification
The StarEye Profile LED-unit is an efficient solution for gobo projection.
It is possible to use a glass or metal gobo to project an image. The light
beam angle can be manipulated with the position of the lenses in the
projector.
The ingress protection of the StarEye Profile LED-unit is IP67.
Although the unit is designed to be used in outdoor applications, the
StarEye Profile may be used indoor as well.
The housing is made out of anodized aluminum in black finish.
RAL colors are not available.
•Power consumption: 45 watt
•Power voltage: 12V DC
•Weight: 2,95 kg
•Zoom range: 16° - 24°
•Gobo dimension: Ø25mm outer (Ø18mm visible area)
•Light color: Cold White: 6000K, CRI: 80, Efficacy: 43,2lm/W

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.12/25
High Power 45W T: [phone] –www.lux-lumen.com
8Service and maintenance
8.1 Safety precautions
Read carefully the safety information in this manual. Lock out the power on
the entire system and allow all electronic devices to discharge, and cool
down, before executing any service or maintenance.
8.2 Cleaning
The StarEye Profile LED-unit itself
Extensive dirt, and particle build-up degrades performance, may cause
overheating can result in damaged LED-unit and power supplies. Damage
caused by inadequate cleaning or maintenance, is not covered by the
product warranty.
Never use solvents to clean the outer housing of the unit.
Never use water, or wet cloth.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.13/25
High Power 45W T: [phone] –www.lux-lumen.com
8.3 Gobo changing
The gobo must have a diameter of 25mm with a visible area of 18mm. The
gobo material can be metal or glass.
Gobos available on www.goboland.com.
Step 1:
Screw the front tube cover counterclockwise to remove it from the LED-unit
base.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.14/25
High Power 45W T: [phone] –www.lux-lumen.com

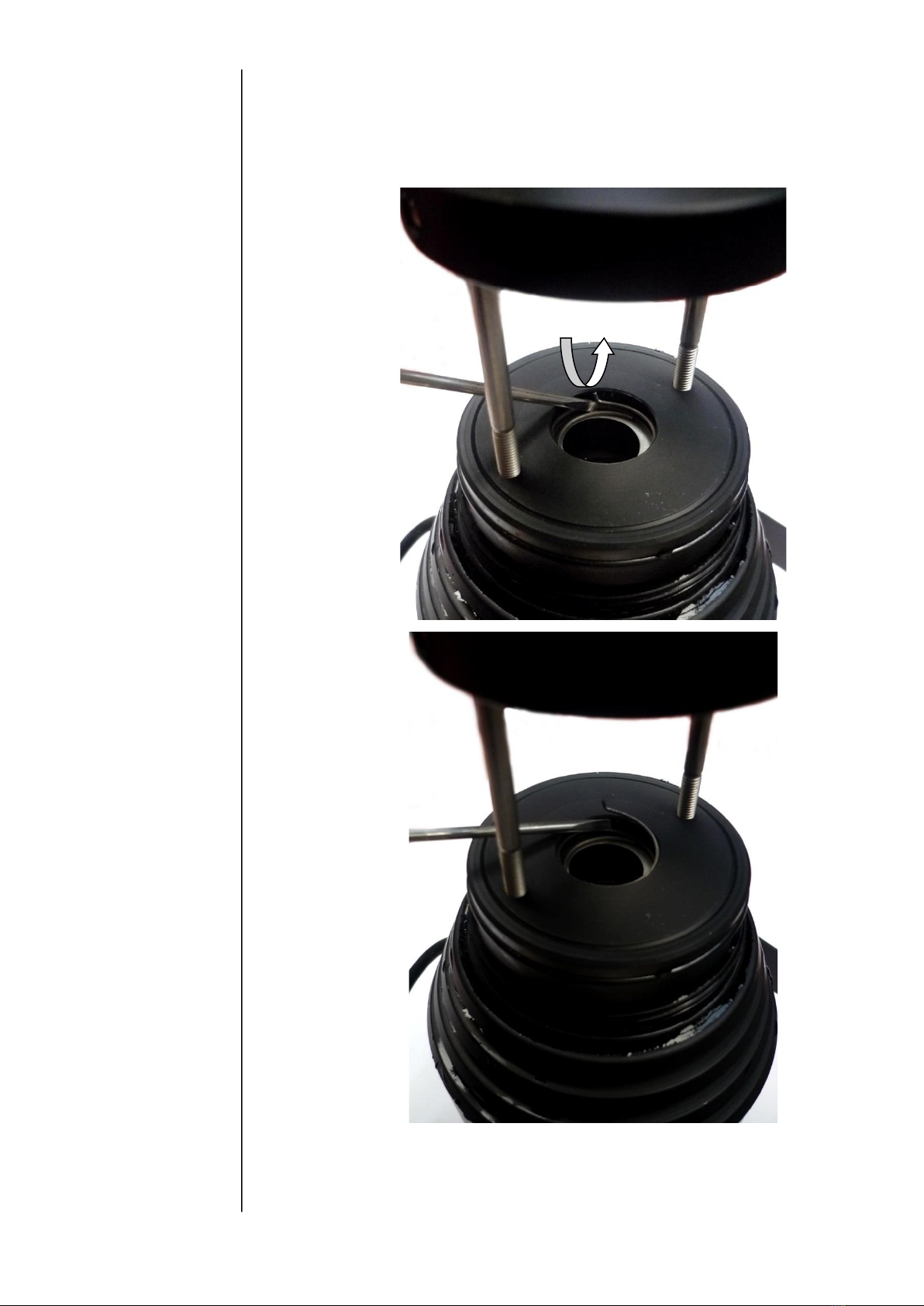

Step 2:
Release the metal spring that holding the gobo down. Use a small flathead
screwdriver. Be careful not damaging the surface of the gobo.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.15/25
High Power 45W T: [phone] –www.lux-lumen.com

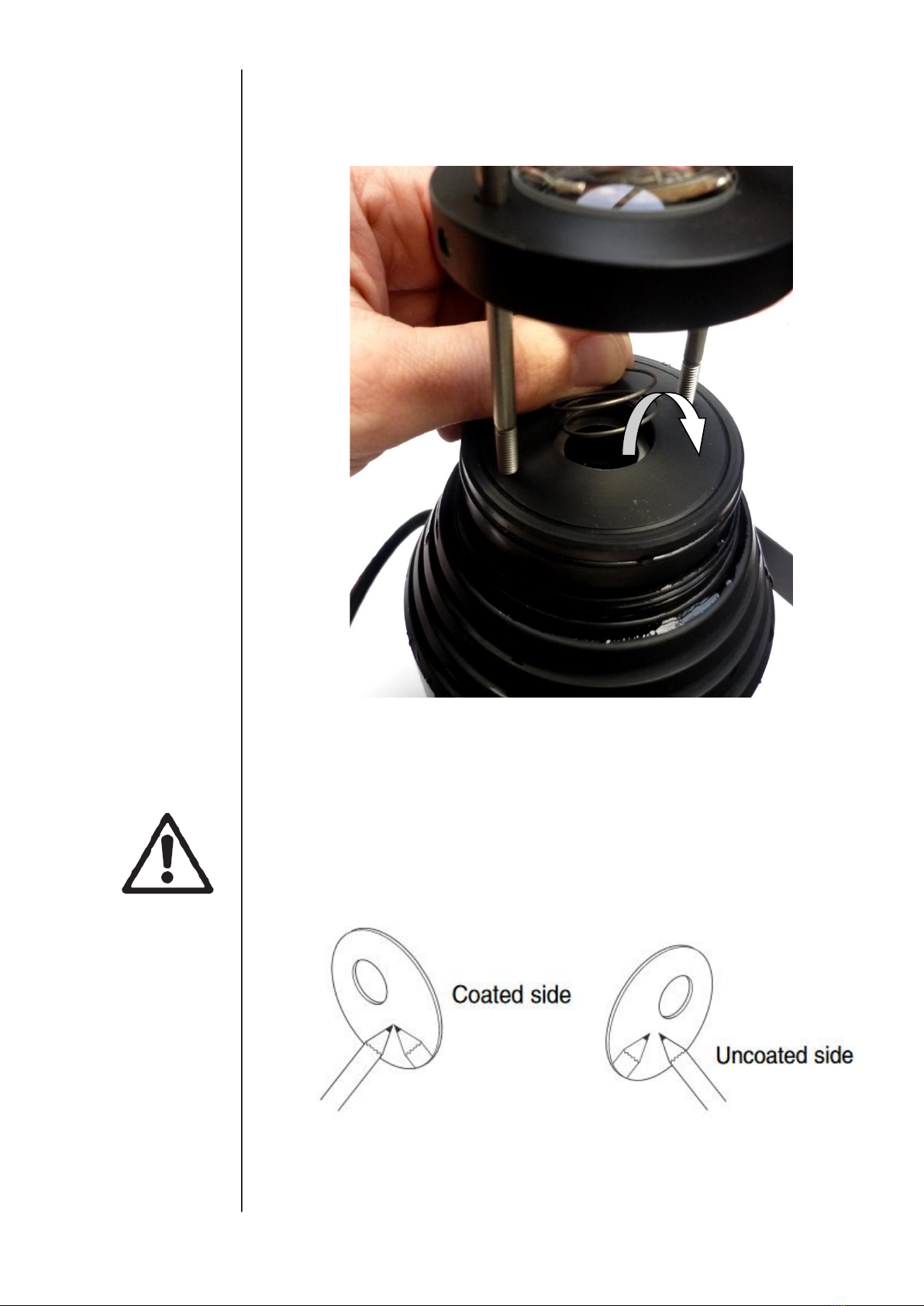

Step 3:
Take the metal spring and the metal gobo protection ring out.
Step 4:
Put the metal or glass gobo in place.
If using a glass gobo, please be sure that the coated side or reflective side
is towards the LED source.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.16/25
High Power 45W T: [phone] –www.lux-lumen.com

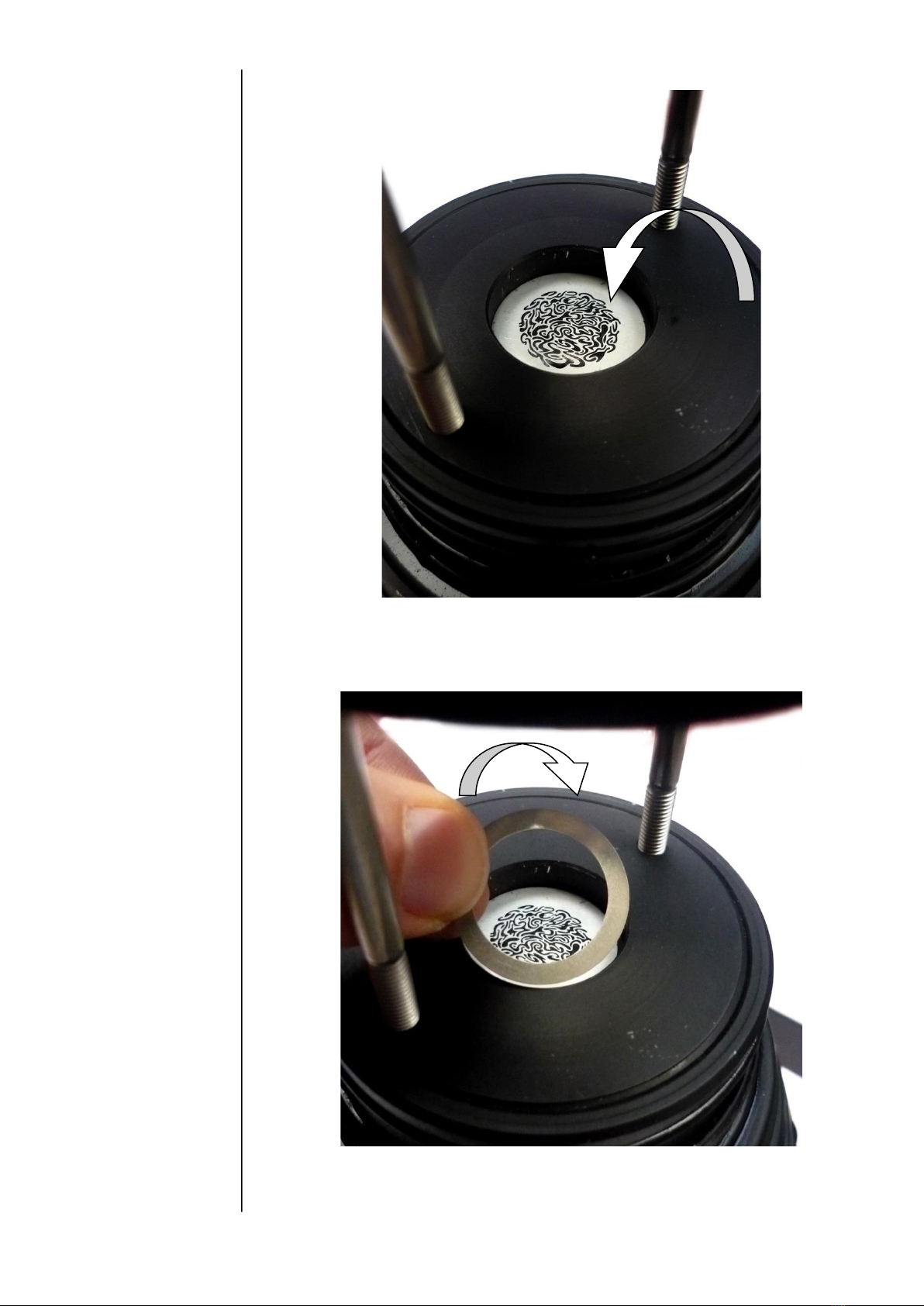

Step 5:
Put the metal gobo protection ring back in place.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.17/25
High Power 45W T: [phone] –www.lux-lumen.com
Step 6:
Put the metal spring back in place. Use a small flathead screwdriver. Be
careful not damaging the surface of the gobo.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.18/25
High Power 45W T: [phone] –www.lux-lumen.com
Step 7:
Slide on the front tube cover and screw it clockwise to mount it on the LED-
unit base.
Screw the tube hand tight and don’t use mechanical tools to fasten the
tube!

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.19/25
High Power 45W T: [phone] –www.lux-lumen.com
8.4 Changing zoom and focus:
The StarEye Profile has a zoom range from 16° to 24°. The desired size of
the beam and focus of the gobo can be selected by moving the two front
lenses.
Step 1:
Screw the front tube cover counterclockwise to remove it from the LED-unit
base.

StarEye Profile LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.20/25
High Power 45W T: [phone] –www.lux-lumen.com

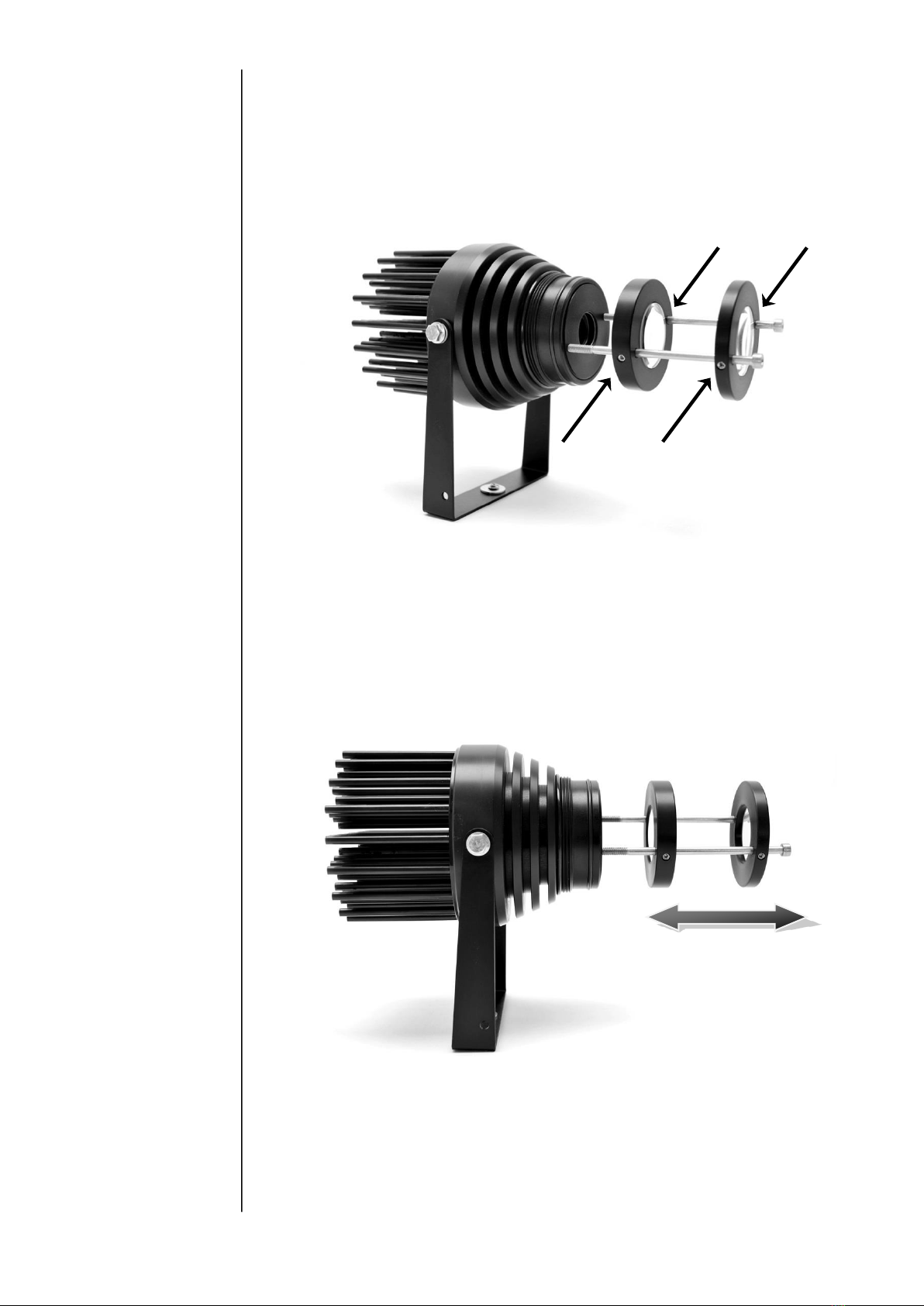

Step 2:
Untighten the two screws of each lens with an Allen key number 2,5.
Step 3:
Move the two lenses to the right position for the desired beam angle and
focus.
