Getting oriented with the instruction manual
We are pleased that you have selected LUXMATE. In order to make it easier to get oriented
with the instruction manual, this chapter provides information on the following topics:
• Target groups
• Structure of the instruction manual
• Additional help
• Characters and symbols used in the instruction manual
Target groups
At LUXMATE, people come first. For this reason, this instruction manual is structured in a
way that caters to the target groups and is objective-oriented. Target groups who will find
helpful information in this instruction manual include:
• Guest (temporary user)
• Permanent User
• Basic Service
• Advanced Service
• Installer
Structure of the instruction manual
Safety precautions Chap. 1, Pg. 1
LUXMATE Chap. 2, Pg. 3
LUXMATE touch panel Chap. 3, Pg. 7
Configuring user profiles Chap. 4, Pg. 19
Guest Chap. 5, Pg. 21
Permanent User Chap. 6, Pg. 25
Basic Service Chap. 7, Pg. 33
Advanced Service Chap. 8, Pg. 35
Installer Chap. 9, Pg. 44
Software terms App. A, Pg. 47
Menu App. B, Pg. 49
Symbols App. C, Pg. 51
Index App. D, Pg. 56
The objective-oriented actions which are to be carried out are located at the centre of the
instruction manual. Several actions are grouped together in a chapter for each target group
and are labeled with the name of the target group.

english
Descriptions form the outer sections of the instruction manual. They are intended to help all
target groups get better aquainted with LUXMATE and the LUXMATE touch panel. Descriptions
of symbols and terms are provided. Several action objectives are grouped together based on
the user profile in the LUXMATE touch panel. In Chap. 3.6, Pg. 16 (Objectives and user profiles),
you can find a description of the objectives and the corresponding user profile.
Cross references in the descriptions direct you to the relevant actions.
Additional help
More precise information regarding the design and functioning of your LUXMATE system can
be found in our product and system documentation or in the instruction manuals supplied with
the system.
If you have any specific questions, please get in touch with your contract sales office.
General information on our products can be obtained on our homepage www.luxmate.com,
from the LUXMATE Infoline [phone] or per e-mail under [email protected].
You can call up > information < on the LUXMATE touch panel in order to keep the most
important actions fresh in mind. The > Information < button is introduced in Chap. 3.4, Pg. 11
(Selection and setting level).
Characters and symbols used in the instruction manual
The following characters and symbols are used in this instruction manual:
For procedures which consist of a single action, a appears in front of the action text.
For procedures consisting of more than one action, each action is numbered.
= After several actions you will find a result statement for the action. Such result state-
ments are marked by a = symbol at the beginning of the line.
— Prerequisites which must be checked prior to any action have been marked with the
— symbol.
Information is indicated by the symbol.
In addition, this text is located on a gray field.
!
Warnings are marked with the
!
symbol. The warnings encompass the source of the
danger, the consequence of the danger as well as corresponding action instructions. In
addition, this text is located on a gray field.

english
Table of contents
1 Safety precautions
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 -2
2 LUXMATE
2.1 LUXMATE philosophy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 LUXMATE scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 LUXMATE time control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4 LUXMATE sequence control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.5 LUXMATE daylight-dependent control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.6 LUXMATE addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.7 LUXMATE equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 LUXMATE touch panel
3.1 Advantages and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9
3.3 Display, button, approachment sensor and LED indicator . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Selection and setting level LM-CPO, LM-MPO, LM-CPA, LM-MPA . . . . . . . . . . . . . . . . 11 - 12
3.5 Selection Level and Multiroom Level - LM-XPO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 15
3.6 Objectives and user profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 - 17
4 Configuring user profiles
4.1 Determining user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 Enabling user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 Changing password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5 Guest
5.1 Switching on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2 Selecting > Come < or > Go < . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 Calling up scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4 Setting units or groups temporarily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5 Lock/Enable Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Permanent User
6.1 Setting scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2 Setting scenes for Come and Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.3 Setting sequence for scenes on selection level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.4 Add or Delete Scenes (Permanent User) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.5 Configuring language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.6 Configuring display and LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.7 Configuring colour palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.8 Configuring sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.9 Setting display of units or groups on setting level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.10 Setting display of texts on selection and setting level . . . . . . . . . . . . . . . . . . . . . . . . . . 31

english
7 Basic Service
7.1 Setting display of time, date or temperature on selection level . . . . . . . . . . . . . . . . . . 33
8 Advanced Service
8.1 Configuring address of LUXMATE touch panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 Selecting Room for Multiroom Operation - LM-XPO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.3 Configuring addresses of outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.4 Configuring addresses of control units and inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.5 Configuring symbol, name and address of outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.6 Configuring groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.7 Configuring scenes (Advanced Service) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.8 Setting time control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
8.9 Setting scene sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9 Installer
9.1 Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 - 46
9.2 Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Appendix
A Software terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 - 48
B Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 - 50
C Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 - 55
D Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 - 58

!
!
!
!
!
!
1
english
1 Safety precautions
Vorsicht
Danger of damage by sharp objects
Operation of the unit is hindered.
Use a finger to touch the display surface.
Caution
Danger of damage by harsh cleaning materials
Operation of the unit is hindered.
Clean the display surface with a soft, lint-free cloth.
Caution
Danger of damage by using accessories from other manufacturers
This invalidates the warrantee.
Use only LUXMATE accessories.
Caution
Danger of damage by exposure to sunlight
Operation of the unit is hindered.
Protect the unit from direct sunlight..
Caution
Danger of damage by condensation
Operation of the unit is hindered.
Wait until the unit has reached room temperature and has dried out.
Start up the unit.
Caution
Danger of damage by humidity
Operation of the unit is hindered.
Use the unit in dry rooms only.
Protect the unit from humidity.
Safety precautions

!
!
!
2
english
Caution
Danger of damage by extreme temperature (too low or too high)
Operation of the unit is hindered.
Only use the unit when the ambient temperature lies between 0 °C and +50 °C.
The ambient temperature is to be kept between –20 °C and +50 °C.
Danger
Danger to life and limb by electrical current
Causes serious injuries or death.
Do not open the unit.
Have the unit repaired by authorised professionals only.
Switch off the power to the LUXMATE touch panel before installing it.
Warning
Danger of injury by leaking liquid or fumes from a damaged display
Causes serious injuries.
Protect yourself from the leaking liquid or fumes.
Remove the liquid from your body immediately using water and soap.
Safety precautions

3
english
2 LUXMATE
This description contains information on the following topics. Cross references in the
description direct you to the relevant actions.
• LUXMATE philosophy
• LUXMATE scenes
• LUXMATE time control
• LUXMATE sequence control
• LUXMATE daylight-dependent control
• LUXMATE addressing
• LUXMATE equipment
2.1 LUXMATE philosophy
> Creating unique environments using light < is LUXMATE’s objective. Light and glare are the
deciding factors of workspace design, as they have a direct effect on people’s well being, their
ability to concentrate and their efficiency. Through the use of innovative approaches, the light
and room management from LUXMATE puts people first. Special emphasis is placed on the
ergonomically and energetically-optimised room function control.
With easy-to-use, intuitive operating elements, the room scenario is adapted easily and
effectively to individual preferences and differing workspace arrangements.
2.2 LUXMATE scenes
Our experiences of the environment in which we live are sensory-based. The warm light of a
sunset effects us differently than the gray sky on a rainy day. Conditions in our environment
effect our personal mood. Our respective personal mood determines the success of our
activities. LUXMATE’s objective is to always create the right scene in a room and thereby a
suitable personal mood.
The scene in a room is set by the natural environmental conditions (weather, time) and the
LUXMATE equipment (Chap. 2.7, Pg. 6). Brightness, light balance and the position of blinds all
effect people in a room as much as opened windows, temperature and air exchange.
The LUXMATE equipment can be optimised for each activity and type of room usage. The
respective composition is then saved as a LUXMATE scene. Each LUXMATE output continually
saves its value for this scene. This scene can now be called up from any LUXMATE touch panel
in the room. Up to 20 scenes can be set (Chap. 6.1, Pg. 25).
You can also deviate from these scenes and adjust the LUXMATE equipment as desired. To
set the LUXMATE equipment, carry out the actions listed in Chap. 5.4, Pg. 22 (Setting units or
groups temporarily).
LUXMATE

english
2.3 LUXMATE time control
The time control function monitors and controls the change of scenes, time, date and the
building-wide or room-wide switching times (e.g. for the illumination). You set the time at which
a scene change is to occur. For example, this could be the dimming out of the illumination
at the end of the work day or the lowering of the glare protection at night for visibility and
climate protection reasons.
Only one LM-ZSM time control may be connected in a LUXMATE system at any time. If a Room
Automation Computer LRA is used, both it and the time management software ZM replace the
LM-ZSM time control.
The configuration of the changes of scenes is possible with LM-ZSM as from Version 3.30.
You can link each LUXMATE scene to an automatic time control. For this purpose, carry out
the actions in Chap. 8.8, Pg. 40 (Setting time control).
2.4 LUXMATE sequence control
Sequence control regulates the LUXMATE sequences (scene sequences). A scene sequence can
be called up with the initial scene or started automatically at a specified time. An automatic
stop of the scene sequence at a specified time or after the last run can also be set.
The sequence of scenes (steps) which are called up to follow one another can be set arbitrarily.
The fade speeds and delay (time delta) between the individual scenes which are called up can
be set. The delay lies between 0.1 seconds and 99 minutes 59 seconds. Random delays can also
be set.
For example, sequences can be devised for a show window which direct attention to a certain
product via the effective use of light. Another example would be barely detectable scene
sequences in an office room which increase the motivation of the people in the room. The
classic staircase light control can also be attained with sequence control.
The configuration of sequences is possible with LM-ZSQ as from Version 1.30.
Several LM-ZSQ sequence controls can be used in a LUXMATE system. When programming
sequences, however, ensure that only one sequence control unit is connected to the LUXMATE
bus.
To set the LUXMATE sequence control, carry out the actions listed in Chap. 8.9, Pg. 41 (Setting
scene sequences).
LUXMATE terminology
LUXMATE sequence = scene sequence
4 LUXMATE

english
2.5 LUXMATE daylight-dependent control
Static scenes can be overridden with a daylight-dependent control in a building equipped with
LUXMATE technology. This control task is taken over either by a daylight control (e.g. LM-2TL,
LM-TLS or LM-TLX) or a Room Automation Computer LRA. The Room Automation Computer
LRA gathers information about the outside-light situation using a daylight measuring head. In
both situations, additional options for optimum light control are available to the user.
2.6 LUXMATE addressing
It is advantageous to prepare a room-addressing diagram before operating the LUXMATE
units. The room-addressing diagram specifies all units in a room. Each room possesses a
number of LUXMATE units with specified properties. The physical locations of the inputs and
outputs should be entered in this room-addressing diagram.
During addressing, all LUXMATE outputs indicate whether they are being addressed. For
example, the relevant addressed luminary would go to a 100% dim setting. The blind control
closes or opens the blinds, for example. The screen control extends or retracts the screen.
This allows easy visual inspection of the allocation of new addresses and existing assigned
addresses.
The LED on the respective unit acknowledges daylight controls with unused addressable
outputs or other LUXMATE units which are not directly detectable as being addressed.
Each LUXMATE output in a room is addressed with the room address (R), group address (G)
and individual address (A). This information is set in the respective LUXMATE output. This
information can be changed or adapted later.
The procedure for starting addressing is contained in Chap. 8.3, Pg. 36 (Configuring addresses
of outputs).
LUXMATE terminology
LUXMATE group address = address of the group = address of the unit group
LUXMATE terminology
LUXMATE individual address = bus address
5 LUXMATE

6
english
2.7 LUXMATE equipment
For a LUXMATE output which controls blinds, the LUXMATE equipment > blinds position <
(closing height) or the LUXMATE equipment > angle of slats < (incline) can be set, for example.
Each output of a LUXMATE unit can therefore support one or more items of LUXMATE
equipment under one and the same LUXMATE address.
Purposes for setting items of LUXMATE equipment are contained in Chap. 6.1, Pg. 25 (Setting
scenes), for example.
LUXMATE terminology
LUXMATE equipment = service type = actuator type
LUXMATE

7
english
3 LUXMATE touch panel
This description contains information on the following topics. Cross references in the
description direct you to the relevant actions.
• Advantages and functions
• Technical data
• Display, button, approachment sensor and LED indicator
• Selection and setting level
• Objectives and user profiles
• Operating Several Rooms Together (LM-XPO)
3.1 Advantages and functions
Environmental conditions in a room can be quickly and easily changed using the LUXMATE
touch panel. Not only are the lighting conditions inside the room perfectly adjusted to one
another; the entry of light from outside can also be controlled. All of the factors in a room
which effect your activity and well being can be optimised.
For example, you can use the following functions:
• Switching on display illumination (Chap. 6.6, Pg. 28)
• Switching on light (Chap. 5.1, Pg. 21)
• Selecting > Come < or > Go < (Chap. 5.2, Pg. 21)
• Calling up scenes (Chap. 5.3, Pg. 22)
• Setting units or groups temporarily (Chap. 5.4, Pg. 22)
Display, button, approachment sensor and LED indicator (Chap. 3.3, Pg. 10) provide for easy
operation.
You satisfy your objectives intuitively with the symbols and short texts of the selection and
setting level (Chap. 3.4, Pg. 11). You simply touch the desired options window or select from
the lists.
The concept of the LUXMATE touch panel is oriented toward the target groups and objectives.
The basis of design and structure of the software in the LUXMATE touch panel are the
objectives which you would like to satisfy with the LUXMATE touch panel. Your action
objectives are the prerequisite for the conception of the individual screens. Navigation is
oriented to your courses of action. The objectives of your actions are also located in the menu
of the LUXMATE touch panel. Several action objectives are grouped together for user profiles.
A description of the user profiles is contained in Chap. 3.6, Pg. 16 (Objectives and user profiles).
LUXMATE touch panel

english

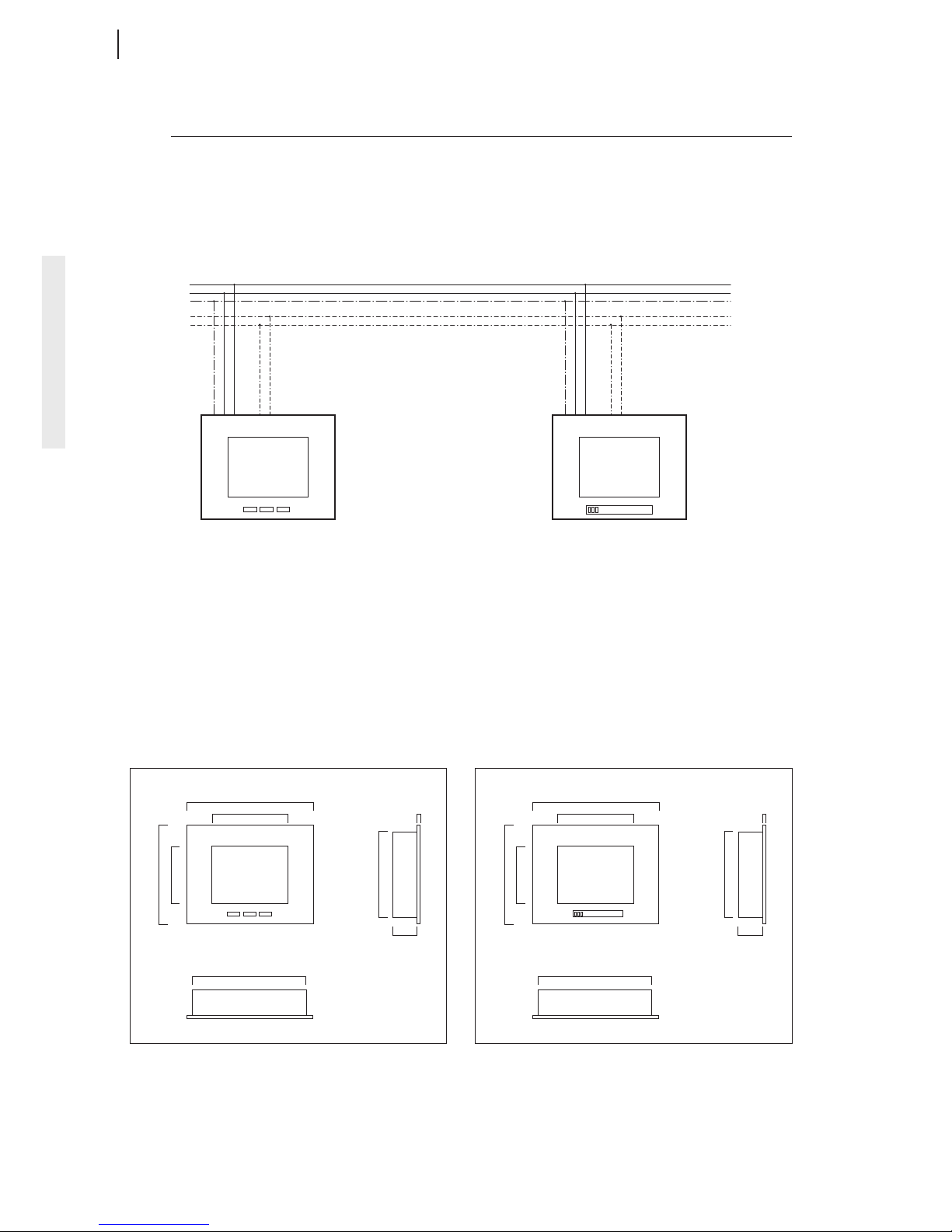

3.2 Technical data
Connections
Dimensions: LM-CPO, LM-MPO, LM-XPO Dimensions: LM-CPA, LM-MPA
8 LUXMATE touch panel
L
N
PE
B1
B2
230/240V AC, 50/60Hz
15V
Netz/
Mains/
Réseau/
Rete/
Red/
Net
LUXMATE-Bus
Bus LUXMATE
B2 B1LNPE
LM-CPO
LM-MPO
LM-XPO
B2 B1LNPE
LM-CPA
LM-MPA
45mm
120mm 5mm
200mm
180mm
90mm
135mm
156mm
45mm
120mm 5mm
200mm
180mm
90mm
135mm
156mm

english
Nominal voltage 230/240V AC, 50/60Hz
Permiss. input voltage 85 to 265V AC, 47 to 63Hz
Power consumption ca. 11W at 230V AC
Installation in the LUXMATE installation box
MKXP (not included in the scope of
delivery)
item No. 22 154 482
Mains connection three-pin plug with terminal screws
(included in the scope of delivery)
0,2 to 1,5 mm2
Bus connection two-pin plug with terminal screws
(included in the scope of delivery)
0,2 to 1,5 mm2
Protection type IP 20
Ambient temperature 0 to 50°C
Storage temperature –20 to 50°C
Relative humidity non condensing 20 to 80%
Weight approx. 1,250 g
Display size touch sensitive 5,7"
Display resolution 320 x 240 pixels
Visible area 120 x 90 mm
Additional data
9 LUXMATE touch panel

english
3.3 Display, button, approachment sensor and LED indicator
1 Display
2 Approachment sensor
3 LED indicator
4 > Come/Go < button (only at LM-CPA and LM-MPA)
1. To use the LUXMATE touch panel, touch the display surface. The technical data of the
display is contained in Chap. 3.2, Pg. 8 (Technical data).
2. As soon as you move closer to the approachment sensor, the LUXMATE touch panel
switches the display illumination on. In this manner, you can switch on the display
illumination (Chap. 6.6, Pg. 28).
3. You can select the functions > Come < or > Go < (Chap. 5.2, Pg. 21). The LED indicator
signals the function which is active. It illuminates red if > Go < is active. It illuminates green
if > Come < is active.
4. With the > Come/Go < button, you can select the functions > Come < or > Go < (Chap. 5.2,
Pg. 21).
10 LUXMATE touch panel
1 2 3 4

english
3.4 Selection and setting level
You can switch between two levels. On the selection level, you can call up scenes (Chap. 5.4,
Pg. 18). On the setting level, you can set units or groups temporarily (Chap. 5.5, Pg. 18), for
example.
1 Scenes bar
2 > Date, Time, Temperature < display
3 > Change Level < button
4 > Come/Go < button
1. With the buttons of the Scenes bar, you can call up scenes (Chap. 5.3, Pg. 22).
2. You can set the display of time, date or temperature on selection level (Chap. 7.1, Pg. 33).
3. With the > Change Level < button you switch to the setting level.
4. With the > Come/Go < button, you can select the functions > Come < or > Go < (Chap. 5.2,
Pg. 11).
11 LUXMATE touch panel
1 2 3
4
Selection level

english
1 Scenes bar
2 Room view
3 > Change Level < button
4 > Settings < button
5 > Configuration < button
6 > Information < button
7 > ok < button
8 Equipment bar
1. With the buttons of the Scenes bar, you can call up scenes (Chap. 5.3, Pg. 22).
2. You can set units or groups temporarily (Chap. 5.4, Pg. 22) which are visible in the room
view.
3. With the > Change Level < button you switch to the selection level.
4. With the > Settings < button you call up the > Settings < menu.
5. With the > Configuration < button you call up the > Configuration < menu.
6. With the > Information < button you call up context-sensitive information.
7. With the > ok < button you confirm your settings.
8. With the buttons of the Equipment bar, you can set units or groups temporarily (Chap. 5.4,
Pg. 22).
Setting level
12 LUXMATE touch panel
1 2
3
4
5
6
7
8

13
english
3.5 Selection Level and Multiroom Level - LM-XPO
In the Selection Level you can recall scenes for individual rooms (Section 5.3, page 22) or for
several rooms together.
1 Scenes Bar
2 Display > Date, Time <
3 Button > Change Multiroom Level <
4 Button > Come/Go <
1. Depending on configuration, the buttons on the Scenes Bar can be used to recall scenes
for individual rooms or for several rooms together.
2. You can set the presentation of time, date or temperature in the Selection Level (Section
7.1, page 33).
3. The button > Multiroom Level < switches you to the > Multiroom Control Level < .
4. With the button > Come/Go < you can select the functions > Come < or > Go < (Section 5.2,
page 21).
Several Rooms
Meeting
Overhead
Desk
Computer
more 14 :55
1 3
4
Selection level
2
LUXMATE touch panel
