Luxon Video High Speed Dome Camera User manual

INSTRUCTION MANUAL Ver 1.0
High Speed Dome Camera

Speed Dome Camera Instruction Manual
2/54
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONAL
This lightning flash with arrowhead symbol is intended to alert the user to
the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Device compiles with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including
interference that may cause undesired operations.

Speed Dome Camera Instruction Manual
3/54
Important Safety Guide
1. Read, heed and follow all the Instructions
Read all the safety and operating instructions before using the product.
2. Keep this manual
Keep this manual for reference in future.
3. Attachments / Accessories
Use only the attachments or accessories specified by the manufacturer.
4. Installation
Do not install near any heat resources such as radiators, heat registers, stoves, or other
appratus including amplifiers that product heat. Improperly installed product may fall,
cause serious injury to a child or adult and damage the product.
Do not block any ventilation holes or openings. Install in accordance with the
manufacturer‟s instructions.
Use only with the cart, stand, tripod, bracket, mounting devices, or table specified by
the manufacturer.
Installation should be done only by qualified personnel and conform to all the
instructions by the manufacturer.
Refer all servicing to qualified service personnel.
Unless the product is specifically marked as IP67, more than IP67 or confirmed by the
manufacturer, it is designed for indoor use only and it must not be installed where
exposed to rain and moisture.
Do not load on the product.
Use stainless steel hardware to fasten the mount.
To prevent damage from water leakage when installing a mount outdoors on a roof or
wall, apply sealant properly around holes.
These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other that contained in the
operationg instructions unless you are qualified to do so.
Use only replacement parts specified by the manufacturer.
5. Power source
This product should be operated only from the type of the power source indicated on the
marking label.
NOTICE

Speed Dome Camera Instruction Manual
4/54
Caution
Operating
Before using, make sure that the power supply and others are properly installed.
While operating, if any abnormal condition or malfunction is observed, stop using the
product immediately and then contact your local dealer.
Handling
Do not disassemble or tamper with the parts inside the product.
Do not drop or subject the product to shock and vibration as this can damage the
product.
Care must be taken when you clean the clear dome cover. Especially, scratch and dust
will ruin the quality of the product.
Installation and Storage
Do not install the product in areas of extreme temperature, which exceed the allowable
range.
Avoid installing in humid or dusty places.
Avoid installing in places where radiation is present.
Avoid installing in places where there are strong magnetic fields and electric signals.
Avoid installing in places where the product would be subject to strong vibrations.
NOTICE

Speed Dome Camera Instruction Manual
5/54
①Introduction
Features
7
Package Components
11
Main Part Description
13
②Installation
DIP Switch Setup
14
Installation with Ceiling Mount Bracket
17
Installation with Wall Mount Bracket
18
Wiring and Cabling
19
③Operation
Check Point before Operation
22
Check Points for Preset and Pattern Function before Operation
22
OSD Menu
23
Reserved Preset (Hot Keys)
23
Preset
24
Swing
24
Pattern
25
Group
26
Other Functions
26
OSD Display
28
④OSD Menu
Quick Programming Guide
29
Main Menu
29
Display Setup
30
Privacy Zone Mask Setup
31
Camera Setup
33
Motion Setup
38
Preset Setup
41
Swing Setup
43
Pattern Setup
44
Group Setup
45
System Initialize
48
⑤Specifications
48
Dimension
54
TABLE OF CONTENTS

Speed Dome Camera Instruction Manual
6/54
NOTES:

Speed Dome Camera Instruction Manual
7/54
Features
Powerful Zoom Camera & Setup Options
Image Sensor : 1/4" Double density interline transfer CCD (37T, 33W model)
1/4" Super HAD color CCD (27T, 33T model)
1/4" Interline Transfer CCD (10T model)
Zoom : 27 Optical Zoom, 12 Digital Zoom (27T model)
33 Optical Zoom, 12 Digital Zoom (33T, 33W model)
37 Optical Zoom, 12 Digital Zoom (37T model)
10 Optical Zoom, 10 Digital Zoom (10T model)
 Day & Night, Privacy Mask and WDR (WDR : 37T, 33W models only)
 SNR (Super Noise Reduction) Function
 Various Focus Mode : Auto-Focus, Manual Focus, Semi-Auto Focus
Various Setup Options in OSD Menu.
Powerful Pan/Tilt Functions
MAX. 360/sec High Speed Pan/Tilt Motion
With the Vector Drive Technology, Pan/Tilt motions are accomplished along the
shortest path. As a result, the time to target view is remarkably short and the video on
the monitor is very natural in monitoring.
With the Micro-Stepping Control Technology, the video looks very natural at high
zoom magnification during a jog operation on a controller since the camera can be
controlled by 0.05/sec. Hence it is very easy to make the camera focus on desired
target views at high zoom magnification. Additionally it is easy to make the camera
focus on desired positions with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group, Privacy Mask and More…
MAX. 127 Presets are programmable and each preset can have its own parameter
values independently from the other presets.
For an example, refer to the below table.
Preset No.
White Balance
AutoExposure
•••
Label
Remarks
Preset 1
Case A
Case 3
“ENTRANCE”
Preset 2
Case C
Case 5
“WAREHOUSE”
•••
Preset 95




ReservedforOSDMenu
•••
Preset 128
Case K
Case 9
“TERRACE”
INTRODUCTION
1

Speed Dome Camera Instruction Manual
8/54
MAX. 8 sets of Swing are programmable. This function is that the camera moves
repetitively between two preset positions at programmed speeds.
MAX. 4 Patterns are programmable. This function is that the camera memorizes the
path (mostly curve path) by the joystick of the controller and revives the trajectory
operated by the joystick as closely as possible.
MAX. 8 sets of Group are programmable. This function is that the camera memorizes
the combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern
and/or Swings repetitively. A Group can be combined upto 20 functions with any of
Preset/Pattern/Swing.
MAX. 8 or 4 Privacy Masks are programmable, not to intrude on any other‟s privacy.
(10T model : 4 Privacy Masks)
PTZ(Pan/Tilt/Zoom) Control
With the RS-485 communication connection, MAX. 255 units of cameras can be
connected to a single controller.
Pelco-D or Pelco-P protocols can be selected as a control protocol in the current
firmware version.
OSD(On Screen Display) Menu
OSD menu is provided to display the status of camera and to configure the functions
interactively.
The information such as Camera ID, Pan/Tilt Angle, Direction, Alarm Input and Preset
is displayed on screen.

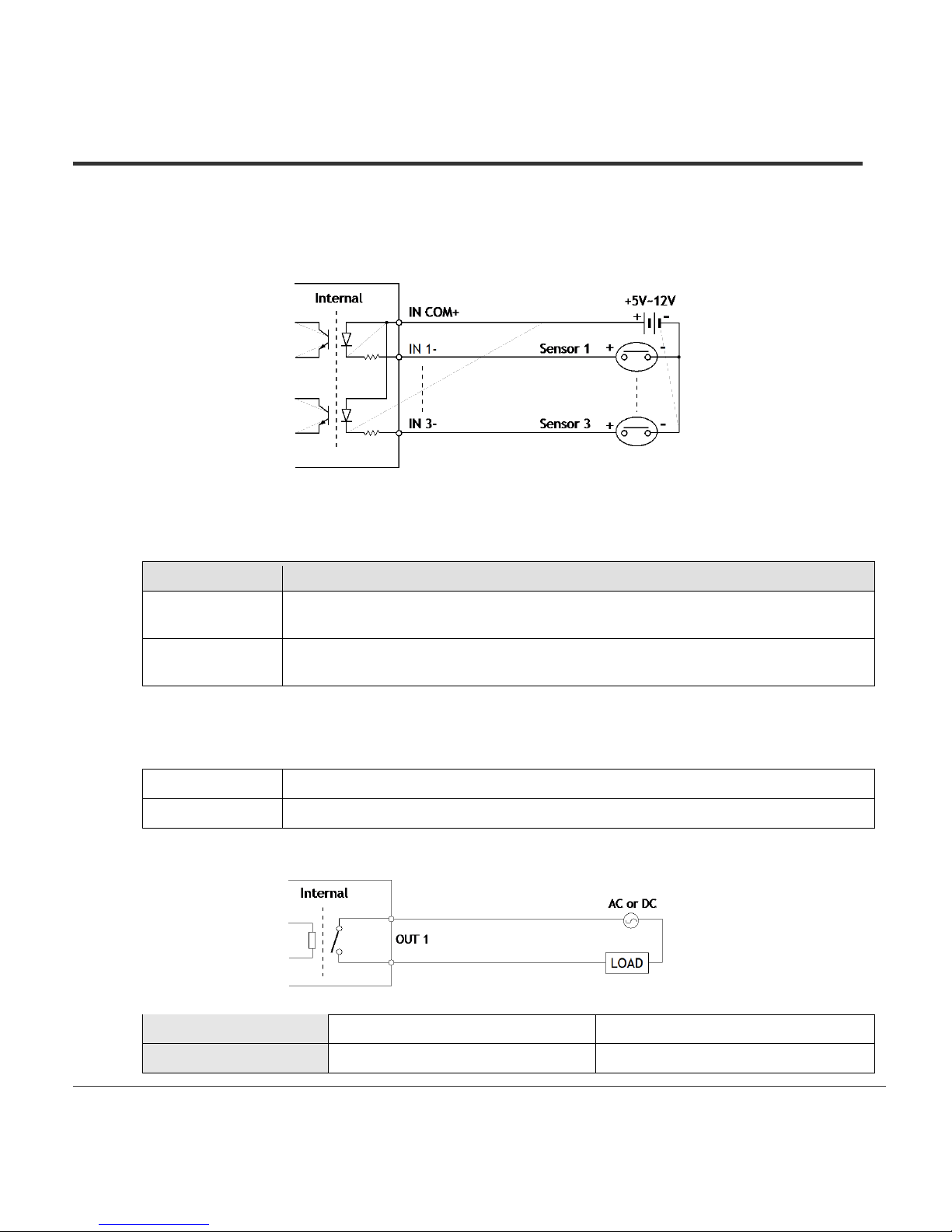

 Alarm In/Out Function(Only for the models which have I/O function)
3 alarm sensor inputs and 1 alarm sensor outputs are available.
Alarm sensor input is decoupled with photo-couplers to avoid external electric noise
and shock perfectly.
Both of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and
the signal range of the sensor input is from DC 5.0V to 12.0V for various applications.
The camera can be set to move to a Preset position or to run functions such as Pattern,
Swing and Group when there are external sensor activations. Also “Post Alarm”
function is possible, which is supposed to activate after user-defined time period and
sequentially in succession to the action by external sensor activations.
Reserved Presets(Hot Keys)
Most camera setup options can be set up easily and directly with the reserved presets
(Hot Keys), without entering into OSD menu. For more information, refer to “Reserved
Presets(Hot Keys)”in this manual.
INTRODUCTION
1

Speed Dome Camera Instruction Manual
9/54
Network Function(Only for the IP addressable models)
Network functions including remote monitoring, bidirectional audio and others are
available through IP based network such as LAN, ADSL/VDSL, and Wireless LAN. For
more information, refer to the separated manual for IP Addressable models.
 Perfect Outdoor Environment Compatibility and Easy Installation
The fans and heaters are built-in in the camera for cold and hot temperature
environment. Also idealistic mechanical design protects the camera from water and
dust. (IP67 when installed properly with wall mount bracket only / Only for outdoor
models)
It is easy to install and repair the camera.
INTRODUCTION
1

Speed Dome Camera Instruction Manual
10/54

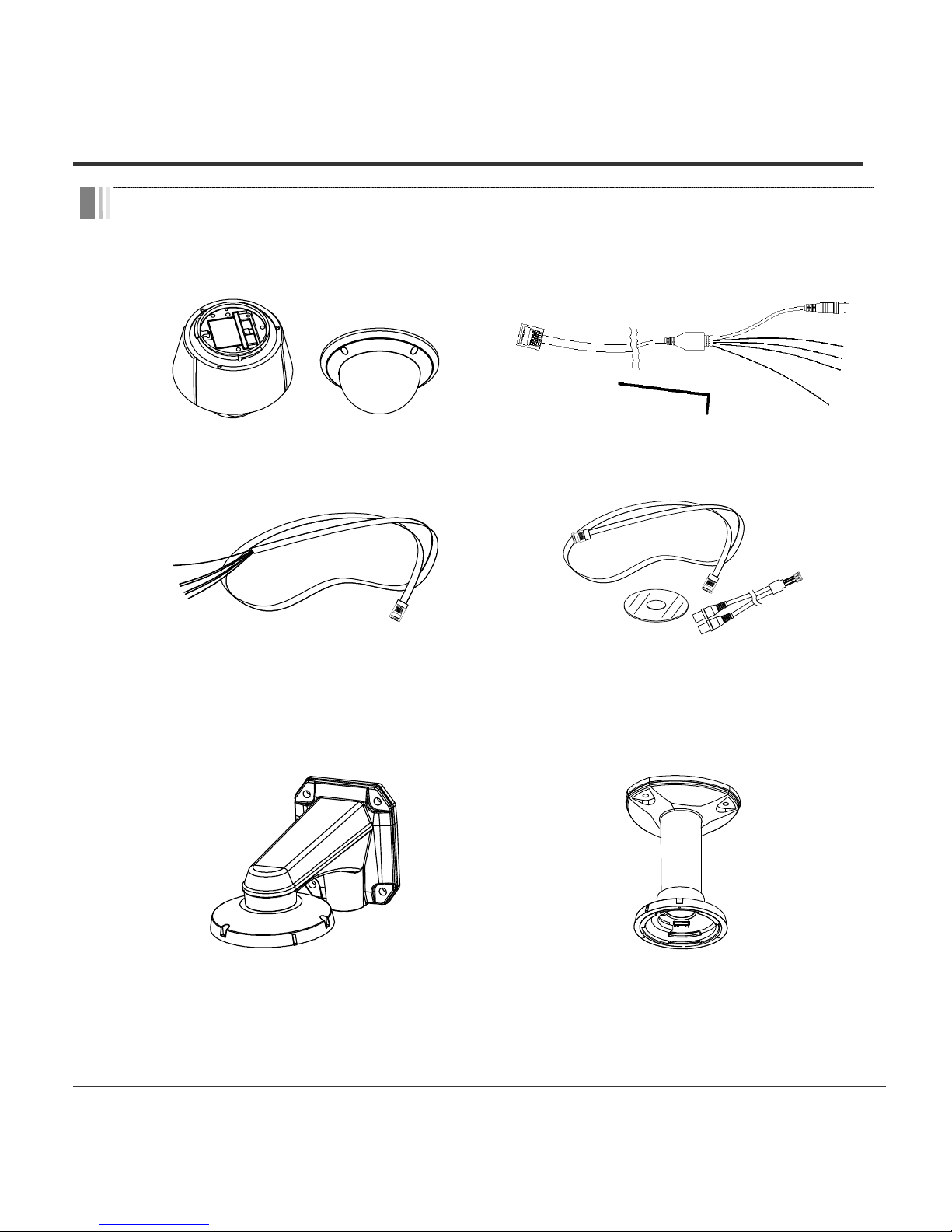

Package Component
Product & Accessories
Main Body &SurfaceMount Bracket
Default Accessories
[MainCable,Wrench]
Accessories forThe Models withAlarmIn/Out
Function [I/OCable]
Accessories forThe IP Addressable Models
[CrossoverLANCable,AudioCable,CD]
Brackets (Optional)
Wall Mount Bracket
[Screws:MachineM515,Hex Lag#1450]
Ceiling MountBracket
[Screws:MachineM515,AnchorBolt3/8"70]
INTRODUCTION
1

Speed Dome Camera Instruction Manual
11/54
Package Component
Product & Accessories
Main Body &SurfaceMount Bracket
Default Accessories
[MainCable,Wrench]
Accessories forThe Models withAlarmIn/Out
Function [I/OCable]
Accessories forThe IP Addressable Models
[CrossoverLANCable,AudioCable,CD]
Brackets (Optional)
Wall Mount Bracket
[Screws:MachineM515,Hex Lag#1450]
Ceiling MountBracket
[Screws:MachineM515,AnchorBolt3/8"70]
INTRODUCTION
1

Speed Dome Camera Instruction Manual
12/54
Main Part Description
DIP Switch
Reset Switch (IP Model)
LAN Port (IP Model)
Audio Port (IP Model)
Main Connector
Sensor I/O Port (I/O Model)
Dome Cover
Mounting Screw Hole
Drop Prevention Spring
DomeCover
Do not detach the protection vinyl from the dome cover before
finishing all the installation process to protect the dome cover from
scratches or dust.
DIP Switch
Used to set up camera IDs and protocols.
Drop Prevention
Spring
This part keeps the camera from dropping during installation and
maintenance. After install the Bracket, please, hang the spring to
the drop prevention hook of main body as shown in picture for
further tasks.
Mounting ScrewHole
Used to assemble the main body with a bracket with screws.
MainConnector
Used for the power wire, the video cable and the RS-485
communication cable connection.
Sensor I/O Port
Used for the sensor in/out connection. (The sensor I/O function
possible models only)
LAN Port
Used for the Ethernet connection. (IP addressable models only)
AudioPort
Used for the audio in/out connection. (IP addressable models only)
ResetSwitch
Used to initialize all the network configurations to the factory
default. (IP addressable models only) Press the button for more
than 5 seconds to initialize the network system.
INTRODUCTION
1

Speed Dome Camera Instruction Manual
13/54
DIP Switch Setup
Before installing the camera, set up the DIP switch to configure the camera ID and the
communication protocol.
Camera ID Setup
ON
ON
1 2 3 4 5 6 7 8
ID numbers of cameras are set up with binary numbers.
See the examples shown below.
Pin
1
2
3
4
5
6
7
8
BinaryValue
1
2
4
8
16
32
64
128
ex)ID=5
on
off
on
off
off
off
off
off
ex)ID=10
off
on
off
on
off
off
off
off
The camera ID range is “1~255”. Camera ID must not be
“0”!
The factory default of the camera ID is “1”.
Match the camera ID with the Cam ID setting of your DVR
or Controller to control the camera.
If you are connecting a single camera to a controller,
terminate the camera. When connecting more than one
camera to a single controller, terminate the last camera on
the communication line. The last camera means the camera
farthest in cable length from the controller.
Note that the total length of the communication cable
between a controller and the camera(s) on the same
communication line must be less than 1.2Km.
INSTALLATION
2

Speed Dome Camera Instruction Manual
14/54
Communication Protocol Setup
1 2 3 4
ON
ON
Select an appropriate Protocol with the DIP switch combination.
Switch Mode
Protocol
P0
(Pin 1)
P1
(Pin 2)
P2
(Pin 3)
OFF
OFF
OFF
PELCO-D, 2400 bps
ON
OFF
OFF
PELCO-D, 9600 bps
OFF
ON
OFF
PELCO-P, 4800 bps
ON
ON
OFF
PELCO-P, 9600 bps
Others
Reserved
Match the camera protocol with the camera protocol in the setting of
your DVR or controller to control the camera.
Adjust the DIP switch after turning off the camera. If you changed the
camera protocol by changing the DIP S/W, the change will be effective
after you reboot the camera.
The factory default protocol is “Pelco-D, 2400 bps”.
INSTALLATION
2

Speed Dome Camera Instruction Manual
15/54
Terminal Resistor Setup
1 2 3 4
ON
ON
The terminal resistor is used for the following cases.
Case 1 : In case that the control cable length between a camera and
a controller is relatively very long (1:1 Connection)
If the communication cable length is very long, the electrical signal will
bound in the terminal point. This reflected signal causes distortion of
original signal. Accordingly, the camera can be out of control. In this
case, the terminal resistor of both sides i.e. the camera and the
controller must be set to „ON‟state.
Case 2 : In case that multiple cameras are connected to a
controller.
Due to similar reasons with the case 1, the terminal resister of the
controller and the last camera must be set to „ON‟state. The last camera
means the camera farthest in cable length from the controller. Do not
turn on the terminal resistor of all the cameras on the same
communication cable.
INSTALLATION
2

Speed Dome Camera Instruction Manual
16/54
Installation with Ceiling Mount Bracket
①Remove the ceiling tile from the ceiling
and cut a hole whose diameter is
30~40mm on the ceiling tile to pass the
wire(s) and cable(s) through to the upside
of the ceiling. (In case of the wiring and
cabling through the mounting surface
only) Then prepare the ceiling mount
bracket. Pull the wire(s) for the system as
below. (Anchor Bolt 3/8"70)
②Hook up “Drop Prevention Spring”on
main body to prevent camera from
unexpected drop and pull the wire(s) and
cable(s) for the system as below.
③Line up the mold lines and assemble
main body to mount adaptor and turn it.
And assemble the main both with the
camera mount adaptor with the 3 screws.
(Machine M515).
④Screw the dome cover to the main body
and remove the protection vinyl from the
dome cover.
Important Notice
Beforestarting theinstallation,make surethat the Camera ID andProtocol aresetupproperly.
To adjust the installation height from the mounting surface, the pipe and coupler should be needed
between the surface mount part of the ceiling mount bracket and the camera mount part of the ceiling
mountbracket.Notethattheyarenotsupplied bythemanufacturer.
INSTALLATION
2

Speed Dome Camera Instruction Manual
17/54
Installation with Wall Mount Bracket
①Make a hole whose diameter is 30~40mm
on the mounting surface to pass the
wire(s) and cable(s) through the mounting
surface. (In case of the wiring and cabling
through the mounting surface only) Then
prepare the wall mount bracket. Pull the
wire(s) and cable(s) for the system as
below. Attach the wall mount bracket to
the mounting surface. (Hex Lag #1450)
②Hook up “Drop Prevention Spring”on
main body to prevent camera from
unexpected drop and pull the wire(s) and
cable(s) for the system as below.
③Line up the mold lines and assemble
main body to mount adaptor and turn it.
And assemble the main both with the
camera mount adaptor with the 3 screws.
(Machine M515).
④Screw the dome cover to the main body
and remove the protection vinyl from the
dome cover.
Important Notice
Beforestarting theinstallation,make surethat the Camera ID andProtocolaresetupproperly.
INSTALLATION
2

Speed Dome Camera Instruction Manual
18/54

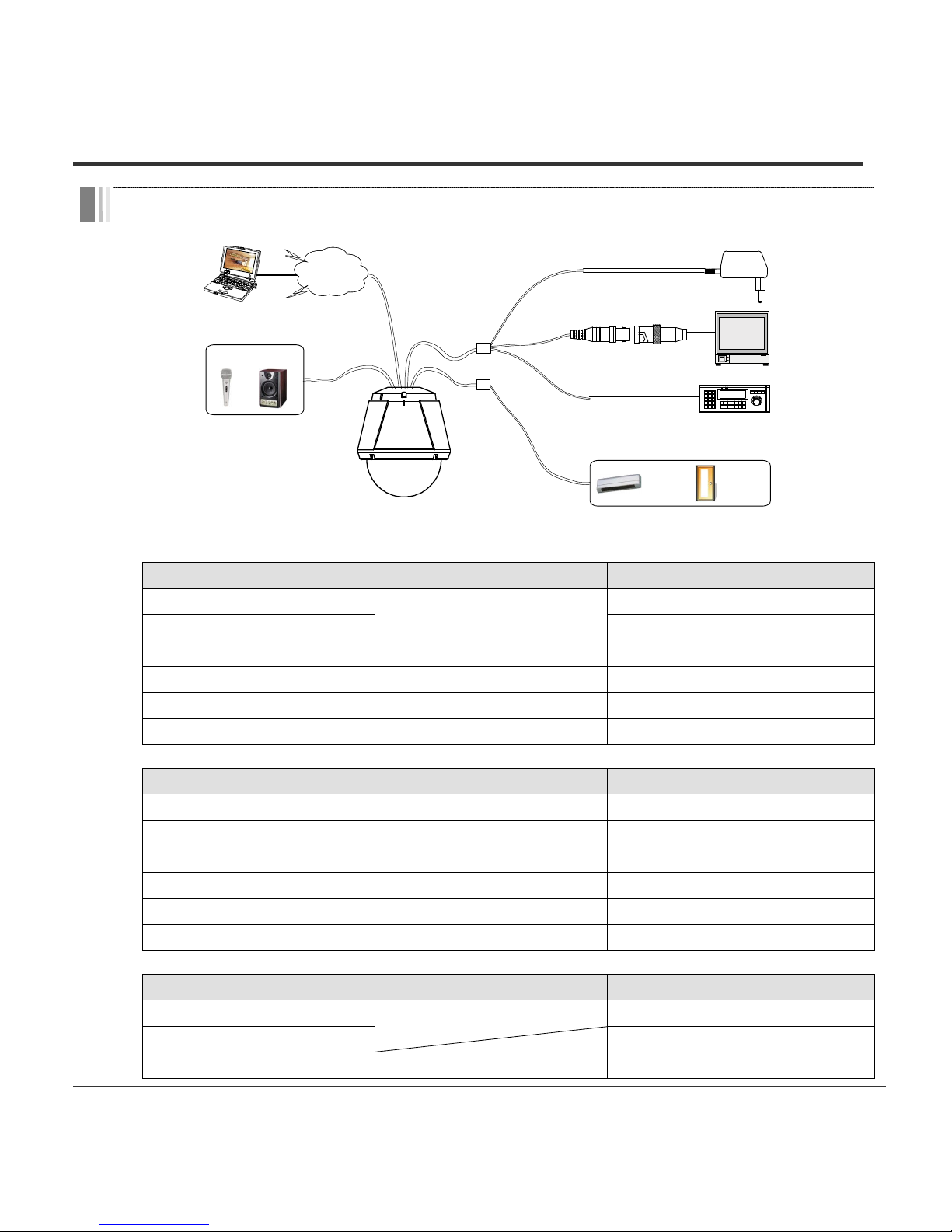

Wiring and Cabling
RS-485
BNC
SENSOR I/O
LAN CABLE
AUDIO
CABLE
MAIN CABLE
I/O CABLE
BROWSER
POWER
MONITOR
CONTROLLER / DVR
MIC SPEAKER
IR
SENSOR
DOOR
SWITCH
INTERNET
Port Description
Main Cable
Port Pin Number (RJ45)
Connector / Wire Color
Signal
1
BNC Connector
Video +
2,4
Video 
5
Red
RS-485 +
3
Yellow
RS-485 
7
Orange
Power +
6,8
White
Power 
I/O Cable
Port Pin Number (RJ25)
Wire Color
Signal
1
Blue
IN COM +
2
Yellow
IN 1 
3
Green
IN 2 
4
Red
IN 3 
5
Black
OUT A
6
White
OUT B
Audio Cable
Port Pin Number
Connector / Wire Color
Signal
1
RCA (Yellow)
Audio IN
2
Audio GND
3
RCA (White)
Audio OUT
INSTALLATION
2

Speed Dome Camera Instruction Manual
19/54
Power Description
Carefully check the voltage and current capacity of the rated power. The rated power is
indicated in the back of main unit.
LUXON Analog PTZ‟s are 12 Volt DC and draw 1.5 AMP‟s
For the DC input models, be careful with the polarity of DC power. The system should be
permanentally damaged by wrong DC input.
In case that the length of the power wire is very long, there may be voltage drop and the
syatem may not work properly. Make the length of the power wire as short as possible.
 RS-485 Communication
For PTZ control, connect the cable(s) to your keyboard or DVR. To connect multiple
cameras to a single controller, RS-485 communication should be connected in parallel
as shown below. If you are connecting a single camera to a controller, terminate the
camera. When connecting more than one camera to a single controller, terminate the
last camera on the communication line. The last camera means the camera farthest in
cable length from the controller. Note that the total length of the communication cable
between a controller and the camera(s) on the same communication line must be less
than 1.2Km.
INSTALLATION
2

Speed Dome Camera Instruction Manual
20/54
Video
Use BNC coaxial cable only.
Alarm Input
Before connecting sensors, check driving voltages and output signal types of the sensors.
Since output signal types of the sensors are divided into Open Collector type and
Voltage Output type in general, the wiring must be done properly after considering
those types.
Signal
Description
INCOM+
The electric power source to drive input circuit. Connect the (+) wire of electric
powersourcetodrivetheSensorsto this portasshowninthe abovecircuit.
IN1-,IN2 -,IN3-
Connect the outputs of sensors to each port as shown in the above
circuit.
If you want to use Alarm Input, the types of sensors must be selected in OSD menu. The
sensor types are divided into Normal Open and Normal Close. If wrong sensor types are
selected, alarms should be activated reversely to sensor inputs.
NormalOpen
Output Voltage is high state when sensor is activated
NormalClose
Output Voltage is high state when sensor is not activated
Relay Output
The maximum loads are as follows.
Power Type
DC Power
AC Power
Maximum Load
MAX. DC 24V, 1A
MAX. AC 125V, 0.5A
INSTALLATION
2
