Pure sine wave inverter
2000 W
Item: 44799
www.luxorparts.com
Box 50435 Malmö
Sweden
2021-09-24
40
343 263
240
5,5
7,8
250
100
DSU-2K0ZC

2
ENGLISH

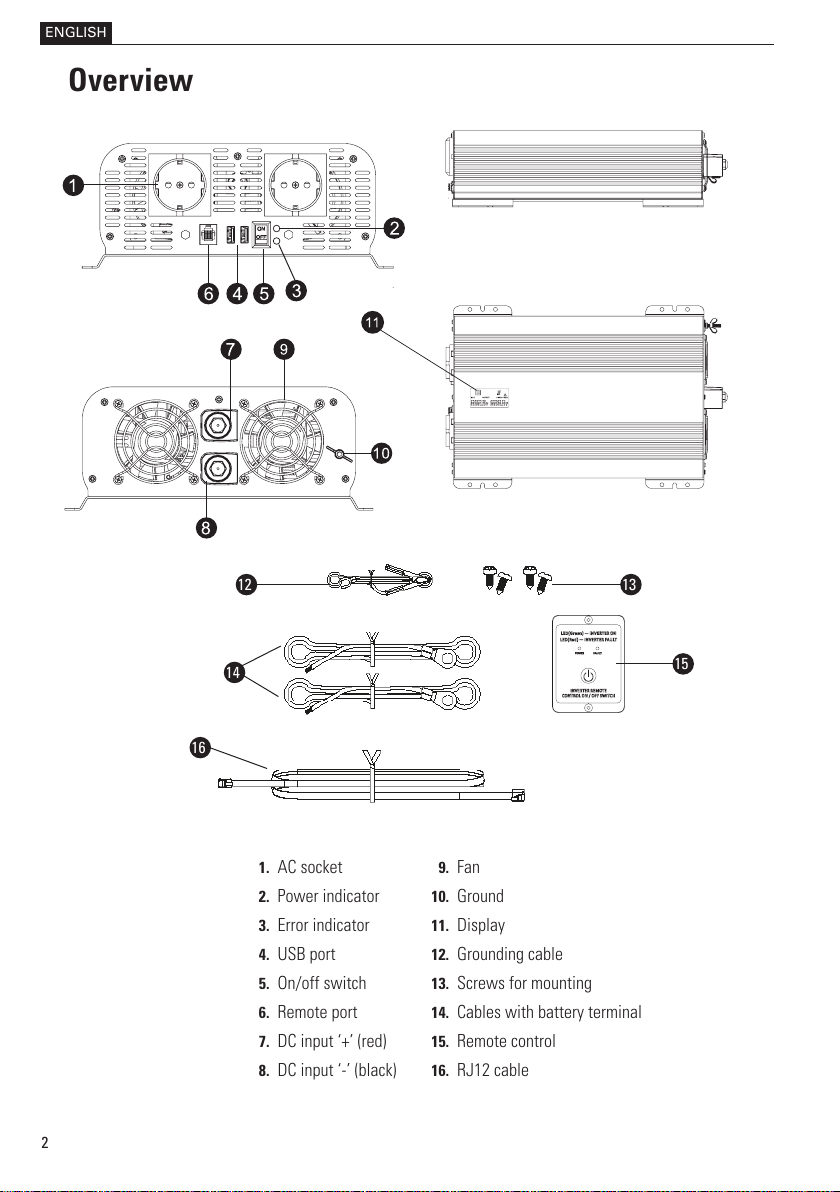

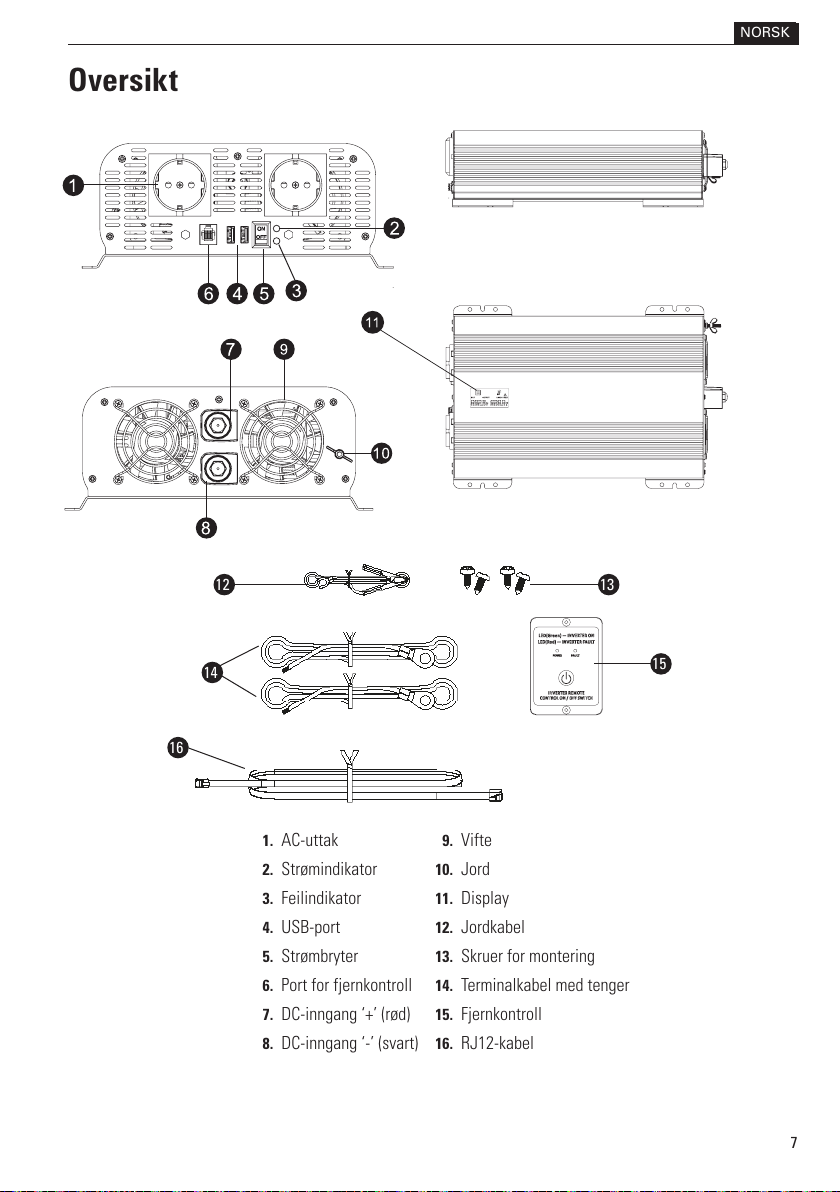

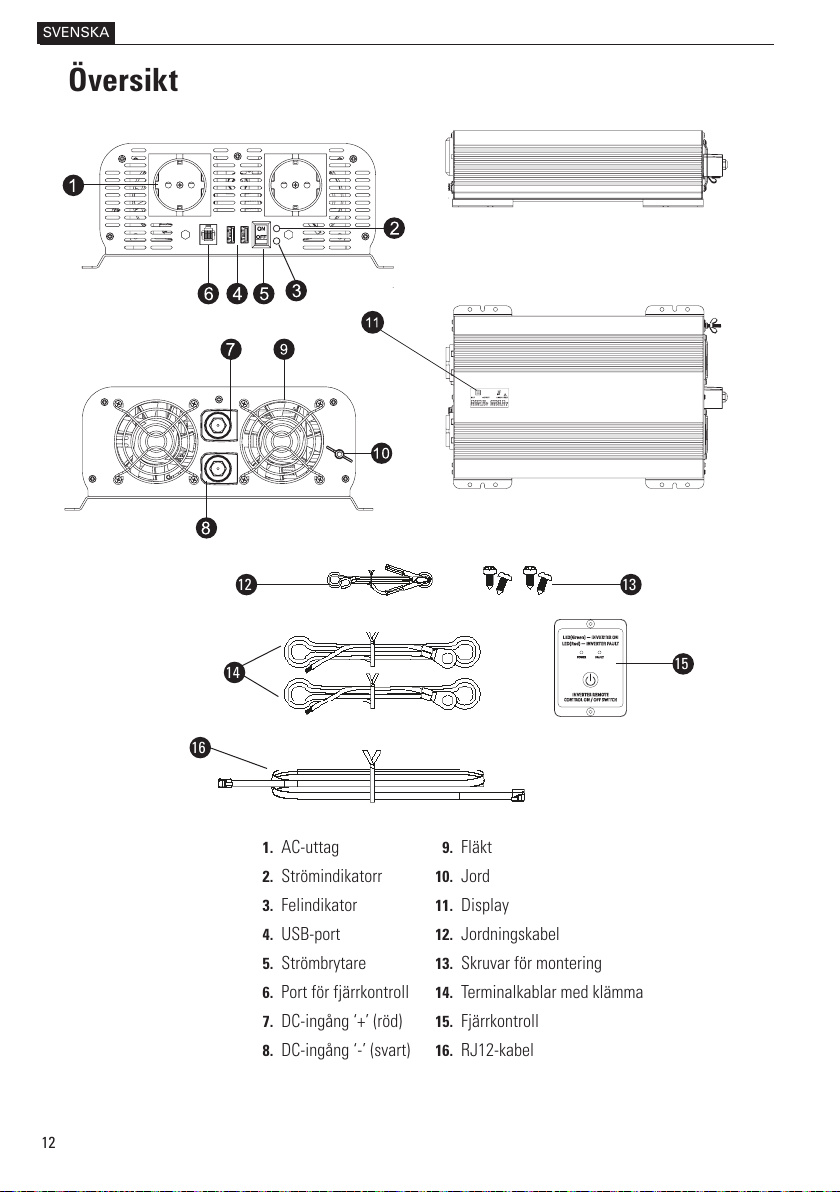

Overview
1. AC socket
2. Power indicator
3. Error indicator
4. USB port
5. On/off switch
6. Remote port
7. DC input ‘+’ (red)
8. DC input ‘-’ (black)
9. Fan
10. Ground
11. Display
12. Grounding cable
13. Screws for mounting
14. Cables with battery terminal
15. Remote control
16. RJ12 cable
12
16
13
15
14

3
ENGLISH

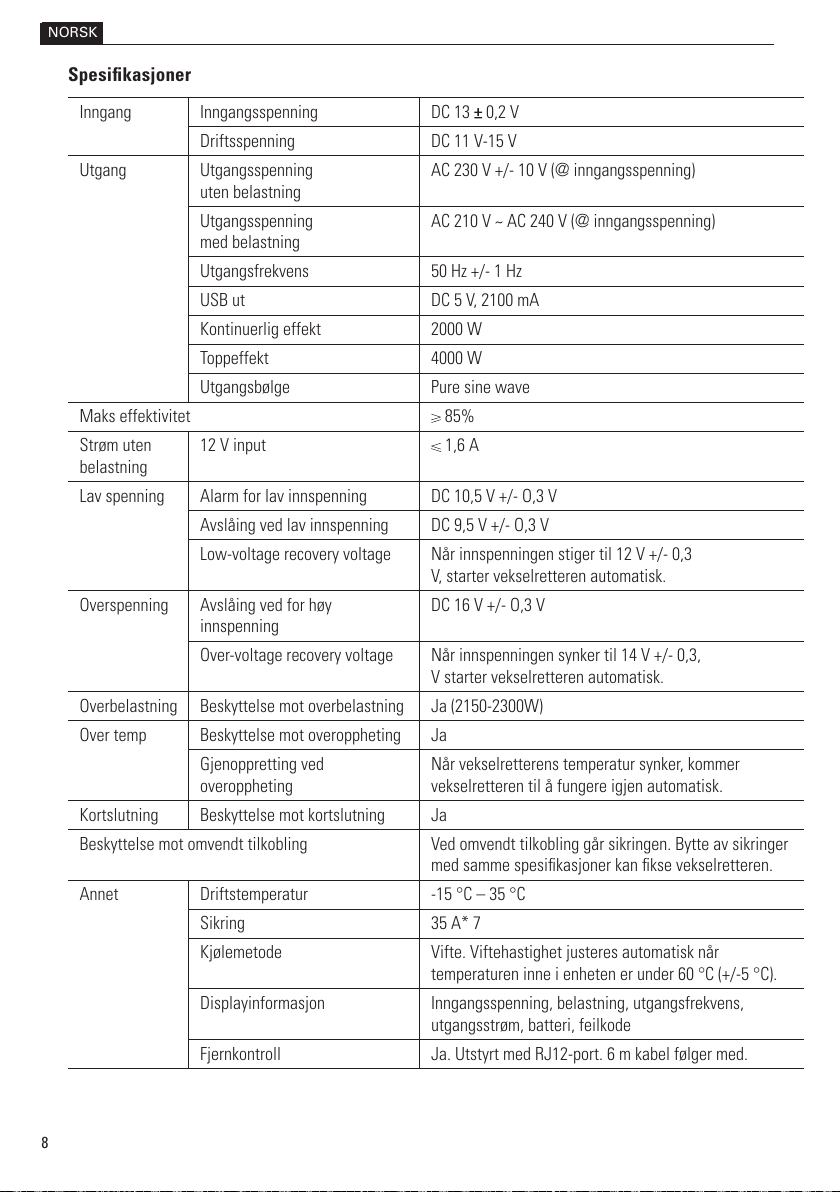

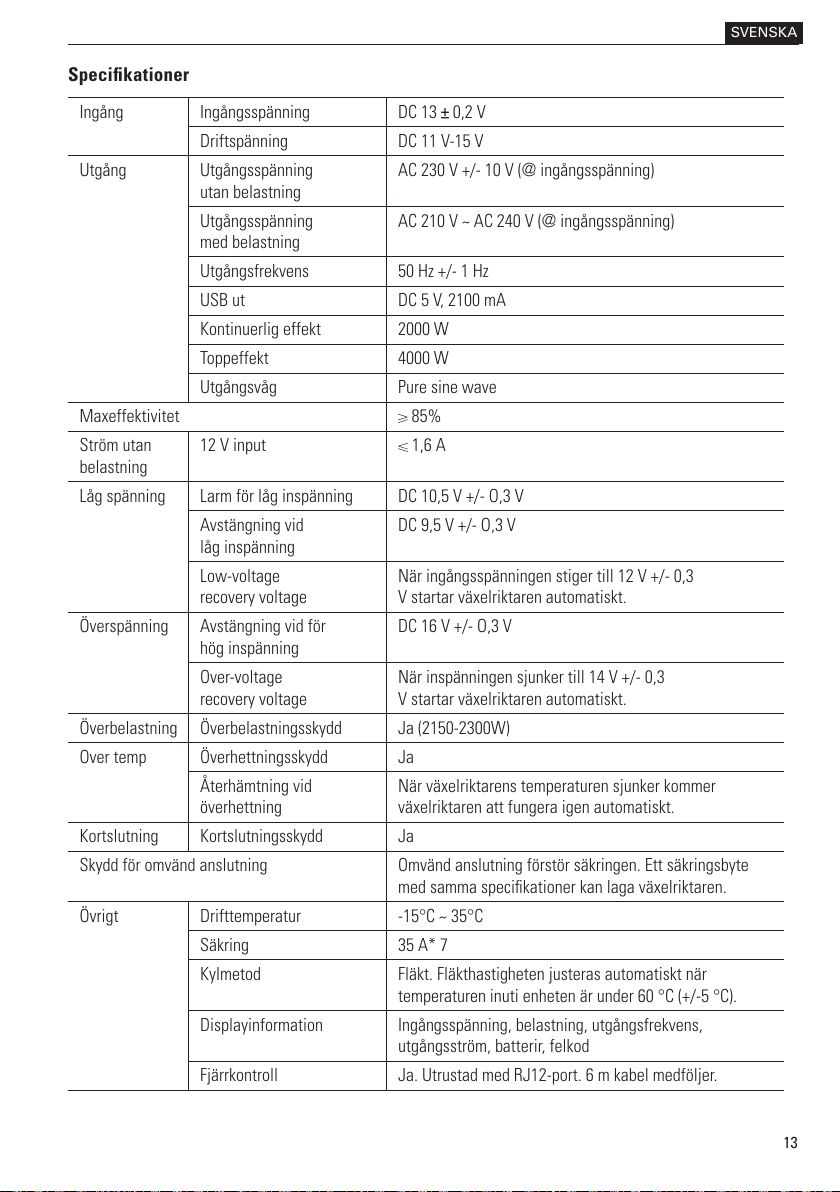

Specications
Input Rated input voltage DC 13 0.2 V
Operating voltage range DC 11 V-15 V
Output No-load output voltage AC 230 V +/- 10 V (@ rated input voltage)
Load output voltage AC 210 V ~ AC 240 V (@ rated input voltage)
Output frequency 50 Hz +/- 1 Hz
USB output DC 5 V, 2100 mA
Continuous power 2000 W
Peak power 4000 W
Output wave Pure sine wave
Max efency 85%
No load
current
12 V Input 1.6 A
Low voltage Input low-voltage alarm DC 10.5 V +/- O.3 V
Input low-voltage
shut down
DC 9.5 V +/- O.3 V
Low-voltage
recovery voltage
When the input voltage rises to 12 V +/- 0.3 V,
the inverter automatically resumes operation.
Over voltage Input over voltage
shut down
DC 16 V +/- O.3 V
Over-voltage
recovery voltage
When the input voltage drops to 14 V +/- 0.3 V,
the inverter automatically resumes operation.
Overload Overload protection Yes (2150-2300 W)
Over temp Over temperature
protection
Yes
Over temperature recovery When the temperature inside the inverter decreases to
the set point, the inverter will back to work automatically.
Short circuit Output short circuit
protection
Yes
Reverse protection Reverse connection will blow the fuse, fuse replacement
with the same specications can x the inverter.
Other Working temperature -15 °C ~ 35 °C
Fuse 35 A* 7
Cooling method Fan. The fan speed is adjusted when the inside
temperature of the device is below 60 °C (+/-5 °C).
LCD display information Input voltage, load power, output frequency,
output current, battery power, fault code.
Remote control Yes. Equipped with RJ12 port, 6 m cable.

4
ENGLISH

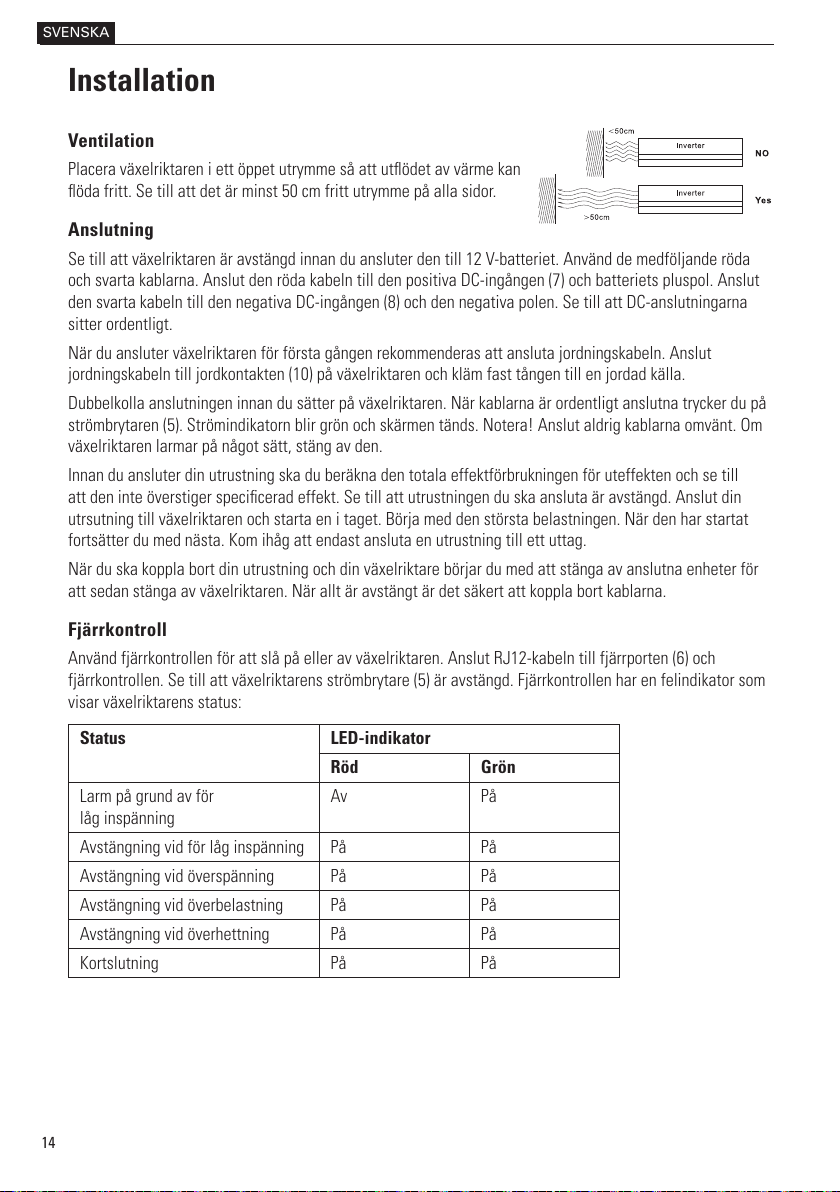

Installation
Ventilation
Place the inverter in an open space to make sure that the outow of
emitted heat can run freely. Aim for at least 50 cm free space on all
sides.
Connection
Make sure that the inverter is turned off before connecting it to the 12 V battery. Use the included red and
black cables. Connect the red cable to the positive DC input (7) and the positive pole of the battery. Connect
the black cable to the negative DC input (8) and the negative pole. Make sure the DC connections are tight.
When connecting the inverter for the rst time, it is recommended to connect the grounding cable. Connect
the grounding cable to the grounding plug (10) of the inverter and attach the tong to a ground source.
Double-check the connection before turning on the inverter. If the cables are connected tightly and correctly,
press the On/off switch (5). The power indicator turns green and the display turns on. Note! Never reverse
connect the cables. If the inverter alarms in any way, turn it off.
Before connecting the load, calculate the total power consumption of the output load and make sure that it
does not exceed the rated power. Make sure the equipment you are about to connect is turned off. Connect
the load to the inverter and turn it on one by one. Start with the largest load. After it has start up properly,
go on with the next one. Remember to only connect one electrical equipment to a socket.
When you are about to disconnect your equipment and inverter, start with turning off the load and then turn
off the inverter. When all is turned off it is safe to disconnect.
Remote control
Use the remote control to turn the inverter on or off. Connect the RJ12 cable to the remote port (6) and
the remote control. Make sure the On/off switch (5) of the inverter is off. The remote control has a fault
indicator that shows the status of the inverter:
Status LED light
Red Green
Input under voltage alarm OFF ON
Input under voltage
shut down
ON ON
Input over voltage shut down ON ON
Over load shut down ON ON
Over temperature shut down ON ON
Output short circuit ON ON

5
SVENSKA

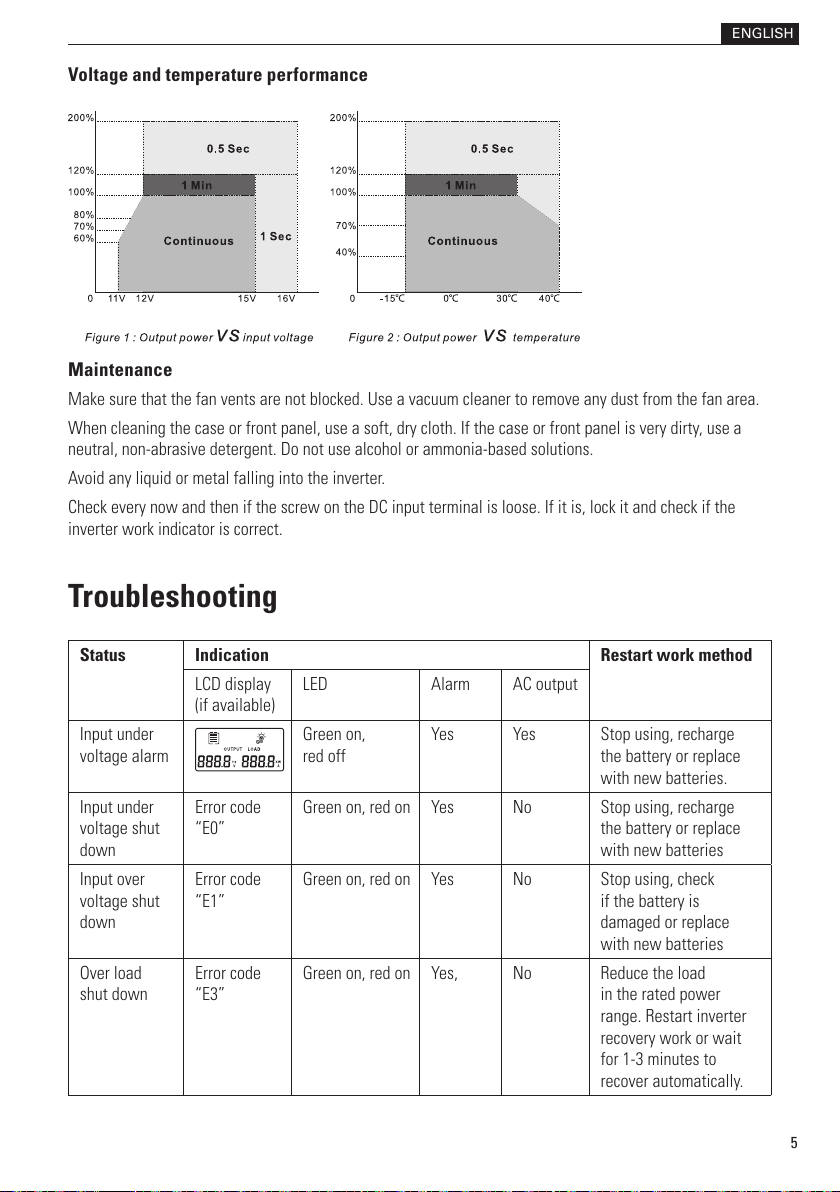

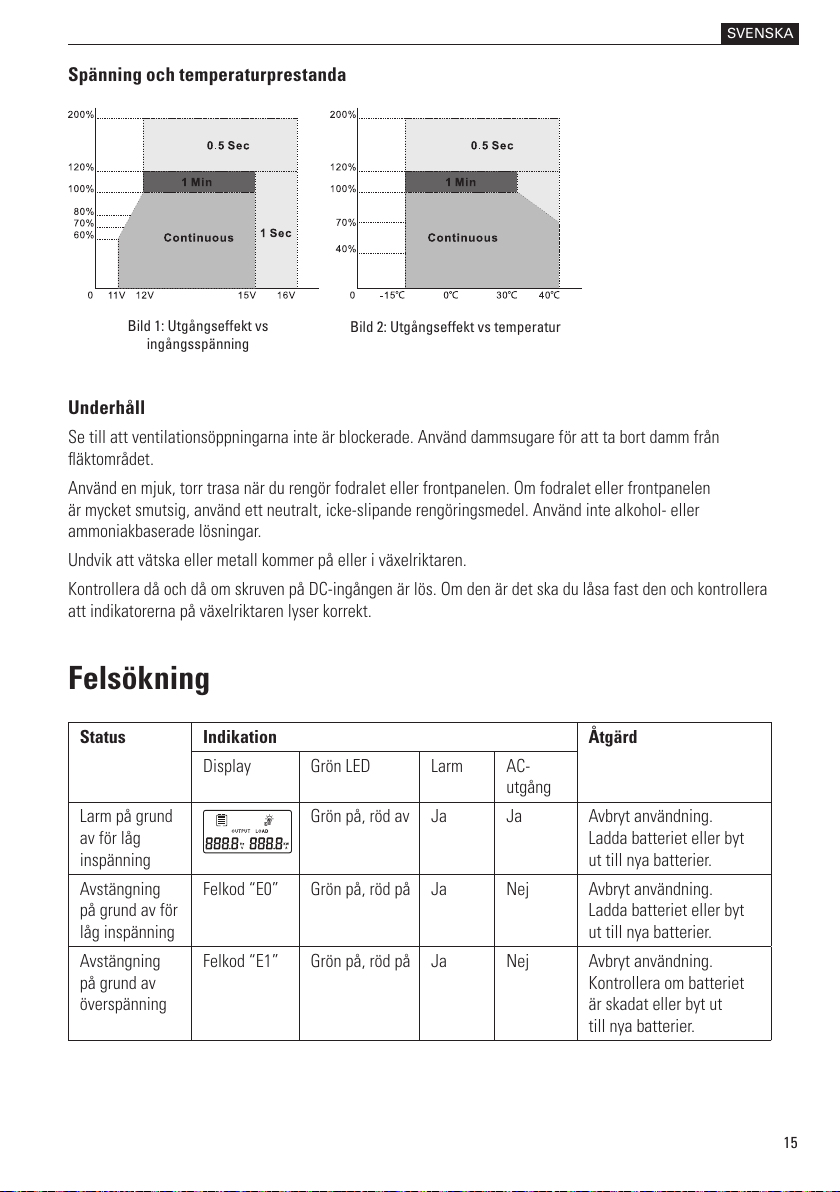

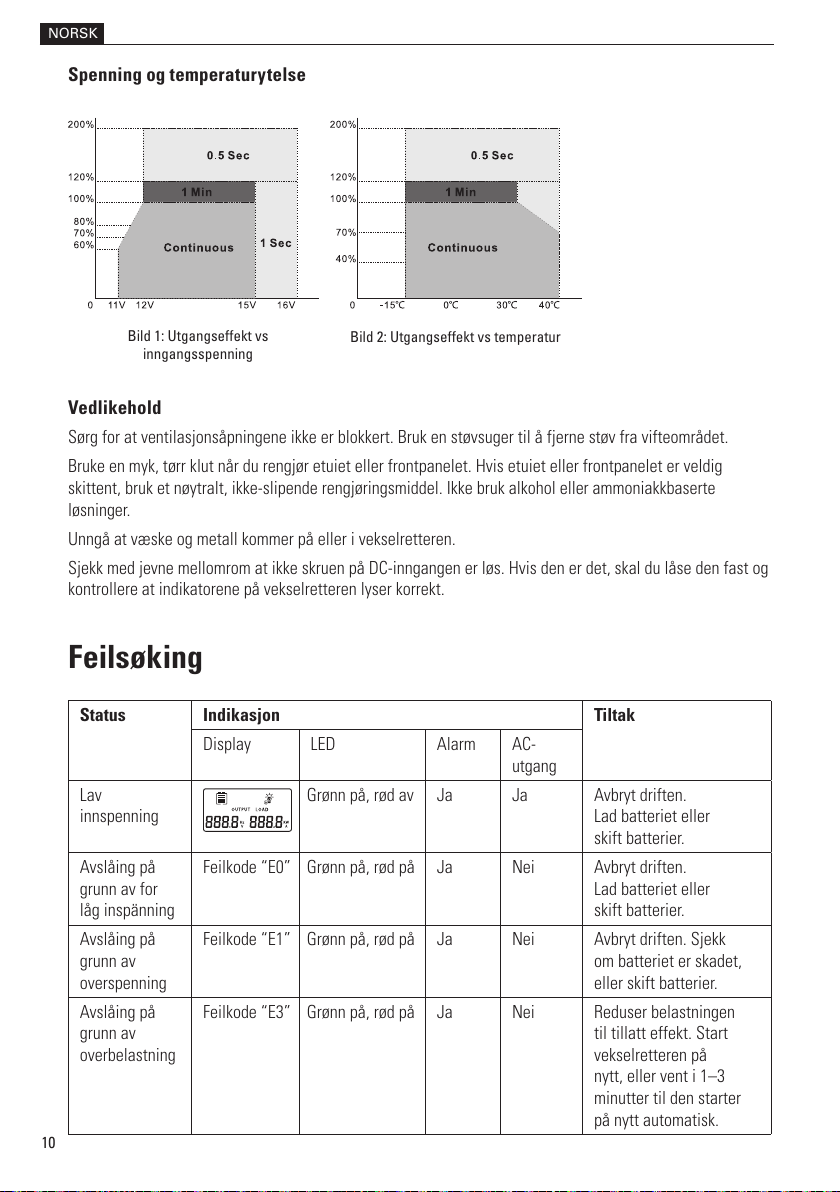

Voltage and temperature performance
Maintenance
Make sure that the fan vents are not blocked. Use a vacuum cleaner to remove any dust from the fan area.
When cleaning the case or front panel, use a soft, dry cloth. If the case or front panel is very dirty, use a
neutral, non-abrasive detergent. Do not use alcohol or ammonia-based solutions.
Avoid any liquid or metal falling into the inverter.
Check every now and then if the screw on the DC input terminal is loose. If it is, lock it and check if the
inverter work indicator is correct.

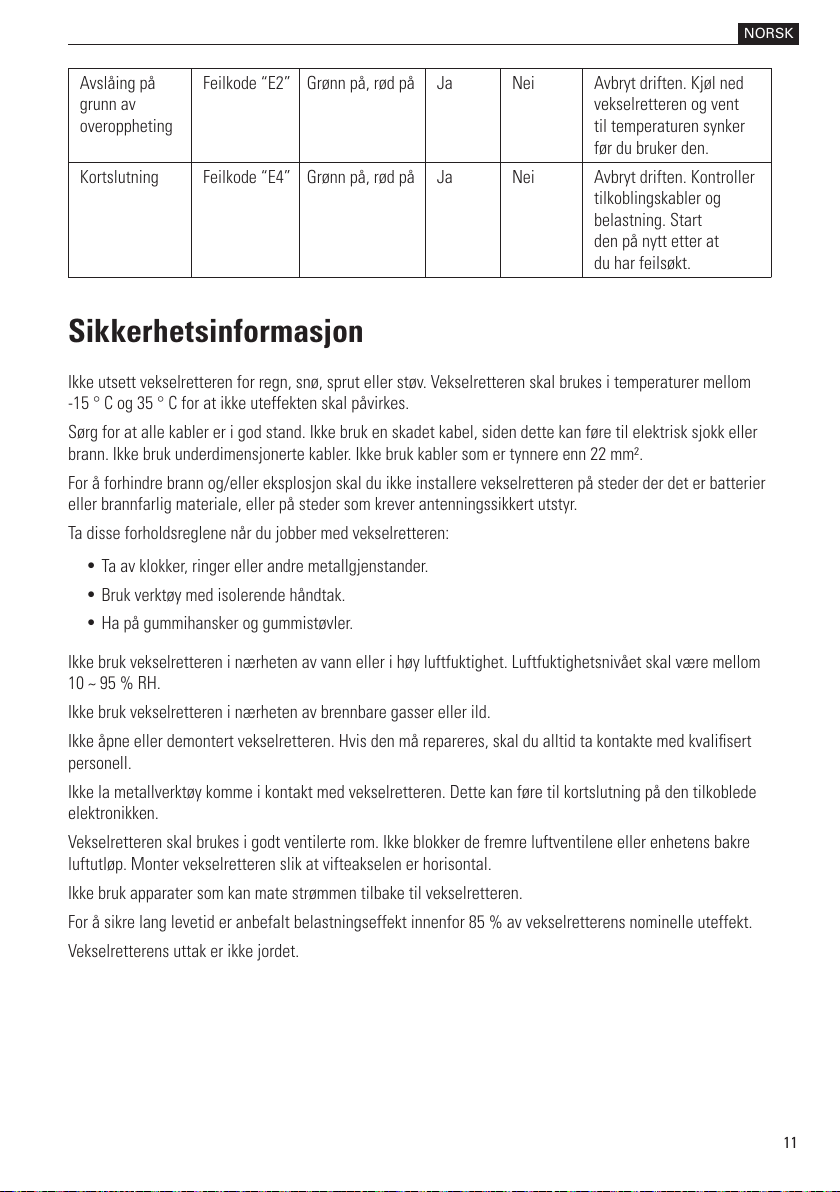

Troubleshooting
Status Indication Restart work method
LCD display
(if available)
LED Alarm AC output
Input under
voltage alarm
Green on,
red off
Yes Yes Stop using, recharge
the battery or replace
with new batteries.
Input under
voltage shut
down
Error code
“E0”
Green on, red on Yes No Stop using, recharge
the battery or replace
with new batteries
Input over
voltage shut
down
Error code
“E1”
Green on, red on Yes No Stop using, check
if the battery is
damaged or replace
with new batteries
Over load
shut down
Error code
“E3”
Green on, red on Yes, No Reduce the load
in the rated power
range. Restart inverter
recovery work or wait
for 1-3 minutes to
recover automatically.
