Luxul PW-200-24-Lite User manual

Pro-WAV™ 200 Lite
Wi-Fi rAnGe eXtenDer sYsteM
QUiCK instALL GUiDe
Results may vary depending on building layout, type of construction and other environmental factors
including Wi-Fi traffi c, Microwaves Ovens, Cordless Phones, etc.
FCC NOTICE: The use of all radio equipment is subject to regulations in each country. To comply with FCC part 15
rules in the United States, radio equipment must only be used in systems that have been FCC certifi ed. It is the
responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are
deployed. To ensure FCC part 15 compliance, Luxul amplifi er products should only be installed in certifi ed systems by
licensed professionals.
FCC Certifi cation Support for OEMs: Luxul Wireless offers FCC certifi cation assistance and engineering support for
qualifi ed OEM’s interested in certifying complete amplifi ed WLAN systems. Please contact us for details.
LUXUL WIRELESS | 357 South 670 West, Lindon, UT, 84042
p: 801-822-5450 f: 801-822-5460
www.luxulwireless.com
LUX-QIG-100620090210-PW20024LITE© 2009 Luxul Corp. All rights reserved.
For use with the ECB3500 WAP
QUiCK instALL GUiDe
Congratulations on your purchase of a Luxul Wireless Pro-WAV Lite™ Wi-Fi Range Ex-
tender System. Pro-WAV systems are simple to install. In just a few short steps, you will
be able to enjoy the benefi ts of a farther reaching, clearer wireless signal.
LUXUL WireLess ProDUCTs CoVereD By This gUiDe
PW-200-24-Lite- Pro-WAV Lite 2.4GHz indoor Wi-Fi Range Extender System
TroUBLeshooTiNg
Weak or non-existent coverage.
1. Make sure the cables are properly connected and that there is power to the
Pro-WAV 200 Lite Wi-Fi System.
2. Ensure that the X-WAV antenna is properly positioned. The antenna should be facing
the direction of the area to be covered with a minimum of 2 feet (.6 meters) with no
obstructions in front of the antenna. Luxul wireless signals are superior for penetrating
wood, concrete, and stucco, but all wireless signals can be disrupted by certain
obstructions, including large metal objects. Try orienting the antenna where more
line-of-sight access to the desired coverage area is available.
If after checking the above items, your Pro-WAV 200 Lite System still does not seem to be
functioning properly, please contact: Luxul Wireless Technical Support at: support@luxul-
wireless.com regarding Antenna and enclosure.
Luxul Wireless products include a Limited One Year Warranty

Pro-WAV™ 200 Lite QUiCK instALL GUiDe
The Pro-WAV 200 LiTe sysTem iNCLUDes The foLLoWiNg:
• Metal enclosure with space for mounting the EnGenius ECB3500 Internally
• Integrated X-WAV™ CP (Circularly Polarized) Antenna (XW-24-FP7 - 7dBi High Gain 2.4GHz)
• Ethernet cable
• Coax cables (3) (N-Male to RP-TNC (1), N-Male to N-Male (2))
• POE (Power-Over-Ethernet) injector and 48VDC Universal Input Power Supply
• Mounting hardware
• Ethernet pass through
• Velcro
• Quick Install Guide
geTTiNg sTArTeD: ADDiTioNAL iTem reQUireD
• EnGenius ECB3500 Wireless Access Point (WAP)
Included with the ECB3500: Wireless High power multi-function 7+1 AP (ECB3500), 12V/1A
Power Adapter, CAT5 UTP Cable, QIG, CD (User’s Manual), 5dBi 2.4GHz Dipole Antennas (2)
• External Ethernet cable from your data source/network (Max. length 329’ or 200 meters).
NOTE: Disconnect all power before connecting or disconnecting any cables, coax or
antennas to or from this device. Failure to do so will void your warranty.
seTTiNg UP yoUr Pro-WAV 200 LiTe sysTem
Attaching the antennas to the Pro-WAV enclosure
1. Connect the two X-WAV antennas to the
antenna mount. Position the antennas so the
antennas N connector is at the top of the
mount 1 (diagram 1).
2. Attach the antenna mount to the top of the
enclosure using the washers and nuts provided 2.
3. If mounting the Pro-WAV 200 Lite high in your
Wi-Fi coverage area the antenna mount may be
bent slightly downward to focus coverage.
1
2
diagram 1
moUNTiNg yoUr Pro-WAV 200 LiTe sysTem
The Pro-WAV 200 Lite system may be mounted to any surface using your fasteners or
mount the unit above a drop ceiling using the optional drop ceiling mounting arms. See
diagram 8, below, to mount your Pro-WAV 200 Lite system using the optional drop ceiling
mounts, Part Number HDW-PWM.
diagram 8
Optional Drop
ceiling Mounts

Pro-WAV™ 200 Lite QUiCK instALL GUiDe

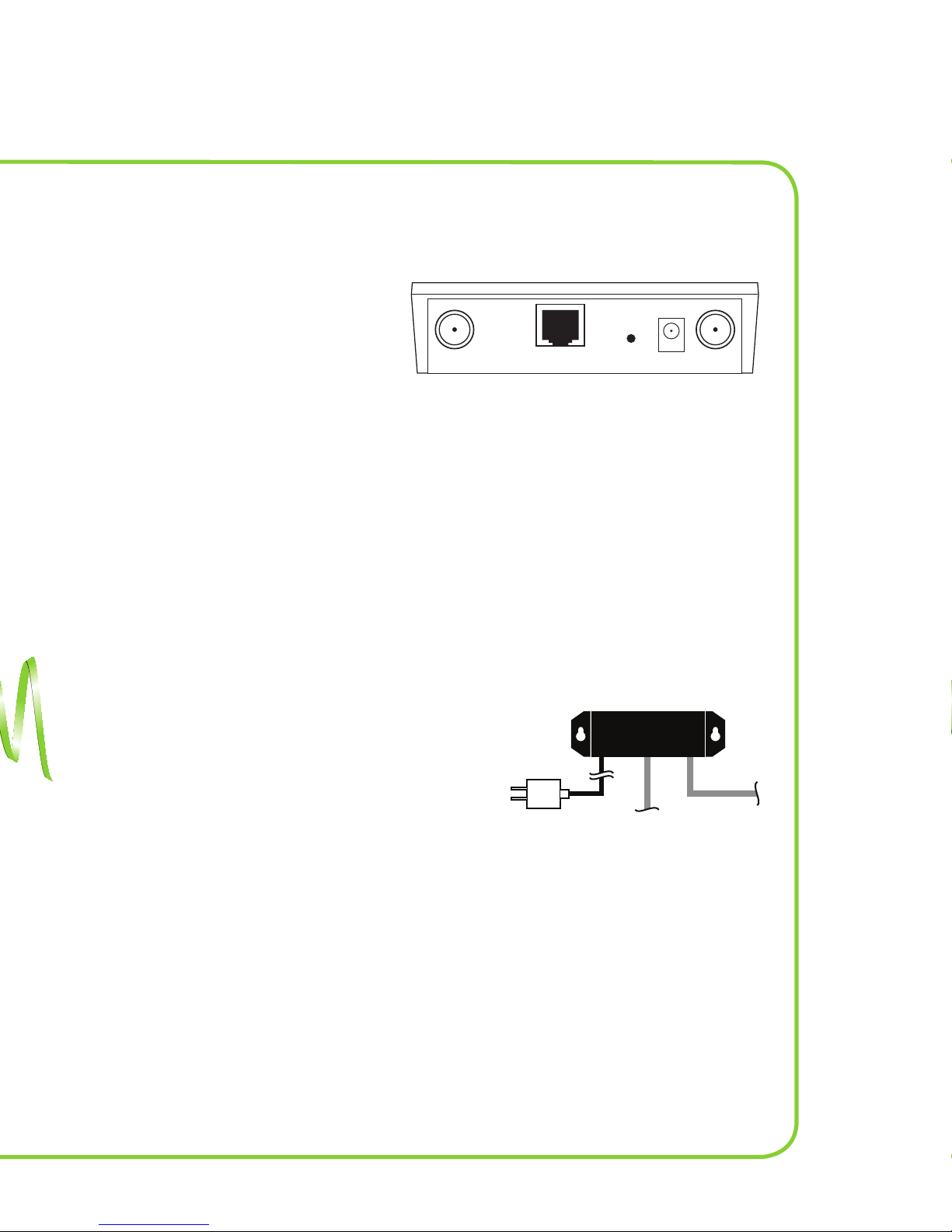

Connecting the EnGenius ECB3500 to the Antennas
(diagram 2)
1. Remove the stock antennas from
the antenna ports of the EnGenius
ECB3500 and set them aside.
2. Connect the RP-TNC connector
of the coax cable to the primary
antenna port 1.
3. Connect the N-Male connector of the coax cable to the splitter.
PoWeriNg yoUr Pro-WAV 200 LiTe sysTem
For maximum fl exibility you may power the Wi-Fi Range Extender System by Direct Power
or POE using the included Luxul Wireless POE Injector, an IEEE 802.3af compliant POE
injector or POE enabled switch, (Check the POE injector or switch manual for instructions).
Setting up Power Over Ethernet (POE)
(diagram 3)
1. Install the Luxul POE injector or your injector where
you have access to your data source/network
Ethernet cable and a power source.
2. Connect your Ethernet cable from your data source/
network to the “Data In” port of the Injector.
3. Be sure the power supply is not connect to a
power source. Connect the power supply cord to
the “DC In” port of the injector.
4. Connect the Ethernet cable from the “DC/Data Out”
port of the injector to the pass through port on the outside of the Pro-WAV Lite.
POE Injector
Ethernet
Source
Ethernet to
Pro-WAV
48VDC
Power Supply
DC
In
DC/Data
Out
Data
In
diagram 3
EXT ANT EXT ANTDC INRESETRJ45/POE
PRIMARY
ANTENNA
PORT
1
diagram 2

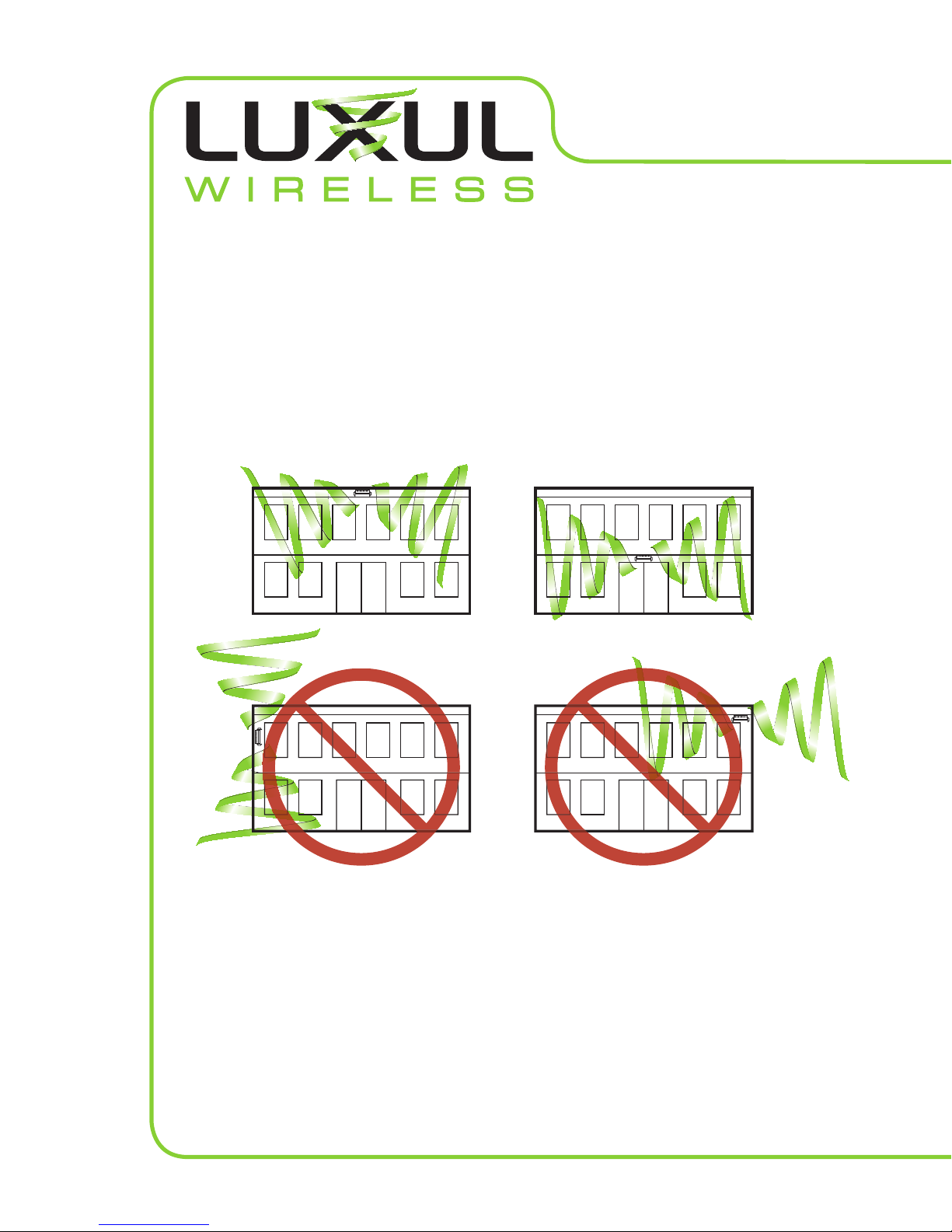

PosiTioNiNg yoUr Pro-WAV 200 LiTe sysTem
The Pro-WAV 200 Lite System features high gain directional antennas. Remember to con-
sider the direction of the signal when positioning the Pro-WAV 200 Lite System. The signal
extends out in both directions from the antennas mounted on the sides of the enclosure. If
mounting the Pro-WAV 200 Lite high in your Wi-Fi coverage area the antenna mount may
be bent slightly downward to focus coverage. Use diagram 7 below to position your Pro-
WAV 200 Lite system for maximum Wi-Fi coverage.
diagram 7

Pro-WAV™ 200 Lite QUiCK instALL GUiDe
POE (Power Over Ethernet) Option:
(diagram 4)
The EnGenius ECB3500 is capable of using POE power
from the included Luxul Wireless POE Injector, an
IEEE 802.3af compliant POE injector or POE enabled
switch, (Check the POE injector or switch manual for
instructions).
5. Connect the Ethernet cable from the “DC/Data Out”
port of the injector to the pass through port on the
outside of the Pro-WAV Lite.
6. Connect the included Ethernet cable from the pass
through to the WAN port of the EnGenius ECB3500,
labeled RJ45/POE.
Position your WAP in the enclosure and use the supplied
adhesive Velcro to affi x the WAP. You may now power
your Pro-WAV Lite Wi-Fi system and position it for use.
Direct Power Option:
(diagram 5)
1. Connect the Ethernet cable from your data
source/network to the pass through port on the
outside of the Pro-WAV Lite.
2. Connect the included Ethernet cable from the
pass through to the WAN port of the EnGenius
ECB3500, labeled RJ45/POE.
3. Decide where your Power Supply cord will enter
the Pro-WAV Lite enclosure.
4. Be sure the power supply is not connect to a
power source. Attach the EnGenius power supply
to the “DC IN” port of the EnGenius ECB3500.
Position your WAP in the enclosure and use the supplied
adhesive Velcro to affi x the WAP. You may now power
your Pro-WAV Lite Wi-Fi system and position it for use.
Ethernet
Power
Coax
diagram 4
diagram 5
DC IN RJ45/POE
(WAN)
EXT ANT
(PRIMARY)
EXT ANT
(SECONDARY)
DC IN RJ45/POE
(WAN)
EXT ANT
(PRIMARY)
EXT ANT
(SECONDARY)
Power
Supply
seTTiNg The eCB3500 To The PrimAry ANTeNNA PorT oNLy
Consult your EnGenius ECB3500 documentation to access the WAP Confi guration Soft-
ware. Confi gure the ECB3500 to use only the Primary Antenna Port. Using the Left side
navigation tree, navigate to the Wireless\Wireless Advanced Settings (diagram 6) 1. In
the Wireless Advanced Settings dialog box set the Antenna drop down to “1” (diagram 6)
2. Then apply your change.
2
1
(Consult your ECB3500’s documentation for more details on WAP Confi guration. Contact EnGenius directly
for additional support or warranty information).
diagram 6

Pro-WAV™ 200 Lite QUiCK instALL GUiDe
POE (Power Over Ethernet) Option:
(diagram 4)
The EnGenius ECB3500 is capable of using POE power
from the included Luxul Wireless POE Injector, an
IEEE 802.3af compliant POE injector or POE enabled
switch, (Check the POE injector or switch manual for
instructions).
5. Connect the Ethernet cable from the “DC/Data Out”
port of the injector to the pass through port on the
outside of the Pro-WAV Lite.
6. Connect the included Ethernet cable from the pass
through to the WAN port of the EnGenius ECB3500,
labeled RJ45/POE.
Position your WAP in the enclosure and use the supplied
adhesive Velcro to affi x the WAP. You may now power
your Pro-WAV Lite Wi-Fi system and position it for use.
Direct Power Option:
(diagram 5)
1. Connect the Ethernet cable from your data
source/network to the pass through port on the
outside of the Pro-WAV Lite.
2. Connect the included Ethernet cable from the
pass through to the WAN port of the EnGenius
ECB3500, labeled RJ45/POE.
3. Decide where your Power Supply cord will enter
the Pro-WAV Lite enclosure.
4. Be sure the power supply is not connect to a
power source. Attach the EnGenius power supply
to the “DC IN” port of the EnGenius ECB3500.
Position your WAP in the enclosure and use the supplied
adhesive Velcro to affi x the WAP. You may now power
your Pro-WAV Lite Wi-Fi system and position it for use.
Ethernet
Power
Coax
diagram 4
diagram 5
DC IN RJ45/POE
(WAN)
EXT ANT
(PRIMARY)
EXT ANT
(SECONDARY)
DC IN RJ45/POE
(WAN)
EXT ANT
(PRIMARY)
EXT ANT
(SECONDARY)
Power
Supply
seTTiNg The eCB3500 To The PrimAry ANTeNNA PorT oNLy
Consult your EnGenius ECB3500 documentation to access the WAP Confi guration Soft-
ware. Confi gure the ECB3500 to use only the Primary Antenna Port. Using the Left side
navigation tree, navigate to the Wireless\Wireless Advanced Settings (diagram 6) 1. In
the Wireless Advanced Settings dialog box set the Antenna drop down to “1” (diagram 6)
2. Then apply your change.
2
1
(Consult your ECB3500’s documentation for more details on WAP Confi guration. Contact EnGenius directly
for additional support or warranty information).
diagram 6

Pro-WAV™ 200 Lite QUiCK instALL GUiDe
Connecting the EnGenius ECB3500 to the Antennas
(diagram 2)
1. Remove the stock antennas from
the antenna ports of the EnGenius
ECB3500 and set them aside.
2. Connect the RP-TNC connector
of the coax cable to the primary
antenna port 1.
3. Connect the N-Male connector of the coax cable to the splitter.
PoWeriNg yoUr Pro-WAV 200 LiTe sysTem
For maximum fl exibility you may power the Wi-Fi Range Extender System by Direct Power
or POE using the included Luxul Wireless POE Injector, an IEEE 802.3af compliant POE
injector or POE enabled switch, (Check the POE injector or switch manual for instructions).
Setting up Power Over Ethernet (POE)
(diagram 3)
1. Install the Luxul POE injector or your injector where
you have access to your data source/network
Ethernet cable and a power source.
2. Connect your Ethernet cable from your data source/
network to the “Data In” port of the Injector.
3. Be sure the power supply is not connect to a
power source. Connect the power supply cord to
the “DC In” port of the injector.
4. Connect the Ethernet cable from the “DC/Data Out”
port of the injector to the pass through port on the outside of the Pro-WAV Lite.
POE Injector
Ethernet
Source
Ethernet to
Pro-WAV
48VDC
Power Supply
DC
In
DC/Data
Out
Data
In
diagram 3
EXT ANT EXT ANTDC INRESETRJ45/POE
PRIMARY
ANTENNA
PORT
1
diagram 2
PosiTioNiNg yoUr Pro-WAV 200 LiTe sysTem
The Pro-WAV 200 Lite System features high gain directional antennas. Remember to con-
sider the direction of the signal when positioning the Pro-WAV 200 Lite System. The signal
extends out in both directions from the antennas mounted on the sides of the enclosure. If
mounting the Pro-WAV 200 Lite high in your Wi-Fi coverage area the antenna mount may
be bent slightly downward to focus coverage. Use diagram 7 below to position your Pro-
WAV 200 Lite system for maximum Wi-Fi coverage.
diagram 7

Pro-WAV™ 200 Lite QUiCK instALL GUiDe
The Pro-WAV 200 LiTe sysTem iNCLUDes The foLLoWiNg:
• Metal enclosure with space for mounting the EnGenius ECB3500 Internally
• Integrated X-WAV™ CP (Circularly Polarized) Antenna (XW-24-FP7 - 7dBi High Gain 2.4GHz)
• Ethernet cable
• Coax cables (3) (N-Male to RP-TNC (1), N-Male to N-Male (2))
• POE (Power-Over-Ethernet) injector and 48VDC Universal Input Power Supply
• Mounting hardware
• Ethernet pass through
• Velcro
• Quick Install Guide
geTTiNg sTArTeD: ADDiTioNAL iTem reQUireD
• EnGenius ECB3500 Wireless Access Point (WAP)
Included with the ECB3500: Wireless High power multi-function 7+1 AP (ECB3500), 12V/1A
Power Adapter, CAT5 UTP Cable, QIG, CD (User’s Manual), 5dBi 2.4GHz Dipole Antennas (2)
• External Ethernet cable from your data source/network (Max. length 329’ or 200 meters).
NOTE: Disconnect all power before connecting or disconnecting any cables, coax or
antennas to or from this device. Failure to do so will void your warranty.
seTTiNg UP yoUr Pro-WAV 200 LiTe sysTem
Attaching the antennas to the Pro-WAV enclosure
1. Connect the two X-WAV antennas to the
antenna mount. Position the antennas so the
antennas N connector is at the top of the
mount 1 (diagram 1).
2. Attach the antenna mount to the top of the
enclosure using the washers and nuts provided 2.
3. If mounting the Pro-WAV 200 Lite high in your
Wi-Fi coverage area the antenna mount may be
bent slightly downward to focus coverage.
1
2
diagram 1
moUNTiNg yoUr Pro-WAV 200 LiTe sysTem
The Pro-WAV 200 Lite system may be mounted to any surface using your fasteners or
mount the unit above a drop ceiling using the optional drop ceiling mounting arms. See
diagram 8, below, to mount your Pro-WAV 200 Lite system using the optional drop ceiling
mounts, Part Number HDW-PWM.
diagram 8
Optional Drop
ceiling Mounts

Pro-WAV™ 200 Lite
Wi-Fi rAnGe eXtenDer sYsteM
QUiCK instALL GUiDe
Results may vary depending on building layout, type of construction and other environmental factors
including Wi-Fi traffi c, Microwaves Ovens, Cordless Phones, etc.
FCC NOTICE: The use of all radio equipment is subject to regulations in each country. To comply with FCC part 15
rules in the United States, radio equipment must only be used in systems that have been FCC certifi ed. It is the
responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are
deployed. To ensure FCC part 15 compliance, Luxul amplifi er products should only be installed in certifi ed systems by
licensed professionals.
FCC Certifi cation Support for OEMs: Luxul Wireless offers FCC certifi cation assistance and engineering support for
qualifi ed OEM’s interested in certifying complete amplifi ed WLAN systems. Please contact us for details.
LUXUL WIRELESS | 357 South 670 West, Lindon, UT, 84042
p: 801-822-5450 f: 801-822-5460
www.luxulwireless.com
LUX-QIG-100620090210-PW20024LITE© 2009 Luxul Corp. All rights reserved.
For use with the ECB3500 WAP
QUiCK instALL GUiDe
Congratulations on your purchase of a Luxul Wireless Pro-WAV Lite™ Wi-Fi Range Ex-
tender System. Pro-WAV systems are simple to install. In just a few short steps, you will
be able to enjoy the benefi ts of a farther reaching, clearer wireless signal.
LUXUL WireLess ProDUCTs CoVereD By This gUiDe
PW-200-24-Lite- Pro-WAV Lite 2.4GHz indoor Wi-Fi Range Extender System
TroUBLeshooTiNg
Weak or non-existent coverage.
1. Make sure the cables are properly connected and that there is power to the
Pro-WAV 200 Lite Wi-Fi System.
2. Ensure that the X-WAV antenna is properly positioned. The antenna should be facing
the direction of the area to be covered with a minimum of 2 feet (.6 meters) with no
obstructions in front of the antenna. Luxul wireless signals are superior for penetrating
wood, concrete, and stucco, but all wireless signals can be disrupted by certain
obstructions, including large metal objects. Try orienting the antenna where more
line-of-sight access to the desired coverage area is available.
If after checking the above items, your Pro-WAV 200 Lite System still does not seem to be
functioning properly, please contact: Luxul Wireless Technical Support at: support@luxul-
wireless.com regarding Antenna and enclosure.
Luxul Wireless products include a Limited One Year Warranty
