LVSUN LS-CR90L User manual

Mini Universal
Laptop Car DC Adaptor
LS-CR90L
User Manual
Thank you for purchasing our LVSUN products!

Now enjoy your trip with the world’s smallest universal DC adapter with
90W power for notebooks and USB chargeable devices. Since it’s very small,
so it can be easily and conveniently carried with great convenience and it
can power your laptop and devices in cars. Moreover, this adapter also has
an integrated 5 Volt USB charging port, allowing you to charge accessory
devices through USB port without any additional power adapters. With our
ultra slim and smart power adapter, you’ll find an ideal companion for your
myriad pursuits in life.
Product Features
●Mini and intelligent design, compact size with Zippo
●100% automatic , no fiddly switch, just plug and go.
●Supply power for laptop, netbook, iPhone, iPad, Tablet PC, PSP, Mp4
and other related USB devices everywhere.
●Portable and convenient, smart partner for travel
●10pcs tips for optional, compatible with different brands of laptop
and netbooks.
●Multi protections: short circuit, over current, over voltage, over
Temperature protections.
Specification
●Product: Mini Universal Laptop Car DC Adaptor
Model: LS-CR90L
Input: DC 11-15V 10A
Output: DC 14.5V-24V 6A 90W(max)
USB output: 5V2.4A
Size: 63.5x48.9x16.9mm
N.W.:61g
High Efficiency:96%

Product Diagram:
LS-CR90L Body
Car charging cable
Laptop prolong DC cable
Mobile phone USB cable(not include)
Laptop DC tip (Optional）
User manual
The above accessories and quantity is different for different areas with
different requirements. And the photos just for reference，the products
kindly based on packaging sample.

Operation Instruction
●Check the DC voltage of your notebook
Method one: you can check from the back of you notebook.
Method two: you can look at the label of your notebook adaptor.
choose the right laptop dc tip, for example like N04, you'll find output
voltage 19V which is engraved on the tip. Connect it with prolong cable as
below:
Caution: This adapter supports voltage output ranging from 14.5-24 volts. Please be
informed that using this adapter to charge a notebook outside of the 14.5-24 volts
range may damage the notebook.

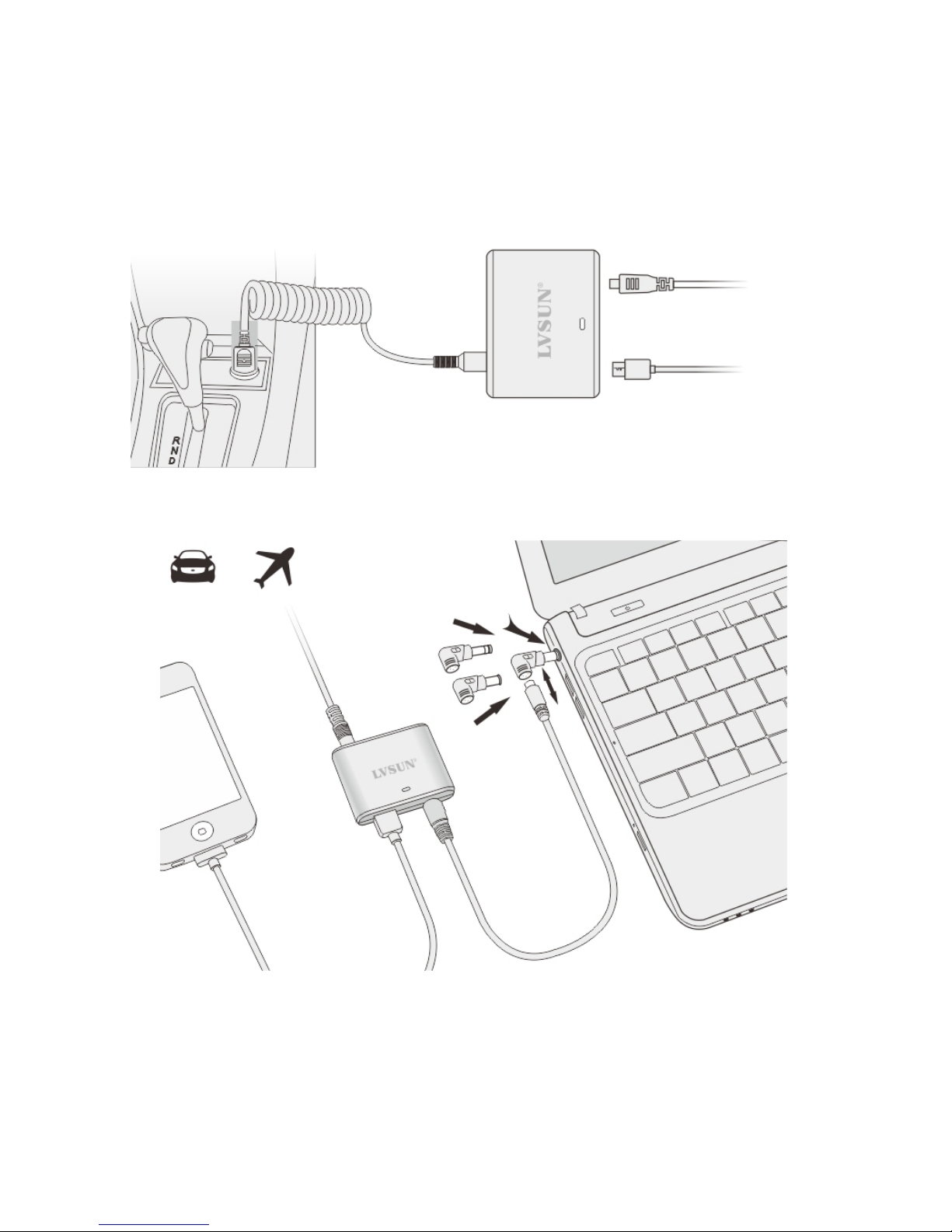

●Charge or supply power for laptops and mobile phones
Insert the car plug to the cigar lighter socket, then connect the other end to the
input port of our car adaptor. Select the right laptop DC tip or mobile phone USB cable
and connect it to the DC output or USB output of car adaptor, then it can charge or
supply power for your laptops and mobile phones.
Cigar lighter socket
Input
DC output
USB output

Laptop DC Tip Specification
No Output
Voltage
Range
Voltage
Connectors
Spec. Replacement
N04 19V 18.1-19.9V 4.8*1.7*10.7mm
HP/COMPAQ:18.5V/2.7A,18.5V/3.5A,18.5V/3.
8A,18.5V/4.9A; DELTA:19V/2.64A;
ASUS:19V/2.64A; NEC:19V/2.64A
N07
19V 18.1-19.9V 5.5*2.5*10.7mm
IBM:19V/4.2A; DELL:19V/3.16A,19V/3.42A;
COMPAQ/HP:18.5V/4.9A,19V/4.9A; DELTA:
19V/2.64A.;
TOSHIBA:19V/3.16A,19V/3.42A,19V/4.74A;
ASUS:19V/4.74A.LENOVO:20V/2A;
LITEON:19V/3.16A,19V/3.42A,19V/3.95A,19V
/4.74A; NEC:19V/2.64A,19V/3.16A;
GATEWAY:19V/3.16A,19V/3.42A,19V/3.68A,1
9V/4.74A
N09
19.5V 18.5-20.4V 6.0*4.3*10.7mm
SONY:
19.5V/2.7A,19.5V/3A,19.5V/4.1A,19.5V/4.7A;
FUJITSU: 19V/3.16A, 19V/3.69A, 19V/4.22A
N11
19V 18.1-19.9V 5.5*1.7*10.7mm TOSHIBA: 19V/3.95A; ACER: 19V/3.42A;
DELTA: 20V/3.5A
N18 19V 18.1-19.9V 5.5*2.1*10.7mm
ACER:19V/3.16A,19V/3.42A,19V/4.74A;
LITEON:19V/3.16A,19V/3.42A;
NEC:19V/3.16A
N19
19V 18.1-19.9V 5.5*3.0*10.7mm SAMSUNG:
19V/3.16A,19V/3.75A,19V/4.22A,19V/4.74A
N23
18.5V 17.6-19.4V 7.4*5.0*12.5mm HP/COMPAQ: 18.5V/3.5A,18.5V4.9A etc.
N24 20V 19-21V 7.9*5.5*0.9mm IBM/LENOVO: 20V/4.5A,20V/3.25A etc.
N35 20V 19-21V 11*5.6*11mm
square tip Lenovo: 20V2.25A,20V3.25A, 20V4.5A
N36 19.5V 18.5-20.4V 4.5*3.0 with pin HP:19.5V2.31A, 19.5V3.33A,19.5V4.62A
Notes:1,All listing of brand names are registered trademarks of their respective companies..
2, Not all connectors are available in the package, connectors may bedifferent for
different market.

Important Safety Information
The user manual is to help you use the power adapter safely, to ensure
your personal safety, and to reduce the risk of fire, electric shock, or injury.
●Read all instructions in this user manual carefully before using the
adapter.
●Do not open the device. There are no serviceable parts inside.Please
always follow all the warnings and instructions closely.
●Your adapter should be used with cables and tips approved by LVSUN
only.Using your adapter with non-approved cables and tips may result
in serious or fatal injury, and/or property damage.
●Do not operate the adapter near a heat source, a heat went or under
direct sunlight. Your adapter should be used in temperatures between
0℃-35℃(32℉-95℉).
●Do not ever cover the adapter with papers or other materials that
reduce the cooling.
●To prevent injury and/or property damage, disconnect the input power
cable from the adapter when it is not used. Please do not leave the
adapter unattended while in use.
●The adapter may become hot during normal operation. Please handle
the adapter with caution during or immediately after operation.
●Do not use your device in a net environment. For example, near bath
tubs, sinks, Swimming pools, or in wet basements.
●Use the adapter only in automotive vehicles with 12Volt.
●Before cleaning the device, disconnect the device from the electrical
outlet. Clean the device with dampened soft cloth. Do not use liquid or
aerosol cleaners, which may contain flammable substances.

●Do not attempt to repair, modify, or tamper with the external or
internal components of the adapter. Doing so will void the warrant and
may lead to serious or fatal injury and/or property damage.
Hereby LVSUN
Electr onicsTechnology Co.,
Ltd declares that this device is in
compliance with the requirements of Directive 2014/30/EU (EMC), Directive
2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The
complete declaration of conformity can be requested by post under the below
mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio
interference in living environment. In this case, the user can be requested to
undertake appropriate measures to prevent interference
