Important Safety Instructions

Contents

Warnings and safety instructions appearing in this guide

are not meant to cover all possible conditions and situa-

tions that may occur. Common sense, caution, and care

must be exercised when installing, maintaining, or operat-

ing this appliance.

Recognize Safety Symbols,

Words, and Labels.

!WARNING

WARNING-You can be killed or seriously injured if

you do not follow these instructions.

CAUTION-Hazards or unsafe practices which could re-

sult in personal injury or property / product damage.

NOTE-Important information to help assure a problem

free installation and operation.

CARE AND USE/INSTALLATION

NOTE

!CAUTION

UNPACKING YOUR APPLIANCE

Warranty Registration

Remove Interior Packaging

It is important you send in your warranty registration card

immediately after taking delivery of your appliance or you

can register online at:

www.lynxgrills.com/support/registration

The following information will be required when registering

your appliance.

Service/Model Number

Serial Number

Date of Purchase

Dealer’s name and address

The service/model number and serial number can be found

on the serial plate which is located inside the cabinet on

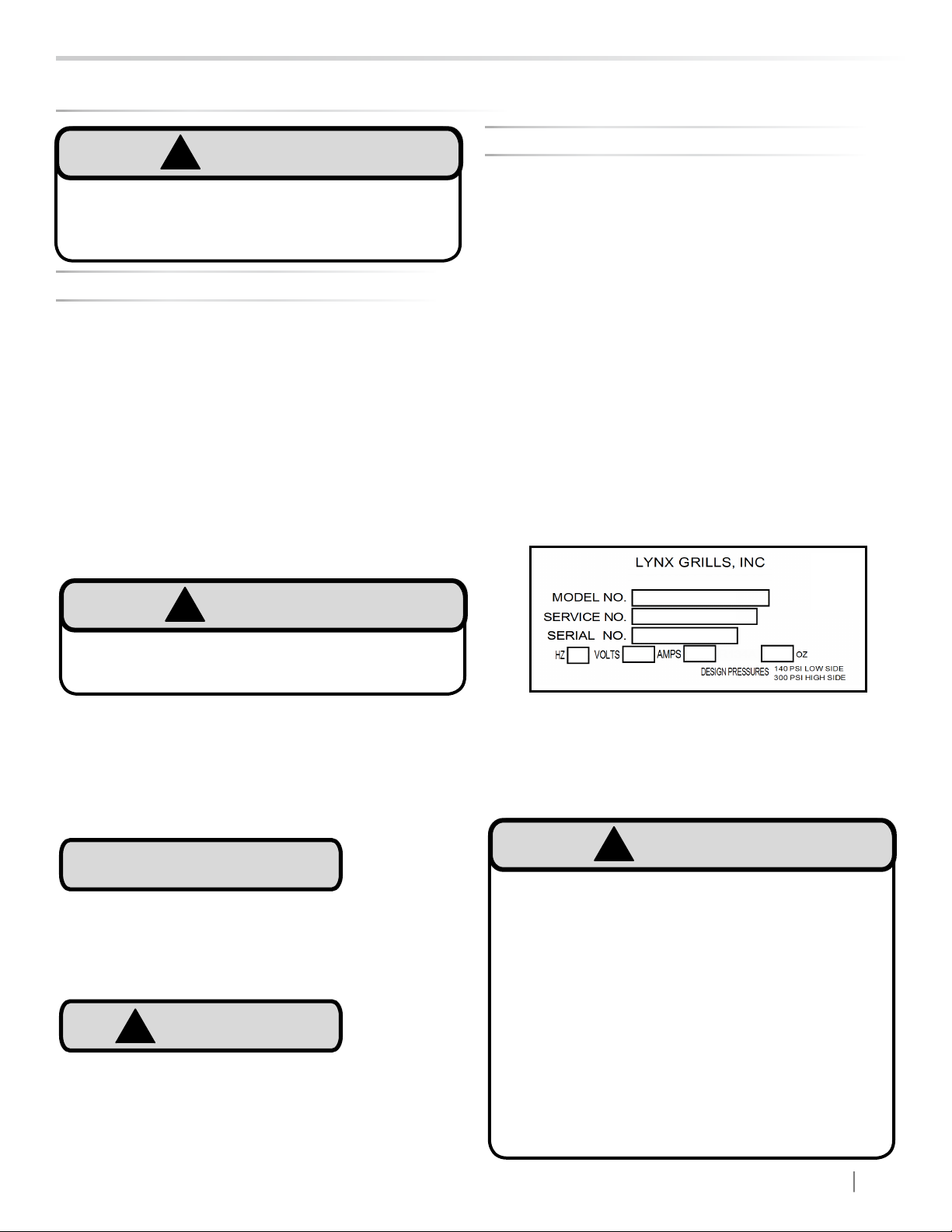

the left side near the top. (See Figure 1).

!WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Your appliance has been packed for shipment with all parts

that could be damaged by movement securely fastened.

Remove internal packing materials and any tape holding in-

ternal components in place. The owners manual is shipped

inside the product in a plastic bag along with the warranty

registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has

been thoroughly inspected and found to be in good condi-

tion. If there is damage, the packaging will be needed as

proof of damage in transit. Afterwards please dispose of all

items responsibly.

Note to Customer

This merchandise was carefully packed and thoroughly

inspected before leaving our plant. Responsibility for its

safe delivery was assumed by the retailer upon acceptance

of the shipment. Claims for loss or damage sustained in

transit must be made to the retailer.

DO NOT RETURN DAMAGED MERCHANDISE TO THE

MANUFACTURER - FILE THE CLAIM WITH THE

RETAILER.

If the appliance was shipped, handled, or stored in other

than an upright position for any period of time, allow the ap-

pliance to sit upright for a period of at least 24 hours before

plugging in. This will assure oil returns to the compressor.

Plugging the appliance in immediately may cause damage

to internal parts.

Figure 1

!WARNING

WARNING - Help Prevent Tragedies

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please

follow the instructions below to help prevent acci-

dents.

Before you throw away your old refrigerator or

freezer:

• Take off the doors or remove the drawers.

• Leave the shelves in place so children may not

easily climb inside.

!WARNING

WARNING - Dispose of the plastic bags which can

be a suffocation hazard.

Greenwood, MS 38930

R600A

XXXXXXXXXXX

4CARE AND USE/INSTALLATION

!CAUTION

Leveling Legs

Front Grille

Do not obstruct the front grille. The openings within the

front grille allow air to ow through the condenser heat ex-

changer. Restrictions to this air ow will result in increased

energy usage and loss of cooling capacity. For this reason

it is important this area not be obstructed and the grille

openings kept clean. Lynx Grills does not recommend the

use of a custom made grille as air ow may be restricted.

(See Figure 2).

Front Leveling

Legs

Figure 2

Rear

Leveling

Legs

Front Grille,

keep this area

open.

INSTALLING YOUR APPLIANCE

Select Location

The proper location will ensure peak performance of your

appliance. We recommend a location where the unit will

be out of direct sunlight and away from heat sources. To

ensure your product performs to specifications, the recom-

mended installation location temperature range is from 55

to 100°F (13to 38°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appli-

ance. Keep this area open and clear of any obstructions.

Adjacent cabinets and counter top can be installed around

the appliance as long as the front grille remains unobstruct-

ed.

Adjustable legs at the front and rear corners of the appli-

ance should be set so the unit is rmly positioned on the

oor and level from side to side and front to back. The over-

all height of your Lynx appliance may be adjusted between

the minimum, 333⁄4" (85.7 cm), by turning the leveling leg in

(CW ↷) and the maximum, 343⁄4" (88.3 cm) by turning the

leveling leg out (CCW ↶).

To adjust the leveling legs, place the appliance on a solid

surface and protect the oor beneath the legs to avoid

scratching the oor. With the assistance of another person,

lean the appliance back to access the front leveling legs.

Raise or lower the legs to the required dimension by turning

the legs. Repeat this process for the rear by tilting the appli-

ance forward using caution. On a level surface check the

appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille ad-

justed to the desired height. When adjustment is complete

tighten the two front grille screws. (See Figure 5).

CARE AND USE/INSTALLATION

NOTE

Figure 6

Electrical Connection

Electrical Shock Hazard

• Do not use an extension cord with this appliance.

They can be hazardous and can degrade product

performance.

• This appliance should not, under any circumstanc-

es, be installed to an un-grounded electrical supply.

• Do not remove the grounding prong from the power

cord. (See Figure 3).

• Do not use an adapter. (See Figure 4).

• Do not splash or spray water from a hose on the

appliance. Doing so may cause an electrical shock,

which may result in severe injury or death.

!WARNING

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply

cord that has a three-pronged, grounded plug. It must be

plugged into a mating grounding type receptacle in accor-

dance with the National Electrical Code and applicable lo-

cal codes and ordinances (see Figure 6). If the circuit does

not have a grounding type receptacle, it is the responsibility

and obligation of the customer to provide the proper power

supply. The third ground prong should not, under any cir-

cumstances, be cut or removed.

Ground Fault Circuit Interrupters (GFCI) are prone to nui-

sance tripping which will cause the appliance to shut down.

GFCI’s are generally not used on circuits with power equip-

ment that must run unattended for long periods of time, un-

less required to meet local building codes and ordinances.

Front grille screw

Front grille

Figure 5

INSTALLING YOUR APPLIANCE

Figure 3

Figure 4

Do not remove

ground prong

6CARE AND USE/INSTALLATION

INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS)

!CAUTION

NOTE

Bottom View of

Wine cellar

Anti-Tip

Bracket Leveling Leg

Front of cabinet

211⁄2"

(54.6 cm)

Figure 7

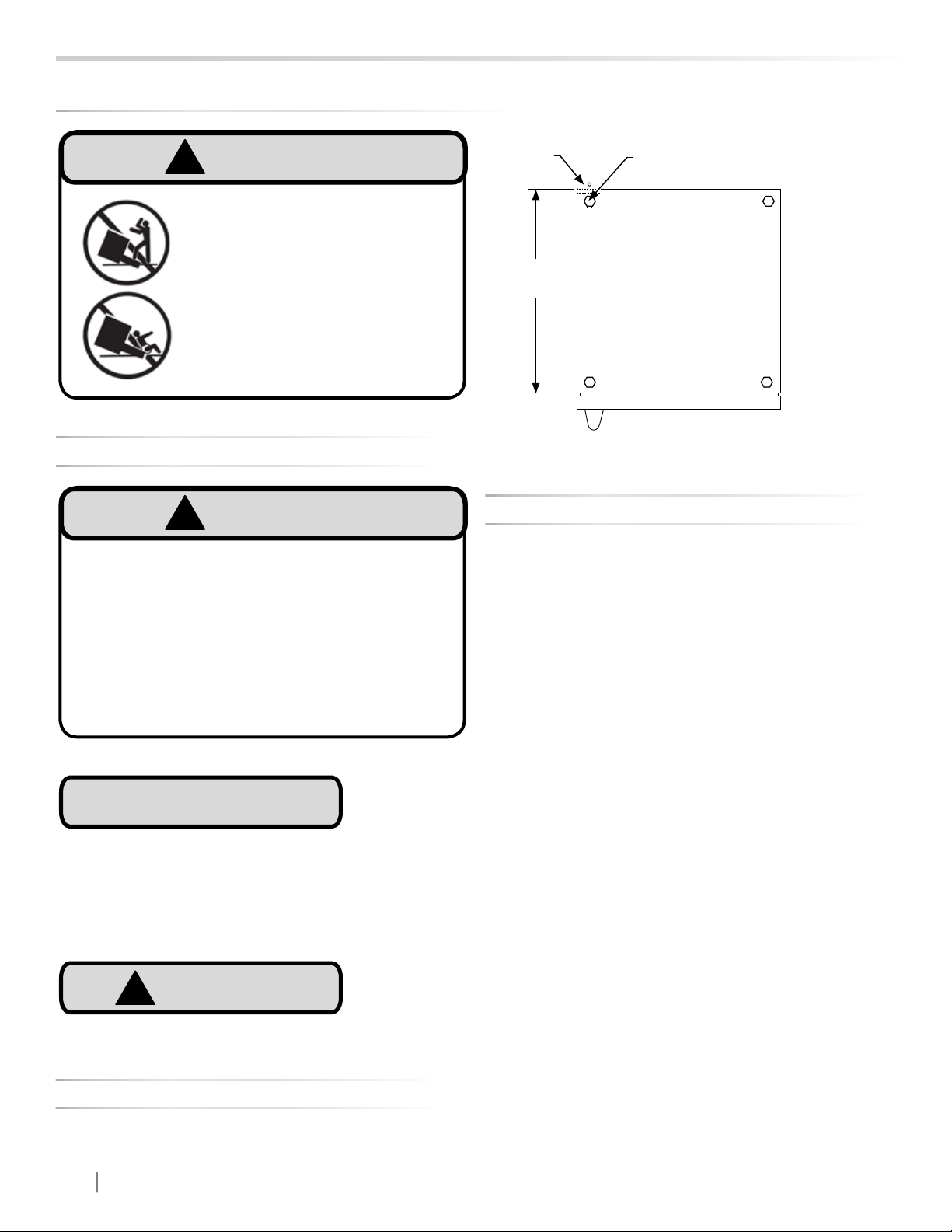

The anti-tip bracket is to be located on the oor in the left or

right rear corner of the wine cellar as shown in Figure 7.

for locating the position of the bracket:

1) Decide where you want to place the wine cellar. Slide it

into place, being careful not to damage the oor, leaving 1"

(2.5 cm) of clearance from the rear wall to allow room for

the anti-tip bracket.

2) Raise the rear leveling legs approximately 1⁄4" (6 mm) to

allow engagement with the anti-tip bracket. Level the unit

by adjusting all the leveling legs as required. Turning the

leveling leg counterclockwise will raise the unit and clock-

wise will lower the unit.

3) Make sure the wine cellar is in the desired location, then

mark on the oor the rear and side corner of the cabinet

where the anti-tip bracket will be installed. If the installation

does not allow marking the rear corner of the cabinet, then

make temporary lines on the oor marking the front corner

of the cabinet, excluding the door. Slide the wine cellar out

of the way. From the temporary line extend the sidewall line

back 211⁄2" (54.6 cm) as shown in Figure 8.

4) Align the anti-tip bracket to the marks on the oor so

the side of the bracket lines up with the side of the cabinet

mark, and the "V" notches on the anti-tip bracket line up

with the end of the 211⁄2" (54.6 cm) line (Rear of cabinet

line).

5) Fasten the anti-tip bracket to the oor using the supplied

screw. (See Figure 8).

6) Slide the cabinet back into position, making sure the rear

cabinet leveling leg slides under the anti-tip bracket engag-

ing the slot.

!WARNING

•ALL APPLIANCES CAN TIP

RESULTING IN INJURY.

•INSTALL THE ANTI-TIP

BRACKET PACKED WITH

THE APPLIANCE.

•FOLLOW THE INSTRUC-

TIONS BELOW

Any nished ooring should be protected with appropriate

material to avoid damage when moving the unit.

If installing on a concrete oor, concrete fasteners are

required, (not included with the anti-tip kit).

!WARNING

If your wine cellar is not located under a counter

top (free standing), you must use an anti-tip device

installed as per these instructions. If the wine cellar is

removed from its location for any reason, make sure

that the device is properly engaged with the anti-tip

bracket when you push the wine cellar back into the

original location. If the device is not properly engaged,

there is a risk of the wine cellar tipping over, with the

potential for property damage or personal injury.

Anti-Tip Device

Floor Mount Installation

Step by Step Instructions

CARE AND USE/INSTALLATION

INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS)

211⁄2"

(54.6 cm)

"V" notches

in bracket

"V" notches

in bracket

Side of cabinet line

Figure 8

Front of cabinet line

Rear of cabinet line

Rear Leveling leg

Screw

Figure 8a

NOTE

When the oor mounted anti-tip bracket is used the mini-

mum adjusted height of the cabinet is increased by

3⁄8" (9 mm).

8CARE AND USE/INSTALLATION

MODEL

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

"A" "B" "C" "D" "E" "F" "G" "H" "J"

LN15WINE 15"

(38.1 cm)

**34" to 35"

(86.4 to 88.9 cm) *147⁄8"

(37.8 cm)

333⁄4" to 343⁄4"

(85.7 to 88.3 cm)

2323⁄32"

(60.2 cm)

263⁄4"

(67.9 cm)

3713⁄32"

(95 cm)

173⁄4"

(45.1 cm)

"A"

"B"

"C"

"D"

"E"

If necessary to gain clearance inside the rough-in

opening a hole can be cut through the adjacent cabi-

net and the power cord routed through this hole to a

power outlet. Another way to increase the available

opening depth is to recess the power outlet into the

rear wall to gain the thickness of the power cord plug.

Not all recessed outlet boxes will work for this applica-

tion as they are too narrow, but a recessed outlet box

equivalent to Arlington #DVFR1W is recommended for

this application, (see Figure 10).

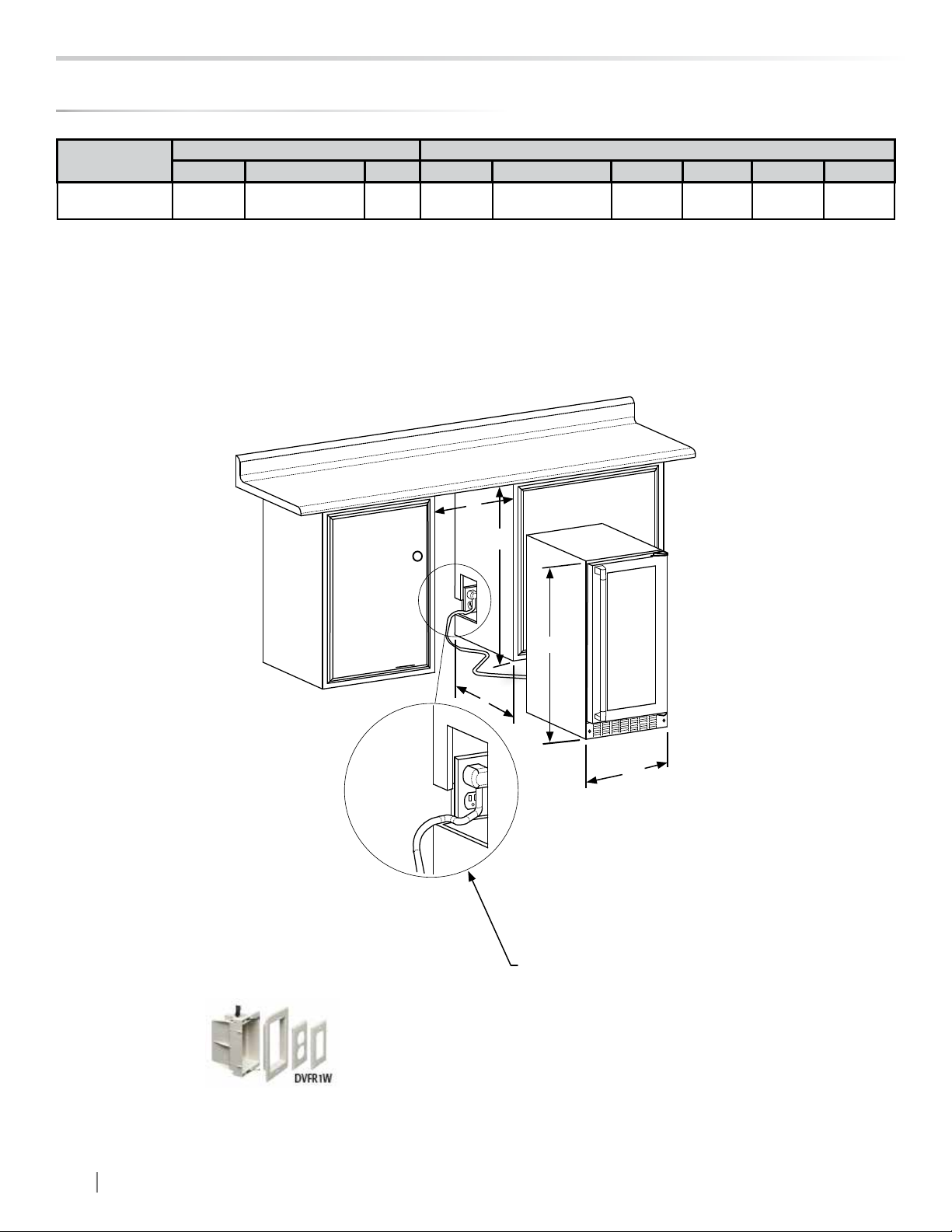

PRODUCT DIMENSIONS

Figure 9

Figure 9a

Figure 10

CARE AND USE/INSTALLATION

"F"

211⁄2"

(54.6 cm)

* Depth dimension of rough-in opening may vary depend-

ing on each individual installation. To recess entire door "F"

dimension plus 1" (2.5 cm) for thickness of power cord plug

is required.

** Minimum rough-in opening required is to be larger than

the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow

all local building codes when installing electrical and appli-

ance.

MODEL

PRODUCT DATA

ELECTRICAL

REQUIREMENTS #

PRODUCT

WEIGHT

LN15WINE 115V/60Hz/15A 105 lbs

(47.7 kg)

"D"

"E"

"H"

"J"

"G"

PRODUCT DIMENSIONS

Figure 11

!WARNING Floor mount Anti-tip Bracket must be installed for freestand-

ing applications. Not required for built in applications.

10 CAREANDUSE/INSTALLATION

USING YOUR ELECTRONIC CONTROL

Control Function Guide

Figure 12

Electronic control

Function Command Notes

ON/OFF Press and hold for 5 seconds. Unit will immediately turn ON or OFF.

Leave Interior Light On Press and release to leave interior light on for

3 hours; press again to deactivate.

After 12 hours, factory default is restored; light will turn on when

door is open.

Adjust Temperature Press or and release.

:KHQWKHGLVSOD\LVÀDVKLQJSUHVVRUWRDGMXVWWKHVHW

point temperature. Note: temperature displayed is the actual

temperature inside unit.

Toggle Between oF / oC Hold and for 5 seconds. The display will change units.

Enable Sabbath Mode Press and hold for 5 seconds and release.

The oF / o&V\PEROZLOOÀDVKEULHÀ\DIWHUVHFRQGV,QWHULRU

light and display will go dark and remain so until user resets

mode - unit continues to operate.

Disable Sabbath Mode Press , hold for 5 seconds and release. Display and interior light return to normal operation.

Showroom Mode Hold and for 5 seconds.

Display will show for 2 seconds. Interior light and display

will function normally, but the compressor and fans will not be

energized. Repeat command to return to normal operation.

Display will show for 2 seconds.

NOTE

7HPSHUDWXUHGLVSOD\HGUHÀHFWVDFWXDOWHPSHUDWXUHLQVLGHXQLW,IWKH

WHPSHUDWXUHGLVSOD\HGLVGLႇHUHQWWKDQVHOHFWHGWKHXQLWLVSURJUHVVLQJ

towards the selected temperature. Time to reach set point varies based

upon ambient temperature, temperature of product loaded, door

openings, etc. /\Q[*ULOOV recommends allowing the unit to reach set

points before loading.

11CARE AND USE/INSTALLATION

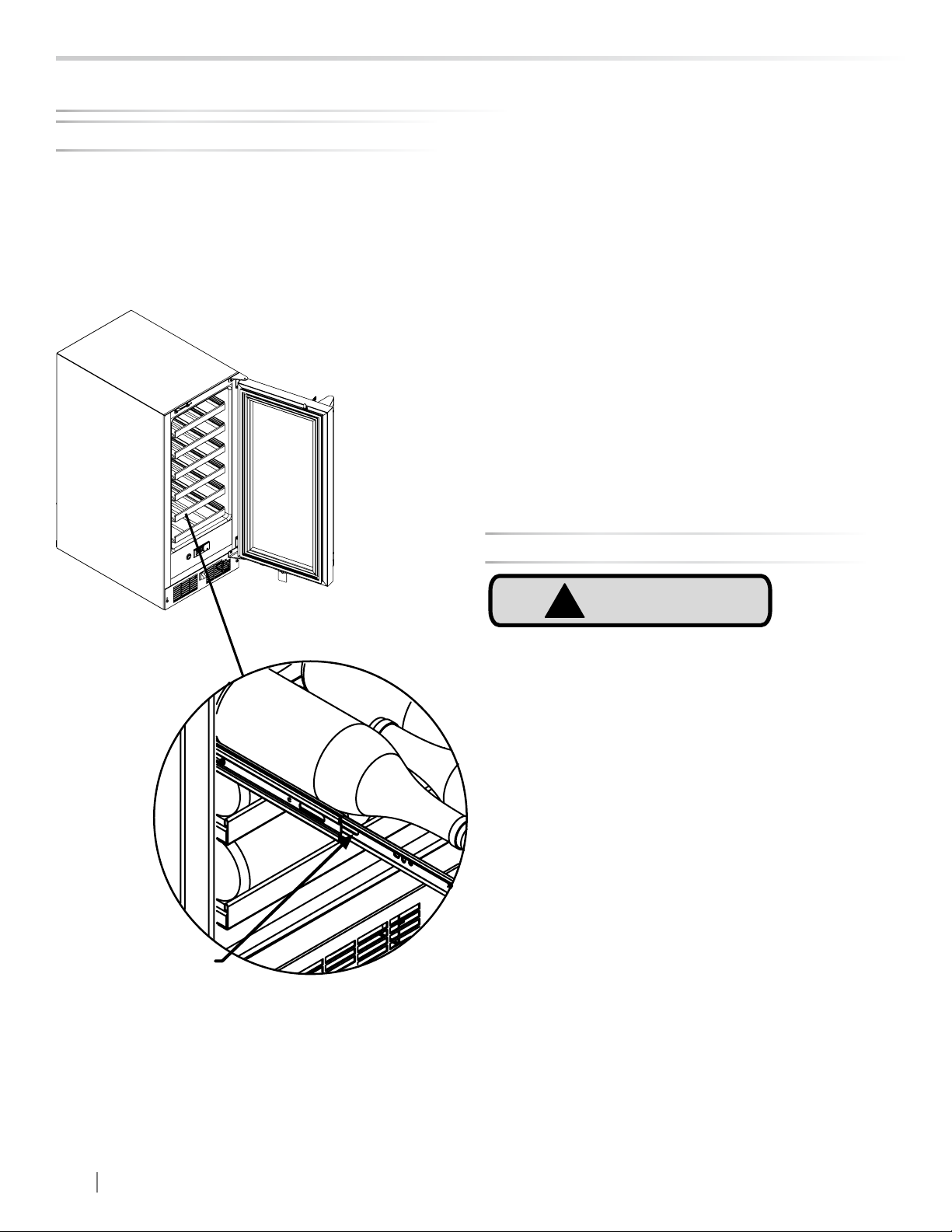

Shelving Conguration

Your Lynx Grills appliance is equipped with full extension

ball bearing shelf glides to provide maximum access and

visibility for the product stored on the shelving arrangement

listed below.

Single Zone Wine Cellar:

15" (38.1 cm) Wide models:

(6) 4 bottle wire racks

Figure 1

Figure 1a

Locking tab

Remove the

wine from the

shelf to be

removed

SHELVING CONFIGURATION

To Add or Remove a Shelf

!CAUTION

Never try to remove a loaded shelf, remove everything from

the shelf before removing. Use both hands when removing

the shelf.

To remove a shelf:

Extend the shelf out of the cabinet until it stops.

Unload the shelf (see Figure 14).

Depress the locking tabs on both sides of the shelf and pull

the shelf straight out (see Figure 14a). When the shelf is

removed, push the extended cabinet mounted shelf exten-

sions back into the cabinet.

To re-install a shelf:

Pull out the cabinet mounted shelf extensions to assist the

engagement with the wire rack shelf.

Insert the wire rack side track into the cabinet mounted

shelf extensions on both sides.

Push the wire rack completely into the cabinet to engage

the locking tabs.

Pull the shelf out, (unloaded), to verify the wire rack is

locked into the side rails. If the wire rack falls out, the lock-

ing tabs are not engaged; repeat the installation.

Load the shelf as required.

CARE AND USE/INSTALLATION

CARE AND CLEANING

!CAUTION

• Never attempt to repair or perform maintenance on

the appliance until the main electrical power has been

disconnected. Turning the appliance control "OFF"

does not remove electrical power from the unit's wiring.

• Replace all parts and panels before operating.

!WARNING

Electrocution Hazard

Front Grille

In the Event of a Power Failure

Light Assembly Replacement

Be sure that nothing obstructs the required air ow open-

ings in front of the cabinet. At least once or twice a year,

brush or vacuum lint and dirt from the front grille area (see

page 4).

SHOCK HAZARD: Disconnect electrical power from the

appliance before cleaning with soap and water.

Cabinet

The stainless steel cabinet can be washed with either a

mild soap and water and thoroughly rinsed with clear

water. See "Stainless Steel Maintenance" on page 14.

Interior

Wash interior compartment with mild soap and water. Do

NOT use an abrasive cleaner, solvent, polish cleaner or

undiluted detergent.

Care of Appliance

1. Avoid leaning on the door, you may bend the door

hinges or tip the appliance.

2. Exercise caution when sweeping, vacuuming or mop-

ping near the front of the appliance. Damage to the

grille can occur.

3. Periodically clean the interior of the appliance as

needed.

If a power failure occurs, try to correct it as soon as pos-

sible. Minimize the number of door openings while the

power is off so as not to adversely affect the appliance's

temperature.

All models use LED lamps to illuminate the interior of the

appliance. This component is very reliable, but should one

fail, contact a qualied service technician for replacement

of the LED.

13CARE AND USE/INSTALLATION

CARE AND CLEANING

1. Time to Winterize, when the daily low ambient tempera-

ture is at or below 38°F (3.3°C).

!CAUTION

Operation of the unit at ambient temperatures below the

recommended Winterization temperature will void your war-

ranty.

2. Turn unit off, (see page 10)

3. Remove all contents.

4. If necessary, move the unit so you can gain access to

the rear of the product.

5. Unplug the unit from the power outlet.

6. It is also recommended that the power to the outlet be

turned-off if the circuit is not required for other items

during the Winter season.

7. When cleaning unit pay particular attention to any

cracks and crevices that may have accumulated dirt

and debris.

8. Remove the front toe-grille, (see Figure 15), and use a

brush and vacuum to clean dirt and debris from be-

neath the unit.

9. Thoroughly clean the toe-grille and re-install on the

unit. (See Figure 15).

10. Remove the rear access cover, (see Figure 16), and

use a brush and vacuum to clean dirt and debris from

the machine compartment.

11. Thoroughly clean the rear access cover and re-install

on the unit.

12. Wipe down all interior surfaces with anti-bacterial

cleaner to be followed with clean rinse water to remove

any residual chemicals which could cause staining. Do

not use any abrasive cleaners or scouring pads.

13. Leave the door open and allow to completely dry out

before closing the door.

14. Thoroughly clean the door gasket with anti-bacterial

cleaner to be followed with clean rinse water to remove

any residual chemicals.

15. Thoroughly clean the exterior with a cleaner approved

for stainless steel. Do not use any abrasive cleaners or

scouring pads. See "Stainless Steel Maintenance" on

page 14.

16. Any mounting hardware / fasteners that are showing

signs of corrosion should be replaced.

17. Once the exterior has been thoroughly cleaned, you

may want to apply a coating of car wax to help protect

against spotting from moisture, dirt, and debris that may

accumulate on the surfaces during the Winteriza-tion

period.

• If the plastic defrost drain pan located under the

compressor contains water, use a sponge to

remove as much water as possible.

1. If stored outside, it is recommended that the unit again

be thoroughly inspected per the storage instructions

above to address any dirt or debris from the weather

and/or animals/insects.

2. Connect the unit to electrical power.

3. Turn unit on and conrm your desired control settings.

4. Allow 24-hrs for the unit to stabilize before loading

contents.

Figure 14

Grille

Spacer

Clean out

behind

grille

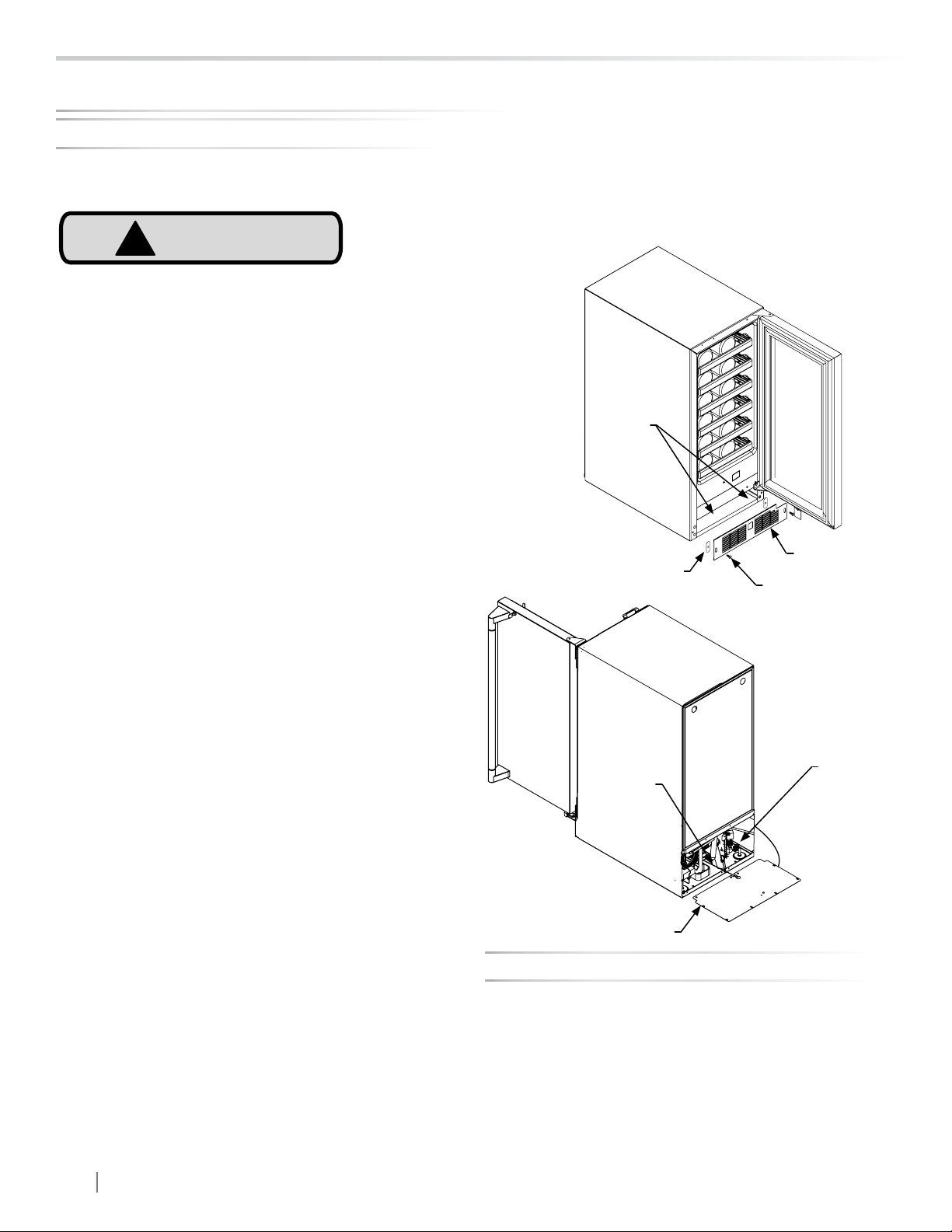

Figure 15

Soak up

water from

plastic drain

pan if

necessary Clean out

debris

Remove screws

around perimeter

of access cover.

18. Do not place a cover on the unit, as this can trap con-

densation.

After completion of the above, you may choose to store the

unit indoors, although this is not required.

Remove screw from

each end of grille

Access cover

Long Term Storage/Winterization

Start-up after Long Term Storage

CARE AND USE/INSTALLATION

STAINLESS STEEL MAINTENANCE

NOTE

Background

Care and Cleaning

Choosing a Cleaning Product

Stainless steel does not stain, corrode, or rust as easily as

ordinary steel, but it is not stain or corrosion proof. Stain-

less steels can discolor or corrode if not maintained prop-

erly.

Stainless steels differ from ordinary carbon steels by the

amount of chromium present. It is this chromium that

provides an invisible protective lm on the surface called

chrome-oxide. This protective chrome-oxide lm on the

surface can be damaged or contaminated, which may

result in discoloration, staining, or corrosion of the base

metal.

Routine cleaning of the stainless steel surfaces will serve to

greatly extend the life of your product by removing contami-

nants. This is especially important in coastal areas which

can expose the stainless to severe contaminants such as

halide salts, (sodium chloride).

It is strongly recommended to periodically inspect and thor-

oughly clean crevices, weld points, under gaskets, rivets,

bolt heads, and any locations where small amounts of liquid

could collect, become stagnant, and concentrate contami-

nates. Additionally, any mounting hardware that is showing

signs of corrosion should be replaced.

Frequency of cleaning will depend upon the installation

location, environmental, and usage conditions.

The choice of a proper cleaning product is ultimately that

of the consumer, and there are many products from which

to choose. Depending upon the type of cleaning and the

degree of contamination, some products are better than

others.

Typically the most effective and efcient means for routine

cleaning of most stainless steel products is to give the sur-

faces a brisk rubbing with a soft cloth soaked in warm water

and a gentle detergent, or mild mixture of ammonia. Rub-

bing should, to the extent possible, follow the polish lines of

the steel, and always insure thorough rinsing after cleaning.

Although some products are called "stainless steel clean-

ers," some may contain abrasives which could scratch the

surface, (compromising the protective chrome-oxide lm),

and some many contain chlorine bleach which will dull,

tarnish or discolor the surface if not completely removed.

After the stainless surfaces have been thoroughly cleaned,

a good quality car wax may be applied to help maintain the

nish.

Stainless steel products should never be installed, or stored

in close proximity to chlorine chemicals.

Whichever cleaning product you chose, it should be used

in strict accordance with the instructions of the cleaner

manufacturer.

15CARE AND USE/INSTALLATION

ENERGY SAVING TIPS AND OBTAINING SERVICE

If Service is Required:

•If the product is within the rst year warranty period

please contact your dealer or call Lynx Grills Customer

Service at 888.289.5969 for directions on how to obtain

warranty coverage in your area.

•If the product is outside the rst year warranty period,

Lynx Grills Customer Service can provide recommen-

dations of service centers in your area.

•In all correspondence regarding service, be sure to give

the service/model number, serial number, and proof of

purchase.

• Try to have information or description of nature of the

problem, how long the appliance has been running, the

room temperature, and any additional information that

may be helpful in quickly solving the problem.

• Table "A" is provided for recording pertinent information

regarding your product for future reference.

For Your Records

Date of Purchase

Dealer’s name

Dealer’s Address

Dealer’s City

Dealer’s State

Dealer’s Zip Code

Appliance Serial Number

Appliance Service/Model Number

Date Warranty Card Sent (Must be

within 10 days of purchase).

Table A

Energy Saving Tips

The following suggestions will minimize the cost of

operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance

(cooker, dishwasher, etc.), heating air duct, or other

heat sources.

2. Install product out of direct sunlight.

3. Ensure the front grille vents at front of appliance be-

neath door are not obstructed and kept clean to allow

ventilation for the refrigeration system to expel heat.

4. Plug your appliance into a dedicated power circuit. (Not

shared with other appliances).

5. When initially loading your new product, or whenever

large quantities of warm contents are placed within

refrigerated storage compartment, minimize door

openings for the next 12 hours to allow contents to pull

down to compartment set temperature.

6. Maintaining a relatively full storage compartment will

require less appliance run time than an empty compart-

ment.

7. Ensure door closing is not obstructed by contents

stored in your appliance.

8. Allow hot items to reach room temperature before plac-

ing in product.

9. Minimize door openings and duration of door openings.

10. Use the warmest temperature control set temperature

that meets your personal preference and provides the

proper storage for your stored contents.

11. When on vacation or away from home for extended pe-

riods, set the appliance to warmest acceptable tem-

perature for the stored contents.

12. Set the control to the “off” position if cleaning the

appliance requires the door to be open for an extended

period of time.

13. For wine storage products:

When serving temperatures are not required,

return the compartment(s) set temperature to the

ideal red and white wine long term storage tem-

perature of 13°C / 55°F.

CARE AND USE/INSTALLATION

• Never attempt to repair or perform maintenance on

the appliance until the main electrical power has been

disconnected. Turning the appliance control "OFF"

does not remove electrical power from the unit's wiring.

• Replace all parts and panels before operating.

!WARNING

Electrocution Hazard

Before You Call for Service

If the appliance appears to be malfunctioning, read through

this manual rst. If the problem persists, check the trouble-

shooting guide below. Locate the problem in the guide and

refer to the cause and its remedy before calling for service.

The problem may be something very simple that can be

solved without a service call. However, it may be required

to contact your dealer or a qualied service technician.

TROUBLESHOOTING

Problem Possible Cause Remedy

Appliance not cold enough

(See “setting the temperature" on

page 10)

• Control set too warm

• Content temperature not stabi-

lized.

• Excessive usage or prolonged

door openings.

•Airow to front grille blocked.

• Door gasket not sealing properly.

• Adjust temperature colder. Al-

low 24 hours for temperature to

stabilize.

• Allow temperature to stabilize for

at least 24 hours.

•Airow must not be obstructed to

front grille. See “clearances” on

page 4.

• Replace door gasket.

Appliance too cold

(See “setting the Temperature” on

page 10)

• Control set too cold

• Door gasket not sealing properly.

• Adjust temperature warmer.

Allow 24 hours for temperature to

stabilize.

• Replace door gasket.

No interior light. • Failed LED light assembly or light

switch.

•Contact a qualied service techni-

cian.

Light will not go out when door is

closed

• Display light is turned on. (Glass

door models only.

• Door not activating light switch.

• Failed light switch

• Turn off display light, shut door.

• Appliance not level, level appli-

ance, (See page 4, “leveling legs”)

•Contact a qualied service techni-

cian.

Noise or Vibration • Appliance not level

• Fan hitting tube obstruction.

• Level appliance, see “Leveling

Legs” on page 4.

•Contact a qualied service techni-

cian.

Appliance will not run. • Appliance turned off

• Power cord not plugged in.

• No power at outlet.

• Turn appliance on. See “Starting

your wine cellar” on page 10.

• Plug in power cord.

• Check house circuit.

!CAUTION

In the unlikely event you lose cooling in your unit, do not

unplug the product from the electric supply, but do call

a qualied service technician immediately. It is possible

that the loss of cooling capacity is a result of excessive

frost build-up on the evaporator cooling coil. In this case,

removing power to the unit will result in the melting of this

excessive quantity of ice, which could generate melt water

that exceeds the capacity of the defrost drain system and

could result in water damage to your home. The end-user

will be ultimately responsible for any water damage caused

by prematurely turning the unit off without appropriately

managing the excess water run-off.

HOUSEHOLD PRODUCT WARRANTY

UNDERCOUNTER REFRIGERATOR / BEVERAGE CENTER WARRANTY

TWO YEAR FULL WARRANTY

Undercounter refrigerators / Beverage Centers and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or

workmanship in normal residential use for a period of two (2) years from the date of original retail purchase. Lynx, warrantor, agrees to repair or replace, at its

option, any part which fails or is found to be defective during the warranty period.

*FULL NINETY (90) DAY COSMETIC WARRANTY: Product is warranted to be free from cosmetic defects in materials or workmanship (such as scratches on

stainless steel, paint/porcelain blemishes, etc.) for a period of ninety (90) days from the date of original retail purchase or closing date for new

construction, whichever period is longer. Any defects must be reported to the selling dealer within ninety (90) days from date of original retail purchase.

Lynx uses high quality processes and materials available to produce all color ﬁnishes. However, slight color variation may be noticed because of the

inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting, product locations, and other factors. Therefore, this

warranty does not apply to color variation attributable to such factors.

†FULL NINETY (90) DAY WARRANTY IN “RESIDENTIAL PLUS” APPLICATIONS: Lynx products are designed and certified for residential use only. They are

not intended for use in commercial applications. Lynx products should only be used in accordance to national and local codes. Lynx is not responsible

for property damage or injury resulting from use in a commercial application. To support the manufacturing quality of its appliance’s Lynx will provide a

full 90 day warranty for products used in “Residential Plus “applications. This “Residential Plus” warranty applies to applications where use of the product

extends beyond residential use but is in compliance with national and local code. In some jurisdictions these applications are zoned as residential.

Examples of, but not limited to, such applications covered by this warranty are bed and breakfasts, fire stations, private clubs, churches, condominium/

apartment common areas etc. Under this "Residential Plus" warranty, the product, its components and accessories are warranted to be free from

defective material or workmanship for a period of ninety (90) days from the date of original retail purchase. Lynx warranter, agrees to repair or replace, at

its option, any part which fails or is found to be defective during the warranty period. This warranty covers parts and labor. This warranty excludes use of

the product in all commercial locations such as restaurants, food service locations and institutional food service locations.

SIX YEAR FULL WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED

Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the

third through the sixth year from the date of original retail purchase. Lynx, warranter, agrees to repair or replace, at its option, any part which fails or is found to be

defective during the warranty period.

Sealed Refrigeration System Components: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer

TWELVE YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED

Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in normal household use during the seventh

through the twelfth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs,

including labor.

WARRANTY TERMS

This warranty extends to the original retail purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the

original purchaser's warranty. the warranty is transferable by the original retail purchaser via home sale only. If a transferee owner is unable to provide proof of

purchase from the original purchaser and the product has not been previously registered, the production date of the product, located in the serial number of the

product, will serve as the effective warranty start date.

The activation date of the warranty begins from the date of original retail purchase. In the case of new product purchase via building development sales, activation

begins from the earlier date of either certificate of occupancy or 24 months from date of manufacture. Note date of manufacture is identified by serial tag on

product.

This warranty does not cover units purchased as b-stock, liquidation, salvage, seconds, refurbished, as-is, used products.

This warranty shall apply to products purchased in the United States and Canada. Products must be purchased in the country where service is requested. Warranty

service must be performed by a Lynx authorized service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural

disaster, loss of electrical power to the product for any reason, alteration, improper installation, improper operation, or repair service of the product by anyone

other than a Lynx authorized service agency or representative. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or

incidental damage whether arising out of breach of warranty, breach of contract or otherwise. Some jurisdictions do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitations do not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the product

reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable

number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement, at the warrantor’s discretion of

the product or its component part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case

exceed the price of the goods or service or part thereof which gives rise to the claim.

WARRANTY SERVICE

Under the terms of this warranty, service must be performed by a Lynx authorized service agent or representative. Service will be provided during normal business

hours Labor performed at overtime or premium rates shall not be covered by the warranty. To obtain warranty service contact Lynx Customer Care at

1-888-289-5969. Please have model number, serial number, and date of original purchase available when calling. IMPORTANT: Retain proof of original purchase to

establish warranty period. The return of the owner registration card is not a condition of warranty coverage. You should, however, return the owner registration card

so Lynx can contact you should any question of safety arise which could affect you. Any implied warranties of merchantability and fitness applicable to the above

described burner assemblies, infrared rotisserie burners, grill grates, and stainless steel parts are limited in duration to the period of coverage of the applicable

express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitations may

not apply to you. This warranty gives you specific legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.

Specifications subject to change without notice.

17 WARRANTY
