Lyon Workspace 2000 Series User manual

Contact us direct for fast friendly service [phone]

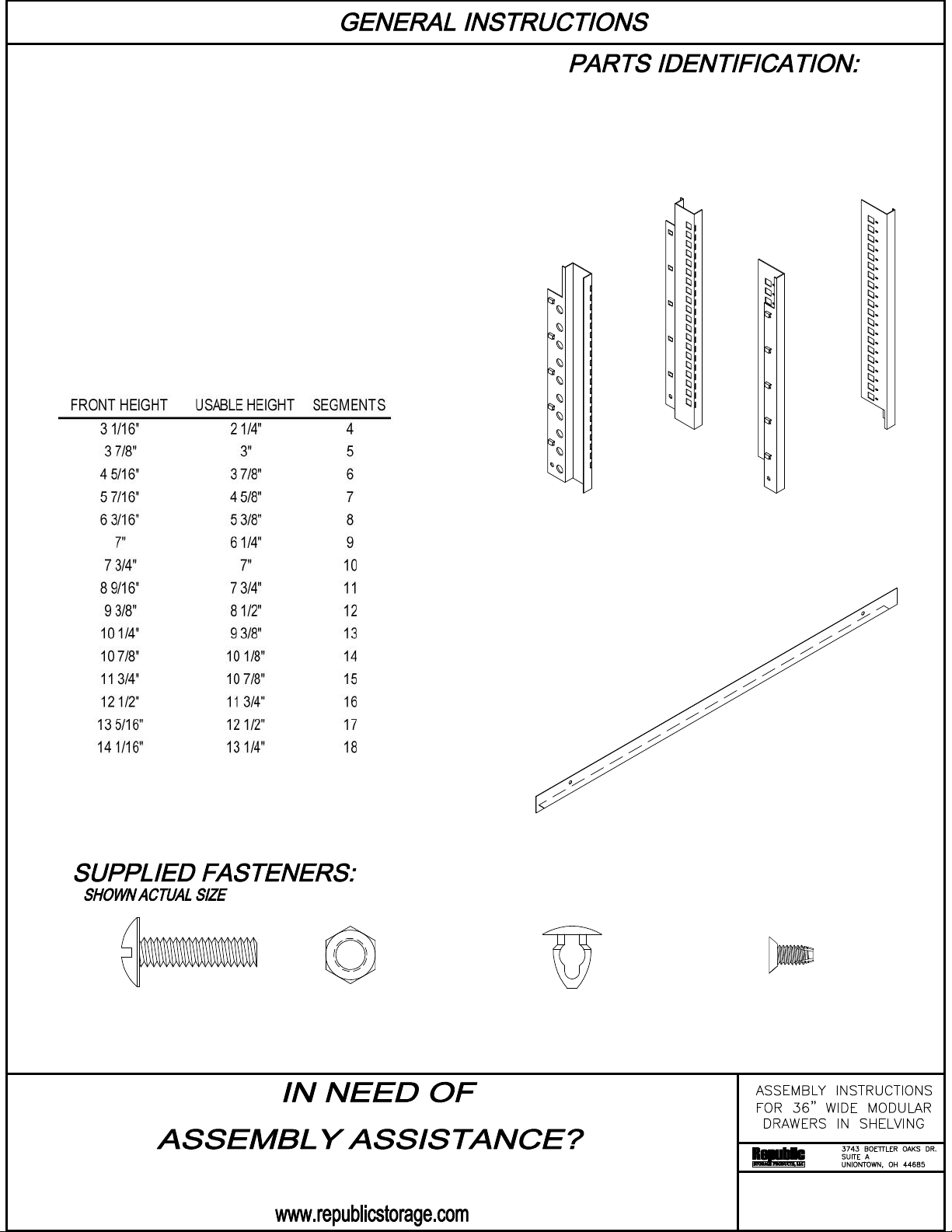

9117-CA
1/4"-20 X 1"
SLOTTED HEAD SCREW
1/4"-20 HEX NUT #8-32 x 3/8"
FLAT HEAD TAPPING SCREW
1.) BEFORE INSTALLING MODULAR DRAWER UNITS, IT MUST BE
VERIFIED THAT THE UPRIGHTS ARE PLUMB AND THE SHELVES
ARE LEVEL. THE SHELVING UNIT MUST ALSO BE PROPERLY
ANCHORED AS DESCRIBED IN THE INSTALLATION SHEET
PROVIDED WITH THE SHELVING UNIT. IF NEEDED, CONTACT
REPUBLIC CUSTOMER SERVICE FOR PROPER ANCHORING
METHODS. DRAWERS WILL NOT OPERATE CORRECTLY IF THE
ABOVE CRITERIA IS NOT MET.
2.) EACH UNIT MUST HAVE A SHELF ABOVE AND BELOW THE UNIT.
TWO UNITS IN ONE SHELVING SECTION MUST BE SEPARATED BY
A SHELF. THE SHELF SPACING FOR EACH UNIT IS 1 1/2"
GREATER THAN NOMINAL. EXAMPLE: ONE 24" UNIT (30
SEGMENTS) REQUIRES A SPACE OF 25 1/2". THIS SPACE IS
MEASURED FROM TOP OF SHELF TO TOP OF SHELF.
3.) MODULAR DRAWERS ARE AVAILABLE IN THE FOLLOWING SIZES:
ANY COMBINATION OF DRAWER SEGMENTS TOTALING 15 FOR
THE 12" UNIT, 22 FOR THE 18" UNIT, 30 FOR THE 24" UNIT OR 45
FOR THE 36" UNIT MAY BE USED
REAR BRACKETS
(2 PIECES)
FRONT BRACKETS
(2 PIECES)
HORIZONTAL TRIM
(1 PIECE)
(4 PIECES)
(4 PIECES)
(2 PIECES PER DRAWER) SHEET 1
PANEL CLIP
(2 PIECES)
LH
RH
LH
RH

SHEET 2
1.) DETERMINE DESIRED SHELF SPACING WITHIN
SHELVING SECTION. ASSEMBLE SHELVING AS
DESCRIBED IN THE INSTALLATION SHEET
PROVIDED WITH THE SHELVING UNIT, OMITTING
THE SHELF DIRECTLY ABOVE THE MODULAR
DRAWER UNIT. ONE 12" UNIT REQUIRES A SPACE
OF 13 1/2", ONE 18" UNIT REQUIRES A SPACE OF
19 1/2", ONE 24" UNIT REQUIRES A SPACE OF
25 1/2", AND ONE 36" UNIT REQUIRES A SPACE OF
37 1/2". THIS SPACE IS MEASURED FROM TOP OF
SHELF TO TOP OF SHELF.
2.) ATTACH THE FRONT AND REAR BRACKETS BY
ALIGNING THE TANGS TO THE SQUARE HOLES IN
THE POSTS AND PRESSING DOWN. SECURE
BRACKETS IN PLACE WITH (1) 1/4"-20x1 BOLT AND
NUT AT THE BOTTOM OF EACH BRACKET. WHEN
ASSEMBLING A ROW OF SHELVING WITH
MATCHING MODULAR DRAWER UNITS, THE SAME
BOLT CAN BE USED TO ATTACH ADJACENT
MOUNTING BRACKETS TO AN INTERMEDIATE
SHELVING UPRIGHT.
1/4"-20 X 1"
SLOTTED HEAD SCREW
1/4"-20 HEX NUT
(4 PIECES)
(4 PIECES)
Contact us direct for fast friendly service [phone]
9117-CA
NOTE: 18" HIGH BRACKETS SHOWN
OTHER SIZES SIMILAR
REAR
FRONT

SHEET 3
1.) BEGINNING AT THE BOTTOM OF THE MOUNTING BRACKETS,
ATTACH THE STATIONARY PORTION OF THE DRAWER SLIDE BY
ALIGNING THE SLIDE'S REAR TAB INTO THE LOWEST SQUARE
HOLE IN THE REAR MOUNTING BRACKET. THEN, ALIGN THE
FRONT TAB TO THE SQUARE HOLE IN THE FRONT MOUNTING
BRACKET AND PRESS DOWN. WHEN THE SLIDE IS SEATED, THE #8
SCREW SHOULD BE INSERTED TO SECURE THE SLIDE IN PLACE.
(SEE DETAILS AT RIGHT)
2.) PROCEED WITH INSTALLING THE MIDDLE SECTION OF THE
DRAWER SLIDES. PAY ATTENTION TO RIGHT HAND AND LEFT
HAND WHEN ASSEMBLING. AFTER THE MIDDLE SECTIONS OF
THE SLIDES ARE INSERTED, MAKE SURE THE SAFETY
CATCHES ARE UNLOCKED BEFORE ATTEMPTING TO INSERT A
DRAWER.
#8-32 x 3/8"
FLAT HEAD TAPPING SCREW
(2 PER DRAWER) SUPPLIED WITH DRAWER
LH/RH MARKING
(RH SHOWN)
FRONT OF SLIDE
FRONT OF SLIDE
DETAIL SHOWING SAFETY
CATCH UNLOCKED
STATIONARY SECTION OF SLIDE
MIDDLE SECTION OF SLIDE
HOLE USED TO SECURE
SLIDE IN PLACE
NOTE: DRAWER SLIDES ARE SUPPLIED WITH THE INDIVIDUAL DRAWERS
SAFETY CATCH
Contact us direct for fast friendly service [phone]
9117-CA
DETAIL SHOWING FRONT
BRACKET PUNCHING
(RIGHT HAND SHOWN)
18" DEEP
LOCATION
24" DEEP
LOCATION

SHEET 4
1.) INSERT DRAWER INTO DRAWER SLIDES. THE DRAWER WILL NEED
TO BE LIFTED OVER THE DRAWER STOPS DURING THIS PROCESS.
AFTER THE DRAWER IS FULLY INSTALLED, ENSURE THE SAFETY
CATCHES ARE LOCKED ON THE FRONT OF EACH SLIDE. THIS
PREVENTS THE DRAWER FROM SLIPPING OVER THE DRAWER
STOPS.
2.) CONTINUE TO INSTALL DRAWER SLIDES FOR THE REMAINING
DRAWERS. THE SPACING IS DETERMINED BY THE HEIGHT OF
THE DRAWER FRONT BELOW. THE NEXT DRAWER SLIDE
SHOULD BE JUST ABOVE THE DRAWER FRONT BELOW.
** REFER TO ASSEMBLY OPERATION #2 FOR MORE DETAILED
INSTRUCTIONS ON DRAWER SLIDE INSTALLATION
#8-32 x 3/8"
FLAT HEAD TAPPING SCREW
(2 PER DRAWER) SUPPLIED WITH DRAWER
Contact us direct for fast friendly service [phone]
9117-CA

SHEET 5
1.) INSTALL SHELF DIRECTLY ABOVE MODULAR DRAWER UNIT,
AND INSTALL ANY OTHER DESIRED SHELVES AT THIS TIME.
2.) ATTACH HORIZONTAL TRIM PIECE TO FACE OF SHELF WITH (2)
PANEL CLIPS.
IF DRAWER PARTITIONS AND DIVIDERS WERE ORDERED, THEY
CAN BE INSTALLED AT THIS TIME.
PANEL CLIP
(2 PIECES)
