M-Audio FireWire Audiophile - Users Manual
1 Introduction
2 What’s in the Box
3 About the FireWire Audiophile
4 Features and Technical Features
5 Minimum System Requirements
•Windows
•Mac OS
6 Controls and Connectors
•Front Panel Diagram
•Front Panel Descriptions
•Rear Panel Diagram
•Rear Panel Descriptions
7 Hardware Driver Installation
•Windows XP
•Windows 2000
•Mac OS X
•Mac OS 9
8 Hardware Connections
•Audio
•MIDI
9 The Software Control Panel
•Global Menus
•Mixer Page
•Output Page
•Hardware Page
•About Page

10 Using the FireWire Audiophile
•Monitoring Live Playback
•Using the Headphone Source Selector
•Setting Up Your Recording Levels
•Monitoring Your Inputs for Recording
•General Recording Instructions
•Setting the Sample Rate
•Adding Effects While Direct Monitoring
•Using the Aux Send as a Separate Monitor Mix
•Using the Level Controller Assignments
11 Troubleshooting
12 Contact Us
13 Product Specs
14 Warranty

1 Introduction
Thank you for choosing the M-Audio FireWire Audiophile. The FireWire Audiophile has
been designed to give you a professional, portable audio and MIDI interface for your
laptop or desktop computer. Using the convenience and dependability of the IEEE-1394
(FireWire) bus, the FireWire Audiophile provides your computer with a high-
performance, high-resolution multi-channel interface, as well as sixteen channels of MIDI
in and out--all in a rugged, lightweight, and highly portable design.
The FireWire Audiophile was created with the laptop-based DJ or live performer in mind,
while still being the perfect audio upgrade for recording and playing back audio in any
portable or home studio configuration. Its front-panel headphone output boasts a high
efficiency, low distortion amplifier that delivers the power and volume you need on stage,
multiple headphone sources with selectable muting of the line outputs for quick cueing,
and a dedicated level control to help you stay on top of your mix, no matter what’s going
on around you.
Even if you’re an experienced sound record-ist, please take some time to read through
this owner’s manual and familiarize yourself with the FireWire Audiophile’s features and
operation. You may also want to refer to your audio software’s documentation to better
understand how the FireWire Audiophile’s features are integrated with the program. Your
experience and enjoyment of your FireWire Audiophile will be greatly enhanced by a
good working knowledge of your audio software.

2 What’s in the Box
Your FireWire Audiophile package contains the following:
•FireWire Audiophile Mobile Recording Interface
•CD-ROM containing driver software and user manual in PDF form
•Printed Quick Start Guide
•CD-ROM containing Reason Adaptedsoftware
•CD-ROM containing Delta Live 2.0software
•Pro-Sessions Sampler CD-ROM
•1 meter 6-pin to 6-pin IEEE 1394 (FireWire) cable
•1 meter 4-pin to 6-pin IEEE 1394 (FireWire) cable
•12VDC 1A Power Supply
•Warranty Card

3 About the FireWire Audiophile
The FireWire Audiophile functions as a four-input, six-output recording and playback
interface. A single IEEE 1394 cable connects the FireWire Audiophile to your computer’s
FireWire port. If your PC is not equipped with a native FireWire port, you may purchase
a FireWire PCI card at any computer electronics retailer (The FireWire Audiophile should
only be used with native FireWire ports on Macs).
IMPORTANT: The FireWire Audiophile comes with a high quality six-pin to six-pin
FireWire cable. We strongly suggest you use this cable, or one of equal quality, for

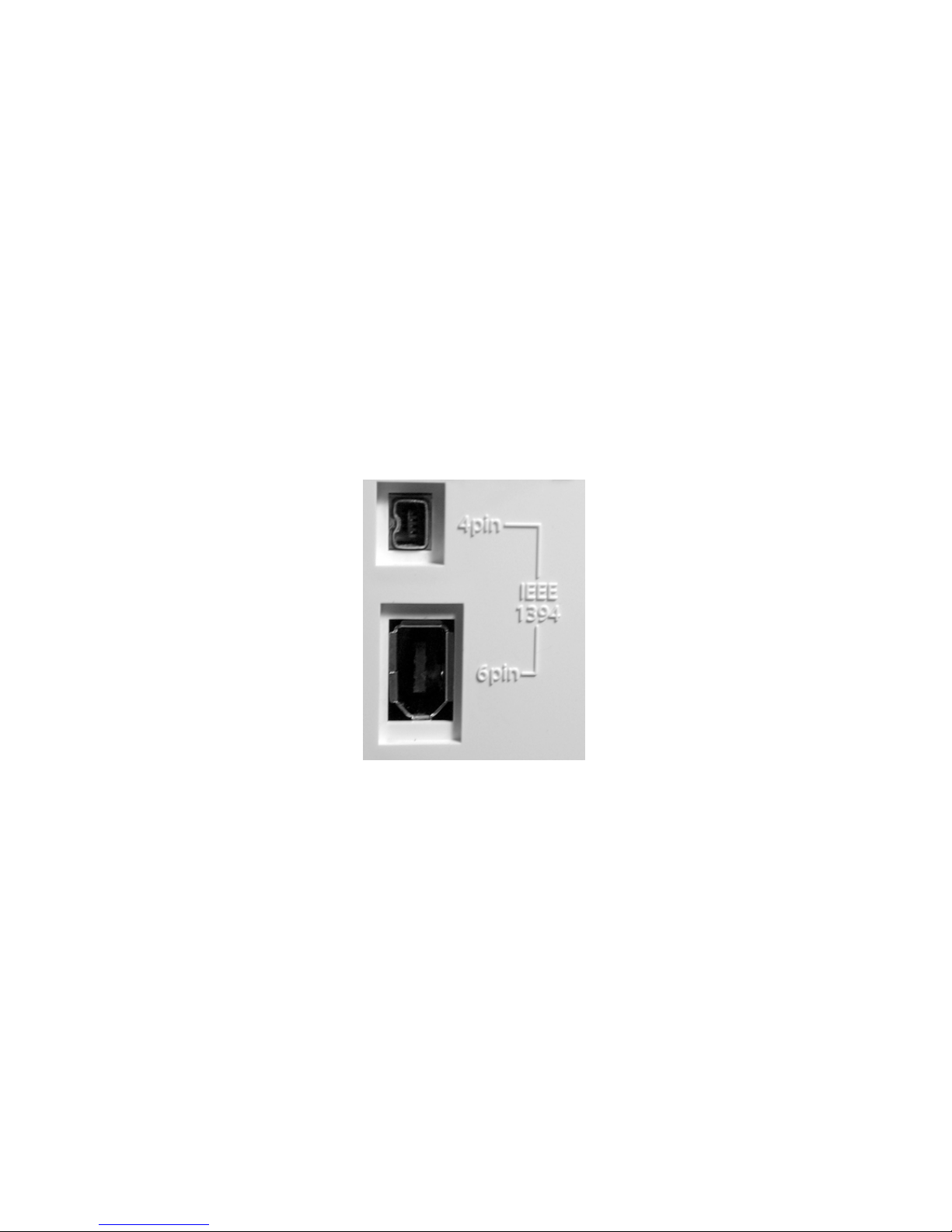

optimum audio performance. If your computer is equipped with a four-pin interface, you
will need to obtain a four-pin to six-pin FireWire cable, available at most computer
electronics retailers. Also note that the FireWire Audiophile requires a six-pin FireWire
connection in order to receive bus power; if you have a four-pin connection you will
need to use the supplied power adapter.
(Note: Some computer manufacturers may use a different nomenclature to refer to their
FireWire connections, such as Sony’s “iLink,” or simply “1394” — when in doubt, consult
your owner’s manual.)
IMPORTANT:
It has come to our attention that problems have been reported with several types of
IEEE1394 (“FireWire”) devices, including M-Audio FireWire devices. These problems
occur when using a 6-pin bus-powered connection when plugging and unplugging
external FireWire devices, when both the computer and external device are powered
on. This is commonly referred to as “hotplugging”. In some cases the FireWire port on
the host computer system is rendered permanently inoperable. In other cases the
external FireWire device is rendered permanently inoperable. M-Audio does not want
users of M-Audio FireWire products to experience such costly problems. Therefore, M-
Audio must require that users of M-Audio FireWire devices refrain from
hotplugging any M-Audio FireWire device. You must make your FireWire connection
while both computer and FireWire device are powered off; then power on.In case your

M-Audio FireWire device was not detected by your computer on startup, try the following
troubleshooting options instead of hotplugging it:
1. Turn your M-Audio FireWire device off, wait 30 seconds then power it on.
2. Put your computer into hibernation mode, wait 30 seconds then reactivate it.
3. Restart the computer (don’t turn it off) while the M-Audio FireWire device remains
connected and powered on.
The FireWire Audiophile is equipped with two analog inputs and four analog outputs on
unbalanced RCA connectors. Two more channels of S/PDIF digital input and output are
provided on coaxial connectors. That makes the FireWire Audiophile a four-input, six-
output audio interface capable of high-quality analog and digital I/O in full 24-bit
resolution, at sampling rates up to 96kHz for recording and playback. Its S/PDIF digital
output supports pass-through of AC-3 and DTS encoded multi-channel digital audio,
(Windows and Mac OS X only), and it also gives you sixteen channels of MIDI I/O.
The FireWire Audiophile’s easy-to-use software control panel provides you with powerful
routing and mixing control, creating a virtual six-channel output matrix for your audio
software. You can route any combination of inputs to any outputs, and each mixer
channel supports a virtual aux send for unprecedented flexibility. You can take
advantage of ultra-low latency software monitoring with built-in ASIO drivers, and near
zero-latency direct hardware monitoring.
The front panel headphone Source selector is designed to give you immediate access to
selectable stereo monitor sources, with a dedicated rotary level control. The main front
panel rotary encoder can be assigned via the control panel to control any addressable
software or hardware levels, and the FireWire Audiophile can be powered via the
FireWire bus for total portability.*
*Six-pin FireWire connection only. Use the DC power adapter for four-pin FireWire operation.

4 Features and Technical Features
•2 x 4 unbalanced analog operation on RCA jacks
•Coaxial S/PDIF I/O
•Rotary encoder is assignable to control any software-addressable level, e.g., output
DACs, software returns, or hardware input monitor levels
•Headphone output with rotary encoder level control
•Front panel headphone source switching; can be assigned as a Direct Monitoring
on/off switch
•Status indicator LEDs show Headphone Source or ASIO Direct Monitoring state, as
selected in the control panel
•Versatile mixer/router control panel provides near zero-latency hardware direct
monitoring
•Extremely low-latency hardware/drivers
•MIDI I/O
•S/PDIF activity indicator LEDs for input and output.
•Two 6-pin FireWire ports.
•Power on/off switch with indicator LED
•Bus-powered or powered via included power supply
•Frequency response: 20-40KHz +/- 1dB
•SNR and dynamic range (A-weighted): 102dB ADC, 106dB DAC
•THD + N: 0.00281% @0dBFS (= -91dB)
•Sampling rates – 32k to 96kHz for analog in and out
•Sampling rates – 44.1k, 48k, 88.2k, and 96kHz for S/PDIF in and out

5 Minimum System Requirements
IMPORTANT: The FireWire Audiophile is supported under Windows XP and Windows
2000 — it is not supported under Windows 98 or Windows ME. Also, when running under
Windows 2000, you must be running Service Pack 3 (SP3) or later. For Windows XP, you
must be running Service Pack 1 (SP1) or later. Visit the Windows update web pages to
make certain you have the most current updates and fixes supplied by Microsoft.
On the Mac, the FireWire Audiophile is supported under Mac OS 9.2.2 or later, and Mac OSX
version 10.1.5; 10.2.6 or later. Earlier versions of Mac operating systems are not supported.
Windows
Pentium 3 – 500 MHz or higher
128 MB RAM
DirectX 8.1 or higher
Windows XP (SP1) or Windows 2000 (SP3) — (Windows 98 or Windows ME not supported)
Mac OS
Macintosh G3*500 MHz or higher w/ OS 9.2.2 or greater
G4*500 MHz w/ OS X 10.1.5; 10.2.6 or greater
(higher requirements for Laptops)
128 MB RAM (OS 9), 256 MB RAM (OSX)
OS 9.2.2 or later, or OS 10.1.5 or later
•G3/G4 accelerator cards not supported; native FireWire ports required

6 Controls and Connectors
Front Panel Diagram
Front Panel Descriptions
1 Headphone Output – Accepts a standard 1/4” stereo TRS headphone connector.
2 Headphone Output Level – Controls the output of the headphone level. This
control is independent of the line and S/PDIF output levels.
3 HP Source Monitor Status –These LED indicators display the currently selected
mode of the headphone source switch, either A or B.
4 Headphone Source Selector – This momentary switch selects the monitor source sent
to the headphone outputs, in conjunction with the HP Source settings on the Hardware
page of the Control Panel. The default setting is Out 1/2 = A, Out 3/4 = B. This switch can
also be programmed to turn Direct Monitoring on and off.
5 S/PDIF Input and Output Indicators – The green S/PDIF In LED will glow
steadily to indicate the presence of a valid S/PDIF signal at the S/PDIF input. The
green S/PDIF Out LED will glow steadily to indicate the presence of a valid
S/PDIF signal at the S/PDIF output.
6 Level Controller – The Level Controller is a rotary encoder that is set by default
to control the output monitor level of the FireWire Audiophile’s analog outputs. It
can be assigned to any group of Mixer or Output faders in the FireWire
Audiophile’s software control panel. The available selections are:
•SW return – The levels of the three virtual stereo pairs returning from your computer’s
audio workstation software to the FireWire Audiophile’s software mixer
•Output – The levels of the FireWire Audiophile’s four analog and one stereo digital output
•Input – The levels of the FireWire Audiophile’s 1&2 analog and L/R digital inputs
•Aux Send – The levels of the L and Rvirtual Aux Send buses.
7 Power LED – The Blue Power LED blinks when power is applied to the FireWire
Audiophile, and glows steadily to indicate a valid connection to the host computer.

8 Power Switch – Push-on, push-off power switch turns the FireWire Audiophile on
and off.
Rear Panel Diagram
Rear Panel Descriptions
9 Power Supply Connector – Connect the 12VDC 1A power supply here when
using the FireWire Audiophile with a four-pin FireWire connection. Use only the
power supply provided with the unit or a power supply of an equivalent value.
10 FireWire Connectors – Dual FireWire (IEEE-1394) ports allow you to connect
one to your computer and one to an external device. We recommend connecting
only self-powered devices to these inputs. Bus-powered devices may affect your
audio performance.
NOTE: The FireWire Audiophile provides two 6-pin FireWire ports for your convenience. One
port is used for connection to the host computer. The second port allows other peripheral
devices to connect to the host through the FireWire Audiophile. The FireWire Audiophile can
pass FireWire bus power through this secondary port, however it will not source power to other
devices attached to this port.
11 S/PDIF Coaxial In and Out Connectors – S/PDIF digital input and output on
coaxial RCA connectors.
12 MIDI In and MIDI Out Connectors – MIDI input and output on standard 5-pin
DIN connectors.
13 Line Outputs 1–4 – These are unbalanced analog outputs on standard RCA
connectors at –10dBV line level. When monitoring two-channel stereo audio,
outputs 1 and 2 are the default outputs; any or all output pairs may be selected in
the FireWire Audiophile’s control panel. You may also use the four outputs to
send individual or grouped channels to a mixing console.
14 Line Inputs 1 and 2 – These are unbalanced analog inputs on standard RCA
connectors at –10dBV line level.

7 Hardware Installation
Driver Installation
Windows XP
NOTE: Do NOT connect the FireWire 1814 to your computer before you have run the
installer application and shut down your computer. If you are going to use bus power, we
recommend that you connect the FireWire cable before turning on the power button.
For the FireWire Audiophile to function properly you need to have Service Pack 1 installed. To
install Service Pack 1, please consult http://www.microsoft.com for instructions.
During the course of installation, messages about the Microsoft Digital Signature for the
driver will appear. Microsoft tests drivers to ensure they work properly with their
operating systems. While driver signing makes installation and operation more
streamlined, it is not a necessity for a device to function properly with the operating
system. Currently, M-Audio’s FireWire drivers are not digitally signed. However, M-Audio
is committed to providing the best possible drivers for our products and we constantly
evaluate and test our drivers to ensure that they work properly. As a result, there is no
need to worry about the driver not being signed.
1 Insert the Driver CD-ROM into your computer’s CD-ROM drive. From the Start
menu, select “Run…” then click the Browse button. Browse to the CD drive,
locate the “FireWire AP” folder, then select the FireWire Audiophile installer from
within that folder. Double click on the installer icon to begin the installation.
2 Verify that you have no other programs running, and then click “Next” to begin the
installation. The installer will copy the necessary files to your computer’s hard drive.

3 During the installation, you will be prompted with a message warning that the
driver software has not passed Windows Logo testing. Select “Continue Anyway”
and proceed with the installation.
4 The installer will prompt you to enable DVD/CD performance enhancement
settings. In most cases, you should leave these in their default (selected)
settings. While Windows is most likely already configured in this way, these

settings will ensure that you will be able to hear your DVD/CD player’s playback
through the FireWire Audiophile. Click “Next.”
5 Once the installation is complete. Click “Next” to proceed.
6 Once the installer has finished copying the files, you will see the Installation
Complete screen. You will then be prompted to shut down your computer. Click
“Finish” to proceed.

7 After the computer has powered off, connect the FireWire Audiophile to your
computer’s FireWire port and power it on. Once the FireWire Audiophile is
connected, turn on your computer. After the operating system loads, the Found
New Hardware Wizard will open. Choose the default selection, “Install the
software automatically.” Click “Next.” Windows will locate and install the FireWire
Audiophile Bootloader files.

8 During the installation, you will be prompted with a message warning that the
driver software has not passed Windows Logo testing. Select “Continue Anyway”
and proceed with the installation.
9 Once the Bootloader installation is complete, click “Finish” to proceed. Windows
will locate the FireWire Audiophile driver files.
10 The New Hardware Wizard will run a second time to install the FireWire Audiophile driver
software. Choose the default selection, “Install the software automatically.” Click “Next.”

11 You will again be prompted by the “Windows Logo testing” notice. Again, click
“Continue Anyway” and proceed with the installation.
12 When you see the M-Audio FireWire Audiophile Installed Successfully screen,
click “Finish” to complete the installation. Your FireWire Audiophile is now ready
to use.

13 You will see the M-Audio FireWire Audiophile control panel icon in your system tray (lower
right corner of your desktop). Click on the icon to open the control panel.
Windows 2000
NOTE: Do NOT connect the FireWire Audiophile to your computer before you have run
the installer application and shut down your computer. If you are going to use bus power,
we recommend that you connect the FireWire cable before turning on the power button.
For the FireWire Audiophile to function properly, you need to have Service Pack 4
installed as well as Direct X 8.1 or higher. To install Service Pack 4, please consult
http://www.microsoft.com for instructions. The FireWire Audiophile driver installer will
detect if you have the proper version of Direct X installed or not. If you need to upgrade,
you will be prompted to do so. For further information, please consult Microsoft’s website.
During the course of installation, messages about the Microsoft Digital Signature for the
driver will appear. Microsoft tests drivers to ensure they work properly with their
operating systems. While driver signing makes installation and operation more
streamlined, it is not a necessity for a device to function properly with the operating
system. Currently, M-Audio’s FireWire drivers are not digitally signed. However, M-Audio
is committed to providing the best possible drivers for our products and we constantly
evaluate and test our drivers to ensure that they work properly. As a result, there is no
need to worry about the driver not being signed.
1 Insert the Driver CD-ROM into your computer’s CD-ROM drive. From the Start
menu, select “Run…”, then click the Browse button. Browse to the CD-ROM
drive, locate the “FireWire AP” folder, Then double click the FireWire Audiophile
installer from within that folder.

2 Verify you have no other programs running and then click “Next” to begin the installation.
3 The installer will copy the necessary files to your computer’s hard drive. During
the installation, you will be prompted with a message warning that the driver
software has not passed Windows’ Digital Signature. Select “Yes,” and proceed
with the installation.

4 The installer will prompt you to enable DVD/CD performance enhancement
settings. In most cases you should leave these in their default (selected) settings.
While Windows is most likely already configured in this way, these settings will
ensure that you will be able to hear your DVD/CD player through the FireWire
Audiophile once the installation is complete. Click “Next.”
5 Once the installer has finished copying the files, you will see the Setup Complete
screen. Click “Next” to complete installation wizard.

6 Next, you will be prompted to shut down your computer. Click “Finish” to shut
down. After the computer has powered off, connect the FireWire Audiophile to
your computer’s FireWire port and power it on. Once the FireWIre Audiophile is
connected, turn on your computer. After the operating system finishes loading,
the Found New Hardware Wizard will open.
7 Windows will locate and install the FireWire Audiophile Bootloader files. You will
be prompted by the Windows Digital Signature warning screen. Once again,
select “Yes,” and proceed with the installation.
