M-TI 1510A User manual
MTI Part Number 7001-0040
Revision 3.1 – August 7, 2014
1510A
Precision Signal Source with direct digital synthesis
Software Operation Manual
his document discloses subject matter in which MTI Instruments Inc. has proprietary rights and such subject matter shall not, without written permission of MTI
Instruments Inc. be used, released, or disclosed in whole or in part. This legend shall be marked on any reproduction hereof in whole or in part.
MTI Instruments, Inc.
325 Washington Avenue Extension, Albany, New York 12205 USA
█Phone: (518) 218-2550 █FAX: (518) 218-2506
Note:
Performing a user calibration with the
software package will result in an
accuracy of 2% at best. A factory cal
is required to achieve the original
published MTI specifications.
Page i MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
Thank you for purchasing your copy of the
1500 Series Precision Signal Source Software Package
The 1500 Series Precision Signal Source Software Package has
been designed to help you realize the full power of your 1500CS
Precision Calibrator or 1510A Precision Signal Source. Once the
software has been loaded on a standard PC computer and the
communications link installed and connected to the 1500CS
Calibrator, the software package will enable you to perform
many useful maintenance and calibration tasks including:
Setup of the 40 Memory Locations
Manage the configuration of your 1500CS or 1510A
Control of the 1500CS or 1510A output signals from
your computer
Page ii MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
TABLE OF CONTENTS
OVERVIEW
Overview of the 1500 Series Software Package.............................1
Installing the Software ................................................................2
Installing the 1510A USB Driver...................................................3
Before you start the Software ......................................................5
Connecting to your Calibrator ......................................................6
Starting the Software ..................................................................7
TAB FUNCTIONS
Setup.........................................................................................8
Calibration Factors ......................................................................9
Memories .................................................................................10
Memory Labels .........................................................................12
DROP-DOWN MENU FUNCTIONS
Device......................................................................................15
Configuration............................................................................16
Setup.......................................................................................18
Factors.....................................................................................19
Memory....................................................................................20
Tools........................................................................................22
Remote Control Panel...........................................................23
Calibration Wizard................................................................26
Help.........................................................................................41
OPTIONAL ACCESSORIES
Useful System Accessories.........................................................42
Page 1 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
OVERVIEW OF THE 1500 SERIES SOFTWARE PACKAGE
The 1500 Series Precision Signal Source Software Package is a
perfect companion to your 1500CS Precision Calibrator or 1510A
Precision Signal Source. The package features an easy-to-use
user interface, and offers a number of useful utilities for the
control and maintenance of your 1500 Series Unit. With the
Software Package, you will be able to:
Pre-Program Memory Locations – The 1500CS and 1510A
have 40 memory locations that can hold pre-programmed signal
settings. Each location can be pre-programmed and
downloaded in the unit using this Software Package.
Review Memory Location Programs – The 1500CS and
1510A have 40 memory locations that can hold pre-
programmed signal settings. Each or all of the 40 memory
location settings can be up-loaded from the unit for review and
editing. Changes can then be downloaded back into the unit.
Check Calibrator Configuration – The 1500CS and 1510A
have several internal parameters such as software revision
level, most recent calibration date, and unit serial numbers
stored in its memory. All of these parameters may be viewed
using this Software Package.
Remote Control Of signals – The 1500 Series Precision
Signal Source Software Package also provides an easy to use
interface for controlling the signals generated by the 1500CS via
its RS-232 interface and the 1510A via its USB interface.
Page 2 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
INSTALLING THE SOFTWARE
The 1500 Series Precision Signal Source Software Package is
supplied on CD-ROM. This software must be installed
before connecting the 1510A Precision Signal Source to
your computer for the first time. Open a Windows Explorer
window to view the contents of the CD.
Double Click on the SETUP.EXE
program to begin the installation
process as illustrated:
As the program installation continues,
a welcome display will be produced,
followed by the License acceptance
display. At the conclusion of the
installation process, the software
loading completion display will appear
as illustrated below.
Click on the FINISH button to
complete the process.
At this time you may also wish to
install a copy of the Acrobat Reader
which is also included on the CD.
Note that the CD also includes a
folder, which contains PDF versions of
both the 1500 Series Users Manual
and a copy of this manual.
If necessary, open the Adobe folder
and install the Adobe Reader
application.
When all software has been installed,
remove the CD from the drive.
Page 3 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
INSTALLING THE 1510A USB DRIVER
During Setup, the file mti1510A.INF was copied to the
Windows\INF folder on your computer. This file contains
instructions for loading the required USB drivers for the 1510A
Precision Signal Source.
Verify that this file exists. If it does not, manually copy the file from
the USB folder on the CDROM and placed it in your Windows\INF
folder.
After verifying that the INF file exists, connect the USB cable to the
1510A and connect it to a free USB port on your computer.
The Windows Found New Hardware Wizard screen will display.
Select No, not this time
and press Next.
Select Install the
software automatically
(Recommended) and
press Next.
If warned that the driver
has not passed Windows
Logo Testing, press
Continue Anyway.
Page 4 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
INSTALLING THE 1510A USB DRIVER
continued
When driver installation completes, press
Finish.
Your 1510A is ready for use.
Click Start-Settings-Control Panel and
double click the System icon. When the
System Properties dialog displays, click the
Hardware tab.
Then click the Device Manger button.
In Device Manager, scroll down to the Ports
category and open it. Locate the 1510A
Charge Calibrator entry and note the assigned
COM port. In the next step, the COM port
value must be entered into the program INI
file.
Close the Device Manager.
Page 5 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
BEFORE YOU START THE SOFTWARE
After installation of the software you will need to check a few items to ensure
efficient operation of all program features.

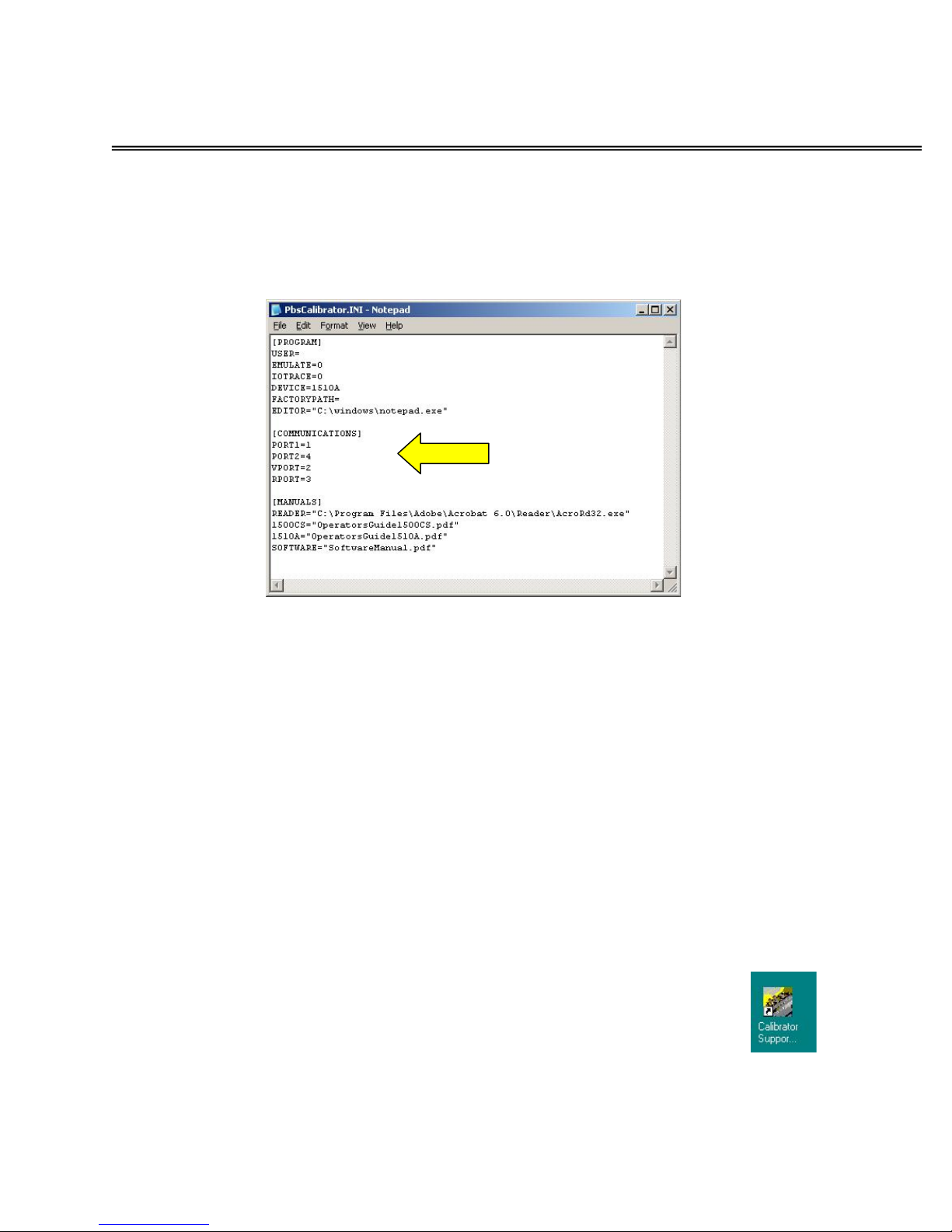

First, open the file: C:PBS\PbsCalibrator\Program\PbsCalibrator.INI
Verify that the path to the Adobe reader is correct for your system. If not,
replace the correct path within the quotation marks in the INI file and SAVE. If
you do not have Adobe reader installed, the 1500 Series Precision Signal Source
Software Package CDROM contains a copy of the Adobe reader installation
package.
Also verify that the Serial Port number listed in the INI file is correct for your
system. 1=COM1, 2=COM2, etc.
For the 1500CS, set PORT1 to the appropriate serial port number.
For the 1510A, set PORT2 to the port number previously determined from Device
Manager.
Make the necessary changes, SAVE and close the INI file viewer. All other
entries and setting in the file should be left unchanged.
Finally, you may wish to place a shortcut to the program on your
computer desktop. The 1500 Series Precision Signal Source Software
Package program is located in:
C:\PBS\PbsCalibrator\Program\PbsCalibrator.exe
Page 6 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
CONNECTING TO YOUR CALIBRATOR
Your 1500CS accessory kit includes a communications cable that
connects between the 1500CS Calibrator and your computer via
an RS232 port. MTI Cable 7500-7503 has been designed
specifically to connect between the 1500CS and your computer.
Your 1510A accessory kit includes a communications cable that
connects between the 1510A Precision Signal Source and your
computer via a USB port. MTI Cable 6000-2001 has been
designed specifically to connect between the 1510A and your
computer.
For successful communications ensure that your computer port is
connected as illustrated above.
1500CS
DB9 to RJ12 Cable
MTI P/N 7500-7503
USB Cable
MTI P/N 6000-2001
1510A
Page 7 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
STARTING THE SOFTWARE
Double clicking on the program icon will launch the 1500 Series
Precision Signal Source Software Program.
An introductory display will first be visible:
Followed by the user interface display:
The following sections of this manual will explain the various
features and functions of the software package.
Page 8 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
SETUP Tab
The SETUP tab displays information
concerning the internal software version
number, unit serial number, and the
calibration date of your 1500 Series unit.
When the 1500 Series Precision Signal
Source Software Package is first run, the
data windows on this display will be blank
as illustrated:
To refresh the data displayed in the
windows, use the CONFIGURATION drop-
down menu, and select the Upload From
Unit option as illustrated.
After acknowledging the Upload success
message, the display will be updated with
the current 1500CS internal settings.
Although the serial number and
software version numbers cannot be
changed, it is useful information when
talking to your MTI Instruments support
representative.
The “Last Calibration Date” information
may be changed by the user of the
calibrator.
Page 9 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014

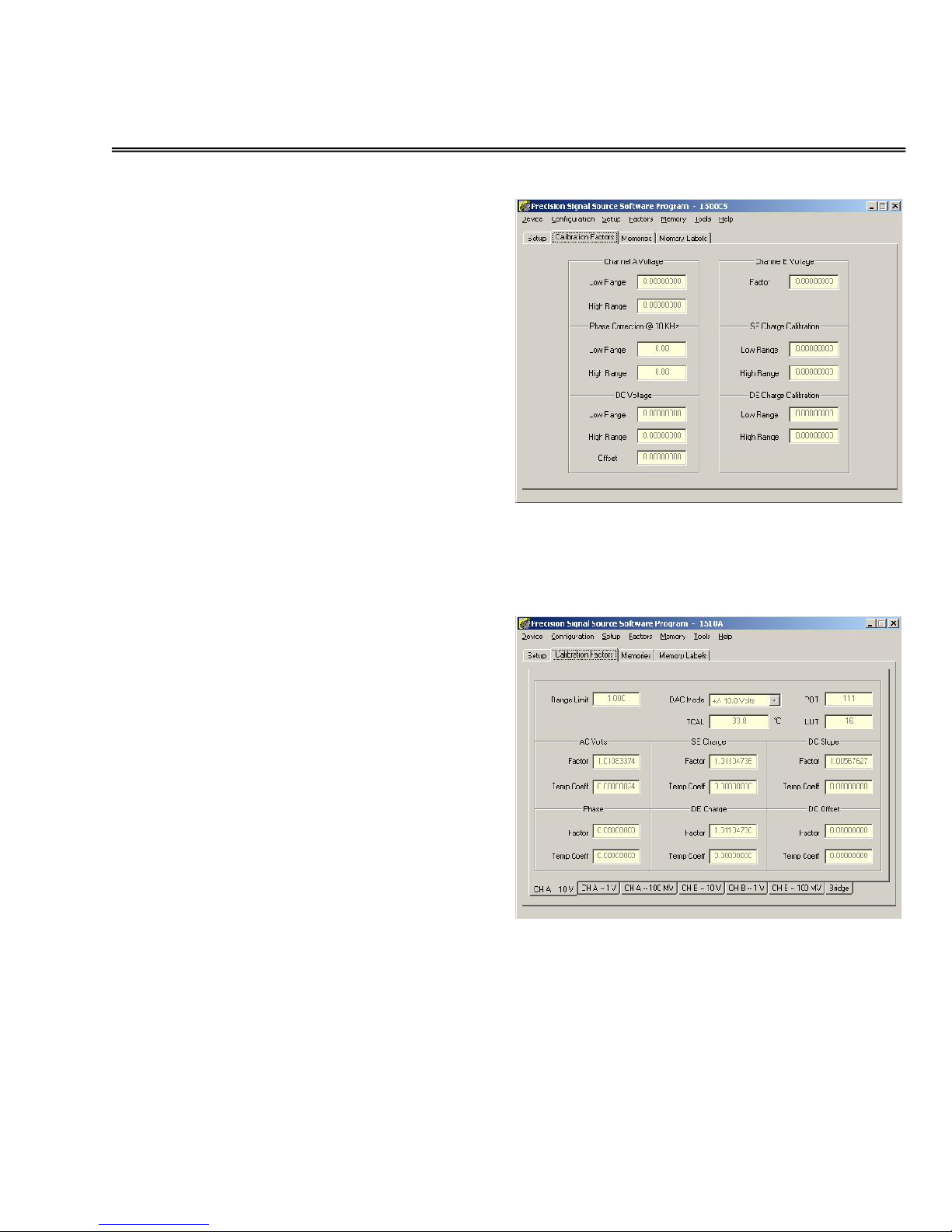

CALIBRATION FACTORS Tab
The CALIBRATION FACTORS tab at
right reveals the internal calibration
constants display for the 1500CS
calibrator.
Note that there are several different
calibration constants maintained for the
different ranges of the 1500CS.
The CALIBRATION FACTORS tab at
right reveals the internal calibration
constants of the 1510A Precision Signal
Source.
Note that there are several different
tabs along the bottom of the display
that are used to select the calibration
constants maintained for the different
ranges of the 1510A.
These calibration factors cannot be changed.
Page 10 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
MEMORIES Tab
The MEMORIES Tab allows users to view and edit the settings saved in
each of the 40 individual memory locations of the 1500CS and 1510A.
MEMORY NUMBER – Indicates the specific Memory Location and
contents being displayed. Use the up and down pointers to index thru
all of the 40 locations.
MEMORY LABEL – Use this area to enter a unique name for the
signal being defined. The first 8 characters will be displayed on the
1500 Series unit display when the memory is selected. You may also
name memory locations using the Memory Label tab.
CHANNEL A SETTINGS:
FUNCTION – This may be set to SINE, TRIANGLE,
SAWTOOTH, or SQUARE wave signals using the drop down
menu selector.
ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.
FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second) or RPM (Revolutions per
Minute).
FREQUENCY – Enter the desired frequency setting for the
signal.
AC AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.
Page 11 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
DC OFFSET – Enter the desired amount of DC voltage offset of
the signal.
PHASE OFFSET – Enter the desired phase offset in degrees
(relative to Channel B signal).
SIGNAL TYPE – Use the drop-down feature to select between
VOLTS and Single Ended (SE) or Differential (DE) CHARGE type
of signal.
Page 12 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
MEMORIES Tab Continued
SWEEP MODE SETTINGS - The 1500CS can generate a signal on
channel B whose frequency constantly varies over a specified period of
time. This feature is useful for simulating acceleration or deceleration
runs of machinery.
START FREQUENCY – This value defines the frequency at
which the SWEEP will begin.
STOP FREQUENCY – This value defines the frequency at
which the SWEEP will stop.
FREQUENCY UNITS –Use the drop down tool to select either
Hz (hertz or cycles per second) or RPM (Revolutions per
Minute).
SWEEP TIME – Enter the period of time (in seconds) in which
the sweep will be performed.
CHANNEL B SETTINGS
FUNCTION – This may be set to SINE, TRIANGLE,
SAWTOOTH, SQUARE, PULSE, TACH or TTL signals using the
drop down menu selector.
PULSE MODE – The 1500CS and 1510A produce a single
pulse occurring at the same frequency or at a ratio of the
Channel A frequency. The pulse duty cycle can be
programmed from 3% to 100% of the period.
TACH MODE – The 1500CS and 1510A can produce a
series of pulses simulating a multi-tooth gear speed signal.
Page 13 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
ENGINEERING UNITS – The amplitude units of the signal
may be set to PEAK, PEAK to PEAK, or RMS using the drop
down menu selector.
FREQUENCY UNITS – Use the drop down tool to select either
Hz (hertz or cycles per second), RPM (Revolutions per Minute),
or RATIO.
FREQUENCY – Enter the desired frequency setting for the
signal. The frequency may be in Hertz (Hz) or a ratio of the
Channel A frequency. When RATIO is selected, this window is
used to designate the ratio value. A value greater than 1.000
will produce a signal frequency greater than Channel A, while a
value of less than 1.0000 will produce a lower frequency.
AMPLITUDE – Enter the desired amplitude value (see
ENGINEERING UNITS Above) of the signal.
ODD CYCLE AMPLITUDE – When in TACH mode, the
amplitude of the “odd” signal is expressed as a percentage
of the other signals. Less than 100% for a “short” tooth
and greater than 100% for “long” tooth signals.
TOOTH COUNT – When operating in TACH mode, multi-
tooth speed signals may be simulated. This value
represents the total number of teeth in the speed signal
including the odd tooth.
Page 14 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
MEMORIES LABELS Tab
MEMORY LABELS – Each of the 40 memory locations of the 1500CS
and 1510A can be assigned a unique name or label, which will be
shown on the 1500 Series unit display whenever the memory location
is selected. Naming each of the memory locations can avoid confusion
and eliminate mistakes.
Initially, the unit will not have any
memory locations predefined, and
consequently, the list of names will
be empty as illustrated to the right.
To enter names into each of the
locations, click into the line of
the desired location and type in
the name. As illustrated, a few
of the memory locations have
been given unique names.
These names will appear on the
1500 Series display when
selected.
Page 15 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
DEVICE OPTIONS Menu
1500CS / 1510A – This function is
used to select the type of 1500 Series
unit. A check mark appears in front of
the current selected type of unit.
Setup Communications –
Selecting this option enables the
user to select the communications
port that connects the computer the
1500CS or 1510A. After changing
the communications port, exit the
program and then restart it.
Verify Communications – Selecting this
option causes the software to establish a
communications link to the 1500 Series unit
and to test communications.
Page 16 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
CONFIGURATION OPTIONS Menu
CLEAR CONFIGURATION – This
function clears all the information and
settings on all of the “Tab-Displays.”
This command does not alter any
settings within the 1500CS or 1510A.
LOAD from DISK – Selecting this
option enables the user to select a
configuration set-up from a file resident
on the user’s computer. As illustrated to
the right, a file identification dialog is
opened to allow selection of the desired
file name and location.
SAVE to DISK – Selecting this option
enables the user to save the current
1500 configuration to a file on the user’s
computer. As illustrated to the right, a
file identification dialog is opened to
allow definition of the desired file name
and location.
UPLOAD from UNIT –
Selecting this option
establishes communications
with the 1500 and updates
the values displayed on all
tab displays with those
currently in the 1500.
At the conclusion of the
“Upload,” a success
message will be displayed.
Page 17 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014
DOWNLOAD to UNIT –
Selecting this option
establishes communications
with the 1500 and
downloads the values
displayed on all tab into the
appropriate memories in
the 1500.
At the conclusion of the
“Download” a success
message will be displayed.
Table of contents
