GE Druck DPI 832 User manual

Druck DPI 832
Electrical loop calibrator
User manual - K393
GE Infrastructure
Sensing
99 Washington Street
Melrose, MA 02176
Fax [phone]
TestEquipmentDepot.com

K393 Issue 1
A1
A2
A3
10
1
3
4
2
5
6
7
9
8
A 2
A 3
11
B1
12
14
1513
20
21
22
25
1718
26
19 2716
23
24
B1
Customer service
Visit our web site: www.gesensing.com
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 1K393 Issue 1
Table of Contents
Introduction ......................................................................... 1
Safety ..................................................................................... 1
Safety - Marks and symbols on the instrument ............... 2
To start .................................................................................. 2
To start - Location of items ........................................................ 2
To start - Items on the display .................................................. 2
To start - Prepare the instrument ........................................... 2
To start - Power on or off ............................................................ 3
To start - Set up the basic operation ..................................... 3
To start - Select a task (Measure and/or supply) ............. 3
To start - Set up the settings ..................................................... 4
To start - Edit functions ................................................................ 4
Operation .............................................................................. 6
Operation - Electrical connections ......................................... 6
Operation - Communications port connections .............. 6

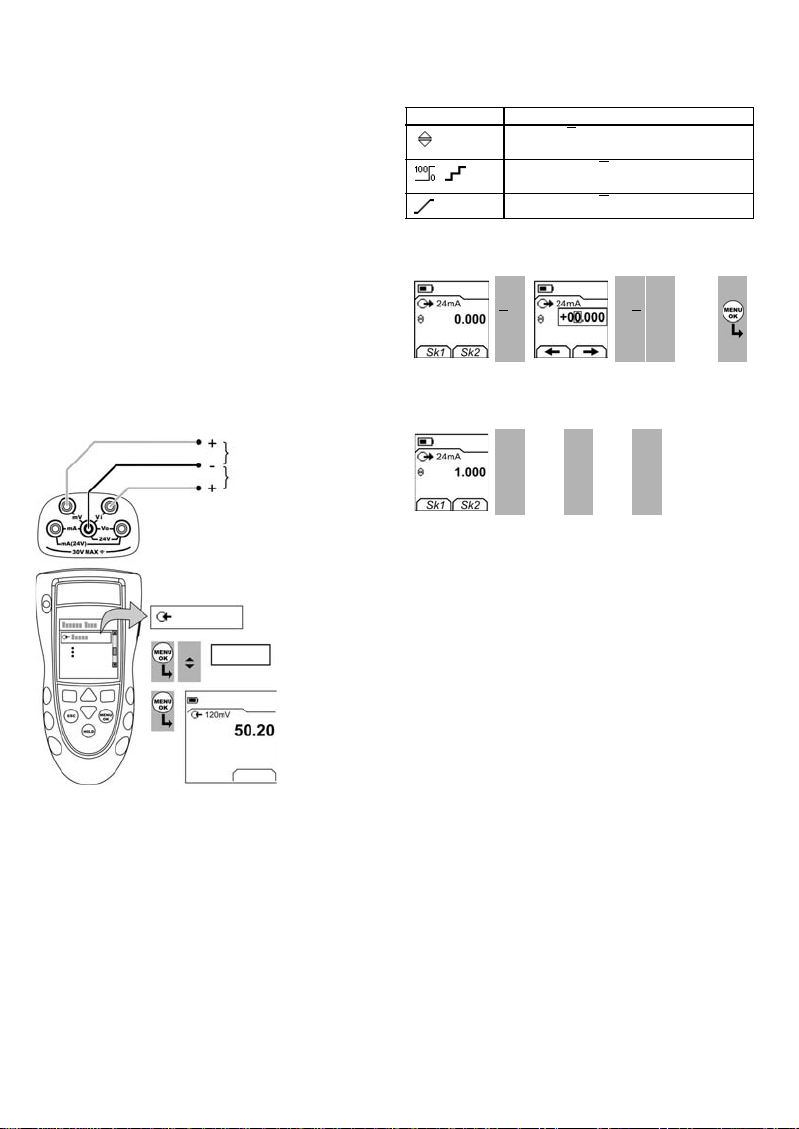

Operation - Measure mV or Volts ............................................ 6
Operation - Change the output values ................................. 6
Operation - Supply mV or Volts ................................................ 7
Operation - Supply mA ................................................................. 7
Operation - mA measurements ............................................... 7
Operation - Switch test ................................................................ 8

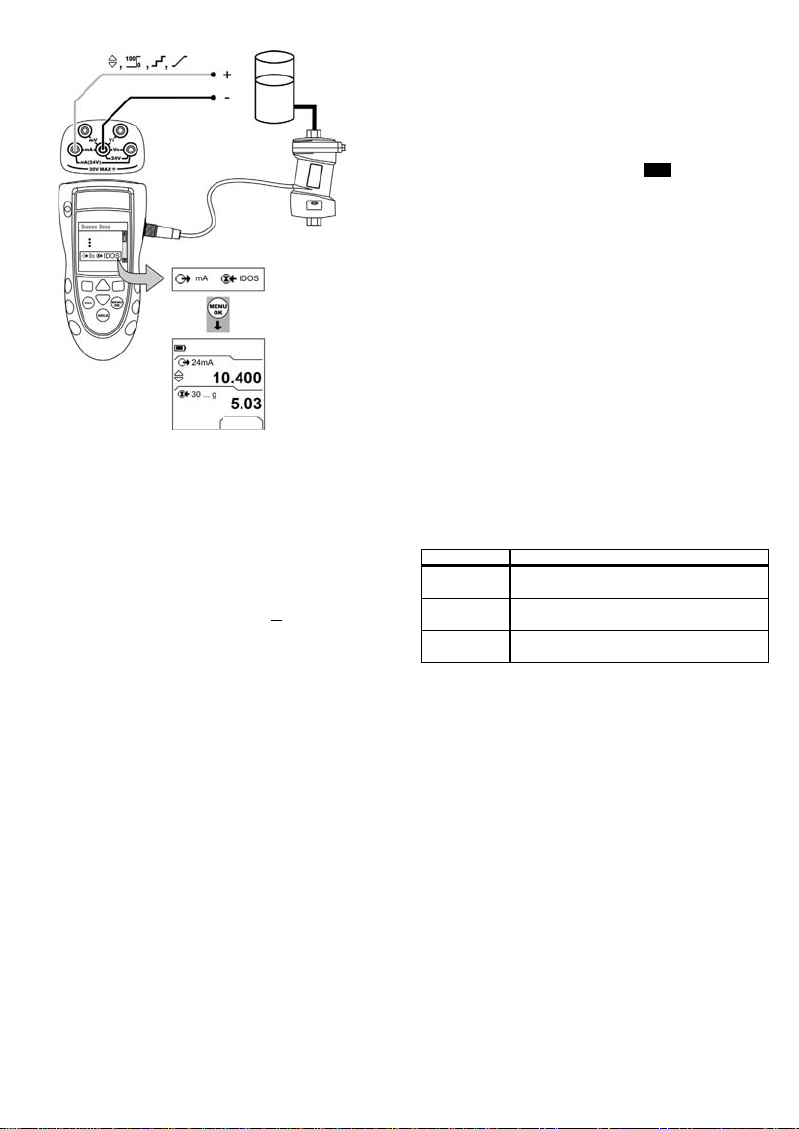

Operation - UPM Pressure measurements ......................... 8
Operation - Error indications ..................................................... 9
Maintenance ........................................................................ 9
Maintenance – Clean the unit ................................................... 9
Maintenance – Replace the batteries ................................... 9
Calibration ............................................................................ 9
Calibration - Before you start .................................................... 9
Calibration - Procedures (mV or Volts input) ................... 10
Calibration - Procedures (mA input) .................................... 10
Calibration - Procedures (mV or Volts output) ................ 11
Calibration - Procedures (mA output) ................................. 11
Calibration - Procedures (IDOS UMM) ................................. 11
Specification data ............................................................ 12
Specification - General .............................................................. 12
Specification - Electrical connectors (A1 - Item 10) ..... 12
Specification - Electrical connectors (A2) ......................... 12
Customer service ............................................... Back cover
© 2005 General Electric Company. All rights reserved.
Trademarks
All product names are trademarks of their respective companies.
Introduction
The DPI 832 Electrical Loop Calibrator is part of the
Druck DPI 800 series of hand held instruments.
The DPI 800 series uses Intelligent Digital Output Sensor
(IDOS) technology to give instant plug and play
functionality with a range of Universal Measurement
Modules (UMM). Example: the Universal Pressure Module
(UPM).
The DPI 832 includes these functions:
Safety
Before you use the instrument, make sure that you read
and understand all the related data. This includes: all local
safety procedures, the instructions for the UMM (if
applicable), and this publication.
WARNING
• It is dangerous to ignore the specified limits for the
instrument or to use the instrument when it is not in
its normal condition. Use the applicable protection
and obey all safety precautions.
• Do not use the instrument in locations with explosive
gas, vapor or dust. There is a risk of an explosion.
• To prevent electrical shocks or damage to the
instrument, do not connect more than 30V between
the terminals, or between the terminals and the
ground (earth).
• UPM only. To prevent a dangerous release of
pressure, isolate and bleed the system before you
disconnect a pressure connection.
Function
* Measure dc mA, mV, Volts
* Refer to “Specification data”.
** Optional item
* Supply dc mA, mV, Volts
Step/Ramp functions: Automatic/Manual
Communications port: IDOS or RS232
Language selection
** Measure pressure/Leak test: External IDOS UPM
** Snapshot: Up to 1000 displays with a date/time stamp
HART®resistor
Switch test
Other functions: Hold, Maximum/Minimum/Average, Filter, Tare,
Scaled values, Backlight, Alarm

2 - [EN] English K393 Issue 1
Safety (Continued)
Before you start an operation or procedure in this
publication, make sure that you have the necessary skills
(if necessary, with qualifications from an approved
training establishment). Follow good engineering practice
at all times.
Safety - Marks and symbols on the instrument
To start
To start - Location of items …
To start - Items on the display
To start - Prepare the instrument
Before you use the instrument for the first time:
• Make sure that there is no damage to the instrument,
and that there are no missing items.
• Remove the plastic film that protects the display. Use
the tag (◗) in the top right-hand corner.
• Install the batteries (refer to B1). Then re-attach the
cover.
Complies with European
Union directives
Warning - refer to the
manual
Read the manual Battery
Earth (Ground) ON/OFF
Item Description
1. ❍On or off button.
2. ■■Left-hand soft-key. Selects the function above it on
the display (Item 25). Example: Edit
3.
ESC
Moves back one menu level.
Leaves a menu option.
Cancels the changes to a value.
4. ▲
▼Increases or decreases a value.
Highlights a different item.
5. HOLD Holds the data on the display. To continue, press the
HOLD button again.
6. MENU
OK
Shows the Select Task menu.
Selects or accepts an item or value.
Selects [✓] or cancels [ ] a selection.
7. ■■Right-hand soft-key. Selects the function above it on
the display (Item 25). Example: Settings
8. Display. Refer to A3
9. SENSOR
/ PC
Communications port. Use to connect a Universal
Measurement Module (UMM) or a RS232 cable.
10. Terminals to measure (mV, Volts) or supply (mV, Volts,
mA). Refer to “Operation”.
11. Connection point for some of the optional
accessories. Refer to the datasheet.
12. Battery compartment. Refer to B1.
13., 14., 15. Terminals to measure current, to supply 24V source,
and to do switch tests.
A1 A2
Item Description
16. Task indication for the switch test.
= switch closed = switch open
UPM only. Task indication for the leak test.
Refer to: Select Task (Table 2/3)
17. The loop power supply is on (mA input only).
Refer to: Select Task (Table 2/3)
18. The measured value satisfies one of the alarm
conditions. Refer to: Settings (Table 4)
19. The data on the display is on hold. To continue, press
the HOLD button again.
20. Shows the battery level: 0 ... 100%.
21. Identifies the type of data and the measurement
range.
= Input = Output
= IDOS input
Refer to: Select Task (Table 2/3)
22. ... 24. The settings applied to the input or output.
22. mV The units or a specified scale (x:y) - (Table 4)
23. , ... , = Output operation (Table 5)
24. = Filter
= Tare
= Maximum
= Average
= Minimum
(Table 4)
25. A soft-key function. To select an available function,
press the soft-key below it. Example:
= Move left = Move right
26. The measured value or values applicable to the task
selection.
27. The Edit display to set up text labels ( ≤6 characters):
x:y Scaling (Table 4).
OK = Accept the new text label
Shift = Change the keys: 123ABC or -_+abc
= Add a space
BS = Back space (Delete character)
A3
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 3K393 Issue 1
To start - Power on or off
To turn the instrument on or off, press ❍(A1 - item [1]). The
instrument does a self test and then shows the applicable
data.
When the power is off, the last set of configuration options
stays in memory. Refer to “Maintenance”.
To start - Set up the basic operation
Use the Set Up menu to set up the basic operation of the
instrument.
If there is additional data for a menu option, select
Settings (■■
) to see the values that are set up. If
necessary, adjust the values.

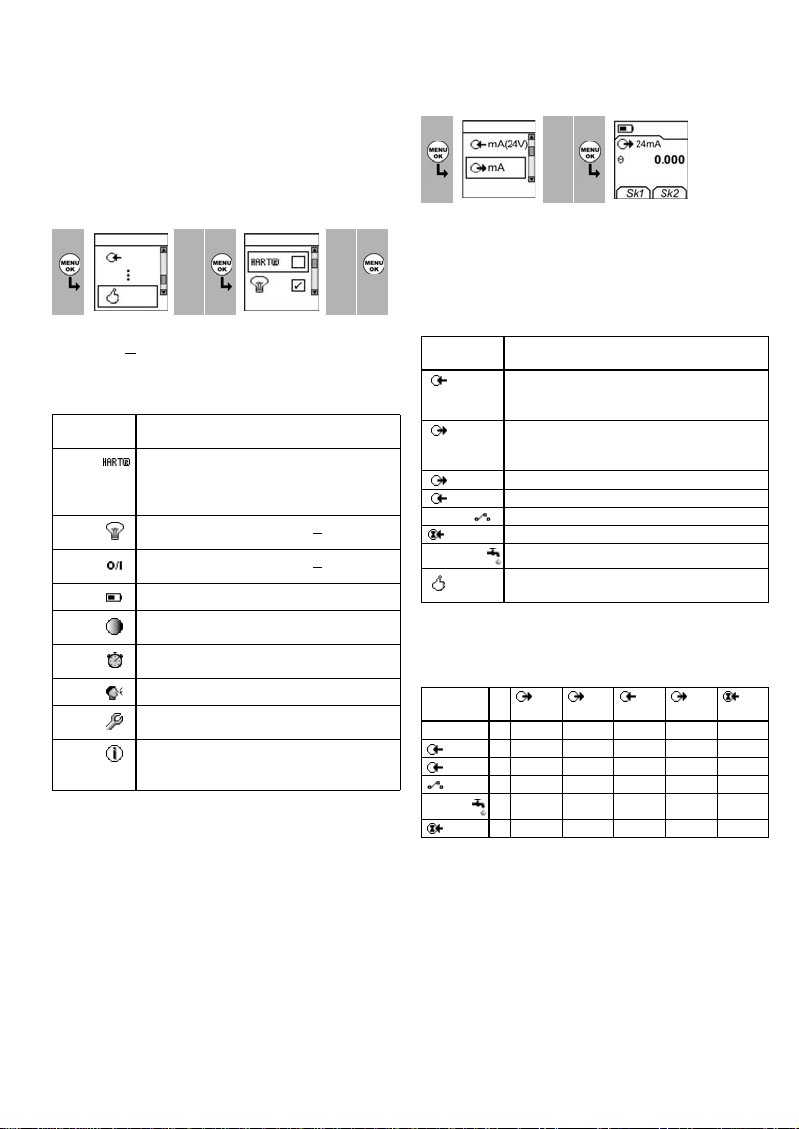

Table 1: Menu options - Set Up
To start - Select a task (Measure and/or supply)
When the instrument is set up (Table 1), use the Select Task
menu to select the applicable task.
In Table 2/3, IDOS is a Universal Measurement Module
(UMM). If you attach a UMM to the communications port
(A1 - item [9]), the Select Task menu shows the applicable
IDOS options.
Table 2: Menu options - Select Task
Table 3 shows all the one and two function operations that
are available. If you attach a UMM, you can only use the
options that include IDOS.
Table 3: Permitted 1 and 2 function operations
1Menu:
Select Task 23 Menu: Set Up 45
▲
▼▲ ▼
(Table 2) (Table 1) [✓]/[ ]
Options
(If applicable)
Description
To add a series resistor into the mA circuit. You can
then use this instrument together with a HART®
communicator to set up and calibrate HART®
devices.
To select and set up the backlight facility + timer.
Additional data: Select Settings (■■)
To select and set up the power off facility + timer.
Additional data: Select Settings (■■)
To show the battery level (%).
To set the display contrast (%).
▲ Increases %, ▼ decreases %
To set the time + date. The calibration facility uses
the date to give service and calibration messages.
To set the language option.
To calibrate the instrument.
Additional data: Refer to “Calibration”.
To select and show the applicable status data.
(Software Build, Calibration Due date, Serial
Number, IDOS Information).
1Menu:
Select Task 23 Display: mA output
▲
▼
(Table 2/3) Sk1 = Edit
Sk2 = Settings
Options
(If applicable)
Description
mA or
Volts
An input measurement task:
mA - Measure mA (±55 mA)
Volts - Measure volts (±120mV or ±30V)
mA or
Volts
An output task:
mA - Supply mA (0 ... 24 mA)
Volts - Supply volts (0 ... 120mV or 0 ... 12V)
mA(24V) Supply mA + the loop power supply is on.
mA(24V) Measure mA + the loop power supply is on.
A switch test.
IDOS UMM only. An IDOS measurement task.
UPM only. A leak test.
To set up the way the instrument works.
Additional data: Refer to: Set Up (Table 1).
Function
mA mA(24V) Volts Volts IDOS
(1) (1) (1) (1) (1)
mA (1) (2) (2) x (2) (2)
mA(24V) (1) (2) (2) x (2) (2)
x (2) (2) x (2) (2)
xxxxx(2)
IDOS (1) (2) (2) (2) (2) x

4 - [EN] English K393 Issue 1
To start - Set up the settings
When the task is set up (Table 2/3), use the Settings menu
to adjust the input and/or output operation.
If there is additional data for a menu option, select
Settings (■■
) to see the values that are set up. If
necessary, adjust the values. Refer to “Edit functions”.
Table 4: (Part of table) Menu options - Settings (Input)
Table 4: (Part of table) Menu options - Settings (Input)
To start - Edit functions
Example 1) Set up a label for x:y Scaling = %.
Example 2) Set up values for x:y Scaling = 0 to 100%.
Display: Task
mA + mA 1Settings selection (If applicable) 23
■■▲
▼
Sk1 = Start/Stop
Sk2 = Settings
Menu:
Settings 4A 5A 6A Settings x:y
▲
▼■■
(Table 4) [✓]/[ ] Sk1 = Edit
Menu:
Settings 4B 5B
▲
▼
(Table 5) [●]/[ ]
Options
(If applicable)
Description
... Units UPM only = “Pressure Units” if you select an IDOS
task (Table 2/3). Select one of the fixed units of
measurement (psi, mbar ... ).
To include maximum, minimum and average
values for the measurement task.
To select and set up a tare value for the
measurement task (a specified value or the
reading on the display).
The instrument subtracts a positive tare value, and
adds a negative tare value.
Additional data: Select Settings (■■)
To select and set up a scale of values: One local
scale for each measurement task (Maximum: 5).
Additional data (Example 1/2): Select Settings (■■)
Options
(If applicable)
Description
To select and set up the filter values to give a
smoother output for the measurement task:
Band as a % of full scale (FS). The filter
compares each new value with the previous
value. If the new value is outside the band, it
is not filtered.
Low pass filter time constant in seconds.
Increase the value to increase damping
factor.
Additional data: Select Settings (■■)
To select and set up the alarm values for the
measurement task (maximum and minimum).
Additional data: Select Settings (■■)
UPM only. Gage sensors or sensors with
differential operation. A zero correction that makes
the instrument read zero at local pressure.
Leak Test only. To set an applicable period for the
leak test (Hours:Minutes:Seconds).
Settings
x:y 1Edit 2Edit 3
■■▲ ▼
■■
Sk1 = Edit A3 - item [27]
Edit ... Edit 45
%_
▲
▼
■■
A3 - item [27]
Settings
x:y 1Settings x:y 2Edit 34
▲
▼
■■
▲
▼
■■
Sk1 = Edit
= Flow scaling (mA, pressure only)
Shift
OK
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 5K393 Issue 1

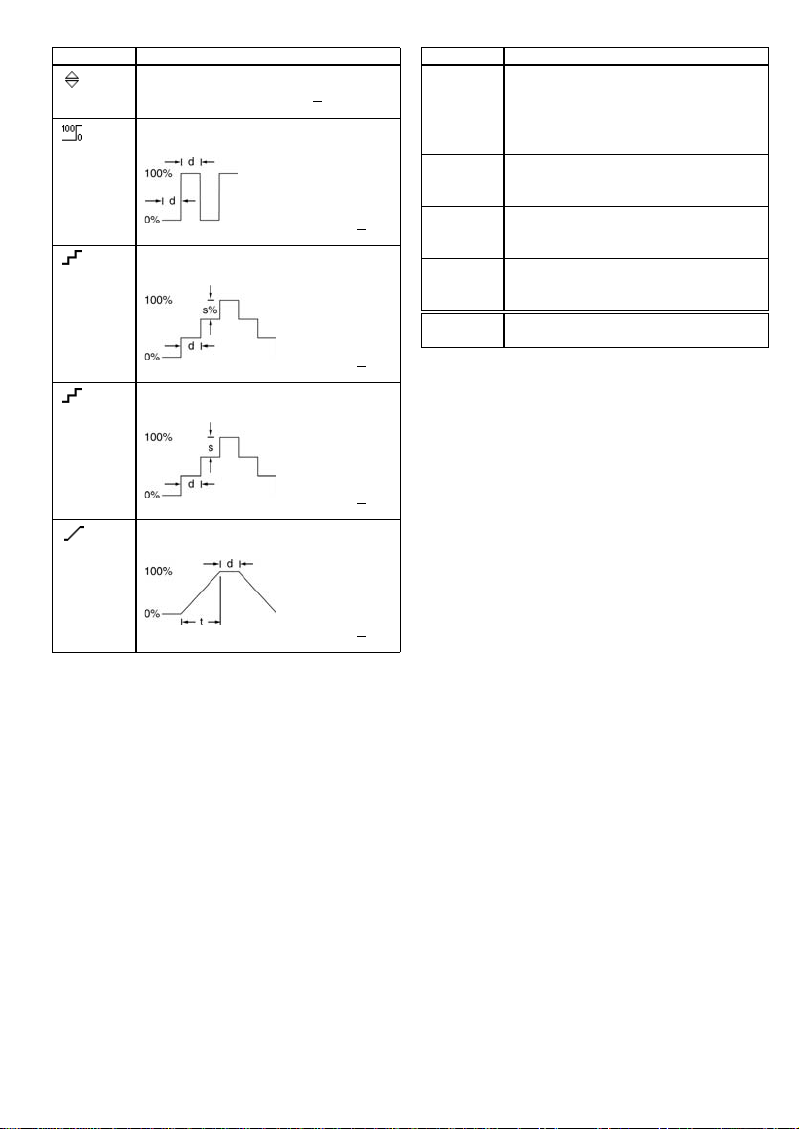

Table 5: Menu options - Settings (Output) Table 6: Additional data for Settings (Output):
Options Description
To select and set up a value for the “Nudge”
output. Example: 1.000mA increments.
Additional data: Select Settings (■■)
To select and set up values for the “Span Check”
output. Example output cycle:
This cycle repeats
automatically.
Additional data (Table 6): Select Settings (■■)
% Step To select and set up values for the “% Step” output.
Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
... Step To select and set up values for the “Defined Step”
output. Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
To select and set up values for the “Ramp” output.
Example output cycle:
Auto Repeat - Optional
Additional data (Table 6): Select Settings (■■)
Item Value
Span Check
Low (0%) Set the 0% value.
High (100%) Set the 100% value.
Dwell (d) Set the period (Hours:Minutes:Seconds) between
each change in value.
% Step Low (0%), High (100%), Dwell (d): As above.
Step Size (s) ...
%
Set the change in value for each step as a
percentage of the full-scale range (High - Low).
Defined Step Low (0%), High (100%), Dwell (d): As above.
Step Size (s) Set the change in value for each step in mA, mV or
Volts.
Ramp Low (0%), High (100%), Dwell (d): As above.
Travel (t) Set the period (Hours:Minutes:Seconds) to go from
the Low (0%) value to the High (100%) value.
Auto Repeat If applicable, select this item to repeat a cycle
continuously.

6 - [EN] English K393 Issue 1
Operation
This section gives examples of how to connect and use the
instrument. Before you start:
• Read and understand the “Safety” section.
• Do not use a damaged instrument.
Operation - Electrical connections
To prevent instrument errors, make sure that the electrical
connections (A1-item [10] and/or A2) are correct.
Operation - Communications port connections
Use the communications port (A1 - item [9]) to attach an
IDOS Universal Measurement Module (UMM).
When you attach the cable from a UMM (Figure 6/7), the
instrument automatically changes the menus to give you
all the applicable options (Table 2/3).
Operation - Measure mV or Volts
To measure mV or Volts:
1. Connect the instrument (Figure 1) and, if necessary,
adjust the Set Up (Table 1).
2. Select the Volts input task from Select Task (Table 2/3)
and select the necessary range (mV or Volts).
3. If necessary, adjust the Settings (Table 4).
Figure 1: Example configuration - To measure mV
or Volts
Operation - Change the output values
When the output operation is set up (Table 5), use one of
these procedures to change the output values:
Table 7: Procedures to change the output
Example procedure (“Nudge” output):
Settings
Volts
mV
Volts
0 ... ±120mV
0 ... ±30V
Output Procedure
Select Edit (■■) and/or use the ▲▼buttons.
See the example below.
, Select Start/Stop (■■) or use the ▲▼buttons
to make the step changes manually.
Select Start/Stop (■■).
Display:
mA output 1Edit 23Edit 4
■■ ■ ■▲
▼+01.000
Sk1 = Edit
Sk2 = Settings
Display:
mA output 56
▲
▼2.000 ▲ ▼3.000
Increment = 1.000
(Table 5)
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 7K393 Issue 1
Operation - Supply mV or Volts
To supply mV or Volts:
1. Connect the instrument (Figure 2) and, if necessary,
adjust the Set Up (Table 1).
2. Select the Volts output task from Select Task (Table 2/3)
and select the necessary range (mV or Volts).
3. If necessary, adjust the Settings (Table 5).
4. Supply the output values to the system (Table 7).
Figure 2: Example configuration - To supply mV or Volts
Operation - Supply mA
To supply a current:
1. Connect the instrument (Figure 3) and, if necessary,
adjust the Set Up (Table 1).
2. Select the applicable mA output task from Select Task
(Table 2/3).
3. If necessary, adjust the Settings (Table 5).
4. Supply the output values to the system (Table 7)
Figure 3: Example configuration - To supply mA
Operation - mA measurements
To measure a current:
1. Connect the instrument (Figure 4) and, if necessary,
adjust the Set Up (Table 1).
2. Select the applicable mA input task from Select Task
(Table 2/3) and, if necessary, adjust the Settings
(Table 4).
Figure 4: Example configuration - mA measurement
Edit Settings
0 ... 120mV
0 ... 12V
Volts
mV
Volts
Edit Settings
a) with external loop
power
b) with internal loop
power
Edit Settings
Maximum: 30V
Settings Settings
a) with external loop
power
b) with internal loop
power
Maximum: 30V

8 - [EN] English K393 Issue 1
Operation - Switch test
To do tests on a switch:
1. Connect the instrument (Figure 5) and, if necessary,
adjust the Set Up (Table 1).
2. Select the applicable switch test from Select Task
(Table 2/3) and, if necessary, adjust the Settings
(Table 5). The display shows the switch condition (open
or closed) in the top right-hand corner.
3. Supply the output values to the system (Table 7).
• Example - “Nudge” output.
a. Use Edit (■■) to set a value less than the switch
value.
b. Use the ▲▼buttons to change the value in small
increments.
•Example-“Ramp”output.
a. Set “High” and “Low” values that are applicable to
the switch value (Table 6). Then, to get an accurate
switch value, set a long “Travel” period.
b. Use Start/Stop (■■) to start and stop the “Ramp”
cycle.
4. If necessary, supply the output values in the opposite
direction until the switch changes condition again.
The display shows the applicable values to open and
close the switch.
5. To do the test again, press ESC to reset the values.
Figure 5: Example configuration - Switch test
Operation - UPM Pressure measurements
Read all the instructions supplied with the UPM and then
use the specified procedures to connect it (Figure 6/7).
Figure 6: Example configuration - Pressure measurement
with a UPM
When the connections are complete, make the necessary
IDOS selections (Table 2/3).
If you re-attach a UPM, the instrument uses the same
measurement units that you used before. The instrument
keeps a record for the last 10 modules.
UPM - Measure the pressure
To measure the pressure (Figure 6):
1. Select the applicable pressure task from Select Task
(Table 2/3) and, if necessary, adjust the Set Up (Table 1),
and the Settings (Table 4/5).
2. If necessary, do a zero correction (Table 4).
To measure pressure withanother operation (Figure 7), use
the same procedure.
Edit Settings
Settings
a) Pressure b) Leak test
Start Settings
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 9K393 Issue 1
Figure 7: Example configuration - To measure pressure
and supply mA
UPM - Leak test
To do a leak test on a pressure system (Figure 6):
1. Select an applicable leak test from Select Task
(Table 2/3) and, if necessary, adjust the Set Up (Table 1),
and the Settings (Table 4).
2. Set the period for the leak test (Table 4).
3. If necessary, do a zero correction (Table 4).
4. To start the leak test, select Start (■■). When the test is
finished, the instrument calculates the leak rate in the
applicable units/minute.
Operation - Error indications
If the display shows <<<< or >>>> :
• Make sure that the range is correct.
• Make sure that all the related equipment and
connections are serviceable.
Maintenance
This section gives procedures to maintain the unit in a
good condition. Return the instrument to the supplier for
all repairs.
Maintenance – Clean the unit
Clean the case with a moist, lint-free cloth and a weak
detergent. Do not use solvents or abrasive materials.
Maintenance – Replace the batteries
To replace the batteries, refer to B1. Then re-attach the
cover.
Make sure that the time and date are correct. The
calibration facility uses the date to give service and
calibration messages.
All the other configuration options stay in memory.
Calibration
Note: GE can provide a calibration service that is traceable
to international standards.
We recommend that you return the instrument to the
manufacturer or an approved service agent for
calibration.
If you use an alternative calibration facility, make sure that
it uses these standards.
Calibration - Before you start
To do an accurate calibration, you must have:
• the calibration equipment specified in Table 8.
• a stable temperature environment: 70 ± 2°F (21 ± 1°C)
Table 8: Calibration equipment
Before you start the calibration, make sure that the time
and date on the instrument are correct (Table 1).
Settings
Function Calibration equipment
mV/Volts mV/Volts calibrator.
Accuracy: Refer to Table 10/11, and Table 13/14.
Pressure UPM only. Refer to the user manual for the IDOS
UPM.
mA mA calibrator.
Accuracy: Refer to Table 12 and Table 15.
B1

10 - [EN] English K393 Issue 1
Selection sequence:
➤Select Task (Table 2) ➤Set Up (Table 1) ➤Calibration ➤.
Table 9: Calibration options
When you select a channel, the display shows the
applicable instructions to complete the calibration.
When the calibration is complete, select Calibration Due
and set the new calibration date for the instrument.
Calibration - Procedures (mV or Volts input)
1. Connect the instrument to the calibration equipment
(Figure 1).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a three-point
calibration (-FS, Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable Volts input task and range (Table 2).
5. Then apply the input values that are applicable to the
calibration:
• mV: -120, -60, -30, 0 (short circuit)
Then mV: 0, 30, 60, 120
OR
• Volts (V): -30, -15, -5, 0 (short circuit)
Then volts (V): 0, 5, 15, 30
6. Make sure that the error is in the specified limits
(Table 10 or Table 11).
Table 10: mV input error limits
Table 11: Volts (V) input error limits
Calibration - Procedures (mA input)
1. Connect the instrument to the calibration equipment
(Figure 4).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a three-point
calibration (-FS, Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mA input task (Table 2) and apply these
values:
• mA: -55, -40, -24, -18, -12, -6, 0 (short circuit)
Then mA: 0, 6, 12, 18, 24, 40, 55.
5. Make sure that the error is in the specified limits
(Table 12).
Table 12: mA input error limits
1Display: Enter
Calibration PIN 23 Menu: Select Channel 45
▲
▼
+
■■
▲
▼
Factory PIN = 4321 (Table 9)
Options Description
... To calibrate the specified input: mV, Volts, mA
... To calibrate the specified output: mA, mV, Volts
IDOS ... UMM only. To calibrate the specified IDOS UMM.
Refer to the user manual for the IDOS UMM.
Calibration Due: To set the date of the next
calibration for the instrument.
After the specified calibration date, there is a
warning message. There is a selection box to stop
the warning.
To change the calibration PIN (Personal
Identification Number).
Applied
mV
Calibrator
error
(mV)
Permitted
DPI 832 error
(mV)
±120 0.0013 0.03
±60 0.0008 0.02
±30 0.0006 0.02
0 (Short circuit) - 0.01
Applied
V
Calibrator
error
(V)
Permitted
DPI 832 error
(V)
±30 0.00058 0.004
±15 0.00011 0.002
±5 0.00006 0.001
0 (Short circuit) - 0.001
Applied
mA
Calibrator
error
(mA)
Permitted
DPI 832 error
(mA)
±55 0.0022 0.005
±40 0.0018 0.004
±24 0.0014 0.003
±18 0.0004 0.003
±12 0.0003 0.002
±6 0.0002 0.002
0 (Short circuit) - 0.001
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com

[EN] English - 11K393 Issue 1
Calibration - Procedures (mV or Volts output)
1. Connect the instrument to the calibration equipment
(Figure 2).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a two-point
calibration (Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable Volts output task and range (Table 2).
5. Then set the output values that are applicable to the
calibration:
• mV: 0 (short circuit), 30, 60, 90, 120
OR
• Volts (V): 0 (short circuit), 3, 6, 9, 12
6. Make sure that the error is in the specified limits
(Table 13 or Table 14).
Table 13: mV output error limits
Table 14: Volts (V) output error limits
Calibration - Procedures (mA output)
1. Connect the instrument to the calibration equipment
(Figure 3).
2. Let the equipment get to a stable temperature
(minimum: 5 minutes since the last power on).
3. Use the calibration menu (Table 9) to do a two-point
calibration (Zero and +FS). The display shows the
applicable instructions to complete the calibration.
4. To make sure that the calibration is correct, select the
applicable mA output task (Table 2) and set these
output values:
• mA: 0 (short circuit), 4, 12, 20, 24
5. Make sure that the error is in the specified limits
(Table 15).
Table 15: mA output error limits
Calibration - Procedures (IDOS UMM)
Refer to the user manual for the IDOS UMM.
When the calibration is complete, the instrument
automatically sets a new calibration date in the UMM.
Output
mV
Calibrator
error
(mV)
Permitted
DPI 832 error
(mV)
0 (Short circuit) - 0.01
30 0.000425 0.02
60 0.0008 0.03
90 0.001175 0.03
120 0.00098 0.04
Output
V
Calibrator
error
(V)
Permitted
DPI 832 error
(V)
0 (Short circuit) - 0.001
3 0.0000175 0.002
6 0.00003 0.002
9 0.00005 0.002
12 0.000134 0.002
Output
mA
Calibrator
error
(mA)
Permitted
DPI 832 error
(mA)
0 (Short circuit) - 0.001
4 0.00029 0.001
12 0.0014 0.001
20 0.00185 0.002
24 0.0023 0.002

12 - [EN] English K393 Issue 1
Specification data
All accuracy statements are for one year.
Specification - General
Specification - Electrical connectors (A1 - Item 10) Specification - Electrical connectors (A2)
Languages English [Default]
Operating
temperature
14 … 122°F (-10 … 50°C)
Storage
temperature
-4 … 158°F (-20 … 70°C)
Humidity 0 to 90% without condensation
(Def Stan 66-31, 8.6 cat III)
Shock/Vibration BS EN 61010:2001; Def Stan 66-31, 8.4 cat III
EMC BS EN 61326-1:1998 + A2:2001
Safety Electrical - BS EN 61010:2001; CE Marked
Size (L: W: H) 7.1 x 3.3 x 2.0 in
(180 x 85 x 50 mm)
Weight 14 oz (400 g)
Power supply 3 x AA alkaline batteries
Duration
(Measure)
mV, Volts: ≈ 60 hours
mA: ≈ 25 hours
Duration
(Supply)
mV, Volts: ≈ 50 hours
mA: ≈ 11 hours (24 V Source at 12 mA)
Range (Measure): 0 to ±120 mV
0 to ±30 V
Accuracy: Measure mV 0.02% of reading + 2 counts
Accuracy: Measure V 0.03% of reading + 2 counts
Range (Supply): 0 to 120 mV
0 to 12 V
0 to 24 mA
Accuracy (Supply):
mA, mV, V
0.02% of reading + 2 counts
Temperature coefficient
(Measure or supply)
14 … 50°F, 86 … 122°F
(-10 … 10°C, 30 … 50°C)
0.0017% FS / °F
(0.003% FS / °C)
Connectors (A1 - Item 10) Five 0.16 in (4 mm) sockets
Range (Measure) 0 to ±55 mA
Accuracy 0.02% of reading + 3 counts
Temperature coefficient
14 … 50°F, 86 … 122°F
(-10 … 10°C, 30 … 50°C)
0.0011% FS / °F
(0.002% FS / °C)
Switch detection Open and closed. 2 mA current.
Loop power output 24 V ± 10%
HART®resistor 250 Ω (menu selection)
Connectors (A2) Three 0.16 in (4 mm) sockets
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX [phone] - TestEquipmentDepot.com
