M Tops MS100 User manual

TEL : ++82-2-2277-3811
FAX : ++82-2-2277-3813
SEOUL
OFFICE
ver 1.0
#691-4, Duckye-Dong,Yangju-Si,Kyounggi-
Do,482-852 Republic of Korea
MISUNG SCIENTIFIC CO.,LTD
#89,Kwansu-dong, Chongro-ku,seoul,110-
420 Republic of korea
TEL : ++82-31-866-3808
FAX : ++82-31-866-3810
HEAD OFFICE &
FACTORY
INSTRUCTION MANUAL
MODEL :MS100(HP100),MS200,MS300HS
Hot plate,Magnetic Stirrer,Hot Plate & Magnetic Stirrer
®
www.mtops.co.kr [e-mail] MISUNG SCIENTIFIC CO

2. Safety information (Setting up)
3. Features and areas of use
6
9. Specification
3
6
6
7. Cleaning and store
5. Safety Precaution (in use)
8. Trouble shooting
4
5
5~6
6. Operation and control
We appreciate you for purchasing MISUNG SCIENTIFIC CO.,Ltd product.
Before using the product you have purchased,check to make sure that it is exactly
what you ordered.
Then,please use it following the instructions below.
1. Safety information
3
4. Explanation of each part
4
www.mtops.co.kr [e-mail] MISUNG SCIENTIFIC CO

1. Safety information
Before you use,read safety precautions carefully,and use this product properly.
The precautions described in this manual contain important contents related with safety;
therefore,please follow the instructions accordingly.
The precautions are composed of DANGER,WARNING and CAUTION.
2. Safety information ( Setting up )
2)Do not use this product at any place with direct vibration or impact.
3)To prevent defection or this product,apply a proper power voltage in accordance with the rating.
4)Do not use outdoors ; Shock harzard may result and life can be shortened.
9)Do not use in the presence if flammable or combustible materials; fire or explosion may result.
CAUTION
6)Do not use this product at any place with a large inductive difficulty or occurring static electricity or magnetic
noise.
8)Do not use this product at any place with liquid,oil,medical substances,dust,salt or iron contents.(Use at
Pollution level 1 or 2)
10)Do not use this product at any place with occurring corrosive(especially noxious gas or ammonia) or
flammable gas.
11)Since this product is not designed with explosion-protective structure,do not use it any place with flammable
or explosive gas.
12)Use this product within the range of the operating ambient temperature,0~40℃ and ambient
humidity,35~85%RH(No condensation).
WARNING
Touching the reactor block surfaces and vials while hot can cause serious burns.
This product requires a protective earth connection.If not provided with a plug on a
cord,connect positive earth to this terminal.
1)Do not use this product at any place with possible thermal accumulation due to direct sunlight or heat radiation.
5)If there is a concern about a serious accidrnt caused by a malfunction or abnormality of this product,please
install an external protection circuit and devise a scheme for proventing an accident.
Used to alert operators to a specific operating procedure that should be emphasized for operating
safety.
CAUTION
Protective
Earth Ground
Indicates a potentially hazardous situation that may result in minor or moderate
injury.
Indicates a potentially or imminently hazardous situation which,if not avoided,could
result in death or serious injury.
Is used to alert operators to an operating procedure,Pratice or condition that,if not
strictly observed,can result in severe injury or loss of life.
CAUTION
WARNING
Hot Surface
DANGER
WARNING
DANGER
7)If there is excessive noise from the power supply,using insulating transformerand noise filter is
recommended.The noise filter must be attached to a panel which is already conneted to a ground and the wire
between the filter output side and power supply
WARNING
CAUTION
Read and follow instructions carefully before performing the required procedure.
!
!
!
!
!
!
!
!
!
!
www.mtops.co.kr [e-mail] MISUNG SCIENTIFIC CO

3. Features and areas of use
temperature resistant and resists agressive fluids.

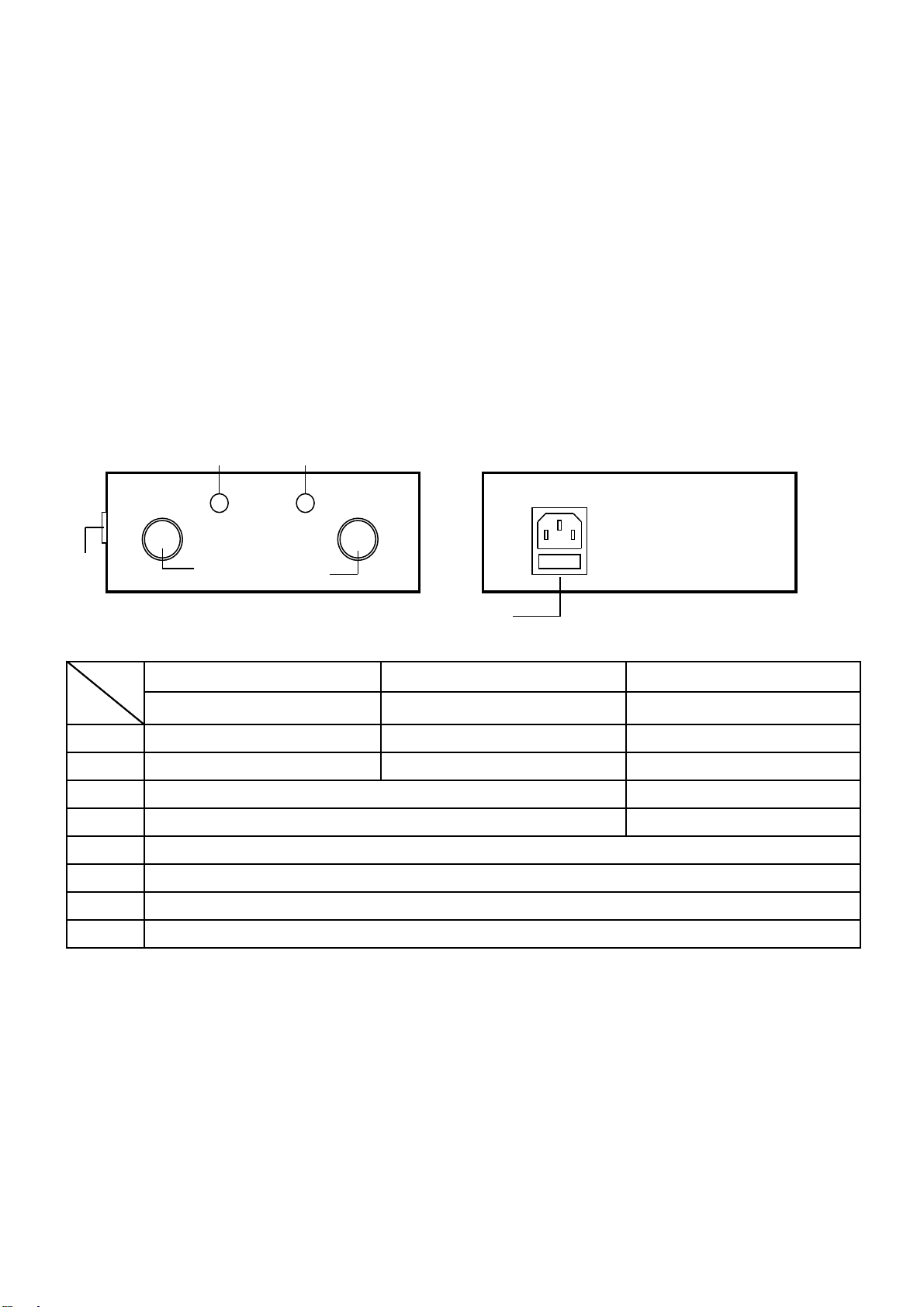

4. Explanation of each part
Front side Rear side
※ 6.Fuse holder : It breaks or stops the current if the flow of electricity is too strong, thereby fuse
prevents damage to the unit.
Main power cord : AC 200-230V 50/60㎐
X
8
7
3
Main power swich
Heater lamp
Heater volume
Motor volume
Motor lamp
6)Misung hot plate has an electronic feedback control which will accurately maintain
1
5
Heater volume
2
Heater lamp
HOT PLATE & STIRRER
MS300HS
Single fuse holder
HOT PLATE & STIRRER
MS100(HP100)
X
X
MS200
X
STIRRER
5)Misung designed the unit which starts and stops smoothly to prevent fluid spillover from
rapid turnover and detaching of stirrer bar.
1)Ceramic coated stainless top plate : Ceramic coated stainless top plate is corrosion proof,
Your Misung hot plate, stirrer or stirring hot plate is a general purpose heating and/or stirring plate
designed for labolatory procedures requiring precise control of temperature and/or stirring speed. Your
hot plate, stirrer or stirring hot plate may be
3)Top plate makes a quick thermal conduction and the surface temperature uniform.
4
6
4)We use electronic energy regulator to control temperature.
temperature.
2)Coated with pure white plate, easy to observate in use.
Model
NO
2 3
1 4
5
6
www.mtops.co.kr [e-mail] MISUNG SCIENTIFIC CO

5. Safety Precaution (in use)
1)Use a properly grounded electrical outlet of correct voltage and current handling capacity. This unit
operates only by AC200-230V 50/60㎐ without danger. Check supplied voltage and current of AC200-230V,
50/60HZ before use.
2)Do not cover top plate with aluminum foil to prevent overheating, or fatal damage may result.
3)Keep the controller out of fluid.
4)Keep the unit out of particle and fluid. Inflow of particle and fluid into the unit can be a cause of fire.
If inflow of paricle or liquid, remove them after turn your power swich off and disconnect the plug
5)Do not put a strain on unit,it can be damaged.
6)Hot surface on operation. Avoid contact.
7)Do not drop objects onto your unit and do not drop your unit.
8)Turn your power switch OFF and disconnect the plug whenever you leave the unit.
9)Power cable should not be contacted hot plate.
etc.
4)Contirm carfully the plug connected correctly. Wrong connection of the plug may cause fire.
5)Do not leave the unit whenever the unit is on running.Turn your power switch OFF whenever the item is
not used, or before disconnecting the plug.
6)Do not use the unit on other purpose.
7)Hot surface. Avoid contact. The hot plate will remain hot without any visual indication on power as well
after power has been removed for sometime .
6. Operation and control
1)Turn volume switch OFF and check the voltage(AC200-230V 50/60㎐) before plugging in. And connect
the power cord (6) to power supply(AC200-230V 50/60㎐).
2)Place your container or heating bath with the magnetic stirrer bar. Stirrer bar should be placed in center
of hotpate.
3)Turn main power S/W(5) ON.
4)Heating : Use heater control (1) to adjust hot plate temperature.
(LED (2) confirms heating current ON.)
The below chart shows the surface temperature chart of hot plate on the position of volume scale.
1. Each data was measured without vessel or container after instrument starts for 30 Min.
2. Input power : AC200-230V 50/60㎐
3. Ambient temp. :40℃
4.Tolerance : within +/- 5 %
5. These data can be changed as per the different conditions.
5)Stirring: Use motor control volume (4) to adjust motor speed rpm.
(Analog Type:Turn the speed control(4) ON. A LED (3) confirms the current ON.Set speed
to meet your needs by rotation of the speed control (4) on the front panel.
6)Do not place anything on top plate when use finishes.
7)Turn the main power S/W OFF.
8)Turn your power switch OFF and disconnect the plug whenever the unit is not in use.
Keep the unit clean.
Note:
1)Range of speed control : 100~1500 rpm
(Every 10rpm increases by rotation the knob right-handed and every 10rpm decreases by rotation the
knob left-handed)
2)Speed control knob in extreme left (CCW) position stops operating.
3)Set the speed(rpm) with the dial,it arrives at the set value shortly and maintaind contant speed by
arithmetic logic unit.(Smooth start function)
4)If motor does not run on starting,make it run in 3 second by a increasing or output until 10rpm
or more.
Warning
Warning
Note
Note
Unsuitable use causes danger !
Danger
3)Some parts of this product have limited life span,and others are changed by their usage.
1)If you use the product with methods other than specified by the manufacturer,there may be bodily injuries or
property damages.
Unsuitable use causes danger !
2)When the product gets wet,the inspection is essential because there is danger of an electric leakage or fire.
!
!
!
!
!
www.mtops.co.kr [e-mail] MISUNG SCIENTIFIC CO

7. Cleaning and store
3) Cleaning: wipe housing surfaces clean with a damp cloth (add some sort of mild liquid soap).
4)Wipe again with dry cloth
5)We recommend to store the item and its components in its original box, or a similar container that offers
adequate protection against damage in transit. Tape the box securely.
8. Trouble shooting
1) Cause of trouble
- Corrosion caused by inflow of fluid into the unit inside.
- Damages occurred by overheat when user covers the top plate with aluminium foil.
- Heavy laod
2) Power switch dim:
- Check power supply and power cord.
- Check power switch "ON".
- Check fuse.
In case of a malfunction as described above, contact your authorized Misung Dealer.
9. SPECIFICATIONS
Plate area
AC 230/220V 50/60㎐
DIMEN
SIONS
250V T1AH
250V T5AH
Fuse
Weight
Overall(WxDxH)
Power
HOT PLATE
HOT PLATE & STIRRER
MAGNETIC STIRRER
180 x 180mm
100 ~ 1500rpm
Up to 5000mL
Feed back control
-
-
-
-
H
E
A
T
E
R
Capacity
Temperature range
Control
Ceramic coated top plate
Up to 380℃
680W
Proportion control
-
-
Type
Top plate
M
O
T
O
R
Speed
Capacity
Control
Caution
2)Do not decompose,modify,revise or repair this product.This may be a cause or malfunction,electric or fire.
MS100(HP100)
MS200
MS300HS
1)Do not polish this product with substances such as alcohol or benzene.(Use neutral detergent.)
MODEL
Disconnect the plug before cleaning !!
!
