MACKWORTH M60™
SELF-PROPELLED SHOWER/COMMODE CHAIR
USER GUIDE
PRIOR TO USE
Please ensure that these User Instructions are read prior to first use of any moving and handling practice. Prism
Medical UK recommend that prior to using any transfer equipment, a full risk assessment must be completed by a
qualified professional, in order to determine that the correct equipment, positioning and transfer procedure is suitable
for each individual.
●Ensure you are aware of the chair manufacturer's fitting instructions.
●Inspect the chair for wear and damage, with particular attention being paid to the frame, seat and wheels.
Be Aware of LOLER 1998 - (Lifting Operation and Lifting Equipment). For further information please visit:
www.hse.gov.uk/work-equipment-machinery/loler.htm
●Please ensure the arm rests and foot rests are fastened securely. Please test the brakes to ensure they are
functioning properly, before the patient is seated in the chair.
●If following inspection, there is any doubt (points 1-3), the chair should be placed aside and not used.
Your contact :
User Manual - M60 Shower/Commode Chair V1.0 April 2015

Page No. Information
3. Welcome & Warranty Terms
4. Illustration of Key Parts
5. Introduction to the Chair
6-8. Chair Assembly Instructions
9. Making Adjustments
10. Chair Safety Advice
11-12. Maintenance & Cleaning
13. Technical Specification - Chair Dimensions
14. Spare Parts Listing
15. Shower/Commode Chair Product Range
16. Company Details & Contact Information
CONTENTS
2

WARRANTY TERMS
WELCOME
Congratulations on your purchase.
Prism Medical UK are proud that you have purchased one of our high quality shower/
commode chairs. These products have been manufactured to the highest standards to ensure
optimum product strength and performance as assistive equipment.
3
1.Prism Medical UK warrants this product against any defects in manufacturing and assembly of
mechanical and component parts. This warranty is for devices used only in accordance with
our terms of use.
This warranty, whose terms of use are defined below, is valid for the following:-
*1 year only - extended warranties are available upon request.
2.The warranty entitles free replacement for defective parts only, exclusive of labour .
3.Prism Medical UK will bourne all return costs if the warranty claim is valid after a full
investigation. Additional information may be required to support such a claim.
4.Out of warranty items - The return costs will be bourne by the customer and the repair will
be priced and a purchase order will be required prior to the work commencing.
5.The warranty does not apply if the claims are consecutive to:-
* Accident, misuse or neglect of the unit by the end user / customer.
* Shipping performed without suitable packaging / protection.
* Alteration or transformation of the original design.
* The impact of external elements (Natural Disasters, Fire, Humidity, Floods Etc)
* Lack of routine maintenance / care inline with our daily checks / the information within
this user guide.

ILLUSTRATION OF KEY PARTS
4
Back Upholstery
Armrest
Armrest
Backrest Frame
Brake Set
24” Rear Wheel
Base Frame
Front Fork
Front Wheel
Footrest
Legrest

The shower/commode chair will arrive to you in a robust box and requires full assembly. Please be
careful when removing the parts from the box. The assembly process may require two people.
Please read the User Guide in full BEFORE assembling and using.
All staff/carers should read this guide as a basis to ensure safe and secure use of the
shower/commode chair.
This User Guide contains information for the assembly,handling, use, care and maintenance of the
product.
Please keep this User Guide safe for future reference.
INTENDED USE
The shower/commode chair is an assistive product designed for use to aid toileting
and bathing procedures, in both the home and healthcare environments. Do NOT use
it, or allow it to be used for any other purpose.
Please ensure a risk assessment is carried out before using this equipment if
necessary.
INTRODUCTION
5

Carefully open the box (SAFETY NOTICE - Do not use a sharp knife / edge) remove all loose
parts/excess packaging from the carton.

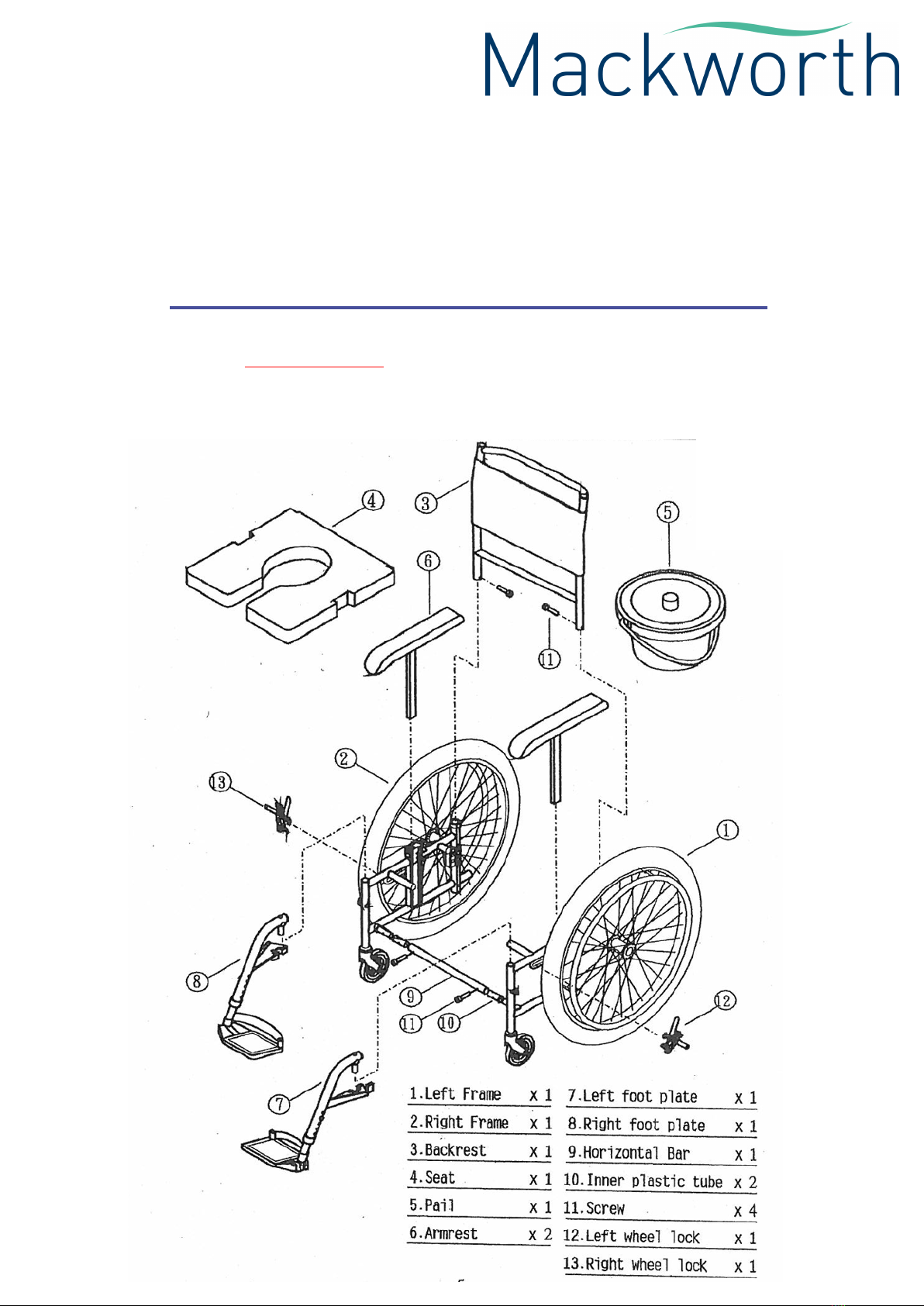

The Chair Carton Contains:-
CHAIR ASSEMBLY INSTRUCTIONS
6

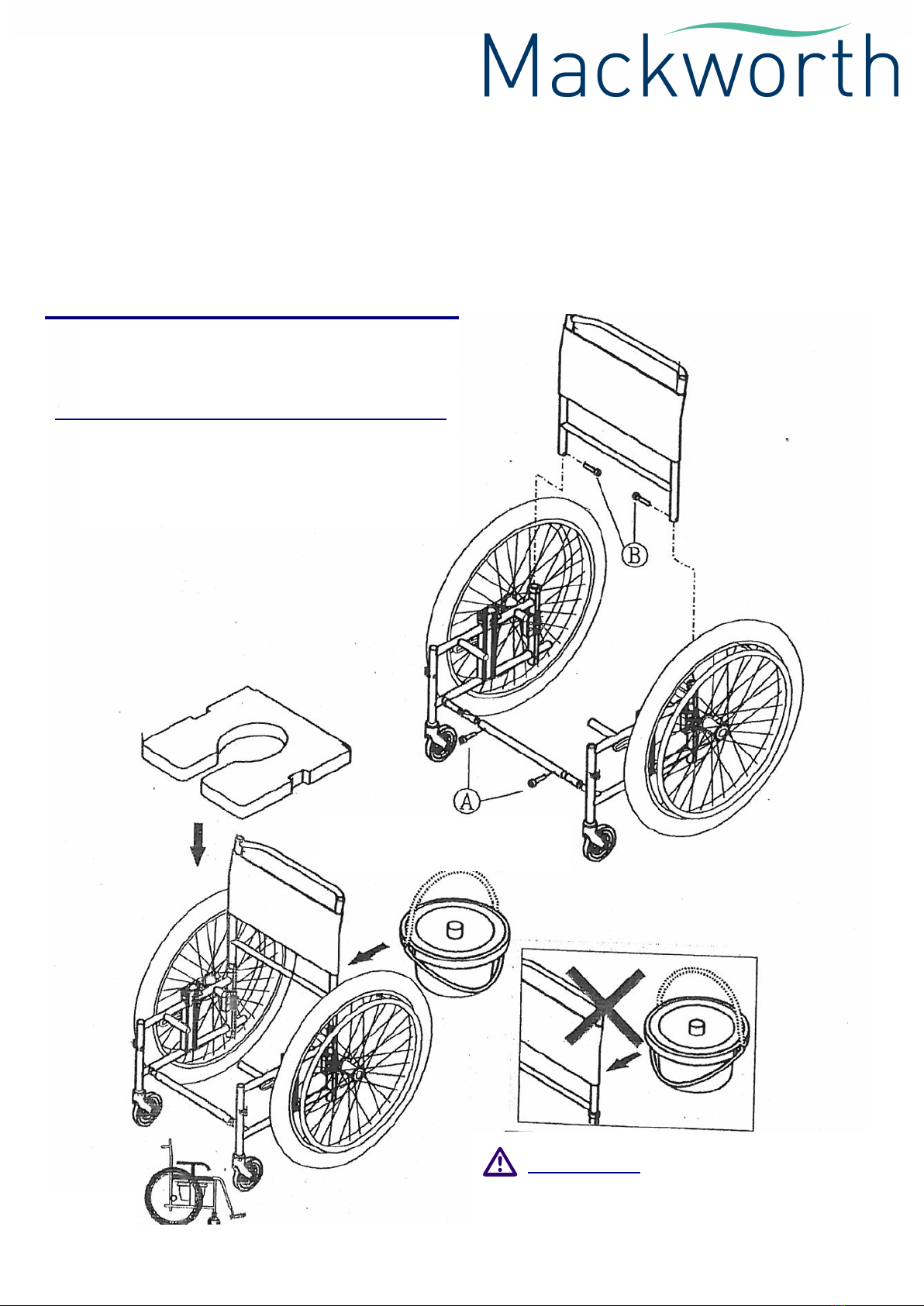

Assembly Instructions
1. Assemble left frame, right frame & backrest.
Locate screw A and insert into horizontal bar,
DO NOT tighten.
Locate screw B and insert into frame. Afterwards,
tighten both screws A & B.
2. Place seat and round bowl into position.
IMPORTANT - ensure round bowl is fitted
in the correct position/direction.
7

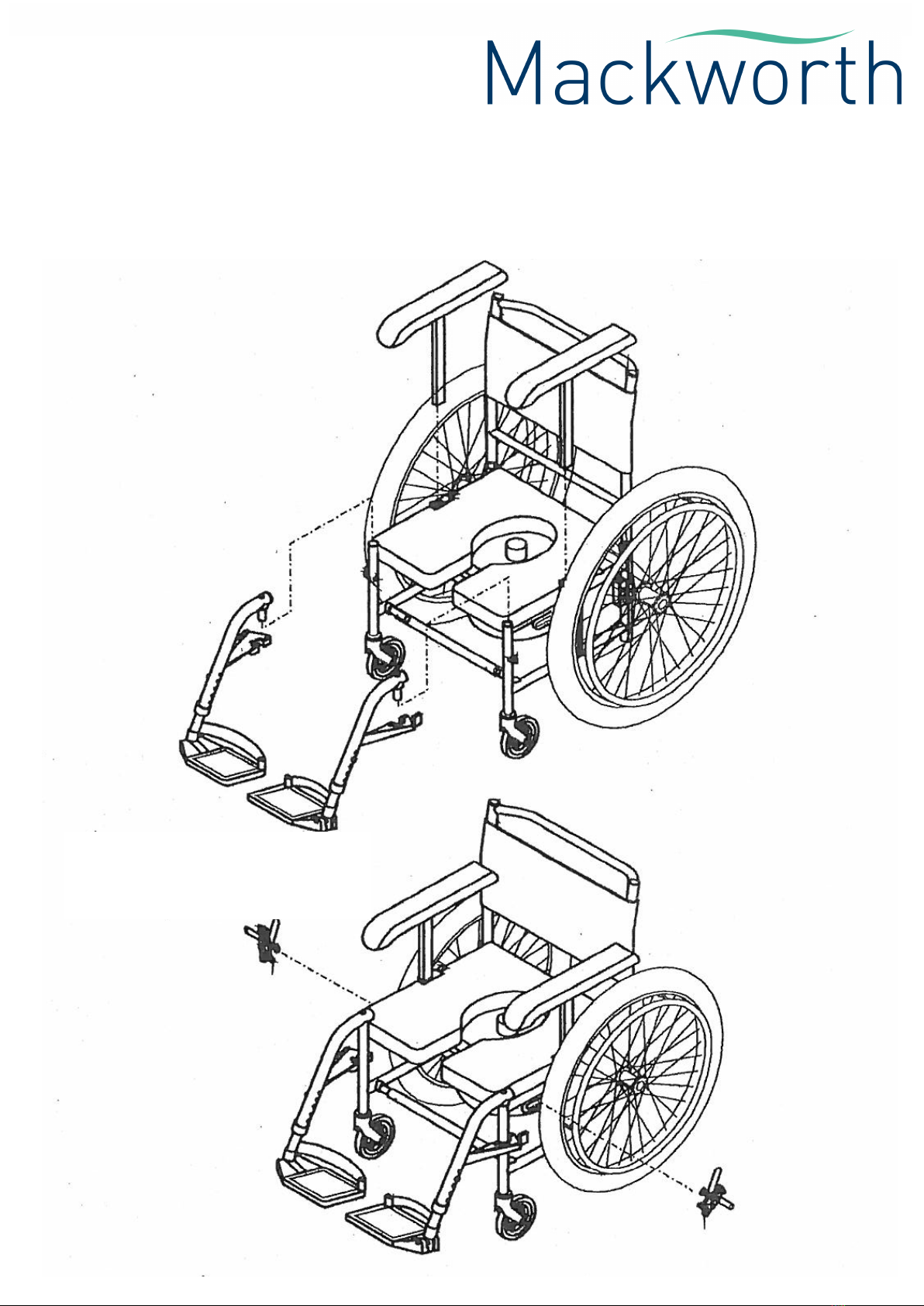

3. To assemble armrests, left foot plate
& right foot plate, simply click into
position as highlighted.
4. To assemble left & right wheel
lock, simply click into position
as highlighted.
8
To disassemble for cleaning, transportation or storage purposes, simply reverse this procedure.

ADJUSTING THE ARMRESTS
To adjust the height of the footrest, simply press the stud, adjust and
then lock into position as highlighted. Rotate the footplate to the
desired angle/position. Ensure they are locked in position before use.
To adjust the height of the armrest, simply press the stud and raise
the armrest to the desired height/position. Ensure they are locked in
position before use.
Armrests should be in place at ALL times whilst the chair is in use.
To allow the footrest to swing-away, simply adjust the black lever and
then lock into the required position as highlighted. Ensure they are
locked in position before use.
ADJUSTING THE FOOTPLATES
APPLYING THE BRAKES
To apply the brakes to the large wheel, simply adjust the black lever
and then lock into the required position as highlighted. Ensure they
are locked in position when required during certain procedures.
9

Please ensure you read the following safety advice. This will ensure all procedures are made
easy and trouble free.
● Alwayscarryouttheriskassessmentandplanyourprocedurebeforecommencingamoving
& handling practice.
● Alwayscarryoutthedailychecklistbeforeusingthechair.
● Alwaysreadtheusermanualandensureyouarefamiliarwiththeuserinstructionsandsafety
features of the chair before transporting a patient.
● Alwayscheckthesafeworkingload(SWL)ofthechairissuitablefortheweightofthepatient.
● Alwayscarryoutadjustmentsinaccordancewiththeinstructionsintheusermanual.
● Neverforceanoperatingorsafetycontrol,excessforcecoulddamagethefeature.
● Alwaysmanoeuvrethechairusingthehandles/wheelsprovided,thesearedesignedtoaid
ease of transport.
● Donotpushaloadatexcessspeed.
● Donotpushthechairoverroughorunevenground.
● Donotpushthechairdownsteps.
● Alwaysapplythebrakeswhenparkingthechairorduringbathingprocedures.
●Always ensure the armrests and footrests are securely locked before transportation or use.
●A patient should never be allowed to sit on the chair for extended periods of time.
●Children and young people should never be left unsupervised in the shower/commode chair.
●In order to overcome obstacles such as steps, always use ramps.
CHAIR SAFETY ADVICE
10

These are recommended to be checked on a daily or regular basis and the chair should be
serviced annually by an authorised agent.
1. CHECK any screws are fastened securely.
2. CHECK the wheels/tyres for excessive wear and damage.
3. CHECK the brake mechanism is working appropriately.
4. CHECK the armrest adjustment mechanism operates correctly.
5. CHECK the footrest adjustment mechanism operates correctly.
6. CHECK the lever which allows the footrest to swing-away operates freely.
5. CHECK all castor fixing points. Check that the castor runs free and rotates easily. Remove any
build up of hair, fluff, dust etc. Lubricate if necessary with a very light mineral based grease.
9. CHECK that the wheel locks are tightened and secured fully.
10.CHECK the backrest for excessive wear and damage.
IF IN DOUBT DO NOT USE - ANY DAMAGED PARTS SHOULD BE
REPLACED IMMEDIATELY.
MAINTENANCE & CLEANING
11

1. Clean the seat and backrest thoroughly with a damp cloth and warm soapy water after each use.
2. Use a damp cloth to wipe clean the frame parts and armrests also.
3. For heavier stains a mild diluted solution may be used. A solution of 0.1% Sodium Hypochlorite is
recommended but ensure the seat/backrest is rinsed thoroughly with clean water to ensure full
removal of the solution. It should have no adverse reaction to the material. Over a long period of
time some fading may occur, but this will have no effect on product longevity and integrity.
4. Please ensure you thoroughly dry the chair after each use.
5. Harsh cleaning liquids, chemicals or abrasives such as a wire brush should not be used as these
may damage the surface finish of the chair.
6. Do NOT clean with phenols, acids or bleach.
7. Disinfect the round commode bowl after each use.
8. Wheels can be cleaned using a damp brush with soft bristles.
9. Check that any castors run free and rotate easily. Remove any build up of hair, fluff, dust etc.
lubricate if necessary with a very light mineral based grease.
12
MAINTENANCE & CLEANING

TECHNICAL SPECIFICATIONS
Chair Dimensions & Weight Limit
13
Weight Limit 18 Stone / 120 kg
Seat Width 46-56 cm
Seat Height 50 cm
Seat Depth 42 cm
Overall Width 65 cm
Overall Height 90 cm
Back Height From Seat 39 cm
Arm Height From Seat 12-22 cm
Product Weight 15 kg

Item Number Description
NNW04-K0201 Back Upholstery
BAR04-A Armrest
NNW04-A29 PU Seat Pad
N1.178-30 Round Bowl
BWL05-A Brake
NFKP5-C Front Fork
NWPU5-B Front Wheel
NRW24-S 24" Rear PU Wheel
M60™ Spare Parts List
For pricing information, please contact Customer Services
on 01924 840100.
14

15
M80™ Tilt-In-Space Shower/Commode Chair
M40™ Shower/Commode Chair M20™ Commode Chair
SHOWER/COMMODE CHAIR
PRODUCT RANGE

For further information on our full range of shower/commode chairs, please visit
www.mackworth-healthcare.com.
