Mackworth SA160E User manual

SA160E User Manual Rev 3 - Aug 2016 Page
Unit 1, Tir Llwyd Industrial Estate, St Asaph Avenue, Kinmel Bay, Rhyl, Conwy, LL18 5JA
Tel [phone] www.prismmedical.co.uk [e-mail]
User Manual
Mackworth
Stand Aid
SA160E

SA160E User Manual Rev 3 - Aug 2016 Page 2
1.0 Assembly instructions Page
1.1 Initial Assembly 3
2.0 Stand Aid Features
2.1 Emergency Stop Button 6
2.2 Emergency Lowering 7
2.3 Control Box 8
2.4 Handset 8
3.0 Operating instructions
3.1 To Alter the Leg Width 9
3.2 Positioning 9
3.3 Knee block adjustments 10
3.4 Raising & Lowering 10
3.5 Batteries—recharging 11
4.0 Safety precautions
4.1 Safety precautions 12 & 13
5.0 Safety Checks
5.1 Daily Check List 14
5.2 Warning Notes 14
6.0 Technical Specification
6.1 Dimensions & Weights 15
6.2 Sound levels 15
6.3 Maximum lifting Height & leg width 16
6.4 Electrical detail 16
6.5 SA160 Main Assembly Components 17
7.0 Fault Finding / Maintenance
7.1 Fault Finding 18
7.2 Service / Maintenance 18
7.3 Cleaning & Sterilisation 18
Declaration of Conformity 19
8.0 Test Certificate & Guarantee 20
9.0 Testing and service record
10.1 Initial Information 21
10.2 Service record History 22
10.0 Standing support and Posterior sling 25
Table of Contents
Mackworth SA160E - Stand Aid

SA160E User Manual Rev 3 - Aug 2016 Page 3
1.0 ASSEMBLY INSTRUCTIONS
Mackworth SA160E Stand Aid
1.1 Initial Assembly
1. Remove carefully from the box:
Boom / Mast assembly
Base unit with legs attached (Base Unit)
Battery pack / charging lead
Hand set control
Foot Plate
Document wallet
SAFETY NOTE: Some of the parts are heavy and will need to be lifted with
care. Heavier items may need two people to lift. ( Please refer to technical
details on page 15
2. Place base unit on level floor surface and lock rear castors.
3. Remove boom/mast assembly from packaging.
Boom / Mast
Assembly
Base Unit with
Legs attached
Foot Plate
Hand set
Battery Pack

SA160E User Manual Rev 3 - Aug 2016 Page 4
1.0 ASSEMBLY INSTRUCTIONS
Mackworth SA160E Stand Aid
5 The control unit is already fitted to the
mast, so assembly is not required.
Check the emergency stop button (red
button) located on the control box is in
the out position (i.e. out )
6 Fit the battery pack to the control box
making sure it clicks into position in the
top of the bracket, as shown.
Emergency stop button
Mast locking knobs
SAFETY NOTE: Possible finger trap. Keep fingers away from
end of mast when fitting to base unit.
4. Carefully take the boom/mast
assembly and slide bottom of the mast
into the base socket. When the mast is
fully engaged into the base, fit both of
the 2 mast locking knobs and tighten by
hand firmly

SA160E User Manual Rev 3 - Aug 2016 Page 5

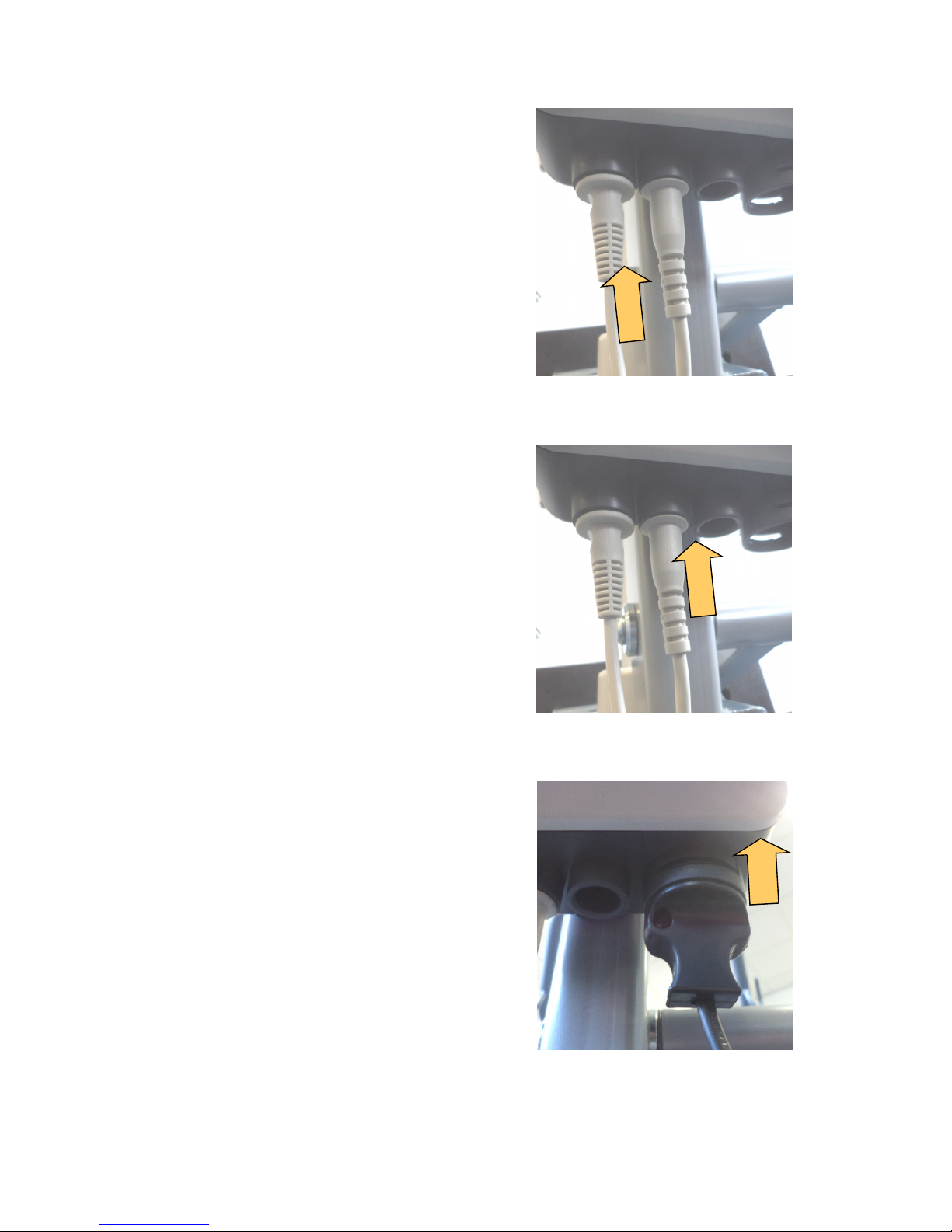

8 Fit the lifting actuator into the socket
located on the base of the control unit.
7 Fit the hand control unit to the
hand control socket located on the
base of the control unit.
NOTE: The hand control lead can
only be fitted in one orientation
into its socket. Do not use force to
insert the hand control into its
socket. The plug when correctly
inserted should be pushed firmly
home.
9. Fit the mains cable I into the socket
on the underneath of the control unit.
You have a choice where the mains
cable can be stored, either away from
the hoist or it can be stored at the side
of the battery pack / control unit.
See page 11.

SA160E User Manual Rev 3 - Aug 2016 Page 6
Emergency Stop Button
11. The foot plate is fitted onto the
base by locating it onto the 2 location
pegs either side of the mast, as shown.
2.0 STAND AID FEATURES
2.1 Emergency Stop Button
During all operations and at all times,
the stop button should be in the out
position. In the unlikely event of a
failure of the handset control, it is
possible that the electric ram either
continues to lift or continues to lower.
This may be overridden by pressing the
Emergency stop button to stop the ram.
To re-set the button after it has been
pressed, simply twist it slightly
clockwise and the button will spring
outwards.
NOTE: THE STAND AID WILL NOT OPERATE WITH THE STOP BUTTON
PUSHED IN

SA160E User Manual Rev 3 - Aug 2016 Page 7
Twist Clockwise to Lower
2.2 Emergency Lowering / raising
Manual emergency lowering is facilitated by turning the emergency lowering ring
clockwise. The ring is situated at the top of the actuator where the actuator connects
to the mast.
Electrical emergency lowering: is facilitated by pressing the button on the control
box.
Electrical Emergency
Lowering Button

SA160E User Manual Rev 3 - Aug 2016 Page 8
2.3 Control Box
The control box has been developed for patient lifting devices and the features that
meet the patients needs for a safe and comfortable transfer.
The actuator for the raising / lowering is connected into the bottom of the
control box.
To recharge the batteries the hoist is connected to the mains via a mains lead.
See page 11 regarding ‘Re-charging the batteries’
Handset
Connection
Actuator Connection
Battery Charge
Level Indicator
Raising
Lowering
2.4 Handset
The Stand Aid handset operates 2 functions on the
Stand Aid. They are:-
1. Raises the Boom
2. Lowers the Boom
The handset is attached to the control box via a
flexible cable that is secured in place with a
bayonet type fitting.
The back of the handset has a hook that enables
the user to position the handset anywhere on the
boom whilst attending to the patient.
Clear and easy to understand button diagrams
enable ease of use for the caregiver.
12

SA160E User Manual Rev 3 - Aug 2016 Page 9
3.0 OPERATING INSTRUCTIONS
Mackworth SA160E Stand Aid
Before use, you should familiarise yourself with use of the Stand Aid the procedure
for opening / closing the leg sections and raising and lowering the Stand Aid,
including emergency stop/lower and raise functions. Appropriate training in lifting
and handling procedures should be undergone by any person operating a Stand Aid
or sling, for their own and the clients safety and comfort. These instructions are
designed to cover the method of using of the Mackworth Stand Aid .
3.1 To Alter the Leg Width
The legs on the base unit of the Stand Aid are operated by adjusting the leg lever
pedal, as shown in the photo below. To open the legs, press on “open” to close the
legs, press on “close”. Stand Aid manoeuvres can be completed with the legs in
any position.
3.2 Positioning
1. Fit the person to be lifted with a suitable sling. Instruction should be taken in the
fitting of slings to ensure maximum safety and comfort. A full assessment
should be carried out by a qualified person and carers should be trained
in the correct use. (See sling safety)
2. Select the leg position required. Position the Stand Aid near to person to be
lifted. Assuming you are lifting on a level surface do not use the brakes on the
Stand Aid (A documented risk assessment may advise to use the brakes). This
allows the Stand Aid to align its self before lifting. Ensure ALL sling loops are
attached over the safety hooks.
NOTE: It is recommended to only use the brakes when carrying out lifts on / off the
floor, following a risk assessment or when the Stand Aid is not in use & on
charge.
*PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY*

SA160E User Manual Rev 3 - Aug 2016 Page 10
3.4 Raising & Lowering
1. To raise a person press handset button marked with upward facing arrow.
When the sling straps become taut before the lift is commenced, check the
straps are secure in position over the hooks on the boom before continuing the
lift. When the desired height has been reached, release button and the Stand
Aid will stop.
2. When moving a person use the mast push handle and walk with the Stand Aid
NEVER pull or twist at arms length, this can cause injury to the carer.
3. To a lower person, press and hold handset button marked with downward
facing arrow and Stand Aid will descend. When you have reached desired
level, simply release button and Stand Aid will stop in that position.
3.3 Knee Pad Adjustment
The knee pad can be adjusted either inwards / outwards or raising / lowering the
height.
Moving the Knee pad can be achieved by altering the position of the brackets which
hold the knee pad in place.
To move the knee pad in / out, pull out and twist the location pin by the knee pad,
then move the knee pad to the required position.
To alter the height of the knee pad, pull out and twist the location pin, then move the
knee pad to the required position .
Pull out and twist knob to
change height of knee pad
Pull out and twist knob to
move knee pad in or out
