MAD Gaze W100 User manual
MAD Gaze Watch
Gesture Controlled Smart Watch
USE GUIDELINES
WATCH USE GUIDELINES (v2020.10) ` Page 1
Table of Contents
Package Overview 3
Hardware Specification 4
Product Registration 6
Product Description 7
Product Guidelines 7
Dial Setting 9
Menu 10
MAD Fitness Application 12
Hand Gesture Control 13
Mobile Connection and Training 14
Navigate The Connected Device On Watch 19
Reconnect And Disconnect 23
Retrain Certain Gesture 24
Retrain All Hand Gestures 26
Shortcut Mode Setting 27
Gesture Media Control On Watch 29
Walkie-Talkie Application - Zello 31
Tutorial Video Source 34
Troubleshooting 35
Warranty 38
Limited Warranty 39
Cautions 39
WATCH USE GUIDELINES (v2020.10) ` Page 2
Package Overview
The package includes the following items:
1. MAD Gaze Watch smart watch x1
2. Charging cable x1
3. Data Transmission Cable x1
4. Watch Band (Regular) x1
* Please use only MAD Gaze authorized accessories.
* The use of unauthorized accessories may cause performance problems and
failures, which are not covered by the warranty.
* Avoid using fast chargers, only charge the watch with 5V1A output chargers.
* Do not place the charging cable and data transmission cable on metal to
prevent short circuits or fire.
WATCH USE GUIDELINES (v2020.10) ` Page 3
Hardware Specification
Product Model: W100
CPU: Quad Core 1.25GHz
Operating System: Android 7.1
RAM: 1GB
Storage: 16GB
Screen: 1.39 inch Capacitive Touch Screen
260,000 Colors 400x400 pixels Resolution
Sensors: Accelerometer and Gyroscope,
Heart Rate Monitor
Battery: Capacity: 620mAh
Autonomy: 90 hours Standby Time;
48 hours Working time
Wireless Connection: Bluetooth 4.0
Wi-Fi 2.4G
IP Rating: IP67 Water Resistant and Dust Proof
SIM Card: 4G Nano SIM
Audio: Microphone, speaker
Vibrating: Support
WATCH USE GUIDELINES (v2020.10) ` Page 4

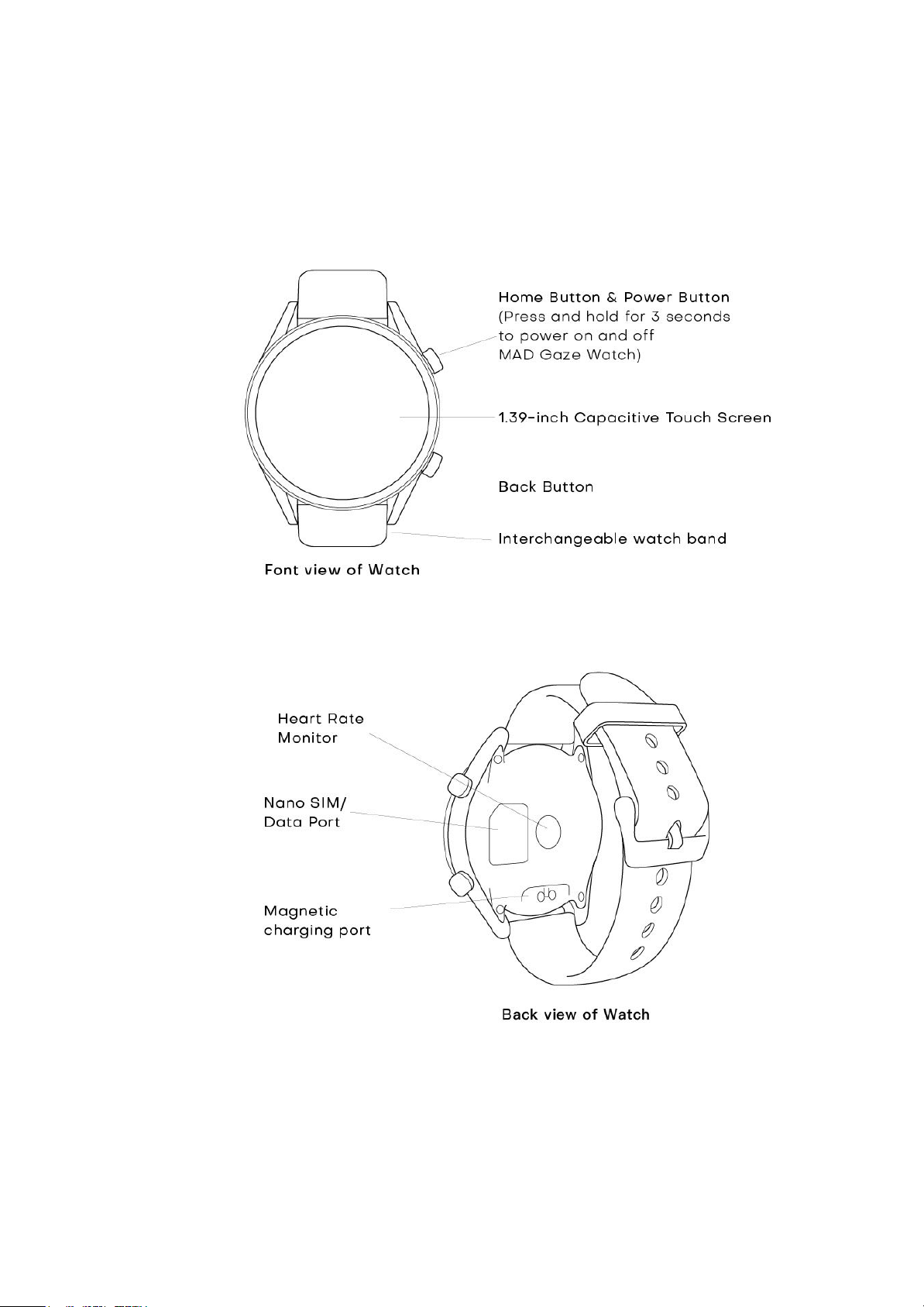

Product Appearance
WATCH USE GUIDELINES (v2020.10) ` Page 5
Product Registration
Please register your device to activate warranty within 7 days upon purchase
date, otherwise, your device might not be covered under MAD Gaze Warranty.
One device can only be registered under one MAD ID account.
For details of Warranty Terms, please read Warranty on page 31.
You will be required to enter the serial number of Watch when registering for
the product warranty service. Follow the steps below to find the watch serial
number:
1. Enter Settings on Watch
2. Select About watch > Status > Serial number
3. You will find the Watch serial number W1X01234567
(The number of digits 01234567 is an unique identification for each
product unit will vary.)
WATCH USE GUIDELINES (v2020.10) ` Page 6
Product Registration
www.madgaze.com/warranty/watch
Product Description
Product Guidelines
1. Press and hold the upper button for 3 seconds to activate the watch.
During the first time of the setup process, the Watch system might take
a longer time to configure parameters. Please wait patiently.
1.1. Select your language;
1.2. Enter your body measurements of weight, height, daily exercise
goals and gender;
1.3. Scan the QR code with your mobile phone to download the
application “MAD Fitness” for synchronize your mobile and Watch;
1.4. Turn on the Bluetooth on your mobile and Watch, connect your
mobile with Watch by scanning the pairing QR code in MAD
Fitness app. MAD Fitness app will synchronise your mobile
content on the Watch. Or you can also visit our official website to
download the application:
https://www.madgaze.com/support
2. Press and hold the power button of Watch to access the following.
2.1. Power off: Shut down the system
2.2. Reboot: Restart the system
2.3. Power Save Mode: Power saving state reduces the power
consumption of Watch. The battery icon will turn from green to
grey colour while the displaying screen will only show the current
time and battery life. Watch will temporarily enter sleep mode
and pause all applications running in the background. Users
cannot switch to other interfaces until turning off the low power
mode.
2.4. Recent Task: Access to shortcut keys of recently browsed
applications. Swipe right to manage browsing data and clear the
cache.
2.5. Watch Display Interface Button: Press the top center button on
screen to switch the Watch display screen between square and
circle interface.
Circle interface: Full Screen mode; Square interface: zoom out
mode
WATCH USE GUIDELINES (v2020.10) ` Page 7
3. Product Guidelines
To maneuver on Watch, swipe from the edge of the display screen and slide
over half of the screen. Sliding only the middle of the display screen may not
trigger certain tasks.
3.1. Swipe right to enter the main menu;
3.2. Swipe right twice to enter sports mode;
3.3. Swipe right to access the synchronised content from phone and
display it on Watch notification;
3.4. Swipe down to view the Watch shortcut menu; Swipe left to view
different shortcuts in the menu.
3.4.1. Connection shortcuts: cellular signals, Bluetooth
connection status etc.
3.4.2. Launching different modes on Watch: Do not disturb mode,
brightness adjustment, raise to wake, flight mode, network
data, GPS, Bluetooth & Wi-Fi shortcuts
3.4.3. Clear cache shortcut
3.4.4. Media control shortcuts: volume adjustment, music control
3.4.5. Weather interface: weekly weather forecast
WATCH USE GUIDELINES (v2020.10) ` Page 8
4. Swipe up to access fitness data; then swipe left to view the step count,
daily mileage and calories burnt.
5. Swipe right to quit the shortcut menu.
Dial Setting
Press and hold the dial screen to enter the dial setting. Users can manage the
appearance and setting of the dial according to their preferences.
Download new Watch face from the server (this requires network data):
Press and hold the dial screen to enter the dial setting. Swipe left till the end to
see a blue “+” sign. Swipe up or down to choose your personalised watch face,
click the install button to download the new watch face. Press the power
button to return to the dial interface.
Delete the new watch face downloaded from the server:
Press and hold the dial screen to enter the dial setting. Swipe to the new watch
face downloaded from the server. Click the blue “-” sign in the upper left
corner to delete. Please note that only watch interfaces downloaded from the
server can be deleted.
WATCH USE GUIDELINES (v2020.10) ` Page 9
Menu
Contacts:
1. Create contacts to save names, phone numbers and more
2. Manage and edit contacts information
3. Sync your mobile contacts to the watch
(only applicable on Android phones.)
Phone: Dial phone calls (only applicable when a SIM card is inserted.)
Messages: Send messages to your contacts (only applicable when a SIM card is
inserted.)
Settings：
1. Sound: Adjust the volume;
2. Display: Adjust the display brightness;
3. App List Style: Change the display interface;
4. Connect: Access Bluetooth, Wi-Fi, Wi-Fi Hotspot, USB, Airplane mode,
GPS, Cellular Network;
5. Gesture: Raise to wake (Default as off), Pedometer service (Default as
on);
6. Power saving: Switch on the power saving mode will disable all functions
on the watch but only display time and battery;
7. Language & input settings;
8. Date & time settings;
9. Reset equipment: Reset the watch to clear all the data and restore the
initial state;
10.Uninstall application: Uninstall the apps on Watch;
11.More: Check the storage usage;
12.About watch: View your model, serial number, software version and
more
Browser: Browse website information;
WATCH USE GUIDELINES (v2020.10) ` Page 10
Downloads: Download documents and files from the internet;
Calendar: Sync the events from your mobile calendar, swipe up or down to
switch the month;
Clock: View the current time, swipe right to the alarm and left to the stopwatch
and timer;
Gallery: View your mobile photos;
Music: Listen to your mobile music;
Sound Recorder: Built-in recorder to record sound;
File Manager: View the storage status and manage files and folders on Watch;
Heart Rate Monitor: Heart rate detection and sync the data to the connected
mobile application MAD Fitness;
Fitness: Built-in nine sports modes, including outdoor running, outdoor
walking, indoor running, cycling, basketball, football, table tennis, badminton
and rope skipping;
Weather: Check the weekly weather update via Wi-Fi or cellular network;
Google Play Store: Log in to your Google account to download applications;
Assistant：
1. Connect Phone: Open MAD Fitness on your mobile > Enable scanning
QR code for connection > Scan the pair QR code on you mobile >
Connection is completed;
2. Music Control: Remote control your mobile built-in music player;
3. Find my device: Ring the alarm on your mobile via bluetooth connection;
MAD GAZE Controller: Activate gesture control under the connection with your
mobile;
Zello: Walkie-talkie for instant communication, you may find the tutorial video
on https://youtu.be/irtoNwKOGTY
WATCH USE GUIDELINES (v2020.10) ` Page 11
MAD Fitness Application
1. Download the app for synchronising your mobile data on Watch
Pair Watch and your mobile by scanning the QR code to download MAD
Fitness on your mobile.
●MAD Fitness App is only used for data synchronization between
Watch and the mobile phone during use, which will not consume
mobile network data.
●Downloading mobile apps requires cellular data usage. It is
recommended to download when connecting to a Wi-Fi network.
●If you have already downloaded the app ahead, please check and
update to the latest software version to ensure the app functions run
smoothly. When the software version is upgraded, please update the
application in time. It is recommended to update the software
whenever a new version is available so as to make sure your device
stays in tip-top shape.
2. Download applications on Watch
Under stable Wi-Fi or mobile network, Android applications can be
installed on Watch. Follow the below steps to install the applications:
●Open the App Store. Choose and download the application you need
(recommended to download and install under Wi-Fi connection);
●During the installation, you will be prompted to switch on the
"Unknown Source" under "Secure and Privacy" menu;
●Click the Next button to complete the installation.
3. Bluetooth Connection and Data Synchronization
a. Turn on the Bluetooth of Watch and your mobile;
b. Open the downloaded app: MAD Fitness on mobile
i. Open MAD Gaze Controller app on Watch, Click “Pair with phone”
to view the pairing QR code;
ii. Scan the QR code on Watch with MAD Fitness app on mobile to
connect Watch and your mobile.
WATCH USE GUIDELINES (v2020.10) ` Page 12
c. Precautions
i. Before the connection process, please disconnect all connected
devices on Watch and the mobile.
ii. Open the QR code interface on Watch and MAD Fitness app on
mobile for connection.
iii. Press the “Repair” button on MAD Fitness app if you want to
change the connected device of Watch. After repairing the new
device, other applications will sync the connection automatically.
iv. Do not connect Watch with iPhone if it is under low power mode.
v. If the connected iPhone system is being reset, please clear the
pair record of Watch and your mobile.
vi. If Watch prompts a reminder of mobile connection error, please
turn your mobile Bluetooth off and on to reconnect.
vii. If Watch or mobile cannot detect nearby devices, please check if
there are other paired Bluetooth devices on the mobile or Watch
system. Clear the connection on both devices and reconnect. If it
cannot be resolved, please restart the system on mobile and
watch.
Hand Gesture Control
MAD Gaze Watch supports hand gesture control to maneuver different
functions on Watch and the connected devices.
Hand gestures including:
●Tapping on hand back and forearm
●Turning wrist
●Snapping fingers
●Pinching fingers
Functions including:
●Controlling media applications
●Controlling camera applications
●Application shortcuts
●Answer or reject phone calls
●Walkie-talkie
* Users can navigate the connected device by hand gestures when Watch is
paired with a device or simply control the Watch itself when it does not pair
with any device.
WATCH USE GUIDELINES (v2020.10) ` Page 13
Mobile Connection and Training
In order to enhance the accuracy of detecting your hand gestures, users are
required to complete a 5 minutes hand gesture calibration training before use.
1. Install MG Watch app to your mobile from App Store or Google Play.
Android
iOS
2. Turn on the Bluetooth and open MAD Gaze Controller app on Watch.
You will see a pair QR code when you first activate the Watch.
WATCH USE GUIDELINES (v2020.10) ` Page 14
3. When there is a new released update of the MAD Gaze Controller,
please connect MAD Gaze Watch to Wi-Fi or network data. Open the
MAD Gaze Controller, an update message will pop up (as shown on the
left), click "UPDATE NOW", then click "INSTALL" (as shown on the right)
to complete the installation.
4. Turn on the Bluetooth and open MG Watch on mobile.
5. Open MG Watch on your mobile. Press “Start” to enter the pair interface.
Open MAD Gaze Controller App and the pair QR code on your Watch,
scan the QR code with your mobile for connection. Please be reminded
that allow all access permission on your mobile.
WATCH USE GUIDELINES (v2020.10) ` Page 15
6. After pairing, the watch icon will change to a phone icon on Watch.
7. Open MG Watch on mobile. Follow the instructions to start the
calibration training.
8. Watch interface will display the following screen when the training is in
progress.
WATCH USE GUIDELINES (v2020.10) ` Page 16

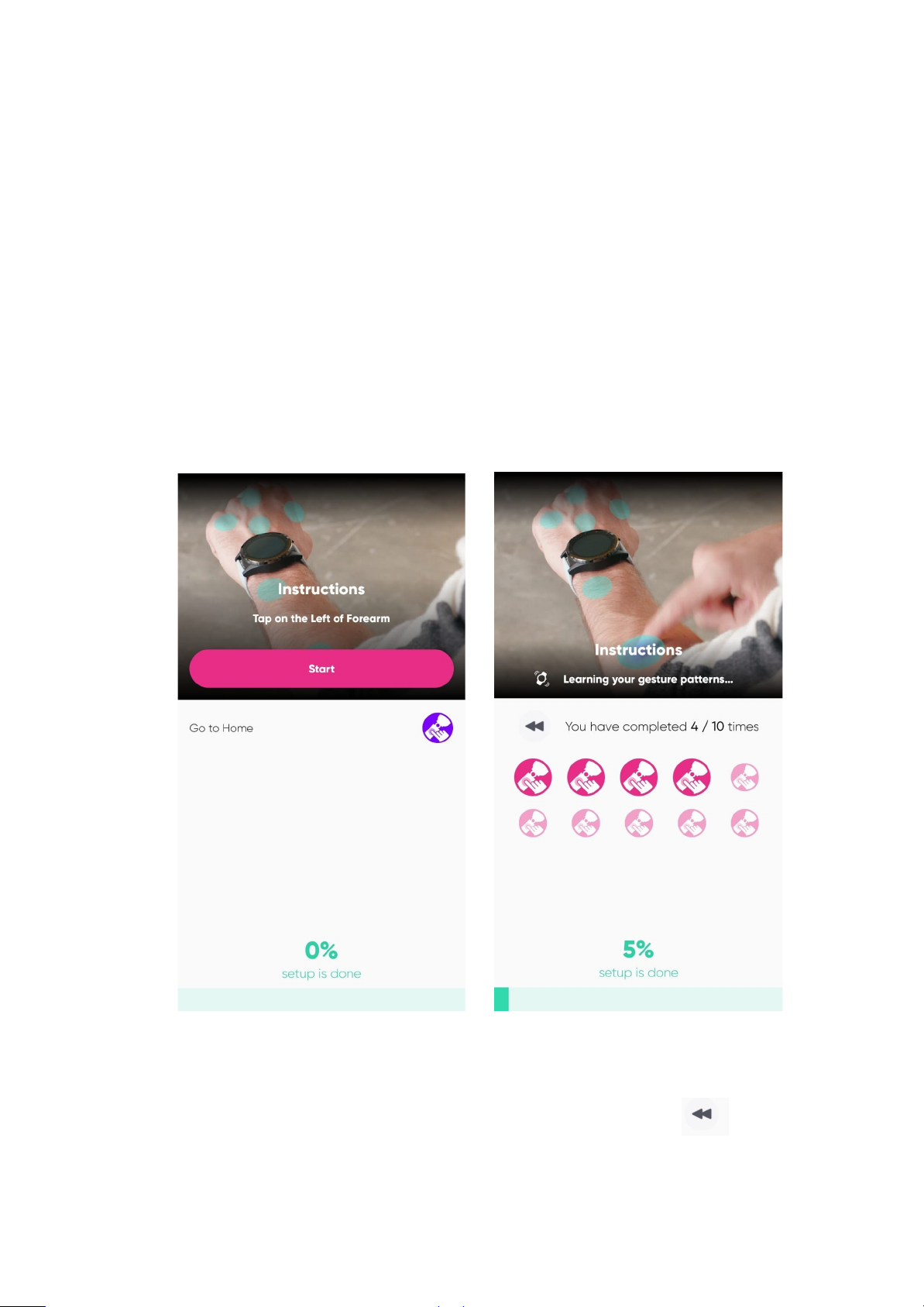

9. Please follow the instructions shown in the tutorial videos to train
different gestures on Watch.
During the gesture training, please keep each gesture at the same
position and strength, and keep about 1 second of interval between
each gesture or movement. After receiving each training signal, the app
will show the number of completing signals and the complete
percentage of the entire training process.
After completing the training of each gesture, the phone will prompt a
reminder and users can press the "Start" button to proceed to the next
training gesture.
Note: If the connection between Watch and the mobile is interrupted,
press the reverse key to reconnect the watch and the mobile.
10.If you would like to retrain the previous gesture, press to return
to the last gesture.
WATCH USE GUIDELINES (v2020.10) ` Page 17

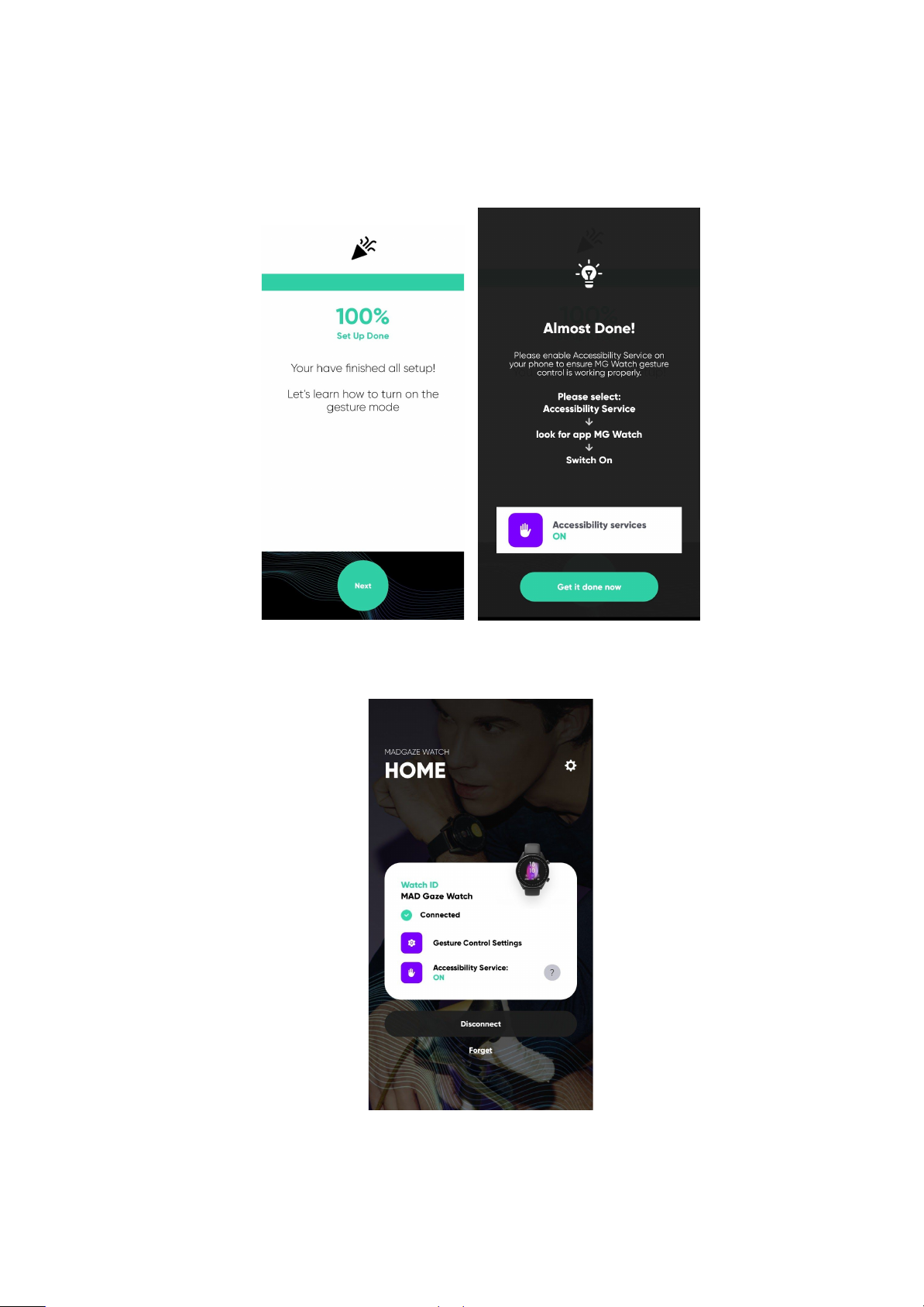

11. After completing the training, read the instructions carefully and follow
the procedures.
12. The below interface indicates that the entire training is completed.
WATCH USE GUIDELINES (v2020.10) ` Page 18
Navigate The Connected Device On Watch
1. Open “Accessibility Setting” on your mobile. Turn on MG Watch to
enable the access on Watch.
2. Turn on the Detect Mode on Watch to manipulate your connected
device with hand gestures.
WATCH USE GUIDELINES (v2020.10) ` Page 19
3. When the training gestures are well detected, different signals will be
displayed on screen. For instance,
*If the gesture signal was shown but it failed to manipulate on phone,
please restart the “Accessibility Service” on mobile and try again.
4. If the watch cannot detect any gesture for 10 seconds under the detect
mode, it will automatically enter sleep mode and turn off the detection.
5. When the watch has entered the sleep mode, you can wake the watch
and turn on the detect mode again via a wake-up gesture - snap your
fingers. When the wake-up gesture was detected, you will see the
following icon on the watch screen. (Please note that the watch can only
detect the wake-up gesture under the sleep mode.)
WATCH USE GUIDELINES (v2020.10) ` Page 20
Table of contents
