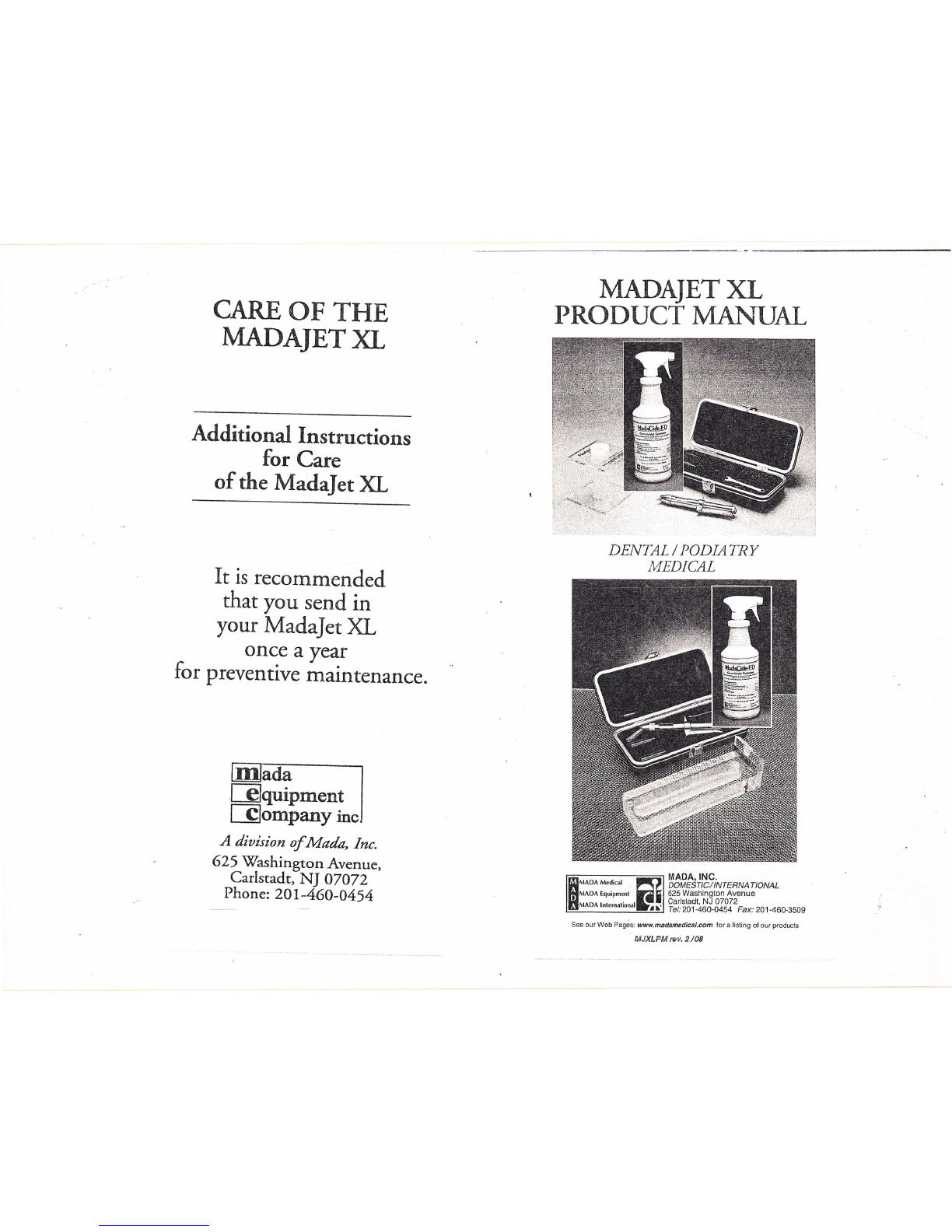

CARE OF THE
MADAJETXL
MADAJETXL
PRODUCT MANUAL
Additional Instructions
for Care
of the MadaJet XL
It is reconnnnended
that you send in
your Mada]et XL
once a year
for preventive maintenance,
DENTAL/ PODIATRY
MEDICAL
[jij]ada
ceJquipment
~ompany inc.
A division ofMada, Inc.
625 Washington Avenue,
Carlstadt, NJ 07072
Phone: [phone]
m
MADA,INC.
MADAMed;cal DOMESTICIINTERNA TlONAL
. MADA Equipment .. 625 Washington Avenue
t . Carlstadt, NJ 07072
IMADA Internatoonal .10' Tel:[phone] Fax: [phone]
See our Web Pages: www.madamedlca/.com for a listing of our products
MJXLPM rev. 2108

MadajetXL
with Extenda Tip
~ Release Button
--- Cocking Lever
:::::> I I r. Main Spring
• I I I:. Shaft
-- Lever Spring
Hinge Screw
QE:;
Finger Rests
~' Body of MadaJet
v ;:jl Top Seal
II Fill Chamber
(Pyrex)
r I Allen Screw
Metal Washer
Main Seal
Upper Seal
E
?' Bottom Seal
~' Lower Seal
Ball Valve
'\.~':>.--- Hex Nozzle
Extenda Tip
Orifice
CAUTION: Please use
the Dental MadaJet XL
only in the buccal cavity.
Do not inject digits
to test Madajet.
Straight ill.111
HeadFor ••
Medical/
Podiatry 1
>-~
:O.§
E s
Q) J
i ~C5
:-<1: :;::
: "0.\2)
: m~
I~
Head
Assembly
with
Fill Chamber
FILLING THE MADAJET XL
o
PRIMING ACTION
o
COCKING AND FIRING:
Hold the MadaJet nose down in a vertical position.
Grasp the body of the instrument with one hand and with
the other hand, pull the cocking lever down until it clicks
into the firing position (90°). Repeat for each firing.
Incorrect Correct
Release
Button __
.•..
9;·······
~
Cocking
Lever
~l Body ot-
I MadaJet
After cocking the instrument, the MadaJet can be fired
by depressing the RELEASE BUnON (see picture be/ow)
in any position.
[EJ
UPON RECEIVING YOUR
MADAJET XL PACKAGE:
1. Please read all instructions provided herein prior
to use. If you have any further questions,
please call 201-460-0454 for additional information
or reference materials.
2. The identity of all parts of the MadaJet XL are
illustrated in the diagram shown in this MadaJet XL
Product Manual.
PROCEDURE TO INJECT:
1. Remove from MadaJet stand and with a sterile 4x4 pad
gently wipe off any excess disinfectant.
2. Follow directions For Daily Use (on reverse side).
3. Cock MadaJet with the Nose DOWN (see illustration C).
4. Place end of sheath gently at the site to be injected.
5. Press release button to discharge the MadaJet - repeat
item #3 for each injection given (see illustration 0).
6. Note: If you elect to change the Extenda Tip at any time,
PLEASE always PRIME the MadaJet after installing
the new Extenda Tip. A special wrench is provided for
this procedure. The Extenda Tip and Sheath are all
autoclavable. You can immerse extra Extenda Tips and
Sheaths in the MadaCide-FD disinfecting solution
provided. Always prime the MadaJet after refilling
the Pyrex Fill Chamber.
The Fill Chamber on the head assembly is Pyrex and will
hold up to 4cc's of anesthetics or medicaments.
The MadaJet delivers a controlled volume of one-tenth
of a cc per injection. Jet injection technique allows for
the use of small volumes of medication to produce
enhanced physiological effects. This is primarily due to
the tiny particle size injected and the pattern by which
each injection penetrates the tissue.
Note:
FAA regulations strict thehipment of MadaCide-FD
via air freight. Please follow cleaning and disinfecting
guidelines as stated in the MadaJet Instruction Manual.

CARE OF THE MADAJET XL
Your MadaJet XL requires very little maintenance,
however, similar to any other precision instrument, some
cleaning and care should be observed.
When instrument arrives: Your MadaJet XL is in a
non-sterile sealed plastic bag. Although it has been
thoroughly disinfected with MadaCide-FD, you may elect
to autoclave it for its first use. Please follow directions:
1. Open plastic bag and unscrew head assembly and
pyrex fill chamber from the body.
2. Wrap body, head and fill chamber seperately and
place in the autoclave.
3. Autoclave at 273 degree F for 7 minutes at 30 psi
(time begins when temperature of 273 degree F has
been reached) also check directions by manufacturer.
4. After autoclaving, remove all parts and allow to cool
to room temperature before assembling and use.
FOR DAILY USE:
1. Unwrap parts using sterile gloves.
2. Insert chamber onto head assembly and transfer 3 cc
of 2% Lidocaine with your syringe from a carpule or
multi-dose vial into the chamber (see illustration A).
(Hint: for a better seal between the fill chamber and head
assembly wet the base of the chamber with sterile water or
anesthetic prior to insertion into the head.)
3. Priming Action: Insert head assembly gently back into
the body keeping the instrument in a vertical position
with the head pointing DOWN.
4. Prime the instrument by gently pushing the body into
the head assembly up and down on the shaft until the
solution comes out of the Extenda Tip. Screw the head
assembly back on the body, cock and fire 1-2 times.
5. Place MadaJet XL into the stand provided with each
instrument, after you have put approximately 30 cc of
MadaCide-FD into the stand. You are now ready
to use your MadaJet XL. After use on each patient,
place it back into the stand with the head immersed in
30 cc of the MadaCide-FD disinfecting solution.
DO NOT LAY UNIT FLAT.
AFTER DAILY USE:
1. Unscrew head assembly and pour out any unused
anesthetic solution.
2. Pour 3 cc of MadaCide-FD solution into the head
assembly and prime 2-3 times to clear out any
anesthetic or medication solution.
3. With the remaining MadaCide-FD solution left in the
head assembly, place unit into the MadaJet stand and
leave overnight or until next use.
NEXT USE:
Simply follow points from #2 through #5 (For Daily Use).
Cautiom.Most.anesthetic solutions-will cause a discoloration
of metal parts if allowed to remain in the instrument for
more than 1-2 days. Always pour out any remaining
anesthetic solutions each evening. See (After Daily Use).
Helpful Hints if:
oLack of penetration occurs.
oUnusual pain at site of injection.
o Jet stream appears fuzzy (first 1" of jet stream).
o Inadequate anesthesia at injection site.
Remedy:
Take one of the fine stainless steel stylets from the plastic
tube in the MadaJet case and with a gentle twisting motion
penetrate up to 1/8" through the orifice at the distal end of
the Extenda Tip. DO NOT FORCE THE STYLET. Then add
some MadaCide-FD solution into the head assembly and
prime 2-3 times to clear the orifice. If the problem persists,
please notify our office for rapid repair service.
STERILIZATION METHODS
The most common and readily available method is
autoclaving. Although there are some variations in the use
of autoclaves, the general guidelines used for wrapped
goods are: 273 degrees F for 7 minutes at 30 psi.
Caution: Please review recommended directions by the
manufacturer of the autoclave.
Note: The 7 minute time begins when the temperature
has reached 273 F.
All items that are to be sterilized must first be thoroughly
cleaned and disinfected to achieve maximum sterilization.
(See care of the MadaJet XL).
Caution: DO NOT USE DRY HEAT STERILIZATION
EXTENDA TIPS:
This very unique development by Mada allows for greater
injection accessibility into the skin and all body orifices.
Each unit contains two (2) Extenda Tips. Additional sizes
and quantities are available:
Medical Unit Contains: Two 3/4" Tips
Dental Unit Contains: Two 1/2" Tips
POdiatry Unit Contains: Two 3/4" Tips
•The following additional sizes of Extenda Tips with sheaths can be
ordered: 1/2 , 3/4 , 1 1/2 , 2 1/2 , 3 1/2 , 4 1/2 , 6 1/2 .
Additional extra sheaths can be ordered. These can be disinfected
or autoclaved and changed between patient use.
Each MadaJet XL Package Contains:
o1 MadaJet XL (Dental, Medical or POdiatry).
o 1-32 ounce bottle of MadaCide-FD disinfecting solution.
o 1 MadaJet XL holder (stand).
oStylets for probing Extenda Tip.
o Two extra Pyrex Fill Chambers.
oTwo Extenda Tips (one on head) (stainless steel).
oCustom carrying case.
o Two Sheaths.
If you have any questions or problems please call:
201-460-0454
