Mada Sigma Series User manual

990-401 REV A
Sigma Laser Stent
And Tube Cutter
OPERATION MANUAL

SIGMA LASER STENT AND TUBE CUTTER
ii 990-401
Copyright © 2015, Amada Miyachi America, Inc.
The engineering designs, drawings and data contained herein are the proprietary work of AMADA
MIYACHI AMERICA INC. and may not be reproduced, copied, exhibited or otherwise used without
the written authorization of AMADA MIYACHI AMERICA INC.
Printed in the United States of America
Revision Record
Revision EO Date Basis of Revision
A N/A 4/2015 None. Production release.

SIGMA LASER STENT AND TUBE CUTTER
990-401 iii
CONTENTS
Page
Revision Record ......................................................................................................................................... ii
Contents .............................................................................................................................................. iii
Contact Us ................................................................................................................................................v
CDRH Compliance Statement ....................................................................................................................v
Safety Precautions ..................................................................................................................................... vi
Warranty .............................................................................................................................................. xi
Section I. Description ...............................................................................................................................1
Introduction ..........................................................................................................................................1
Section II. Installation And Setup ..........................................................................................................3
Uncrating The System .........................................................................................................................3
System Installation And Testing ..........................................................................................................3
Section III. Operation ............................................................................................................................17
Start Up ..............................................................................................................................................17
Program Loading ...............................................................................................................................21
M & G Codes .....................................................................................................................................26
Insert The Collet ................................................................................................................................26
Setting Closing Force - Preload .......................................................................................................28
Section IV. Shut Down Procedures ......................................................................................................29
Appendix A. System Dimensions ...................................................................................................... A-1
Appendix B. Laser Standards and Classifications ............................................................................B-1

SIGMA LASER STENT AND TUBE CUTTER
iv 990-401
CONTACT US
Thank you for purchasing a Amada Miyachi Sigma Series Fiber Laser Tube
Cutter. Upon receipt of the Tube Cutter, please thoroughly inspect it for shipping
damage before you install it. If there is any damage, contact the shipping
company immediately to file a claim, and notify Amada Miyachi America at:
Amada Miyachi America Inc.
1820 South Myrtle Ave.
Monrovia, California 91017-7135
Phone: [phone]
FAX: [phone]
E-mail: [email protected]
The contents of this manual are subject to change without notice. If you have any
questions, or find any errors or omissions in it, please contact us.
Amada Miyachi America is not responsible for any losses due to improper use of
this product.
CDRH COMPLIANCE STATEMENT
The Amada Miyachi America Inc. SIGMA SERIES FIBER LASER TUBE
CUTTER is certified to be fully compliant with all applicable standards and
regulations as set forth by the United States of America’s Health and Human
Services (HHS), Food and Drug Administration (FDA), Center for Devices and
Radiological Health (CDRH), title 21 Code of Federal Regulations (CFR)
sections 1002, 1010, and 1040 for Class IV laser devices.
Reference CDRH Accession number is available upon request.

SIGMA LASER STENT AND TUBE CUTTER
990-401 v
SAFETY PRECAUTIONS
General
This Operator's Manual describes the Operation and Maintenance for all models of
the Sigma Series Fiber Laser Tube Cutter, and provides instructions relating to
its SAFE use. Procedures described in this manual must be performed as detailed
by qualified and trained personnel.
NOTE: For the rest of this manual, all models of the Sigma Series Fiber Laser
Tube Cutter will simply be referred to as “the Tube Cutter,” as it is commonly
known except in specific instances where unique descriptions are required such as
specifications, connections, etc.
For SAFETY, and to effectively take advantage of the full capabilities of the Tube
Cutter, please read this instruction manual and the Laser Safety Manual
(Part Number 990-502) thoroughly before attempting to use the Tube Cutter.
After reading this manual, retain it for future reference when any questions arise
regarding the proper and SAFE operation of the Tube Cutter.
Operation
When operating or servicing the Tube Cutter, always wear Protective Goggles
having an optical density of at least 7+at a wavelength of 1060-1150 nanometers
for the operation of the Tube Cutter.
Appoint a Laser Safety Officer. The Laser Safety Officer (LSO) must provide
personnel with sufficient training so that personnel can operate, maintain and
service the Tube Cutter safely. The LSO must take charge of the key to the Key
Switch to ensure that only qualified and authorized personnel operate the Tube
Cutter.
Establish and control a dedicated Laser Operation Area. The Laser Safety Officer
must isolate the Laser Operation Area from other work areas and display signs
warning that the Laser Operation Area is off-limits to unauthorized personnel.
Maintenance/Service
Procedures other than those described in this manual or not performed as
prescribed in this manual, may expose personnel to electrical and/or laser radiation
hazards.
Do not modify the Tube Cutter without prior written approval from the Amada
Miyachi America Corporation.

SIGMA LASER STENT AND TUBE CUTTER
vi 990-401
B
efore using this equipment, read the Safety Precautions carefully to understand the correct usage of the
equipment.
These precautions are given for the safe use
of the Tube Cutter and for prevention of
injury to operators or others.
Be sure to read each of the instructions, as
they are all important for safe operation.
The meaning of the words and symbols are
as follows:
DANGER
Do not touch the interior of the Tube Cutter when it is turned ON.
Doing so may result in electric shock.
Never attempt to disassemble, repair, or modify the Tube Cutter.
Doing so may result in electric shock or fire.
Refrain from any mechanical adjustment other than the maintenance procedures specifically
described in the operation manual.

SIGMA LASER STENT AND TUBE CUTTER
990-401 vii
Never expose eyes or skin to laser irradiation.
Exposure to direct or scattered laser light is extremely hazardous.
Direct exposure of the eye to laser beams may result in blindness.
WARNING
Wear protective glasses.
Be sure to wear protective glasses while using the Tube Cutter. Even with eye protection,
you may lose your sight if you look directly at the laser beam.
Do not expose your skin to the laser beam.
Your skin may be severely burned.
Do not touch any processed part during, or immediately after processing, the parts
may be very hot.
Use only specified cables.
A cable with insufficient capacity or loose connections can cause electric shock or fire.
Do not use a damaged power cable, connecting cables, or plugs.
Do not step on, twist, or tense any power cable. The power cable and connecting cables
may be damaged which can cause electric shock, short circuit, or fire. If any part needs to be
repaired or replaced, consult Amada Miyachi America or your distributor.
Stop operation if any trouble occurs.
If you detect a burning smell, abnormal sounds, abnormal heat, smoke, etc. from the Tube
Cutter, turn the power OFF immediately to prevent fire or electric shock. Contact Amada
Miyachi America or your distributor for help.
Ground the Tube Cutter.
If the Tube Cutter is not grounded, you may get an electric shock when there is trouble or if
electricity leaks through the protective insulation.
Use a stopper plug.
Laser beams are dangerous to the human body. Prevent accidental leakage of the laser
beam by using a stopper (a heat-resistant, laser beam absorbing material).
People with pacemakers MUST stay away from the Tube Cutter.
When the Tube Cutter is operating, it generates a magnetic field, which adversely affects
pacemakers. People who use a pacemaker must not approach the Tube Cutter, or walk
around the laser shop while the Tube Cutter is operating, unless their medical doctor has
deemed it safe to do so.

SIGMA LASER STENT AND TUBE CUTTER
viii 990-401
CAUTION
Keep water and water containers away from the Tube Cutter.
Water spilled on the Tube Cutter can cause a short circuit, electrical shock, or fire.
Use proper tools (wire strippers, pressure wire connectors, etc.) for terminations of the
connecting cables.
Do not nick the wire conductor. Doing so can cause a short circuit, electric shock, or fire.
Install the Tube Cutter on a firm, level surface.
Injury may result if the Tube Cutter falls over or drops from an uneven surface.
Keep combustible matter away from the Tube Cutter.
Laser spatter can ignite combustible materials. If you cannot remove all combustible materials,
cover them with a non-combustible material.
NEVER apply the laser beam to combustible materials.
To avoid the risk of fire, never apply the laser to flammable or combustible materials.
When operating the Tube Cutter, do not cover it with a blanket, cloth, etc.
Heat generated by the operating Laser may ignite a blanket or cover.
Do NOT use the Tube Cutter for purposes other than processing metal.
Use of the Tube Cutter on other materials, or in a manner other than specified may cause fire
or electrical shock.
Wear protective gear when operating the Tube Cutter.
Wear protective gear such as protective gloves, long-sleeved jacket, leather apron, etc. so that
Laser spatter will not burn the skin.
Keep a fire extinguisher nearby.
Make sure there is a fire extinguisher in or near the Laser shop in case of fire.
Regularly inspect and maintain the Tube Cutter.
Regular inspection and maintenance is essential for safe operation and long life of the Tube
Cutter. If you see any damage, make necessary repairs before operating the Tube Cutter.

SIGMA LASER STENT AND TUBE CUTTER
990-401 ix
Guidelines for Normal Use
1. Appoint a Laser Safety supervisor. Ensure that the supervisor has as much expertise and experience
with lasers and laser equipment as possible.
The supervisor, who will be in charge of the laser key switch, is responsible for familiarizing users
with safety issues and for coordinating laser welding.
2. Partition off all areas that may be exposed to laser light.
The supervisor is responsible for posting signs to keep unauthorized personnel out of the laser area.

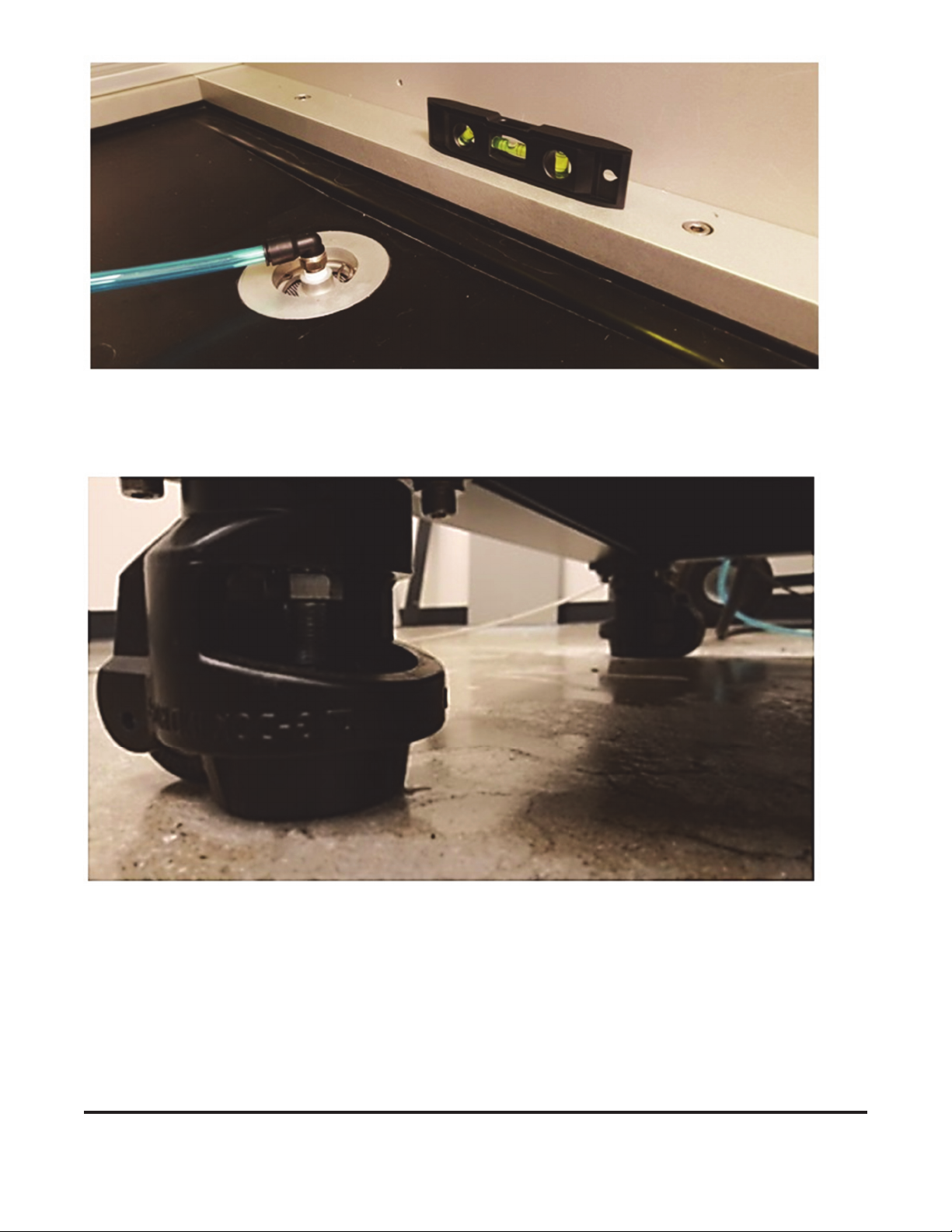

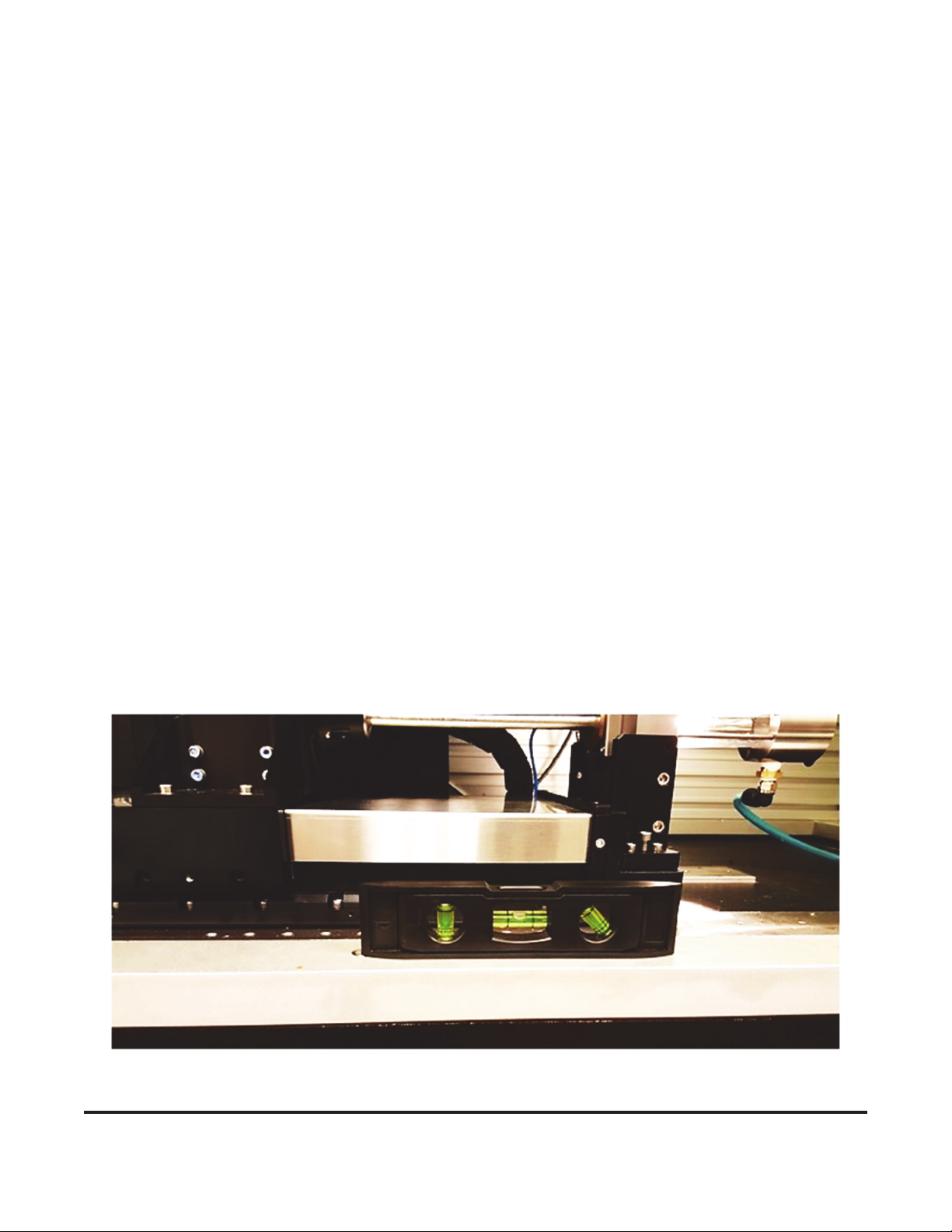

3. Install the Tube Cutter on a solid, level surface.
To prevent errant laser processing, place workpieces on the same stand as the Laser Head so
that the workpieces do not vibrate during laser processing.
4. To ensure optimal welding quality, use the Tube Cutter in a location where ambient temperatures
are 41ºF to 105ºF (5°C to 40°C), free of sudden temperature fluctuations and a relative humidity
less than 85% (non-condensing). Do not use the Tube Cutter in any of the following locations:
Locations with excessive dirt or oil mist
Locations in which the unit may be subject to vibration or impact
Locations in which the unit may be exposed to chemicals
Locations near sources of high-frequency noise, or
Locations in which condensation may form on the unit's surface.
5. If the room temperature changes quickly (as when a heater is turned ON in cold weather), moisture
may condense on the optical components, resulting in fogging or collection of dust.
Avoid sudden changes in temperature. Under the conditions in which condensation may occur, wait
for a period of time after turning the unit ON before beginning operations.
6. If the exterior of the unit becomes soiled, wipe it with a soft dry or lightly moistened cloth.
Clean heavily soiled areas with a cloth moistened with diluted neutral detergent or alcohol. Do not
use paint thinner, acetone, benzene, or similar chemicals, which may discolor or damage the unit.
7. Never place screws or other foreign objects inside the Tube Cutter. Such objects can damage the
unit.
8. Operate the switches and buttons gently by hand.
Applying excessive force or using the tip of a screwdriver, pen, or other instrument may damage the
Tube Cutter.
9. Operate only one switch or button at a time.
Attempting to operate several at a time may damage the Tube Cutter.

SIGMA LASER STENT AND TUBE CUTTER
x 990-401
WARNING
Always wear protective goggles when maintaining the Tube Cutter.
Goggles must have an optical density of at least 7+, at a wavelength
of 1060-1150 nanometers for the operation of the Tube Cutter.
10. For more consistent performance, allow the unit to thermally stabilize for approximately 10 to 30
minutes before use. (The appropriate warm-up time will depend on the ambient temperature and
work piece material.)
Refer to the following standards for more information on managing laser equipment:
●IEC60825-1 Edition1.2 “Safety of laser products Part1: Equipment
Classifications, requirements and user's guide.”
●Amada Miyachi America Laser Safety Manual (Part Number 990-502)
Warning Labels
The Tube Cutter carries the following labels. Read and follow the label instructions to ensure correct
use.

SIGMA LASER STENT AND TUBE CUTTER
990-401 xi
LIMITED WARRANTY
1. (a) Subject to the exceptions and upon the conditions set forth herein, Seller warrants to Buyer that
for a period of one (1) year from the date of shipment (“Warranty Period”), that such Goods will be free
from material defects in material and workmanship.
(b) Notwithstanding the foregoing and anything herein to the contrary, the warranty set forth in this
Section 1 shall be superseded and replaced in its entirety with the warranty set forth on Exhibit A
hereto if the Goods being purchased are specialty products, which include, without limitation, laser
products, fiber markers, custom systems, workstations, Seller-installed products, non-catalogue
products and other custom-made items (each a “Specialty Products.”
(c) EXCEPT FOR THE WARRANTY SET FORTH IN SECTION 1(A), SELLER MAKES NO
WARRANTY WHATSOEVER WITH RESPECT TO THE GOODS (INCLUDING ANY SOFTWARE) OR
SERVICES, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY; (b) WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE; (c) WARRANTY OF TITLE; OR (d) WARRANTY
AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY;
WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF
PERFORMANCE, USAGE OF TRADE OR OTHERWISE.
(d) Products manufactured by a third party and third party software (“Third Party Product”) may
constitute, contain, be contained in, incorporated into, attached to or packaged together with, the
Goods. Third Party Products are not covered by the warranty in Section 1(a). For the avoidance of
doubt, SELLER MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO ANY
THIRD PARTY PRODUCT, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY; (b)
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE; (c) WARRANTY OF TITLE; OR (d)
WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD
PARTY; WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF
PERFORMANCE, USAGE OF TRADE OR OTHERWISE. Notwithstanding the foregoing, in the event
of the failure of any Third Party Product, Seller will assist (within reason) Buyer (at Buyer’s sole
expense) in obtaining, from the respective third party, any (if any) adjustment that is available under
such third party’s warranty.
(e) Seller shall not be liable for a breach of the warranty set forth in Section 1(a) unless: (i) Buyer gives
written notice of the defect, reasonably described, to Seller within five (5) days of the time when Buyer
discovers or ought to have discovered the defect and such notice is received by Seller during the
Warranty Period; (ii) Seller is given a reasonable opportunity after receiving the notice to examine such
Goods; (iii) Buyer (if requested to do so by Seller) returns such Goods (prepaid and insured to Seller at
1820 South Myrtle Avenue, Monrovia, CA 91016or to such other location as designated in writing by
Seller) to Seller pursuant to Seller’s RMA procedures and Buyer obtains a RMA number from Seller
prior to returning such Goods for the examination to take place; and (iii) Seller reasonably verifies
Buyer’s claim that the Goods are defective and that the defect developed under normal and proper use.
(f) Seller shall not be liable for a breach of the warranty set forth in Section 1(a) if: (i) Buyer makes any
further use of such Goods after giving such notice; (ii) the defect arises because Buyer failed to follow
Seller’s oral or written instructions as to the storage, installation, commissioning, use or maintenance of
the Goods; (iii) Buyer alters or repairs such Goods without the prior written consent of Seller; or (iv)
repairs or modifications are made by persons other than Seller’s own service personnel, or an
authorized representative’s personnel, unless such repairs are made with the written consent of Seller
in accordance with procedures outlined by Seller.

SIGMA LASER STENT AND TUBE CUTTER
xii 990-401
(g) All expendables such as electrodes are warranted only for defect in material and workmanship
which are apparent upon receipt by Buyer. The foregoing warranty is negated after the initial use.
(h) Subject to Section 1(e) and Section 1(f) above, with respect to any such Goods during the Warranty
Period, Seller shall, in its sole discretion, either: (i) repair or replace such Goods (or the defective part)
or (ii) credit or refund the price of such Goods at the pro rata contract rate, provided that, if Seller so
requests, Buyer shall, at Buyer’s expense, return such Goods to Seller.
(i) THE REMEDIES SET FORTH IN SECTION 1(H) SHALL BE BUYER’S SOLE AND EXCLUSIVE
REMEDY AND SELLER’S ENTIRE LIABILITY FOR ANY BREACH OF THE LIMITED WARRANTY
SET FORTH IN SECTION 1(A). Representations and warranties made by any person, including
representatives of Seller, which are inconsistent or in conflict with the terms of this warranty, as set
forth above, shall not be binding upon Seller.

SIGMA LASER STENT AND TUBE CUTTER
990-401 xiii
Exhibit A
Warranty for “Specialty Products”
Limited Warranty
EXCEPT FOR THE WARRANTY SET FORTH BELOW IN THIS EXHIBIT A, SELLER MAKES NO
WARRANTY WHATSOEVER WITH RESPECT TO THE GOODS (INCLUDING ANY SOFTWARE) OR
SERVICES, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY; (b) WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE; (c) WARRANTY OF TITLE; OR (d) WARRANTY
AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY;
WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF
PERFORMANCE, USAGE OF TRADE OR OTHERWISE.
Warranty Period: The Warranty Period for Specialty Products is for one (1) year, and the Warranty
Period for laser welders and laser markers is two (2) years (unlimited hours), and the Warranty Period
for the laser pump diodes or modules is two (2) years or 10,000 clock hours, whichever occurs first (as
applicable, the “Warranty Period”). The Warranty Period begins as follows: (i) on orders for Goods
purchased directly by Buyer, upon installation at Buyer’s site or thirty (30) days after the date of
shipment, whichever occurs first; or (ii) on equipment purchased by a Buyer that is an OEM or systems
integrators, upon installation at the end user’s site or six (6) months after the date of shipment,
whichever occurs first.
Acceptance Tests: Acceptance Tests (when required) shall be conducted at Amada Miyachi
America, Inc., Monrovia, CA, USA (the “Testing Site”) unless otherwise mutually agreed in writing prior
to issuance or acceptance of the Acknowledgement. Acceptance Tests shall consist of a final visual
inspection and a functional test of all laser, workstation, enclosure, motion and accessory hardware.
Acceptance Tests shall include electrical, mechanical, optical, beam delivery, and software items
deliverable under the terms of the Acknowledgement. Terms and conditions for Additional Acceptance
Tests either at Seller’s or Buyer’s facility shall be mutually agreed in writing prior to issuance or
acceptance of the Acknowledgement.
Performance Warranty: The system is warranted to pass the identical performance criteria at Buyer’s
site as demonstrated during final Acceptance Testing at the Testing Site during the Warranty Period, as
provided in the Acknowledgement. Seller explicitly disclaims any responsibility for the process results
of the laser processing (welding, marking, drilling, cutting, etc.) operations.
Exclusions: Seller makes no warranty, express or implied, with respect to the design or operation of
any system in which any Seller’s product sold hereunder is a component.
Limitations: The limited warranty set forth on this Exhibit A does not cover loss, damage, or defects
resulting from transportation to Buyer’s facility, improper or inadequate maintenance by Buyer, Buyer-
supplied software or interfacing, unauthorized modification or misuse, operation outside of the
environmental specifications for the equipment, or improper site preparation and maintenance. This
warranty also does not cover damage from misuse, accident, fire or other casualties of failures caused
by modifications to any part of the equipment or unauthorized entry to those portions of the laser which
are stated. Furthermore, Seller shall not be liable for a breach of the warranty set forth in this Exhibit A
if: (i) Buyer makes any further use of such Goods after giving such notice; (ii) the defect arises because
Buyer failed to follow Seller’s oral or written instructions as to the storage, installation, commissioning,
use or maintenance of the Goods; (iii) Buyer alters or repairs such Goods without the prior written
consent of Seller; or (iv) repairs or modifications are made by persons other than Seller’s own service
personnel, or an authorized representative’s personnel, unless such repairs are made with the written
consent of Seller in accordance with procedures outlined by Seller.

SIGMA LASER STENT AND TUBE CUTTER
xiv 990-401
Seller further warrants that all Services performed by Seller’s employees will be performed in a good and
workmanlike manner. Seller’s sole liability under the foregoing warranty is limited to the obligation to re-
perform, at Seller’s cost, any such Services not so performed, within a reasonable amount of time following
receipt of written notice from Buyer of such breach, provided that Buyer must inform Seller of any such breach
within ten (10) days of the date of performance of such Services.
Seller shall not be liable for a breach of the warranty set forth in this Exhibit A unless: (i) Buyer gives
written notice of the defect or non-compliance covered by the warranty, reasonably described, to Seller
within five (5) days of the time when Buyer discovers or ought to have discovered the defect or non-
compliance and such notice is received by Seller during the Warranty Period; (ii) Seller is given a
reasonable opportunity after receiving the notice to examine such Goods and (a) Buyer returns such
Goods to Seller’s place of business at Buyer’s cost (prepaid and insured); or (b) in the case of custom
systems, Seller dispatches a field service provider to Buyer’s location at Buyer’s expense, for the
examination to take place there; and (iii) Seller reasonably verifies Buyer’s claim that the Goods are
defective or non-compliant and the defect or non-compliance developed under normal and proper use.
All consumable, optical fibers, and expendables such as electrodes are warranted only for defect in
material and workmanship which are apparent upon receipt by Buyer. The foregoing warranty is
negated after the initial use.
No warranty made hereunder shall extend to any product whose serial number is altered, defaced, or
removed.
Remedies: With respect to any such Goods during the Warranty Period, Seller shall, in its sole
discretion, either: repair such Goods (or the defective part). THE REMEDIES SET FORTH IN THE
FOREGOING SENTENCE SHALL BE BUYER’S SOLE AND EXCLUSIVE REMEDY AND SELLER’S
ENTIRE LIABILITY FOR ANY BREACH OF THE LIMITED WARRANTY SET FORTH IN THIS
EXHIBIT A. Representations and warranties made by any person, including representatives of Seller,
which are inconsistent or in conflict with the terms of this warranty, as set forth above, shall not be
binding upon Seller.
Products manufactured by a third party and third party software (“Third Party Product”) may
constitute, contain, be contained in, incorporated into, attached to or packaged together with, the
Goods. Third Party Products are not covered by the warranty in this Exhibit A. For the avoidance of
doubt, SELLER MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO ANY
THIRD PARTY PRODUCT, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY; (b)
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE; (c) WARRANTY OF TITLE; OR (d)
WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD
PARTY; WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF
PERFORMANCE, USAGE OF TRADE OR OTHERWISE. Notwithstanding the foregoing, in the event
of the failure of any Third Party Product, Seller will assist (within reason) Buyer (at Buyer’s sole
expense) in obtaining, from the respective third party, any (if any) adjustment that is available under
such third party’s warranty.


SIGMA LASER STENT AND TUBE CUTTER
990-401 1 
SECTION I. DESCRIPTION
INTRODUCTION

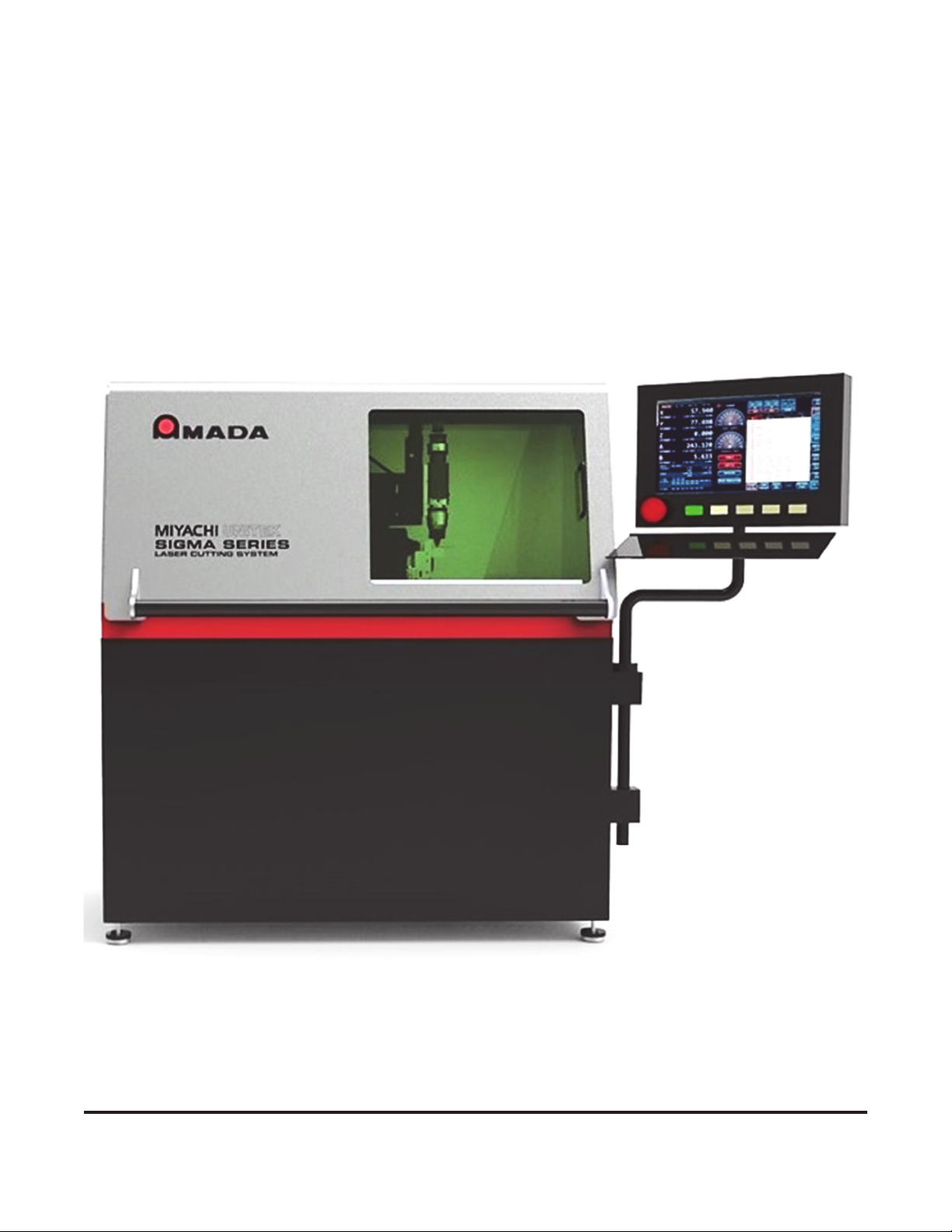

The Sigma Laser Stent and Tube Cutter is a uniquely designed tube cutting system for the production
of various implantable medical devices as well as having the flexibility for the production of any small
diameter tube designs. However, as with any manufacturing equipment it has its limitations. When used
properly it is a reliable, safe system with multiple safety features.
The following guidelines are for the installation of the Sigma Laser Stent and Tube Cutter. For the
rest of this manual this system will be referred to simply as “the Tube Cutter” as it is commonly known.


SIGMA LASER STENT AND TUBE CUTTER
2 990-401
DANGER
Danger from electrical shock, burns, cuts, and various other physical damages
are present during the installation process. If the installer has any questions
he/she should contact Amada Miyachi America technicians for answers prior
to proceeding with the installation.
Prior to working with the Tube Cutter the operator must be fully aware of the following potential
hazards to operator and others around the system. All laser systems are strictly classified for safety.
The Tube Cutter incorporates multiple features to insure that it meets or exceeds those standards.
The following procedures should only be performed by individuals who are trained and experienced in:
1. High voltage equipment.
2. Mechanical adjustments and the tooling required for installation of production
mechanical/electrical equipment.


SIGMA LASER STENT AND TUBE CUTTER
990-401 3 
SECTION II. INSTALLATION AND SETUP
UNCRATING THE SYSTEM
1. Inspect the crate for any physical damage from shipping.
2. Photograph and document any damage.
3. Report and damage to the responsible individual .
4. When removing the system from the crate make sure the fork lift forks are past the back of the
system.
5. Physically inspect the system for any signs of damage or shifting during shipping. Photograph
and document, and report any damage found.
SYSTEM INSTALLATION AND TESTING
Different States, Cities, and Counties may have safety and fire regulations specific to their locations.
Because of this the customer should verify that the installation instructions meet or exceed local code
and safety requirements.
1. Move the system to the final location
2. Insure that there is a minimum distance of 2 feet of clearance around the system. While 2 feet
in the minimum distance 3 feet is the recommended clearance. See Appendix A. System
Dimensions for reference.
3. With the system door open insure that there is no overhead interference such as light fixtures,
electrical conduit, air lines/hoses, and or pipes or plumbing of any type.
4. Place a level on the system composite base.


SIGMA LASER STENT AND TUBE CUTTER
4 990-401 
5. Use an M16 wrench on the four (4) leveling legs, and level the system, in both the side to side,
and back to back direction.


SIGMA LASER STENT AND TUBE CUTTER
990-401 5 
6. Insure and table/axis locks have been removed and there are no obstructions on or around the
axis.
7. Locate the main breaker on the facilities panel on the back of the machine, turn the switch off.
8. Connect the systems supplied 3 wire, 8 AWG SOOW cable to the customer supplied 208-240
Volt single phase 40 amp breaker.
NOTE: Most fire departments require 3 feet of floor clearance around electrical supply panels


SIGMA LASER STENT AND TUBE CUTTER
6 990-401
9. Locate the Gas Input on the facilities panel on the back of the machine.
10. Connect regulated 100-120psi to Air Input
with 6mm polytube. Make sure the air has
water/oil filter trap in line.
11. Connect regulated 50-300psi Oxygen to
Assist Gas Input with 6mm high pressure
(Festo) tube. For cutting it is recommended
to use liquid oxygen dewers. At a
minimum if oxygen cylinders are being
used they should be 99.999 purity.
12. Locate the main breaker on the facilities
panel on the back of the machine, turn the
switch ON.
13. Again insure there are no obstructions on
the motion system of any type before
moving the systems main breaker to the on
position.
