MADDALENA Arrow EVO Standalone Parts list manual

Code 5000078C - 08/2020 - R1
INSTRUCTIONS FOR INSTALLATION, USE
AND MAINTENANCE
ArrowEVO Standalone
Translation of the original instructions.
Before installing and using the device, carefully read this manual and store
it together with the product.
wM-Bus radio module
EN
Code

2
Symbols used in this manual
and relative meaning
lWARNING!
Indicates particularly important infor-
mation.
aDANGER!
Identies actions that may lead to
injury or damage to the device if not
performed correctly.
dPROHIBITED
Indicates actions that MUST NOT be
performed.
Compliance
Maddalena S.p.A. declares that ArrowEVO
Standalone is compliant with the mandato-
ry requirements of the following directives
and standards:
– Directive 2014/53/EU (RED - Radio Equip-
ment Directive)
– Directive 2011/65/EU (RoHS)
The full declaration of EU compliance
is available from the following website:
www.maddalena.it.
Warranty
Conditions of sale and warranty
The conditions of sale and warranty are avail-
able on the website www.maddalena.it.
Warranty limitations
Maddalena S.p.A. declines all responsibili-
ty, with immediate invalidation of the war-
ranty in relation to:
– Damage or defects caused by transport or
loading/unloading
– Incorrect installation caused by a failure
to observe the instructions provided
– Use for purposes other than those indi-
cated in this manual
– Use by unqualied or untrained person-
nel
Contents
1 General information . . . . . . . . . . . . . . . 3
1.1 Warnings and safety rules ......... 3
1.2 Restrictions .................................. 4
1.3 Device description....................... 4
1.4 Usage limits.................................. 5
1.5 Structure ...................................... 5
1.6 Identification................................ 5
1.7 Technical specifications.............. 6
2 Installation. . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Receipt of the product................ 7
2.2 Assembly ...................................... 7
3 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

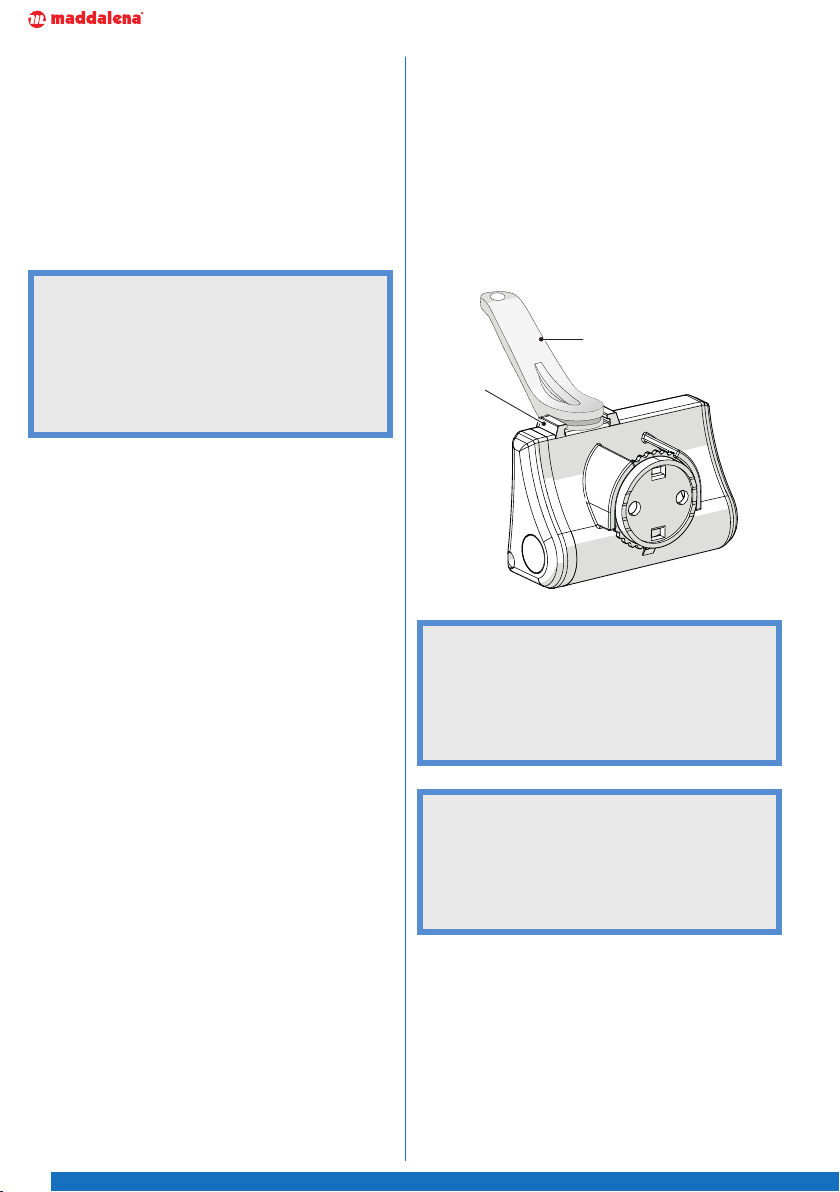

3.1 Synchronisation of
mechanical reading................... 10
3.2 Activating the radio module ....10

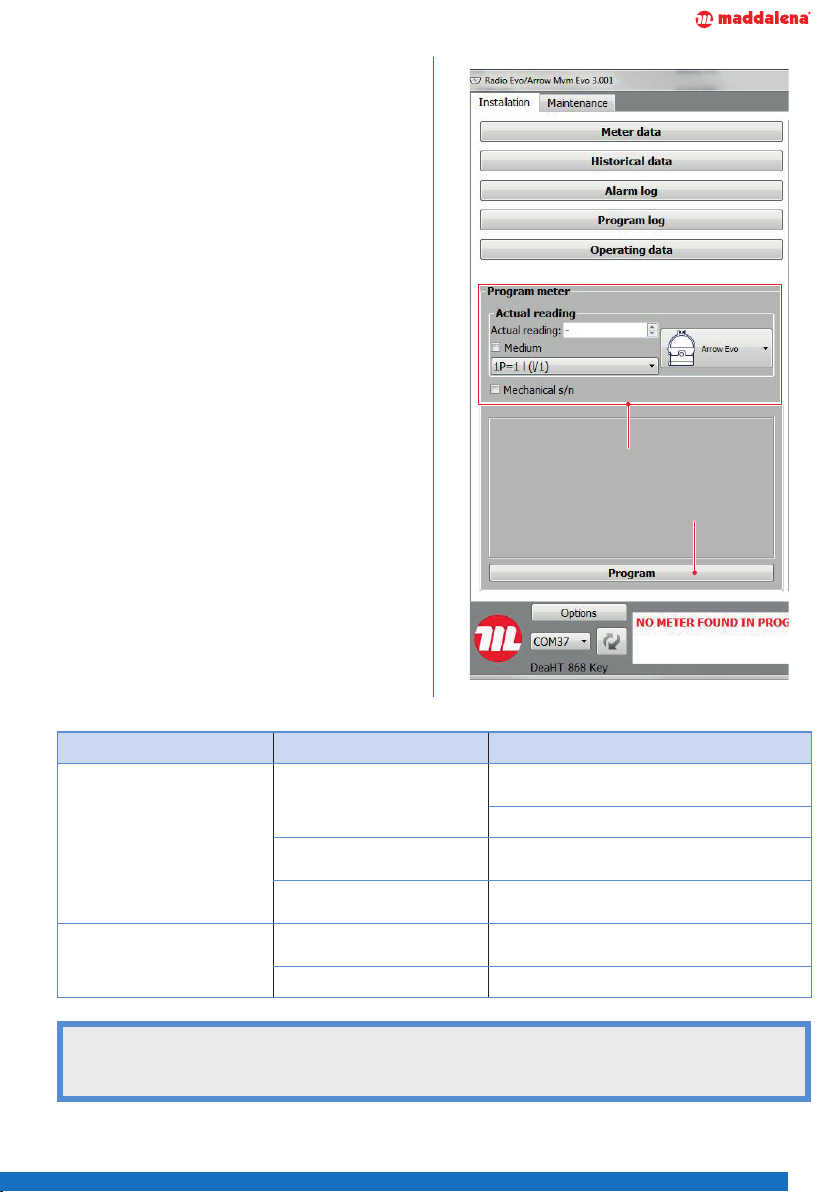

3.3 Programming on initial
installation of the module........ 11
3.4 Troubleshooting........................11
4 Maintenance . . . . . . . . . . . . . . . . . . . . .12
4.1 Battery ........................................12
4.2 Cleaning...................................... 12
4.3 Disposal......................................12

3
1 General information
1.1 Warnings and safety rules
lWARNINGS
– This manual is the property of
Maddalena S.p.A. and reproduc-
tion or transfer to third parties of
the contents of this document is
prohibited. All rights reserved. This
document represents an integral
part of the product; ensure that it
is always together with the prod-
uct, even in case of sale/transfer
to another owner, allowing its con-
sultation by the user or authorised
maintenance or repair personnel.
– Carefully read this manual before
using the device to ensure safe op-
eration.
– The device must be used as dened
by Maddalena S.p.A., that holds no
responsibility for damage to per-
sons, animals or property due to
installation, adjustment or mainte-
nance errors or improper use of the
device.
– Once the packaging has been re-
moved, check that the product is
intact and complete. If the contents
do not correspond to the order,
consult the local distributor that
sold the device.
– The device should not be installed
and used in contexts where it will
be exposed to atmospheric agents.
– The device must always be pro-
tected from extreme humidity and
heat. Penetration of humidity and
intense heat may damage the bat-
tery and the device.
– If there are any doubts regarding
conditions/functions of the device
and related parts, please contact
the local distributor for further in-
formation.
– Once the device is in use, report any
anomalies or faults encountered to
the product supplier.
– In case of complete destruction of
the device with leakage of the elec-
trolyte, avoid contact with the eyes
and skin, do not inhale fumes pro-
duced, and suciently ventilate the
room.
– The device emits radio signals that
may interfere with un-shielded
electronic devices or those improp-
erly shielded, such as pacemakers,
hearing aids, medical devices and
other electronic devices. To resolve
any interference problems, consult
the manufacturers of the relative
electronic devices.
– This device is not for use by persons
with reduced physical or mental ca-
pabilities, or those without appro-
priate experience and knowledge
(including children), unless super-
vised by a person responsible for
their safety and following adequate
training in how to use the product.

4
1.2 Restrictions
dPROHIBITED
– Modify and/or attempt to repair the
product. All repairs must be per-
formed exclusively by authorised
personnel.
– Leave the device exposed to atmos-
pheric agents.
– Place the device near to heat sourc-
es or expose it to direct sunlight.
– Install the device near other electri-
cal equipment as this may lead to
signal disturbance.
– Open and/or replace the battery.
– Use solvents to clean the device.
– Incorrectly dispose of packaging
material and keep it out of chil-
dren’s reach as it may represent
a hazard. Disposal must be per-
formed in line with applicable laws.
– Dispose of the device as domestic
waste.
1.3 Device description
ArrowEVO Standalone is a radio module with
pulse input compatible with Maddalena
water meters and with those of other
brands. The device allows for measuring,
transmitting and remotely reading the con-
sumption values and the alarms using a
wireless transmission technology.
The following alarms are managed: maxi-
mum ow exceeded (limit can be activated
and congured), backow (limit set and con-
gurable), leak and mechanical fraud (cable
cutting).
ArrowEVO Standalone is compliant with the
wM-Bus data communication protocol de-
ned at European level by Standard EN
13757. This guarantees a high level of inter-
operability with various reading systems on
the market, including third-party systems.
ArrowEVO Standalone is also OMS certied
(www.oms-group.org).
The factory set-up can be modied via radio
signal at a later point using the special con-
guration kit (USB transceiver and relative
software), supplied separately.
The main technical specications of the Ar-
rowEVO Standalone design are:
– input via four-pole cable of the follow-
ing signals: pulses (ow meter revolu-
tions), ow direction, anti-fraud, earth.
Thanks to these data, the module calcu-
lates the volume (both directions), man-
ages alarms and memorises the data in a
non-volatile memory;
– M-Bus (EN 13757) 868 MHz radio wire-
less communication interface that
allows remote reading in both mobile
(walk-by) and xed (AMR) scenarios,
using the same factory set-up (trans-
mission interval);
– lithium battery that guarantees long-
term power supply (15 years + 1)
– support ring nut that allows the module
to be attached to the QuadraPlus sensor
easily. Alternatively, it can be xed to the
wall using the two plugs supplied or to the
pipe using clamps.

5
1.4 Usage limits
The product may be used exclusively with
compatible meters and in line with the cor-
responding usage limits (see paragraph “
Technical specications”).

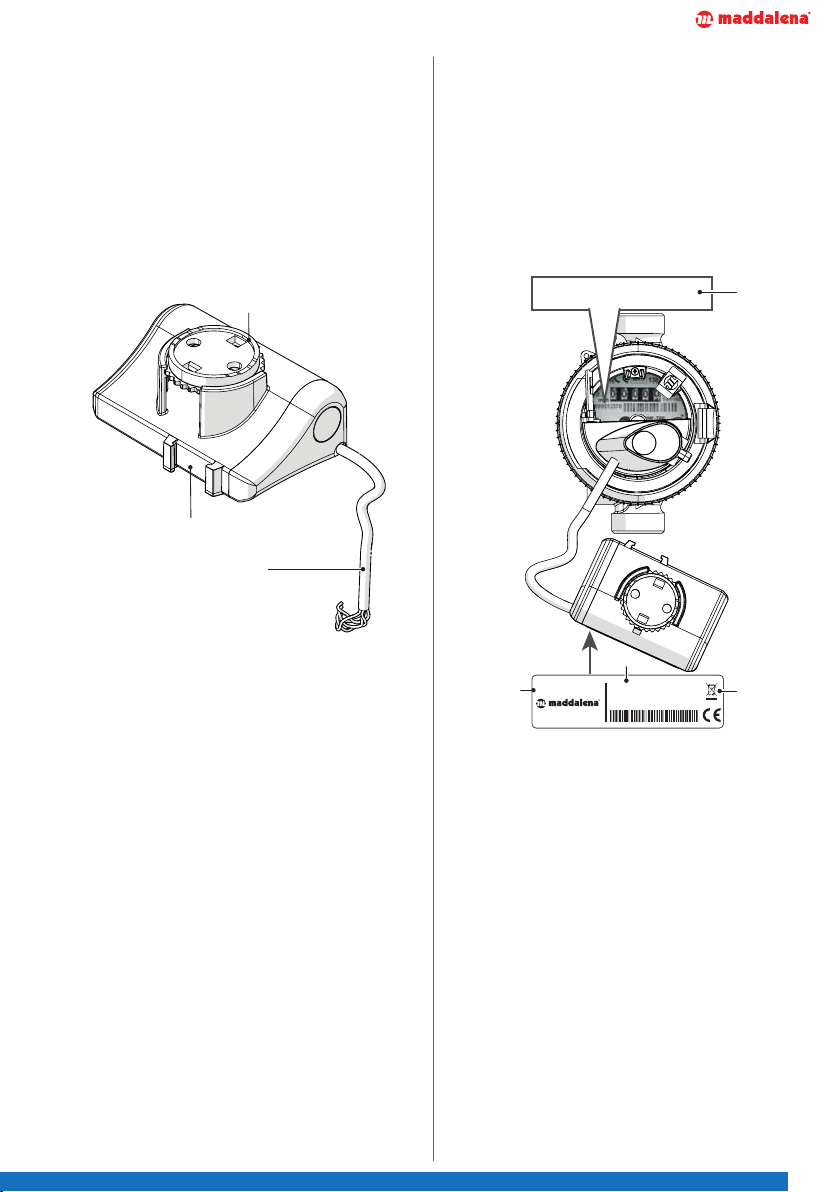

1.5 Structure
1
2
3
1 Magnetic key attachment reference
2 Support ring nut
3 Four-pole wire
1.6 Identication
The ArrowEVO Standalone module, identied
by the label (A), is strictly associated with a
single meter. Two elements are required for
this association, performed during installa-
tion: the serial number of the mechanical
meter and the serial number of module
ArrowEVO Standalone.
1
1839012370
A
ARROW
EVO
P/N: 1.ETRMD.0001
S/N 12345678
Made in Italy
4
3
2
1 Serial number of the meter
2 Model
3 Eight-digit serial number of module
Arrow
EVO
Standalone
4 WEEE compliance mark
The serial number can be read via radio
signal or on the label of the module itself.
If necessary, during programming it is pos-
sible to store the serial number of the me-
chanical meter within the radio module, so
that this is available within the data trans-
mitted.

6
1.7 Technical specications
Features Description
Maximum pulse frequency <12.5Hz (nominal).
Compatible meters Open drain transistor switch, reed switch,
any type of open/closed switch
Sensor resolution congurable (1L default)
Minimum pulse width >40ms (nominal).
Alarms Tampering, mechanical fraud, backow, presumed leak, maximum ow, inverted
meter
Conguration Via radio using conguration kit
Power supply Lithium-ion battery
Battery lifespan 15 years + 1 in storage
Certications/Approvals
CE in compliance with European standards.
RED 2014/53/EU, RoHS2 (EU) 2017/2102
OMS:
Radio
Standard Wireless M-Bus, OMS
Modes C1 (Default), T1 (Optional)
Operating frequency
range 868.0 - 868.6 / 868.7 - 869.2 MHz
Radiated power max 14dBm
Range 500 m in line of sight
Reference standards EN 13757
Radio equipment
class Class 1
Data message fre-
quency Every 16 seconds
Data sent
Frame Tiny (default): current volume, date
and time, volume on billing date, billing
date, errors.
Short frame: current volume, volume on
billing dates, meter serial number, alarms.
Long frame: same as short frame with addi-
tion of values for the previous 12 months
Frame Arrow: current volume, volume on
billing date, meter serial number, billing
date, alarms
Environmental conditions Storage temperature: -20°C – +60°C
Operating temperature: -10 °C – +55 °C
Protection rating IP68

7
2 Installation

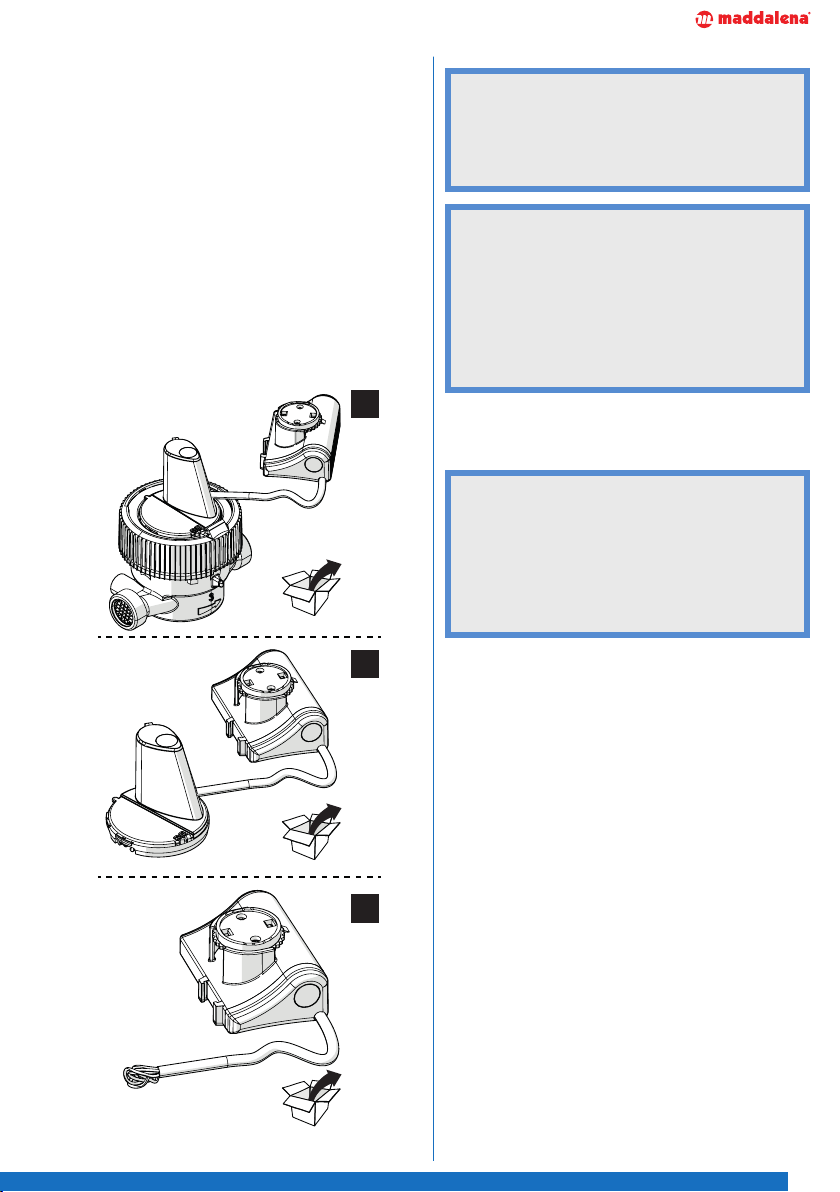

2.1 Receipt of the product
ArrowEVO Standalone modules are supplied
in three dierent congurations:
A Already connected to the sensor and
mounted on the meter. The number
of pieces in the package varies de-
pending on the size of the meter.
B Package with 10 pieces, already con-
nected to the sensor
C Package with 10 pieces, with free
four-pole wire
A
B
C
10x
10x
lWARNING!
The instruction manual is an inte-
gral part of the device and should
be carefully read and stored.
dPROHIBITED
Packaging material must be prop-
erly disposed of and kept out of
children’s reach as it may repre-
sent a hazard. Disposal must be
performed in line with applicable
laws.

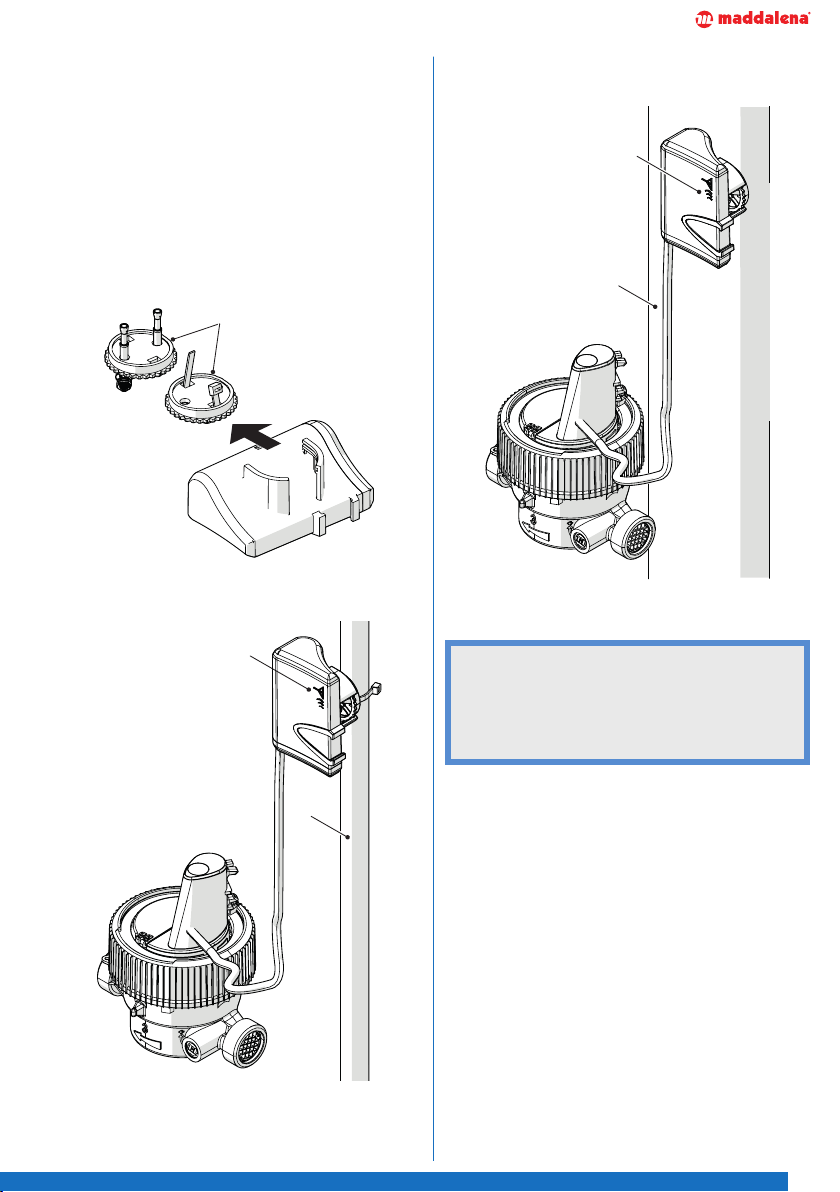

2.2 Assembly
lWARNING!
Installation and management
of the device is permitted solely
by authorised and appropriately
trained personnel equipped with
sucient technical experience.
Authorised personnel: specialised installer
or plumber, assigned by the metering oper-
ator.

8
lWARNING!
When purchasing conguration
"B" (with module connected to
the sensor), refer to the manual
of the sensor (QuadraPlus, Flow-
Pulse or Reed) for the connection
to the meter.
lWARNING!
When purchasing conguration
"C" (with free four-pole wire), the
latter must be connected to a
sensor or external pulse genera-
tor, by appropriately connecting
the wires.
– The ArrowEVO Standalone module is sup-
plied with a four-pole cable with earth (1)
-White: pulse input. Pulse signal for both
the delivery and return ow.
-Yellow: ow direction. Contact closed =
return ow.
-Green: anti-fraud. Contact open = fraud.
-Brown: earth. Common earth signal.
1
Assembly on the sensor
Insert the two pins (1) on the QuadraPlus
sensor in the ring nut inserts (2) and fully
insert the module until it locks into place
1 2

9
Assembly on a support
If the meter is buried, preferably position
the module as close to the surface as pos-
sible.
Fix the ring nut (1) to a pipe (2) (using a
clamp) or to a wall (3) (using the plugs
provided). Insert the module fully into the
guide. Preferably install the module with
the antenna symbol (4) facing upwards.
1
4
2
3
4
lWARNING!
To mount the sensor on the me-
ter, refer to the manual of the
sensor possessed.

10
3 Use
The fully operational phase involves remote
meter reading via the radio modules. Each
radio module transmits the reading with a
settable frequency (default: reading trans-
mitted every 16 seconds). Simply approach
the meter with a suitable receiver or, if
there is a xed reading system, the data will
be collected automatically.
lWARNING!
Reading of data can be per-
formed using various software.
Please consult the metering oper-
ator for more information on the
specic use of reading software.
3.1 Synchronisation of
mechanical reading
The radio module stores the volume record-
ed via a pulse inlet. The module is factory
set with an initial volume of zero.
If the meter on which the radio module
is installed has a reading other than zero,
synchronisation of the mechanical meter
reading and radio module is recommended
using the programming kit. Simply read the
value in litres on the meter and set the read-
ing using the programming software.
3.2 Activating the radio module
The ArrowEVO Standalone module is deacti-
vated by default, therefore it will not trans-
mit nor count.
To activate the module: insert the red acti-
vation key (1) in the appropriate slot (2) and
keep it there for over 10 seconds.
If the key is inserted for less than 10 sec-
onds, the module is NOT activated.
2
1
lWARNING!
For a complete list of program-
ming parameters and relative
settings, refer to the specic
manual.
dPROHIBITED
Programming of the ArrowEVO
Standalone module without ap-
proval of the metering operator
is not permitted.

11
3.3 Programming on initial
installation of the module
The ArrowEVO Standalone module is sup-
plied with a series of set-up data already set
to the default values.
If necessary, during initial installation, once
the module has been activated, the follow-
ing values can be modied:
– Radio reading with reading of the me-
chanical meter
– Mechanical serial number of the relative
meter
– Personalised AES encryption key for each
meter
– Impulsive weight
The module is programmed using the Radio
Evo program / Arrow Evo Console from a PC.
To perform programming on initial instal-
lation, once the module has been activated
using the magnetic programming key, use
the part of the screen shown in the box (1).
Once the desired parameters have been set,
activate programming for initial installation
using the button (2).
2
1
3.4 Troubleshooting
FAULT CAUSE SOLUTION
The radio module is not
transmitting
Electrical or electronic
devices interfere with
the signal
Move devices to a sucient distance
away
Move the receiver closer
Battery empty Replace the battery (contact the
metering operator)
The module is not active Check the activation procedure has
been applied correctly
The module is transmit-
ting but the data elds
are not populated
The paired sensor is
faulty Contact the metering operator
Faulty module Contact the metering operator
lWARNING!
For a complete list of alarms, please refer to the specic manual.

12
4 Maintenance
4.1 Battery
The radio module is equipped with a 3.0 V
lithium manganese battery that is not re-
chargeable but can be replaced.
The average battery life is 15 years, calculat-
ed using the factory set-up (mode C1, tiny
telegram: 1 message every 16 seconds) and
in the following operating conditions:
– between -10°C and +0°C for 10% of
lifespan
– between 0°C and +30°C for 80% of lifespan
– between +31 °C and +55 °C for 10% of
lifespan
lWARNING!
Humidity and intense heat may
damage the battery and reduce
its lifespan.
The radio module calculates the residual
lifespan of the battery on the basis of stored
parameters, such as estimated consump-
tion of the electronic board in stand-by
mode, transmitter consumption and num-
ber of transmissions performed.
Battery life depends largely on the frequen-
cy of data transmission set.
4.2 Cleaning
No particular cleaning procedures are
required. However, the installation area
should be kept clean and periodic checks
should be performed to ensure the re-
quired environmental conditions are met.
dPROHIBITED
Use of abrasive products, petrol
or trichloroethylene is not per-
mitted.
4.3 Disposal
The device is composed of materials of vari-
ous nature including metal, plastic and elec-
trical and electronic components. It must be
disposed of in compliance with applicable
local laws regarding special and industrial
waste. The device cannot be disposed of as
domestic waste.
At the end of the product’s life, ensure safe
removal and responsible disposal of com-
ponents, including recycling of batteries, in
compliance with applicable environmental
laws in the country of installation.

13

14

15

MADDALENA spa
Via G.B. Maddalena 2/4 - 33040 Povoletto (Udine)
Tel. [phone]
www maddalena it
Maddalena S.p.A. reserves the right to change its products at any time and
without prior notice, with the aim of improving them and without compromising
primary features. All the graphic illustrations and/or photographs appearing in
this document can be represented with optional accessories that vary in relation
to the country where the device is used.
