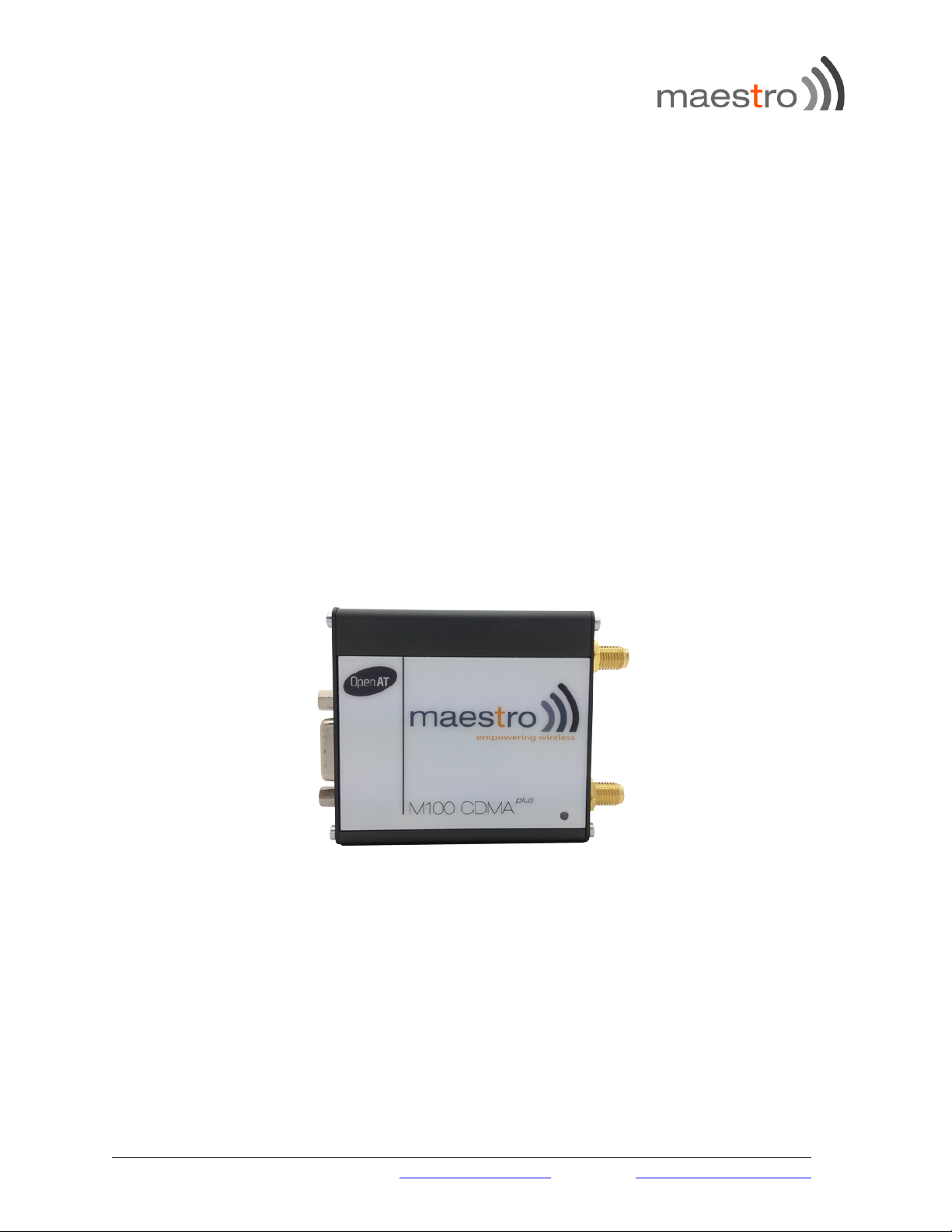

Maestro M100 CDMA plus User manual

M100 CDMA plus www.maestro-wireless.com [e-mail] 1
M100 CDMA plus
Quick Start Guide
Version 1.4 Beta
Firmware R7.52.0.A3
SmartPack_097k_SL3010T

M100 CDMA plus www.maestro-wireless.com [e-mail] 2
Version
Date
Details
Author
0.1
29 Apr. 2014
First issue
Matthieu Boulanger
0.2
22 Oct. 2014
Added power consumption
Matthieu Boulanger
0.3
23 Oct. 2014
Updated AVMS section
Matthieu Boulanger
1.0
30 Oct. 2014
Updated Linux driver and PPP issue
Matthieu Boulanger
1.1
2 Dec. 2014
Updated I/O specification
Update LED behavior
Matthieu Boulanger
1.2
9 Dec. 2014
Updated I/O description
Matthieu Boulanger
1.3
16 Jan. 2015
Updated activation procedure
Matthieu Boulanger
1.4
28 Avr. 2015
Updated international number
Matthieu Boulanger
This manual is written without any warranty.
Maestro Wireless Solutions Ltd. reserves the right to modify or improve the product and its accessories which can also
be withdrawn without prior notice.
Besides, our company stresses the fact that the performance of the product as well as accessories depends not only on
the proper conditions of use, but also on the environment around the places of use.
Maestro Wireless Solutions Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or
discrepancies between the modem and the manual.
This software, solution or application is provided on an "as is" basis. No warranty whether expressed or implied is given by
Maestro Wireless Solutions Ltd. in relation to this software, solution or application. User shall assume the entire risk of
using or relying on this software, solution or application.
In no event will Maestro Wireless Solutions Ltd. be liable for any loss or damage including without limitation, indirect or
consequential loss, damage, or any loss, damage whatsoever arising from loss of data or profit arising out of, or in
connection with, the use of this software, application or solution.
Every effort is made to keep the software, application or solution up and running smoothly. However, Maestro Wireless
Solutions Ltd. takes no responsibility for, and will not be liable for, the software, application or solution being temporarily
unavailable due to technical issues beyond our control.
The above terms and conditions are subject to change without prior notice. The present use of this software, application or
solution implies the user approves and understands all the above terms and conditions.

M100 CDMA plus www.maestro-wireless.com [e-mail] 3
Contents
Table&of&Contents&
Contents'......................................................................................................................................'3!
Table'of'Contents'.....................................................................................................................'3!
Chapter'1'....................................................................................................................................'5!
Known'Issues'............................................................................................................................'5!
Chapter'2'....................................................................................................................................'6!
Specifications'............................................................................................................................'6!
Power'supply'requirement:'............................................................................................................'6!
Typical'current'consumption:'........................................................................................................'6!
Interfaces:'..............................................................................................................................................'6!
Dimensions:'..........................................................................................................................................'6!
Temperature'range:'...........................................................................................................................'7!
Front'label:'............................................................................................................................................'8!
Back'label:'.............................................................................................................................................'8!
Packing:'..................................................................................................................................................'8!
Chapter'3'....................................................................................................................................'9!
Related'documents'.................................................................................................................'9!
Chapter'4'.................................................................................................................................'10!
Hardware'installation'.........................................................................................................'10!
Mounting'the'modem:'....................................................................................................................'10!
Connecting'the'external'antennas'(SMA'type):'.....................................................................'10!
Connecting'the'modem'to'external'device:'.............................................................................'11!
Connecting'the'DC'power'supply:'...............................................................................................'11!
Chapter'5'.................................................................................................................................'12!
Registration'to'the'network'..............................................................................................'12!
Carrier'requirement:'......................................................................................................................'12!
First'time'activation'on'..................................................................................................................'12!
Verizon'Wireless'Network:'...........................................................................................................'12!
Chapter'6'.................................................................................................................................'13!
M100'CDMA'plus'quick'setup'guide'...............................................................................'13!
Downloading'the'Maestro'Configuration'Software:'.............................................................'13!

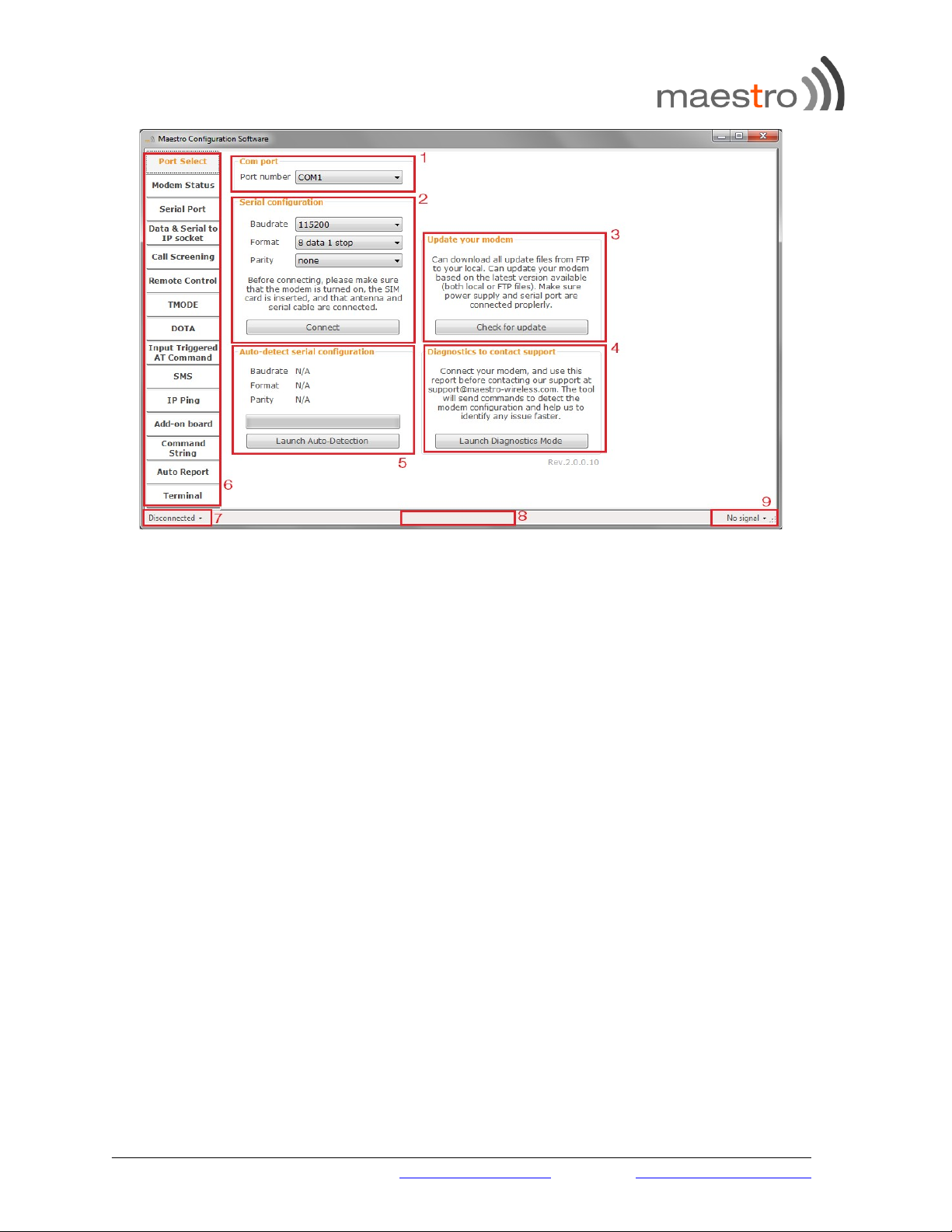

Using'the'Maestro'Configuration'Software'.............................................................................'13!
Chapter'7'.................................................................................................................................'16!

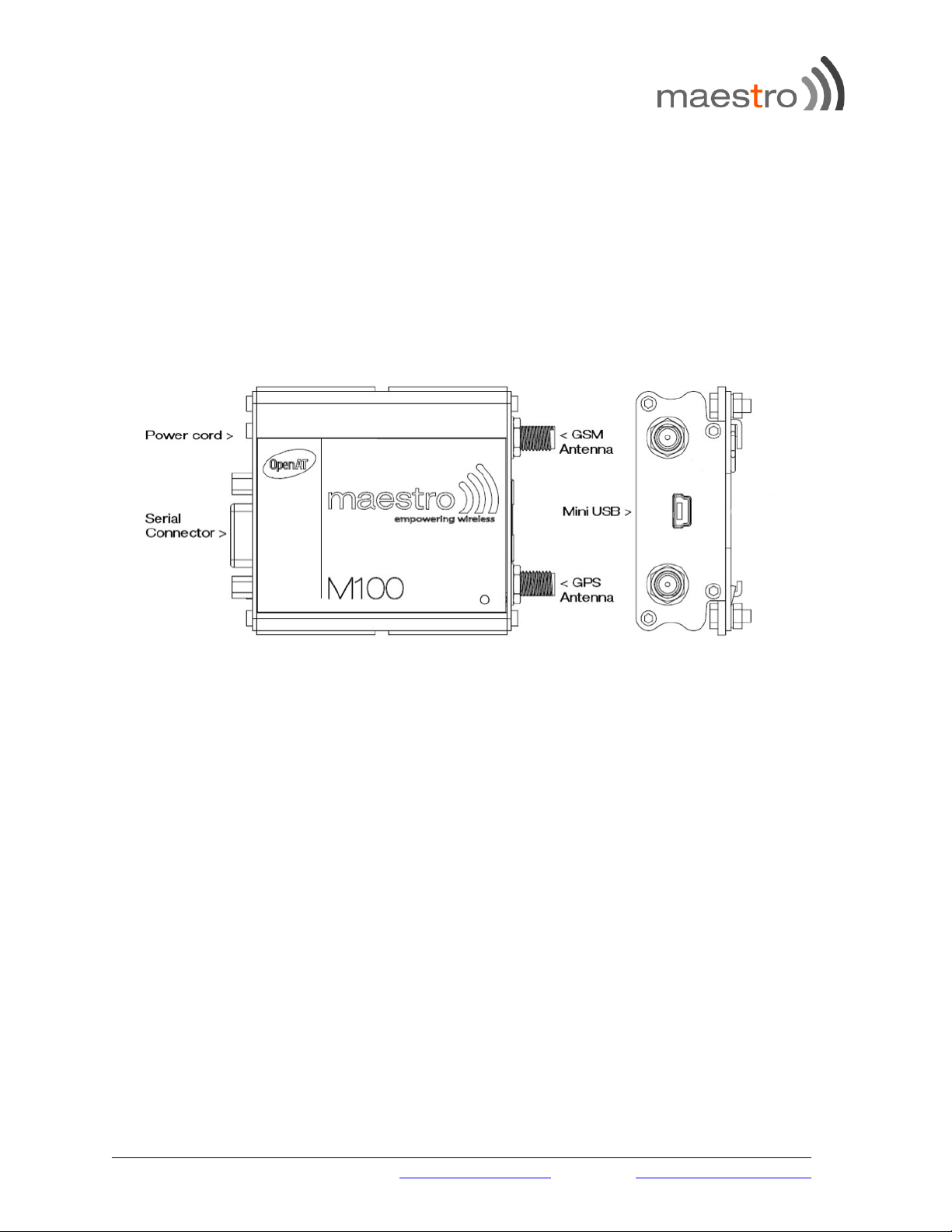

Equipment'Description'.......................................................................................................'16!
Interfaces:'...........................................................................................................................................'16!
Status'indicator:'...............................................................................................................................'16!

M100 CDMA plus www.maestro-wireless.com [e-mail] 4
SMA'female'antenna'connector:'.................................................................................................'16!
Mini[USB'B'female'connector:'.....................................................................................................'16!

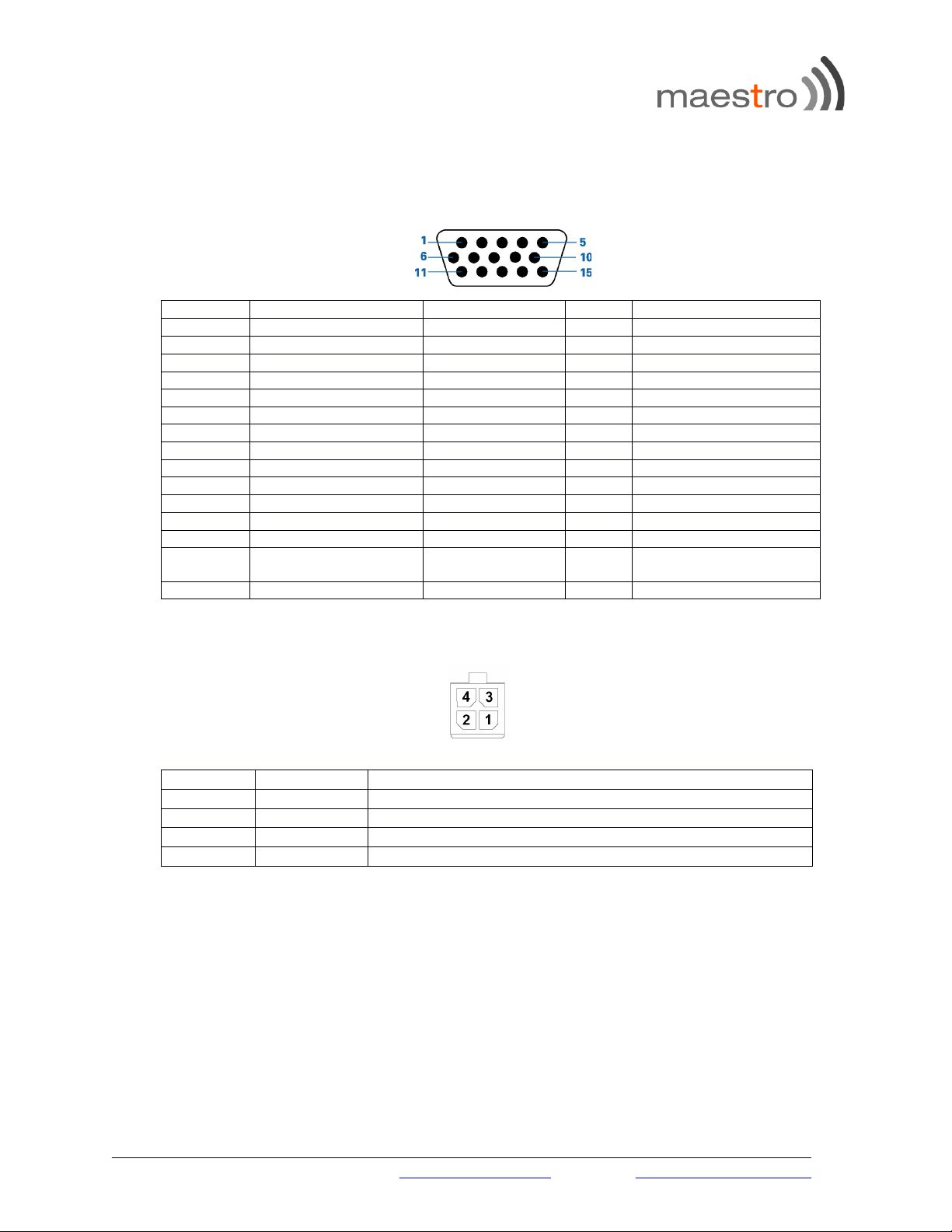

15[pin'D[sub'antenna'connector'(RS[232):'............................................................................'17!
4[pin'Micro[Fit'Molex'connector'(Power'and'input):'..........................................................'17!
Digital'inputs'wiring'diagram:'....................................................................................................'18!

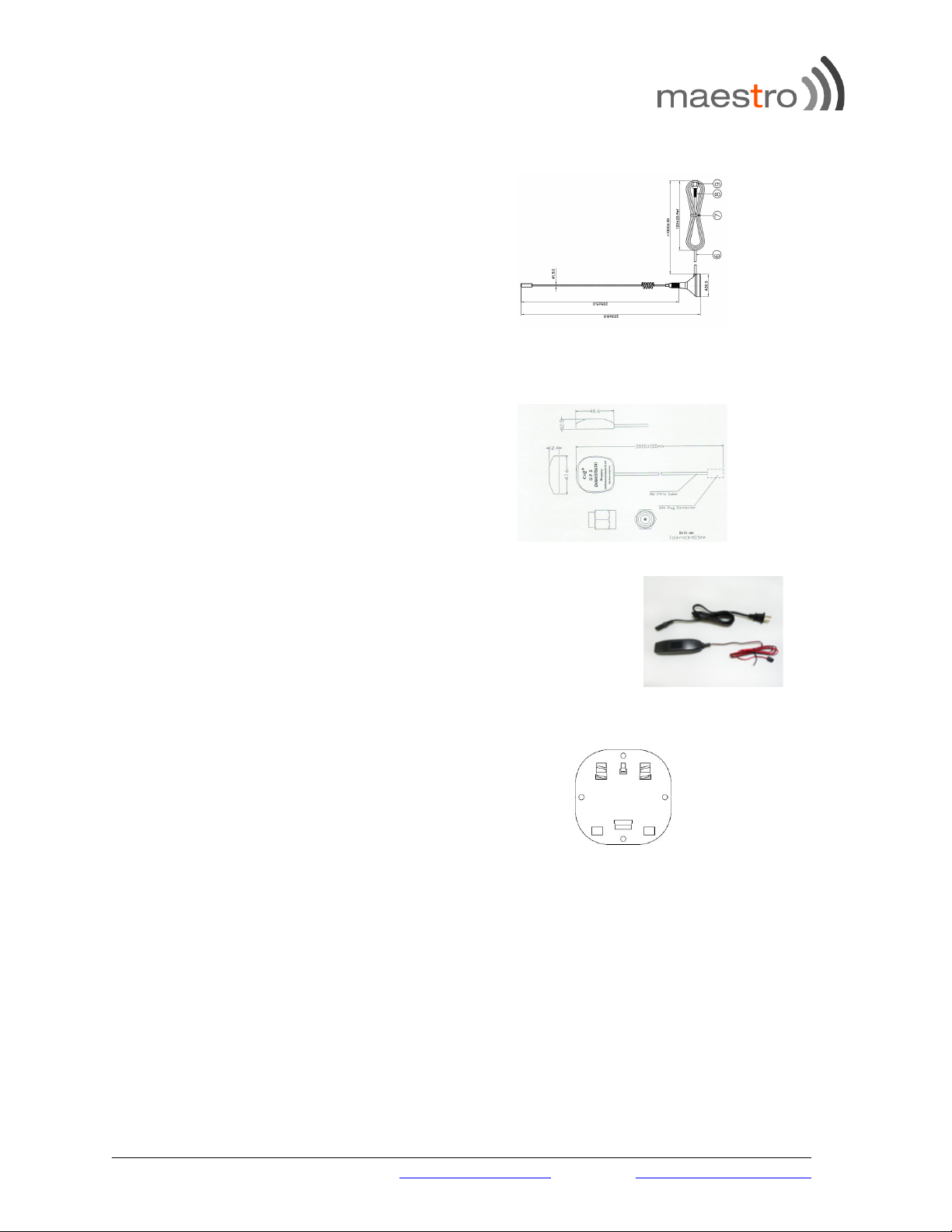

Optional'accessories:'......................................................................................................................'19!
"#$%!&'()*+!,*-+'!.!/00.0/1$!22222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!$3!
4&#!567!,*-+'!8!/00.0/9$!22222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!$3!
:);)!4&#!#!<*+'!=>!4&#!/!<*+'!,*-+'!.!/00.0/9?!2222222222222222222222222222222222222222222222222222222222222222222222222222!$3!
@>A'(!,>(B!A)=C!DEF'!.!/00.0/$1!2222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!$3!
@';=*.-*;B!G.FC*H'!*;=';;*!.!/00./$$!222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!$3!
@';=*.-*;B!*;=';;*!.!/00./$I/!222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!?1!
@';=*.-*;B!*;=';;*!.!/00./1J!222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!?1!
"KL!(*)+!<>E;=!.!/00."KL!22222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!?1!
"#$%!=>!"#3!*B*H='(!.! M NO.119 !222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!?1!
Chapter'8'.................................................................................................................................'21!
Default'Firmware'settings'.................................................................................................'21!
Factory'setting:'.................................................................................................................................'21!
Digital'input'ports''...........................................................................................................................'21!
RS232'auto[online'mode'(power'saving)'................................................................................'21!
Chapter'9'.................................................................................................................................'22!
Troubleshooting'...................................................................................................................'22!
P;>A;!KFFE'F!22222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!??!
NC'!<>B'<7F!GQ"!B>'F!;>=!-+);R!22222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222!??!
NC'!<>B'<!B>'F!;>=!('FH>;B!=>!=C'!='(<);*+!H(>S(*<!22222222222222222222222222222222222222222222222222222222222222222!??!
"'-EST!>(!DE(=C'(!,><<*;B!EF);S!&<*(=!N'(<);*+!*F!'U*<H+'!22222222222222222222222222222222222222222222222222!??!

M100 CDMA plus www.maestro-wireless.com [e-mail] 5
Chapter 1
Known Issues
Beware of the difference between M100 2G, M100evo, M100 3G and M100 CDMA plus GPIO type on the 4-pin Micro-
Fit connector.
Below known issues on M100 CDMA plus :
.DCD, DSR, DTR signals are not currently available on the serial port, firmware R7.53 will solve this issue and is
planed for release by Sierra Wireless for 2015.

M100 CDMA plus www.maestro-wireless.com [e-mail] 6
Chapter 2
Specifications
•Dual band CDMA 1XRTT 800/1900MHz
•M100 CDMA plus SKU is
•M100CDMAPLUS-V
•Memory size: 64Mbits Flash and 16Mbits RAM
•Support Data, SMS, and Fax
•AT command set (GSM 07.05, GSM 07.07 and Sierra Wireless proprietary)
Power supply requirement:
•Input voltage range: 5-32V
•Rated current: 650mA
Typical current consumption:
Mode
@5V
@12V
@32V
IS-2000 PCS 1900MHz
642mA
233mA
101mA
IS-2000 cellular 800MHz
520mA
217mA
91mA
IS-95B PCS 1900MHz
582mA
232mA
99mA
IS-95B cellular 800MHz
578mA
221mA
90mA
Idle (RS232 & USB connected)
68mA
32mA
15mA
Idle (RS232 & USB not connected)
45mA
22mA
10mA
Interfaces:
•15 pin sub-D connector
•4 pin power supply connector
•SMA Cellular antenna connector (50Ω)
•mini-USB Female port
•SMA GPS antenna connector (50Ω)
Dimensions:
•Overall size: 74.3mm x 60mm x 21.7mm - 2.47” x 2.36” x 0.86”
•Weight: 90g – 0.2 lb

M100 CDMA plus www.maestro-wireless.com [e-mail] 7
Temperature range:
•Operating: -40°C to +85°C with relative humidity below 95%
•Storage: -40°C to +85°C
CAUTION
In accordance with the European directive EN60590, if the ambient temperature exceeds or might exceed 65°C, it is
required that the installer:
•Avoid physical contact with the Maestro 100 3G when the temperature exceeds 65°C.
•Adds a marking on the assembly indicating that this part is hot (for example showing the “symbol IEC 60417-
5041: Caution, hot surface”; and/or having a wording similar to “CAUTION - HOT SURFACE - DO NOT
TOUCH”).

M100 CDMA plus www.maestro-wireless.com [e-mail] 8
Front label:
Back label:
Packing:
•Bulk carton box of 50 pieces
•Each M100 CDMA plus in single plastic bag without any accessories
•Overall size: 522mm x 212mm x 150mm
•Weight: 4.3kg

M100 CDMA plus www.maestro-wireless.com [e-mail] 9
Chapter 3
Related documents
This document presents technical and hardware specifications of the M100 CDMA plus industrial modem. It covers a
hardware installation, quick start guide, accessories listing, and troubleshooting details.
This document will not cover the embedded application details, neither the common 3GPP AT command list, for more
information please refer to the following documentations available on our website:
•Maestro M100 Series SmartPack User manual version3 or higher, intelligent embedded application
•AirPrime - SL3010T - Product Technical Specification and Customer Design Guidelines - Rev3.0 or higher
•AirPrime_SL5011_and_SL3010T_AT_Commands_Interface_Guide_Rev6_0 or higher
•AT_Command_Interface_Guide for Firmware 7.52.0.A3 or higher
Please download related documents on http://www.maestro-wireless.com/m100cdmaplus

M100 CDMA plus www.maestro-wireless.com [e-mail] 10
Chapter 4
Hardware installation
Mounting the modem:
If delivered with the DIN clip accessory, detailed on page 22, use two M3 screws to mount the DIN clip on the back of the
modem as shown on figure 1.

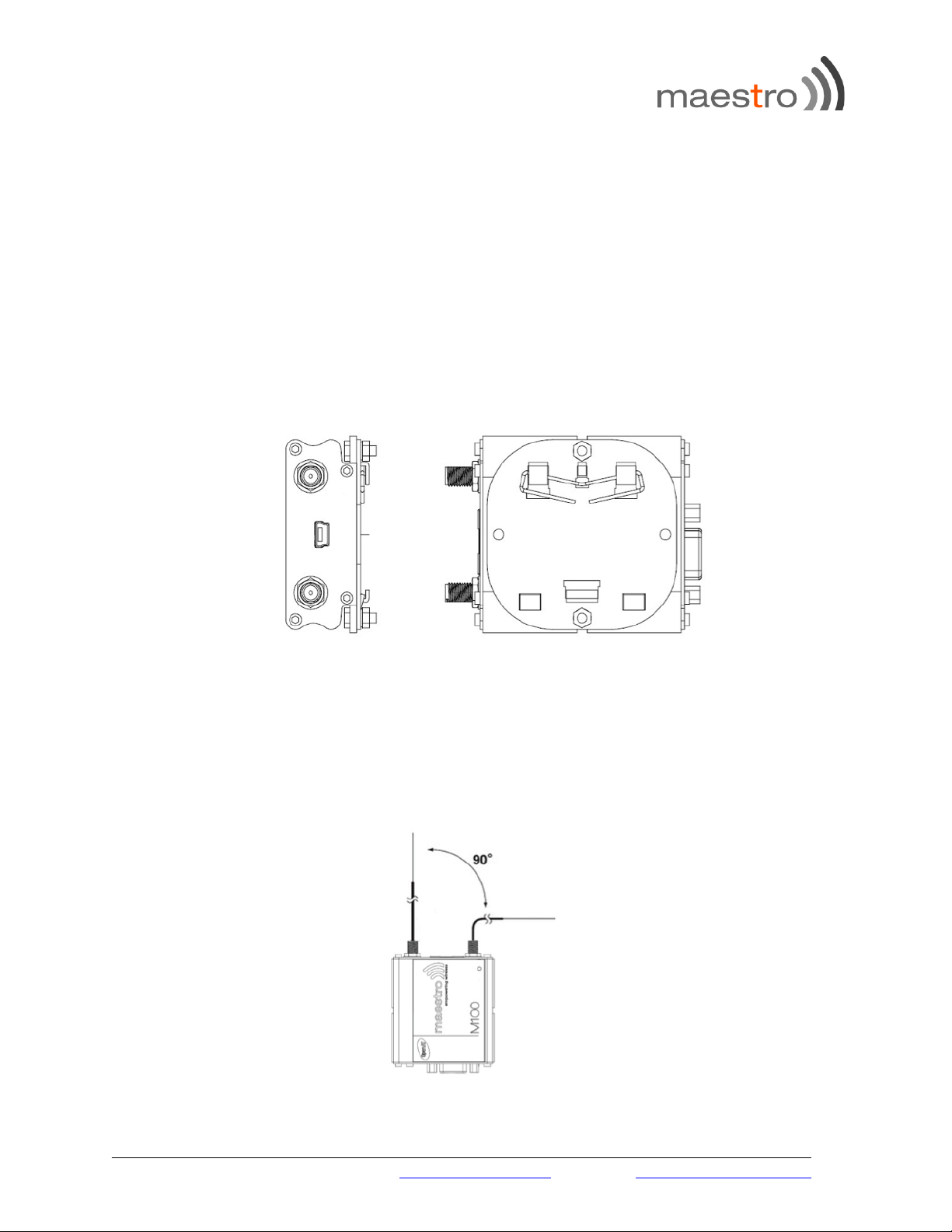

Figure 1: DIN clip mounted on M100 CDMA plus
Connecting the external antennas (SMA type):
Connect both antennas with SMA male connector on the modem, make sure antennas are tightly secured. Select a
CDMA antenna with the right CDMA frequency and an impedance of 50Ω; incorrect antenna will affect communication
and even damage the modem. Select a GPS antenna with an impedance of 50Ω; incorrect antenna will affect GPS
sensitivity and time to fix.
Note: Make sure to install CDMA and GPS antennas with an angle of at least 90° to avoid disturbance. Refer to the
drawing on Figure 2 below.
Figure 2: Antenna positions
Note: Respect a safety distance of at least 26.6cm to the antenna during the modem operation.
