Maevi Smart Gateway User manual

Page 1 of 8
Smart Gateway
Quick Start Guide

Page 2 of 8
Introduction
The gateway is the brain of the Maevi Smart Home system. It connects your smartphone, via
Maevi app, to our smart devices allowing you monitor, automate and control your smart
home anytime, anywhere.

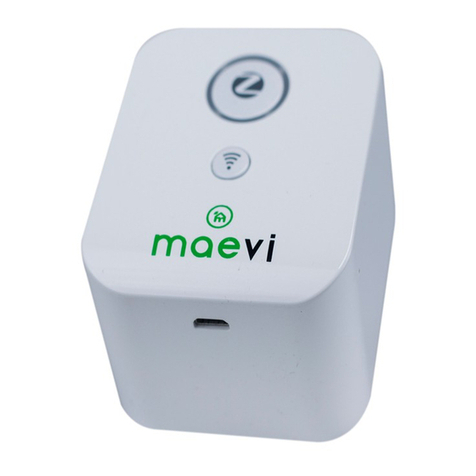

Get to know your device
Buttons
“Z” Button
Use the “Z” button to do the following:
- Enter ‘Pairing’ mode
- Reset ZigBee Network
Wi-Fi Button
Use the Wi-Fi button to do the following:
- Reset Wi-Fi network
- Switch between cloud mode and
AP mode (AP mode is currently
not available)
- Open WPS mode
Reset button
Use the reset button to do the following
- Reset Gateway
- Restart Gateway

Page 3 of 8
Led Indicator
The Led Indicator status as below:
LED Status
What It Means
Purple LED Solid
Device initialization/searching for Wi-Fi
connection
Purple LED Flashing
Device is in AP (default) mode (AP mode is
currently not available)
Orange LED Flashing
Device has connected to the router
Blue LED Solid
Device is in ‘Pairing’ mode which means new
ZigBee devices are allowed to join its
network
Blue LED Flashing
Device is in cloud mode, connected to
Maevi’s cloud server and your Maevi app.
Orange LED and blue LED Flashing
Alternately
ZigBee or Wi-Fi error
All Lights Off
Device not working
Get Started
To get started, you will need:
• Maevi Gateway
• A Wi-Fi Router with an Internet Access and 2.4GHz network enabled
• Maevi Mobile App
Then follow the steps below:
1. Insert the Maevi Gateway into a power socket. Turn it ON and wait for the purple LED
light to start flashing purple (this means the gateway is in AP (default) mode).
TIP: If the LED indicator is not flashing purple, please reset the gateway to default factory
settings by pressing and holding the reset button for 10 seconds.
2. Ensure your smartphone is connected to the Wi-Fi.
3. Configure your Gateway. (Refer to Configuration Gateway steps)

Page 4 of 8
Configure Gateway (Android)
Home Page
Click + Button
Select Setup Gateway
to configure the Gateway
Connect with Home Wi-Fi
before setup the Gateway
Enter
Home Wi-Fi Password
Click Next
Click Connect to Gateway
Select ZB_GW_” to
Configure the Maevi Gateway

Page 5 of 8
Make sure Gateway SSID
appear in screen.
Click - Next
Turn off your Gateway
for 5 seconds.
Click - Next
Click Next
Gateway configuration
done.

Page 6 of 8
Configure Gateway (iOS)
Home Page
Click + Button
Select Setup Gateway
to configure the Gateway
Connect with Home Wi-Fi
before setup the Gateway
Enter Home Wi-Fi Password.
Click Next
Click OK to connect
with Maevi Gateway
Click Setting

Page 7 of 8
Select Wi-Fi to
Select Maevi Gateway SSID
Select ZB_GW_” to
configure the Maevi Gateway
Make sure the Gateway SSID
appear in screen.
Click - Next
Turn off your Gateway
for 5 seconds.
Click - Next
Click Next
Gateway configuration
done.

Page 8 of 8
Resetting the Gateway
Use a pin key tool to press and hold the reset button for 10 seconds until the LED indicator
flashes purple.
Tip: If the gateway is returned to default factory settings, all the data stored including the
Zigbee pairing information and Wi-Fi settings will be lost.
Reset Wi-Fi Network
1. Press the Wi-Fi button and reset the button (use a pin key tool) simultaneously to
reset Wi-Fi network. If the reset is successful, the LED indicator will flash purple six
times.
2. After resetting Wi-Fi network please refer Configuration Gateway steps to restart.
