Magene T100 User manual

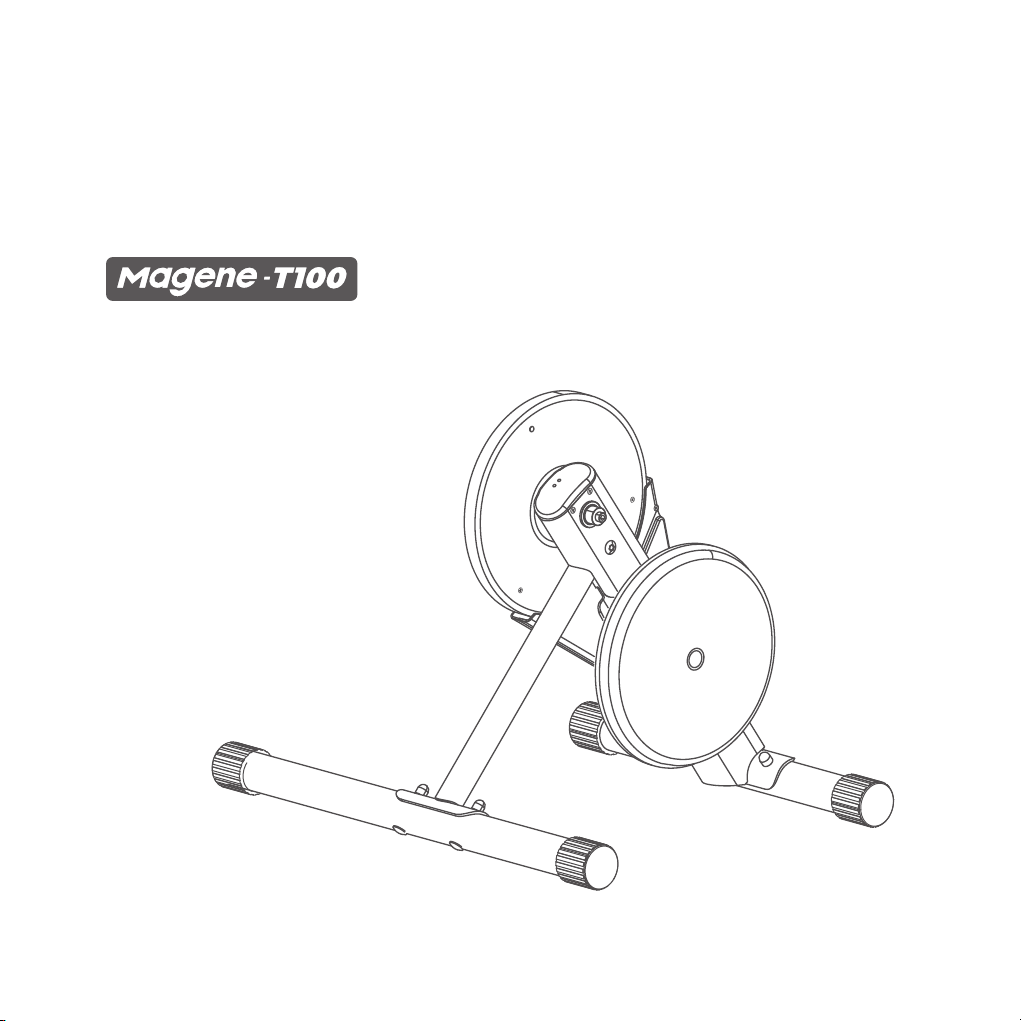

T100 Power Trainer
Quick-start Guide

2
Quick Start Guide
Unboxing
T100 Power Trainer Quick release lever
Email: [email protected]
Website:https://magenefitness.com
After-sales service:suppor[email protected]
Quick Release Dropout Converteree Cassette Converter Washer
NOTE：
1.T100 Power Trainer is as shown on the left.The user needs to
prepare any parts not included in the packaging.
2.Two Triple-A battery are needed for T100 Power Trainer,please
purchase and install them follow the steps of 7.2
3.A axle (sold separately) is required to mount a bike with drum
shaft components.
Thank you for purchasing the T100 Power Trainer.
Please read the instructions carefully before using the product. Feel free to contact us
if you have any questions or concerns:
Remove the T100 Power Trainer and all accessories from the box and be sure to keep
the original box for subsequent transportation and storage. In case of warranty repairs
and returns, be sure to use the original packaging.Otherwise the Company will not
bear any responsibility for any loss caused during transportation.If the packing box
and foam are missing, please contact the local dealer or service personnel.

Installation
3
Trainer installation
Short side
Long side
Fig 1
Please follow the instructions to use the product.
1. Place the T100 Power Trainer on a flat and stable surface and ensure that there are
no obstacles or dangerous objects near the product.
2. Pull the movable legs to the maximum extent and make sure that the product sits
firmly without wobble.
3. Install batteries or rotate the pulley to activate the trainer, at which time the LED
indicator will flash slowly.
The description of any accessories (such as flywheels, axle.) below is only for the
purpose of explaining how to use the product as only those included in the packing
list come with the product.

Longer end on the inside
for 130mm dropouts
Shorter end on the inside
for 135mm dropouts
Longer end on the inside
for 142mm dropouts
Shorter end on the inside
for 148mm dropouts
Quick release installation
Fig 2
The axle set is for sold separately.
Note
Installation direction
Installation direction
Axle installation
Fig 3
4
4. The T100 Power Trainer is compatible with cassette flywheels produced by Shimano
and SRAM,including 11-speed flywheels (direct installation) and 8 9 10-speed flywheels
(requiring flywheel baskets).Campagnolo transmission users can also install a Shimano
cassette flywheel on the trainer.
Please use dedicated installation tools when installing flywheels.

Installation of the bicycle
Freehub washer
Freehub washer
Installation
operation
Installation
operation
Quick release installation operation Alxe installation operation
Installation of the bicycle
5
1. Fit the bike chain to the smallest front and rear
flywheel and remove the rear wheel of the bike.
2. To install a bike on the product, first align the
bike chain with the smallest flywheel on the T100
Power Trainer, then press it until the fork end is
fully fixed on the product's axle.
3. Push the quick release lever to the OPEN
position and push the product firmly against
the inside of the bike's bottom.
4. Use your left hand to slowly tighten the
adjustment nut clockwise while using your right
Fig 5
Fig 6
Fig 4

Connection to T100 Power Trainer
6
hand to open and close the quick release lever.Continue tightening the nut until
you can feel the resistance from the lever when it reaches a position parallel to
the hub.
5. Hold the bike frame with your hand and push the quick release lever with your
palm until it is fully tightened, at which point the word "CLOSE"on the lever should
face outward and the level should be in front of or parallel to the fork legs.
6. Note! If the Quick Release lever is not correctly tightened,it may cause property
loss or personal injury.If it is hard to attain proper tightness,please consult your local
bicycle store or contact MAGENE.Please do not adjust the Quick Release lever while
cycling.
The LED indicator flashes slowly when installing a battery or turning pulley on this
product, at which point you can connect the product to your device via wireless
ANT + Bluetooth. When the connection is established, the LED will stop flashing
and remain turned on, indicating that the operation is successful.
T100 Power Trainer supports Zwift and other third-party software.
An ANT receiver (sold separately) is required to connect the T100 Power Trainer
with a PC.
Smart power trainer may not be listed as an option in some third-party training
software or code table, in which case you can try to search by the keyword
"power meter".

Activation and Spin-down Calibration
Indicator light and Battery Installation
LED Indicator
Status
Battery exhausted
Trainer in
sleeping mode LED off
Low power mode
Normal operation
the LED flashes slowly
No Bluetooth
connection
the LED is always on
Bluetooth
connected
Red light flashes every 10 seconds
Red / blue LED flashes alternately,and blue
light keeps on after successful Calibration
Low power
Spin-down
Calibration
Indication
7
Note! Each new product must be activated before first use.
Please go to www.magenefitness.com to download the Magene Utility to activate
the power trainer;
Better Spin-down Calibration will be acquired after warming-up for 10 minutes.
T100 Power Trainer has two indicator lights, one ①for system status and the other
② for communication status. See the figure for placement of the two indicators.
7.1 LED Indicator
In order to ensure power calculation accuracy, it is recommended to perform
a despin calibration after training with T100 Power Trainer for a pro-longed period.
Fig 7

Warnings！
8
7.2 Battery Installation
NOTE!
Before using, you should install two triple-A
batteries by following the procedures below：
If the battery is exhausted, you need to replace it by following the procedured above.
1. Use the cross screwdriver to release the
screw fixing the control module in the arrow
direction shown.
2. Remove the control module and Install
two triple-A batteries.
3. Reset the control module,then tighten the
fixing bolt to complete battery replacement.
Battery Installation
Fig 8
Used dry batteries should be discarded immediately.
Keep children and pets away from the T100 Power Trainer during use.
Place T100 Power Trainer on a flat, stable surface before using it and consult your
doctor before starting and changing any workout plan.
Do not touch any moving part of the T100 Power Trainer with your hands or objects.
Beware that the rear flywheel will become very hot after using the T100 Power
Trainer for a long time, make sure not to touch it.
Never try to disassemble the batteries.
If the product will not be used for a long time,remove the batteries to avoid
battery leakage which may cause damage to the product.

Warranty Card
Warranty Clauseproduct：
Warranty Clause：
9
Do not try to disconnect the bike while flywheel is spinning.
Be careful when riding with the T100 Power Trainer in a standing position.
Keep the T100 Power Trainer away from sources of fire, water and other obstacles.
For any user who weighs more than 85Kg, it's recommended not to swing your
body from left to right while riding with the product in a standing position,
otherwise there is the danger of overturning or frame fracture.
This product has passed strict quality inspection. According to the description of
this warranty card, if any product quality issue occurs in normal usage during
the warranty period, the user can enjoy free repair service.
Within 7 days from the date of purchase(including),the quality of the product itself
is unconditionally returned.
The product warranty period is 365 days (or other length of time as required by local
law), starting from the date of sale (or the date of shipment (activation) if there is no
sale date).
Thank you for purchasing the T100 Power Trainer. To ensure that the product
warranty takes effect, please fill out this card after carefully reading the terms below
and preserve it for safekeeping.

The following situations are not covered by warranty：
Term of after-sales service:
The Company retains the rights to modify and explain above-mentioned contents.
The user needs to use original packaging and the specified logistics/transportation
method to send the product for free repair,otherwise the user should be held
liable for freight or any damage caused by transportation.
The product is out of warranty.
Any damage caused by improper use, maintenance and storage.
Damage caused due to not following instructions for product use and installation.
Damage caused arbitrary repair, misuse, collision, negligence, abuse,fluid penetra-
Alteration of warranty certificate without authorization.
The user can't provide valid warranty certificate and invoice.
The product number or code shown on the warranty certificate does not match
the actual product.
Other malfunction and damage caused by problems other than product design,
manufacturing, quality, etc.
Abrasions, smudges and scratches that occur during normal use of the product,
as well as damage caused by human-made accidents such as contact with
chemical agents, sharp objects, and dropping, crushing.
Damage caused by force majeure.
Term of after-sales service:
Refer to instructions on official website: www.magenefitness.com
After the warranty expires, repairs due to malfunctions require users to assume the
cost of repair and shipping, while repairs due to artificial damage require users to
assume the cost of labor, parts and transportation.
tion, accident, modification or use of accessories not specified in the manual.
