Magewell XI006AE User manual

XI006AE 6-channelAudio and Video Capture Adapter
User’s Guide
Rev 1.0
2011/7/27

http://www.magewell.com
Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
Content
1 Preface ..........................................................................................................................................1
2 Minimum Hardware Configuration..............................................................................................1
3 Recommended Hardware Configuration......................................................................................1
4 System Requirements ...................................................................................................................1
5 Hardware and Driver Installation .................................................................................................2
6 Connection of Input......................................................................................................................2
6.1 SD Video Signal(CVBS) .......................................................................................................2
6.2 Audio Signal ..........................................................................................................................3
7 Video Capture Device Instruction................................................................................................3
7.1 Display "Filter Properties Dialog Window" In Common Software.......................................4
7.2 “Device” Instruction ..............................................................................................................4
7.3 Capture Device "Advanced Settings" Instruction..................................................................6
7.3.1 Capture ...............................................................................................................................7
7.3.2 Image Processing................................................................................................................7
7.3.3 Image Output......................................................................................................................7
8 Video Formats Setting..................................................................................................................8
8.1 Display "Filter Output Pin" In Common Software................................................................8
8.2 “Out Format” Instruction .......................................................................................................8
9 Audio Capture Device Instruction................................................................................................9
9.1 Windows XP, Windows 2003................................................................................................9
9.2 Windows Vista, Windows 7, Windows 2008, Windows 2008 R2......................................10
10 Compatible Software Instruction................................................................................................11

http://www.magewell.com
Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 1/16
1Preface
Thank you for purchasing XI006AE 6-channel audio and video capture adapter!
XI006AE is featured with small and exquisite bulk, superior performance. The
XI006AE can simultaneously capture six Standard-Definition video signals, and six
stereo analog audio signals.
The user’s guide will provide with necessary instruction for proper use of XI006AE
capture adapter.
2Minimum Hardware Configuration
Intel Core Solo
1G of RAM
Available PCI-Express x1 expansion slot on motherboard
3Recommended Hardware Configuration
Intel Core i5
2G of RAM
Available PCI-Express x1 expansion slot on motherboard
4System Requirements
System should be one of the following systems (x 86 version or x64 version):
Microsoft Windows XP
Microsoft Windows Server 2003

http://www.magewell.com
2/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
Microsoft Windows Vista
Microsoft Windows Server 2008
Microsoft Windows 7
Microsoft Windows Server 2008 R2
5Hardware and Driver Installation
Please refer to " XI006AE Installation Guide" to install the hardware and the driver.
6Connection of Input
6.1SD Video Signal(CVBS)
Figure 1, SD video signal connection sketch map

Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 3/16
6.2Audio Signal
Figure 2, audio signal connection sketch map
Notes: The audio signal input is up to" Line in" level standard, if you need to connect
to microphone, must connect microphone with microphone input of "microphone
amplifier" or "mixer", and then "microphone amplifier" or "mixer" output is
connected to the interface.
7Video Capture Device Instruction
XI006AE is based on Microsoft DirectShow interface, six video capture devices will
be increased in operating system after installation:
Video 1 (XI006AE Adapter x)
Video 2 (XI006AE Adapter x)
Video 3 (XI006AE Adapter x)
Video 4 (XI006AE Adapter x)
Video 5 (XI006AE Adapter x)
Video 6 (XI006AE Adapter x)
The Video 1 to 6(XI006AE Adapter x) is corresponding to yellow video BNC
interface with the same number in breakout cable.
XI006AE not only offers basic options, such as image brightness, contrast, hue,
saturation, Gamma and so on, but also provides additional options for setting function.

http://www.magewell.com
4/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
You can use "Filter Properties dialog window" in DirectShow to set options.
7.1Display "Filter Properties Dialog Window" In Common Software
Double click "AmCap.exe", choose SD video device "Video 1
(XI006AE Adapter1)" in "Devices" menu, then click "Video Capture Filter ..." in
"Settings" menu, pop-up " Filter Properties dialog window".
7.2 “Device” Instruction
Figure 3, Device Properties tab
Device Number: display serial of card, the number should be accorded with the
barcode on the card.
Version: display related version number, versions include hardware version,
firmware version, driver version, and device serial. You may request user to provide

Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 5/16
relevant version number when you solve problems.
Firmware: if new features need to upgrade the firmware, we should first backup it
and then upgrade the firmware.
Notes: The different versions of the firmware and hardware cannot be mixed together,
or else it will get error when upgrade. Additionally, do not power outage in the
process of firmware upgrade, otherwise it will lead to upgrade firmware fail, then the
capture card will not work. You have to return the capture card back to factory for
being repaired.

http://www.magewell.com
6/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
7.3Capture Device "Advanced Settings" Instruction
Figure 4, "Advanced Settings" page

Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 7/16
7.3.1 Capture
Square Pixel Mode: image is not deformation, XY pixel and aspect ratio are both 4:3,
PAL input is 768x576, NTSC input is 640x480, square pixel mode is default.
Non Square Pixel Mode: image is a little deformation, PAL input is 720x576,NTSC
input is 720x480.
Input: dimension, model.
Dim: when image is not clipped, capture dimension is the same as input, if image is
clipped, it will display dimension of image clipping.
Image Cutting: Through adjust up and down around the boundary to cut off image,
such as, the bottom has black edging, click bottom”+” to clip. The step size of 2
pixels, if you want recovery, click top“-” .
Notes: when you clip image, please set scale “Fill output image” to watch clipping
effect conveniently.
7.3.2 Image Processing
Generically, default value need not adjust, but in different environments if image
brightness, color, noise cannot reach best, you can fine-tune to achieve best.
Luma Gain: Default value is 1600, increasing or decreasing brightness according to
requirement. If you choose "Auto", image brightness will be dynamically auto
according to input signal.
Chroma Gain: Default value is 910, adjust image to black and white, raise image
color to be more and more bright. If check "Auto", image color will be dynamically
auto according to input signal.
Denoise: 4 is default, if image noise is more, you can raise denosie, image noise will
be significantly less, but image definition is slightly worse.
7.3.3 Image Output
Display output format of current image, set image zoom scale, de-interlace and
image flipping.
Format: display output image size, frame rate, color format.

http://www.magewell.com
8/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
Scale: if image size is not unified with user setting, we provide three ways,
full output image and keep aspect ratio, fill border to black and keep aspect
ratio, clip border. Full output image and keep aspect ratio is default.
De-interlace: vertical blend, motion adaptive. Motion adaptive is better,
but it takes up high CPU usage, also you can choose “disabled”.
8Video Formats Setting
Driver is redefined "Filter Output Pin" interface. Output resolution can be any size,
even special resolution which is cut.
8.1 Display "Filter Output Pin" In
Common Software
AMCAP: Double click "AmCap.exe", choose HD video device "HD Video
(XI006AE Adapter1)" in "Devices" menu, then click “Video Capture Pin ...”in
"Settings" menu, pop-up " Filter Output Pin ".
8.2 “Out Format” Instruction
Figure 5,””properties page

Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 9/16
Color Space: offer five color formats, YUYV, UYVY, I420, RGB 24 Bits, and RGB
32 Bits.
Image Size: set image size of output, it can be written manually, or select output
resolution from “Presets”, the bold font resolution at the top is the same as capture
image, it is the best resolution.
Frame Rate: set output frame rate, you can writer manually, or select from “Presets”.
If application software is set output frame rate, now setting is no effect, when you
open again, it will return frame rate in application software.
9Audio Capture Device Instruction
XI006AE is based on the Microsoft DirectShow interface. After installation in
operating system, the relevant audio devices will be added on. Any software which is
compatible with DirectSound, DirectShow can use the recording device for capturing
sound.
9.1Windows XP, Windows 2003
The name of audio capture device under Windows XP, Windows 2003:
Audio 1 (XI006AE Adapter x)
Audio 2 (XI006AE Adapter x)
Audio 3 (XI006AE Adapter x)
Audio 4 (XI006AE Adapter x)
Audio 5 (XI006AE Adapter x)
Audio 6 (XI006AE Adapter x)
Through system "Volume Control" to adjust recording volume, detailed steps as
follows:
1. In system notification icon area on right corner double-click " " button to
pop-up " Open Volume Control" window.
2. Open "Options" menu, select "Properties" menu item.

http://www.magewell.com
10/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
3. In "Mixer", select "Audio 1 (XI006AE Adapter x)", click "OK" button.
4. Corresponding volume control project will be displayed, this time you can
operate volume and "quiet" according to your requirement.

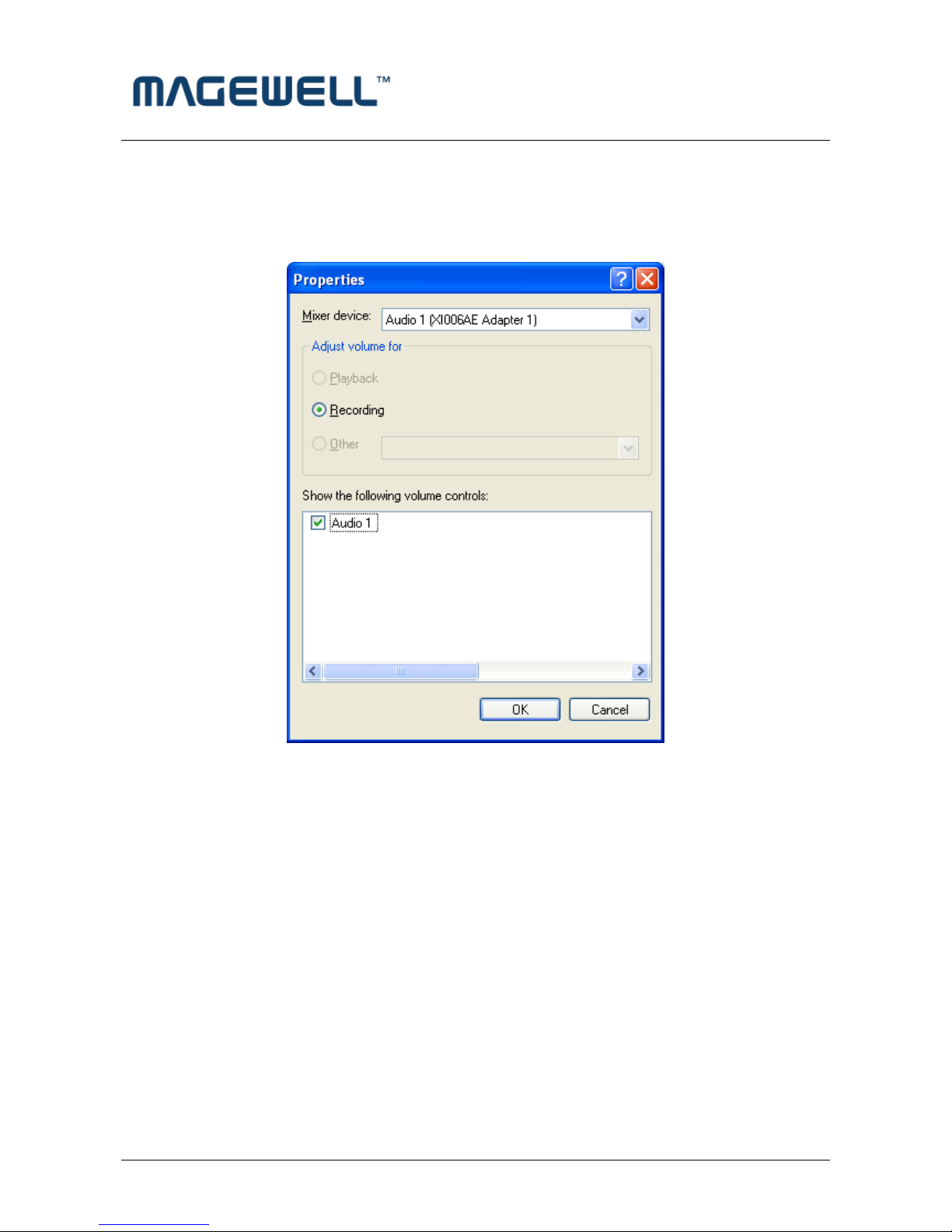

Figure 6 ， Windows XP/2003“VolumeControl”-“Properties”dialogue
9.2Windows Vista, Windows 7, Windows 2008, Windows 2008 R2
Under such operating systems, each capture card will show two audio capture
devices:
Audio 1 XI006AE Adapter x
Audio 2 XI006AE Adapter x
Audio 3XI006AE Adapter x
Audio 4 XI006AE Adapter x
Audio 5 XI006AE Adapter x

Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co. 11/16
Audio 6 XI006AE Adapter x
Through system "Volume Control" to adjust the recording volume, specific steps as
follows:
1. In system notification icon area on right corner right-click " "button, select
"Recording devices" in pop-up menu.
2. In pop-up list which displays recording device, select " Audio 1 XI006AE
Adapter x ", click "Properties" button, system will pop up device properties
dialog window.
3. In Properties dialog box, select "Levels" property page, then you can operate
volume control and "Quiet" according to your requirement.
Figure 7, Windows Vista/7 recording device properties dialog windows
10 Compatible Software Instruction
XI006AE can be compatible with variety of audio and video capture software which

http://www.magewell.com
12/16 Copyright © 2009-2010 All Rights Reserved. Nanjing Universal Networks Co.
is based DirectShow interface, and audio capture software which is based
DirectSound interface, such as:
Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
Video LAN for Windows
