Magic Chef MCSCTG12S User manual

1
Model MCSCTG S
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR
GAS COOKTOP AND KEEP IT FOR FUTURE REFERENCE.
-Inch Gas Cooktop
User’s Manual

2
PRODUCT REGISTRATION
Thank you for purchasing this Magic Chef®product. The first step to protect your new product is to complete the product
registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:
1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.
Once again, thank you for purchasing this Magic Chef product.

3
CONTENTS
PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION REQUIREMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
OPERATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4
PRECAUTIONS
EXPLANATION OF SYMBOLS
WARNING
Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION
Hazards or unsafe practices which COULD result in minor personal injury.
THIS PRODUCT IS INTENDED FOR
HOUSEHOLD USE ONLY
WARNING: Read and understand all safety precautions. Failure to follow all instructions described in this user
manual may result in electric shock, fire and/or serious personal injury. The warnings, cautions and instructions
discussed in this user manual cannot cover all possible conditions and situations that may occur.
WARNING: If information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WARNING: What to Do If You Smell Gas
DO NOT try to turn on any appliance.
DO NOT touch any electrical switch.
DO NOT use any phones in home.
Immediately call your gas supplier from a phone outside of the home. (Ex: Go to a neighbor’s home to call
your gas supplier or fire department.)
If the gas supplier cannot be reached, call the fire department.
Installation and service must be performed by a qualified installer or service agency.
WARNING: State of California Proposition 65 Warnings
This product containes one or more chemicals known to the State of California to cause cancer.
This product contains one or more chemicals known to the State of California to cause birth defects or
other reproductive harm.

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the oven,
follow basic precautions.
Be sure the cooktop is properly installed by a qualified technician.
DO NOT allow anyone to climb, stand or hang on cooktop.
NEVER use this appliance to warm or heat a room. Doing so may result in carbon monoxide poisoning and
overheating of the cooktop.
DO NOT leave children alone or unattended. Children SHOULD NOT be left alone or unattended in the area
where the cooktop is in use; they could be seriously burned or injured. Children SHOULD NEVER be allowed
to sit or stand on any part of the cooktop; they could be seriously burned or injured.
Wear proper apparel. Loose fitting or hanging garments SHOULDNOT be worn while utilizing the cooktop.
DO NOT repair or replace any part of the oven unless specifically recommended in the manual. All other
servicing should be referred to a qualified technician.
DO NOT store flammable materials near the cooktop.
DO NOT store or use combustible materials, gasoline or other flammable vapors and liquids near the
vicinity of the cooktop or any other appliance.
DO NOT use water on grease fires. NEVER pick up a flaming pan or pot. Turn the controls off. Smother the
flaming pan or pot by covering it completely with a fitting lid, cookie sheet or flat tray. Use multi-purpose
dry chemicals or foam-type fire extinguisher.
Flaming grease outside of the pan or pot can be put out by covering it with baking soda, multi-purpose dry
chemicals or foam-type fire extinguisher.
Use only dry pot holders. Moist or damp potholders on hot surfaces may result in steamed burns.
DO NOT heat un-opened food containers on the surface burners. Pressure could build up and the container
can burst, causing injury.
NEVER leave jars of fat drippings on or near your cooktop.
DO NOT let cooking grease deposits accumulate in or near the cooktop, as this may cause a grease fire.
In the event that a burner goes out and gas escapes, open a window or door. Wait at least 5 minutes before
using cooktop.
DO NOT use aluminum foil to line any part of the cooktop.
If the cooktop is near a windows, be certain that the curtains or window covering are away from the
cooktop burners.
ALWAYS have a working smoke detector near the kitchen.
DO NOT allow pans to dry boil.
When the cooktop is in use DO NOT touch the burner grates, burner or surrounding areas as they may be
hot and cause serious burns.

6
SPECIFICATIONS
Height
Width
Depth 20.0” (510 mm)
BTU Burner - Triple Ring 16000 BTU
Front Burner - Auxiliary Burner 5000 BTU
20.0” (510 mm)
Figure 1
3.6” (91 mm)
11.8” (300 mm)
11.8” (300 mm)
3.6” (91 mm)
Net Weight 15.0 lbs. (6.8kg)

7
INSTALLATION REQUIREMENTS
IMPORTANT: This appliance shall be installed only by qualified technician and in accordance with the
manufacturer’s installation instructions, local gas fitting regulations, municipal building codes, electrical wiring
regulations, local water supply regulations.
IMPORTANT: Save these instructions for local electrical inspectors use. Read and save these instructions for
future use.
TOOLS AND PARTS
Tools Required
LOCATION REQUIREMENTS
The air necessary for the combustion of the gas must be able to flow into the room naturally. The air must flow
into the room directly through openings in the outside walls. These openings must have an unobstructed cross-section
not less than 2m³/h for each kw of power.
Parts Required
Figure 2
Figure 3
Pipe Fittings
Pencil
Ruler
Phillips Head Screwdriver
Pipe Wrench
1/8” Drill Bit &
Electric or Hand Drill
Safety Glasses
Saber Saw
Joint Sealant
Shut-Off Valve
CSA-Approved Flexible 1/2” or 3/4” Gas Line

8
The opening must be constructed so that
it will not be obstructed from inside or
outside, or constructed close to the floor.
The opening is recommended to be on the
side opposite to that on which the flue gases
are discharged.
Avoid placing cabinetry directly above
cooktop when possible. If cabinetry is used
above cooking surface, use cabinet no more
than 13” deep.
Working areas adjacent to the cooktop
should have a 18” minimum clearance
between countertop and cabinet bottom.
Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand
heat (up to 200°F) generated by the cooktop.
18.0” (457 mm)
min.
30.0” (762 mm) min.
13.0”
(330 mm)
max.
Figure 4
Figure 5
Maintain 30” minimum clearance between cooktop surface and cabinets installed above the cooktop.
- If a range hood is installed above the cooktop, it is important that the 30” minimum clearance between
the cooktop and bottom of the range hood is maintained. The range hood must be connected directly
to flues or to the outside.
- A range hood with minimum 350 CFM that projects at least 5” beyond front of cabinets can reduce risk
of burns caused by reaching over heated surface units.
GAS AND ELECTRICAL SUPPLY REQUIREMENTS
Installation must comply with local codes. In the absence of local codes, the gas cooktop must comply with the
National Fuel Gas Code ANSI Z223.1- latest edition in the United States, or in Canada CAN/CGA B149.1 and CAN/
CGA B149.2 and the National Electrical Code ANSI/NFPA No.70 – latest edition in United States, or in Canada CSA
Standard C22.1, Canadian Electrical Code, Part 1, and local code requirements.
1.0” (26 mm) min.
12.0” (305 mm)
Gas Supply
Line
Gas Supply Requirements
The gas supply should be located near the opening for
this cooktop and a minimum of 1”from theback wall. This
cooktop is manufactured for natural gas and is designed
to operate at 5” water column pressure. The regulator is
required to provide a minimum of 6” water column to a
maximum of 14” water column to the cooktop regulator.
Electrical Supply Requirements
The electric spark ignition feature for this model requires
a 120V electrical power supply and should be located 12”
below the countertop and within reach of the cooktops
four-foot power cord.

9
INSTALLATION INSTRUCTIONS
WARNING: Installation and service must be performed by a qualified installer, service agency or the gas
supplier. Failure to do so can result in death, fire, or electrical shock.
IMPORTANT: Save these instructions for local electrical inspectors use. Read and save these instructions for
future use.
WARNING: Installations for Gas and Electric
The cooktop is manufactured for use with Natural Gas. The cooktop can be converted for use with propane
gas using the propane conversion kit supplied with the cooktop.
Be sure the cooktop being installed is correct for the type of gas being used.
Refer to the rating plate located on the underside of the burner box.
When connecting the unit for propane gas, make certain the propane tank is equipped with its own high
pressure regulator.
In addition, the pressure regulator supplied with the cooktop must be installed on the gas inlet pipe going
to the cooktop.
INSTALLING COOKTOP
1. Use as 24” or deeper base cabinet.
2. Cut the opening in the countertop.
To ensure accuracy it is best to
make a template for the opening.
Make sure the sides are parallel
also rear and front cuts are exactly
perpendicular to the sides. Keep
in mind all minimum clearances.
(Refer to Figure 6.)
3. Before installing the cooktop into
the opening in the countertop,
remove all grates and burner caps.
4. Turn the cooktop upside down
and place the special foam gasket
around the bottom edge of the
cooktop. It is important that the
gasket is fixed evenly without
any gaps or overlapping, this is to
prevent liquid seeping underneath
the cooktop. (Refer to Figure 7.)
5. After the foam gasket is installed,
place the cooktop into the
countertop. (Refer to Figure 6.)
6. Secure the cooktop from
underneath with the supplied clips
and screws. (Refer to Figure 8.)
Figure 6
Figure 7 Figure 8
Underside of Cooktop
Clip
Screw
Foam Gasket
Underside of Countertop
”
300 mm) 20” (510 mm)
3.6” (91 mm)
6” (150 mm) 3” (75 mm) 19 ” (490 mm)
11” ( 0 mm)

10
GAS CONNECTION
WARNING: Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure gas pressure does not exceed 14” (36cm) water column.
Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
WARNING: NEVER reuse an old flexible connector. The utilization of an old flexible connector may cause gas
leakage and personal injury.
NOTE: ALWAYS use a new flexible connector when installing a gas appliance.
NOTE: ALWAYS apply thread compound approved for use with LP or Natural Gas to all thread connections.
Gas Pressure Regulator
The gas pressure regulator supplied with this cooktop must be used. For proper operation the inlet pressure to
the regulator should be as follows. (Refer to Figure 9.)
Gas Shut-Off Valve
The gas supply line must be equipped with
a manual shut-off valve. This valve should
be located in the same room but external to
the cooktop. It should be in a location that
allows ease of opening and closing. DO NOT
block access to shut-off valve. The valve
is for turning on or shutting off gas to the
cooktop. (Refer to Figure 10.)
Figure 9
Natural Gas
Minimum Inlet Pressure:
5” WCP (Water Column Pressure)
Maximum Supply Pressure:
6” WCP (Water Column Pressure)
LP Gas
Minimum Inlet Pressure:
11” WCP (Water Column Pressure)
Maximum Supply Pressure:
12” WCP (Water Column Pressure)
NOTE: Contact your local gas supplier if
you are not sure about the inlet pressure.
The pressure regulator must be connected in
series with the manifold of the cooktop and
must remain in series with the supply line
regardless the type of gas being used.
Pressure
Regulator
Shut-Off
Valve Electrical Outlet 12”
Below Countertop
Rear View of Regulator
(Note the direction of
arrow.)
Figure 10
Manual Shut-Off Valve
“Closed” Position
To Range
Gas Supply Line
IMPORTANT: It is important to know how and where to shut off the gas supply to the cooktop.

11
1. The gas inlet is located on the bottom of the cooktop at the rear and 8½ from the right hand edge of the
cooktop. Make gas connection through rear wall, or on cabinet floor at rear. Install the house gas supply at
least 1” from the back wall.
2. When installing, fit a safety tap at the end of the pipeline. The cooktop is manufactured and tested for
natural gas.
IMPORTANT: Make sure the type of gas being supplied to the cooktop is the same as that show on the label
affixed to the underside of the cooktop.
NOTE: All connections must be wrench-tightened. Use only pipe-joint compound made for use with Natural
and LP gas.
Figure 11
3. Install the pressure regulator with the arrow pointing up toward the bottom of the cooktop base and in
position where you can reach the regulator cap.
DO NOT make connections to the gas regulator too tight. Making the connections too tight may crack
the regulator and cause gas leak.
DO NOT allow the regulator to turn on the pipe when tightening.
4. Apply Natural Gas/LP Gas pipe joint compound to the smaller thread ends of the flexible connector adapters.
5. Attach 1 adapter and nipple to the gas pressure regulator and the other adapter and nipple to thegasshut-off
valve. Tighten both adapters and nipples.
6. Using a wrench and pliers attach the flexible connector to both adapters. Check to ensure the connector is
not kinked or damaged.
Completing Gas Connection
1. Check to make sure all burner knobs are in the OFF position.
2. Open the manual shut-off valve in the gas supply line.
The valve is open when the handle is parallel to the gas pipe.
3. Test all connections by brushing on an approved non-corrosive leak-detection solution.
Bubbles indicates a leak, correct any leaks found.
4. Check the alignment of the control knob valves after connecting the cooktop to the gas supply to be sure
the cooktop manifold pipe has not moved.
CAUTION: Misalignment could cause the valve stems to rub on the control panel, resulting in a gas leak at the valve.
NOTE: Disconnect this cooktop and its individual manual shut-off valve from the gas supply piping system
during any pressure testing of that system at test pressures greater than 1/2 psig (3.5kPa or 14” water column).
NOTE: Isolate the cooktop from the gas supply piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2 psig (3.5 kPa
or 14” water column).
Manual
Shut-Off Valve
Pressure Regulator
Flexible Connector
Access Cap
Flare Union Flare Union
Nipple Nipple
Gas Flow

12
GAS CONVERSION
WARNING: Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure gas pressure does not exceed 14” (36cm) water column.
Examples of a qualified person include: licensed heating personnel, authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
The range can be used with Natural Gas or LP/Propane Gas. The range is manufactured from the factory for use
with Natural Gas. A kit for converting to LP/Propane Gas is supplied with your cooktop. The kit is marked “For LP/
Propane Gas Conversion”.
NOTE: When the cooktop is converted for LP/Propane Gas, the LP gas supply is required to provide a minimum
of 10” to a maximum of 14” water column to the cooktop regulator.
The conversion must be performed by a qualified service technician in accordance with the kit instructions and
all local codes/requirements.
CAUTION: Failure to follow instructions could result in serious injury.
Parts Required
Figure 12
7mm Nut Driver Small Flat-Head Screwdriver
(2 to 2.4 mm or 3/32” tip
size, 60 mm long)
Wrench Safety Glasses
Converting to LP/Propane Gas
Burner Type
Max Output Min Output Natural Gas LPG
Kw Kw Nozzle
(mm)
Cons
(M3/h)
Nozzle
(mm)
Cons
(g/h)
Auxiliary Burner 1 0.3 1 x 1.10 0.1 1 x 0.70 73
Triple Ring Burner 4.5 1.5 5 x ø0.99 0.43 5 x ø0.56 327
Figure 13 Figure 14
Manual Shut-Off Valve
“Closed” Position
To Range
Gas Supply Line
1. Turn the manual
shut-off valve to
the closed position.
(Refer to Figure 13.)
2. Unplug range or
disconnect power.
3. Unscrew the regulator
cap with the wrench.
(Refer to Figure 14.)
Retainer Pin
Regulator
Retulator Cap

13
4. Remove the retainer pin that is currently positioned for use with Natural Gas. (Refer to Figure 15.)
5. Turn the retainer pin upside down and re-install into regulator cap. (Refer to Figure 15.)
6. Screw the regulator cap back into the regulator and reattach the regulator to the nipple and flare union.
(Refer to Figure 15.)
Converting Surface Hob Burners (Natural Gas to LP Gas)
1. Remove the burner grates, burner caps and burner heads.
2. Using a 7 mm nut driver, remove the burner orifices.
Figure 15
Figure 16
Retainer Pin Regulator
Retulator Cap
Triple Ring Burner - 5 Nozzles
Nozzles
Auxiliary Burner - 1 Nozzle
3. Install the proper orifices in replace of the ones that were removed.
4. Re-install the burner bases, heads and top grates. Make sure the burner caps are properly seated on the
burner heads.
NOTE: The triple burner has only two injectors, one injector mounted in the center and one mounted below
the cover plate. To access the second injector, remove the two screws and the cover plate.
IMPORTANT: Once the conversion has been completed and has passed testing, fill out the conversion sticker
and include your name, organization and the date conversion is made. Apply thesticker near the cooktop gas inlet
opening to alert others in the future that this appliance has been converted. If converting back to Natural Gas,
remove thesticker so others know that the appliance is set to use its original gas.

14
DO NOT remove the ground prong from the power cord plug.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to do so can result in death, fire or electrical shock.
NOTE: Before making the connection, make sure of the following.
The safety circuit breaker and the electrical system are able to withstand theload of theappliance.
Thepower supply system has a ground connection in good working order in accordance with the regulation.
The electrical socket should be easily accessible with the appliance installed. In all cases, the power supply lead
must be positioned so that it does not reach a temperature of 122°F above the room temperature at any point.
WARNING: Severe shock or damage to the cooktop may occur if the cooktop is not installed by a qualified
service technician.
WARNING: If for any reason a gas control knob is turned ON and there is no electric power to operate the
electronic igniter of the cooktop, turn off all gas control knobs and wait 5 minutes for gas to dissipate before
lighting the burner manually.
WARNING: To light the burner manually, carefully hold a lighted match to the burner ports and push and turn
the gas control knob to HI until it lights and then turn the knob to the desired setting.

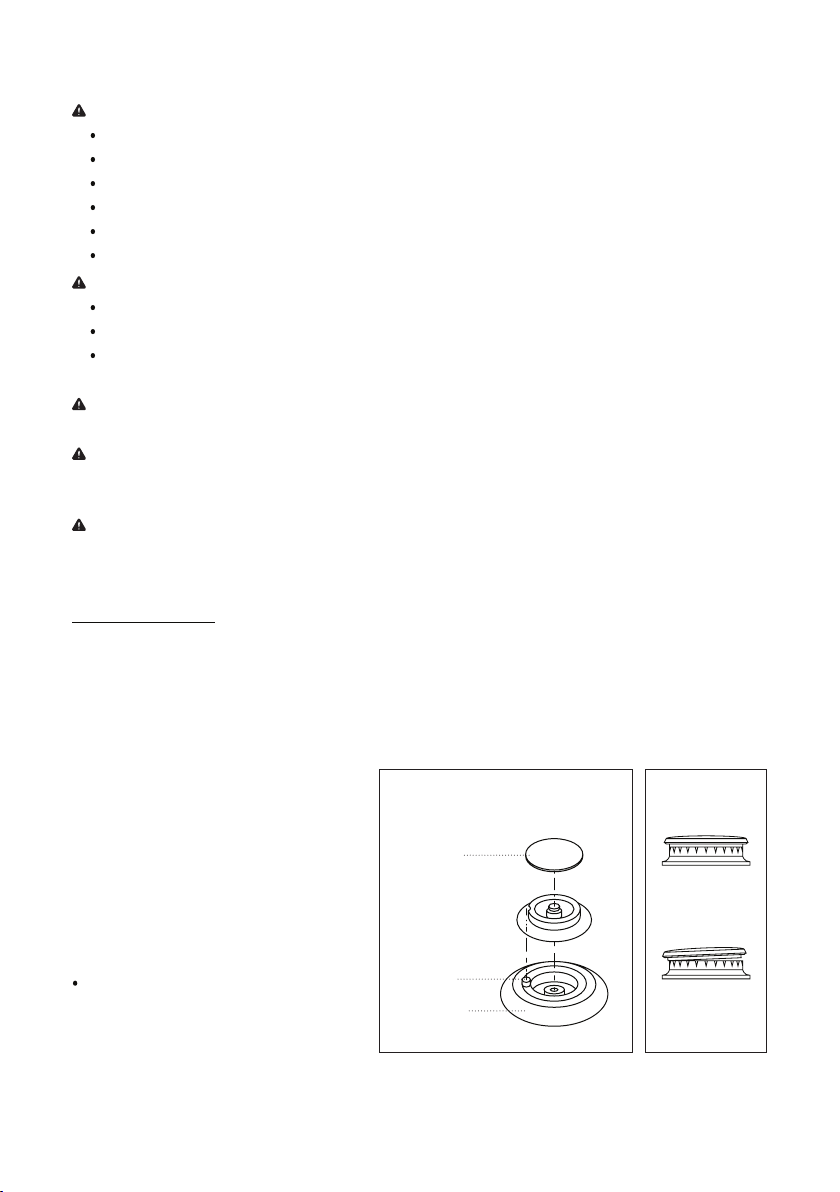

Assembling the Burners
The electrode of theelectronicignition system is positioned above thesurface of the burner base. DO NOT remove a
burner cap or touch the electrode of a burner while another is turned on. Damage or electrical shock may occur.
1. Place burner heads over the burner base. Make sure the hole in the burner head is properly aligned with the
electrode in the burner base. (Refer to Figure 17.)
ELECTRICAL CONNECTION
WARNING: Electrical Shock Hazard
ALWAYS disconnect the electrical plug from the wall receptacle before servicing this unit.
Plug into a grounded 3 prong outlet.
Figure 18
Not Properly
Seated
Properly
Seated
2. Place the burner caps on the burner
heads. Make sure the burner caps are
properly seated on the burner head.
(Refer to Figure 18.)
3. Operation of the electric ignitors
should be tested after the cooktop and
supply line have been carefully checked
for leaks and the cooktop has been
connected to the electrical power.
To check igniters, push and turn a burner
valve to the light positon. All sparks will
make a series of sparks, but only the
burner turned to LITE with light.
Figure 17
Burner Cap
Burner Head Assembly
Electrode
Burner Base

15
HOW TO CHECK OPERATION
How to Adjust Standard Burner
IMPORTANT: Adjustments must be made with two other burners in operation on a medium setting. This
prevents theupper row of the flames from being set too low, resulting in the flamebeing extinguished when other
burners are turned on.
1. Turn all burners on the highest setting and check the flames. The flames should all be bluein color (LP gas
will have blue flames with yellow tips). Foreign particles in the gas line may cause an orange flame at first, but
should disappear in a short period of time.
2. Light one burner and turn to thelowest setting.
3. Remove the control knob to the desired burner that you wish to adjust.
4. Insert screwdriver through the access hole in the valve shaft. (Refer to Figure 19 .)
5. Slowly turn the screw until the flame appearance is correct.
If the flames are too small or fluttered, open the valve more than theoriginal setting.
If the flames are too large, close the valve more than the original setting.
Figure 19
Testing FlameStability
Test 1: Turn the control knob from “HI” to “LO” quickly. If the upper row of flames goes out at this setting,
increase the flame sizeand test again.
Test 2: With theburner on “LO”, open and closethecabinet door under the cooktop. If the flameis
extinguished by the air currents created by the door movement, increase the flameheight and re-test.
Flame Check
After all the flameadjustments have been made, turn all burners to the off position.
“LITE” each burner individually and observe the flame at the “HI” position.
Rotate the burner knob to thelowest setting and besure the flame size decreases as the knob is rotated
counter-clockwise.

16
OPERATION INSTRUCTIONS
COOKTOP
Figure 20
WARNING: Fire Hazard
DO NOT operate a burner using empty cookware or without cookware on the grate.
DO NOT touch the burner when the igniters are clicking (sparking).
DO NOT let theburner flame extend beyond the edge of the pan.
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
ALWAYS use theLITE position when igniting the top burners and make sure the burners have ignited.
NEVERleave the surface burners unattended at high flame settings. Boil overs can cause smoke and greasy
spillovers that may catch on fire.
ALWAYS turn cookware handles toward theside or back of the range without extending over adjacent burners.
ALWAYS turn the burner controls off before removing the cookware.
CAUTION: Excessive flames are hazardous. Adjust theburner flame size so it does not extend beyond theedge
of the cookware.
CAUTION: When utilizing pot holders. Only use dry pot/pan holders as moist or damp pot holders to hot
surfaces may result in burns from steam. DO NOT let pot holders come near open flames when lifting cookware.
CAUTION: When utilizing glass cookware. Make sure the glass cookware is suitable for top range cooking.
CAUTION: Keep all plasticitems away from the cooktop as they may melt if left too close to the heat.
CAUTION: When removing the cooking grates, ALWAYS be certain that the controls for all burners are set to off.
Make sure all cooking grates are cool before attempting to remove them
Burner -
Triple Ring Burner
Front Burner -
Auxiliary Burner
Control Knob
for Front Right Burner
Control Knob
for Rear Left Burner

17
BURNERS
Place a burner cap on each burner head,
matching thecap size to thehead size.
(Refer to Figure 22.)
Thecap for each burner has an inner
locating ring which centers thecap
correctly on the burner head.
Be sure that all the burner caps and
burner heads are correctly placed BEFORE
using your appliance.
ELECTRIC GAS IGNITION
Thegas burners utilizean electric ignition device located near each
burner. By the means of spark igniters ensure the surface cooktop to
light automatically.
1. Push in and turn the control knob counterclockwise to the LITE
position. All surface burners will click but only the burner with
control knob turned to LITEwill produce a flame.
2. After the burner ignites, keep the knob pressed down for 10
seconds. (Refer to Figure 24.) This allows the thermocouple to
heat up and activate the safety valve.
Figure 23
Not Properly
Seated
Properly
Seated
Figure 22
Burner Cap
Burner Head Assembly
Electrode
Burner Base
CONTROL KNOBS
Figure 21
The color of the flame will reflect theproper burner adjustment. A good flameshould be clear, blue and
steady. If the flame is yellow-orange in color then the burner needs to be adjusted or cleaned.
Figure 24
3. Check the flame to be even and then turn control knob to the desired flamesize.
CAUTION: ALWAYS use caution when lighting burners manually.
4. In theinstances of a power outage, carefully hold a lighted match to theburner ports and push and turn the
gas control knob to HI until it lights and then turn the knob to the desired setting.
NOTE: ALWAYS position cooking cookware on the burner grate BEFORE lighting theburner.
CAUTION: The flame SHOULD NOT extend beyond the sides or the pot or pan.
NOTE: If any burner flame goes out due to draft or other reasons, thegas valve will shut off thegas supply. To
re-ignite the burner, turn the gas valve to the ignition setting and push down the knob to ignite theburner.

18
COOKWARE
CAUTION: NEVER extend the flame beyond the outer
edge of the cookware. (Refer to Figure 25.)
DO NOT use cookware that is unstable or easily tippable
as this can increase the chances of spill over and serious
injury. To avoid spillover make sure cookware is large
enough to contain the food properly.
DO NOT let the burner flames extend beyond the edge
of thepan.
Figure 25
Not Proper Flame Size Proper Flame Size
Use of cookware lids
Only use lids that are fitted for the cookware. This will allow shorten and more efficient cooking time.
Cooking with Canners and Pressure Cooker
Thecanner and pressure cooker must meet the required standards for cooktop cooking. Check to ensure the
canner/pressure cooker has a flat bottom surface and is evenly balanced on the cooktop. Also check to ensure the
lid fits properly to the canner/pressure cooker.
Proper Pan Size and Type
WARNING: Failure to follow these instructions can result to serious injury or death.
UTILIZING PROPER PAN SIZE – Select cookware that is theappropriate in size to cover theburner grates.
Use only certain types of glass, heatproof glass ceramic, ceramic, earthenware, or other glazed cookware that
is suitable for the cooktop.
DO NOT use cookware that is unstable or easily tippable as this can increase the chances of spill over and
serious injury. To avoid spillover make sure cookware is large enough to contain the food properly.
DO NOT let the burner flames extend beyond the edge of the pan.
Turn off all controls when burners are not in use.
Cookware and the characteristics
Use the following chart as a guide for cookware material characteristics.
Cookware Characteristics
Aluminum Heats quickly and evenly.
Suitable for all types of cooking.
Medium or heavy thickness is best for most cooking tasks.
Cast Iron Heats slowly and evenly.
Good for browning and frying.
Maintains heat for slow cooking.
Stainless Steel Heats quickly, but unevenly.
A core or base of aluminum or copper on stainless steel provides even heating.
DEEP FRYING
ALWAYS use a thermometer and adjust thesurface control knob to the correct temperature. If the fat is too cool
the food will absorb the fat. If the fat is too hot the food will brown quickly and the center will be undercooked.
DO NOT attempt to deep fry too much food at once as the food will neither brown nor cook properly.
CAUTION: During cooking process involving fats or oils, watch your food carefully because these substance may
catch fire if brought to high temperatures.

19
CARE AND MAINTENANCE
IMPORTANT: DO NOT attempt to clean or touch the cooktop while it is still hot. Some cleaners produce
noxious fumes when applied to a hot surface. Failure to do so can result in serious bodily injury.
CAUTION: To avoid possible burns or injuries, DO NOT attempt any of the following cleaning instructions
before turning OFF all of thesurface burners. ALWAYS allow all surface burners and grates to cool prior to cleaning.
IMPORTANT: When cleaning the cooktop make sure all control are off and all surfaces are cool before cleaning
any part of the cooktop
CAUTION: Some cleaners can produce noxious flames if applied to a hot surface.
Stainless Steel
DO NOT usesop-filled scouring pads, abrasive cleaners, cooktop cleaner, steel-wool pads, gritty wash
cloths or abrasive paper towels.
Recommended Cleaning Methods
Recommended tousestainless steel cleaner or polish.
Recommended tousevinegar for hard water spots.
Recommended touseliquid detergent or all-purpose cleaner. Rinse well with clean water and dry with soft,
lint-free cloth.
Recommended torub in the direction of grain to avoiddamage.
Control Knobs
For general cleaning use hot soupy water and a cloth. For built up of grease apply liquid detergent directly
onto thebuilt up area. Rinse with a damp cloth and dry.
DO NOT use steel wool or acidic cleaners on the control knobs.
Grates and End Caps
DO NOT clean until the grates and caps have cooled
DO NOT reassemblegrates and caps if they are still wet.
To avoid chipping, DO NOT bang grates and caps against each other or hard surfaces.
Recommended to utilize mildly abrasive cleaner.
Recommended to utilizea non-abrasive cloth or plastic scrubbing pad.
Burner Spreader
Recommended to frequently wash the burner spreader with boiling water and detergent to removeany
deposit build up. This will maintain steady flame output.
ALWAYS dry the burner spreader thoroughly before re-installing.

20
LIMITED WARRANTY
MC Appliance Corporation warrants each new Gas Cooktop to be free from defects in material and workmanship, and agrees to
remedy any such defect or to furnish a new part(s), at the company’s option, for any part(s) of the unit that has failed during the
warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of
the dated sales receipt/invoice is required to receive warranty service, replacement or refund.
This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. This warranty does not
cover the following:
Damages due to shipping damage or improper installation.
Damages due to misuse or abuse.
Content losses due to failure of the unit.
Repairs performed by unauthorized service agents.
Service calls that do not involve defects in material and workmanship such as instructions on proper use of the
product or improper installation.
Replacement or resetting of house fuses or circuit breakers.
Failure of this product if used for other purposes than its intended purpose.
Disposal costs for any failed unit not returned to our factory.
Any delivery/installation costs incurred as the result of a unit that fails to perform as specified.
Expenses for travel and transportation for product service if your appliance is located in a remote area where
service by an authorized service technician is not available.
The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
Refunds for non repairable products are limited to the price paid for the unit per the sales receipt.
This warranty is non transferable. This warranty applies only to the original purchaser and does not extend to any
subsequent owner(s).
Limitations of Remedies and Exclusions:
Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all
implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or theshortest
period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or
person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is
the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.
Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Model Parts Labor Type of Service
One Year One Year Carry In
For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service
or order parts.
