MAGIC SCREED E-Screed HDE-1010 User manual

INVENTOR
OF THE
PORTABLE
VIBRATING SCREED

PARTS BOOK & OWNER’S MANUAL

2
TABLE OF CONTENTS
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 3
E-Screed Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 3
Battery Specifications and Highlights . . . . . . . . . . . . . . . . . . p. 3
Warning logos on your E-Screed. . . . . . . . . . . . . . . . . . . . . . p. 3
Proper care and usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
Working procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4-5
Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 5

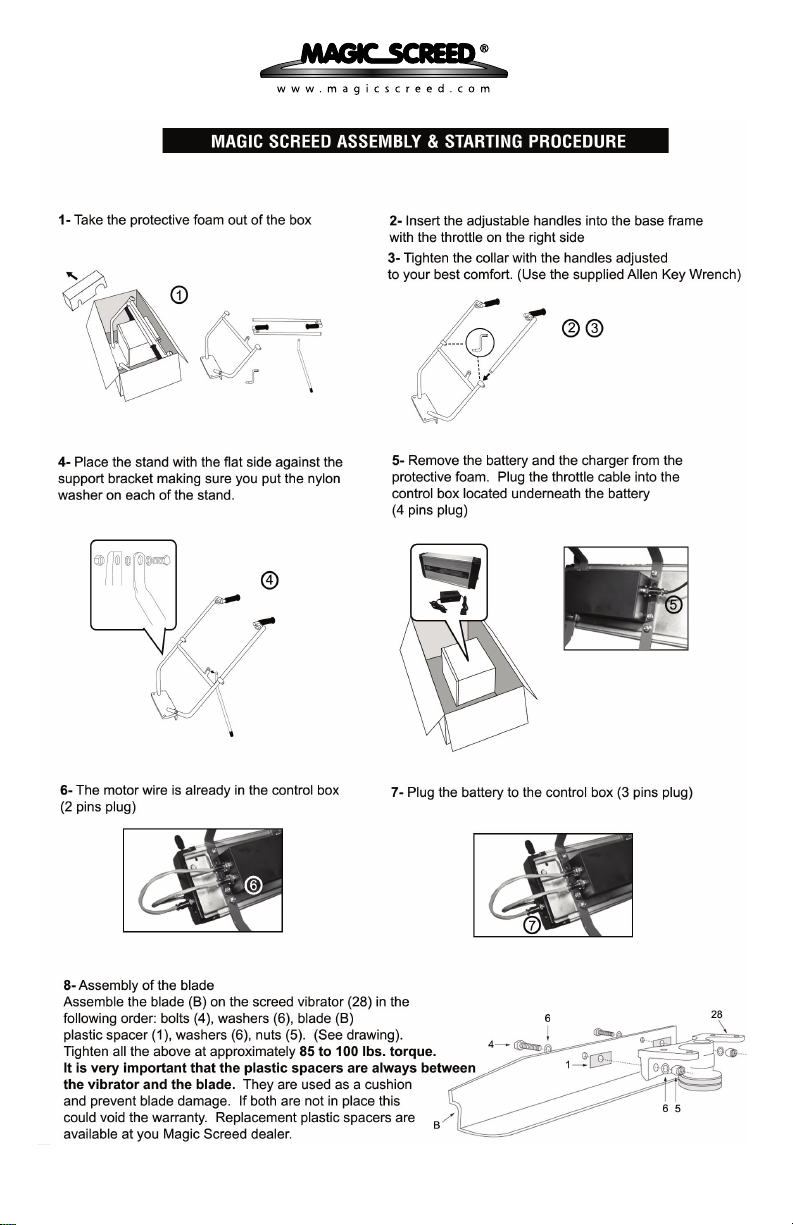

E-Screed Assembly & Starting procedure . . . . . . . . . . . . . . . p. 6
E-Screed parts Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 7-8-9
E-Screed Parts Book 2013. . . . . . . . . . . . . . . . . . . . . . . . . . . p. 10-11
MAGIC SCREED PARTS BOOK & OWNER’S MANUAL
Congratulations on your selection of Magic Screed.
Magic Screed
is manufactured for contractors and entrepreneurs in need of a
dependable, user friendly, high productivity tool to operate for leveling and smoothing
wet concrete. Any other use of this tool could damage it or even cause injuries or
death to the operator and surrounding coworkers.
Unfortunately, it is impossible to warn you about all the hazards associated with
operating or maintaining a powered screed. You must use your own good judgement.
This manual and the
Honda engine manual supplied with your Magic Screed should
always remain with the equipment.
Safety instructions, assembly, maintenance and
parts lists are included.
For your own
safety , and that of your coworkers, it is required that anyone operating
or servicing the screed, read and understand the safety instruction in this manual.
Failure to do so could result in personal
injury , death or equipments damage .

3
SAFETY
1- Read and understand the owner’s manual before operating or servicing the screed
2- Have a first aid kit available in case someone gets injured
3- Wear the appropriate safety gear (according to your local requirement
Suggested list of protection gear
- Hardhat
- protective boots
- protective goggles
- gloves
- hearing protection
E-SCREED BATTERY
The LiFePo4 battery on your E-SCREED offers the best in class technology, safe-
ty, power and convenience. Testing and quality control ensure this battery will
deliver performance and power with every one of its 1500+ lifecycles.
BATTERY SPECIFICATIONS AND HIGHLIGHTS
LiFePo4 lithium iron phosphate (safe chemistry technology)
Dimensions: 13X6X3 inches / 33X15X7 cm
Weight: 9.5 lbs./4.2kg
Voltage: 36 volts
Capacity: 10 amp hour
Cycle life: 1500+ with overcharge protection and cut off protection
Memory: zero, can be recharged at any time and is maintenance free
Safety: extremely safe
Environmentally friendly: best of any battery technology
WARNING LOGOS ON YOUR SCREED
Logo, explanation and label positioning:
1-Appropriate safety gear: left handle
WARNING : USE WITH CAUTION
EYE
PROTECTION GLOVES BOOTS

4

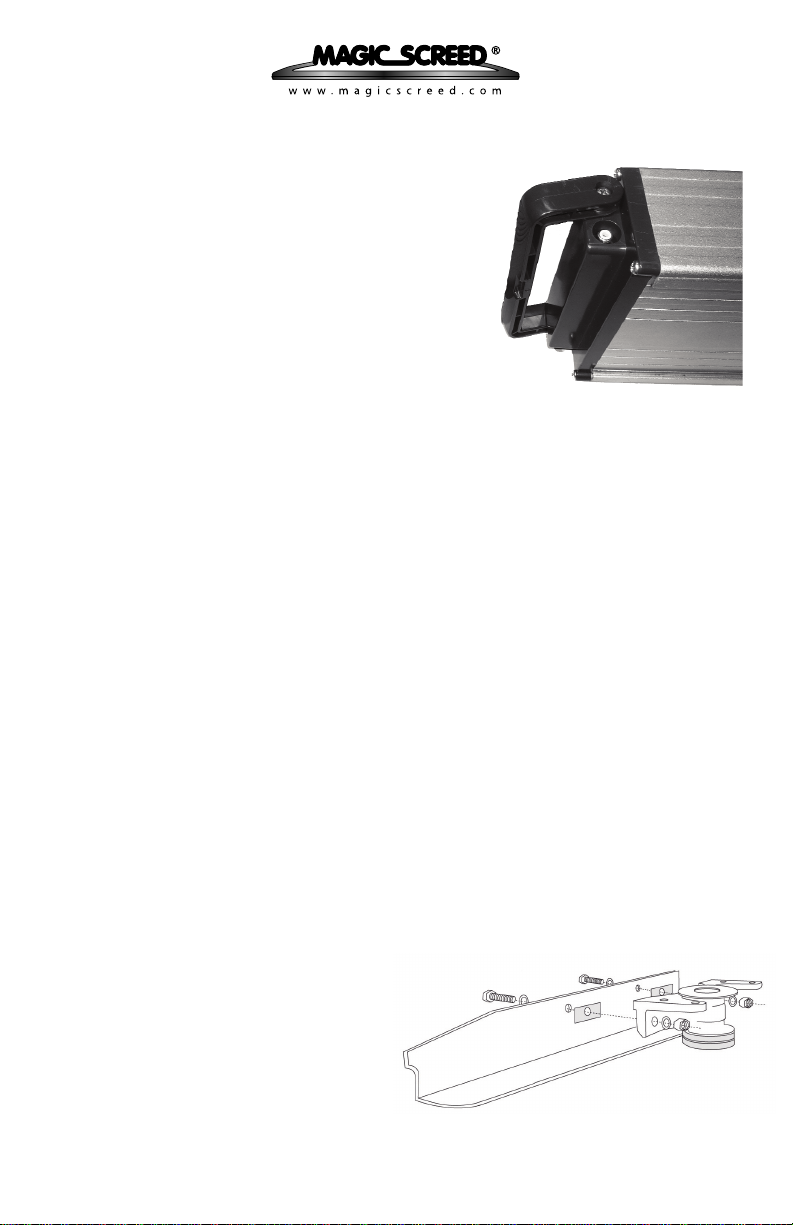

PROPER CARE AND USAGE
●Charge completely before 1st use, charge plug is
located under the carrying handle
●Charging time is approximately 3 to 4 hours
depending on the battery temperature and use
●To place and remove the battery; unplug the
wire from the battery, turn the key to the UN
lock position, and slide the battery on the stand
side. Place the battery back and turn the key to
the lock position making sure that the lock pin
is inserted on the mounting plate. Reconnect
the wire.
●To start working turn the key to the ignition position
●Charger light indicator: RED when charging / GREEN when fully charged Throttle
lights: RED power on / GREEN ok for operation / YELLOW recharge your battery
soon. The battery will cut off automatically when discharge will hit 27.6 volt
●Store in a cool dry place, never keep your battery near a source of high temperature
or near in water.
●When storing the battery for extended periods of time (1 month or more) fullycharge
and disconnect the charger.
●Disconnect the battery wire from the controller when not in use.
●Use only supplied charger or part# E-60141
●Leaving the charger plugged into the battery for extended periods of time is okay.
●No memory effect, this battery can be recharged at any time, in fact, it’s always
better to charge fully before each use.
●In very cold conditions (0 Celsius) the battery will have less capacity
WORKING PROCEDURE
Before starting to work with you screed, make these checkpoints:
●Blades: Make sure there is no concrete
on the blade at the bolting points. Place
the plastic spacers between the blade
and the housing weight in the correct
position and tighten the blade at
approximately 85 lbf-ft.

5
WORKING PROCEDURE (CONTINUED)
●Battery: Place the fully charged battery on the mounting plate and lock it in
place. Make sure all the connectors are clean of any concrete or water. Tighten
the connectors manually.
●Handles: Adjust the handles to suit the comfort of the operator. Make sure that
the throttle control is clean and rolls freely.
Turn the key to the ignition position.
Your screed is designed to work on wet concrete, never vibrate for long periods of
time if the screed is not on wet concrete. To prevent damage, never use the screed
on other materials.
Always control the amount of vibration needed for the type and slump of concrete
you level. Too much vibration can damage your screed.
Before servicing or cleaning your screed, remove the battery from the screed. Do
not pressure wash.
HANDLING INFORMATION
WEIGHT & LENGTH OF DIFFERENT COMPONENTS AND ASSEMBLY
BLADES
FITS ON ALL E-SCREED MAGIC SCREED
FT M #
4’ 1.22 2050
6’ 1.80 2051
8’ 2.44 2052
10’ 3.00 2053
12’ 3.66 2054
14’ 4.27 2055
16’ 4.88 2056
Other sizes available….

6

DA 4055 RUBBER COVER ASSEMBLY
PART NUMBER QTY DESCRIPTION
10009-2 1 RUBBER COVER
20040 1 TIE RAP
DA 4059 VIBRO MOUNTS
PART NUMBER QTY DESCRIPTION
10003 2 VIBRO MOUNTS
10024 8 NUT 8 MM
10023 4 WASHER 8 MM
DA 4059-X X-TRA VIBRO MOUNTS
PART NUMBER QTY DESCRIPTION
11003 2 X-TRA VIBRO MOUNTS
10024 8 NUT 8 MM
10023 8 WASHER 8 MM
DA 4061 BOLT & NUT 1/2
PART NUMBER QTY DESCRIPTION
10018 2 NUT ½
10017 2 BOLT ½
10019 4 WASHER ½
10002 2 PLASTIC SPACER
DA 4088 STAND ASSEMBLY
PART NUMBER QTY DESCRIPTION
20013-1 1 STAND
20018 1 NYLON NUT ¼
20023 2 NYLON WASHER ¼
20017 1 BOLT ¼
20014 1 STAND RUBBER
20027 2 RIVET
50009 1 RUBBER TUBE
7

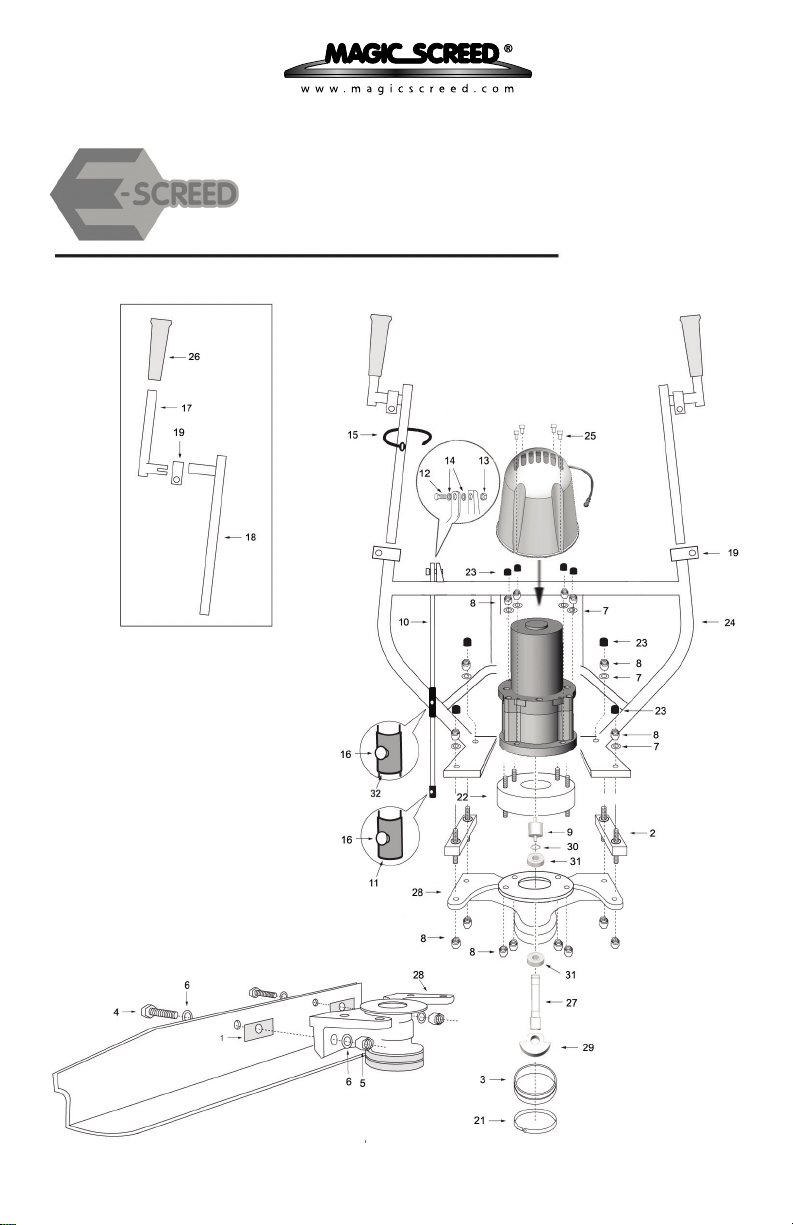

E-SCREED PARTS ASSEMBLY

8
E-SCREED PARTS ASSEMBLY
DA 4097 ALLEN 6 MM 5 MM
PART NUMBER QTY DESCRIPTION
10056 1 ALLEN 6 MM 5 MM
DA 4098 TIE RAP FOR 10009-2
PART NUMBER QTY DESCRIPTION
20040 10 TIE RAP
DA 4099
PART NUMBER QTY DESCRIPTION
20026 10 TIE RAP FOR HANDLES
DA 4100
PART NUMBER QTY DESCRIPTION
50002 1 ANTI VIBRATION SEAL
10024 8 NUT 8 MM
DA 4101
PART NUMBER QTY DESCRIPTION
50005 8 CAP FOR 8 MM NUT
E-60004 E-SCREED GRIP ASSEMBLY
PART NUMBER QTY DESCRIPTION
20012 1 GRIP (SET OF 2)
E-60140 BATTERY PACK ASSEMBLY
PART NUMBER QTY DESCRIPTION
E-60140 1 BATTERY PACK
E-60141 BATTERY CHARGER
PART NUMBER QTY DESCRIPTION
E-60141 1 BATTERY CHARGER

9

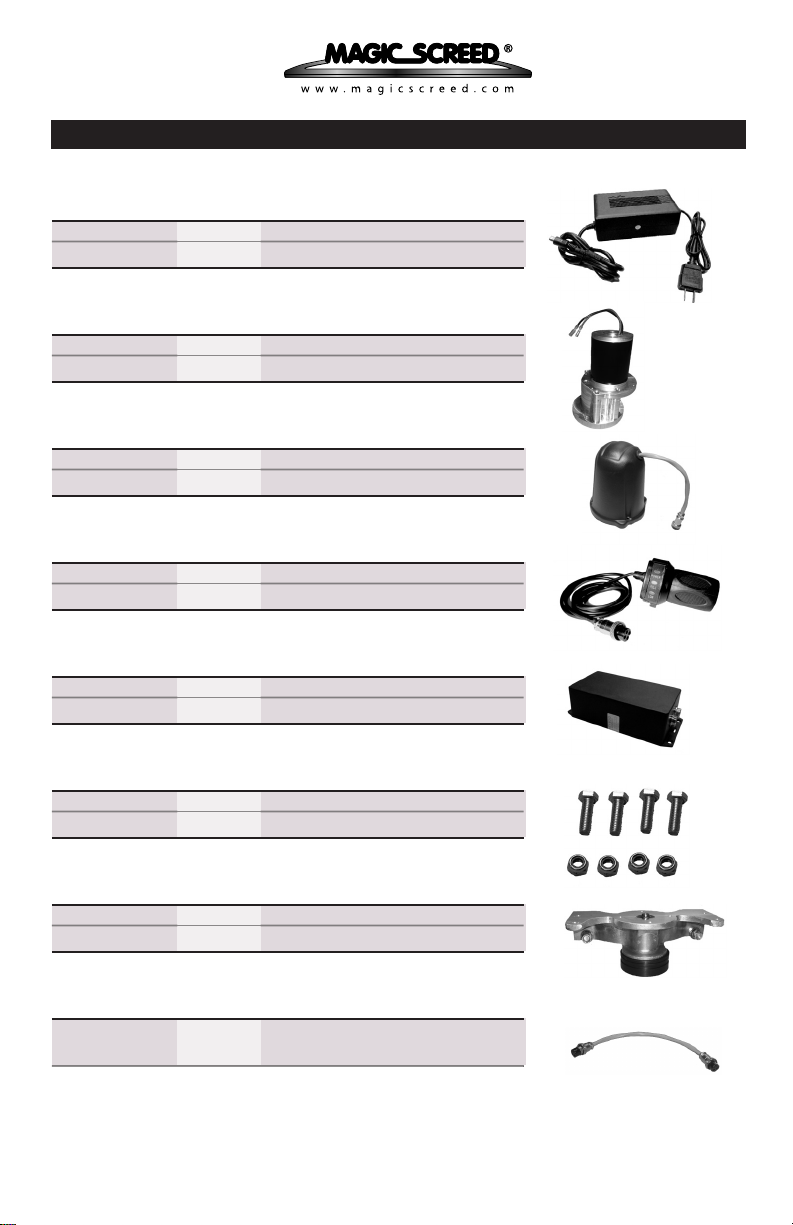

E-SCREED PARTS ASSEMBLY
E-60142 BATTERY CHARGER EUROPE
PART NUMBER QTY DESCRIPTION
E-60142 1 BATTERY CHARGER EUROPE
KE5010 MOTOR & GEAR BOX ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5010 1 MOTOR & GEAR BOX KIT
KE5020 PLASTIC COVER ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5020 1 PLASTIC COVER ASSY
KE5030 THROTTLE ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5030 1 THROTTLE ASSY
KE5040 CONTROL BOX ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5040 1 CONTROL BOX ASSY
KE5050 BOLT CONTROLER BOX
PART NUMBER QTY DESCRIPTION
KE5040 1 CONTROL BOX ASSY
KE5060 E-SCREED HOUSING WEIGHT ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5060 1 HOUSING WEIGHT
KE5080 BATTERY WIRE ASSEMBLY
PART NUMBER QTY DESCRIPTION
KE5080 1 BATTERY WIRE ASSY

10
PART # QTY ITEM PAGE
10002 Plastic spacer 2 1
10003 Vibro mount 2 2
10009-2 Rubber cover 1 3
10017 Bolt ½ 2 4
10018 Nut ½ 2 5
10019 Washer ½ 4 6
10023 Washer 8 mm 8 7
10024 Nut 8 mm 16 8
10025 Drive axle 1 9
20013-1 Stand 1 10
20014 Stand rubber 1 11
20017 Bolt ¼ 5 12
20018 Nut ¼ 5 13
20023 6 mm nylon for stand 2 14
20026 Tie rap 2 15
20027 Pop 1/8 for stand rubber 2 16
20032-2 Adj. Hdl. Grip section 2 17
20032-3 Adj. Hdl. Long section 2 18
20033 Clip for handles 4 19
20040 Tie rap 1 21
50002 Anti-vibration seal 1 22
50005 Cap 8 23
50009 Rubber tube 1 32
E-60002 E-Screed Handle 1 24
E-60003 Bolt Plastic Cover 25
E-60004 E-Screed Grip 2 26
E-60123 Housing Weight Shaft 1 27
E-60124 Housing Weight E-screed 1 28
E-60125 Counter Weight E-Screed 1 29
E-60126 Circlip 15 1 30
E-60140 Battery Pack 1 8
E-60141 Battery Charger 1 8
E-60200 Housing Weight Bearing 2 31
KE5010 Motor and gear box kit 1 8
KE5020 Plastic cover kit 1 9
KE5030 Throttle 1 9
KE5040 Control Box 1 9
KE-5050 Bolt Controller Box 9
KE5070 Charger Europe 1 9
KE5080 Battery Wire 1 9
MAGIC SCREED PARTS BOOK 2013
DESCRIPTION

11

DECLARATION OF CONFORMITY
MAGIC SCREED INC.
DECLARES THAT THE EQUIPEMENT
TYPE:
Vibrating screed for leveling concrete
MODEL: Magic Screed HD6060 - HD 6161
HD7070 - HD7171
E-Screed HDE-1010
SERIAL NUMBER :
IS IN ACCORDANCE WITH THE FOLLOWING DIRECTIONS:
2006/42/EC, 2004/108/EC
HAS BEEN MANUFACTURED ACCORDING TO THE FOLLOWING STANDARDS:
BS EN 12649 : 2008 + A1 : 2011.
EN 12100-1 : 2003, EN12100-2 : 2003
Magic screed, 630 rue de l’Argon, Québec, Qc, Canada, G2N 2J6
TEL : [phone] www.magicscreed.com
By : Benoit Rouillard
4795 rue Louis-B.-Mayer, Laval, Quebec, Canada H7P 6G5
Sales Office Tel.: [phone] - Fax: [phone]
Plant Tel.: [phone] - Fax: [phone]
Visit our Web site: www.magicscreed.com
E-Mail: [email protected]
REV-04-2018
