Magick woods KU.VB200 User manual

PRODUCT: 30-1/4 in. KUBE BASE
DIMENSIONS: 30-1/4 in. W x 17-1/2 in. D x 29 in. H
(Dimensions are without vanity top)
MODEL: KU.VB200
KUBE VANITY BASES
Thank you for selecting our product. To ensure that your installation goes smoothly, please read
these instructions carefully before you begin. Also review the recommended materials and tools for a
smooth installation.
Before you start, verify that you have all the mentioned components for your vanity base model
shown below and ensure that all are free from defects. If any part is missing or damaged, contact
Customer Service for replacement parts.
• Faucet and vanity top not included

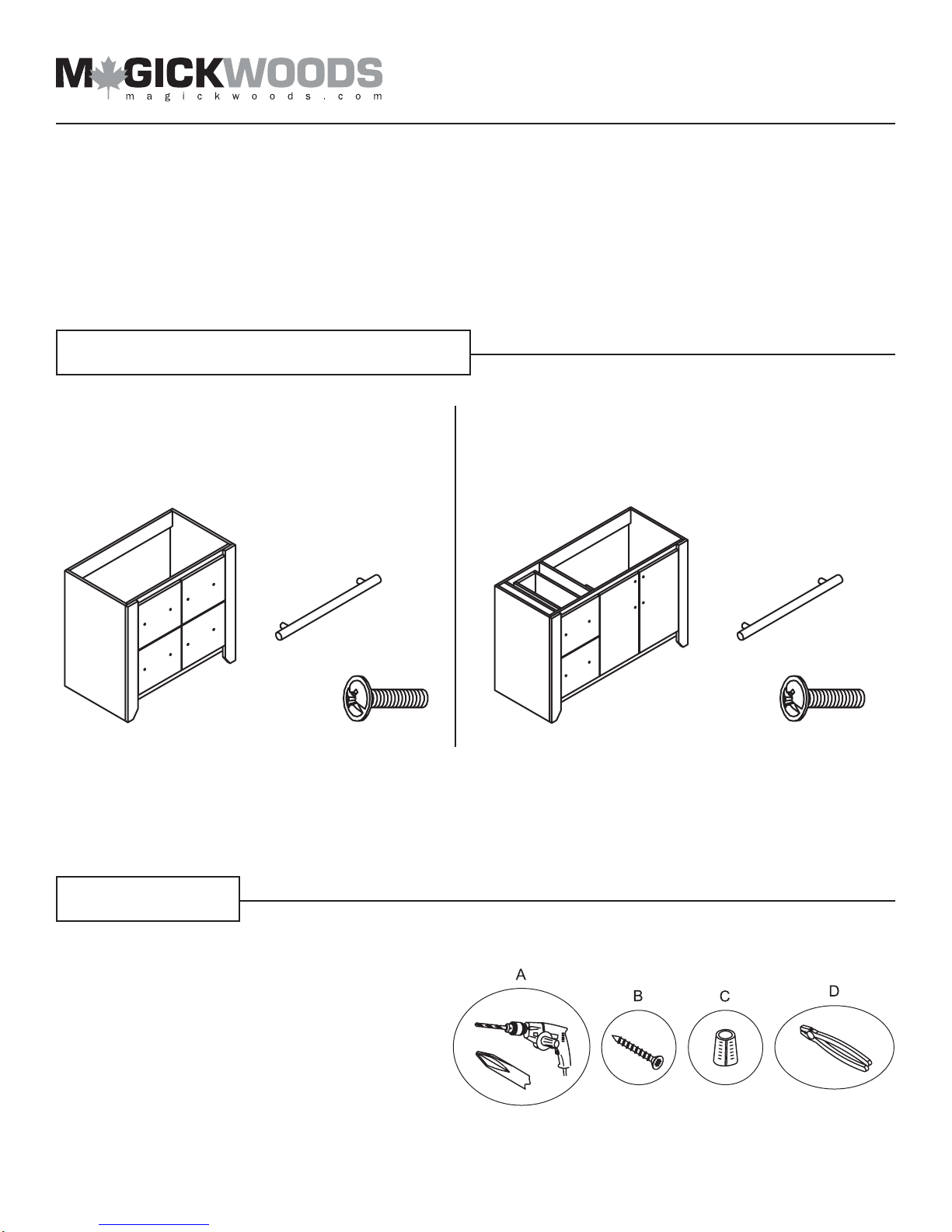

Base (1x)
Handle (4x)
1 in. screw
(8x)
INSTALLATION INSTRUCTIONS FOR:
PRODUCT: 38-1/4 in. KUBE BASE
DIMENSIONS: 38-1/4 in. W x 17-1/2 in. D x 29 in. H
(Dimensions are without vanity top)
MODEL: KU.VB202
Base (1x)
Questions, problems, missing parts? Before returning to your retailer, call our Customer Service
department at 1-866-396-4033, 8:30 a.m. - 5 p.m., EST, Monday - Friday. [email protected]
Tools Required for Assembly (not included):
• Tape Measure
• Electric Drill with #2 Drill Bit (A)
• Straight Edge or Leveling Meter
• (2) #8 x 2 in. Screws (B)
• (2) Wall Anchors - if the vanity will not
be screwed to wall studs (C)
• Pliers (D)
Estimated Installation Time: 2 hours (including removal of old vanity if applicable)
PREPARATION
Handle (4x)
1 in. screw
(8x)

WARNINGS & CAUTIONS
WARNING:
Two people are required for safe installation. Take extra precautionary measures to ensure a secure
grip on the vanity base when lifting.
CAUTION:
• To maintain the beauty of the vanity finish, avoid placing the vanity in direct sunlight.
• Avoid exposing the vanity to extreme temperatures by installing away from heat and air vents.
• The bathroom floor must be finished prior to installation of the vanity.
INSTALLATION
Step 1: Remove old vanity (if applicable): 1) Turn off the water supply and drain out. 2) Disconnect
the supply lines from the faucet. 3) Remove the old vanity top and vanity. Note: If the new vanity is
not installed immediately, temporarily stuff a rag into the drain pipes.
Step 2: Provide sufficient protection on the floor to protect the
vanity from damage. Tilt the vanity backwards and remove the
shipping feet from the bottom of the vanity base using a pair of
pliers (D). Figure 1.
Step 3: Using your level, locate any uneven floor and/or wall
areas where your vanity will be installed. Unevenness can cause
your vanity to become misaligned resulting in twisting of the cabinet.
Repair any uneven areas by reducing high spots or shimming low spots.
Step 4: 1) Place the vanity in the desired position taking into account the location of your plumbing.
2) Ensure the vanity is level front to back and confirm at both sides.Also ensure that the vanity is level
side to side, confirming at both the front and back rail. 3) Secure the vanity to the wall by inserting (2)
#8 x 2 in. screws (B) (not included) through the back rail of the vanity. Figure 2a: 30-1/4 in. base.
Figure 2b: 38-1/4 in. base. Note: It is recommended that the vanity be installed to at least 1 wall stud.
To locate wall studs, you can use a stud finder or tap along the wall until you find a spot that sounds
solid. If you are unable to locate a wall stud, it is recommended that you use wall anchors (C) (not
included) to secure your vanity.
2
C
For 30-1/4 in. base:
Figure 2a
For 38-1/4 in. base:
Figure 2b
B
A
Figure 1
For all
bases
D
C
B
A

Step 5: Attach the handles with the 1 in. screws. Figure 3a: 30-1/4 in. base. Figure 3b: 38-1/4 in. base.
3
TROUBLESHOOTING
Problem : Vanity doors/drawers rub against another surface.
There is a large uneven gap between the vanity doors/drawers.
Possible Causes : Floor is not level.
Corrective Action : Use a shim to ensure the vanity is level.Adjust the door hinges.
Figure 3a Figure 3b
CARE & MAINTENANCE
Dust the vanity frequently with a clean, soft and dry cloth.
For 30-1/4 in. base: For 38-1/4 in. base:
Figure 4a Figure 4b
30-1/4 in. base: complete 38-1/4 in. base: complete
A
A
A

What This Warranty Covers: Magick Woods Ltd. warrants its parts to be free from substantial
defects in materials and workmanship from the original date of purchase under normal home use.
This warranty is offered only to the original consumer purchaser and may not be transferred.
How Long The Warranty Lasts: Coverage for all vanity cabinets, fixed vanities, drawer banks, bath
storage cabinets, linen cabinets, wall hutches, fillers, toe kicks, medicine cabinets, mirrors, and
accessories lasts from 5 years from the original date of purchase.
What Magick Woods Ltd. Will Do Under The Warranty: During the warranty period, Magick Woods Ltd.,
at its option, will repair or replace any part or product that proves to have substantial defects in
materials or workmanship, or Magick Woods Ltd. will provide an equivalent replacement product. In
keeping with our policy of continuous product improvement, Magick Woods Ltd. reserves the right to
change specifications in design and materials without notice and with no obligation to retrofit products we
previously manufactured.
Implied Warranties: Magick Woods Ltd. disclaims any implied warranty of merchantability, and there are
no warranties that extend beyond the descriptions on the face hereof.
Wood, Aging and Printing Limitations: Because of the varying natural characteristics of wood and
the effects of aging, product shown in displays and/or printed materials will not be an exact match to
the cabinetry you will receive. Depending on the wood characteristics, the age of a sample and the
environment of the showroom, samples will show some degree of variation from new product. In
addition, you should not expect all doors, drawer fronts, trim, or moulding to match exactly in either
finish or grain. Variation in wood is normal and unavoidable. In addition, it is not possible to exactly
match our colors in printed materials. Therefore, you should view the actual samples when making
your color selection.
What This Warranty Does Not Cover: This warranty does not cover any problems or damage which
result from improper transportation, improper installation, mishandling, misuse, abuse, neglect,
abnormal use, commercial use, improper maintenance, non-Magick Woods repairs, accidents, or acts
of God, such as hurricanes, fire, earthquakes or floods. The warranty and any applicable implied
warranties do not cover incidental or consequential damages arising from any defects in the product
such as labor charges for installation or removal of the product or any associated products. This
warranty does not cover defects or damage caused by normal wear and tear, alterations, environmental
conditions, humidity absorption, or mold. In addition, variations in wood grain, finish color, aging, or
other natural wood stain characteristics are not considered defects and are not covered by this warranty.
How to Obtain Warranty Service: If you need replacement parts or would like to make a warranty
claim, please contact our Customer Service Representative by mail, email, fax, or telephone at the
address or telephone number listed. All warranty claims must include the model number of the
product, copy of the original receipt, and the nature of the problem. In addition, Magick Woods Ltd.
may at its discretion require inspection of the installation site, photography, or authorize the prepaid
return of the claimed defective part. Merchandise not pre-approved for return will not be accepted and
the associated claim not accepted. If upon inspection you find your product is damaged or
missing parts, it is not necessary to return the unit to the store of purchase. Please contact Magick Woods
Customer Service to obtain a replacement part.
WARRANTY
Magick Woods Ltd.
111 Creditview Road, Vaughan, Ontario, Canada, L4L 9T1
Customer Service: 1-866-396-4033
