MAGMATIC Prisma PAR 20 User manual

Prisma PAR 20
User Manual

2
©2020 MAGMATIC EFFECTS all rights reserved. Information, specifications, diagrams, images, and
instructions herein are subject to change without notice. MAGMATIC EFFECTS logo and identifying
product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged. All
non-MAGMATIC brands and product names are trademarks or registered trademarks of their respective
companies.
MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of
this product.
MAGMATIC EFFECTS | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax | www.elationlighting.com |[email protected]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu |[email protected]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]

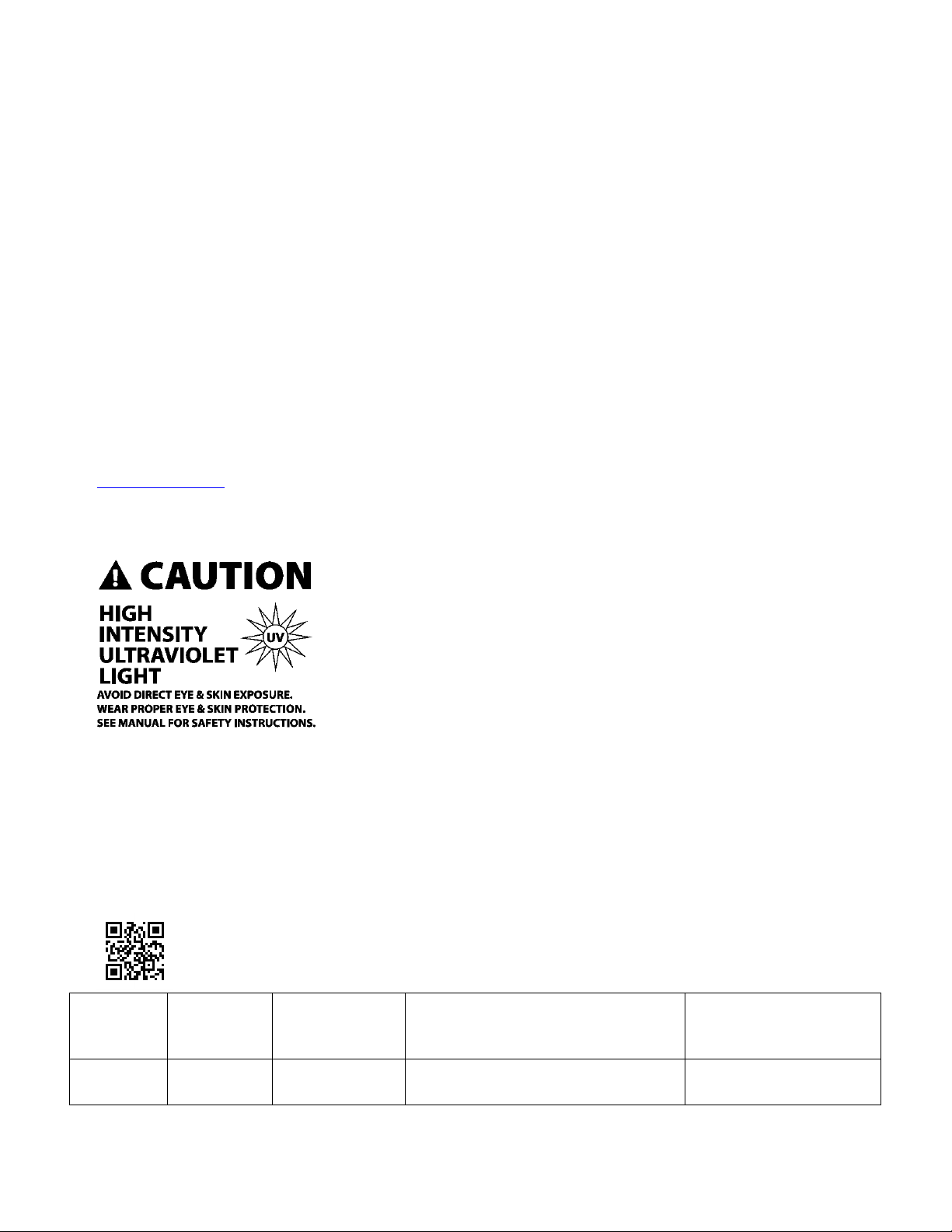

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV)
RADIATION!
FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF
ULTRAVIOLET LIGHT
WEAR PROPER EYE AND SKIN PROTECTION.
DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING
EXTERNAL COVER PROTECTIVE LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW
(UV) LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY
CONCENTRATE THE LIGHT/RADIATION OUTPUT.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this
document may be available online. Please scan the QR Code with your mobile device
or visit www.elationlighting.com for the latest revision/update of this manual, before
installation and/or programming.
Date
Document
Version
Software
Version ≥
DMX
Channel Modes
Notes
06/08/2020
1.0
1.01
1 / 2 / 3 / 6 Channels
Initial release.

3
CONTENTS
General Information
4
Limited Warranty (USA Only)
5
Warranty Returns (USA Only)
6
Safety Guidelines
7
Maintenance Guidelines
9
Fixture Overview
10
Installation Instructions
11

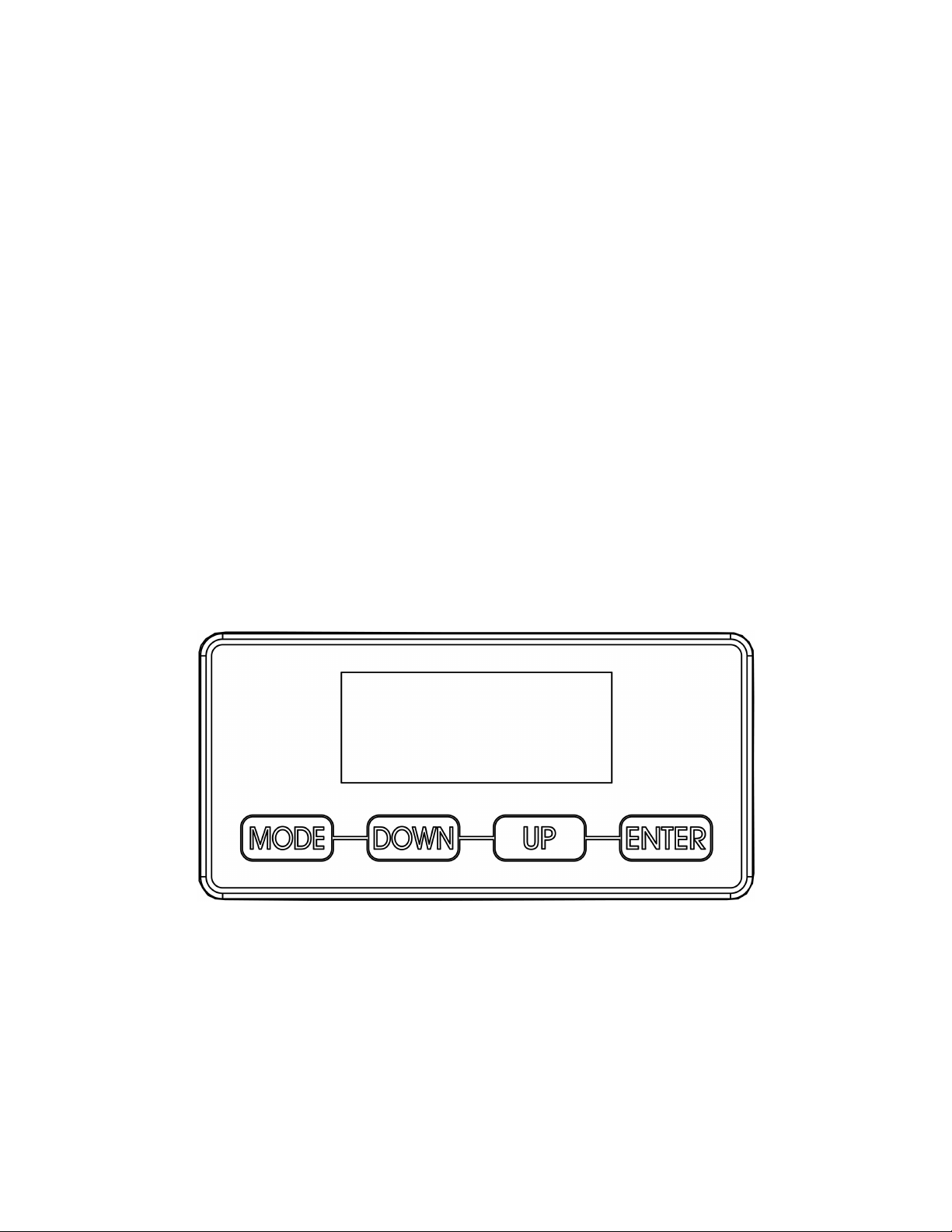

System Menu
13
DMX Channel Functions & Values
17
Dimmer Modes
21
Specifications
22
Dimensional Drawings
23

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this device. These instructions contain important safety and use information.
This product is intended for use by professionally trained personnel only and is not suitable
for private use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary
to install and operate the device have arrived intact. In the event damage has been found or parts
are missing, please contact our customer support team for further instructions. Please do not
return this device to your dealer without first contacting customer support. Please do not discard
the shipping carton in the trash. Please recycle whenever possible.
BOX CONTENTS
UV Lighting Fixture (x1)
Omega Bracket (x1)
Locking Power Cable (x1)
CUSTOMER SUPPORT
Contact MAGMATIC Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [email protected]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com
IMPORTANT NOTICE!
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO
THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE
NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

5
LIMITED WARRANTY (USA ONLY)
A. Magmatic Effects hereby warrants, to the original purchaser, Magmatic products to be free of
manufacturing defects in material and workmanship for a period of two years (730 days) from the
original date of purchase. This warranty excludes discharge lamps and all product accessories. This
warranty shall be valid only if the product is purchased within the United States of America, including
possessions and territories. It is the owner’s responsibility to establish the date and place of
purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Magmatic Effects factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, Magmatic Effects will pay return shipping charges only to a designated point
within the United States. If any product is sent, it must be shipped in its original package and
packaging material. No accessories should be shipped with the product. If any accessories are
shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modified in any manner which Magmatic Effects concludes, after inspection, affects the
reliability of the product; if the product has been repaired or serviced by anyone other than the
Magmatic Effects factory unless prior written authorization was issued to purchaser by Magmatic
Effects; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specified above, Magmatic Effects will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Magmatic Effects under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of Magmatic Effects. All products covered by this warranty were manufactured after
January 1, 1990, and bear identifying marks to that effect.
E. Magmatic Effects reserves the right to make changes in design and/or performance improvements
upon its products without any obligation to include these changes in any products theretofore
manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory
supplied with the products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Magmatic Effects in connection with this product, including warranties of
merchantability or fitness, are limited in duration to the warranty periods set forth above. And no
warranties, whether expressed or implied, including warranties of merchantability or fitness, shall
apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy
shall be such repair or replacement as is expressly provided above; and under no circumstances
shall Magmatic Effects be liable for any loss and/or damage, direct and/or consequential, arising out
of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Magmatic Effects products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.

6
WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Material Authorization (RMA) number must first be obtained
from MAGMATIC. It is the Customer’s responsibility to provide product proof of purchase and
serial number by acceptable evidence such as an invoice copy or an approved MAGMATIC
Extended Warranty Certificate (“EWC”) and any relevant maintenance records at the time warranty
service is sought. Failure to provide acceptable evidence of product proof of purchase or EWC and
any relevant maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and
safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn doors, lenses,
hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable
packaging materials (double-box and foam) that provides ample product protection for ground
and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los
Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written
on the outside of the return box, and a brief description of the problem and the RMA number must
be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of
the package will be refused and returned to the shipper at the Customer’s expense. Products
returned for warranty service, which are received damaged due to inadequate and/or improper
packaging and/or due to damage caused by the shipping carrier, may incur additional repair
charges before warranty service begins and/or may void this warranty. If any product accessories
(included and/or optional) are shipped with the product, MAGMATIC and/or the MAGMATIC
Authorized Service Center shall have no liability what so ever for the loss and/or damage to any
such accessories, nor the safe return thereof. If the requested warranty repairs or service (including
parts replacement) are within the terms of this warranty, MAGMATIC will pay return ground
transportation shipping charges to a single designated point within the United States.

7
SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth
operation, it is important to follow all instructions and guidelines in this manual. Magmatic
Effects is not responsible for injury and/or damages resulting from the misuse of this
fixture due to the disregard of the information printed in this manual. Only qualified and/or
certified personnel should perform installation of this fixture and only the original rigging
parts included with this fixture should be used for installation. Any modifications to the
fixture and/or the included mounting hardware will void the original manufacturer’s
warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID
YOUR MANUFACTURER’S WARRANTY. DAMAGES RESULTING
FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD
OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL
VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT
TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
FIXTURE IS DUST TIGHT AND PROTECTED AGAINST LOW-PRESSURE
WATER JETS FROM ANY DIRECTION
IP65

8
SAFETY GUIDELINES
- DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the fixture to cool down before serving.
- DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.
- DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any
of the power cord connectors are damaged and do not insert into the fixture easily
and securely. NEVER force a power cord connector into the fixture. If the power cord
or any of its connectors are damaged, replace it immediately with a new one of similar
power rating.
- DO NOT block any air ventilation slots.
- All fan and air inlets must remain clean and never blocked.
- Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.

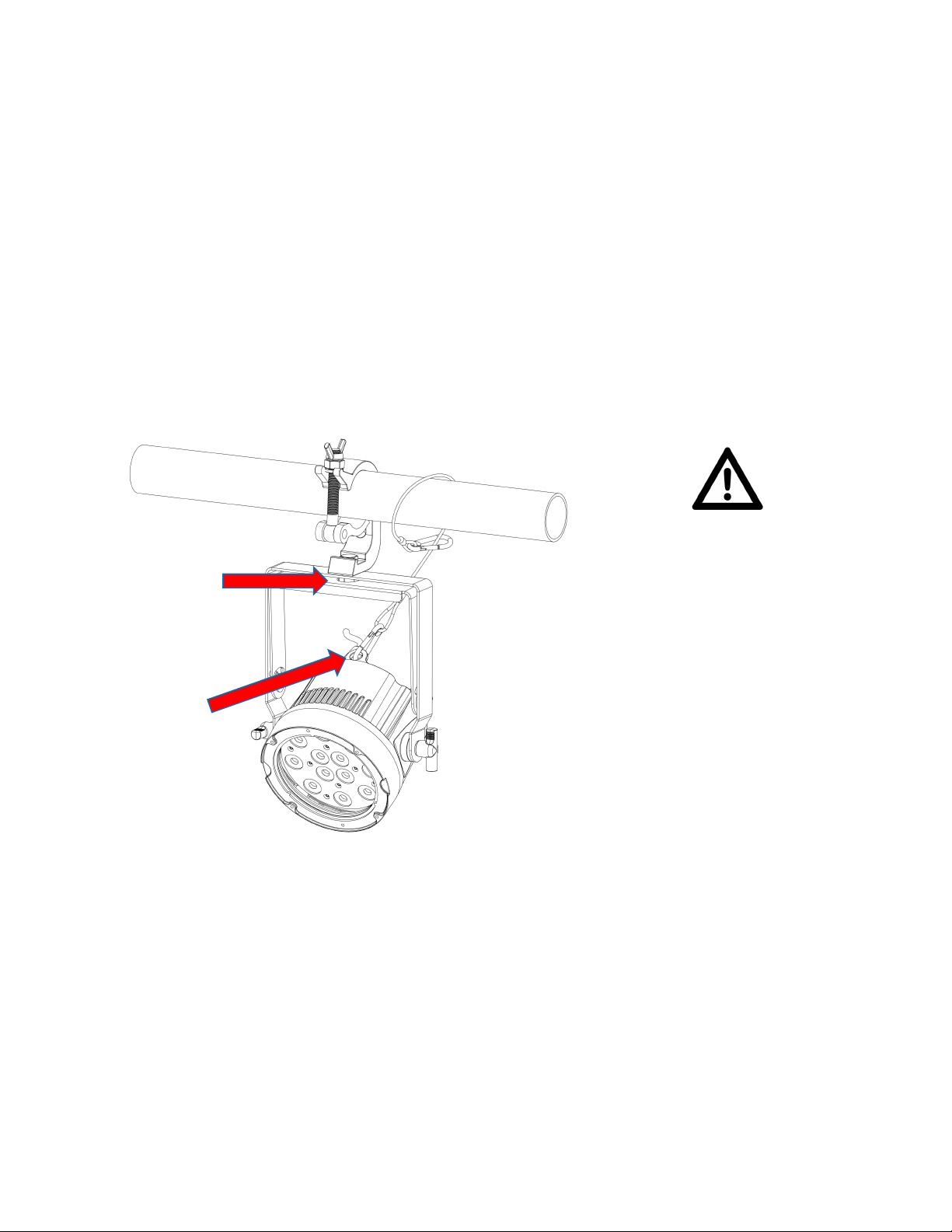

- When installing fixture in a suspended environment, always use mounting hardware that is
no less than M10 x 25 mm, and always install fixture with an appropriately rated safety
cable.
- Always disconnect fixture from main power source before performing any type of
service and/or cleaning procedure. Only handle the power cord by the plug end, never
pull out the plug by tugging the wire portion of the cord.
- During the initial operation of this fixture, a light smoke or smell may emit from the
interior of the fixture. This is a normal process and is caused by excess paint in the
interior of the casing burning off from the heat associated with the lamp and will
decrease gradually over time.
- Consistent operational breaks will ensure fixture will function properly for many years.
- ONLY use the original packaging and materials to transport the fixture for service.
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV)
RADIATION!
FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF
ULTRAVIOLET LIGHT!
WEAR PROPER EYE AND SKIN PROTECTION.
DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING
EXTERNAL COVER PROTECTIVE LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW
(UV) LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY
CONCENTRATE THE LIGHT/RADIATION OUTPUT.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES OF LESS THAN 11 feet (3.3m).
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.

9
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and
an extended life. The frequency of cleaning depends on the environment in which the
fixture operates: damp, smoky, or particularly dirty environments can cause greater
accumulation of dirt on the fixture’s optics. Clean the external lens surface periodically
with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life.
There are no user serviceable parts inside this fixture, please refer all other service issues
to an authorized MAGMATIC service technician. Should you need any spare parts, please
order genuine parts from your local MAGMATIC dealer.
Please refer to the following points during routine inspections:
- A detailed electrical check by an approved electrical engineer every three months, to make sure the
circuit contacts are in good condition in order to prevent overheating.
- Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during
normal operation, resulting in damage or injury as larger parts could fall.
- Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter
into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and
seriously injure a person(s).
- Electric power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.

10

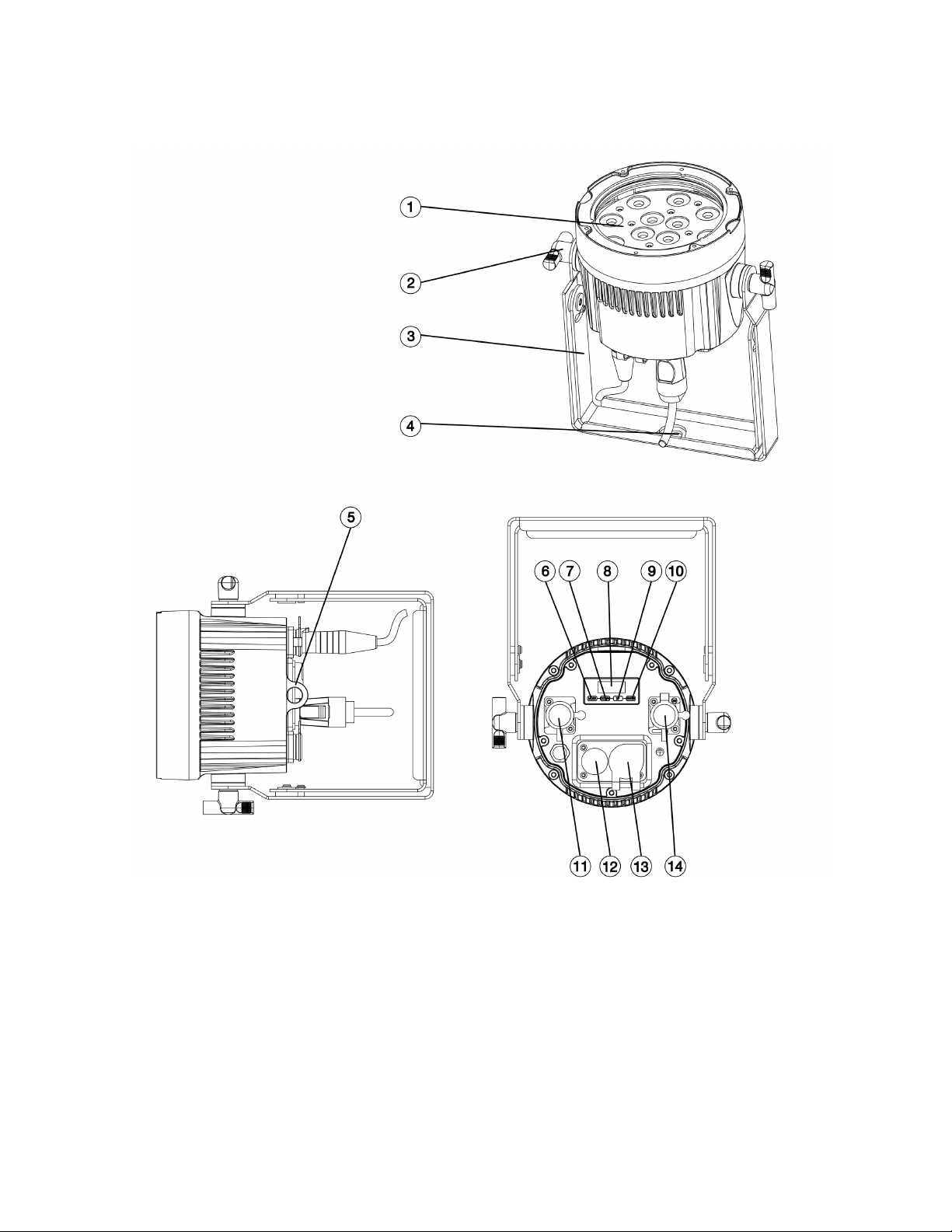

FIXTURE OVERVIEW
1. Lens
2. Yoke Adjustment Knob
3. Mounting Yoke
4. Clamp Attachment Point
5. Safety Cable Attachment Point
6. Mode Button
7. Down Button
8. Display Screen
9. Up Button
10. Enter Button
11. DMX In
12. Power In
13. Power Out
14. DMX Out

11
INSTALLATION INSTRUCTIONS
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical
and construction codes and regulations.
Before rigging/mounting a single fixture or multiple interconnected fixtures for custom
matrix designs to any metal truss/structure or placing the fixture(s) on any surface, a
professional equipment installer MUST be consulted to determine if the metal
truss/structure or surface is properly certified to safely hold the combined weight of the
fixture(s), clamps, cables, and accessories.
Ambient operating temperature range is from 14°F (-10°C) to 113°F (45°C).
Do not operate this fixture when ambient temperature falls outside this range.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from
areas were unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable (not included) that meets all local, national, and
country codes and regulations. Allow approximately 15 minutes for the fixture to cool
down before servicing.

12
INSTALLATION INSTRUCTIONS
CLAMP INSTALLATION
This fixture features a mounting clamp attachment point, which is located on the mounting
yoke, as well as a safety cable rigging point, located on the back side of the fixture (see
the illustration below). When mounting this fixture to truss, be sure to secure an
appropriately rated clamp (not included) to the clamp attachment point and attach a
separate SAFETY CABLE of the appropriate rating to the safety cable rigging point.
RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating
working load limits, understanding the installation material being used, and periodic safety
inspection of all installation material and the fixture. If you lack these qualifications, do not
attempt the installation yourself. Improper installation can result in bodily injury.
Safety Cable
Rigging Point
SAFETY CABLE
ALWAYS ATTACH A SAFETY CABLE
WHENEVER INSTALLING THIS
FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE
FIXTURE WILL NOT FALL IF THE
CLAMP FAILS.
Mounting Clamp
Attachment Point

13
SYSTEM MENU
The fixture includes an easy to navigate system menu. The control panel (see image below)
located on the back side of the fixture provides access to the main system menu, where all
necessary system adjustments can be made. During normal operation, pressing MODE
button once will access the fixture’s main menu. Once in the main menu you can navigate
through the different functions and access the sub-menus with the UP and DOWN
buttons. Once you reach a field that requires adjusting, press the ENTER button to
activate that field and use the UP and DOWN buttons to adjust the field. Pressing the
ENTER button once more will confirm your setting. You may exit the main menu at any
time without making any adjustments by pressing the MODE button.
The display screen will automatically time out after 30 seconds of inactivity. To unlock the
display screen, simply press and hold the MODE until the display screen unlocks.

14
SYSTEM MENU
Magmatic Prisma PAR 20 System Menu
Default setting shown in bold
Supports Software Versions: 1.01
ADDRESS
Set ADDR XXX
001 – 512
MODE
1CH
2CH
3CH
6CH
FUNCTION
No DMX
Hold / Black
LCD Set
Display
On / Off
30 sec. screen
saver
Key Lock
On / On1 / Off
Flash
On / Off
Inverse
Off / On
Screen 180° flip
Temp C/F
Celsius / Fahrenheit
Dim Mode
Standard
Stage
TV
Architec
Theatre
Stage2
0.0 s
0.1 s
0.2 s
0.3 s
0.4 s
0.5 s
0.6 s
0.7 s
0.8 s
0.9 s
1.0 s
1.5 s
2.0 s
3.0 s
4.0 s
5.0 s
6.0 s
7.0 s
8.0 s
9.0 s
10.0 s
Dim Curve
Linear
Square
Inv Square
S-Curve
CONTINUED ON NEXT PAGE

15
FUNCTION
(continued from
prev page)
Frequency
900 Hz
910 Hz
920 Hz
930 Hz
940 Hz
950 Hz
960 Hz
970 Hz
980 Hz
990 Hz
1000 Hz
1010 Hz
1020 Hz
1030 Hz
1040 Hz
1050 Hz
1060 Hz
1070 Hz
1080 Hz
1090 Hz
1100 Hz
1110 Hz
1120 Hz
1130 Hz
1140 Hz
1150 Hz
1160 Hz
1170 Hz
1180 Hz
1190 Hz
1200 Hz
1210 Hz
1220 Hz
1230 Hz
1240 Hz
1250 Hz
1260 Hz
1270 Hz
1280 Hz
1290 Hz
1300 Hz
1310 Hz
1320 Hz
1330 Hz
1340 Hz
1350 Hz
1360 Hz
1370 Hz
1380 Hz
1390 Hz
1400 Hz
CONTINUED ON NEXT PAGE

16
FUNCTION
(continued from
prev page)
Frequency
(continued from prev
page)
1410 Hz
1420 Hz
1430 Hz
1440 Hz
1450 Hz
1460 Hz
1470 Hz
1480 Hz
1490 Hz
1500 Hz
2500 Hz
4000 Hz
5000 Hz
6000 Hz
10 KHz
15 KHz
20 KHz
25 KHz
MasterSwitch
On / Off
Defaults
Reset?
Cancel
INFORMATION
Time Info
Current
Total
Last
Password
Clear Current/Last
(Password = 050)
Clear Total
(Password = 060)
Clear
On / Off
Temp Info
Model Info
Prisma Par 20
Software
V1.01
Err. Info
None
SLAVE
Press ENTER to put fixture in Slave Mode.
Slave Mode will automatically be deactivated when the fixture is set to another
operational mode.
MANUAL
Dimmer
000 – 255
Strobe
000 – 255
UV
000 – 255
CALIBRATION
Password
Password = 050
UV

17
DMX CHANNEL FUNCTIONS AND VALUES
1-CH MODE
Magmatic Prisma PAR 20: DMX Channels / Functions (1 DMX Channel)
Supports Software Versions: 1.01
CHANNEL
VALUE
FUNCTION
1
000 – 255
Dimmer
2-CH MODE
Magmatic Prisma PAR 20: DMX Channels / Functions (2 DMX Channels)
Supports Software Versions: 1.01
CHANNEL
VALUE
FUNCTION
1
000 – 255
Dimmer
2
000 – 255
Dimmer Fine
3-CH MODE
Magmatic Prisma PAR 20: DMX Channels / Functions (3 DMX Channels)
Supports Software Versions: 1.01
CHANNEL
VALUE
FUNCTION
1
Strobe
000 – 031
LED Off
032 – 063
LED On
064 – 095
Strobe, slow to fast
096 – 127
LED On
128 – 159
Pulse effect in sequences
160 – 191
LED On
192 – 223
Random strobe effect, slow to fast
224 – 255
LED On
2
000 – 255
Dimmer
3
000 – 255
Dimmer Fine

18
DMX CHANNEL FUNCTIONS AND VALUES
6-CH MODE
Magmatic Prisma PAR 20: DMX Channels / Functions (6 DMX Channels)
Supports Software Versions: 1.01
CHANNEL
VALUE
FUNCTION
1
Strobe
000 – 031
LED Off
032 – 063
LED On
064 – 095
Strobe, slow to fast
096 – 127
LED On
128 – 159
Pulse effect in sequences
160 – 191
LED On
192 – 223
Random strobe effect, slow to fast
224 – 255
LED On
2
000 – 255
Dimmer
3
000 – 255
Dimmer Fine
4
Dim Mode
000 – 020
Standard
021 – 040
Stage
041 – 060
TV
061 – 080
Architectural
081 – 100
Theatre
101 – 120
Stage2
Dimmer Delay Time
121
0.0 s
122
0.1 s
123
0.2 s
124
0.3 s
125
0.4 s
126
0.5 s
127
0.6 s
128
0.7 s
129
0.8 s
130
0.9 s
131
1.0 s
132
1.5 s
133
2.0 s
134
3.0 s
135
4.0 s
136
5.0 s
137
6.0 s
138
7.0 s
139
8.0 s
140
9.0 s
141
10.0 s
142 – 255
No Function
CONTINUED ON NEXT PAGE

19
CHANNEL
VALUE
FUNCTION
5
Dim Curves
000 – 020
Linear
021 – 040
Square
041 – 060
Inv. Squa.
061 – 080
S. Curve
081 – 255
No Function
6
LED Refresh Rates
000 – 010
1200 Hz (Default Refresh Rate)
011
900 Hz
012
910 Hz
013
920 Hz
014
930 Hz
015
940 Hz
016
950 Hz
017
960 Hz
018
970 Hz
019
980 Hz
020
990 Hz
021
1000 Hz
022
1010 Hz
023
1020 Hz
024
1030 Hz
025
1040 Hz
026
1050 Hz
027
1060 Hz
028
1070 Hz
029
1080 Hz
030
1090 Hz
031
1100 Hz
032
1110 Hz
033
1120 Hz
034
1130 Hz
035
1140 Hz
036
1150 Hz
037
1160 Hz
038
1170 Hz
039
1180 Hz
040
1190 Hz
041
1210 Hz
042
1220 Hz
043
1230 Hz
044
1240 Hz
045
1250 Hz
046
1260 Hz
047
1270 Hz
048
1280 Hz
049
1290 Hz
050
1300 Hz
051
1310 Hz
052
1320 Hz
CONTINUED ON NEXT PAGE

20
CHANNEL
VALUE
FUNCTION
6
(continued
from prev
page)
LED Refresh Rates (continued from prev page)
053
1330 Hz
054
1340 Hz
055
1350 Hz
056
1360 Hz
057
1370 Hz
058
1380 Hz
059
1390 Hz
060
1400 Hz
061
1410 Hz
062
1420 Hz
063
1430 Hz
064
1440 Hz
065
1450 Hz
066
1460 Hz
067
1470 Hz
068
1480 Hz
069
1490 Hz
070
1500 Hz
071
2500 Hz
072
4000 Hz
073
5000 Hz
074
6000 Hz
075
10 KHz
076
15 KHz
077
20 KHz
078
25 KHz
079 – 255
No Function
