Magnavox DVD611AT Technical document

DVD611
Digital V
Digital Video Disc Player ideo Disc Player
Hookup Pages
Hookup Pages
Read this manual first!
Congratulations on purchasing this product. We’ve included everything you
need to get started. If you have any problems, our Representatives can help
you get the most from your new product by explaining:
• Hookups,
• First Time Setup, and
• Feature Operation.
Do not attempt to return this product to the store.
For fast help, call us first!
1-800-531-0039
Thank you for making us a part of your home!

8 Hookups

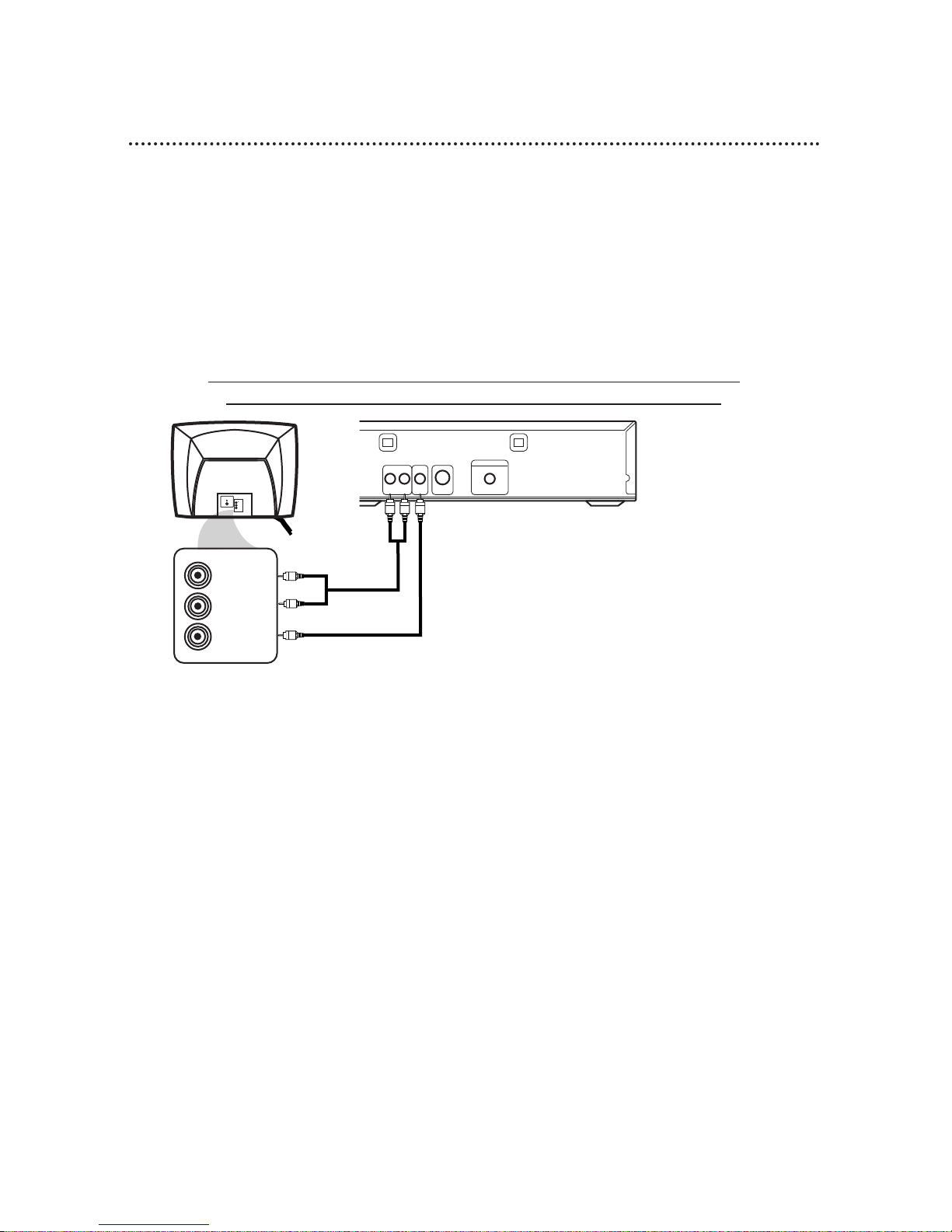

Connecting the DVD Player to a TV only (no stereo or amplifier)
TV has AUDIO (red and white) and VIDEO (yellow) IN jacks
You may connect the DVD Player several different ways, depending on your existing equipment and your pref-
erences for sound and picture quality. To determine which hookup is best for you, examine the options on the
following pages, then see which best matches your situation. Before you hook up the DVD Player, remember:
●Connect the DVD Player directly to a TV. If you connect the DVD Player to a VCR, then connect the VCR
to the TV, the picture may be distorted by the copyright protection system.
●Turn off the power of all equipment before making any connections.
●Refer to the owner’s manuals of your other equipment for additional information.
●Depending on your connection, you may need to purchase additional cables.
●If you do not connect the DVD Player to a Dolby Digital or DTS Decoder, set Dolby Digital and DTS to Off
on the DVD Player. Details are on pages 11 and 40-41. Playing a DVD when the settings are wrong will dis-
tort the sound or damage the speakers.
1
Connect the supplied red and white audio cables to the red and white
AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN
jacks on the TV, matching the cable colors to the jack colors.
2
Connect the supplied yellow video cable to the VIDEO OUT jack on the DVD
Player and to the VIDEO IN jack on the TV.
3
Connect the TV’s power cord to a power outlet.
Turn on the TV and set it to the Audio/Video In channel, which also may be
referred to as A/V In or Auxiliary In. This channel usually is located in the vicinity of
channel 00. See your TV owner’s manual for details.
4
Connect the DVD Player’s power cord to a power outlet.
Press the POWER button to turn on the DVD Player. “P-ON” will appear briefly
on the DVD Player’s display panel. You should see the DVD logo on the TV screen. If
you do not, check your connections and make sure the TV is set to the correct
Audio/Video In channel.
VIDEO
L/MONO
AUDIO
R
in
1
VIDEO IN
LEFT AUDIO IN
RIGHT AUDIO IN
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITAL AUDIO OUT
PCM / BITSTREAM
1 2
Back of TV
(example only)
DVD Player

Hookups (cont’d) 9
Connecting the DVD Player to a TV only (no stereo or amplifier)
TV has audio (red and white) and S-Video In jacks
●For better picture quality, use an optional S-Video cable to connect the S-VIDEO OUT jack on the DVD
Player to the S-VIDEO IN jack on your TV. You will not use the VIDEO OUT jack on the DVD Player, and
you will not need the supplied yellow video cable.
●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the
settings are wrong will distort the sound or damage the speakers.
1
Connect the supplied red and white audio cables to the red and white
AUDIO OUT jacks on the DVD Player and to the red and white AUDIO
IN jacks on the TV, matching the cable colors to the jack colors.
2
Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack on
the DVD Player and to the S-VIDEO IN jack on the TV.
3
Connect the TV’s power cord to a power outlet.
Turn on the TV and set it to the S-VIDEO IN channel. This channel usually
is located near channel 00. See your TV owner’s manual for details.
4
Connect the DVD Player’s power cord to a power outlet.
Press the POWER button to turn on the DVD Player. “P-ON” will appear
briefly on the DVD Player’s display panel. You should see the DVD logo on the TV
screen. If you do not, check your connections and make sure the TV is on the cor-
rect S-Video In channel.
DVD Player
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITAL AUDIO OUT
PCM / BITSTREAM
S-VIDEO IN
LEFT AUDIO IN
RIGHT AUDIO IN
VIDEO
L/MONO
AUDIO
R
in
1
1 2
Back of TV
(example only)

10 Hookups (cont’d)
Connecting to a TV and a Stereo
●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the
settings are wrong will distort the sound or damage the speakers.
1
Connect the supplied red and white audio cables to the red and white
AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN
jacks on the Stereo, matching the cable colors to the jack colors.
2
Connect the supplied yellow video cable to the yellow VIDEO OUT jack on
the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an
optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-
VIDEO IN jack on the TV. Only one video connection is needed.)
3
Plug in the Stereo’s power cord. Turn on the Stereo and select the Stereo’s
Auxiliary IN station. During Disc playback, you will adjust the volume at your
Stereo. See your Stereo owner’s manual for details.
4
Plug in the TV’s power cord. Turn on the TV and set it to the Video In
channel (or S-Video In channel), which usually is located near channel 00.
During Audio CD playback, you may check the status of Audio CDs on your TV
screen. During DVD playback, you will watch the program on the TV. See your TV
owner’s manual for details.
5
Connect the DVD Player’s power cord to a power outlet.
Press the POWER button to turn on the DVD Player. “P-ON” will appear
briefly on the DVD Player’s display panel. You should see the DVD logo on the TV
screen. If you do not, check your connections and make sure the TV is on the correct
Video In channel.
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITAL AUDIO OUT
PCM / BITSTREAM
VIDEO
L/MONO
AUDIO
R
in
1
VIDEO IN
AUDIO (RIGHT) IN
AUDIO (LEFT) IN
Back ofTV
(example only)
DVD Player
Back of Stereo
(example only)
2
1

Hookups (cont’d) 11
Connecting to a Dolby Digital Decoder or DTS Decoder
Some Discs are recorded in a 5.1 channel Dolby Digital Surround or Digital Theater System (DTS)
Surround format. These Discs will sound best if you connect the DVDPlayer to a Dolby Digital or DTS
Decoder.
●You will need a coaxial digital audio cable (not supplied).
●If you connect the DVD Player to a Dolby Digital Decoder, set Dolby Digital to On. Details are on pages
40-41.
●If you connect the DVD Player to a DTS Decoder, set DTS to On. Details are on pages 40-41.
If you do not connect the DVD Player to a Dolby Digital or DTS decoder, set Dolby Digital and DTS to
Off. Incorrect settings may cause noise distortion and damage the speakers.
●Select 5.1 channel Dolby Digital Surround sound in the Disc menu.
●Connect a subwoofer and the center, front, and surround speakers to the Decoder as described in the
Decoder’s owner’s manual.
1
Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player
and to the COAXIAL DIGITAL AUDIO IN jack on the Decoder.
2
Connect the supplied yellow video cable to the yellow VIDEO OUT jack on
the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an
optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO
IN jack on the TV. Only one video connection is needed.)
3
Plug in the Decoder’s power cord. Turn on the Decoder and select the
Auxiliary IN station. During Disc playback, you will adjust the volume at the Decoder.
See your Decoder owner’s manual for details.
4
Plug in the TV’s power cord. Turn on the TV and set it to the correct Video In
channel. During Audio CD playback, you may check the Disc status on your TV screen.
During DVD playback, you will watch the program on the TV. See your TV owner’s man-
ual for details.
5
Connect the DVD Player’s power cord to a power outlet. Press the POWER
button to turn on the DVD Player. “P-ON” will appear briefly on the DVD Player’s
display panel. You should see the DVD logo on the TV. If you do not, check your connec-
tions and make sure the TV is on the correct Video In channel.
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITAL AUDIO OUT
PCM / BITSTREAM
VIDEO
L/MONO
AUDIO
R
in
1
VIDEO IN
COAXIAL DIGITAL
AUDIO IN
Back of Decoder
(example only)
DVD Player
Back ofTV
(example only)
1
2

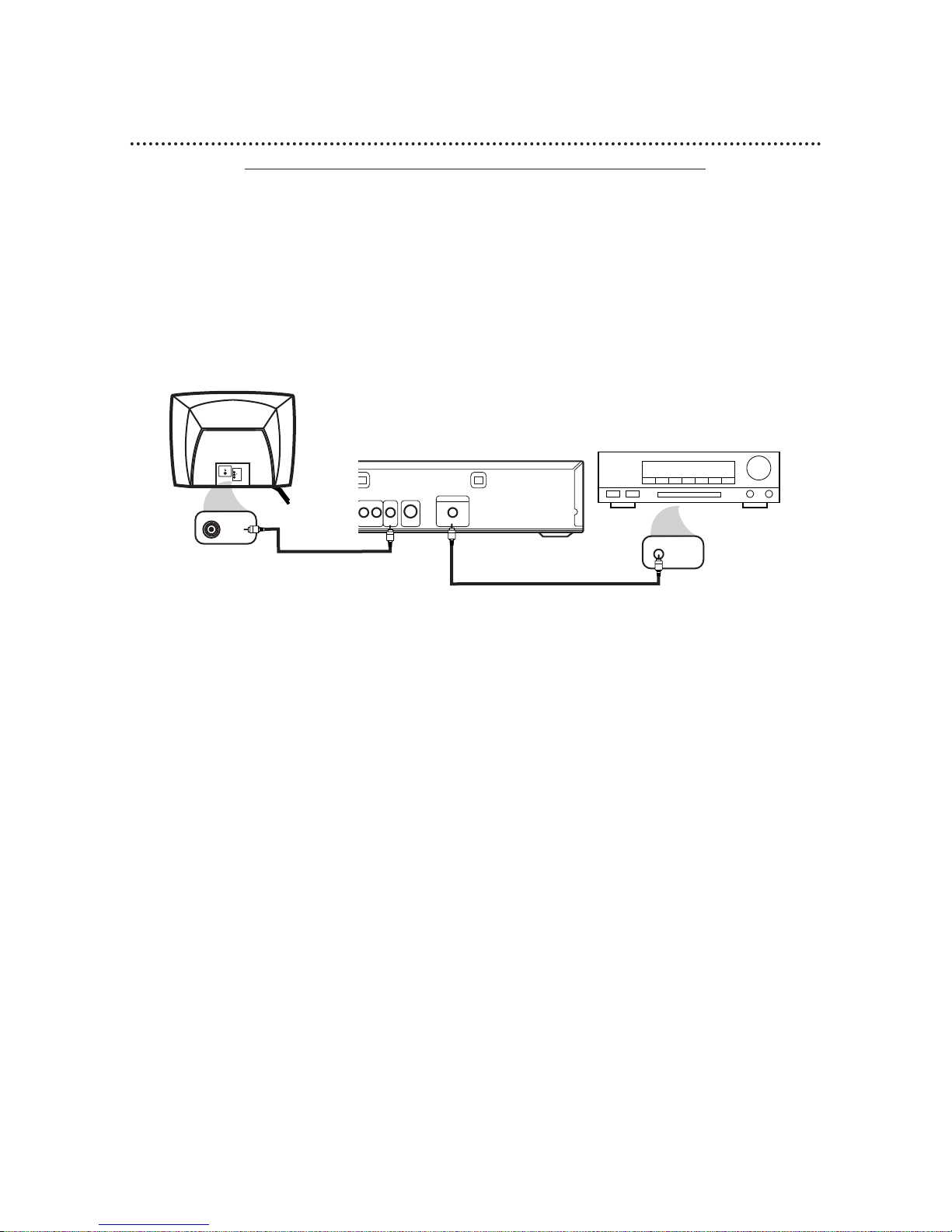

Connecting to a TV and an Amplifier with Digital Input jacks, Mini-Disc Deck or
Digital Audio Tape Deck
●Use a coaxial digital audio cable (not supplied) for this connection.
●If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot dub the Disc in digital sound using
a Mini-Disc or Digital Audio Tape Deck.
●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the
settings are wrong will distort the sound or damage the speakers.
12 Hookups (cont’d)
1
Connect a coaxial digital audio cable to the COAXIAL jack
on the DVD Player and to the COAXIAL DIGITAL AUDIO
IN jack on the Amplifier.
2
Connect the supplied yellow video cable to the yellow
VIDEO OUT jack on the DVD Player and to the VIDEO IN
jack on the TV. (Or, you may connect an optional S-Video cable
to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO
IN jack on the TV. Only one video connection is needed.)
3
Plug in the Amplifier’s power cord. Turn on the Amplifier
and select the Auxiliary IN station. During Disc playback, you
will adjust the volume at the Amplifier. See your Amplifier owner’s
manual for details.
4
Plug in the TV’s power cord. Turn on the TV and set it to
the correct Video In channel. During Audio CD playback, you
may check the status of the Disc on your TV screen. During DVD
playback, you will watch the program on the TV. See your TV
owner’s manual for details.
5
Plug in the DVD Player’s power cord. Press the POWER
button to turn on the DVD Player. “P-ON” will appear briefly
on the DVD Player’s display panel. You should see the DVD logo
on the TV. If you do not, check your connections and make sure
the TV is on the correct Video In channel.
• Insert cable plugs firmly into the jacks
when making connections.
• If a plug has minor scratches or is
dirty, clean it with a soft cloth before
inserting it into a jack.
Helpful Hints
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITAL AUDIO OUT
PCM / BITSTREAM
VIDEO
L/MONO
AUDIO
R
in
1
VIDEO IN
COAXIAL DIGITAL
AUDIO IN
Back ofTV
(example only)
Back ofAmplifier
(example only)
DVD Player
1
2

14 Front Panel
OPEN/CLOSE
STANDBY-ON
STOP
PREV NEXT
PLAY PAUSE
DVD611 DVD/CD PLAYER
OPEN/CLOSE Button
Press to open or close the Disc tray.
Details are on page 18.
PLAY Button
Press to start or resume Disc playback.
Details are on page 18.
STOP Button
Press to stop Disc playback.
Details are on page 18.
PAUSE Button
Press to pause Disc playback.
Details are on page 20.
STANDBY-ON Button
Press to turn the power on and off.
Details are on page 18.
Remote Sensor
Receives a signal from your remote control so you
can operate your DVD Player from a distance.
PREV(ious)/NEXT
Press to go to previous or subsequent Tracks
or Chapters. Press and hold for about three
seconds for a fast forward or reverse search.
Details are on page 22.

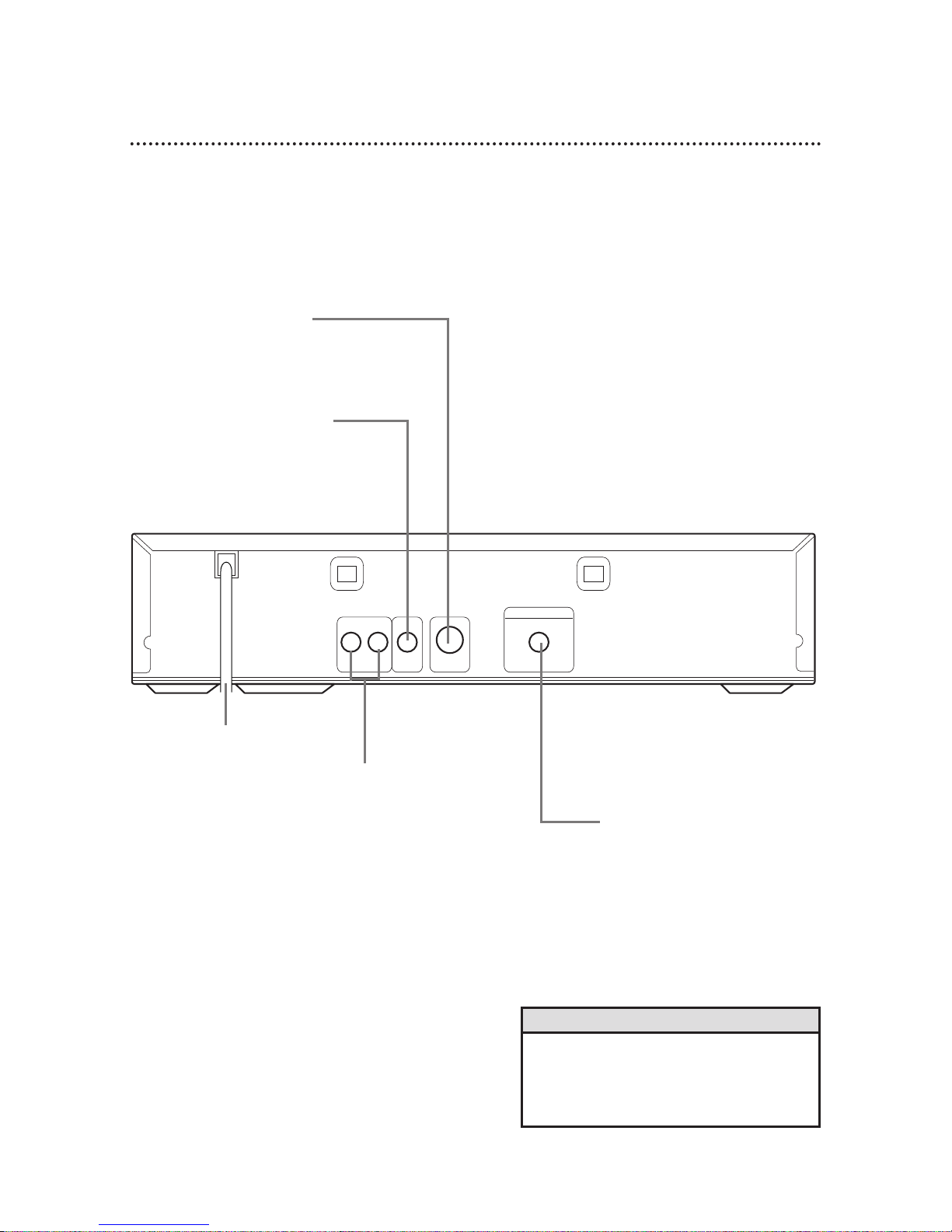

Rear Panel 15
AUDIO OUT COAXIAL
S-VIDEO
OUT
VIDEO
OUT
R L
DIGITALAUDIO OUT
PCM / BITSTREAM
AC Power Cord
Connect to a standard AC
outlet to supply power to
the DVD Player.
COAXIAL Jack
Connect an optional audio
coaxial digital cable here
and to the coaxial digital
Audio In jack of a decoder
or amplifier. Details are on
pages 11-12.
S-VIDEO OUT Jack
Connect an optional S-Video cable here
and to the S-Video In jack of a televi-
sion. Details are on pages 9-12.
VIDEO OUT Jack
Connect the yellow video cable
(supplied) here and to the TV’s
Video In jack. Details are on
pages 8 and 10-12.
AUDIO OUT Jacks
Connect the supplied red
and white audio cables here
and to the Audio In jacks of
a television or stereo. Details
are on pages 8-10.
• You only need one audio connection and one
video connection, so you will not have a cable
connected to every jack. For example, if you
are using the S-VIDEO OUT jack, you will not
use the VIDEO OUT jack.
Helpful Hint
