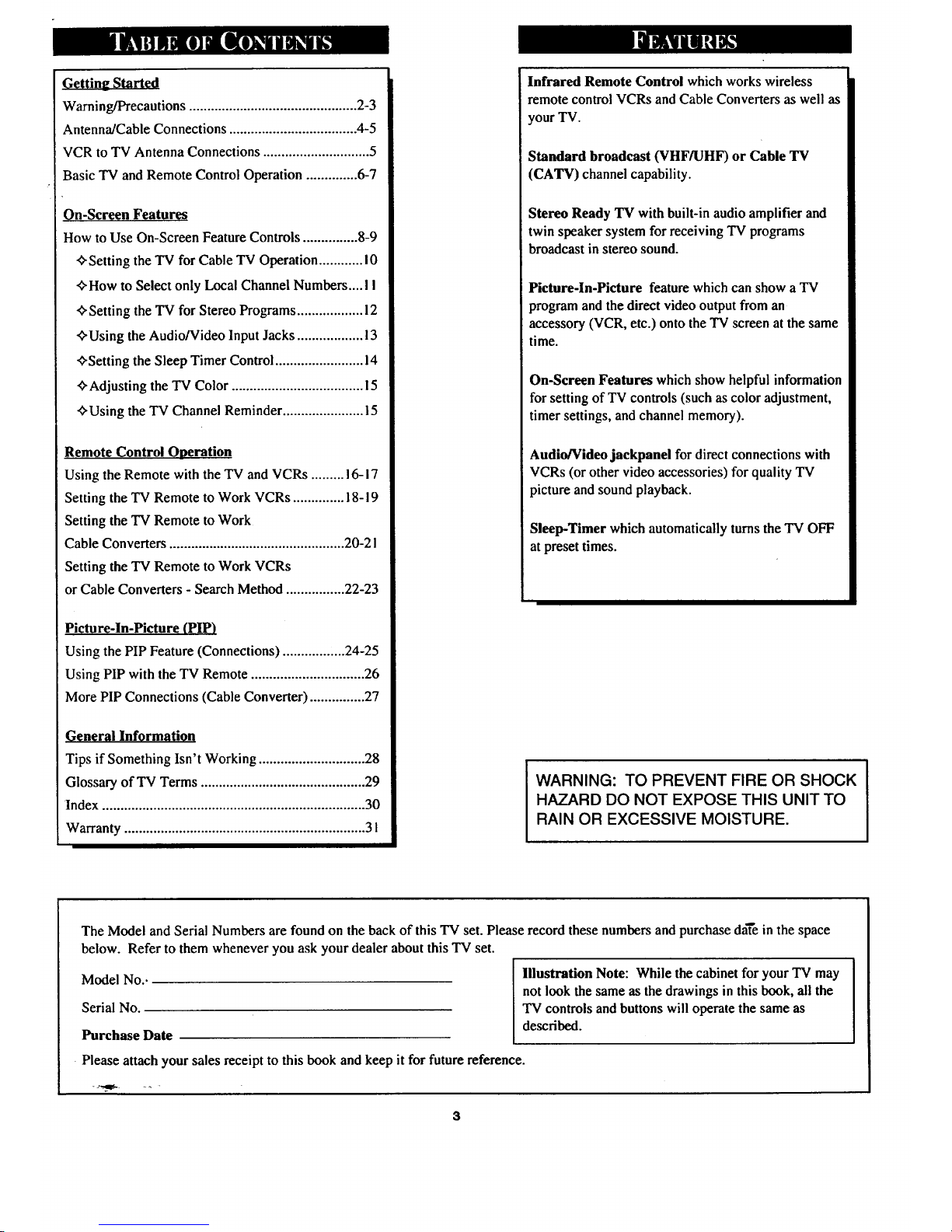

Warning/Precautions .............................................. 2-3
Antenna/Cable Connections ................................... 4-5
VCR to TV Antenna Connections ............................. 5
Basic TV and Remote Control Operation .............. 6-7
On-Screen Features
How to Use On-Screen Feature Controls ............... 8-9
+ Setting the TV for Cable TV Operation ............ 10
+How to Select only Local Channel Numbers.... I I
€Setting the TV for Stereo Programs .................. 12
+Using the Audio/Video Input Jacks .................. !3
¢'Setting the Sleep Timer Control ........................ 14
+Adjusting the TV Color .................................... 15
€Using the TV Channel Reminder ...................... 15
Remote Control Operation
Using the Remote with the TV and VCRs ......... !6-17
Setting the TV Remote to Work VCRs .............. 18-19
Setting the TV Remote to Work
Cable Converters ................................................ 20-2 I
Setting the TV Remote to Work VCRs
or Cable Converters - Search Method ................ 22-23
Picture-ln-Picture (PIP)
Using the PIP Feature (Connections) ............. ...24-25
Using PIP with the TV Remote ............................... 26
More PIP Connections (Cable Converter) ............... 27
General Information
Tips if Something Isn't Working ............................. 28
Glossary of TV Terms ............................................. 29
Index ........................................................................ 30
Warranty .................................................................. 31
Infrared Remote Control which works wireless
remote control VCRs and Cable Converters as well as
your TV.
Standard broadcast (VHF/UHF) or Cable TV
(CATV) channel capability.
Stereo Ready "IV with built-in audio amplifier and
twin speaker system for receiving TV programs
broadcast in stereo sound.
Picture-In-Picture feature which can show a TV
program and the direct video output from an
accessory (VCR, etc.) onto the TV screen at the same
time.
On-Screen Features which show helpful information
for setting of TV controls (such as color adjustment,
timer settings, and channel memory).
Audio/Video jackpanel for direct connections with
VCRs (or other video accessories) for quality TV
picture and sound playback.
Sleep-Timer which automatically turns the TV OFF
at preset times.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.
The Model andSerial Numbers are found on the back of this TV set. Please record these numbers and purchase da'i_in the space
below. Refer to them whenever you ask your dealer about this TV set.
Model No..
Serial No.
Purchase Date
Illustration Note: While the cabinet for your TV may
not look the same as the drawings in this book, all the
TV controls and buttons will operate the same as
described.
Please attach your sales receipt to this book and keep it for future reference.
3

irst let's connect your Antenna
or Cable TV signal to your TV.
This will be easy since there is only
one 75D antenna plug on the back
of your TV- and that's where the
antenna goes.
[ BEGIN ]
<_IF your antenna (or CABLE TV
signal) has a round cable (75 ohm)
with a metal prong (F-connector)
on the end, then you're ready to
connect it to the TV.
IF your antenna has flat twin-lead
wire (300ohm), you first need to
attach the antenna wires to the
screws on an optional adapter
(300 to 75 ohm).
(,_ Push the round end of the
adapter (or cable) onto the
ANTENNA plug on the rear of the
TV. If the round end of the cable
connector is threaded, screw it
down tight. 0
l_ !Try it out. Press POWER to
turn the TV ON. Press the
CHANNEL UP button. You
should see local channels flash by.
Certain channel numbers have been
added to the TV's memory at the
factory. To set the TV to select
only the channel numbers in your
area, see page II.
,_[_co Remember. If the TV is
nnected to a Cable TV
I(CATV) signal, be sure to set the
TV for that type signal (see page
]o).
Outdoor VHFAJHF Antenna
III
/I
lI
/I
iI
/ I
/ / I
/i\\
/ / %,%
Adapter
(4835218270)
Outdoor VHF/UHF Anlenna
I
Round Cable
752
Back of TV

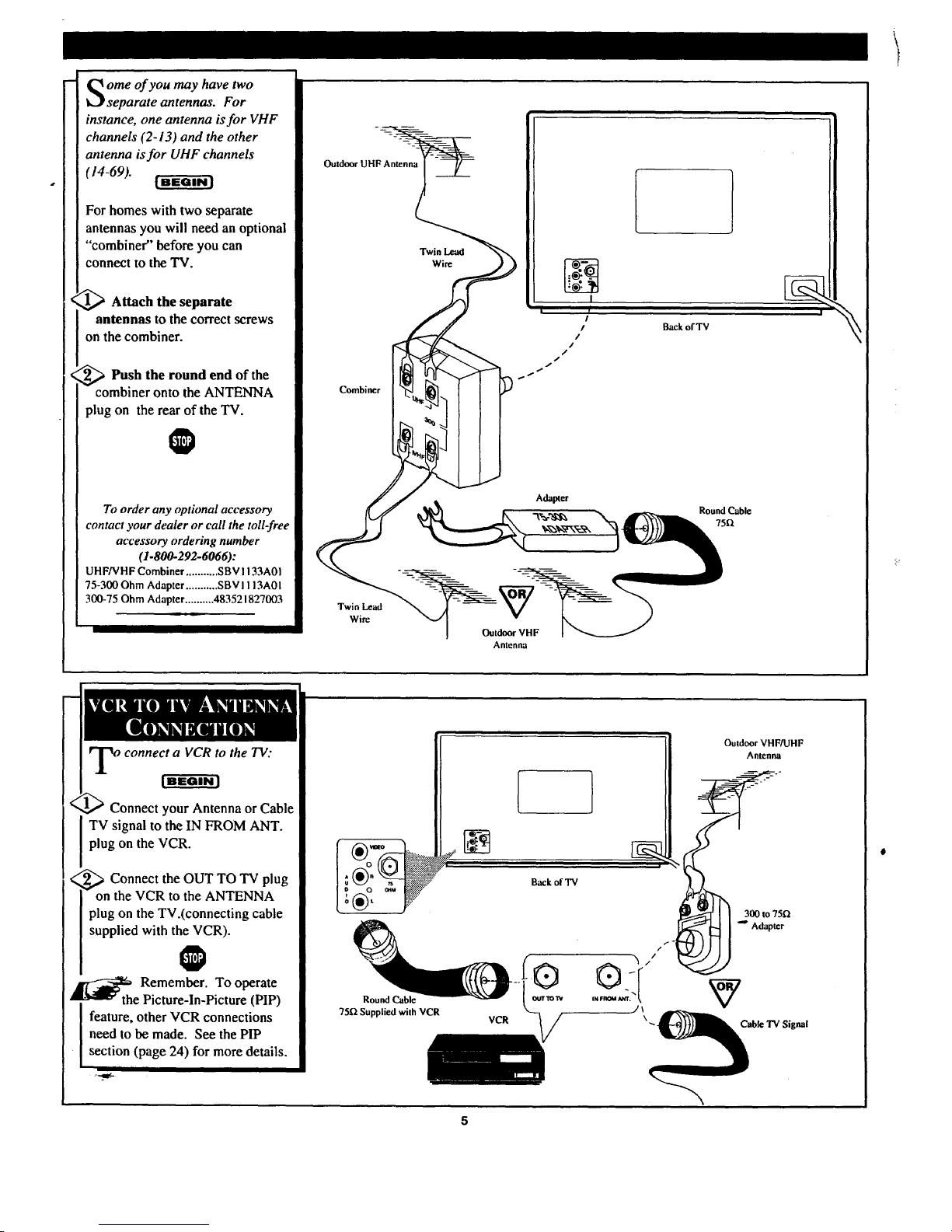

ome of you may have two
separate antennas. For
instance, one antenna is for VHF
channels (2-13) and the other
antenna isfor UHF channels
114-69). [ BEGIN ]
For homes with two separate
antennas you will need an optional
"combiner" before you can
connect to the TV.
_Attach the separate
antennas to the correct screws
on the combiner.
Push the round end of the
combiner onto the ANTENNA
plug on the rear of the TV.
O
To order any optional accessory
contact your dealer or call the toll-free
accessory ordering number
(1-800-292-6066):
UHFNHF Combiner ........... SBV I!33A01
75-300 Ohm Adapter ........... SBVI 113A01
300-75 Ohm Adapter.......... 483521827003
Combiner
Twin Lcaut
Wirc
Back of TV
Adapter RoundCable
75fi
Twin Lead
Wire
Outdoor VHF
Antenna
to the TV:
[BEGIN]
Connect your Antenna or Cable
TV signal to the IN FROM ANT.
plug on the VCR.
Connect the OUT TO TV plug
on the VCR to the ANTENNA
plug on the TV.(connecting cable
supplied with the VCR).
O
._, Remember. To operate
" the Picture-In-Picture (PIP)
feature, other VCR connections
need to be made. See the PIP
section (page 24) for more details.
o _,_
°F
Round Cable
75_ Supplied with VCR
Outdoor VHF/UHF
Antenna
[
Back of TV
I I 30oto75_
\Cable TV Signal

[ BEGIN I

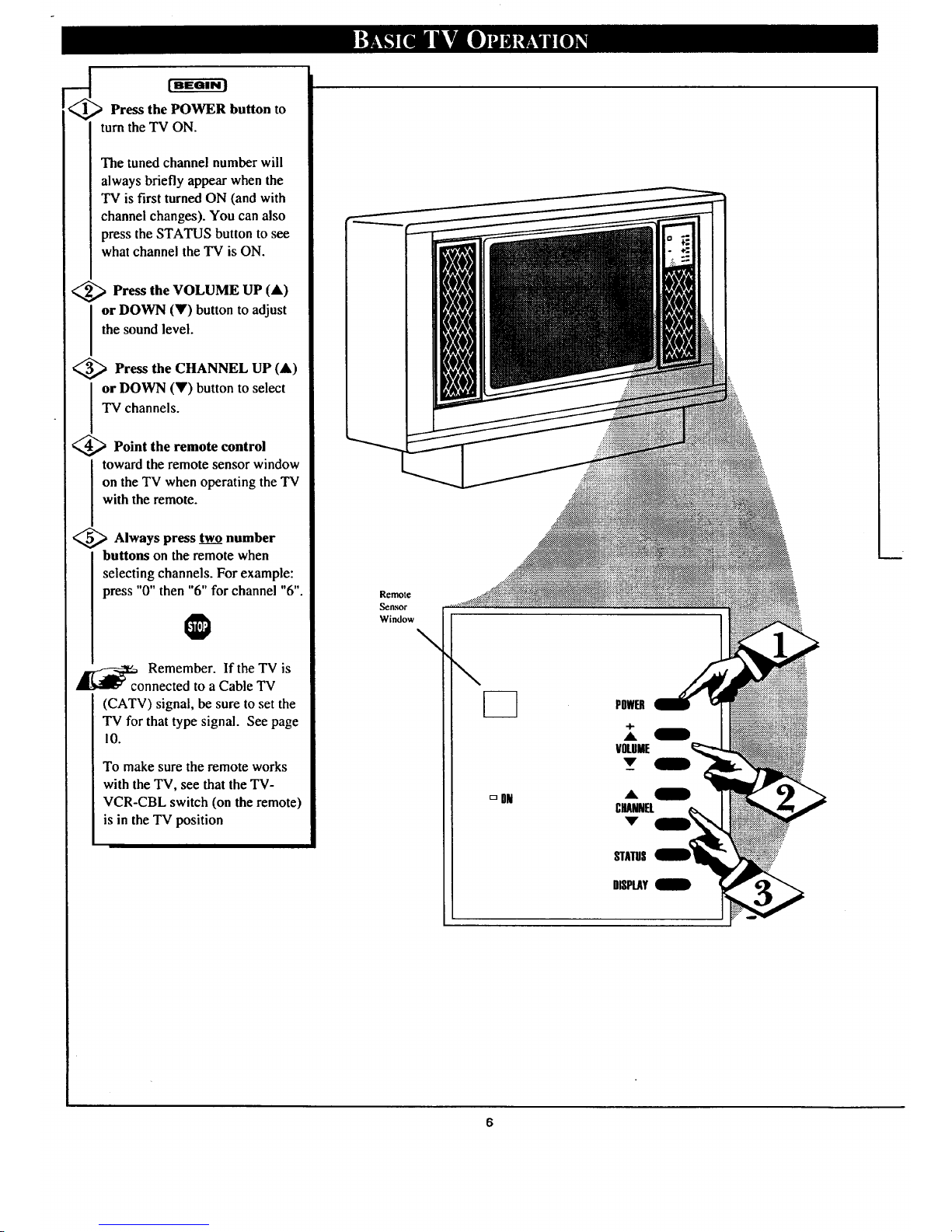

Press the POWER button to
turn the TV ON.
The tuned channel number will
always briefly appear when the
TV is first turned ON (and with
channel changes). You can also
press the STATUS button to see
what channel the TV is ON.
<_ Press the VOLUME UP (A)
I r DOWN (V) button to adjust
the sound level.
,_ Press the CHANNEL UP (A)
or DOWN (V) button to select
TV channels.
<_ Point the remote control
toward the remote sensor window
on the TV when operating the TV
with the remote.
<_ Always two numberpress
buttons on the remote when
selecting channels. For example:
press "0" then "6" for channel "6".
O
Remember. If the TV is
onnected to a Cable TV
(CATV) signal, be sure to set the
TV for that type signal. See page
10.
To make sure the remote works
with the TV, see that the TV-
VCR-CBL switch (on the remote)
is in the TV position
Remote
Sensor
Window
\
POWER
STATUS
DISPLAY
6

lOad the supplied battery
to the remote:
[BEGIN ]
_Remove the battery
compartment lid on the back of
the remote.
<_ Place the battery in the
Iremote. Be sure to line the ends
I of the battery up correctly.
_Reattach the battery lid.
0

eatures for your TV can be
adjusted from a DISPLAY
screen shown on the TV. A
DISPLAY is nothing more than an
on-screen message for a TV
feature. Each D1SPLA Y can be
adjusted by viewing the screen
and pressing a button.
Note: The DISPLAY button on the TV
and the MENU (M) button on the
remote control work with the TV in
the same way.
[BEGIN !
'_ Press DISPLAY on the TV (or
M button on the remote). An on-
screen feature appears on the TV
screen.
<_ Press (or on
DISPLAY MENU
the remote) repeatedly to pick any
of the available on-screen
features.
IF you pass the feature you want,
you can press the My button to
back up one display screen. (Press
the MA button to go forward
through the display screens).
Press (+) or (-) to adjust the on-
screen feature. After a few
seconds the message will
disappear from the screen.
IF you are not finished working
with it, just press DISPLAY or M
button and the feature will return
to the screen.
<_ Press STATUS to clear the
screen after an adjustment.
O
BRIGHTNESS
Pl_gtl_
llllllllll
SLEEPTIMER
INPUT
V
Ai
CHANG
•i
DISPLAY
STEREO
I

COLOR
TINT
I
I
CABLE
SHARPNESS
I I
ADD/DELETE CHANNELS
CI-IANNI:I. IH_,MINDLI_

<
you need to make sure that the
TV is set to pick up either
Cable TV stations or Antenna
signals. In other words, the TV
needs to know whether you have
connected a Cable TV signal or a
normal antenna to its ANTENNA
plug.
Press DISPLAY (or M button
on the remote) until you see this
message on the screen: CABLE /
YES NO.
Press the (+) or (-) buttons
(on the TV or the remote) to select
either:
YES-
NO-
If you DO have Cable TV
connected to the TV.
Channels I-125 (excluding
95-97) can be selected.
If you have an Antenna
connected to the TV.
Channels 2-69 can be
selected.
<_ Press STATUS to clear the
screen v
Wail for the message CABLE /
YES NO to automatically
disappear from the screen.
Try it out. Press CHANNEL
• button and scan the channels.
,__be Remember. The TV has
en set at the factory to
select certain channel numbers.
See the following page on how
to set the TV to select the
channels in your area.
•Iq[_ lUI.EEP POWER
II 0
1 2 3
=====================================================================
10

m
':i!
ow you are ready to ADD
and DELETE channels. This
allows you to skip over unused
channels in your area.
To select only the TV stations you
want to watch (when you press CH
•or V):
<_ Press DISPLAY (or M
button on the remote) until you
see CHANNEL ADD /DELETE
at the bottom of the screen. This
screen also shows the channel
number you are watching.
<_ Press CHANNEL• or • (or
number buttons) to select the
channel you want to ADD or
DELETE.
<_ Press (+) to ADD a channel
number into memory. A
YELLOW arrow will appear and
point to ADD.
Press (-) to DELETE a channel
from memory. A RED arrow will
appear and point to DELETE.
<_ Press the STATUS button to
clear the screen after adding all the
channels you want.
_/_ Try it out. Press the
CHANNEL• or •buttons
and "scan" from channel to
channel. The channels you
ADDED should appear. The
channels you DELETED should
not appear.
YELLOW channel numbersmean
achannelh;x,_beenADDED.
REDchannel numbers meana
channelhasbeenDELETED.
r,! :
fi
i
..... °--- i_
4 5 6
11

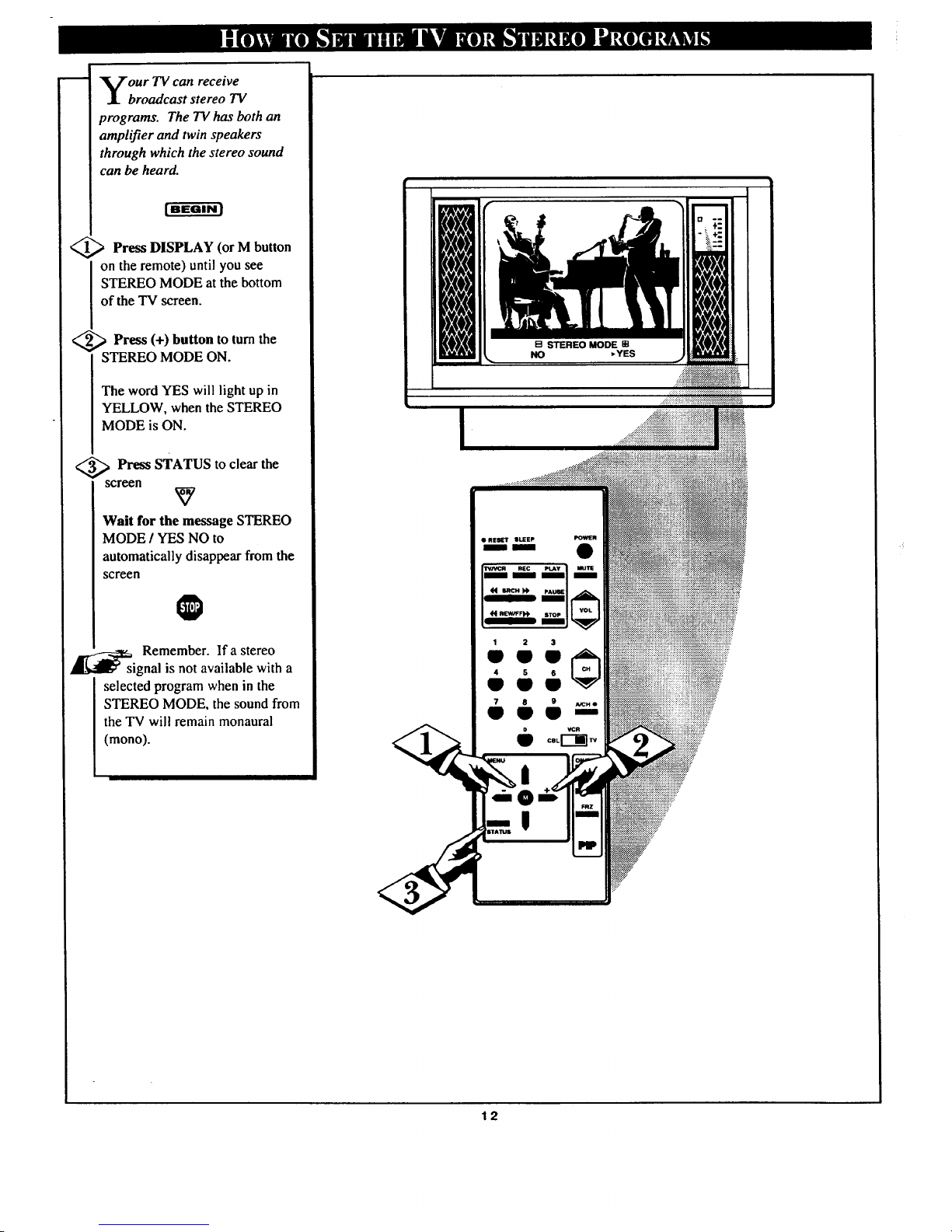

our TV can receive
broadcast stereo TV
programs. The TV has both an
amplifier and twin speakers
through which the stereo sound
can be heard.
<_ Press DISPLAY M button
(or
on the remote) until you see
STEREO MODE atthe bottom
of the TV screen.
_'_ _ Press (+) button to turnthe
STEREO MODE ON.
The word YES will light up in
YELLOW, when the STEREO
MODE is ON.
<_ Press STATUS to clear the
screen
Wait for the message STEREO
MODE /YES NO to
automatically disappear from the
screen
Remember. If a stereo
ignal is not available with a
selected program when in the
STEREO MODE, the sound from
the TV will remain monaural
(mono).
1 2 3
tit
4 5 6
tit
!
12

ou can view the playback of
VCR tapes (Video Disc
Players, camcorders, etc). by
using the AUDIO and VIDEO
INPUT jacks (on the rear of the
TV).
For example: to view the
playback of a VCR tape:
Connect AUDIO and
the
VIDEO INPUT jacks on the TV
to the AUDIO and VIDEO
OUTPUT jacks on the VCR.
_;_ Press DISPLAY M
(or
button on the remote) until you
see INPUT VCR/AUX - ANT at
the bottom of the TV screen.
<_ Press button to select the
(-)
VCPUAUX(iliary) INPUTS on
the rear of the TV.
<_ Turn the VCR ON and PLAY
the VCR tape to be viewed on the
TV.
,_[_._tth Remember! When you're
rough using the A/V
INPUT jacks, return the INPUT
display screen on the TV to
ANT(enna). Then you will be
ready to view TV programs
coming from the normal antenna
connections.
If you leave the TV in the
VCR/AUX INPUT mode and
there is no signal source
connected to the jacks, you will
be seeing only a blank screen on
the TV.
NOTE: If you have a mono
(single audio OUTPUT) VCR,
"Y" Connectors are available
(from your dealer or Parts
Information Center ! 800 292-
6066) to connect the mono audio
to both R and L audio inputs on
the TV.
. _-_.qgd.- -_
VIDEO
D
I
0
AUDIO/VIDEO
CABLES SUPPLIED
(YELLOW)
AUDIO OUT
(RED/WHITE)
VCR
BACK OF TV
OUTDOOR
UHF/VHF
ANTENNA
ANT OUT
ANTIN
CABLE TV SIGNAL
PICTURE AND SOUND
FROM PLAYBACK OF
VCRTAPE
13

aVe you ever fallen asleep in
ont of the TV only to have it
wake you up at two in the morning
with a test pattern screeching in
your ears? Well, your TV can
save you all that trouble by
automatically turning itself off.
<_ Press the SLEEP button on
[the remote (or DISPLAY button
I on the TV). SET SLEEP TIMER
I MINUTES 0will appear on the
Iscreen.
<_ Press the (+) button to pick
the amount of time (30, 60, 90, or
120 minutes) before the TV will
turn itself off.
If you pass up the time interval
you want, just keep pressing the
(+) button and your time setting
will come around again.
<_ After you have picked the time
interval for the TV to turn off,
press the STATUS button to clear
the screen. II
_ Remember. If you ever
ant to see how many
minutes are left before the TV
shuts itself off, press the SLEEP
button on the remote.
If you want to stop a SLEEP
TIMER setting, reset the timer
back to 0 MINUTES. You could
also turn the TV off, and then
back on again, to cancel a setting.
About 15 seconds before the TV
is to shut off a message will come
on the screen telling you GOOD
NIGHT.
!
14

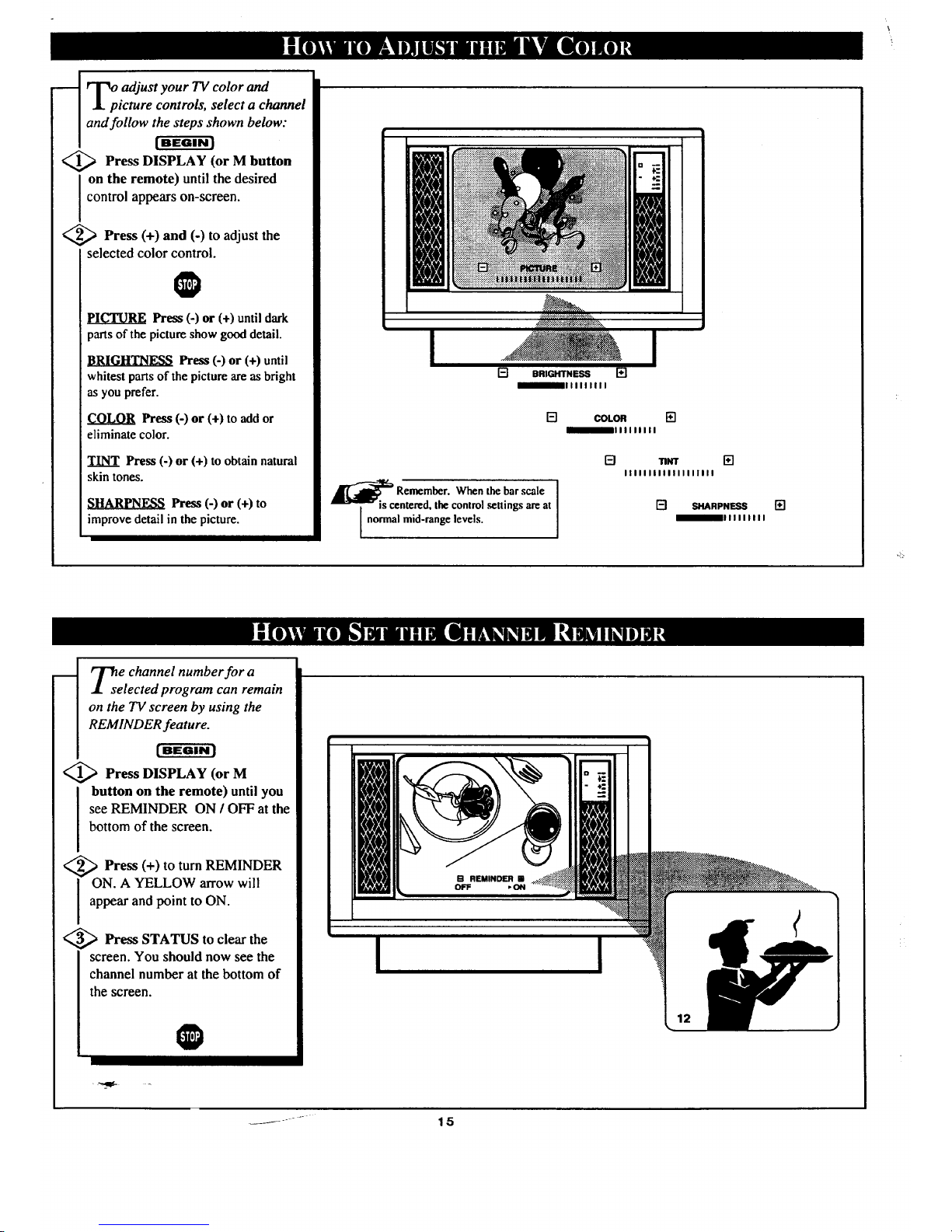

_r_ adjust your TV color and
J_ picture controls, select a channel
and follow the steps shown below:
<_ Press DISPLAY M button
(or
on the remote) until the desired
control appears on-screen.
<_ Press (+) and (-) to adjust the
selected color control.
O
PICTURE Press (-) or (+) until dark
parts of the picture show good detail.
BRIGHTNESS Press (-) or (+) until
whitest parts of the picture are as bright
as you prefer.
COLOR Press (-) or (+) to add or
eliminate color.
TINT Press (-) or (+) to obtain natural
skin tones.
SHARPNESS Press (-) or (+) to
improve detail in the picture.
nlllllllll
[] COLOR []
_Rememher. When thebar scale I
is centered,the control_ttings are at I
I normalmid-rangelevels.
[] Illllllllllllllllll
[] SHARPNESS
illlllllll []
rl'_e channel number for a
I selectedprogram can remain
on the TV screen by using the
REMINDER feature.
(BEGIN)
<_ Press DISPLAY (or M
button on the remote) until you
see REMINDER ON /OFF at the
bottom of the screen,
<_ Press (+) to turn REMINDER
I ON. A YELLOW arrow will
I
appear and point to ON.
<_ Press STATUS to clear the
screen. You should now see the
channel number at the bottom of
the screen.
O
J--- 15

Aft, herinstalling the battery into
e remote, put the TV-VCR-
CBL slide switch in the TV
position. Point the remote toward
thefront of the TV (remote sensor
window) when pressing buttons.
VCR Buttons
For use of VCR buttons see the
"Using the Remote With a VCR".
Volume Button
Press to adjustthe TV sound level. --
Number Buttons
Press the number buttons to select TV
channels. Press tW__QOnumber buttons to
select channels. For example: to select
channel 6...press "0" first and then
-6 ,I"
Menu (VJk) Buttons
Press the M button to display on-
screen feature controls. Press • or •
buttons to move forward and
backward through the list of on-screen
controls.
(-) and (+) Buttons
Press to adjust the select on-screen
feature control.
Status Button
Press to see the currentchannel
number on the TV screen. Also press
this button to clear the .screenafter
control adjustments.
7
Eoload the supplied batte_.
into the remote:
|BEGIN)
1_ Remove the battery
compartment lid on the back of
the remote.
_Place the battery in the
remote. Be sure to line the ends
of the battery up correctly.
_._Reattach the battery lid.
0
I
• RESET SLEEP
mm
TVNCR REC PLAY
area
44 SRCH )_), PAUSi
_m
44 REW/FF)_ STOP
_m
1 2 3
4 5 6
POWER
e-
MUTE
I
7 8
--!
STATUS
VCR
ONIOFF
SWAP
FRZ
m
__
i
i
L_
Reset Button
Press to returnthe TV to certain
factory set levels for picture and color
controls.
Sleep Timer Button
Set the "IVto automatically turn itself
OFF. See Sleep Timer section for
details.
"Power Button
Press to turnthe "IV ON and OFF.
Mute Button
Press to turn the sound OFF on the
TV. Press again to returnthe sound
to its previous level.
Channel Scan Button
Press to scan up or down through
channel numbers.
Alternate Channel Button
Press to select the previously viewed
channel.
For example: You are watching
channel 4 and change to channel 10
(using the channel number buttons).
Press A/CH and your TV will return
to channel 4. Press A/CH again and
your TV will return to channel 10.
TV-VCR-CBL Switch
Inthe TV position the remote sends
channel and feature commands to the
TV. In theVCR position the remote
sends commands to a VCR. In the
CBL position the remote sends
commands to aCable Converter.
PIP Buttons
Press to operate Picture-ln-Picture
features. See PIP section for details.
16

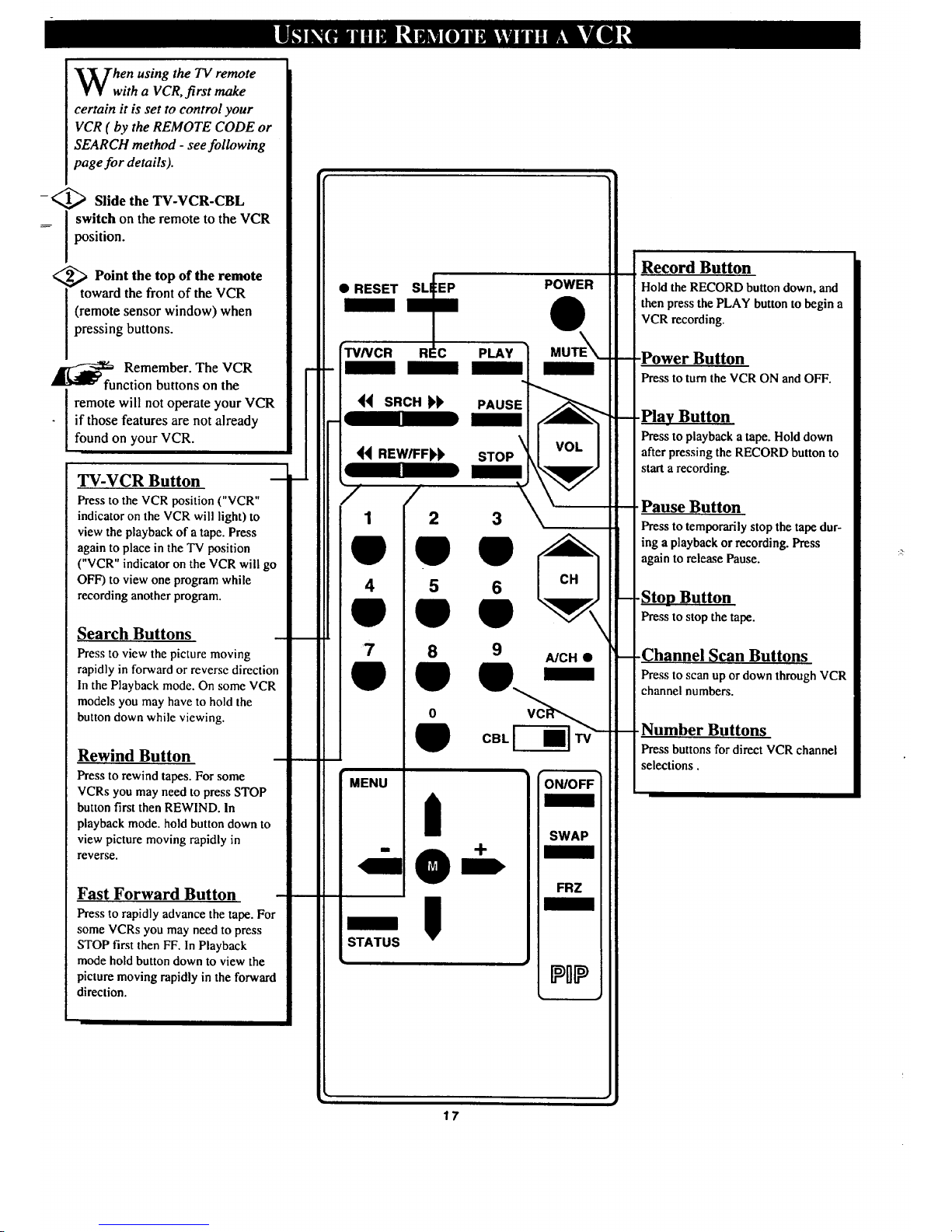

hen using the TV remote
with a VCR, first make
certain it is set to control your
VCR ( by the REMOTE CODE or
SEARCH method -see following
page for details).
-<_ Slide the TV-VCR-CBL
switch on the remote to the VCR
position.
<_ Point the of the remote
top
toward the front of the VCR
(remote sensor window) when
pressing buttons.
__fu Remember. The VCR
nction buttons on the
remote will not operate your VCR
- if those features are not already
found on your VCR.
TV-VCR Button
Press to the VCR position ("VCR"
indicator on the VCR will light) to
view the playback of a tape. Press
again to place in the TV position
("VCR" indicator on the VCR will go
OFF) to view one program while
recording another program.
Search Buttons
Press to view the picture moving
rapidly in forward or reverse direction
in the Playback mode. On some VCR
models you may have to hold the
button down while viewing.
Rewind Button
Press to rewind tapes. For some
VCRs you may need to press STOP
button first then REWIND. In
playback mode. hold button down to
view picture moving rapidly in
reverse.
I/ I
Fast Forward Button
Press to rapidly advance the tape. For
some VCRs you may need to press
STOP first then FF. In Playback
mode hold button down to view the
picture moving rapidly in the forward
direction.
•/RESET _ll
TVNCR REC
ll
Record Button
POWER Hold the RECORD button down, and
_SRCH _PAl
_REWlFF_ STOP
/ /
9
MENU
8
i
O ÷
I
A/CH •
cB, ]
ON/OFF
SWAP
FRZ
Ib, IIIthen press the PLAY button to begin a
MUTE__Power Button
Press to turnthe VCR ON and OFF.
-Play Button
Press to playback a tape. Hold down
after pressing the RECORD button to
start a recording.
Pause Button
Press to temporarily stop the tape dur-
ing a playback or recording. Press
again to release Pause.
---Stop Button
Press to stop the tape.
-Channel Scan Buttons
Press to scan up or down through VCR
channel numbers.
Number Buttons
Press buttons for direct VCR channel
selections.
STATUS
iPflP
17

our remote control is set to
work your TV and many
infrared remote (IR) control
VCRs. However, an easy one-
time step may be necessary
before the remote will work your
VCR.
Try this initial check to see ifyou
need to go on to thefollowing
section.
<_ Slide the TV-VCR-CBL
switch on the remote to VCR.
<_ Point remote toward VCR and
Ipress the POWER button.
<_ Does the the VCR
remote turn
ON?
IF YES, Oand try the other
VCR buttons on the remote. If
they also work the VCR, then the
remote is ready and no further
steps are needed.
If NO, continue...
!
<_ First look up a TWO-DIGIT
mote code number for your
brand VCR before going through
the simple "1,2,3" steps (on the
following page).
__ca Remember. In some
ses you may have to try
J ore than the first two-digit code
given in order to locate your
VCR's remote code.
continue to the next page...
VCR
/7 8 9 •
1
0 VCR
VCR REMOTE VCR REMOTE
BRAND CODE NO. BRAND CODE NO.
Akai 24, 25, 36 Multitech 27,28
Audio Dynamics 14, 21,29 NEC 14, 21,29
Broksonic 31 Panasonic 0 I
Cannon 01 Pentax 02, 03
Capehart 33 Philco 01,02, 27
Craig 07, 30 Philips 01, 02, 05, 23, 27, 28
Curtis Mathes 01,42,43 Quasar 0 i
Daewoo 33 RCA 03, 04, 32, 42, 43
DBX 14, 21 ,29 Realistic 07,11, 12, 23
Dynatech 27 Samsung 22, 30
Emerson 20, 3 I, 34,40 Sanyo 07, 13
Fisher 06, 07, 08 Scott 19
Funai 27, 28 Sears 03, 08, 23
GE 01 Sharp 1i, 12
Goldstar 23 Shintom 35
Hitachi 03 Sony 09, !0, 4 I
Instant Replay 01 Sound Design 27
JC Penney 01, 03, 23, 29 Sylvania 00, 01,02, 05,._27,28
JVC 14 Symphonic 27
Kenwood 13, 14 Tatung 14
Lloyds 27 Teac 14, 27
Magnavox 00, 01,02, 05,27,28 Teknika 26, 27
Magnin 30 Thomas 27
Marantz 29 TMK 20
Memorex 01, 07, 23, 27 Toshiba 18, 19
Minolta 03 Video Concepts 28, 29
Mitsubishi 16, 17, 38, 39 Yamaha 14, 28, 29
ontgomery Ward i2 Zenith 15
18

ow that you have looked up
the two-digit Remote Code
Number for your brand of VCR
(on previous page), you are
ready to follow the four simple
steps below.
Please read through steps 1-4
before beginning.
IBEWN I
Slide the TV-VCR-CBL
switch to VCR.
<_ Press and release the
RECORD button, and then
press and release the POWER
button.
<_ Within seconds after
ten
releasing the POWER button,
ENTER THE TWO DIGIT
CODE NUMBER for the
desired VCR (see list). The
remote is now ready to send
commands to the VCR.
<_ Point the remote at the VCR.
I ress the POWER button on the
remote to turnthe VCR on.
Try it out. The Channel and
on the remote
should now operate the VCR.
Remember. If the remote
ill doesn't work the VCR,
repeat steps using the same
remote code number.
If after a second try the remote
does not work your VCR, see if
there are more code numbers
listed for your brand VCR. If
there are, try the next listed code
number.
If after repeated attempts the
CODE NUMBER method does
not work your VCR, try the
"SEARCH" method described
on page 22.
VCR
• RESET SLEEP
m,--m,
PLAY
STOP
imam
1 2 3
456
7 8 9
MENU
I
POWER /i
•A/CH
I
VCR
19

<
our remote control is set to
work your TV and many
infrared remote (IR) control
Cable Converters. However, an
easy one-time step may be
necessary before the remote will
work your Converter.
Try this initial check to see if you
need to go on to the following
section.
Slide the TV-VCR-CBL
switch on the remote to CBL.
<_ Point remote toward Cable
Converter and press the POWER
button.
<_Does the remote turn the
Converter ON?
IF YES, • and try the CH ••
and CHANNEL number buttons
on the remote. If they also work
the Converter then the remote is
ready and no further steps are
needed.
If NO, continue...
CABLE
CONVERTER
/
0 VCR
<_ First look up a TWO-DIGIT
remote code number for your
brand Converter before going
through the simple "1,2,3" steps
(on the following page).
Remember. In some
cases you may have to try
more than the first two-digit code
given in order to locate your
Cable Converter's remote code.
continue to next page...
CONVERTER REMOTE
BRAND CODE NO.
Archer 28
Diamond 23
Hamlin 14, 15
Hitachi 25
Jerrold 01,02, 03, 04, 05, 30
Macom 29
Magnavox 17,26, 31
Oak 26
Oak Sigma 06
Panasonic 18, 35
Philips 19, 20, 21, 24, 26
Pioneer 09, 32
Rembrant 33
Regency 10, I I
Scientific Atlanta 08, 22
Sheritech 34
Sylvania i6
Texscan 16
Tocom 12,13
Universal 36
Viewstar Philips 26
Zenith 07
20
