MM OD-04 Mobile waste oil drainer 80L
User’s manual
007935017090

Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to reduce
the risk of personal injury and damage to equipment.
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically powered
tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust.
Always lock up tools and keep out of reach of children.
5. Avoid Unintentional Starting. Be sure the air pressure is in the off position when not in use
and before making hose connection.
6. Stay alert. Watch what you are doing, use common sense. Do not operate any tool when you
are tired.
7. Check for damaged parts. Before using any tool, any part that appears damaged should be
carefully checked to determine that it would operate properly and perform its intended
function. Check for alignment and binding of moving parts; any broken parts or mounting
fixtures; and any other condition that may affect proper operation. Any part that is damaged
should be properly repaired or replaced by a qualified technician. Do not use the tool if any
control or switch does not operate properly.
8. Replacement parts and accessories. When servicing, use only identical replacement parts.
Use of any other parts will void the warranty. Only use accessories intended for use with this
tool.
9. Do not operate tool if under the influence of alcohol or drugs. Read warning labels if
taking prescription medicine to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate the tool.
10. Maintenance. For your safety, service and maintenance should be performed regularly by a
qualified technician.

Note: Performance of this tool may vary depending on variations in air pressure and
compressor capacity.
Product specific safety precautions
This equipment is designed be operated by qualified personnel. It should only be operated
after reading and understanding the safety warnings and operating procedures in this
instruction manual.
1. Do not smoke near this equipment.
2. Firework is strictly prohibited during operation, keep away from heat, high voltage,
flammable and explosive place
3. Use in a well ventilated area.
4. When leaks are found in the equipment or hoses, immediately turn the air pressure off
and repair the leaks.
5. Once leakage is found in the hose or other components during operation, turn off air
compressor immediately, conduct a detailed inspection and proceed with
troubleshooting.
6. Do not exceed the recommended operating air pressure. This could damage equipment.
See specification on Page 5.
7. Keep a type ABC fire extinguisher nearby in case of fires.
8. Always protect your skin and eyes from contact with oil and solvents.
9. Do not start engine during the time of oil extraction. Otherwise it will cause the damage
of extraction probes and injuries of people.

10. Be careful for the oil extracted out from the vehicle, as temperature of oil is high,
always between 40~60℃
11. Used oil should be properly disposed or recycled. Please contact with your local waste
liquid/solid authority for information on recycling.
Product description:
1.Fast vaccum speed, capable of high negative pressure, multi-purpose equipment.
2.High quality cylinder, higher intensity, high grade of transparency as well as high temperature
resistance (able to withstand 80℃ & negative pressure without deforming). Transparent cylinder
allows oil observation and measurement.
3. Use compressed air as power source; guarantee the safety in use, Eco friendly and low power
consumption
4. Vacuum cylinder and oil tank at a same time, increase oil extraction speed
5. Different diameter of oil suction probes to meet the need of different type of cars
6. Height adjustable Oil tray lift, can be fix to desirable height
7. Can be used with other mechanical engine oil, lubricants as well as temporary storage. Brake
fluid, gasoline, diesel and other liquid contains methanol and ketones or flammable is strictly
prohibited.
Specification:
Functions: Remove and extract waste fluids or oil out from engine and etc. with flexible PVC
tube and robust CU probe. Power from compressed air
Air Inlet Pressure:：
0.5～2bar/7.3~29PSI
Ejection pressure：
0.6～0.8 bar/8.7~11.6PSI
Air Consumption:：
150L/Min
Vacuum Degree:
70L
Tank Capacity:
20L
Working Temperature：
40～60℃
Package：
Oil tank/box
Carton size:
470*440*940mm

Package Contents
Please inspect and look for damages from shipping when package is first received. If the unit is
damaged in any way, please contact customer service and include pictures if possible.
In the package, you will find:
a) English manual
b) Oil tank
c) Oil tray
d) Strain
Operation Instruction
1) Setup Setup (Refer below instruction and figure)
a) Install the oil tray and lifting pole in ‘Clock-wise’ direction
b) Ensure the lifting pole is perpendicular with the machine
NOTICE: Place the machine in a flat ground to avoid sliding during operation.
Oil temperature higher than 80 ° C will cause seriously damage to the components,
in worst case it could bring to machine failure.
2) Oil Collection
.Lift the vehicle to proper height
1.Move the oil extractor below the car engine, oil tray position right under the vehicle oil drain
hole.
2. Ensure ball valve② is off
3. Open the wing valve③ (by rotating it in anticlockwise direction, vertical sitting as open)
4. Open the mini ball valve①, release tank pressure
5. release oil drain bolt
6. Waste oil is transfer from the oil tray to the oil tank
3) Tank Emptying
1.Turn off all ball valve
2. Hold the ejection hook and insert it into the external disposal tank
3. Connect the air compressor with the air inlet ①

4.Turn on the mini ball valve ① gradually, adding tank pressure.
(The valve will automatically release pressure when the tank pressure reach 1.0 bar/15.4PSI,
automatic recover when pressure reach 0.8bar/11.6PSI )
5.Turn on ejection valve ② for oil ejection
6.Cut off air source after ejection, empty tank pressure and turn off all valves.
Tips:
1. Benefits for gradually and slowly turn on air inlet valve is for reducing air-consumption and
a quicker speed for vacuum-generation.
2. Benefits for vacuum generation of both cylinder and oil tank is fasting the speed of oil
transferring.
3. We suggest extract both cylinder and tank to be vacuum when the machine is needed to be
used to the place without air compressor. That will benefit long time continuously working.

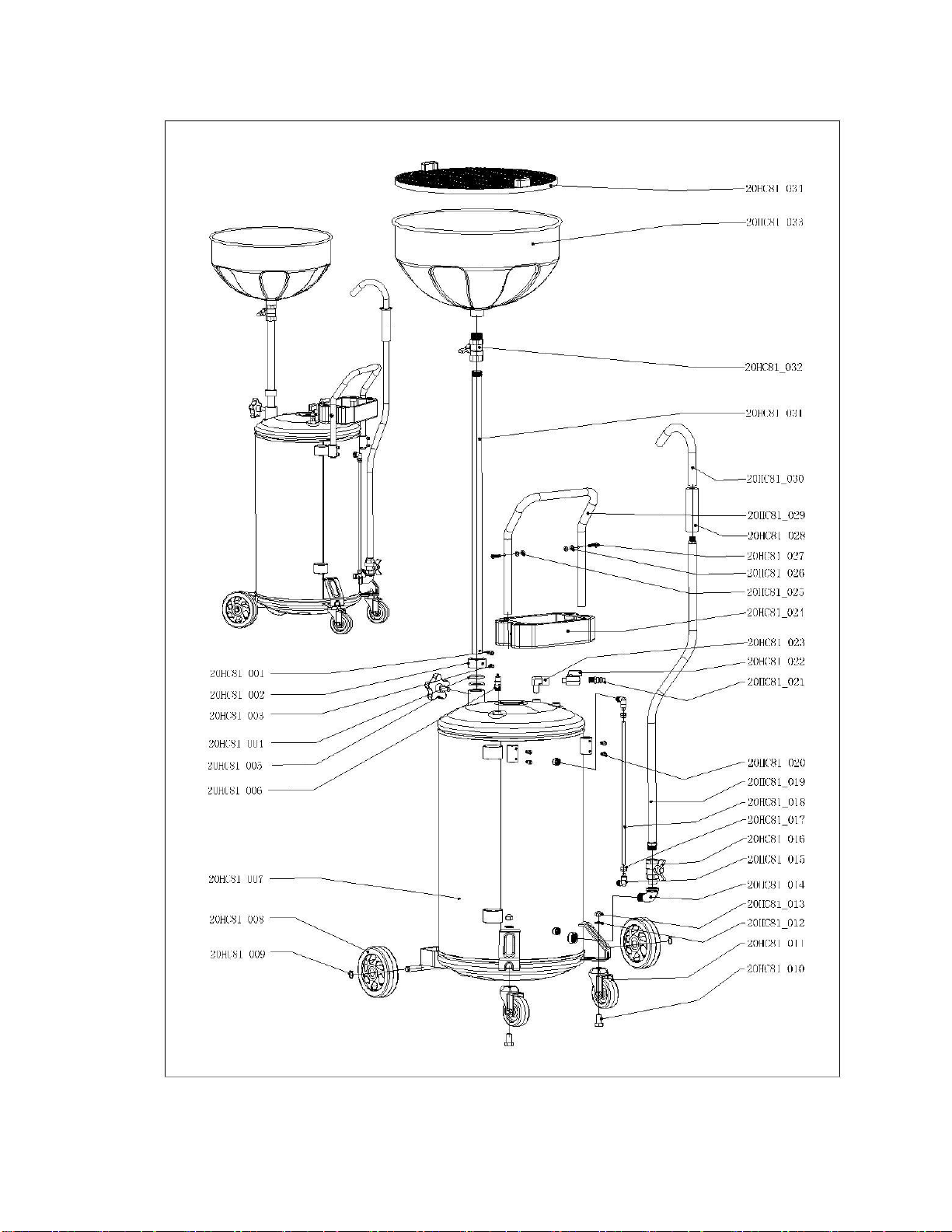

FIG：
Plum knob
Locking ring
Oil tank

Part list
Parts No.
Des.
qty
Parts No.
Des.
qty
20HC81_001
Inside hexagonal
screw
1
20HC81_018
Hose
1
20HC81_002
Locking ring
1
20HC81_019
Ejection hose
1
20HC81_003
Hexagonal screw
1
20HC81_020
Inside hexagonal screw
4
20HC81_004
O seal
2
20HC81_021
Wing nozzle
2
20HC81_005
Plum knob
1
20HC81_022
G1/4` mini ball vavle
1
20HC81_006
Safety valve
1
20HC81_023
Elbow connector
1
20HC81_007
Oil tank
1
20HC81_024
Tool box
1
20HC81_008
Directional wheel
2
20HC81_025
Hexagonal screw
2
20HC81_009
Snpa spring
2
20HC81_026
nut
2
20HC81_010
Hexagonal screw
2
20HC81_027
Flat head hexagonal scrw
2
20HC81_011
Universal wheel
2
20HC81_028
Handle set
1
20HC81_012
Nut
2
20HC81_029
Handle
1
20HC81_013
screw
2
20HC81_030
Ejection hook
1
20HC81_014
Quarter bend
1
20HC81_031
Lifting pole
1
20HC81_015
Quarter bend
2
20HC81_032
Wing valve
1
20HC81_016
Wing valve
1
20HC81_033
Oil tray
1
20HC81_017
Hexagonal cover
2
20HC81_034
strain
1
