Magnimage LED-570EV User manual

LED Video Processor
User Manual V1.1
△
!
MAGNIMAGE
Before using this LED Video processor，please read
this manual carefully and preserved for reference in
the future.
LED-570E series

Statements
Without the written permission, any unit or individual could not copy,
reproduction or translate the book or part of it. Also could not transmit it in
any form or any way（electronic, mechanical, photocopying, record or other
way) for any business and profitable purpose.
The product specifications and information mentioned in this manual is just
for reference, will not give prior notice if there is any updated. Unless there is a
special agreement, it is just used as guidelines. All the statements or
information in this manual shall not constitute any form of guarantee.

1
Directory
Statements......................................................................................................1
Directory..........................................................................................................1
Briefs ................................................................................................................3
Trademark Credit.............................................................................................. 3
About Software ................................................................................................ 3
Features............................................................................................................ 3
Using Directions ............................................................................................5
Including Accessories ....................................................................................... 5
Extended Port................................................................................................... 6
Safety Instructions............................................................................................ 6
Function Introduction..................................................................................7
Brief.................................................................................................................. 7
Front Panel Graphical Representation ............................................................. 8
RearPanel Graphical Representation................................................................ 9
Technical Specification ................................................................................... 11
Using Menu ..................................................................................................14
How to use the keys ....................................................................................... 14
INPUTS area：...................................................................................................................................................14
MENU area：.....................................................................................................................................................14
FUNCTION area：.............................................................................................................................................15

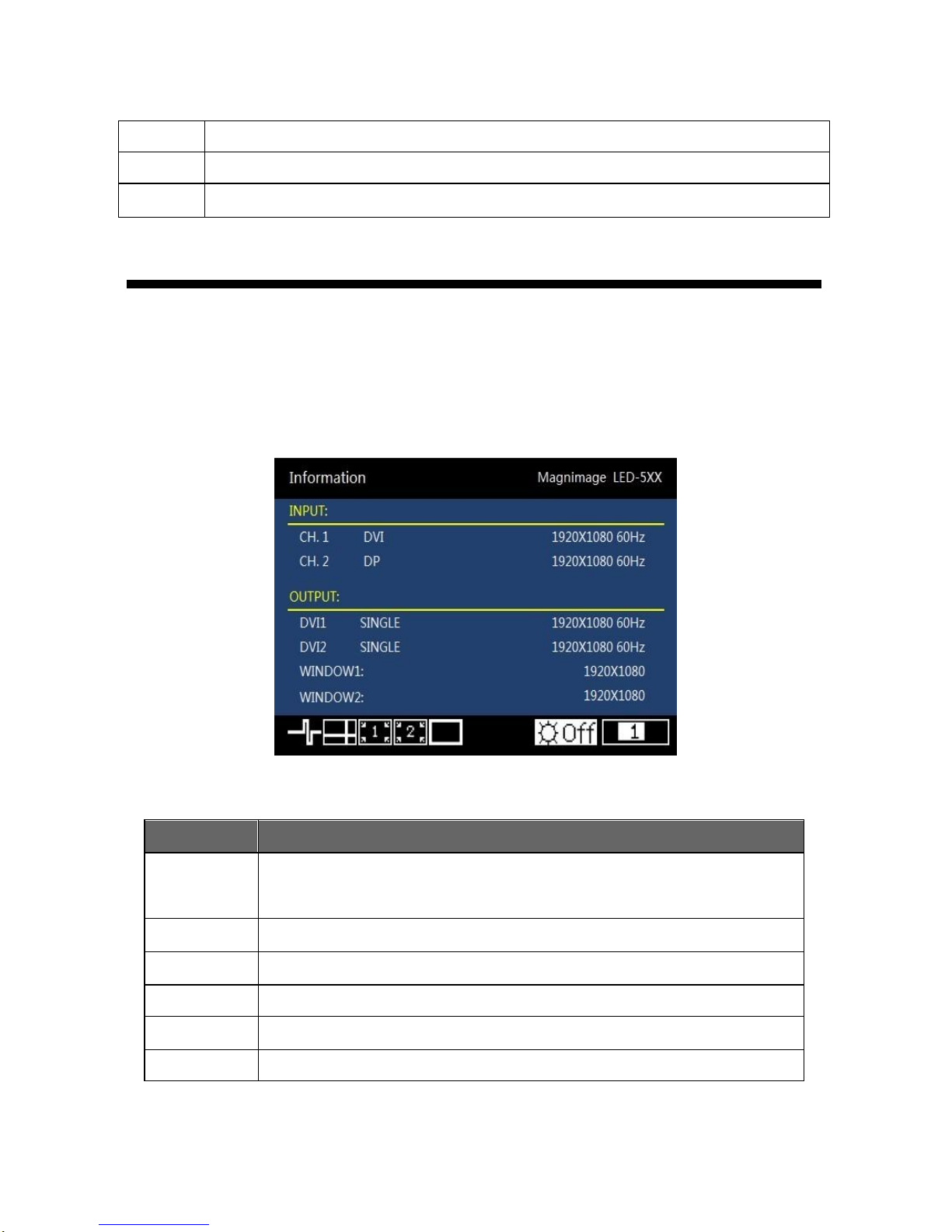

Default state introduction .............................................................................. 16
Main menu introduction ................................................................................ 19
Main menu ..........................................................................................................................................................20
Picture setting sub menu......................................................................................................................................21
Output setting sub menu ......................................................................................................................................22
Video crop sub menu...........................................................................................................................................24
Image Switching sub menu..................................................................................................................................25
Mosaic sub menu.................................................................................................................................................26
Communication sub menu ...................................................................................................................................27
Task manager sub menu.......................................................................................................................................28
Misc sub menu ....................................................................................................................................................29
Dual image setting sub menu...............................................................................................................................30
Test pattern sub menu..........................................................................................................................................32
Language sub menu.............................................................................................................................................33
Input signal hot backup ............................................................................34
Summarize...................................................................................................... 34
How to use hot backup?................................................................................. 34

2
Setting EDID .................................................................................................36
EDID Summarize............................................................................................. 36
How to set EDID ............................................................................................. 36
Setting DVI EDID：...........................................................................................................................................36
Setting DP EDID：.............................................................................................................................................36
iDP& DP Loop..............................................................................................37
iDP & DP Loop Summarize ............................................................................. 37
How to use iDP & DP Loop? ........................................................................... 37
Preview Mode ..............................................................................................39
Preview Summarize........................................................................................ 39
How to use preview?...................................................................................... 39
Multi machine connection........................................................................41
Connect type .................................................................................................. 41
Multi machine load template......................................................................... 42
Single machine support mosaic within 4K...........................................44
DVI output port introduction ......................................................................... 44
Single machine suport zoom mosaic within 4K.............................................. 44
Single machine support pixel-to-pixel mosaic within 4K................................ 45
Solutions........................................................................................................47
Solution 1：Support pixel-to-pixel mosaic within 4K*2K .............................. 47
Solution 2：1920×2160( pixel-to-pixel mosaic)............................................. 49
FAQ..................................................................................................................51
Warranty........................................................................................................53
The whole unit warranty ................................................................................ 53
The warrnty provisions................................................................................... 53
Graphic Catalogue：
Form 1：State Icons And Meanings............................................................... 17
From 2：Dual Images Input Source Conflict List............................................ 31

3
Briefs
Thanks for your purchasing our LED Video processor. Do hope you can enjoy
the experience of the product performance. The design of the LED video
processor conforms to international and industry standards. But if with
improper operation, there will be a personal injury and property damage. In
order to avoid the dangerous, please obey the relevant instructions when you
install and operate the product.
Trademark Credit
VGA and XGA are the trademarks of IBM.
VESA is a Video Electronics Standards Association's trademark.
HDMI、HDMI mark and High-Definition Multimedia Interface are all from
HDMI Licensing LLC
Even if not specified company or product trademarks, trademark has
been fully recognized
About Software
Do not change, decompile, disassemble, decrypt or reverse engineer the
software installed in the product, these acts are illegal
Features
Support ultra-high input/output resolution, it achieves pixel to pixel
display more conveniently
Support input signal single machine and multi-machines hot backup,
allows you to be no longer embarrassed in case of sudden loss of the
input signal
Support preview image function, it switches the images more
conveniently

4
Support DP signal input, output, loop out，support DP 1.1 and DP 1.2
versions
Support multi template operation, it can save 8 templates for call
Support 32 offline tasks, it can load templates and switch channels as
presetting
Support customized input resolution, maximum 3840 pixels at horizontal
or by vertical, maximum refresh rate 121Hz
Support network function, the principal computer can control LED-570E
series processors by network.

5
Using Directions
Including Accessories
Using manual
Power line
Dick
Certification of
quality
DVI signal cable
M3 screws x 4
Sending card stud
bolts
4pin 2.54 sending
card power cable
USB cable
Composite
Video Cable
Mini DP cable
Big port DP
cable
232 serial line

6
Extended Port
Port
Model
Explanation
Input
port
Extended VGA port
LED-570EV
Add another VGA input port
Extended DVI port
LED-570ED
Add another DVI input port
Extended SDI port
LED-570ES
Add another SDI input port/loop port
Output
port
Extended DVI port
LED-572E
Add another DVI 3 and DVI 4 output port
Extended VGA port
LED-573E
Add another VGA and DVI output port
Extended SDI port
LED-575E
Add another SDI output port
Safety Instructions
Please use the correct power supply according that the power input
voltage for this product range is 100～240V AC, 50/60Hz.
When you need connect or pull out any signal or bound guideline. Please
confirm that all the power supply cords have been pulled out ahead.
When you need to add hardware device for the LED video processor,
make sure all of the signals and power cables have been pulled out
ahead.
Before you operate any hardware, please turn off the LED video
processor's power, and to set you on the electrostatic by touching the
ground surfaces.
Please use the processor in clean, dry and ventilated environment, not
use it in the high temperature, humidity environment.
The product is the electronic product; please stay away from the fire,
water and of which is inflammable and blast, dangerous.
This product is with high pressure components, please don't open the
case or maintain it by your own.
As there is exceptional condition with smoke, ill-smelling, please turn off
the switch at once and contact with the dealers.

7
Function Introduction
Brief
LED-570E series products are the video processor developed for the large
screen display system, adopted the top image processing chips, internal 12
bits processing, with clearer images and richer colors. The display bandwidth
and processed bandwidth are several times of previous processors, it supports
DP input.
Advanced alternate motion picture processing technology, to remove video
motion tail or jagged, for the normal PAL/NTSC video, output image will be
clearer, for the HD 1080i signal, output image details will be rich, full color and
image quality is in the leading level.
Advanced image scaling technology, support user-defined output resolution,
single machine support horizontal resolution 3840 at maximum, vertical
resolution 3840 at maximum, refresh frequency rate 121Hz，can upgrade the
output signal bandwidth utilization greatly; furthermore, also can use the
traditional standard output resolution, then scaling the output image by pixel
to pixel according to the real size of the LED screen.
Accurate dual pictures crop function, can achieve pixel to pixel display and
material fusion easily.
Perfect video image input port, including 1×VGA(can be extended for two
input in unison)、1×DVI(can be extended for two input in unison)、1×DP、1
×HDMI、2×Video（PAL/NTSC）、 1×SDI(optional)，support all HD signal input,
can be connected with various audio and video equipment.
Support seamless switching of multi input signals and PIP function.

8
Front Panel Graphical Representation
Press Knob
OK
E.M.
DP
HDMI
DVI
VGA
AV2
AV1
Buttons Introduction
Same as the confirmed key
Return
Confirm,or switch browse/setting mode
Expand input port
DP input port
HDMI input port
DVI input port
VGA input port
CVBS2 input port
CVBS1 input port
TAKE/8
BRIGHT/7
PRESETS/6
FREEZE/5
EFFECT/4
ASPECT/3
PIP/2
AUTO/1
Hold Knob
Numeric Key 8, image 1 and image 2 switching shortcut
Numeric Key 7, brightness menu opening shortcut
Numeric Key 6, modes saving and loading shortcut
Numeric Key 5, image freeze key
Numeric Key 4, the cycle of fade in /fade out adjusting shortcut
Numeric Key 3, the aspect ratio for output window adjusting shortcut
Numeric Key 2, dual pictures function shortcut
Numeric Key 1, auto adjust VGA input image position,
Choose menu items and adjust parameters
