DIAGNOSTIC MANUAL

RPAS

SCORPIO mHAWK

S10/S8

MAN - 00277

REVISION-

OCT 2014-

Published by - Service Engineering

Technical Hub

THE NEW GENERATION

NOTHING ELSE WILL DO

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

CONTENTS

HOW TO USE THIS MANUAL……………………………………………………………………………………………………………….03

OVER VIEW OF THE VEHICLE COMMUNICATION NETWORK………………………………………………………05

RPAS OVERVIEW……………………………………………………………………………………………………………………………………06

WARRANTY & OTHER INFORMATION………………………………………………………………………………………………07

RECOMMENDED TROUBLE SHOOTING PROCESS………………………………………………………………………….07

RPAS ECU PIN DETAILS………………………………………………………………………………………………………………………..09

RPAS ECU CAN SIGNALS……………………………………………………………………………………………………………………..10

RPAS ECU FLASHING……………………………………………………………………………………………………………………………11

RPAS WIRING DIAGRAM……………………………………………………………………………………………………………………..17

INDEX OF DTC CODES…………………………………………………………………………………………………………………………..19

INTERMITTENT PROBLEMS………………………………………………………………………………………………………………..19

DTC BASED TROUBLESHOOTING……………………………………………………………………………………………………….20

SYMPTOM BASED DIAGNOSTICS - WITH NO DTC CODES……………………………………………………………51

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

HOW TO USE THIS MANUAL

If the DTC code is known, then go to the Index of DTC code, and click on the group under which the

DTC appears. The codes/groups are hyperlinked to the respective trouble shooting chart/pages.

The following is the structure of the RPAS Diagnostic Manual –

DTC and its description

Normal operation of the system

DTC detecting conditions

DTC reaction on vehicle

Healing Condition

Circuit Schematic

Connector location

Connector views and information

Diagnostic tree

Always use the diagnostic manual along with the vehicle’s wiring manual (MAN-00268).

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

All DTCs (5 characters in length) in RPAS are followed by a 2 digit number known as FTB (Fault Type Byte)

as shown in the i-SMART Diagnostic Tool screenshot below:

FAULT TYPE BYTE

For Example: In the DTC shown above –B1002 with FTB 16, is represented as B1002 –16 in the RPAS

Diagnostic Manual as shown below.

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

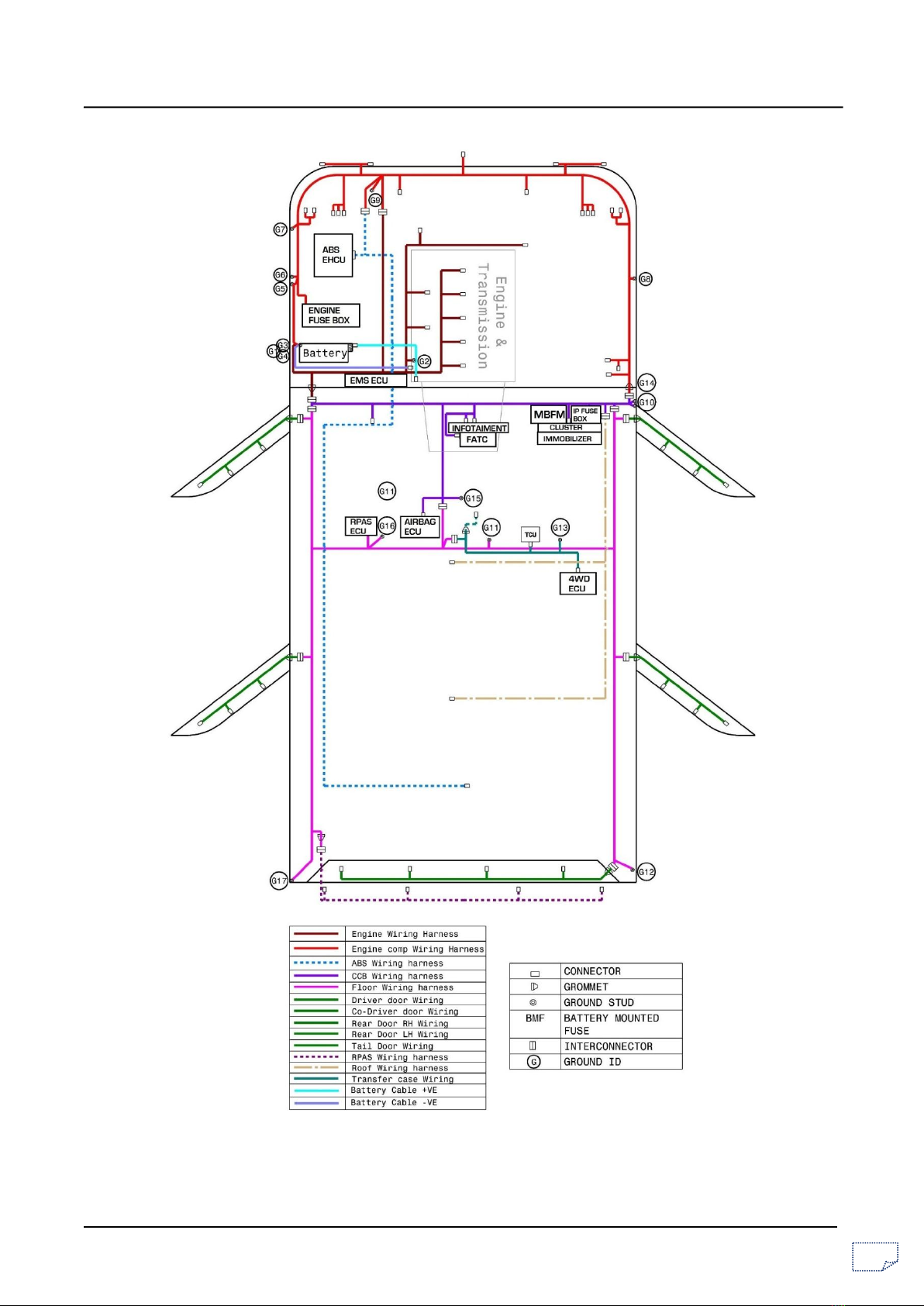

OVERVIEW OF VEHICLE COMMUNICATION NETWORK

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

RPAS OVERVIEW

Reverse Park Assist System is an aiding system, which will assist the driver in the reverse gear while

parking at a speed of less than 5 kmph.

On reversing the vehicle, system will detect the obstacle behind the vehicle within the sensing zone which

cannot be viewed by internal rear view mirror or the outside rear view mirrors. The system indicates the

driver with the distance and direction of the detected obstacle along with the alert sound , which is

proportional to the distance. As the distance becomes smaller, the interval between the beeps becomes

shorter.

RPAS system consists of

1. RPAS ECU located below the co-driver seat.

2. Four RPAS Sensors located in the rear bumper.

Working of the Functionality

Start the Engine and engage the gear in reverse. RPAS image will get displayed in the infotainment

system as shown below.

1 Bars in the zones will get OFF (syncs with the background color) according to obstacle direction (left,

right or center) and as per the distance

a. If obstacle is in between 100 to 120cm –Bar 4 in that direction will be switched OFF

b, If obstacle is in between 75 to 100cm –Bar 3 & 4 in that direction will be switched OFF

c.If obstacle is in between 50 to 75cm –Bar 2, 3 & 4 in that direction will be switched OFF

d.If obstacle is less than 50cm –All bars in that direction will be switched OFF

2.Distance indicator is to display the distance of the closest obstacle. It will display the distance in multiples

of 2cm, whichever is shortest. Distance indicator will display as STOP if any of the obstacle is less than

50cm from vehicle bumper

3.Along with the display, a beep sound will come from front speakers.Frequency of the beep will increase if

obstacle is coming closer (crossing each zones) and the sound will be continuous if any of the obstacle is

less than 50cm.

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

WARRANTY & OTHER INFORMATION

All failures/complaints encountered on RPAS ECU and other system components should be reported

through Service Complaint Report (SCR).Replacement of any of the RPAS ECU and other system

components requires approval of the TEKline. Ensure that a TAR is raised# in theTEKnet website for

approval, attaching the SCR. While raising a warranty claim, the TAR no should be quoted on the warranty

claim.

RECOMMENDED TROUBLE SHOOTING PROCESS

Customer complaint

Record/Understand Customer Verbatim

-What happened?

-When it happened?

-What was the event before that?

-Does it happen all the time?

-Does it happen only in some condition?

Search for Published quick solution in TEK

net

Perform diagnostic as per Technical

documents

Contact TEKliner with TAR

(Technical Assistance Request)

Visual inspection

-Look for any damage

-Check the fuse, insulators and wiring harness

routing

-Look for signs of oxidation

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

ABBREVIATIONS

EMS Engine Management System

ABS Antilock Braking System

MBFM Mahindra Body Function Module

IC Instrument Cluster

SRS Supplementary Restraint System

IS Infotainment System

HVAC Heating Ventilation and Air Conditioning

RPAS Reverse Park Assist System

ECU Electronic Control Unit

EHCU Electronic Hydraulic Control Unit

WSS Wheel Speed Sensor

EBD Electronic Brake Distribution

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

RPAS ECU PIN DETAILS

RPAS ECU

CONNECTOR

PIN NO

FUNCTION

CONNECTED TO

CONNECTOR NO

PIN NO

SIGNAL

RPAS SENSOR CENTER LH

C 505

SIGNAL

RPAS SENSOR CENTER RH

C 504

SIGNAL

RPAS SENSOR LH

C 503

SIGNAL

RPAS SENSOR RH

C 502

POWER

RPAS SENSOR RH ,RPAS SENSOR CENTER RH

RPAS SENSOR LH ,RPAS SENSOR CENTER LH

C 502, C 503 ,C 504,

C 505

CAN LOW

DLC CONNECTOR

C 104

CAN HIGH

DLC CONNECTOR

C 104

GROUND

RPAS SENSOR RH ,RPAS SENSOR CENTER RH

RPAS SENSOR LH ,RPAS SENSOR CENTER LH

C 502, C 503 ,C 504,

C 505

GROUND

G 16

IGNITION

IGNITION SWITCH

C 113

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

RPAS ECU CAN SIGNALS

SIGNAL TRANSMITTED BY RPAS ECU

S NO

SIGNAL NAME

RECIEVER

Centre BAR graph indication

Left BAR graph indication

Right BAR graph indication

Display distance

Measurement of centre BAR graph

Measurement of Left BAR graph

Measurement of Right BAR graph

Speaker Duty OFF cycle time

Speaker Duty ON cycle time

Speaker TONE

Speaker Volume

RPAS error indication

indication of RPAS display status

SIGNAL RECEIVED BY RPAS ECU

S NO

SIGNAL NAME

TRANSMITTER

Gear Status in case of Manual Transmission

EMS ECU

Vehicle Speed from EMS

EMS ECU

VIN Number-Multiplexed message

EMS ECU

Actual status Gear State of the TCU

TCU

Automatic Transmission Gear lever position.

TCU

Display Ambient temperature

MBFM

Reverse gear indication

MBFM

Indicates Park Brake status

MBFM

Total Distance travelled by Vehicle

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

RPAS ECU REPLACEMENT

Whenever RPAS ECU is replaced. The RPAS ECU needs to be flashed.

1. Click the "SCORPIO 2014 FIELD FLASHING TOOL" icon present on the laptop

The following window appears

2. Press F2 in the keyboard for selecting VCI connection

The following window appears

C4–BLACK

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

3. Click on "START" .

The following window appears

4. Click on "READ VIN NUMBER"

The following window appears

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

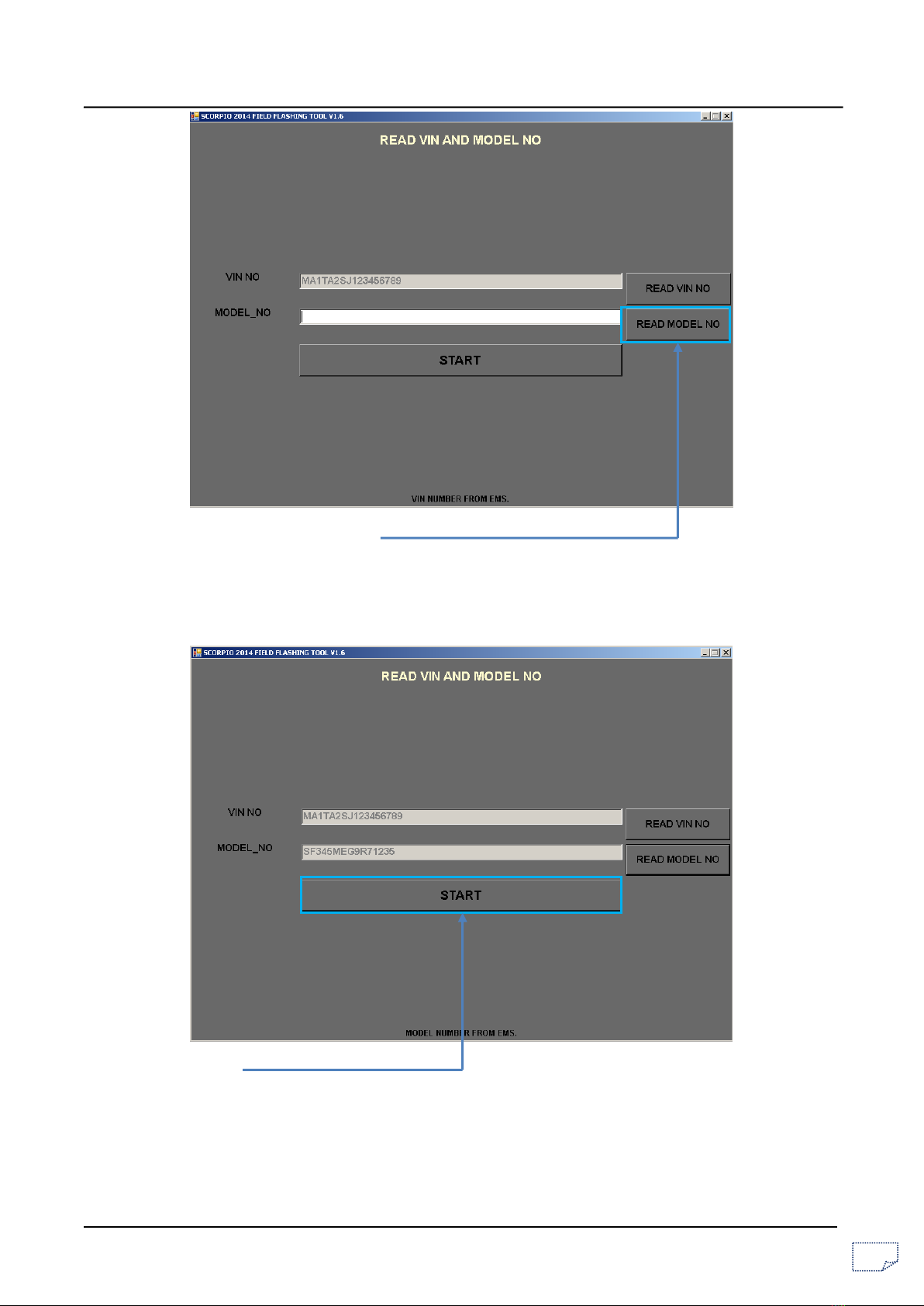

5. Click on "READ MODEL NUMBER".

The following window appears

6. Click on "START".

The following window appears

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

7. Select "REVERSE PARK ASSIST SYSTEM" from the drop down list.

The following window appears

8. Select "AUTO MODE" from the options.

The following window appears

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

9. Click on "START PROCESS".

The following window appears

10. Select “YES”, Flashing Process is initiated:

The following window appears

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

Once flashing is completed the “FLASHING SUCCESSFUL” is shown

By completion of flashing , the following activities are completed

1. Software (hex file) flashing

2. Write VIN number

3. Write Variant Code

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

RPAS WIRING DIAGRAM

S10

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

S 8

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the

LIST OF DTC's

DTC

FTB

DESCRIPTION

PAGE NO

B1001

RPAS ECU supply voltage upper limit exceeded

B1001

RPAS ECU supply voltage lower limit exceeded

B1002

RPAS Sensor supply upper limit exceeded

B1002

RPAS sensor supply lower limit exceeded

B1003

RPAS sensor Rear left defect (RL)

B1004

RPAS Sensor Rear centre left defect (RLC)

B1005

RPAS Sensor Rear Centre Right defect (RRC)

B1006

RPAS Sensor Rear Right defect (RR)

B1000

RPAS ECU defect

INTERMITTENT PROBLEMS

Check the following for intermittent problems



Poor mating of the connector halves/damage of connector locking



Terminals not fully seated in the connector body



Damage of harness and terminals



Connector pin separation from wire



Corrosion on pin contact points

DIAGNOSTIC MANUAL

SCORPIO

RPAS

MAN-00277

OCT 2014/Rev 1

The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The methods may be modified as a result of changes

introduced by themanufacturer in the production of the various component units and accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of

or whole of the present document,are prohibited without the prior written consent of Mahindra & Mahindra Ltd. The use of this document by any person other than the trained personnel, at the
