Majestic DV6000 User manual
Installation and Operating
Instructions
53D0419 3/09 Rev. 10
420200
6000DV cover
53D0419
DV6000 Gas Fireplace
High Elevations ........................................................6
Orifice Sizes, Pressures and BTUs ..........................6
Before You Install .....................................................6
Fireplace Dimensions ..............................................7

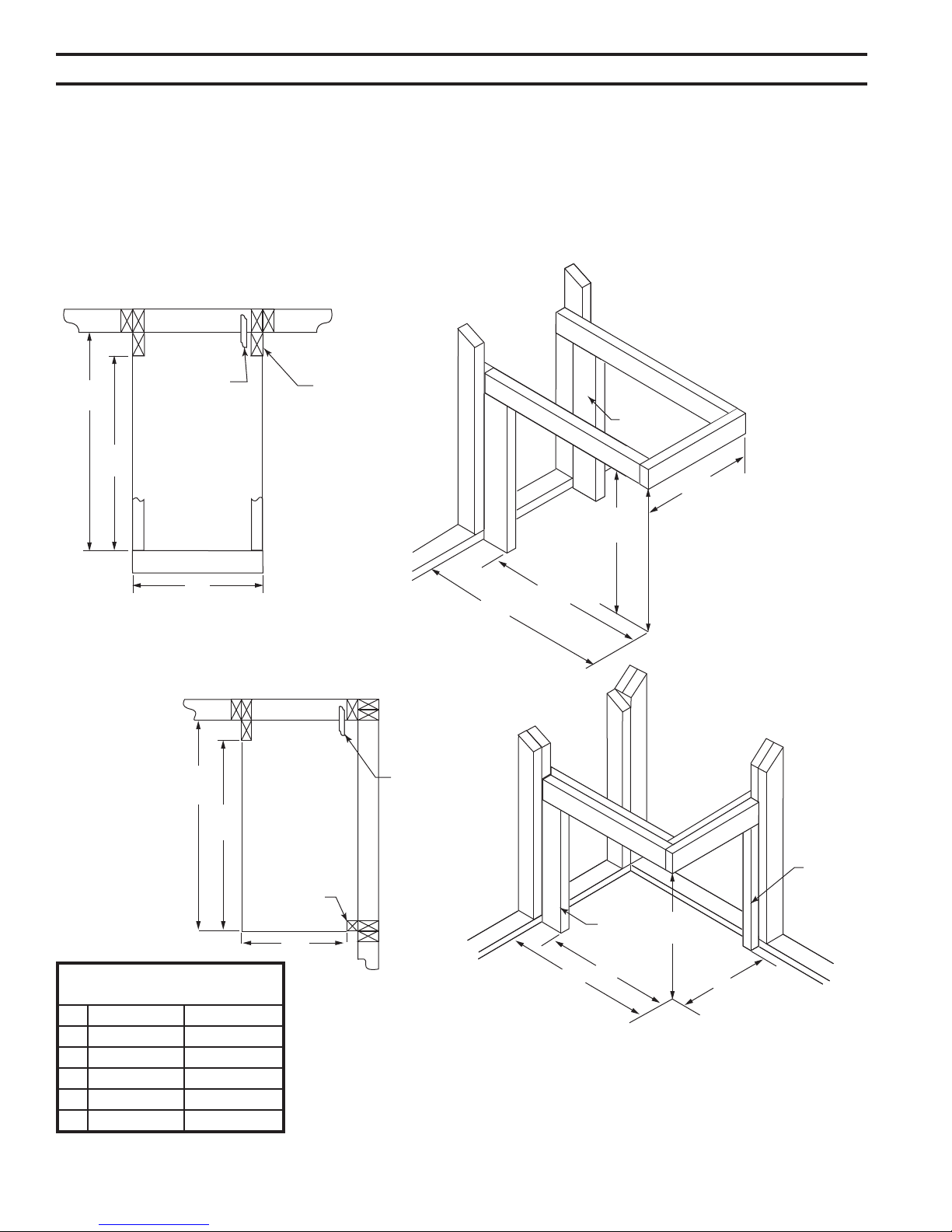

Framing Peninsula Fireplace ...................................8
Framing Corner Fireplace ........................................8
Framing See Through Fireplace ..............................9

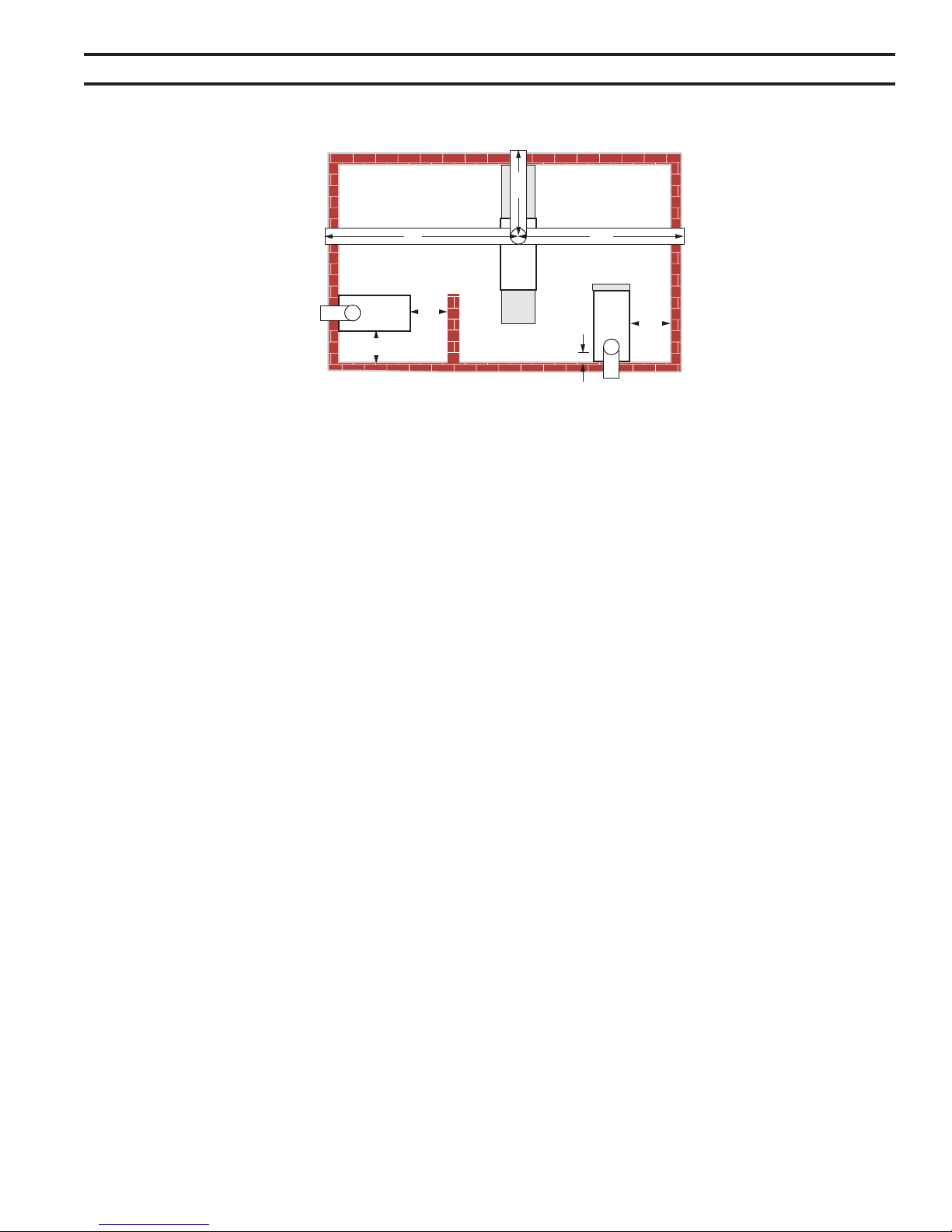

Fireplace Location ..................................................10
Installation Precautions ..........................................14

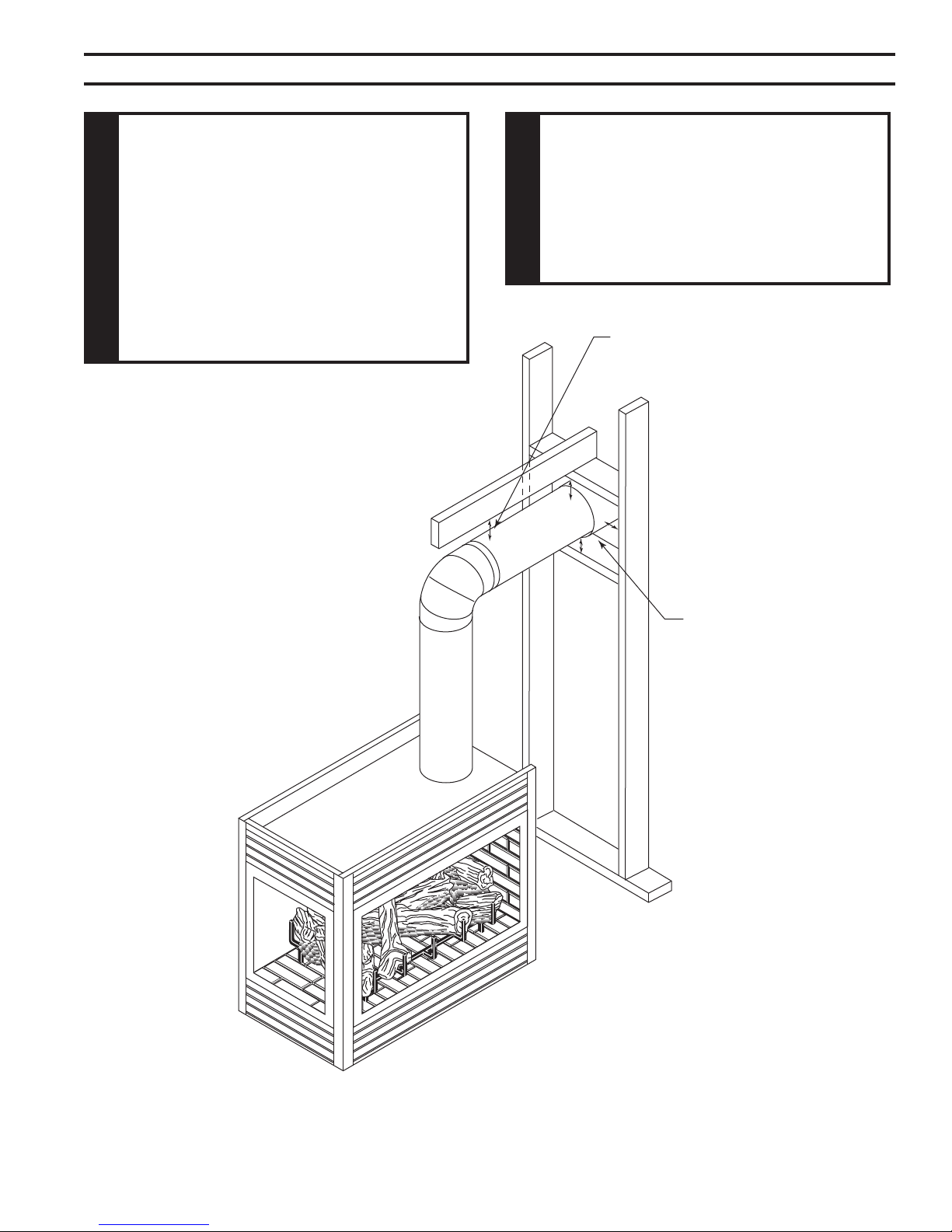

Optional Top Vent Application ................................16
Installation Planning ...............................................17
Installation for Vertical Termination ........................17
Horizontal Termination ...........................................18
How to Use the Vent Graph ...................................19

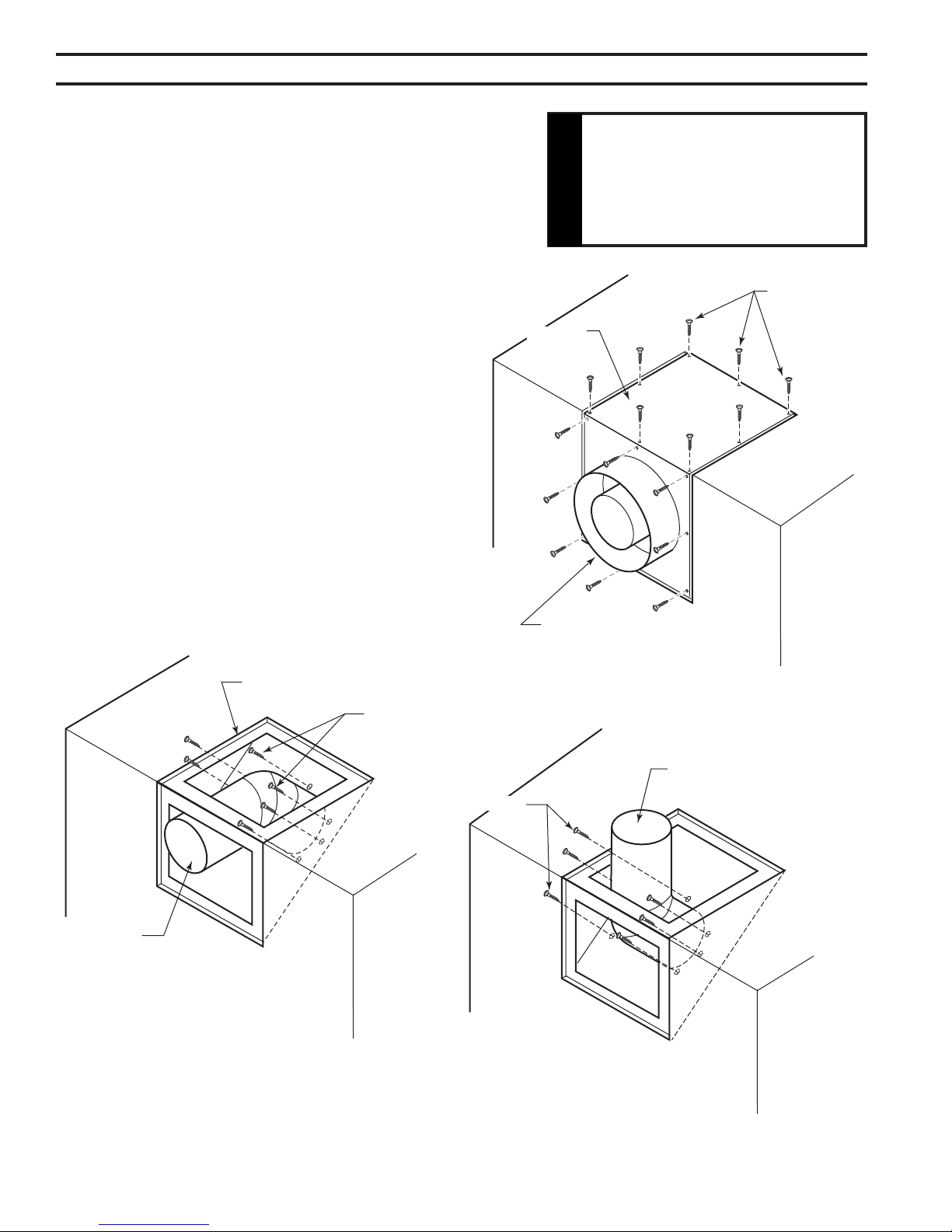

Rear Wall Vent Installation .....................................0
Horizontal Termination Configuration .....................
Below Grade Installation ........................................4
Vertical Through-the-Roof Installation ....................5
Installation for Vertical Termination ........................6
Flat Ceiling Installation ...........................................6
Check Gas Type.....................................................8
Installing Gas Piping to Fireplace/Burner System
Location .................................................................8
Electrical Wiring .....................................................30
Remote Wall Switch ...............................................31
Remote Wall Switch ...............................................3
What To Do If You Smell Gas .................................38
Lighting Pilot for the First Time ..............................38
Lighting Pilot ..........................................................39
Lighting Burner .......................................................40
To Turn Off Gas ......................................................40
Venting System ......................................................41
Cleaning Glass .......................................................41
Pilot and Burner Flames ........................................41
Firebox Cleaning ....................................................41
53D0419
DV6000 Gas Fireplace
3
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable
objects are less than 4" from the front, top, or sides
of the fireplace
• in high traffic areas
• in windy or drafty areas
5. This fireplace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in
the room with fireplace.
7. Do not modify fireplace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating fireplace.
8. Turn fireplace off and let cool before servicing, install-
ing, or repairing. Only a qualified service person should
install, service, or repair the fireplace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust from
carpeting, bedding material, pet hair, etc. Turn off the
gas valve and pilot light before cleaning fireplace.
10. Have venting system inspected annually by a qualified
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, page
41.
11. Keep the area around your fireplace clear of combus-
tible materials, gasoline, and other flammable vapor and
liquids. Do not run fireplace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around fireplace.
1. Do not use this fireplace to cook food or burn paper or
other objects.
13. Never place anything on top of fireplace.
Please leave these instructions with the owner.
Please retain these instructions for future reference
.
This fireplace is a vented product. This fireplace must be
properly installed by a qualified service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualified service person with glass
door properly seated and sealed, combustion leakage can
occur.
Early signs of carbon
monoxide poisoning are similar to the flu with headaches,
dizziness and/or nausea. If you have these signs, the fire-
place may not have been installed properly. Get fresh air
at once! Have the fireplace inspected and serviced by a
qualified service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the influence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this fireplace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certified
kit is used.
. For propane/LP fireplace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank of less than
100 gal. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
453D0419
DV6000 Gas Fireplace
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this fireplace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
16. Do not obstruct the flow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring, you must set appliance on a metal or wood
panel or hearth pad extending the full width and depth
of the appliance.
18. Do not use fireplace if any part has been exposed to
or under water. Immediately call a qualified service
person to arrange for replacement of the unit.
19. Do not operate fireplace if any log is broken.
0. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
fireplace.
1. Do not operate the fireplace with glass door removed,
cracked, or broken.
. This unit is approved for bedrooms and bathrooms.
It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for gas fireplaces to give off some
odor the first time it is burned. This is due to the
manufacturing process.
It is recommended that you burn your fireplace for at
least ten (10) hours the first time you use it. Place the
fan switch in the “OFF” position during this time.
53D0419
DV6000 Gas Fireplace
5
• This appliance has been certified for use with
either natural or propane gas. See appropriate data
plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance
with local codes if any. If none exist use the current
installation code. ANSI Z3.1/NFPA 54 in the USA,
CSA B149 in Canada.
• This appliance is mobile home approved.
• This appliance is approved for bathroom installa-
tion.
• The appliance must be properly connected to a
venting system.
• The appliance is not approved for closet or
recessed installations.
The efficiency rating of this appliance is a product
thermal efficiency rating determined under continuous
operating conditions and was determined indepen-
dently of any installed system.
Direct Vent type appliances draw all combustion air from outside of the dwelling through the
vent pipe.
These appliances have been tested by CSA and found to comply with the established standards for
DIRECT VENT GAS FIREPLACE HEATERS in the USA and Canada as follows:
Tested To: ANSI Z1.88b-008 / CSA .33b-008 Standards
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufac-
tured Home Construction and Safety Standard, or when such a standard
is not applicable, the , or
.
FP2276
6000DV prod features
Optional
Remote
Receiver
Hi/Lo Knob
Off/Pilot/On
Knob
Control Panel
Blower Control
FP76

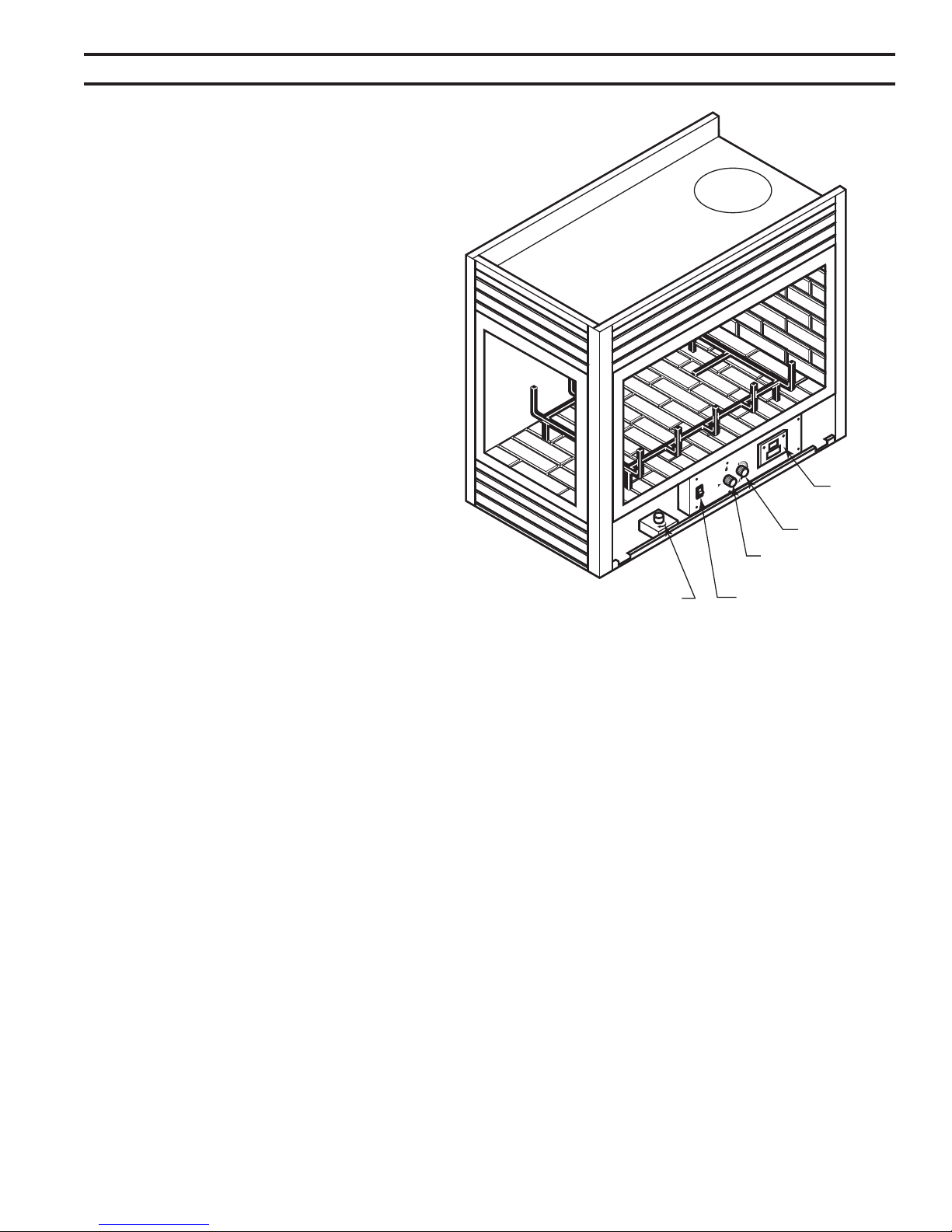

Figure 1 -
DV6000 Fireplace Controls
653D0419
DV6000 Gas Fireplace
Manifold Press: (w.c.) 3.5" Manifold Press: (w.c.) 10"
Maximum Supply Pressure 10.5" Maximum Supply Pressure 13"
Minimum Supply Pressure 4.5" Minimum Supply Pressure 11"
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all contents for shipping damage
and immediately inform your dealer if any damage is found. Do not install any unit with damaged, incomplete, or
substitute parts. Check your packing list to verify that all listed parts have been received. You should have the fol-
lowing:
• Fireplace (Firebox and Burner System) • Log Set
• Lava Rock • Rock Wool
• Deflector Shield (to be used with Simpson DuaVent Horizontal Termination – P/N 985)
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Caulking Material (Noncombustible)
• Level • Fireplace Surround Material (Noncombustible)
• Measuring Tape • Piping Complying with Local Codes
• Electric Drill and Bits • Tee Joint
• Pliers • Pipe Sealant Approved for use with Propane/LPG
• Square (Resistant to Sulfur Compounds)
• Pipe Wrench
Input ratings are shown in BTU per hour and are certified without deration for
elevations up to 4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA, installation must be in
accordance with the current ANSI Z3.1/NFPA 54 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local authorities having jurisdiction
for installation at elevations above 4,500 feet (1,370 m).
Max. BTU/hr Input 36,000 36,000
Min. BTU/hr Input 5,000 6,000
Orifice size (as shipped) #44 #54
53D0419
DV6000 Gas Fireplace
7
236M”
396”
18(6”
4(6QE”
2(6QE”
44”
3456O”
4056QE”5/8”
1/2” 326M”
C
L
5/8”
1/2”
420200
6000Dv penin dims
Gas/Electric Access
3256M”
356M”
18(6”
4(6QE”396”
2456O”
16M”1956O”
376M”
4056QE”
5/8”
1/2”
44”
376M”
5/8”
1/2”
420200
6000DV corner dims
Gas/Electric Access
(Right shown)
Figure 2 -
Fireplace Dimensions
853D0419
DV6000 Gas Fireplace
It is best to build firebox framing the appliance is set in place. Refer to the dimensions for
your fireplace on Page 7. The framing headers may rest on the top of the firebox standoffs.
The firebox may be installed directly on a combustible floor or raised on a platform of an appropri-
ate height. Do not place firebox on carpeting, vinyl, or other soft floor coverings. It may, however,
be placed on a flat wood, plywood, particle board, or other hard surfaces. Be sure firebox rests on
a solid continuous floor or platform with appropriate framing for support. No cold air should enter
room from under the firebox.
1/" Drywall 5/8" Drywall
A1 43Z\x" 43C\,"
A 39M\," 39C\v"
B 41Z\," 41Z\,"
C C\v" Z\x"
D 4" 3M\,"
A2
B
A1
D
A1
A2
C
FP2037
design corner framing
10/08
Gas Connection
x 4
(Minimum)
x
(Minimum)
x 4
(Minimum)
FP037
C
A2
B
A1
A1
A2
C
FP2038
designer see thru framing
10/08
x 4 (Minimum)
Gas Connection
FP038
Figure 3 -
Peninsula Framing
Figure 4 -
Corner Unit Framing
(Right Hand Configuration shown)
53D0419
DV6000 Gas Fireplace
9
For ease of installation, frame around the firebox after it has been set. Refer to chart
below for specifications.
When installing into existing framed (A1) openings, loosen the junction box. Remove the rear-mounted
flue pipe adaptor. Refer to Page 16, Figures 10 and 11. Reattach both assemblies.
C
A2
B
A1
A1
A2
C
FP2038
designer see thru framing
10/08
x 4
(Minimum)
Gas
Connection
x 4
(Minimum)
FP038
1/" Drywall 5/8" Drywall
A1 44Z\v" 44Z\v"
A 40B\," 40B\,"
B 41Z\," 41Z\,"
C C\v" Z\x"
Figure 5 -
See-Through Framing
10 53D0419
DV6000 Gas Fireplace
This gas fireplace should be installed by a qualified installer in accordance with local building codes
and with current CSA-B149 (.1 or .) Installation codes for Gas Burning Fireplaces and Equipment.
If the unit is being installed in a mobile home the installation should comply with the current CAN/
CSA Z 40 .4 code.
FOR U.S.A Installations follow local codes and/or the current National Fuel Gas Code. ANSI
Z3.1.
1. This fireplace gives off high temperatures and should be
located out of high traffic areas and away from furniture
and draperies.
. Children and adults should be alerted to the hazards
of the high surface temperatures of this fireplace and
should stay away to avoid burns or ignition of cloth-
ing.
3. Caution, due to high glass surface temperature children
should be carefully supervised when they are in the
same room as the fireplace.
4. Under no circumstances should this fireplace be modi-
fied. Parts removed for servicing should be replaced
prior to operating the fireplace again.
5. Installation and any repairs to this fireplace should
be carried out by a qualified service person. A profes-
sional service person should be contacted to inspect
this fireplace annually. Make it a practice to have all of
your gas fireplaces checked annually. More frequent
cleaning may be required due to excess lint and dust
from carpeting, bedding material, etc.
6. Control compartments, burners and air passages in this
fireplace should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned
off before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should
be checked at least once a year and if needed your
venting system should be cleaned.
8. Keep the area around your fireplace clear of combus-
tible materials, gasoline and other flammable vapor and
liquids. This fireplace should not be used as a drying
rack for clothing, nor should Christmas stockings or
decorations be hung on or around the fireplace.
9. Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this fire-
place.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than wood,
the fireplace must be installed on a metal or wood panel
extending the full width and depth of the fireplace.
1. This fireplace requires adequate ventilation and com-
bustion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended that
the gas control valve be left in the “OFF” position.
This appliance has been approved for after-market
mobile home installations.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your Majestic gas fireplace to give off
some odor the first time it is burned. This is due to the curing
of the paint and any undetected oil from the manufacturing
process.
Please ensure that your room is well ventilated — open
all windows.
It is recommended that you burn your Majestic fireplace
for a least ten (10) hours the first time you use it. If the
optional fan kit has been installed, place the fan switch in
the “OFF” position during this time.
53D0419
DV6000 Gas Fireplace
11
Minimum distance between a glass panel and a parallel wall = 4"
Minimum distance between the edge of a glass panel and an adjacent wall = 3"
(Maximum length of horizontal venting = 0'. Refer to the venting section of this manual
for specific dimensions.
Figure 6 -
Possible Fireplace Locations
FP77
A Flat on Wall
B Room Divider
XX
X
A
B
YY
ZA
Y
FP2277
locate fireplace
1 53D0419
DV6000 Gas Fireplace
The fireplace must be secured to the floor and/or to framing studs as shown in Figure 7. Use two
() wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws
to attach fireplace to framing. The side brackets are adjustable from 1/" to 5/8" to accommodate
different thickness of noncombustible material.
Figure 7 -
Secure Fireplace to Floor and Framing Studs
Screws
FP78
FP2278
secure fireplace
53D0419
DV6000 Gas Fireplace
13
The combustible area above the facing must not
protrude more than 3/4" from the facing. If it does, it is
considered a mantel and must meet the mantel requirements
listed in this manual.

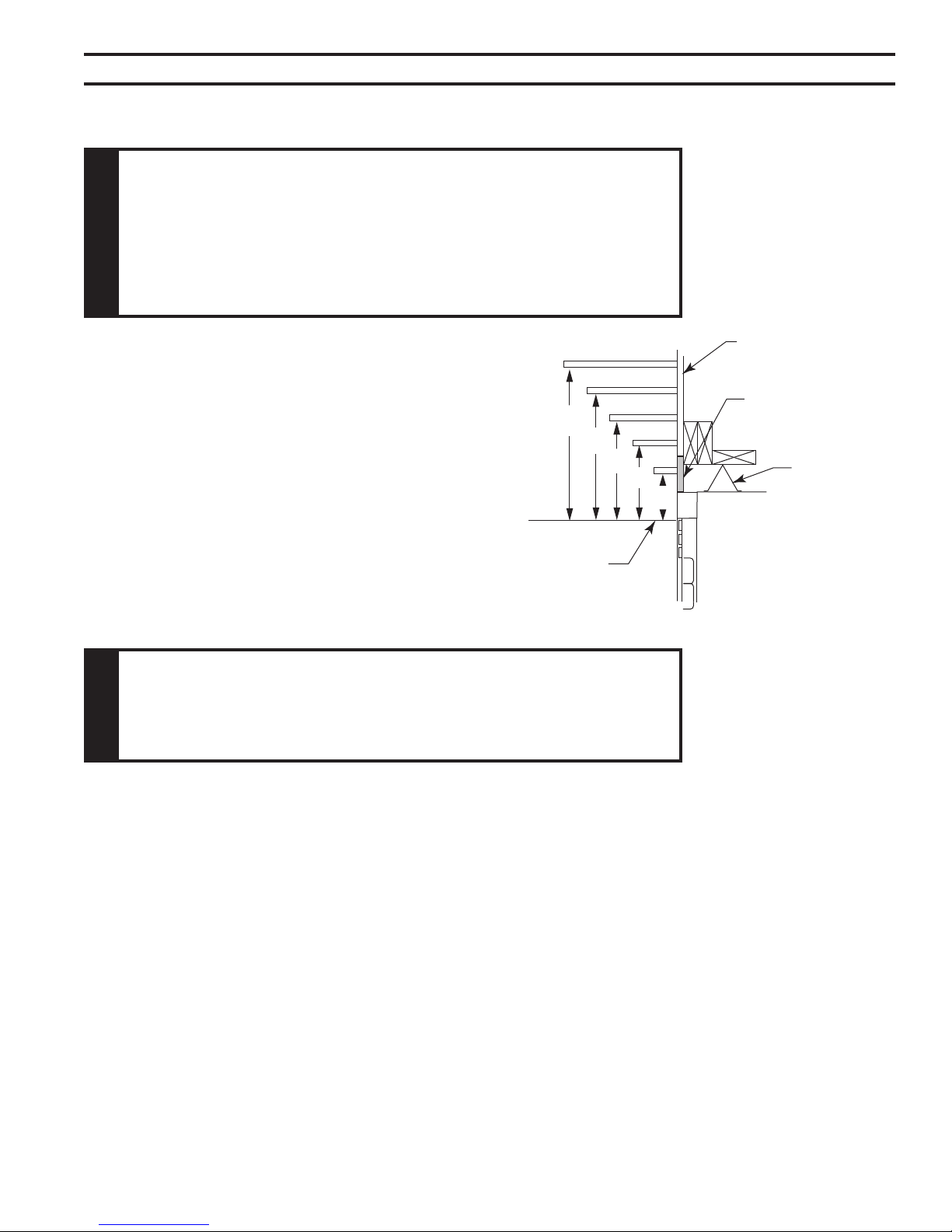

Figure 8 -
Mantel Clearances
2”
4”
6”
8”
10”
4”
6”
8”
10”
12”
FP2279
mantel clearance
2/09
Wall
Insulation Board
Standoff
Top of Louvers
FP79
Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to
final finishing to avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating
of Zero) may be used to cover the black-painted face of the appliance. A 300°F minimum adhesive
may be used to attach facing materials to the black surface. If joints between the finished wall and
the fireplace surround are sealed, a 300°F minimum sealant material (General Electric RTV103 or
equivalent) must be used. Combustibles may come to the top and side edges but not overlay the
face.
14 53D0419
DV6000 Gas Fireplace
This appliance must be installed with a Majestic approved venting system only.
Consult local building codes before beginning the installation. The installer must make sure to select
the proper vent system for installation. Before installing vent kit, the installer must read this fireplace
manual and vent kit instructions.
Only a qualified installer/service person should install venting system. The installer must follow
these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on rooftops.
• Be aware of electrical wiring locations in walls and ceilings.
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component.
• Unauthorized modification of the venting system.
• Installation of any component part not manufactured or approved by MHSC.
• Installation other than permitted by these instructions.
53D0419
DV6000 Gas Fireplace
15
1"
1"
1"
3"
FP2280
vent pipe clear
Figure 9 -
Combustible Clearances for Vent Pipe
A Minimum of 3" Clearance to the Top Is
Required Along Horizontal Length until Flue
Pipe Penetrates Outside Wall.
A Minimum 1" Clearance to
Combustibles Permitted All
Around Flue at Outside Wall
until the flue penetrates the outside
wall.
FP80
16 53D0419
DV6000 Gas Fireplace
The appliance is shipped as a rear vent unit. If the installation
layout requires the unit to be a top vent configuration the appli-
ance can be converted by following the steps below.
When removing and refitting the plates and adapter be sure the
associated gaskets are undamaged and refitted as required.
1. Remove the eight (8) screws securing the flue pipe adapter
to the fireplace body. Figure 10
. Set the flue pipe adapter aside, complete with the gasket.
Do not damage the gaskets as the adapter and gasket must
be refitted.
3. Remove the eight (8) screws securing the flue pipe cover to
the top of the intake box and remove the cover and gasket.
Figure 10
4. Remove eight (8) screws securing the flue pipe to the back
of the intake box and remove the pipe and gasket. Figure
11
5. Replace flue pipe to top of firebox. Ensure the gasket is
in place and undamaged. Secure with eight (8) screws.
Figure 12
6. Place the flue pipe cover and gasket removed in step 3
over the flue opening in bottom of the intake box.
7. Refit the flue pipe adapter and gasket to the top of fire-
place. Secure the adapter with eight (8) screws removed
in step 1.
B\,
FP1991
remove screws
FP1992
remove flue pipe
FP1993
replace flue pipe
Screws
Screws
Screws
Flue Pipe
Flue Pipe
Adapter
Flue Pipe
Flue Pipe
Adapter
FP1991
Figure 10 -
Remove 16 Screws from Flue
Pipe Adapter and Flue Pipe Cover
FP199
Figure 11 -
Remove Flue Pipe
Flue Pipe
Cover
FP1993
Figure 12 -
Attach Flue Pipe to Top Vent
Colnfiguration
53D0419
DV6000 Gas Fireplace
17
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent pipe for
the type of termination you choose. It is also important
to note the wall thickness.
Select the amount of vertical rise desired. All horizontal run of venting must have 1/4" rise for every 1"
of run towards the termination.
You may use up to three 90° elbows in this vent configuration. Refer to Horizontal Termination Configu-
rations on Pages and 3.
Measure the distance from the fireplace floor to the ceiling. Add the ceiling thickness, the vertical rise in
an attic or second story, and allow for sufficient vent height above the roof line.
You may use two 45° elbows in place of a 90° elbow. You must follow rise to run ratios when
using 45° elbows. The appliance is approved for use with three 90° elbows maximum or a combination
of 90° and 45° elbows up to a maximum of 70°.
For two-story applications, firestops are required at each floor level. If an offset is needed in the attic,
additional pipe and elbows will be required.
You may use a chase with a vent termination with exposed pipe on the exterior of the house. Refer to
Installing Vent System in a Chase below. If pipe is enclosed in chase, it is not exposed.
It is very important that the venting system maintain its balance between the combustion air intake and
the flue gas exhaust. Certain limitations apply to vent configurations and must be strictly followed.
A chase is a vertical boxlike structure built to enclose venting that runs along the outside of a building.
A chase is required for such venting.
18 53D0419
DV6000 Gas Fireplace
V
V
V
V
V
V
V
V
D
L
E
B
C
F
B
B
B B
B
M
I
A
A
J
H
G
A
Operable
Fixed
Closed Fixed
Closed
Opera-
ble
K
A
A
A
G
Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted
Inside Corner Detail
A = Clearance above the grade, a veranda, porch, deck, or balcony [*1" (305 mm) minimum].
B = Clearance to window or door that may be opened [*1" (305 mm) minimum].
C = Clearance to permanently closed window [*minimum 1" (305 mm) recommended to prevent condensation
on window]
D = Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of two ()
feet (610mm) from the centerline of the terminal [18" (457 mm) minimum].
E = Clearance to unventilated soffits [1" (305 mm) minimum].
F = Clearance to an outside corner. See page 14.
G = Clearance to an inside corner. See page 14.
H = *Not to be installed above a gas meter/regulator assembly within three (3) feet (914mm) horizontally from
the centerline of the regulator.
I = Clearance to service regulator vent outlet [*3' (914 mm) minimum].
J = Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance
[*1" (305 mm) minimum].
K = Clearance to a mechanical air supply inlet [*6' (189 mm) minimum].
L = Clearance above a paved sidewalk or paved driveway located on public property [**7' (133 mm)
minimum].
M = Clearance under veranda, porch, deck, or balcony [*1" (305 mm) minimum***].
N = Clearance above a roof shall extend a minimum of 4" (610 mm) above the highest point when it passes
through the roof surface and any other obstruction within a horizontal distance of 18" (457 mm).
* As specified in CSA B149 Installation Codes. Note: Local codes or regulations may require different
clearances.
** A vent must not terminate directly above a sidewalk or paved driveway, which is located between two
single-family dwellings and serves both dwellings.
*** Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the
floor.
53D0419
DV6000 Gas Fireplace
19
Figure 13 -
Allowable Venting Chart
The Vent Graph should be read in conjunction with the following
vent installation instructions to determine the relationship between
the vertical and horizontal dimensions of the vent system.
1. Determine the height of the center of the horizontal vent pipe exit-
ing through the outer wall. Using this dimension on the Sidewall
Vent Graph below, locate the point intersecting with the slanted
graph line.
. From the point of this intersection, draw a vertical line to the
bottom of the graph.
3. Select the indicated dimension, and position the fireplace in
accordance with same.
If the vertical dimension from the floor of the fireplace
is 11' (3.4 m) the horizontal run to the face of the outer wall must
not exceed 14' (4.3 m).
If the vertical dimension from the floor of the unit is
7’ (.14m), the horizontal run to the face of the outer wall must
not exceed 8Z\x' (.6 m).
Sidewall Vent Graph showing the relationship between vertical and
horizontal dimensions for a Direct Vent flue system.
Figure 14 -
Rear Wall Venting Graph
Horizontal Dimension From the Outside Face of the
Wall to the Center of the Fireplace Vent Flange
Vertical Dimension From the Floor of Unit to the Center of the
Horizontal Vent Pipe
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 1214 16 1820
eg: A
Dimensions in
Feet
20"
FP2248
sidewall vent graph
V
GG=6" (152mm)
FF=6" (152mm)
V
V
G
G = Combustible 24"(610mm)
Noncombustible 18"(457mm)
Combustible &
Noncombustible
H = 24" (610mm)
J = 20" (508mm)
V
H
J
C = Maximum depth of 48" (1219mm)
for alcove location
D = Minimum width for back wall of
alcove location
Combustible - 38" (965mm)
Noncombustible - 24" (610mm)
E =Clearance from corner in alcove
location
Combustible - 6" (152mm)
Noncombustible - 2" (51mm)
E
V
D
C
C
Inside Corner
Alcove Location
Outside Corner
Balcony with No Side Wall Balcony with Perpendicular
Side Wall
FP1951
termination clearances
0 53D0419
DV6000 Gas Fireplace
When installed as a rear vent unit this appliance may be vented directly to a termination located on
the rear wall behind the appliance
• The maximum horizontal distance between the rear of the appliance and the outside face of the
rear wall is 0" (508 m). Figure 15
• Only one 45° elbow is allowed in these installations.
1. Locate and cut the vent opening in the wall. For
combustible walls first frame in opening.
Cut a 11Z\x"H x 9Z\x" W (9 x
41 mm) hole through the exterior wall and frame as
shown. Figure 16
Hole opening should be 7Z\x"
(190 mm) in diameter.
. Rigid vent pipes and fittings have special twist-lock
connections. Assemble the desired combination of
pipe and elbows to the appliance adaptor with pipe
seams oriented towards the wall or floor.
Twist-lock Procedure: The female ends of the pipes
and fittings have three locking lugs (indentations).
These lugs will slide straight into matching slots on
the male end of adjacent pipes and fittings. Push the
pipe sections together and twist one section clockwise
approximately one-quarter turn until the sections are
fully locked. Figure 17
3. Attach vent pipe assembly to the fireplace. Set fire-
place in front of its permanent location to insure mini-
mum clearances. Mark the wall for a 11Z\x"H x 9Z\x"W
(9 x 41 mm) rectangle hole (for noncombustible
material such as masonry block or concrete, a 7Z\x"
[190 mm] diameter hole is acceptable). Figure 16.
The center of the hole should line up with the center
line of the horizontal rigid vent pipe end. Be sure to
allow for minimum rise. Cut a 11Z\x"x9Z\x" rectangle hole
through combustible exterior wall (7Z\x" diameter hole
if noncombustible). Frame as necessary. Allow 1/4"
minimum rise per foot. Figure 16

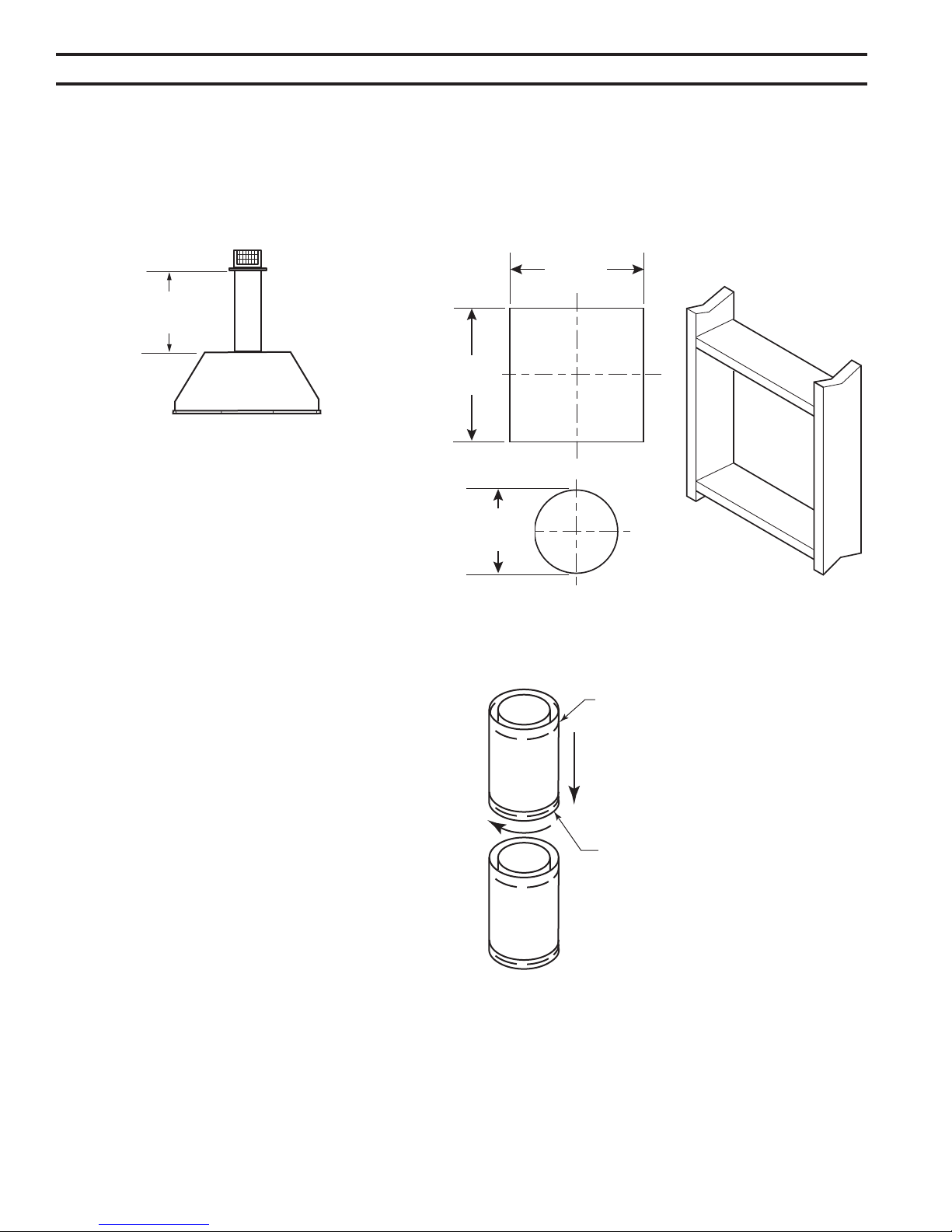

Figure 15 -
Rear Vent Application, Maximum
Horizontal Distance
Top View Flat
Installation
Figure 16 -
Vent Opening Requirements
FP1954
wall framing
9Z\x"
(41 mm)
11Z\x"
(9 mm)
7Z\x"
(190 mm)
FP1954
Horizontal runs of vent must
be supported every three (3) feet
(914 mm). Use wall straps for this
purpose.
Figure 17 -
Rigid Vent Pipe Connections
Female Locking
Lugs
Male Slots
FP1953
rigid pipe
FP1953
DVR584-600
Rear vent no elbows
2/99 djt
0"
(508 mm)
Table of contents
Other Majestic Indoor Fireplace manuals
Majestic
Majestic QUARTZ Series User manual
Majestic
Majestic MARQUIS Series User manual
Majestic
Majestic MERCURY MERC32IL User manual
Majestic
Majestic DVBR36 Mounting instructions
Majestic
Majestic DBDV36PLATIL User manual
Majestic
Majestic MERCURY Series User manual
Majestic
Majestic 500DVKST User manual
Majestic
Majestic 400DVBL User manual
Majestic
Majestic SH36 User manual
Majestic
Majestic SR/SC Series "A" SC36A Mounting instructions
Majestic
Majestic DVLB7 Series User manual
Majestic
Majestic Vermont Castings HE32EF User manual
Majestic
Majestic WM36A User manual
Majestic
Majestic RHEDV25 User manual
Majestic
Majestic 400BWBA User manual
Majestic
Majestic DBDV36PLATIN User manual
Majestic
Majestic VL18 User manual
Majestic
Majestic QUARTZPLA36IN User manual
Majestic
Majestic DVR33 User manual
Majestic
Majestic MERIDPLA36IL User manual
Popular Indoor Fireplace manuals by other brands
Hearth and Home Technologies
Hearth and Home Technologies Outdoor Lifestyles ODLANAIG-48 Owners manual care and operation
Palazzetti
Palazzetti ECOFIRE JACKIE IDRO N Installation and maintenance manual
Heat-N-Glo
Heat-N-Glo 6000FLS Installation and operaion manual
Astria
Astria MontebelloSTTEN Installation and operation instructions
Superior
Superior MHW36R Installation and operation instructions
Desa
Desa (V)KC42NE SERIE OWNER'S OPERATION AND INSTALLATION MANUAL
Rayburn
Rayburn STRATUS 75-30 XS Installation and operation instructions
Jolly Mec
Jolly Mec FOGHET EVO Installation, use and maintenance manual
Empire Comfort Systems
Empire Comfort Systems MILLIVOLT STANDING PILOT DVX36FP31LN-4 Installation instructions and owner's manual
M
M 700 Installation instructions & user manual
JC BORDELET
JC BORDELET EVA992GAZ Instructions for installation, maintenance and use
Wonderfire
Wonderfire Avignon Installer's guide
Spartherm
Spartherm XS 500 Installation and operating instructions
Nordpeis
Nordpeis N-24 round Installation & user manual
ModaFlame
ModaFlame GF101650 user manual
RealFlame
RealFlame Marlowe Entertainment 2770 Assembly instructions
Austro Flamm
Austro Flamm 63x40x42 K 2.0 operating manual
Heat & Glo
Heat & Glo Gas Fireplaces Brochure & specs
