Majorcom: PM-835 User manual

PM-835
STEREO WALL PLATE WITH
MEDIA PLAYER AND BLUETOOTH
Manual to download in PDF format on www.majorcom.fr
USER
MANUAL

56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ................................................................................... p.3
2. KEY FEATURES .......................................................................................................................... p.4
3. FRONT PANEL ............................................................................................................................ p.4
4. STARTUP ..................................................................................................................................... p.5
4.1 FM ........................................................................................................................................... p.5
4.2 SD ........................................................................................................................................... p.5
4.3 USB ........................................................................................................................................ p.5
4.4 BLUETOOTH CONNECTION ............................................................................................... p.5
4.5 AUX INPUT & AUX OUTPUT ................................................................................................ p.6
5. MECHANICAL DIAGRAMS ........................................................................................................ p.6
6. REMOTE CONTROL ................................................................................................................... p.7
7. TECHNICAL SPECIFICATIONS ................................................................................................ p.7
8. REAR PANEL ............................................................................................................................... p.8
9. INSTALLATION ........................................................................................................................... p.9
10. PACKING LIST .......................................................................................................................... p.9
PM-835 STEREO WALL PLATE
56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
3
1. IMPORTANT SAFETY INSTRUCTIONS
PM-835STEREO WALL PLATE
MAJORCOM accepts no liability for any damage that may be caused to people, animal or objects due to failure to
comply with the warnings above.
WARNING : This symbol indicates risk of electric shock inside the device. Under no circumstance
should the device be opened while powered up.
WARNING : This product must not be discarded, under any circumstance, as unsorted urban
waste. Take to the nearest electrical and electronic waste treatment centre.
WARNING : This symbol indicates that precautions should be taken when handling and connecting
the device. Observing certain indications in the instructions manual is required.
User manual User manual
• Read this instructions manual careful and follow all the indications and safety warnings.
• Keep the instructions manual in an easily accessible place for consulting at any time when needed.
• Do not handle the device or alter any of its parts, including the electrical connection, mechanical fastening and
external structure.
• Keep the equipment away from sources of heat such as radiators, stoves or heaters.
• Do not install or store the equipment in damp environments or in places near to water.
• Do not insert any object of any kind through the ventilation grilles on the device housing nor through any opening
that may contain the same. Failure to comply with these guidelines may lead to a high risk of electrocution.
• Make sure not to cover the openings for heat dissipation located in the metal body of the equipment. Also, avoid
build up of dust on the same.
• Prior to connecting the equipment, check that the power supply input is in accordance with the voltage shown on
the label.
• This device needs to be earthed. At all times, make sure to use the power supply cable supplied with the equipment
and to always connect the jack into an earthed plug.
• Do not pull on the power supply cable to unplug it.
• Do not use, connect or disconnect the equipment with wet hands or feet.
• Immediately disconnect the equipment from the power supply in the event of noting any kind of breakdown or
damage to the same that may be hazardous. Then contact the authorized technical service.
• Clean the equipment with a dry cloth or with neutral soap and a slightly damp cloth. Avoid using detergents,
solvents or any other type of abrasive substance.
• Make sure that the equipment is disconnected from the power supply, or put the power in the o󰀨 position before
handling any of the inputs or outputs on the equipment.

56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
4
2. KEY FEATURES
• Built-in 2x10 WRMS high e󰀩cient amplier @ 8 ohm (min. load)
• LED screen
• Multiple music connection modes, including FM, micro SD, USB, Bluetooth, AUX input and AUX output
• Supports MP3, WMA, WAV and FLAC
• Adjustable sensitivity of auxiliary input
• Stereo AUX output
• Can store up to 20 FM radio channels. Support automatic and manual search
• Wide voltage input, suitable for 100~240VAC, 50/60Hz
• Remote control included
• Surface-mount installation box included
PM-835 STEREO WALL PLATE
3. FRONT PANEL
56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
5
4. STARTUP
STEREO WALL PLATE PM-835
4.1 FM
4.2 SD
4.3 USD
4.4 BLUETOOTH CONNECTION
Play / Pause
Previous
Volume down
Display
Infrared receiver
Mode (source selection)
Next
Volume up
Micro SD USB Power ON
WARNING : connect the AC terminals to electrical mains supply before powering ON the device.
User manual User manual
Press Mkey to choose FM mode.
Automatic Search : long press to start the automatic channel search and the system will automatically save the
available radio stations.
Manual tuning mode : long press or to enter the manual tuning mode; and then short press or to
adjust the current channel. After no key operation within 5 seconds, it will save the current channel and leave manual
tuning mode.
Mute : short press to mute FM playback.
Channel selection : short press or to navigate through saved channels.
Volume control : short press or to increase or reduce the current volume.
Press M key to choose SD mode. If there is no SD card, the display will show “NO” and icker. If les are not
supported or there are no les, the display will show “----“.
Play control : to play/pause. Short press or to navigate through songs. Long press to fast forward or
fast reverse.
Volume control : short press or to increase or reduce the current volume.
Press M key to choose USB mode. If there is no USB device, the display will show “NO” and icker. If les are not
supported or there are no les, the display will show “----“.
Play control : to play/pause. Short pres or to navigate through songs. Long press to fast forward or fast
reverse.
Volume control : short press or to increase or reduce the current volume.
Press M key to choose Bluetooth mode. If there is no connection, the display will show “BT” and icker. When the
device is connected successfully, “BT” will be always on. The PM-835 is displayed in other devices as Bluetooth,
where the last 9 digit numbers is the device’s serial number. The password can be found in the rear side label.
Play control : to play/pause. Short press or to navigate through songs. Long press to fast forward or
fast reverse.
Volume control : short press or to increase or reduce the current volume.

56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
6
4.5 AUX INPUT & AUX OUTPUT
PM-835 STEREO WALL PLATE
56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
7
STEREO WALL PLATE PM-835
5. MECHANICAL DIAGRAMS
1. Standby
2. Mode selection (source selection)
3. Mute
4. Equalization mode selection
5. Menu (not available)
6. Transport & volume control
7. Play mode selection
8. Number keys. In SD mode allows to select a track number. In FM mode allows write the FM frequency.
6. REMOTE CONTROL
Model PM-835
Power input
100-240 V
Output power
2x10WRMS
Minimum load
8 ohms
THD
≤ 0,03 % (1 kHz, 1 W, 8 Ω)
S/N ratio
>81dB
Frequency response
20Hz–20kHz
Sensitivity Aux input (adjustable)
AUX: 1V/500mV
Aux output
0dBV
Audio formats
MP3, WMA, WAV, FLAC
Bluetooth connection
BT2.1+EDR
Storage
Supports TF card up to 32GB
Dimensions
86×86×38mm
Remote Control
Angle of effective emitter region
60°
Effective remote-controlled distance
10m
Battery of remote control
CR2032
7. TECHNICAL SPECIFICATIONS
User manual User manual
Press Mkey to choose AUX1 input mode.
Play control : to play/mute. When it is muted, the display will icker.
Sensitivity adjustment : long press or to select S1 or S2 sensitivity adjustment. S1: input and output 500mV;
S2: input 1000mV, output 500mV)
Volume contro : short press or to increase or reduce the current volume.
In addition, the PME-835 features an aux audio output (AUX OUTPUT). This stereo audio signal is identical to the
powered signal, but with LINE level (0dBV). Perfect to connecting an additional audio system like a self-powered
sub-woofer for bass reinforcement.

56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
9
STEREO WALL PLATE PM-835
56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
8PM-835 STEREO WALL PLATE

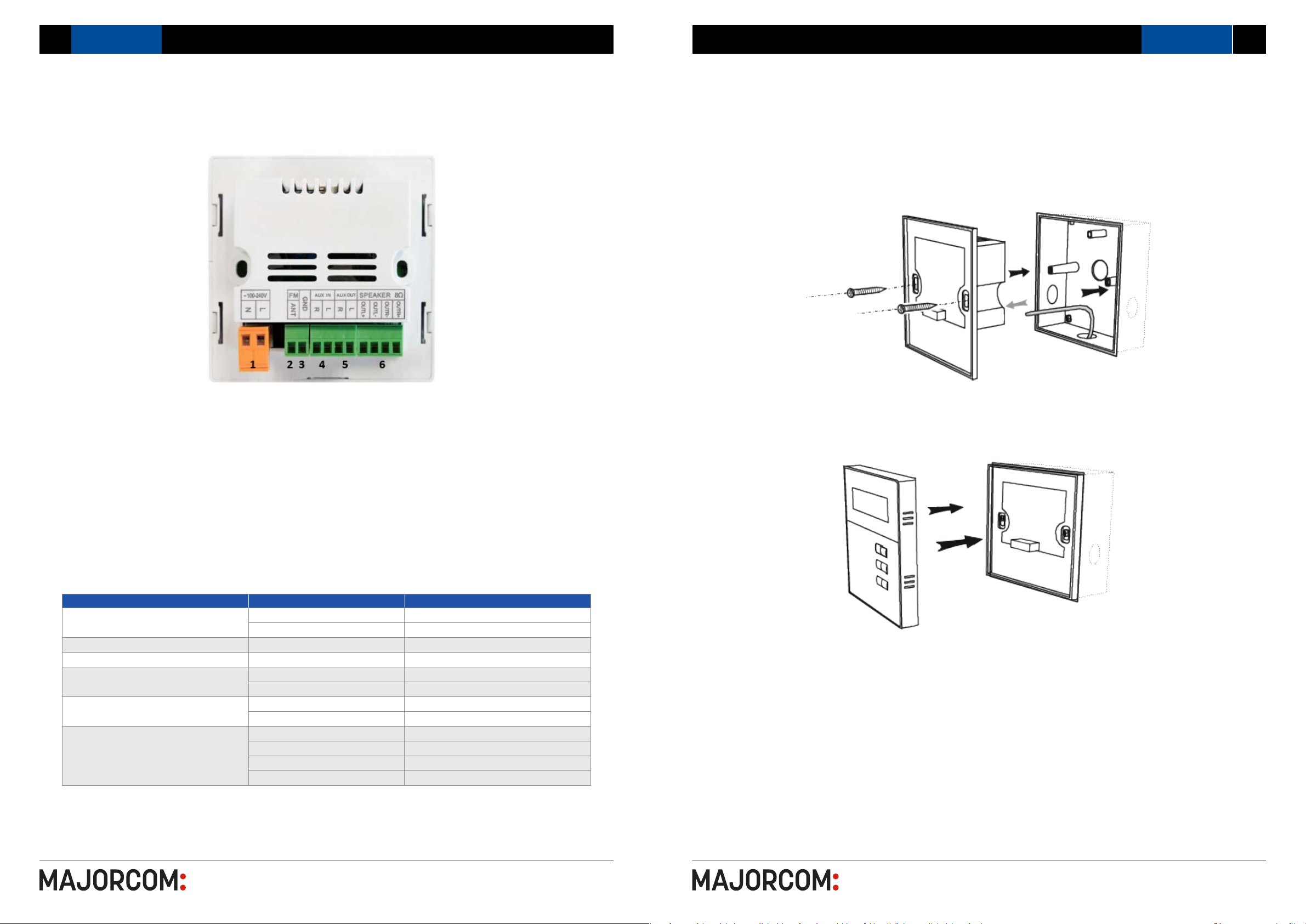

8. REAR PANEL
1. Power input : 100-240V (2xRV 1.0mm2 multistranded copper core exible wire)
2. FM antenna
3. Signal ground
4. Audio input (2×0.3mm2 double-shielded audio cable)
5. Audio output (2×0.3mm2 double-shielded audio cable)
6. Power amplier output (2×0.3mm2 double-shielded audio cable)
9. INSTALLATION
IMPORTANT NOTE : all wire connections shall not be naked.
Function Symbol Name
Power input
N Null line
L Live wire
FM
ANT FM antenna
GND Signal ground
AUX INPUT
R Audio input right
L Audio input left
AUX OUTPUT
R Audio output right
L Audio output left
Power amplifier output 8
ohm (min load)
OUTL+ Left speaker + terminal
OUTL- Left speaker - terminal
OUTR- Right speaker - terminal
OUTR= Right speaker + terminal
1. Install the surface-mount box in the desired location.
2. Connect the wiring to the rear panel of the PM-835, and x it with two screws to the installation box.
3. Insert the PM-835’s front panel.
10. PACKING LIST
• Front panel
• Rear panel
• Remote control
• Mounting screws
• Surface-mount box
• User manual
• Warranty card
User manual User manual

56, chemin de la Flambère • 31300 Toulouse • FRANCE • Tél. [phone]
Fax [phone] • [email protected] • www.majorcom.fr
PM-835
STEREO WALL PLATE WITH
MEDIA PLAYER AND BLUETOOTH
User manual
