Makita 6040DW User manual

Cordless Drill
No load speed Dimensions
IL x W x H)
Capacities
IRPM)
SteelIWood Wood screw
MODEL 6040D
MODEL 6040DW
With Quick Charger
Not
weight
INSTRUCTION MANUAL
SPECIFICATIONS
10 mm
1318") I (3116'' x 314")
4.5 mm x 20 mm
450
I 195 mm x 48 mm x 166 mm
0.8 kg
(7-518" x 1-718" x 6-112")
I 11.7 Ibs)
Model DC4100A Quick Charger
Input I output I Charging time
3
Hr
I
DC 6 4V
I
~~
A C. only 50 Hz - 60 Hz
Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose powertools to rain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't
let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools shouldbe stored in dry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It willdothejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool
or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing
or jewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair coveringto contain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carrytool by cordor yank
it todisconnectfrom
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAINTOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodicallyand ifdamaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjustingwrenches are removedfrom tool beforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USEEXTENSION CORDS. Whentool isusedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommonsense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Beforefurther use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properlyand perform itsintendedfunction. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicatedelsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRICSHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. Whenservicing, use onlyidentical replacementparts.
VOLTAGE WARNING: Beforeconnecting thetool to
a power source (receptacle,
outlet, etc.1 be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result inSERIOUS INJURY tothe user
- as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
I. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions for battery charger.
2. Beforeusing battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and 13) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA type recharge-
able batteries. Other types of batteries may burst causing personal injury
and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer mayresult
in a riskof fire, electric shock, or injurytopersons.
6. To reduce risk of damage to electric plugand cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
8. Do not operate charger with damaged cord or plug - replace them im-
mediately.
9. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged
in any way; take it to a qualified serviceman.
IO. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock
or fire.
11. To reducerisk of electric shock, unplugcharger from outlet beforeattempting
any maintenanceor cleaning. Turning off controls willnot reduce this risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER AND TOOL
1. The Charger and the tool are specifically designed to work together. Do not
attempt tocharge any other cordless tool with this Charger. Do not attempt
to charge the tool with any other charger.
2. Do notcharge the toolwhen temperature is BELOW 10°C (5OoF) or ABOVE
45OC (113OF).
3. Do not use charger
in damp or wet locations.
4. Donotattempttouseastep-up transformer, an engine generator or DCpow-
5. Do not store the tool in locations where the temperature may reach or ex-
6. Donotincineratethetooleven if it isseverelydamaged or iscompletely worn
er receptacle.
ceed 5OoC (122OF).
out. The tool can explode
in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL
PARTS OF THE TOOL!
Holdthetoolonly
by theinsulatedgrasping surfaces topreventelectric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touchthe drill bit or the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Charging
Connect the charging plug to the charg-
ingconnector,then plug inthe chargerto
the power receptacle. Charging takes
3
hours.
CAUTION:
The battery inyour new tool is notfully
charged. You will need to charge it be-
fore use.
Do notoperatethetoolduring charging.
Overcharging morethan 2 days consid-
erably shortens the battery service life.
Always unplug the charger after completing the charge.
When you charge a new tool or atool which has not been usedfor a long period, it
may not accept
a full charge. This is a normal condition and does not indicate a
problem. You can recharge the tool fully after discharging it almost completely a
couple of times.
Installing
or removingdriver bit
CAUTION :
When installingor removingthe bit, be careful nottotouch thetrigger switch.
To install the bit, place it in the chuck as
far as it will go. Tighten the chuck by
hand. Place the chuck key in each of the
three holesand tighten clockwise.
Be sure to tighten
all three chuck holes
evenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosenthe chuck by hand.
6

Switchaction
To start the tool,
Release thetrigger simply
to stop. pull the trigger.
Reversingswitch action
This tool has
a reversing switch to change
the direction of rotation. Slide the revers-
ing switch to the right for clockwise rota-
tionor to the
left for counterclockwise.
Reversing swit
CAUTION :
0 Always check the direction of rotation before operation.
.Use the reversing switch only when the tool comes to
a complete stop. Changingthe
direction of rotation before thetool stops may ruinthe tool.
7

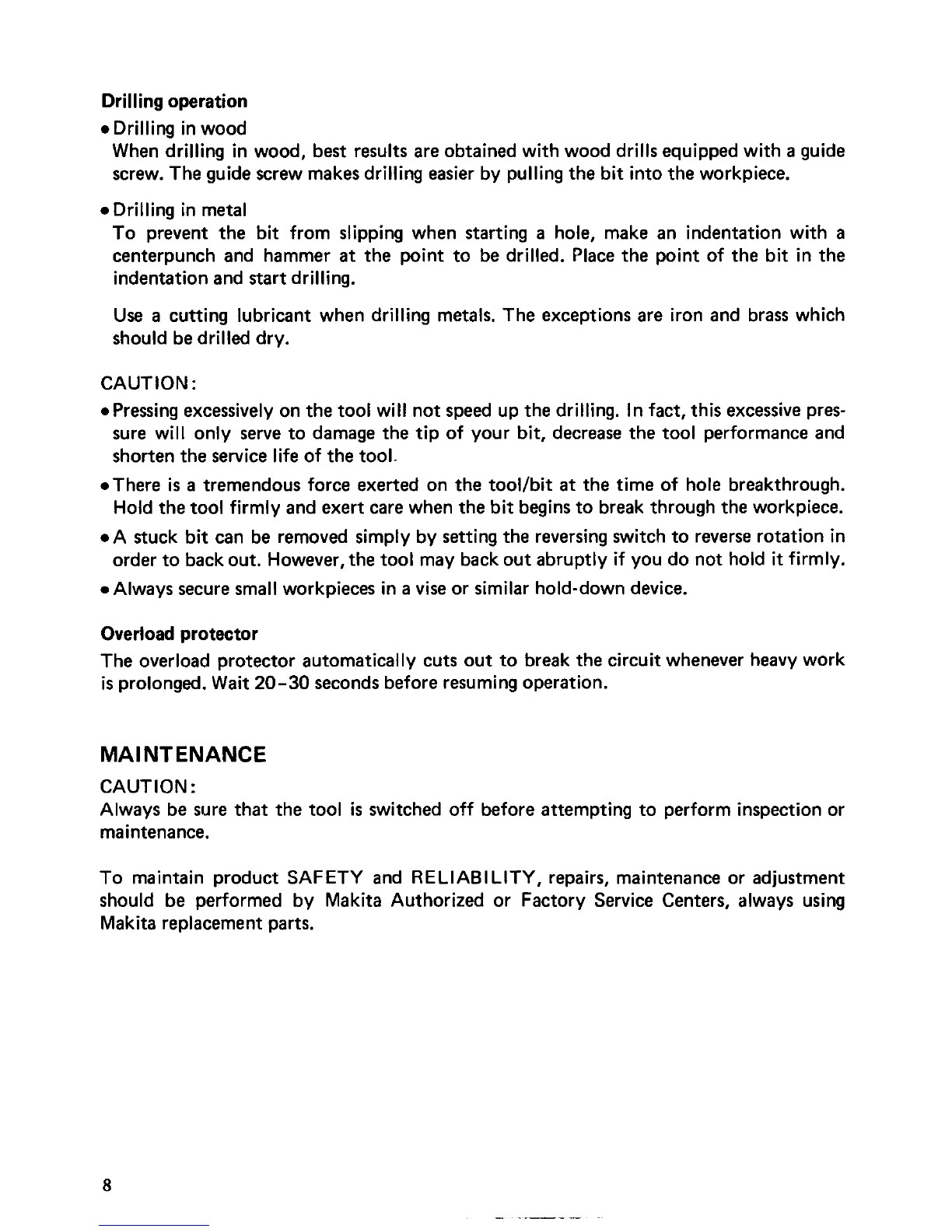

Drilling operation
Drilling inwood
When drilling in wood, best results are obtained withwood drillsequipped with
a guide
screw. The guide screw makesdrilling easier by pullingthe bitintothe workpiece.
To prevent the bit from slipping when starting
a hole, make an indentation with a
centerpunch and hammer at the point to be drilled. Place the point of the bit inthe
indentationand start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
Drilling inmetal
CAUTION
:
*Pressing excessively on thetool will not speed up the drilling. Infact, this excessive pres-
sure will only serve to damage the tip of your bit, decrease the tool performanceand
shortenthe service life of thetool.
*There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Holdthetool firmly and exert care whenthe bitbeginstobreak throughthe workpiece.
A stuck bitcan be removed simply by settingthe reversingswitch to reverse rotation in
order tobackout. However,the tool may backout abruptly ifyou do not hold
it firmly.
Always secure small workpieces in a vise or similar hold-downdevice.
Overloadprotector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait 20-30 seconds before resumingoperation.
MA1NTENANCE
CAUTION:
Always be sure that the tool
is switched off before attempting to perform inspectionor
maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacementparts.
8

Size
Phillips #2
Slotted
#5F
Square drill bit
11
(A.C.only)
Part No.
784214-0A
784010-0A 0 Chuck key S10
Part No 763419-1
784606-0A
0 Rubber pad assembly
Part No. 123001-2
8. %% J
0 Wool bonnet
Part No 743401-6
0 Tool holster
has some bitsstorage space.
Use holster to carry drill
only after removing
bit. Also keepthe reversingswitch lever in
neutral position when carrying in the holster.
Part No. 823033-3B
0 Foam polishingpad
Part No. 743023-2
9

Sep.-07-'87 EN
CORDLESS DRILL
Model 6040D
Note: The switch and other part configurations
may differ from country
to country.
10

Sep.-07-'87 EN
MODEL 6040D
1
2
3
4
5
6
7
8
9
10
1 Pan
Head Screw M5x18 11 1 Plane Bearing4
1 DrillChuckS10
12 1 Gear Complete 11-65
1
Gear
13 1 Plane Bearing 4
1 Plane Bearing 5 14 1
Name Plate
1 Motor 15 1 Housing Sa1 lWilh Item 61
1 Housing Set (With Item 151 16 1 Holder 6
8 Tapping Screw 3x20
17 1 Swnch
1
Switch
18 1 Dade
1 Compression Spring 7
19 1 Ide1
1 Switch
Lever
20 1 Banary
11

MAKmA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspectedand tested before leavingthe factory. It is warranted to
be free of defects from workmanshipand materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period,return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized
Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are requiredbecause of normal wear and tear:
The tool has been abused, misused or improperlymaintained ;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDLRECT, INCIDENTAL OR CON-
SEQUENTIALDAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR
A SPEClFlC PURPOSE.’’
AFTER THE ONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you spwific legal rights, and you may
also have other rights which vary from
state to state. Some stat= do not allow the exclusion or limitationof incidentalor conseauential
damages, so the above Limitation or exclusion may not apply to you. Some states do ndt allow
limitation
on how long an implied warranty lasts, so the abovelimitationmay not apply to you.
I
Makita Corporation of America
2650 Gainesville Hwy., Buford, GA 30518
883629A992
PRINTED IN USA
1992 - 3 - 4D
