INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Cordless Percussion-
Driver Drill
Equipped with Electric Brake
MODEL 8413D
MODEL 8433D
MODEL 8443D
002394

2
SPECIFICATIONS
•Manufacturerreservestherighttochangespecificationswithoutnotice.
•Specificationsmaydifferfromcountrytocountry.
Model 8413D 8433D 8443D
Capacities
Concrete 13 mm (1/2”) 14 mm (9/16”) 16 mm (5/8”)
Steel 13 mm (1/2”) 13 mm (1/2”) 13 mm (1/2”)
Wood 30 mm (1-3/16”) 36 mm (1-7/16”) 38 mm (1-1/2”)
Wood screw 6 mm x 75 mm
(1/4” x 3”)
6 mm x 75 mm
(1/4” x 3”)
10 mm x 90 mm
(3/8” x 3-1/2”)
Machine screw 6 mm (1/4”) 6 mm (1/4”) 6 mm (1/4”)
No load speed
(RPM)
High 0 - 1,300/min. 0 - 1,300/min. 0 - 1,400/min.
Low 0 - 400/min. 0 - 400/min. 0 - 450/min.
Blows per
minute
High 0 - 19,500 0 - 19,500 0 - 21,000
Low 0 - 6,000 0 - 6,000 0 - 6,750
Overall length 267 mm (10-1/2”) 267 mm (10-1/2”) 267 mm (10-1/2”)
Net weight 2.3 kg (5.1 lbs) 2.4 kg (5.3 lbs) 2.6 kg (5.7 lbs)
Rated voltage D.C. 12V D.C. 14.4V D.C. 18V
Standard battery cartridges
1222, 1233, 1234, 1235 1422, 1433, 1434, 1435 1822, 1833, 1834, 1835

3
GENERAL SAFETY RULES USA003-1
(FOR All BATTERY OPERATED TOOLS)
WARNING:
Read and understand all instructions. Failure to follow all
instructions listed below, may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
1. Keep your work area clean and well lit.
Cluttered benches and dark areas invite acci-
dents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust
or fumes.
3. Keep bystanders, children, and visitors
away while operating a power tool. Distrac-
tions can cause you to lose control.
Electrical Safety
4. A battery operated tool with integral bat-
teries or a separate battery pack must be
recharged only with the specified charger
for the battery. A charger that may be suit-
able for one type of battery may create a risk
of fire when used with another battery.
5. Use battery operated tool only with specif-
ically designated battery pack. Use of any
other batteries may create a risk of fire.
Personal Safety
6. Stay alert, watch what you are doing, and
use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
7. Dress properly. Do not wear loose cloth-
ing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
8. Avoid accidental starting. Be sure switch
is in the locked or off position before
inserting battery pack. Carrying tools with
your finger on the switch or inserting the bat-
tery pack into a tool with the switch on invites
accidents.
9. Remove adjusting keys or wrenches
before turning the tool on. A wrench or a
key that is left attached to a rotating part of
the tool may result in personal injury.
10. Do not overreach. Keep proper footing
and balance at all times. Proper footing and
balance enable better control of the tool in
unexpected situations.
11. Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must
be used for appropriate conditions.

4
Tool Use and Care
12. Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand or
against your body is unstable and may lead
to loss of control.
13. Do not force tool. Use the correct tool for
your application. The correct tool will do the
job better and safer at the rate for which it is
designed.
14. Do not use tool if switch does not turn it
on or off. A tool that cannot be controlled
with the switch is dangerous and must be
repaired.
15. Disconnect battery pack from tool or
place the switch in the locked or off posi-
tion before making any adjustments,
changing accessories, or storing the tool.
Such preventive safety measures reduce the
risk of starting the tool accidentally.
16. Store idle tools out of reach of children
and other untrained persons. Tools are
dangerous in the hands of untrained users.
17. When battery pack is not in use, keep it
away from other metal objects like: paper
clips, coins, keys, nails, screws, or other
small metal objects that can make a con-
nection from one terminal to another.
Shorting the battery terminals together may
cause sparks, burns, or a fire.
18. Maintain tools with care. Keep cutting
tools sharp and clean. Properly maintained
tools with sharp cutting edge are less likely to
bind and are easier to control.
19. Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tool’s
operation. If damaged, have the tool ser-
viced before using. Many accidents are
caused by poorly maintained tools.
20. Use only accessories that are recom-
mended by the manufacturer for your
model. Accessories that may be suitable for
one tool may create a risk of injury when
used on another tool.
SERVICE
21. Tool service must be performed only by
qualified repair personnel. Service or main-
tenance performed by unqualified personnel
may result in a risk of injury.
22. When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to follow
Maintenance instructions may create a risk of
shock or injury.
SPECIFIC SAFETY RULES USB023-2
DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to cordless hammer drill
safety rules. If you use this tool unsafely or incorrectly, you can
suffer serious personal injury.
1. Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring.
Contact with a “live” wire will make exposed
metal parts of the tool “live” and shock the
operator.
2. Be aware that this tool is always in an
operating condition, because it does not
have to be plugged into an electrical out-
let.

5
3. Always be sure you have a firm footing. Be
sure no one is below when using the tool in
high locations.
4. Hold the tool firmly.
5. Keep hands away from rotating parts.
6. Do not leave the tool running. Operate the
tool only when hand-held.
7. Do not touch the bit or the workpiece
immediately after operation; they may be
extremely hot and could burn your skin.
8. Some material contains chemicals which
may be toxic. Take caution to prevent
working dust inhalation and skin contact.
Follow material supplier safety data.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.
SYMBOLS USD302-1
The followings show the symbols used for tool.
V....................... volts
................... direct current
................... no load speed
.../min................revolutions or reciprocation per
minute
................number of blow
IMPORTANT SAFETY INSTRUCTIONS FOR
BATTERY CARTRIDGE ENC004-1
1. Before using battery cartridge, read all
instructions and cautionary markings on
(1) battery charger, (2) battery, and (3)
product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It
may result in a risk of overheating, possi-
ble burns and even an explosion.
4. If electrolyte gets into your eyes, rinse
them out with clear water and seek medi-
n˚

6
cal attention right away. It may result in
loss of your eyesight.
5. Always cover the battery terminals with
the battery cover when the battery car-
tridge is not used.
6. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects
such as nails, coins, etc.
(3) Do not expose battery cartridge to
water or rain.
A battery short can cause a large current
flow, overheating, possible burns and
even a breakdown.
7. Do not store the tool and battery cartridge
in locations where the temperature may
reach or exceed 50°C (122°F).
8. Do not incinerate the battery cartridge
even if it is severely damaged or is com-
pletely worn out. The battery cartridge can
explode in a fire.
9. Be careful not to drop or strike battery.
SAVE THESE INSTRUCTIONS
Tips for maintaining maximum battery life
1. Charge the battery cartridge before com-
pletely discharged.
Always stop tool operation and charge the
battery cartridge when you notice less
tool power.
2. Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service
life.
3. Charge the battery cartridge with room
temperature at 10°C - 40°C (50°F - 104°F).
Let a hot battery cartridge cool down
before charging it.
4. Charge the Nickel Metal Hydride battery
cartridge when you do not use it for more
than six months.

7
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
• Always switch off the tool before insertion or removal of
the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool
while pressing the buttons on both sides of the cartridge.
•Toinsertthebatterycartridge,alignthetongueonthe
battery cartridge with the groove in the housing and slip
it into place. Always insert it all the way until it locks in
place with a little click. If not, it may accidentally fall out
of the tool, causing injury to you or someone around you.
•Donotuseforcewheninsertingthebatterycartridge.If
the cartridge does not slide in easily, it is not being
inserted correctly.
Switch action
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the “OFF” position when
released.
To s ta r t the t oo l , si m pl y pul l the sw it ch tr i gge r. To ol s p ee d is
increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
Electric brake
This tool is equipped with an electric brake. If the tool consis-
tently fails to quickly stop after switch trigger release, have
tool serviced at a Makita service center.

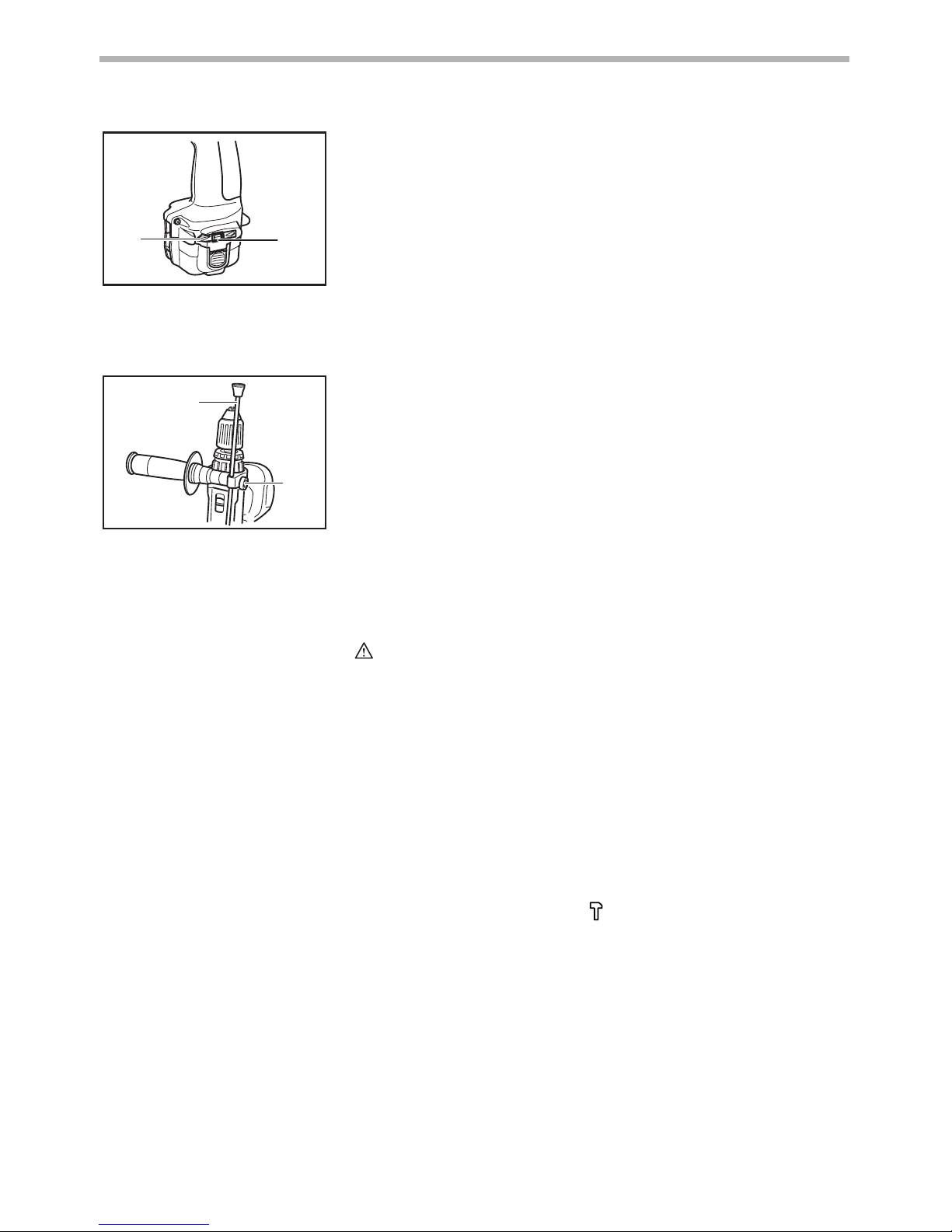

1. Button
2. Battery cartridge
1
2
002402
1. Switch trigger
1
002404

8
Reversing switch action
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A side
for clockwise rotation or from the B side for counterclockwise
rotation.
When the reversing switch lever is in the neutral position, the
switch trigger cannot be pulled.
CAUTION:
•Always check the direction of rotation before operation.
•Use the reversing switch only after the tool comes to a
complete stop. Changing the direction of rotation before
the tool stops may damage the tool.
•When not operating the tool, always set the reversing
switch lever to the neutral position.
Speed change
To change the speed, first switch off the tool and then slide
the speed change lever to the “II”side for high speed or “I”
side for low speed. Be sure that the speed change lever is
set to the correct position before operation. Use the right
speed for your job.
CAUTION:
•Always set the speed change lever fully to the correct
position. If you operate the tool with the speed change
lever positioned halfway between the “I”side and “II”
side, the tool may be damaged.
•Do not use the speed change lever while the tool is
running. The tool may be damaged.
Selecting the action mode
This tool employs an action mode changing ring. Select one
of the three modes suitable for your work needs by using this
ring.
For rotation only, turn the ring so that the arrow on the tool
body points toward the mark on the ring.
For rotation with hammering, turn the ring so that the arrow
points toward the mark on the ring.
For rotation with clutch, turn the ring so that the arrow points
toward the mark on the ring.
1. Reversing switch lever
1
AB
002409
1. Speed change lever
1
002414
1. Action mode changing ring
2. Arrow
1
2
002419

9
CAUTION:
•Always set the ring correctly to your desired mode mark.
If you operate the tool with the ring positioned halfway
between the mode marks, the tool may be damaged.
Adjusting the fastening torque
The fastening torque can be adjusted in 16 steps by turning
the adjusting ring so that its graduations are aligned with the
arrow on the tool body. The fastening torque is minimum
when the number 1 is aligned with the arrow, and maximum
when the number 16 is aligned with the arrow.
Before actual operation, drive a trial screw into your material
or a piece of duplicate material to determine which torque
level is required for a particular application.
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.
Installing side grip (auxiliary handle)
Always use the side grip to ensure operating safety. Install
the side grip so that the teeth on the grip fit in between the
protrusions on the tool barrel.
Then tighten the grip by turning clockwise at the desired
position. It may be swung 360°so as to be secured at any
position.
Installing or removing driver bit or drill bit
Tu r n the s le eve cou nt e rc l ock w is e t o op en th e ch u ck ja ws.
Place the bit in the chuck as far as it will go. Turn the sleeve
clockwise to tighten the chuck.
To remove the bit, turn the sleeve counterclockwise.
1. Graduations
2. Adjusting ring
3. Arrow
1
2
3
002426
1. Teeth
2. Grip base
3. Side grip
1
2
3
002427
1. Sleeve
1
002431

10
When not using the driver bit, keep it in the bit holders. Bits
45 mm (1-3/4”) long can be kept there.
Adjustable depth rod
The adjustable depth rod is used to drill holes of uniform
depth. Loosen the clamp screw, set to desired position, then
tighten the clamp screw.
OPERATION Hammer drilling operation
CAUTION:
•There is a tremendous and sudden twisting force
exerted on the tool/bit at the time of hole break-through,
when the hole becomes clogged with chips and
particles, or when striking reinforcing rods embedded in
the concrete. Always use the side grip (auxiliary handle)
and firmly hold the tool by both side grip and switch
handle during operations. Failure to do so may result in
the loss of control of the tool and potentially severe
injury.
First, turn the action mode changing ring so that the arrow on
the tool body points to the marking. The adjusting ring
can be aligned in any torque levels for this operation.
Be sure to use a tungsten-carbide tipped bit.
Position the bit at the desired location for the hole, then pull
the switch trigger. Do not force the tool. Light pressure gives
best results. Keep the tool in position and prevent it from slip-
ping away from the hole.
Do not apply more pressure when the hole becomes clogged
with chips or particles. Instead, run the tool at an idle, then
remove the bit partially from the hole. By repeating this sev-
1. Bit
2. Bit holder
12
002432
1. Depth rod
2. Clamp screw
002437
1
2

11
eral times, the hole will be cleaned out and normal drilling
may be resumed.
Blow-out bulb (optional accessory)
After drilling the hole, use the blow-out bulb to clean the dust
out of the hole.
Screwdriving operation
First, turn the action mode changing ring so that the arrow on
the tool body points to the marking. Adjust the adjusting
ring to the proper torque level for your work. Then proceed as
follows.
Place the point of the driver bit in the screw head and apply
pressure to the tool. Start the tool slowly and then increase
the speed gradually. Release the switch trigger as soon as
the clutch cuts in.
NOTE:
•Make sure that the driver bit is inserted straight in the
screw head, or the screw and/or bit may be damaged.
•When driving wood screws, predrill pilot holes to make
driving easier and to prevent splitting of the workpiece.
See the chart.
•If the tool is operated continuously until the battery
cartridge has discharged, allow the tool to rest for 15
minutes before proceeding with a fresh battery.

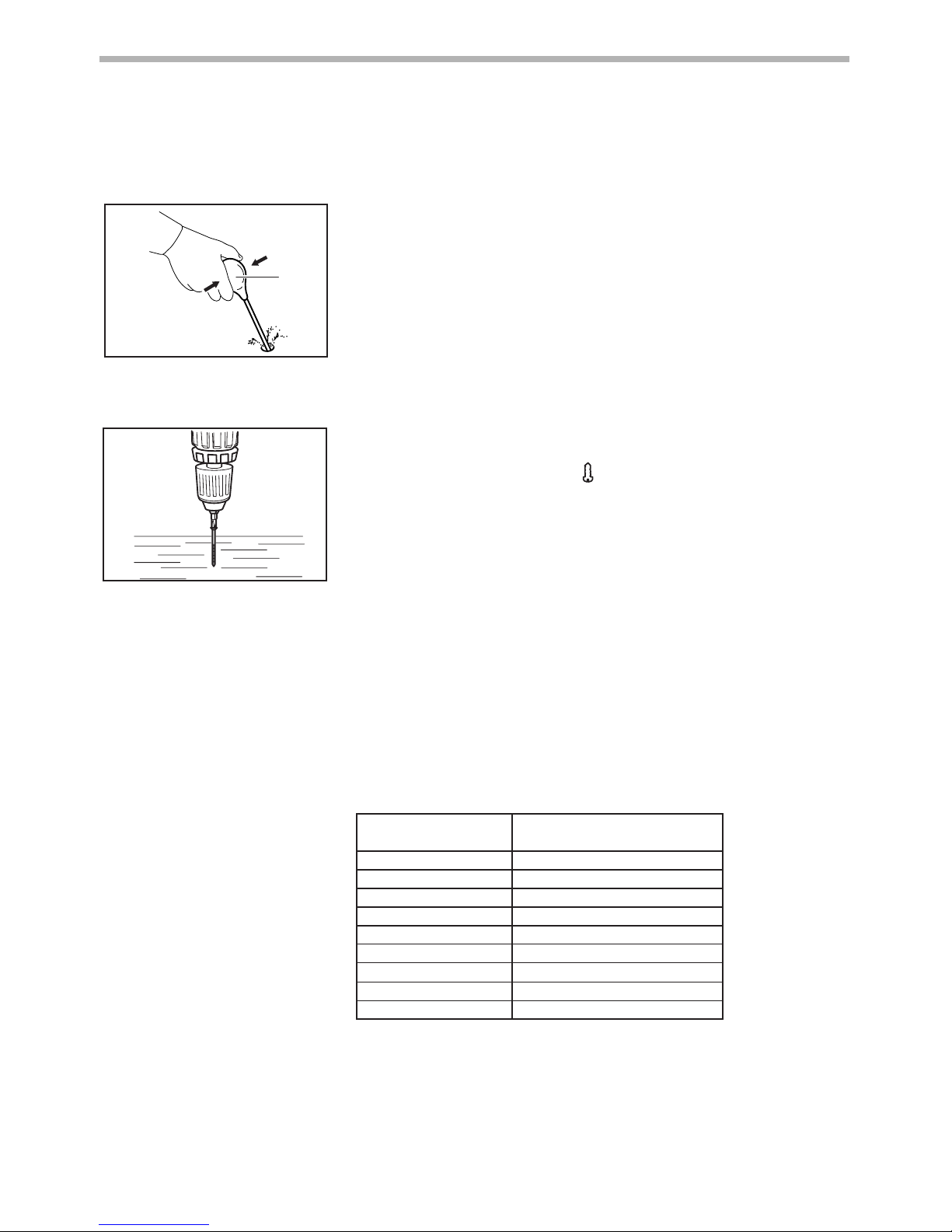

1. Blow-out bulb
1
002449
002450
Nominal diameter
of wood screw (mm)
3.1 mm (1/8”)
3.5 mm (9/64”)
3.8 mm (5/32”)
4.5 mm (11/64”)
4.8 mm (3/16”)
5.1 mm (13/64”)
5.5 mm (7/32”)
5.8 mm (7/32”)
6.1 mm (15/64”)
Recommended size
of pilot hole (mm)
2.0 - 2.2 mm (5/64”- 3/32”)
2.2 - 2.5 mm (3/32”- 3/32”)
2.5 - 2.8 mm (3/32”- 7/64”)
2.9 - 3.2 mm (7/64”- 1/8”)
3.1 - 3.4 mm (1/8”- 9/64”)
3.3 - 3.6 mm (1/8”- 9/64”)
3.7 - 3.9 mm (9/64”- 5/32”)
4.0 - 4.2 mm (5/32”- 11/64”)
4.2 - 4.4 mm (11/64”- 11/64”)
002472

12
Drilling operation
CAUTION:
•Pressing excessively on the tool will not speed up the
drilling. In fact, this excessive pressure will only serve to
damage the tip of your bit, decrease the tool
performance and shorten the service life of the tool.
•There is a tremendous force exerted on the tool/bit at the
time of hole break through. Hold the tool firmly and exert
care when the bit begins to break through the workpiece.
•A stuck bit can be removed simply by setting the
reversing switch to reverse rotation in order to back out.
However, the tool may back out abruptly if you do not
hold it firmly.
•Always secure small workpieces in a vise or similar hold-
down device.
•If the tool is operated continuously until the battery
cartridge has discharged, allow the tool to rest for 15
minutes before proceeding with a fresh battery.
First, turn the action mode changing ring so that the arrow on
the tool body points to the marking. The adjusting ring
can be aligned in any torque levels for this operation. Then
proceed as follows.
Drilling in wood
When drilling in wood, the best results are obtained with
wood drills equipped with a guide screw. The guide screw
makes drilling easier by pulling the bit into the workpiece.
Drilling in metal
To p reve nt t he bi t fro m sl i pp i ng w hen s ta r t in g a h ol e, m ake
an indentation with a center-punch and hammer at the point
to be drilled. Place the point of the bit in the indentation and
start drilling.
Use a cutting lubricant when drilling metals. The exceptions
are iron and brass which should be drilled dry.

13
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes regularly. Replace
when they wear down to the limit mark. Keep the carbon
brushes clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only iden-
tical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take out
the worn carbon brushes, insert the new ones and secure
the brush holder caps.
After replacing brushes, insert the battery cartridge into the
tool and break in brushes by running tool with no load for
about 1 minute. Then check the tool while running and elec-
tric brake operation when releasing the switch trigger. If elec-
tric brake is not working well, ask your local Makita service
center for repair.
To m ai nta in p r od u ct S AFE TY a n d RE L IA BIL ITY, re pai rs , any
other maintenance or adjustment should be performed by
Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
EN0001-1
Recycling the Battery
The only way to dispose of a Makita battery is to recycle it.
The law prohibits any other method of disposal.
To recycle the battery:
1. Remove the battery from the tool.
2. a) Take the battery to your nearest Makita Factory Ser-
vice Center
or
b) Take the battery to your nearest Makita Authorized
Service Center or Distributor that has been desig-
nated as a Makita battery recycling location.

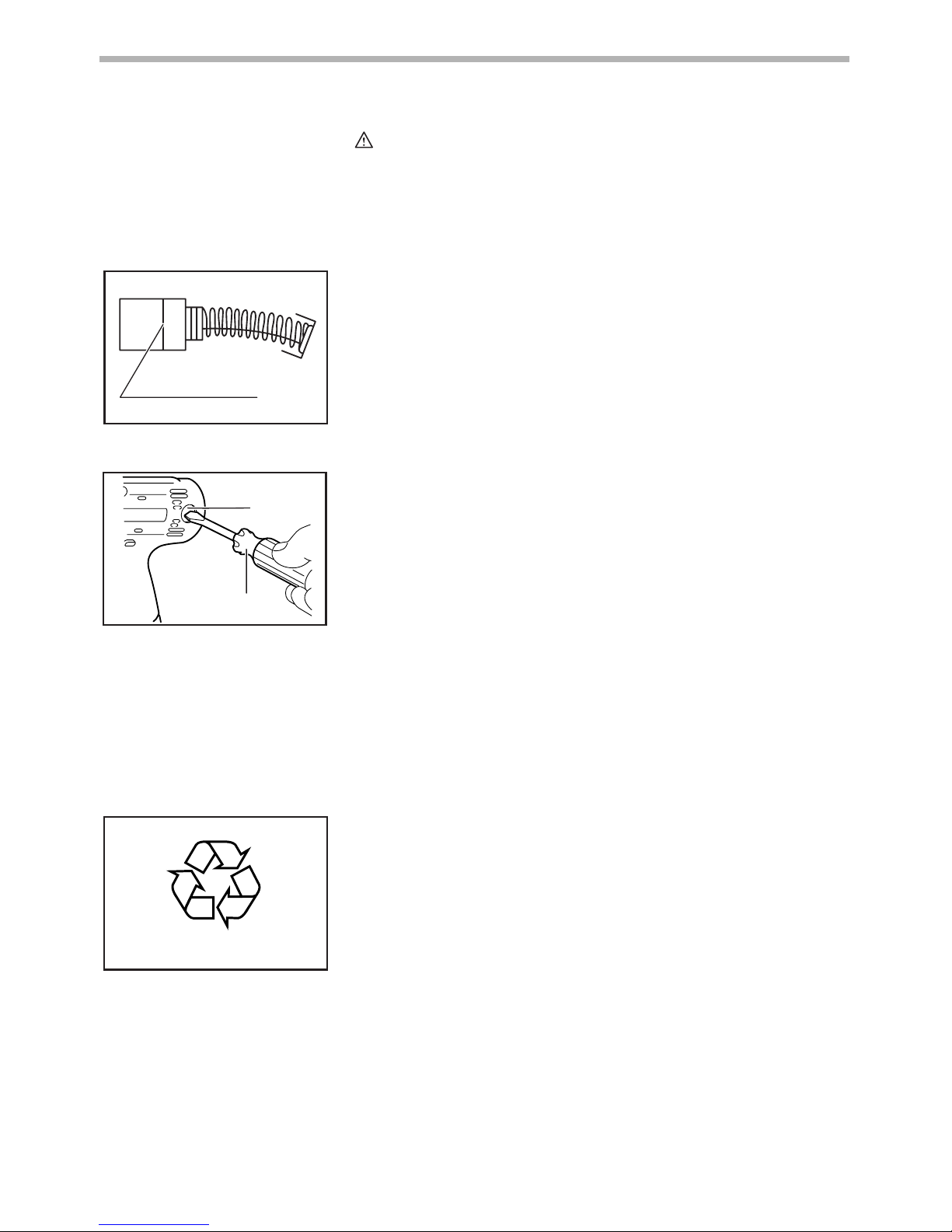

1. Limit mark
1
001145
1. Brush holder cap
2. Screwdriver
1
2
002453
Ni-Cd

14
Call your nearest Makita Service Center or Distributor to
determine the location that provides Makita battery recycling.
See your local Yellow Pages under “Tools-Electric”.
ACCESSORIES CAUTION:
•These accessories or attachments are recommended for
use with your Makita tool specified in this manual. The
use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.
If you need any assistance for more details regarding these
accessories, ask your local Makita service center.
•Drill bits
•Hammer drill bits
•Screw bits
•Blow-out bulb
•Safety goggles
•Various type of Makita genuine batteries and chargers
•Grip assembly
•Depth rod
•Rubber pad assembly
•Wool bonnet
•Foam polishing pad
•Plastic carrying case

Memo
15

Memo
16

17
Fold
Cut
Stamp
Timbre
Makita Canada Inc.
1950 Forbes Street,
Whitby, Ontario
L1N 7B7

18
Your answers to the following questions are appreciated.
Date Purchased Model No.
Serial No.
Initial Last Name
Street Address
City Province
AGE:
Male Female MarriedSingle
Month Day Year 20
Under 19 20-29 30-39 40-49 Over 50
Paste Paste Paste Paste Paste Paste Paste Paste
Paste Paste Paste Paste Paste Paste
Paste Paste Paste Paste Paste Paste
1. This product was purchased from?
Industrial Supply
Other ( )Tool Distributor
Hardware/lumber Store
2. Use of the product is intended for?
5. Any comments?
Home maintenance
Other ( )Industrial maintenance
Construction trade
3. How did you first learn of Makita Power Tools?
Catalog
Other ( )From dealer
Magazine/Newspaper
Store display
4. Most favored points are?
Makita Brand
PowerFeatures
Design
Other ( )Size
Price
Occupation:
Dealer's Name & Address:
Postal Code
Certificate of Warranty
Mail to Makita

19
Factory Service Centres
For the authorized service centre nearest you please refer to the local yellow pages directory under “tools”or con-
tact our customer service department (Tel) 1-800-263-3734
When you need service...
•Explain the problem in a letter
•Enclose the letter with the tool
•Package carefully and send prepaid
to the nearest Makita factory or
authorized service centre
CUSTOMER RECORD
DATE
PURCHASED:
DEALER’S NAME
& ADDRESS:
MODEL NO.:
SERIAL NO.:
Head Office: 1950 Forbes St., Whitby, Ontario, L1N 7B7
(905) 571 - 2200 1-800-263-3734
Regional Office: 11771 Hammersmith Way, Richmond
(604) 272 - 3104 1-800-663-0909B.C. V7A 5H6
Regional Office: 6389 boul. Couture, St. Leonard, Quebec
(514) 323 - 1223 1-800-361-7049H1P 3J5(Montreal)
Dartmouth: 202 Brownlow Avenue
(902) 468 - 7064 1-888-625-4821Dartmouth, N.S., B3B 1T5
Ville St. Laurent: 1140 Rue Bégin, Ville St. Laurent, Quebec
(514) 745 - 5025 1-888-745-5025H4R 1X1(Montreal)
Les Saules: 1200 St. Jean Baptiste, Unit 106, Les Saules,
(418) 871 - 5720 1-800-663-5757Quebec, G2E 5E8(Quebec)
Nepean: 210 Colonnade Road, Unit 11, Nepean,
(613) 224 - 5022 1-888-560-2214Ontario, K2E 7M1(Ottawa)
London: 317 Adelaide St. S., Unit 117, London,
(519) 686 - 3115 1-800-571-0899Ontario, N5Z 3L3
Whitby: 1950 Forbes St., Whitby, Ontario, L1N 7B7
(905) 571 - 2200 1-800-263-3734
Mississauga: 6350 Tomken Rd., Unit 8, Mississauga,
(905) 670 - 7255 1-888-221-9811Ontario, L5T 1Y3
Calgary: #8-6115 Fourth St. S.E., Calgary
(403) 243 - 3995 1-800-267-0445Alberta, T2H 2H9
Richmond: 11771 Hammersmith Way, Richmond, B.C.,
(604) 272 - 3104 1-800-663-0909V7A 5H6
Edmonton: 11614-149 Street, Edmonton, Alberta,
(780) 455 - 6644 1-888-455-6644T5M 3R3
Winnipeg: 1670 St. James Street, Winnipeg, Manitoba,
(204) 694 - 0402 1-800-550-5073R3H 0L3
Saskatoon: 206A-2750 Faithful Avenue Saskatoon,
(306) 931 - 0111 1-888-931-0111Saskatchewan, S7K 6M6

Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from
workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during
this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centres.
If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace)
without charge.
This Warranty does not apply:
•where normal maintenance is required,
•repairs have been made or attempted by others,
•the tool has been abused, misused or improperly maintained,
•alterations have been made to the tool.
“The Makita Warranty is the only and the entire written warranty given by Makita for the Makita tools. No dealer or his agent
or employee is authorized to extend or enlarge upon this warranty by any verbal or written statement or advertisement.”
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES INCLUDING IMPLIED WARRANTIES OF
“MERCHANTABILITY”AND FITNESS FOR A SPECIFIC PURPOSE,”AFTER THE ONE YEAR TERM OF THIS WARRANTY.
“This Warranty gives you specific rights. The provisions contained in this warranty are not intended to limit, modify, take away
from, disclaim or exclude any warranties set forth in any provincial legislation. To the extent required by law, the provisions in
any provincial or federal legislation with respect to warranties take precedence over the provisions in this warranty.”
MAKITA LIMITED ONE YEAR WARRANTY
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM
THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS
WARRANTY.
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
884288B236
