Makita CORDLESS DRIVER DRILL 6071D User manual

Cordless Driver Drill
Cdpacitics
-
Stcel Wood Wood screw
Equipped with Electric Brake
MODEL 6071D
MODEL 6071DW
With Fast Charger
MODEL 607lDWK
No load speed Dimensions
IL x W x HI
Net weight
With Fast Charger and Carrying Case
INSTRUCTION MANUAL
SPEC IF I CAT IONS
10 11111, 4 5 mm x 20 mini 1 ~~ 6oo R,m,n I 220 mm x 49 mm x 215 mm 115kg
13 a"! 1 13'16" x 3 4"1 (8~518" x 1 7'8" x 8 1!2"1 1 12 5 Ibs!
Battery Cartridge 7000
1 - Model DC7100 Fast Charger
Dimensions
IL x W x HI
Net
1 weight
0 7 kg
OC 145 mm x 80 mm x 61 mni
Hr 1 50 Hr 60 HI ~ 7 2 V 1 I5 314'' x 3~1{8" x 2 3/8"!
AC orily
1
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids
or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't
let visitors contact tool or extension cord.
STORE
IDLE TOOLS.When not in use, tools should be stored in dry, and high
or locked-up place - out of reach of children.
DON'T FORCE TOOL. It
will dothejob better and saferat the rate for which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear
loose clothing or jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering to contain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cord
or yank it todisconnect from
receptacle. Keep cord from heat,
oil, and sharp edges.
SECURE WORK.
Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean
for better and
safer performance.
Follow instructions for lubricating and changing acces-
sories. Inspect tool cords periodicallyand if damaged, have repaired by autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from
oil and grease.
. DISCONNECTTOOLS. When not in use, before servicing, and when chang-
13,
ing accessories, such as blades, bits, cutters.
2

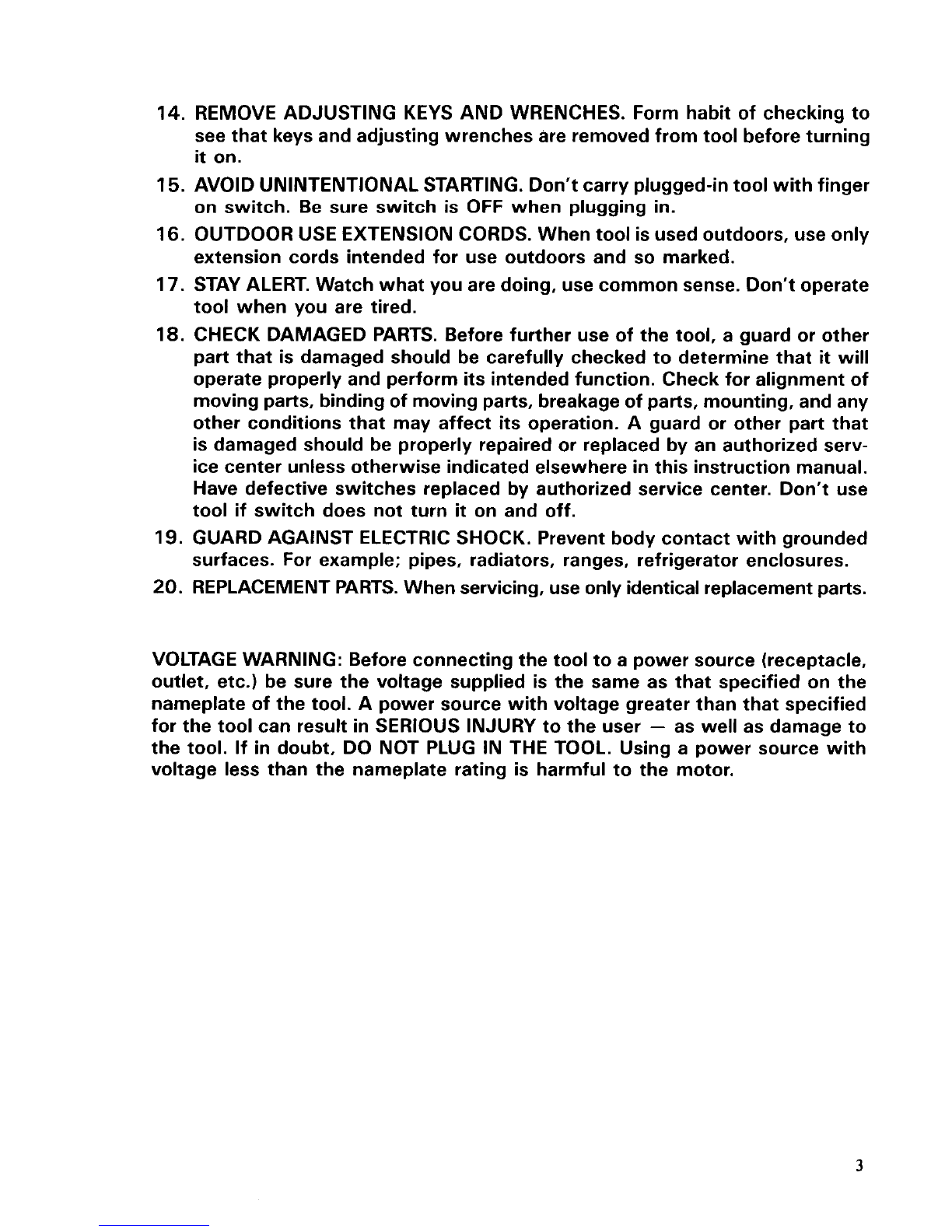

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-in tool with finger
on switch.
Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, use only
extension cords intended
for use outdoors and so marked.
17. STAY ALERT. Watch what you are doing, use commonsense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that
is damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting,and any
other conditions that may affect
its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces.
For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing,useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tool to a power source (receptacle,
outlet, etc.) be sure the voltage supplied
is the same asthat specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user - as well asdamage to
the
tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage
less than the nameplate rating is harmful to the motor.
3

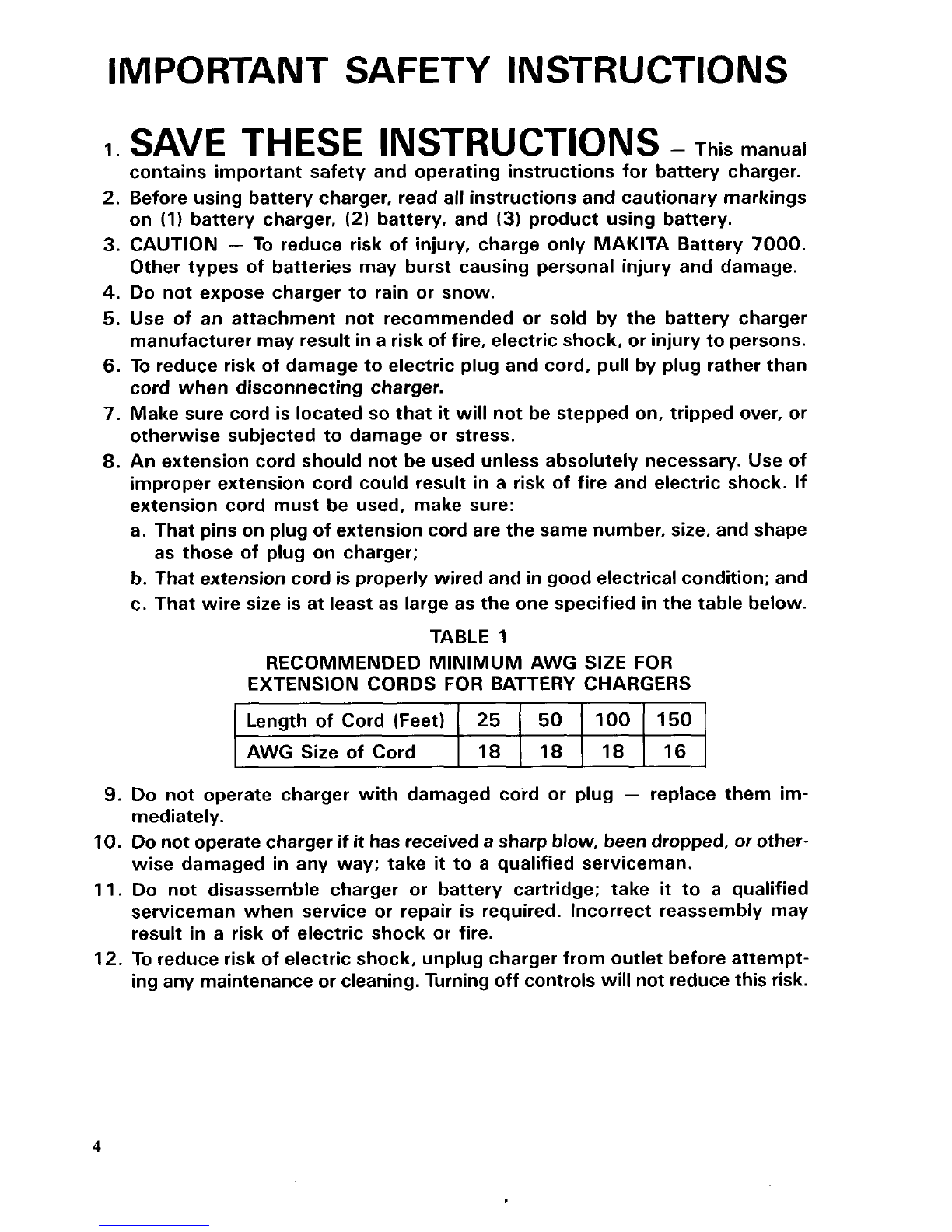

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet)
25 50 100
AWG Size of Cord 18 18 18
1. SAVE THESE INSTRUCTIONS - This manual
150
16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do not operate charger if it has received a sharpblow, been dropped, or other-
wise damaged in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service
or repair is required. Incorrect reassembly may
result in a
risk of electric shock or fire.
12. To reduce risk of electric shock, unplug charger from outlet before attempt-
ing any maintenance
or cleaning. Turning off controls will not reducethis risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do not attempt to use a step-uptransformer, an engine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. Do not short the battery cartridge:
or ABOVE 4OoC (104OF).
receptacle.
cartridge is not used.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A battery short can cause a large current flow, overheating, possible burns
and even a breakdown.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool only by the insulated grasping surfaces toprevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bit or the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Installing or removing battery cartridge
0Always switch off the tool before inser-
tion or removal
of the battery cartridge.
.To remove the battery cartridqe, pull
out
j
the set plate on the bottom if the tool
and grasp both sides of the cartridge
while withdrawing
it from the barrel.
.To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the set plate back into place.
Be sure
to close the set plate fully before
using the
tool.
0 Do not use force when inserting the battery cartridge.
If the cartridge does not slide in easily, it is not being inserted correctly
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides as their
respective markings on the fast charger. In-
sert the cartridge fully into the port
so that
it rests on the charger port floor.
The charging light will come on and charg-
ing will begin.
If the charging light does not
come on, press the reset button.
If the
Charmno lioht
..
charging light goes out within 10 seconds even after pressing the reset button a couple of
times, the battery cartridge is dead. (CAUTION : Wait for more than 5 seconds after the
charging light goes
out to press the reset button again.) Replace it with a new one. When
the charging light goes out after about one hour, you may remove the fully charged
battery cartridge. After charging, unplug the charger from the power source.
CAUTION :
0 Your new battery cartridge is not charged. You will need to charge it before use.
0 If you try to charge a cartridge from a just-operated tool, sometimes the charging light
will not come on. If this occurs, let the cartridge cool off for a while. Then re-insert
it and try to charge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for a long period, it may not accept a full charge. This is a normal condition and does
not indicate a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple
of times.
0 If you wish to charge two battery cartridges, allow 15 minutes between chargings on the
fast charger.
6

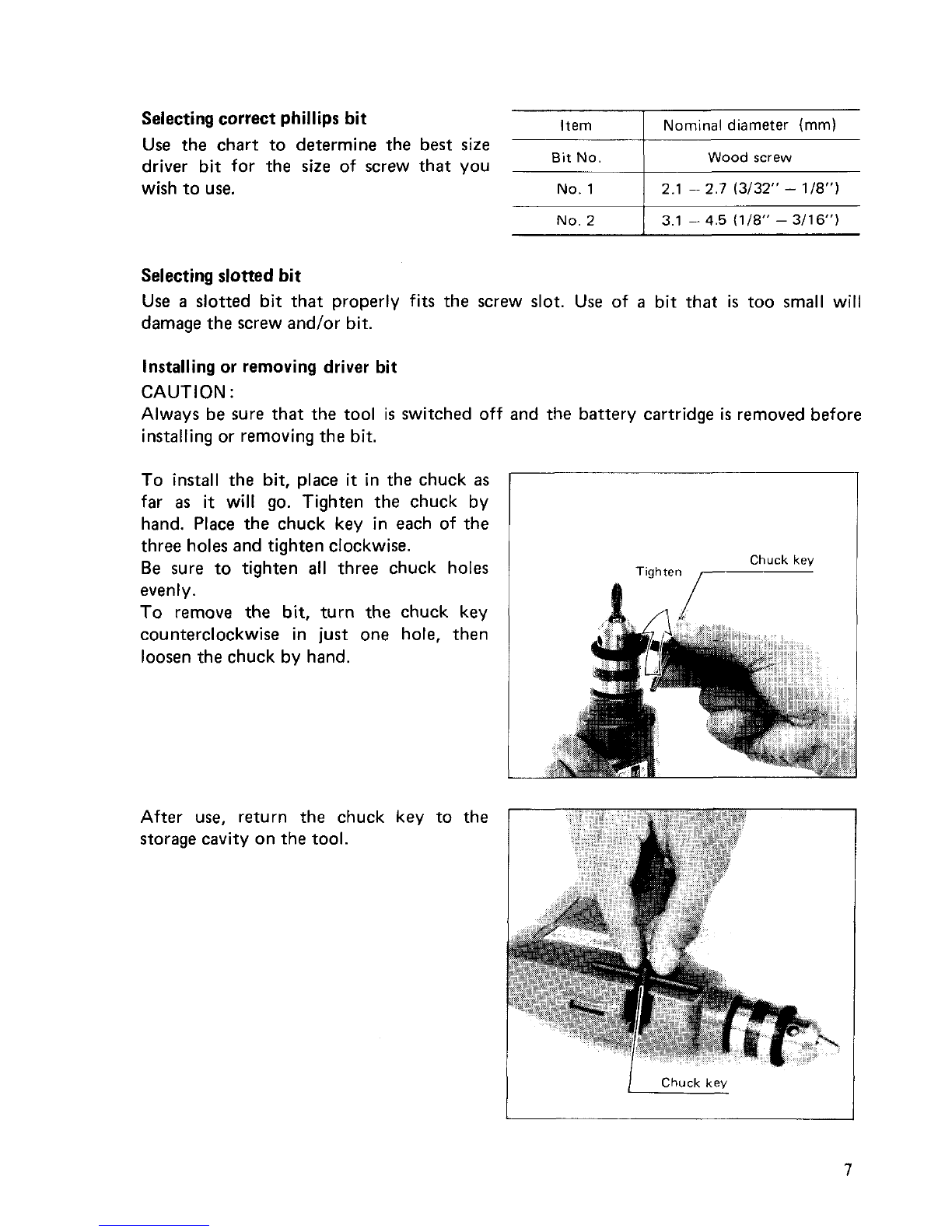

Nominal diameter (mm)
Bit No. Wood screw
2.1 - 2.7 (3/32" - 1/8")
Selecting correct Phillips bit
Use the
chart to determine the best size
driver bit for the size of screw
that you
wish
to use.
No. 2
3.1 - 4.5 (118"- 3/16")
Selecting slotted bit
Use
a slotted bit that properly fits the screw slot. Use of a bit that is too small will
damage the screw and/or bit.
Installing or removing driver bit
CAUTION
:
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removing the bit.
To install the bit, place it in the chuck as
I
far as it will go. Tighten the chuck by
hand. Place the chuck key
in each of the
three holes and tighten clockwise.
Be sure
to tighten all three chuck holes
even
I y .
To remove the bit, turn the chuck key
counterclockwise
in just one hole, then
loosen the chuck by hand.
Chuck key
Tighten
,-
I
I Chuck key
7

to stop.
CAUTION :
Before inserting t..e battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returns to the
"OFF" position when released.
Reversing switch action
This tool has a reversing switch to change
the direction
of rotation. Slide the revers-
ing switch to the right for clockwise rota-
tion
or to the left for counterclockwise.
Reversing switcd
CAUTION :
0 Always check the direction of rotation before operation.
.Use the reversing switch only when the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may ruin the tool.
Overload protector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait
20-30 seconds before resuming operation.
8

Bubble level
This
tool is equipeed with a bubble level to
aid in holding the tool horizontally. Simply
center the bubble in the sight window.
4.5 (11/64")
Bubble level
7
2.9 - 3.2
(7/64 - 1 /8")
Screwdriving operation
Place the point
of the driver bit in the
screw head and apply pressure
to the tool.
Start the tool slowly and then increase the
speed gradually. Release the trigger just as
the screw bottoms out. The electric brake
will then stop the
tool immediately, pre-
venting the screw and/or bit from being
damaged.
NOTE :
0 Make sure that the driver bit is inserted straight in the screw head, or the screw and/or
bit may be damaged.
owhen driving wood screws, predrill Pilot
holes
to make driving easier and to pre-
3.1 (1/8")
3.5 (9/64") (3/32 - 3/32")
vent splitting of the workpiece. See the
chart.
I
2.5 - 2.8
(3132 - 7/64")
3.8 (5/32")
9

Drilling operation
0 Drilling in wood
When drilling in wood, best results are obtained with wood drills equipped with a guide
screw. The guide screw makes drilling easier by pulling the bit into the workpiece.
0 Drilling in metal
To prevent the bit from slipping when
starting a hole, make
an indentation with
a centerpunch and hammer at the point
to be drilled. Place the point of the bit in
the indentation and start drilling.
Use a cutting lubricant when drilling
metals. The exceptions are
iron and brass
which should be drilled dry.
CAUTION :
*Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure will only serve to damage the tip
of your bit, decrease the tool performance
and shorten the service life
of the tool.
*There is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
0 A stuck bit can be removed simply by setting the reversing switch to reverse rotation in
order to back out. However, the tool may back out abruptly if you do not hold it firmly.
Always secure small workpieces in a vise or similar hold-down device.
10

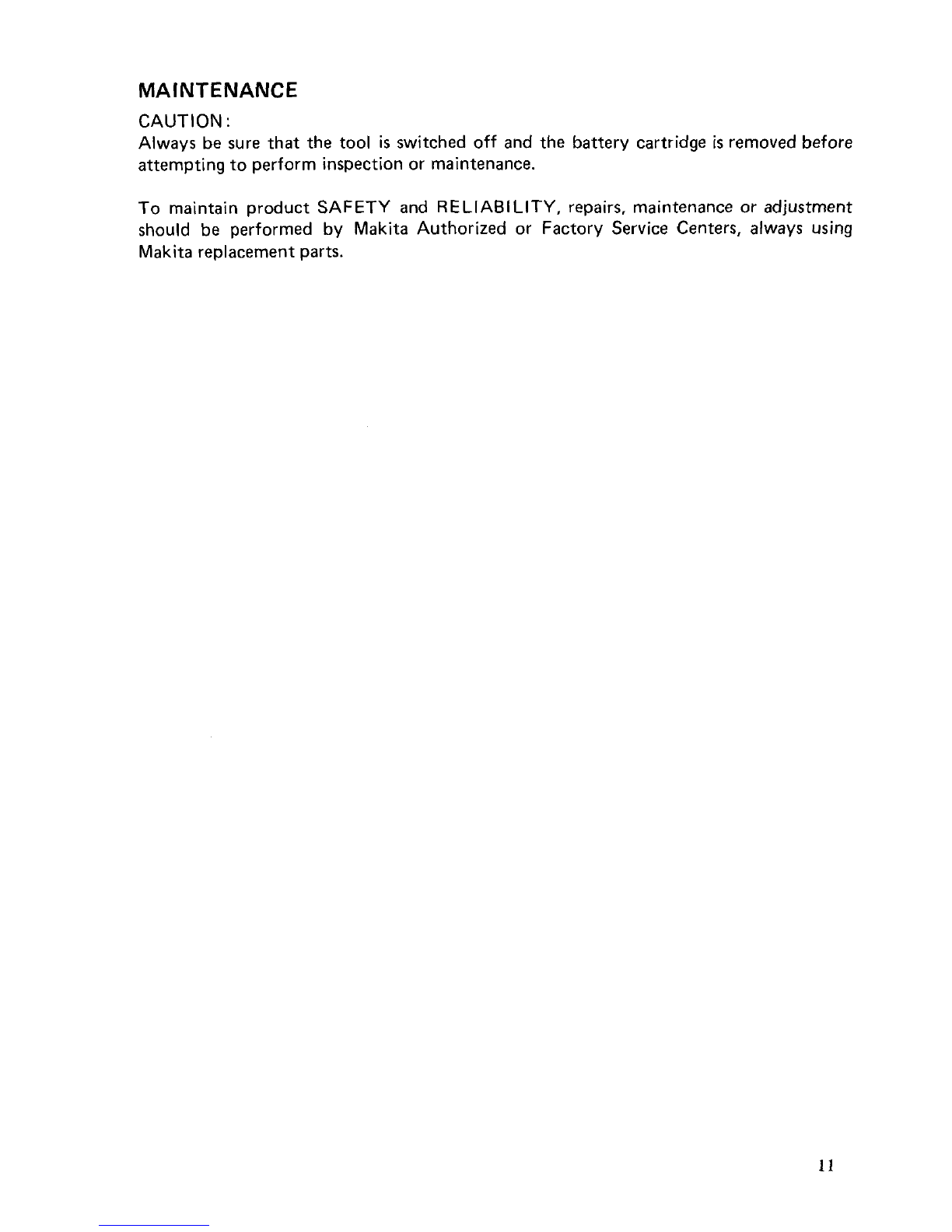

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting
to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized
or Factory Service Centers, always using
Makita replacement parts.
11

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The
use of any other accessories or attachments might present a risk of injury to persons,
The accessories or attachments should
be used only in the proper and intended manner.
Bits Fast charger
Model DC7100
Part No. 113109-0
0 Rubber pad assembly
Part
No. 123001-2
0 Wool bonnet
Part No. 743401-6
0 Battery cartridge 7000
Part No. 632002-4
0 Battery cover
Part No. 414938-7
0 Foam polishing pad
Part
No. 743023-2
0 Chuck key S10
Part No. 763419-1
0 Keyless drill chuck
Part
No. 763083-8
12

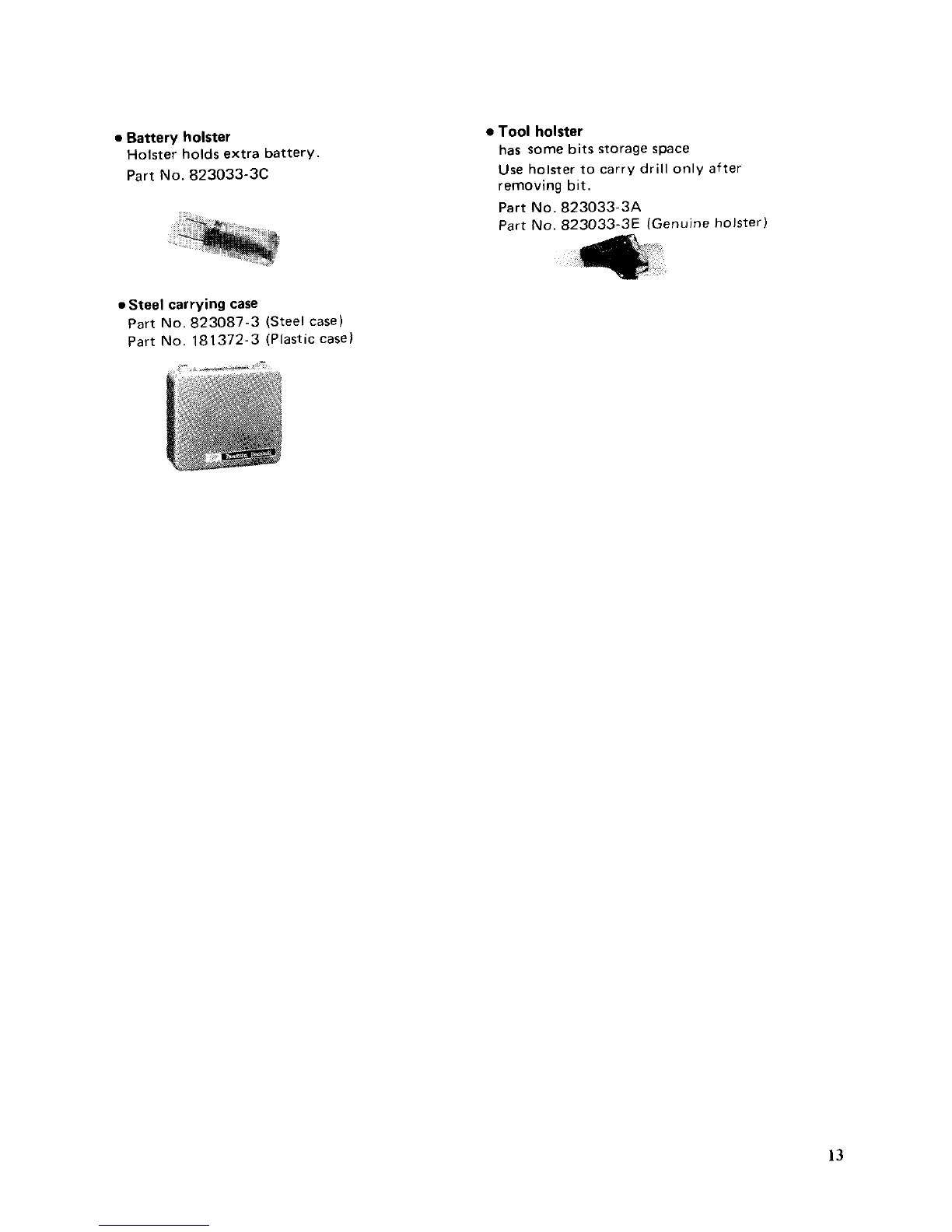

0 Battery holster
Holster holds extra battery
Part
No. 823033-3C
0 Steel carrying case
Part No. 823087-3 (Steel case)
Part
No. 181372-3 (Plastic Case)
0 Tool holster
has some bits storage space
Use holster to carry drill only after
removing bit.
Part No. 823033-3A
Part No. 823033-3E (Genuine holster)
13

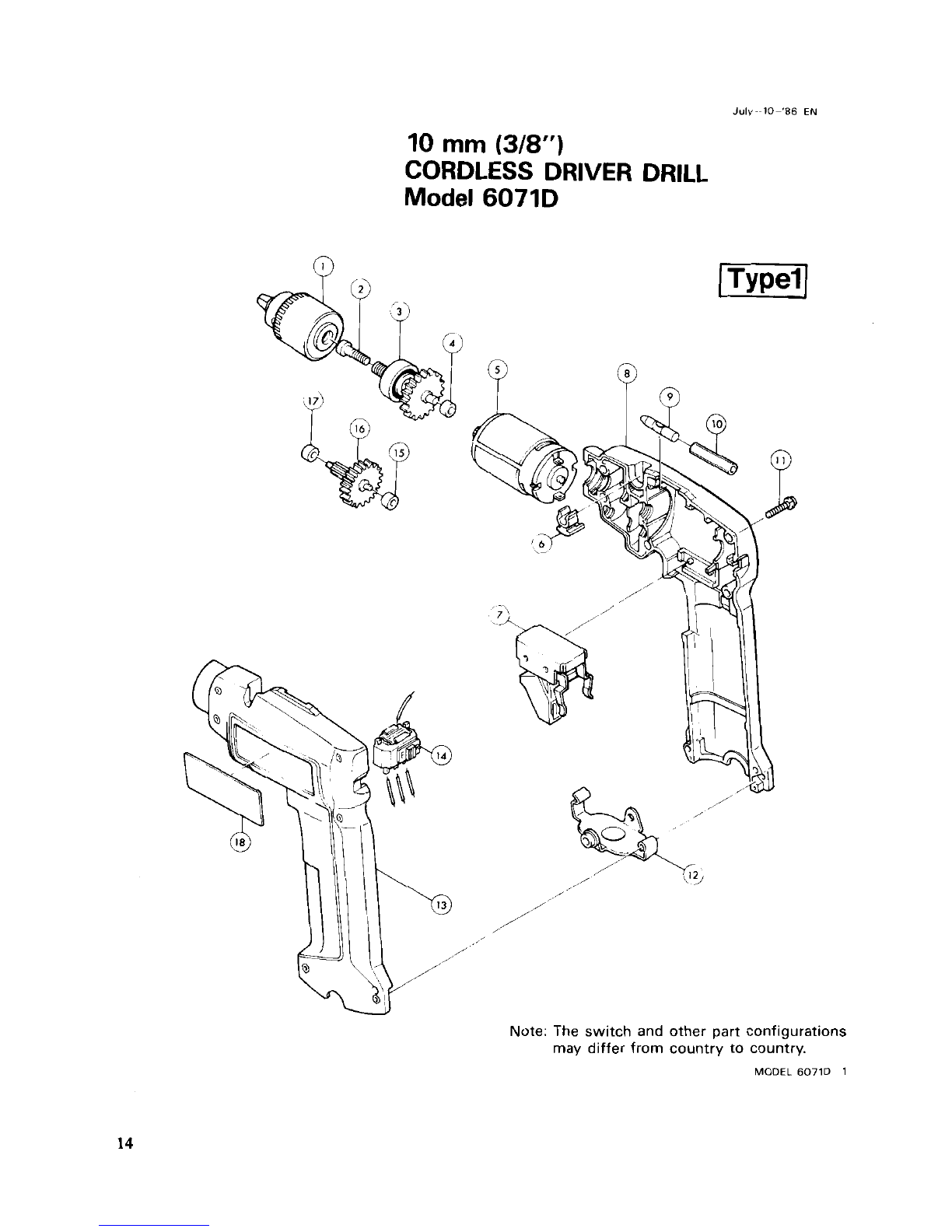

10 mm (3/8")
CORDLESS DRIVER DRILL
Model 6071D
Note: The switch and other part configurations
may differ from country
to country.
MODEL 6071D 1
14

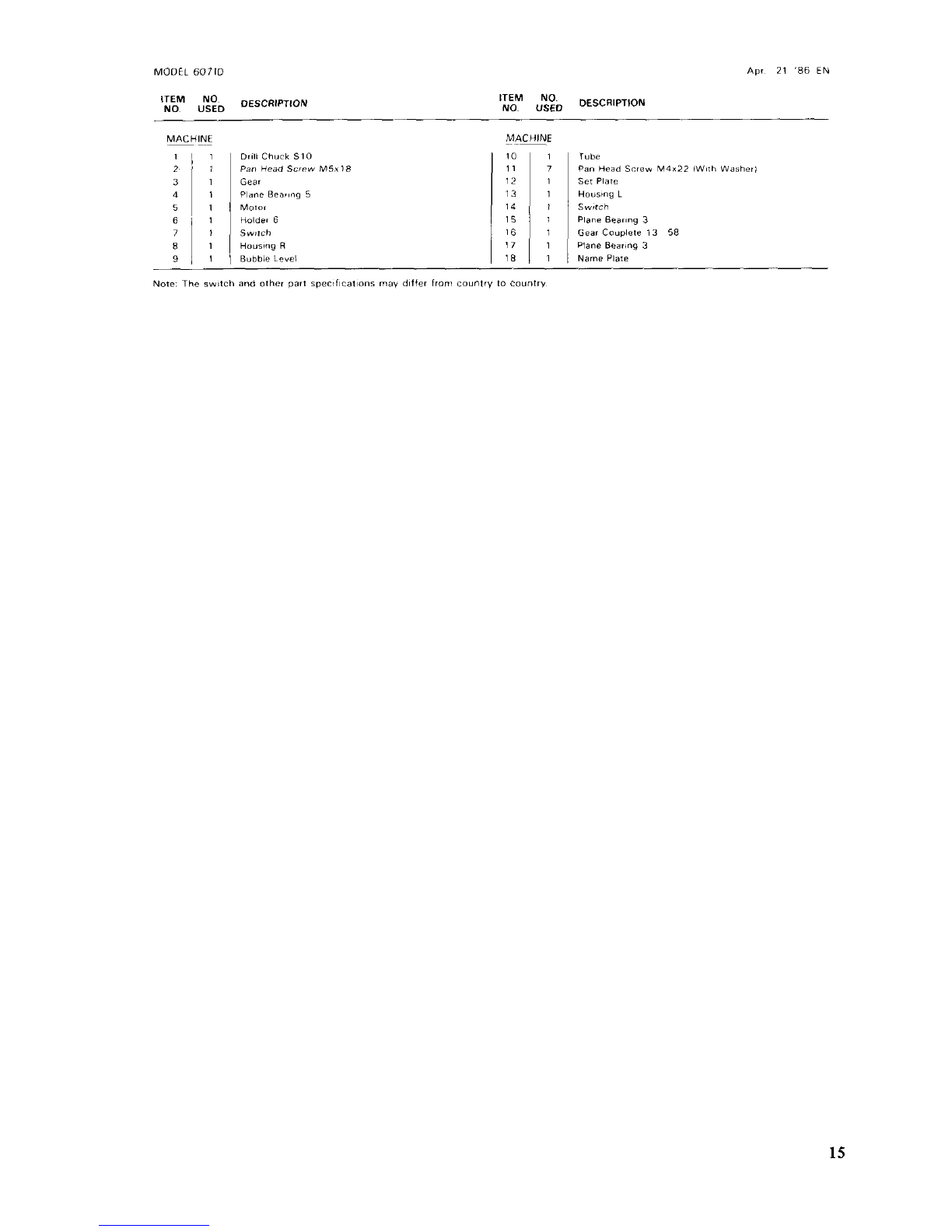

MOUEL 6071U Apr 21 86 EN
la
11
12
13
14
15
16
17
18
'EM A&, DESCRIPTION
I
7
1
1
1
1
1
1
1
I:,'," ,,!& DESCRIPTION
Drill Chuck S10
Pan Head Screw M5x18
Gear
Plane Bearing 5
Motor
Holder 6
Swmh
Housing R
I Bubble Level
Tube
Pan Head Screw M4x22 IWilh Wdhherl
set Plat0
Houstng L
Swrtch
Plane Bearing 3
Gear Couplele 13 58
Name Plate
Plane Bearing 3
~
Note The switch and other part speclflcalions m,iy differ fronl country to country
15

f’
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every hlakita tool is thoroughly inspected and tested before leaving the factory. It IS warranted to
he free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any troubkdevelop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory
or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained,
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A’ SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onahow
long an implied warranty lasts, so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883546F061
PRINTED IN JAPAN
1992 - 3 - N
