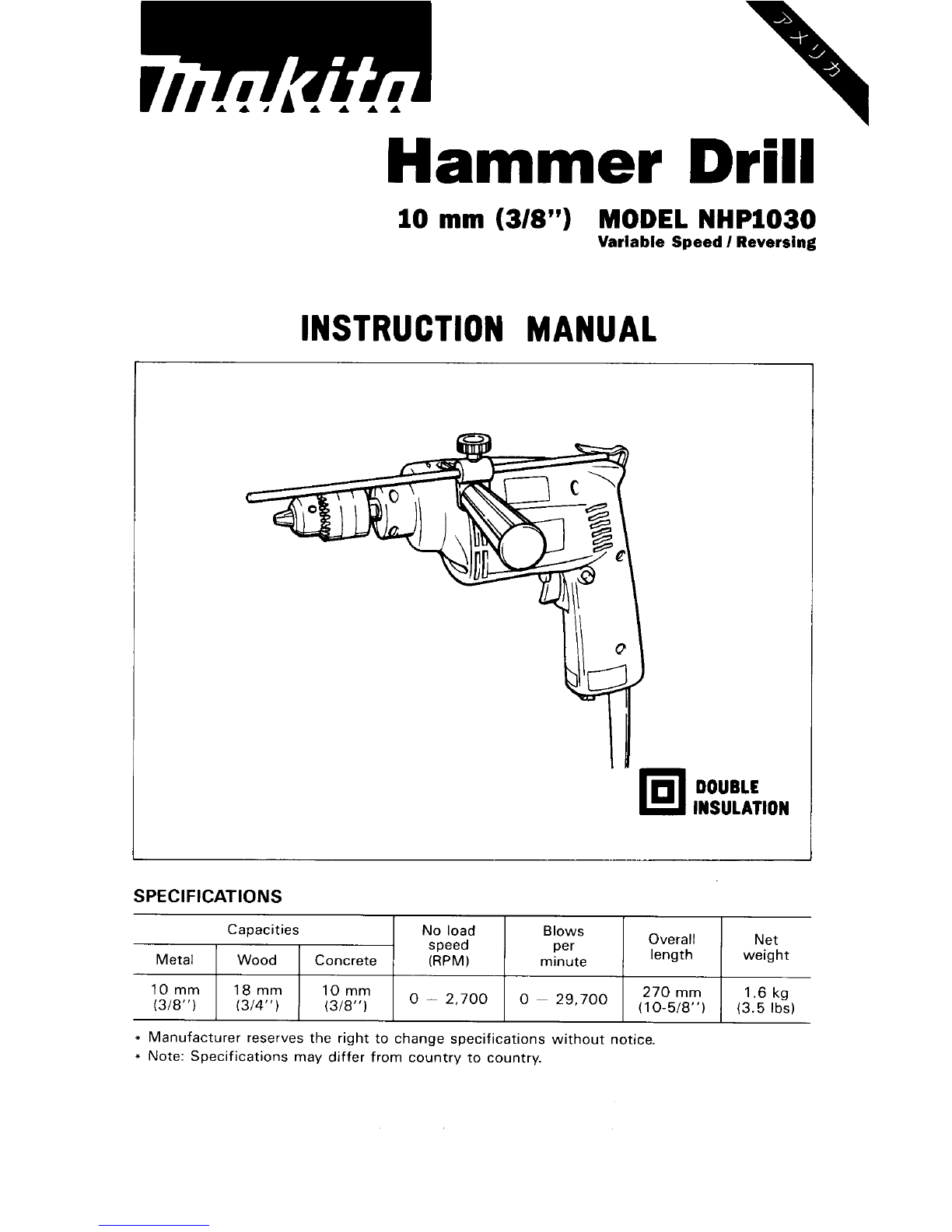

Makita NHPL030 User manual

Hammer Drill
Capacities
Metal Wood
I Concrete
10 mm (3/8") MODEL NHPl030
Variable Speed I Reversing
Overall Net
length weight
No load Blows
(RPM) minute
speed per
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC I F ICAT IO N S
10" 18mm 10" I - 2,700 I ~ 29,700 I 270" 1 1.6 kg
(318")
I 1314") 1 (318") (10-518") (3.5 Ibs)
I I I I I I
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

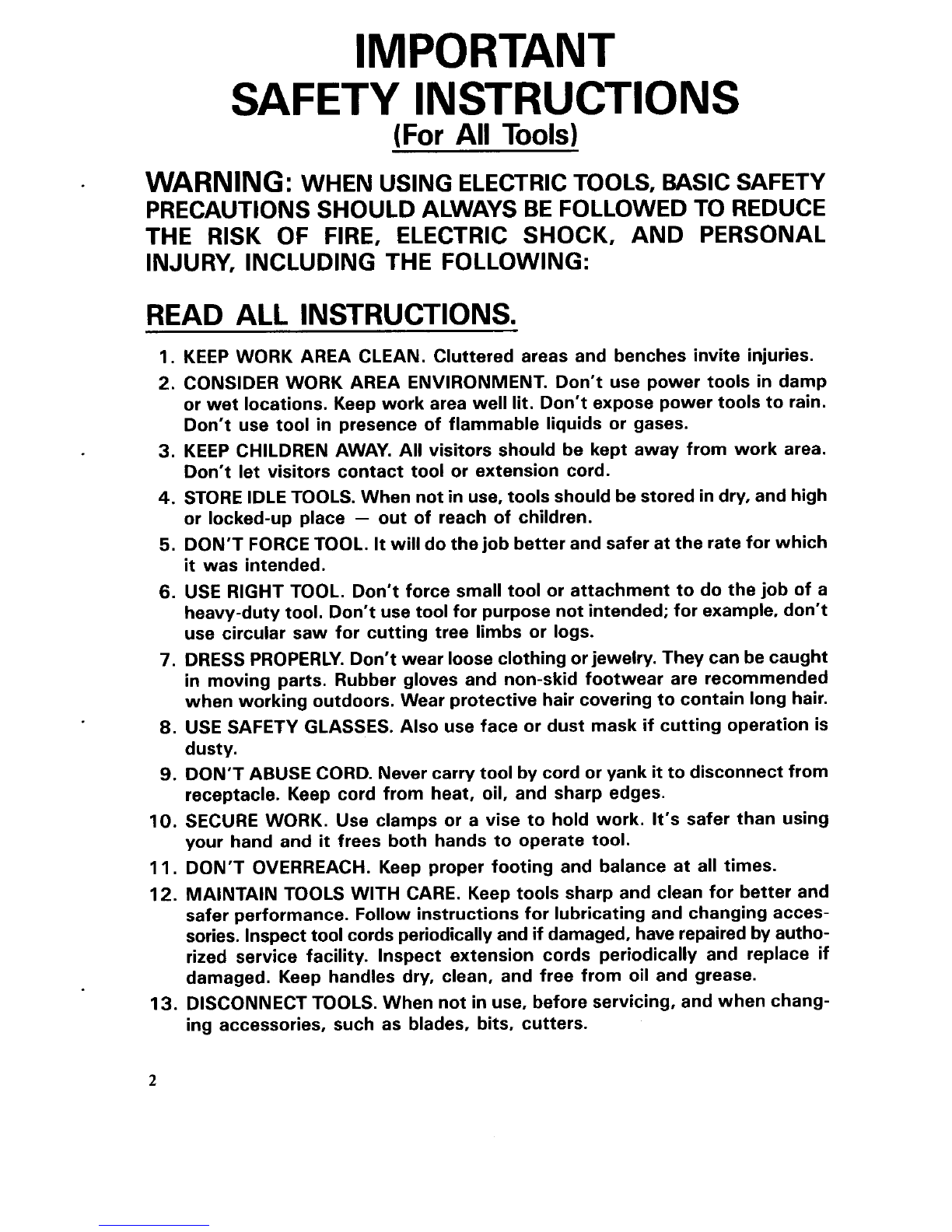

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRICTOOLS, BASICSAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should be stored indry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't usetoolfor purpose not intended; for example, don't
use circular saw for cutting tree limbs or logs.
DRESS PROPERLY. Don't wear loose clothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering to contain longhair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspect toolcords periodicallyandif damaged, have repaired byautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that
keys andadjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry toolwithfinger on switch.
Be sure switch is OFF when plugging
in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will cause a drop
in line voltage resulting in loss of powerand overheating. Table 1 shows the
correct size to use depending oncord lengthand nameplate ampere rating.
If in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1 MINIMUM GAGE FOR CORD SETS
Total Length
of Cord in Feet
0- 6
6 - 10
10
- 12
12
- 16
I 0 - 25 I 26 - 50 I 51 - 100 I 101 - 150
18 16 14
16 16 14 12
14 12
Not Recommended
18 16 ;: I 12
Ampere Rating
More Not More
Than Than
AWG
17. OUTDOOR USE EXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, bindingof moving parts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
20. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21. REPLACEMENT PARTS. When servicing, useonly identicalreplacementparts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug will
fit in a
polarized outlet only one way. If the plug does not
fit fully in the outlet,
reversethe plug.
If it stilldoes not fit, contacta qualified electriciantoinstall
the proper outlet. Do not change the plug in any way.
3

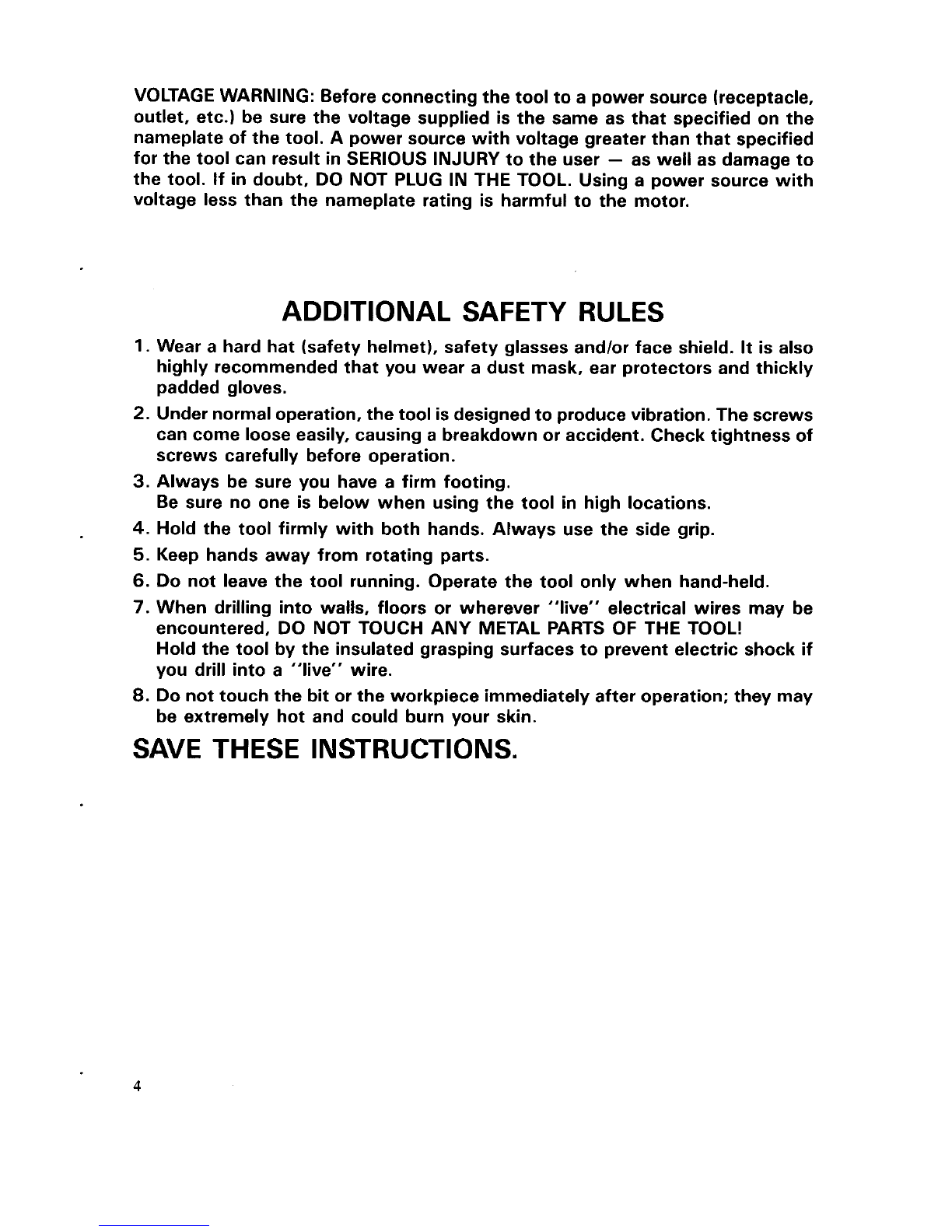

VOLTAGE WARNING: Before connecting the tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY tothe user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Wear a hard hat (safety helmet), safety glasses andlor face shield. It is also
highly recommended that you wear a dust mask, ear protectors and thickly
padded gloves.
2. Under normaloperation, the tool isdesigned toproduce vibration. The screws
can come loose easily, causing a breakdown or accident. Check tightness of
screws carefully before operation.
3. Always be sure you have a firm footing.
Be sure no one is below when using the tool in high locations.
4. Hold the tool firmly with both hands. Always use the side grip.
5. Keep hands away from rotating parts.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool by the insulated grasping surfaces to prevent electric shock
if
you drill into a "live" wire.
8. Do nottouchthe bit or the workpiece immediately after operation; they may
be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

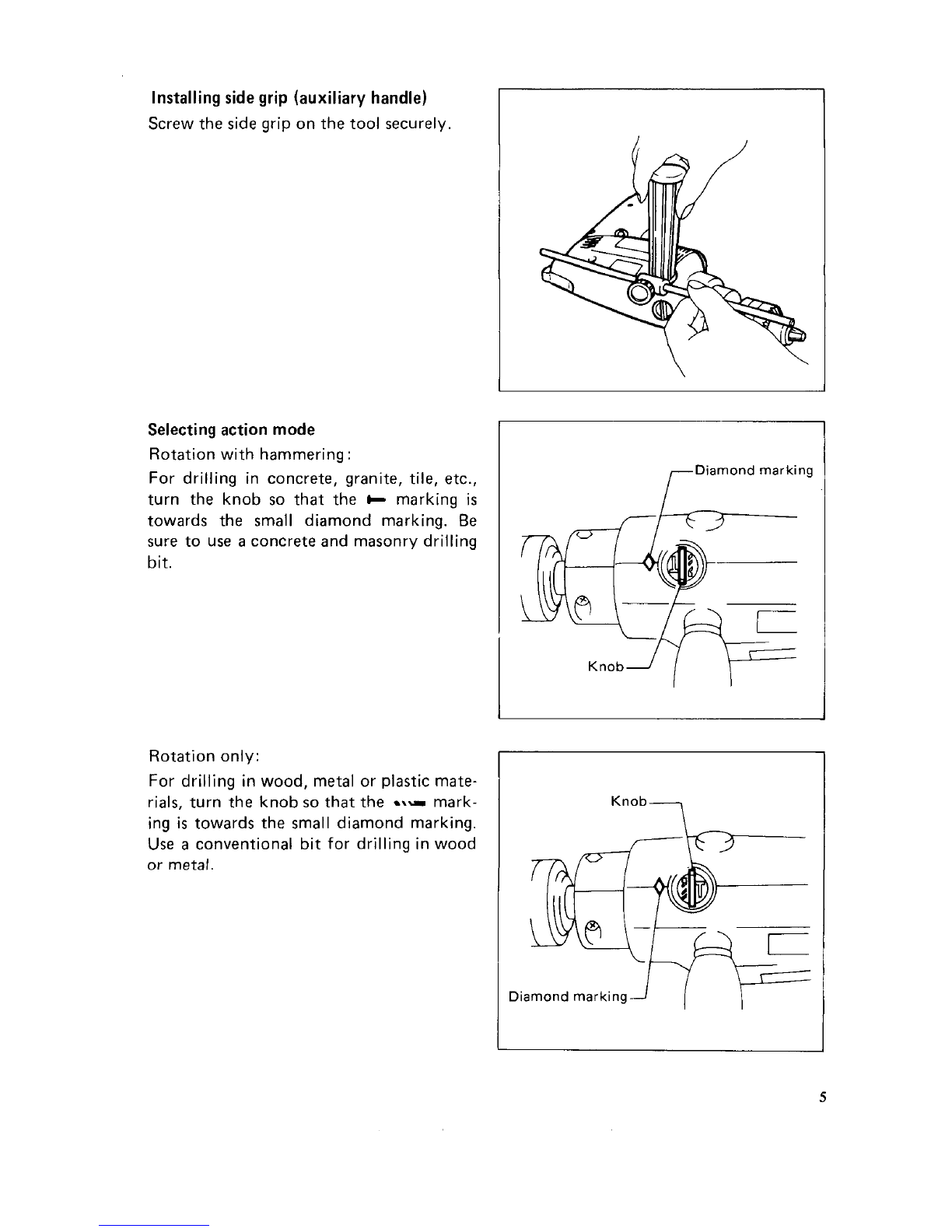

Installing side grip (auxiliary handle)
Screw the side grip on the tool securely
Selecting action mode
Rotationwith hammering :
For drilling in concrete, granite, tile, etc.,
turn the knob
so that the c marking is
towards the small diamond marking. Be
sure to use
a concrete and masonrydrilling
bit.
Rotationonly:
For drilling inwood, metal or plastic mate-
rials, turn the knob
so that the *%* mark-
ing
is towards the small diamond marking.
Use
a conventional bit for drilling inwood
or metal.
\
Diamond marking
r
Knob
Knob-l
Diamond marking w
5

Installingor removingdrill bit
CAUTION
:
Always be sure that the tool is switched off and unplugged before installingor removing
the bit.
To install the bit, place it in the chuck as
far as it will go. Tighten the chuck by hand.
Place the chuck key in each of the three
holes and tighten clockwise. Be sure to
tighten
all three chuck holes evenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosenthe chuck by hand.
Adjusting depth
of drilling
Loosen the screw and adjust the depth
gauge to the desired depth. After adjusting,
tighten the screw.
Switch action
Tool speed
is increased by increasing pres-
sure on the trigger.
To start the tool, simply
pull the trigger.
Release the trigger to stop.
For continuous operation, pull the trigger
and then push in the lock button.
To stop
the tool from the locked position, pull the
trigger fully, then release it. A speed con-
trol screw
is provided so that maximum
tool speed can be limited (variable).Turn
the speed control screw clockwise for
higher speed, and counterclockwise for
lower speed.
.
key
\
Speed control
Lower Hioher
-
w
-
-
M
/
Trigger switch 1 &. 5
Lock button A=====
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returns to the "OFF" position when released.
6

Reversing switch action
This tool has
a reversing switch to change
the direction of rotation. Move the revers-
ing switch lever to the
& position for
clockwise rotation or the
& position for
counterclockwise.
CAUTION
:
0 Always check the direction of rotation before drilling.
*Use the reversing switch only when the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may ruin the tool.
Hammer drillingoperation
Position the bit
at the locationfor the hole,
then pull the trigger.
Do not force the tool. Light pressure
gives
best results. Keep the tool in position and
prevent
it from slipping away from the
hole.
Do not apply more pressure when the hole
becomes clogged with chips or particles.
Instead, run the tool
at an idel, then re-
move from the hole.
By repeating this
several times, the hole will be cleanedout.
Drillingoperation
0 Drilling inwood
When drilling in wood, best results are obtained with wood drills equipped with
a guide
screw.The guide screw makes drillingeasier by pulling the bit intothe workpiece.
0 Drilling in metal
To prevent the bitfrom slippingwhen starting
a hole, make an indentation with a center-
punch and hammer
at the point to be drilled. Place the point of the bit inthe indenta-
tion and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
7

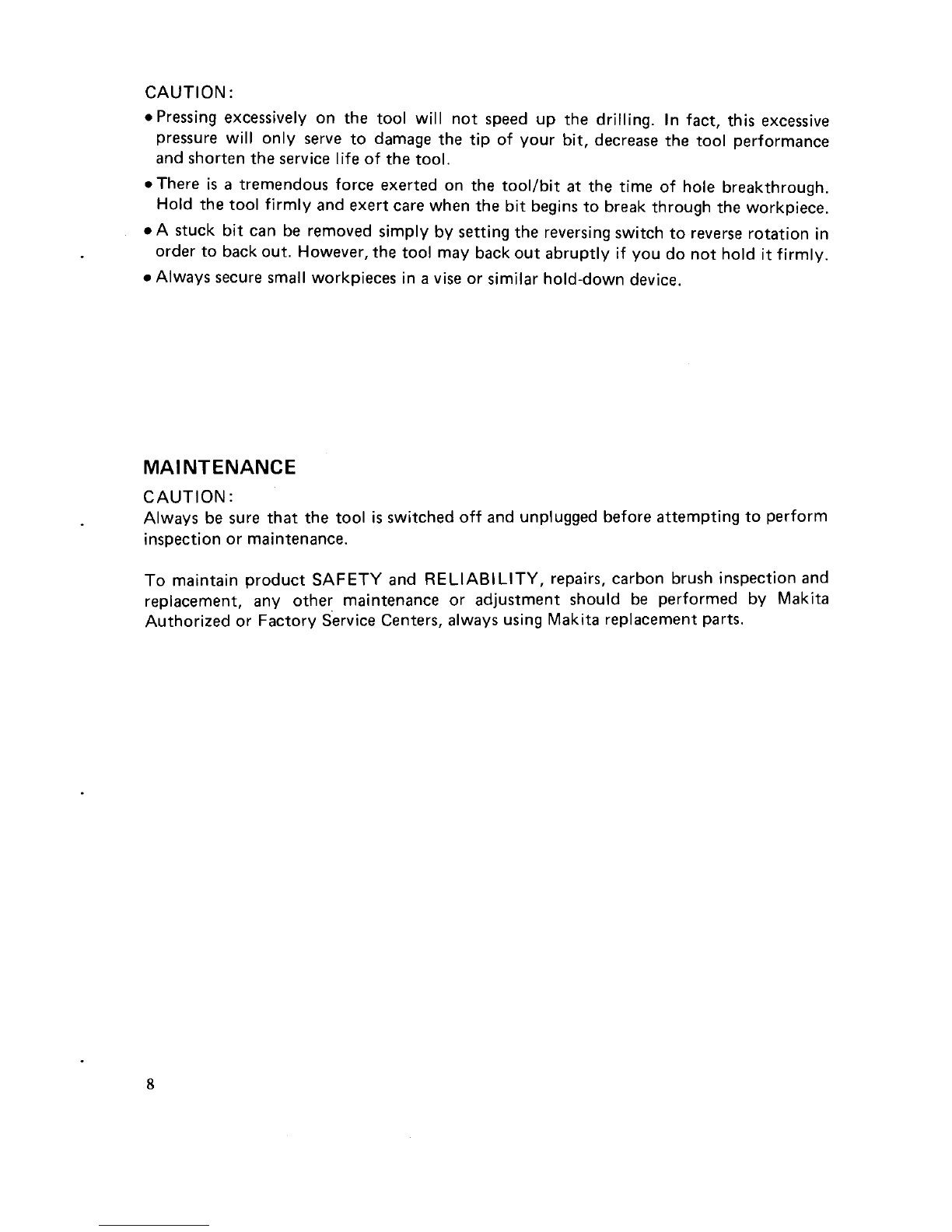

CAUTION :
*Pressing excessively on the tool will not speed up the drilling. Infact, this excessive
pressure will only serve to damage the tip of your bit, decrease the tool performance
and shorten the service lifeof the tool.
*There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bitbegins to break through the workpiece.
A stuck bit can be removed simply by setting the reversingswitch toreverse rotation in
order to back out. However, the tool may back out abruptly if you
do not hold it firmly.
Always secure small workpieces in a vise or similar hold-downdevice.
MA1NTENANCE
CAUTION:
Always be sure that the tool
is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and
replacement, any other maintenance or adjustment should be performed by Makita
Authorized or Factory Service Centers, always using Makita replacementparts.
8

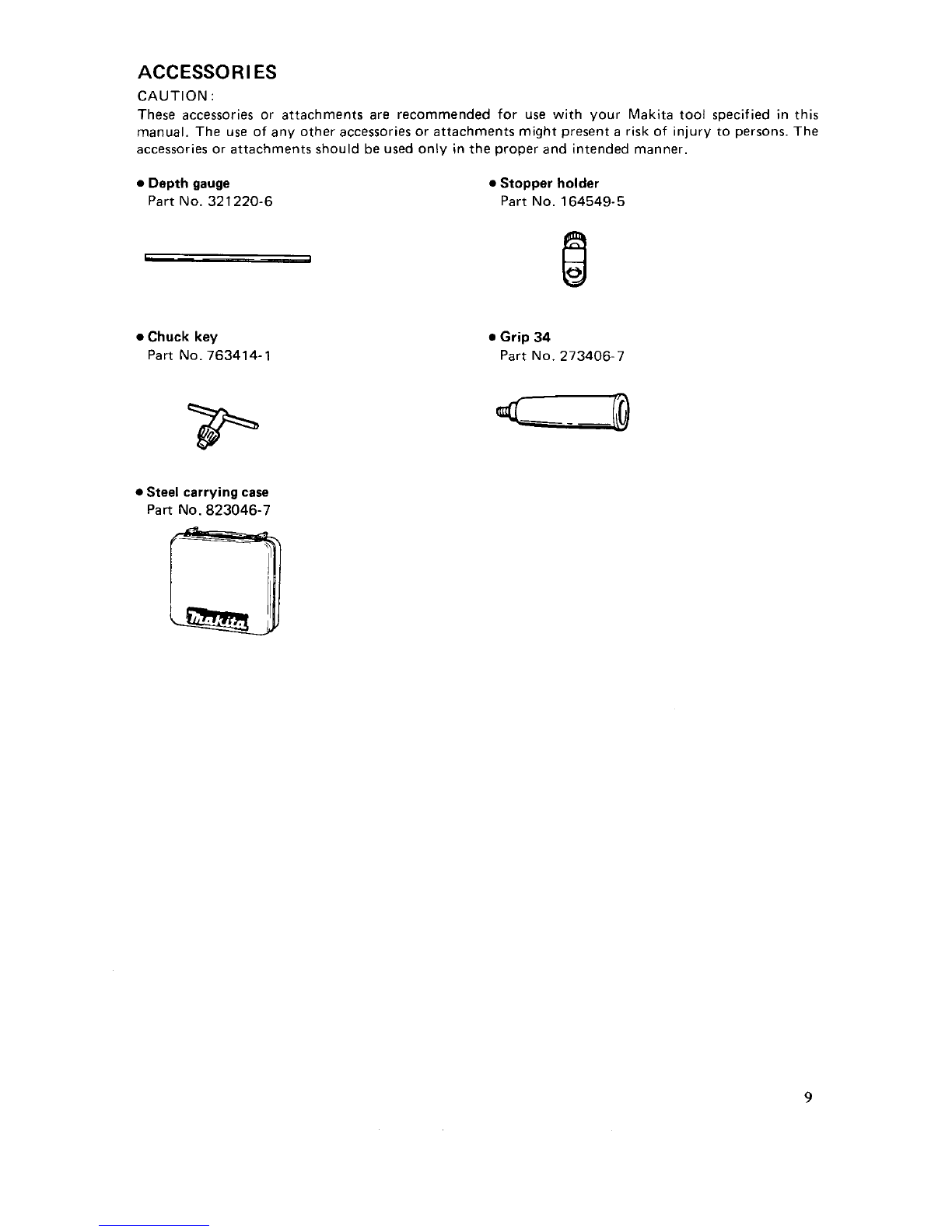

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The
use of any other accessories or attachments might present a risk of injury to persons. The
accessories or attachments should
be used only inthe proper and intended manner.
Depth gauge
Part No. 321220-6
Stopper holder
Part No. 164549-5
Chuck key
Part No. 763414-1
Steel carrying case
Part No. 823046-7
Grip 34
Part No. 273406-7
9

Jan -06-'92 US
10 mm (3/8")
HAMMER DRILL
Model NHP1030
Note: The switch and other part configurations
may differ from country to country.
10

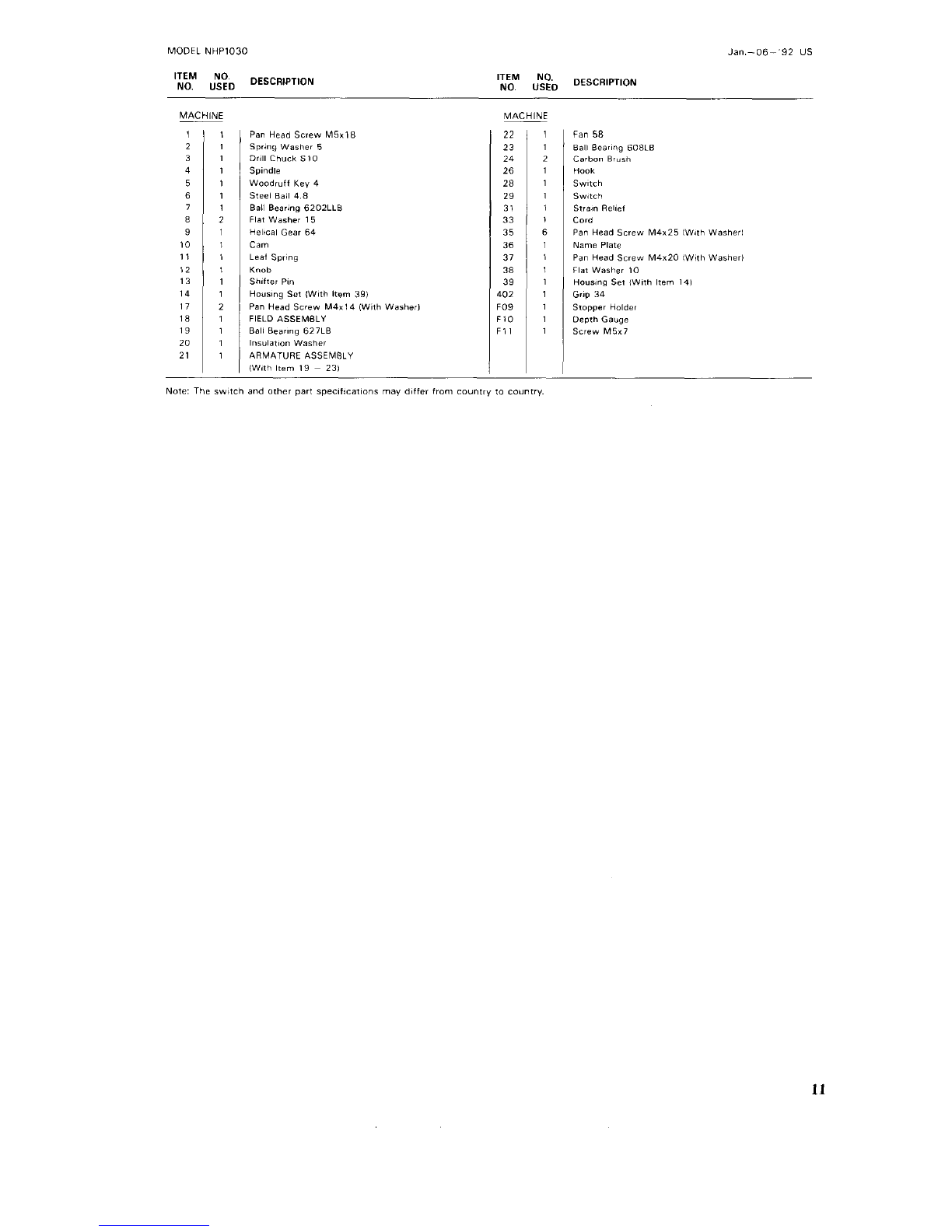

MODEL NHP1030
~
10
11
12
13
14
17
18
19
20
21
""0" AtD DESCRIPTION
11
21
31
41
51
61
71
82
91
1
1
1
1
1
2
1
1
1
1
ITEM NO,
NO USED
Pan Head Screw M5x18
Spring Washer 5
Orlll Chuck S10
Spindle
Steel
Ball 4 8
Ball Bearing 6202LLB
Flat Washer 15
Helical Gear 64
Cam
Leaf
spring
Knob
Shifler Pin
Housing Set (With Item 391
Pan Head Screw M4x14 (With Washer)
FIELD ASSEMBLY
Ball Bearing 627LB
InsulationWasher
ARMATURE ASSEMBLY
(With Item 19
~ 231
Woodruff Key 4
22 1
23 1
24
2
26 1
28
1
29 1
31 1
33 1
35 6
36 1
31 1
38 1
39
1
402 1
F09
1
F10 1
Fll 1
Jan -06-'92 US
DESCRIPTION
Fan 58
Ball Bearing 608LB
Carbon Brush
Hook
Switch
Switch
Strain Relief
Card
Pan Head Screw M4x25 IWith Washell
Name Plate
Pan Head Screw M4x2O IWlth Washer)
Flat Washer 10
Housing Set IWith Item 141
Grip 34
Stopper Holder
Depth
Gauge
Screw M5x7
Note
The switch and other part Specif8cations may differ from country to country
11

MAKlTA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspectedand tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during
this one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repurs have been made or attempted by others.
repurs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALEOR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THETERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long
an implied warranty lasts, so the above limitation may not apply to you.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883139D064
PRINTED IN JAPAN
1995 -3- N
