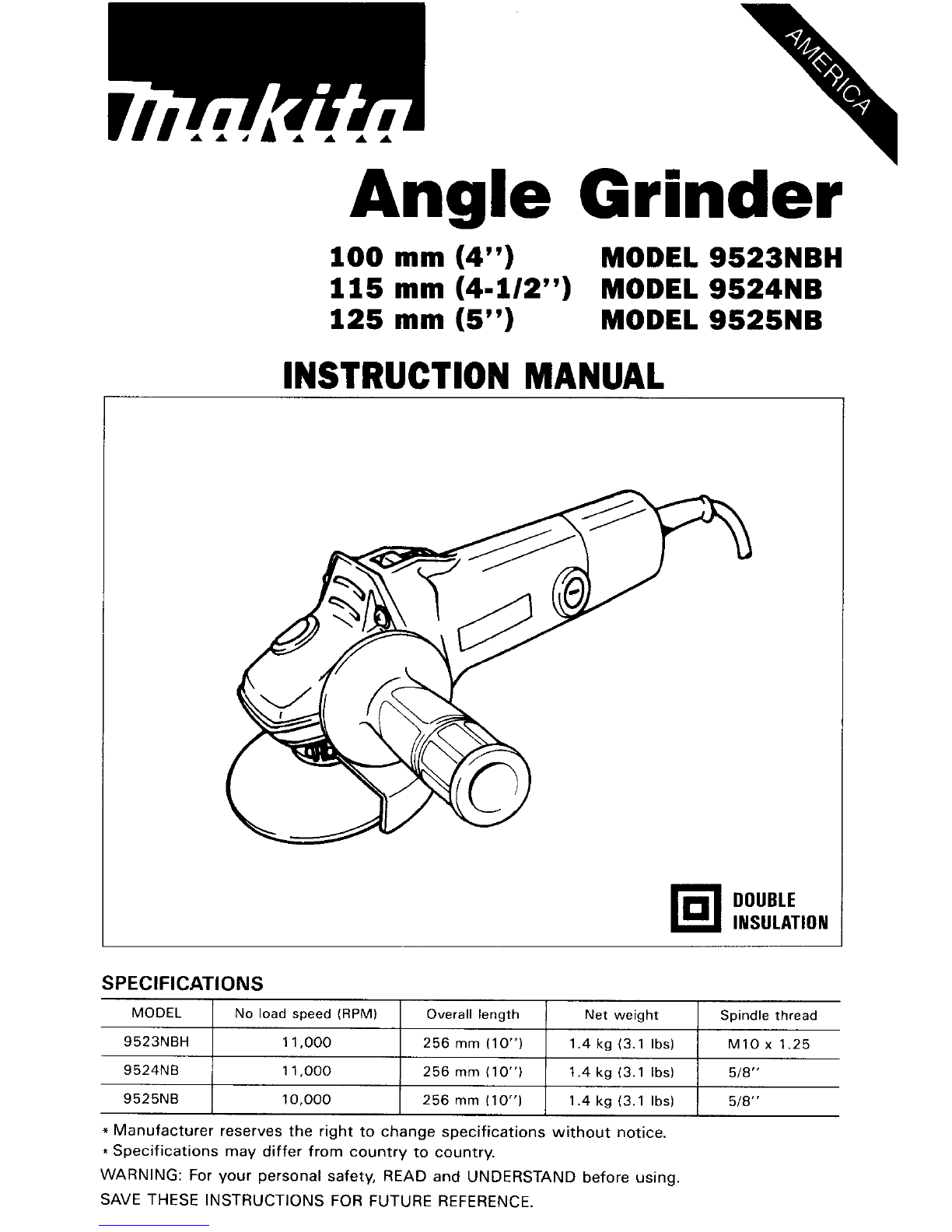

Makita 9523NBH User manual

Angle Grinder
MODEL
9523N8H
100 mm (4”) MODEL 9523NBH
115 mm (4-1/2”) MODEL 9524NB
125 mm (5”) MODEL 9525NB
Spindle thread
No load speed (RPM) Overall length Net weight
11,000 256
mm (10“) 1.4 kg (3.1 Ibs) M10 x 1.25
INSTRUCTION MANUAL
9525NB
DOUBLE
I N S U LATlO N
10,000 256 mm 110“) 1.4 kg (3.1 Ibs) 518”
9524N8
1 11,000 I 256 mm (10”) I 1.4 kg (3.1 Ibs) I 518“

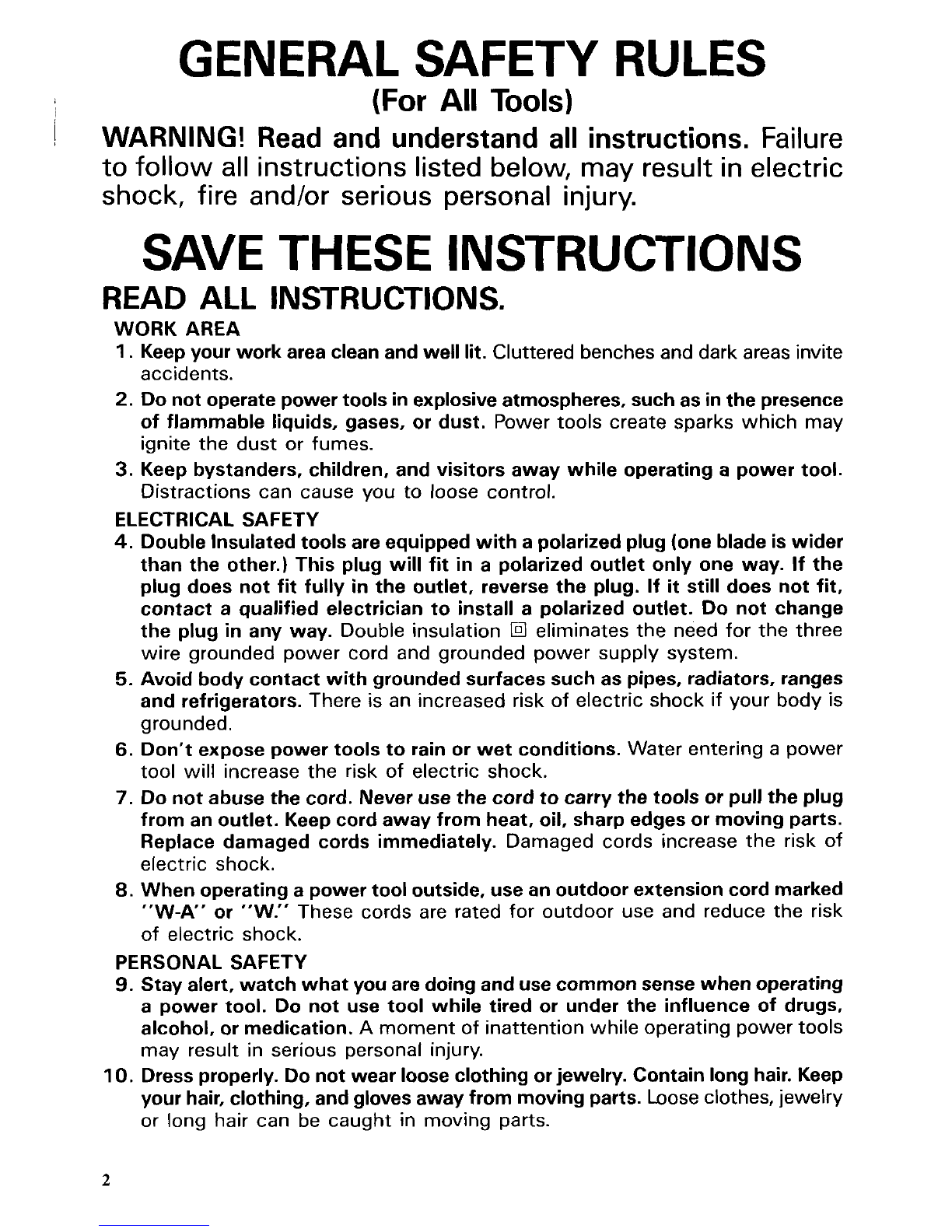

GENERAL SAFETY RULES
(For All Tools)
WARNING! Read and understand all instructions. Failure
to follow all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
WORK AREA
1. Keep your work area cleanand well lit. Cluttered benches and dark areas invite
accidents.
2. Donot operate power tools in explosiveatmospheres, such as inthe presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to loose control.
ELECTRICAL SAFETY
4. Double Insulatedtools are equipped witha polarizedplug(oneblade iswider
than the other.) This plug will
fit in a polarized outlet only one way. If the
plug does not fit fully
in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug in any way. Double insulation
E3 eliminates the need for the three
wire grounded power cord and grounded power supply system.
5. Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
6. Don't expose power tools torain or wet conditions. Water entering a power
tool
will increase the risk of electric shock.
7. Do notabuse the cord. Never use the cordtocarry the tools or pull the plug
from an outlet. Keep cord away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
8. When operating a power tool outside, use an outdoor extension cord marked
"W-A" or "W." These cords are rated for outdoor use and reduce the risk
of electric shock.
PERSONAL SAFETY
9. Stay alert, watch what you are doingand usecommonsensewhenoperating
a power tool. Do not use tool while tired or under the influence of drugs,
alcohol, or medication.
A moment of inattention while operating power tools
may result in serious personal injury.
IO. Dressproperly. Do notwear looseclothing or jewelry. Contain long hair. Keep
your hair, clothing, andglovesaway from moving parts. Looseclothes, jewelry
or long hair can be caught in moving parts.
2

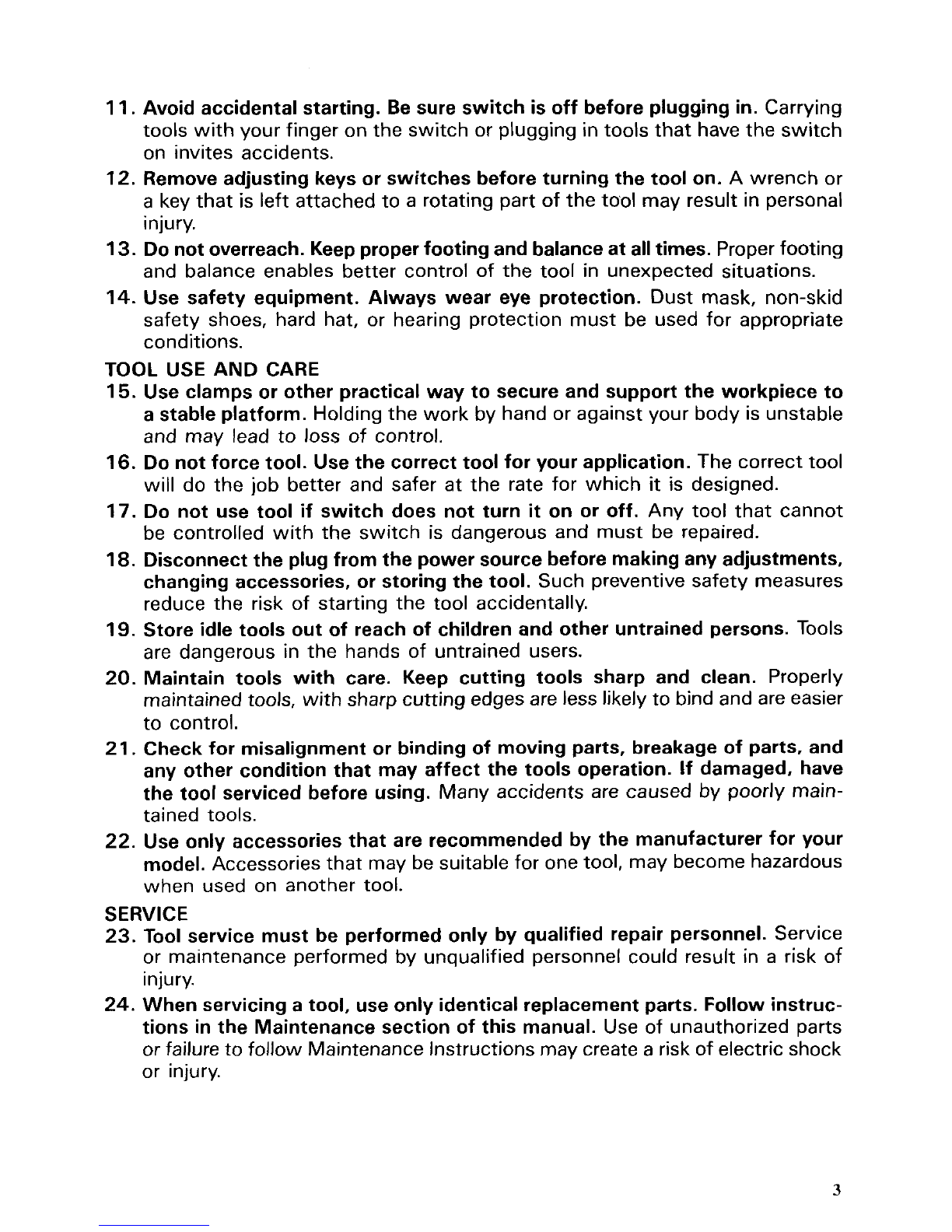

11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying
tools
with your finger onthe switch or plugging intools that have the switch
on invites accidents.
12. Remove adjusting keys or switches before turning the tool on. A wrench or
a key that is left attached to a rotating part
of the tool may result in personal
injury.
13. Donotoverreach.Keepproperfooting and balanceat alltimes. Properfooting
and balance enables better control
of the tool in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
15. Use clamps or other practical way to secure and support the workpiece to
a stable platform. Holdingthe work by hand or against your body is unstable
and may lead to
loss of control.
16. Do notforce tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
17. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled
with the switch is dangerous and must be repaired.
18. Disconnect the plug fromthe power source before making any adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cuttingedges are less likelyto bind and are easier
to control.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tools operation.
If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool, may become hazardous
when used on another tool.
SERVICE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk
of
injury.
24. When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the Maintenance section of this manual. Use of unauthorized parts
or failure tofollow Maintenance Instructions maycreate a risk of electric shock
or injury.
3

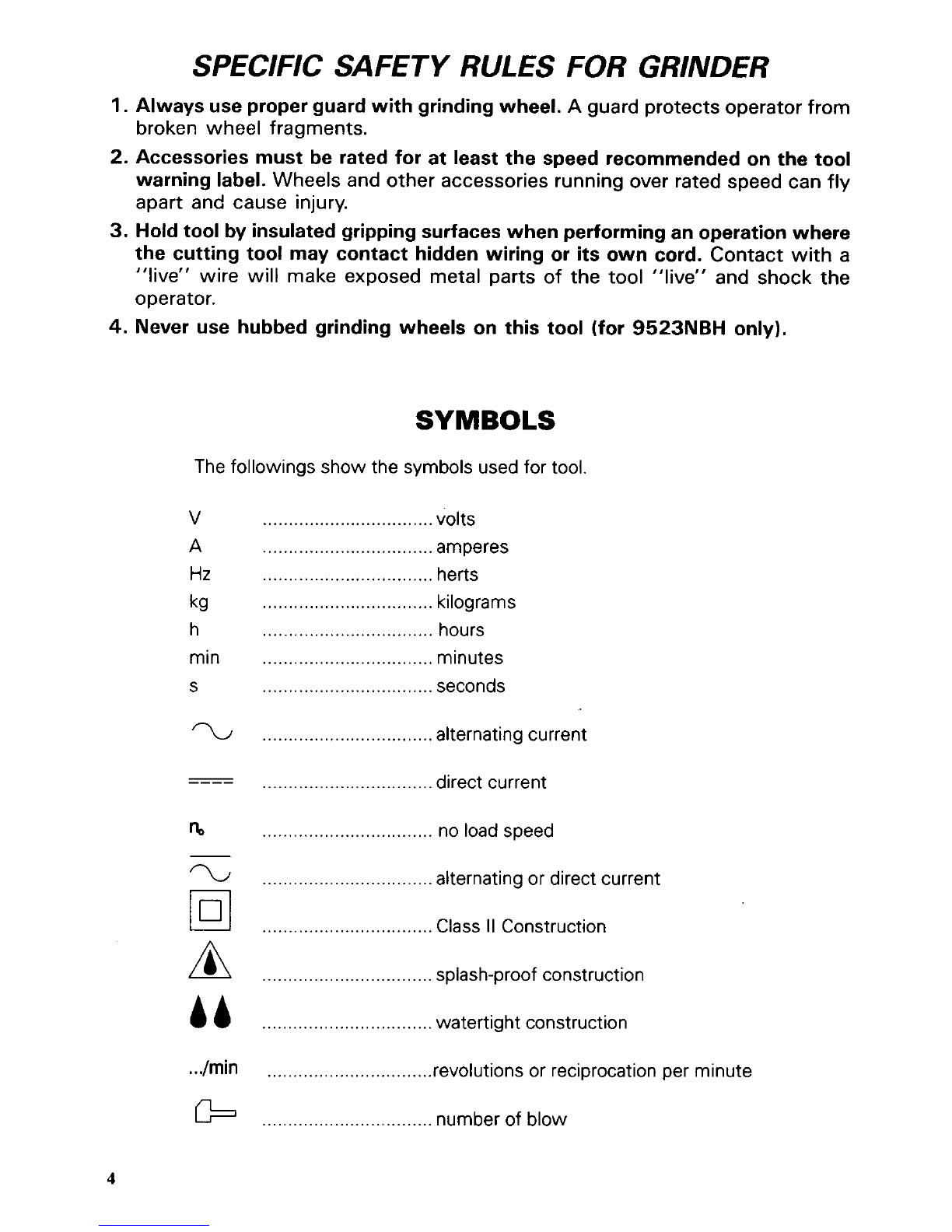

SPECIFIC SAFETY RULES FOR GRINDER
1. Always use properguard with grinding wheel. A guard protects operator from
broken wheel fragments.
2. Accessories must be rated for at least the speed recommended on the tool
warning label. Wheels and other accessories running over rated speed can fly
apart and cause injury.
3. Holdtool by insulated gripping surfaces when performinganoperation where
the cutting tool may contact hidden wiring or its own cord. Contact
with a
"live" wire
will make exposed metal parts of the tool "live" and shock the
operator.
4. Never use hubbed grinding wheels on this tool (for 9523NBH only).
SYMBOLS
The followings show the symbols usedfor tool.
V ................................. volts
A ................................. amperes
Hz ................................. herts
kg
................................. kilograms
h
................................. hours
min
................................. minutes
S ................................. seconds
'L ................................. alternatingcurrent
- direct current
n, ................................. no load speed
____
.................................
'L
................................. alternatingor direct current
.
.................................
Class II Construction
A ................................. splash-proof construction
44 ................................. watertight construction
... /min
* ................................. number of blow
................................ revolutionsor reciprocationper minute
4

Installingthe wheel guard
Mount the wheel guard with the tab on the wheel guard band aligned with the notch on
the bearing box. Then rotate the wheel guard
180" clockwise (for 9523NBH) or counter-
clockwise (for9524NB and 9525NB).Besure to tighten the screws securely.
1523NBH 3524NB, 9525NB
Installingside grip (auxiliaryhandle)
Screw the side grip on the tool securely.
The side grip can be installed on either side
of the tool, whichever isconvenient.
Installingor removingthe depressedcenter wheel
CAUTION:
Always be sure that the tool is switchedoff and unplugged before installing or removing
the wheel.
Mount the inner flange onto the spindle. Fit the wheel on over the inner flange and screw
the lock nut ontothe spindle.
3524NB
3525NB Lock nut
Depressed
center wheel
-Innerflange
@-. Lock nut
9523NBH
Depresse d
center wheel
@-inner flange
5

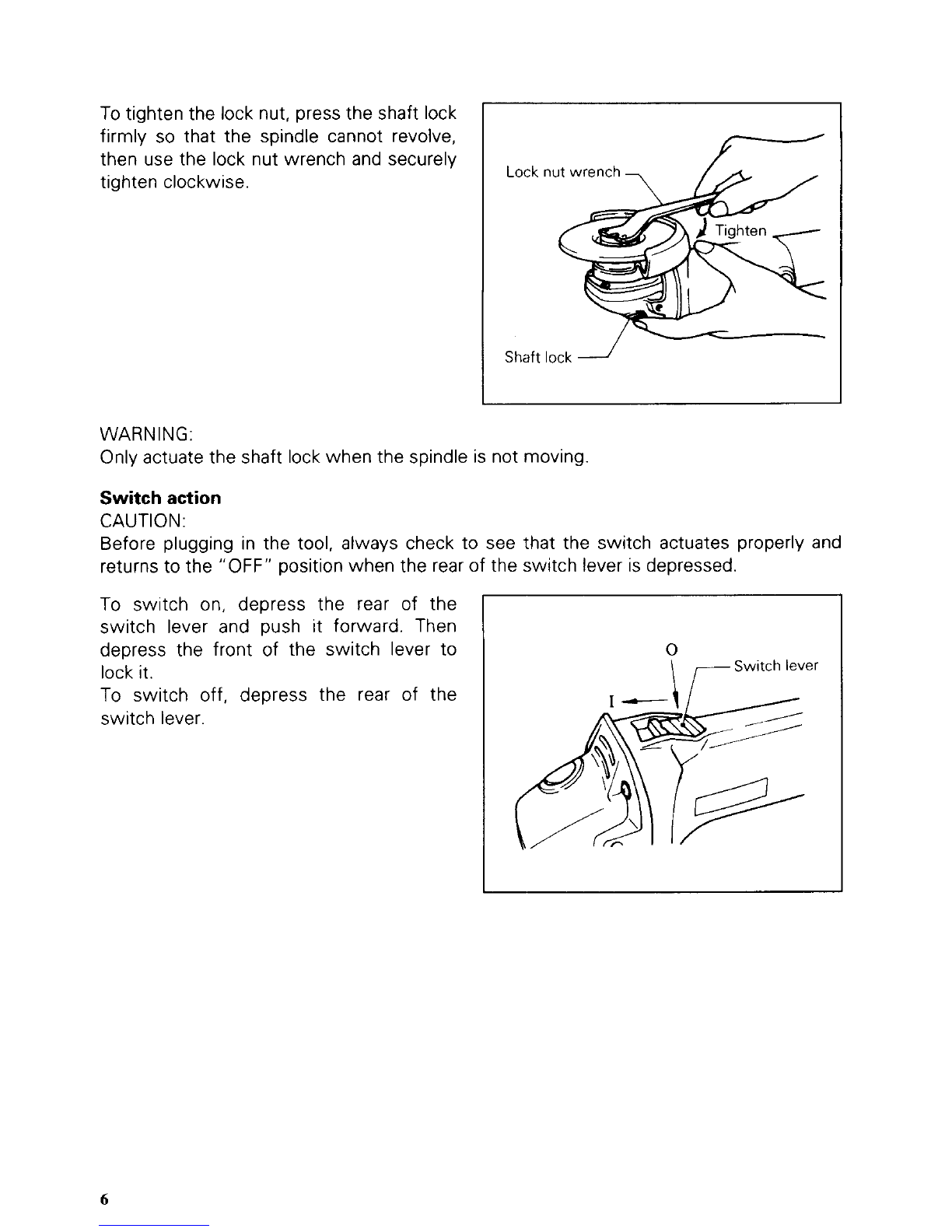

To tighten the lock nut, pressthe shaft lock
I
firmly so that the spindle cannot revolve,
then use the lock nut wrench and securely
tighten clockwise.
I 7
Lock
/-
I Shaft'ock-
WARNING:
Only actuate the shaft lock when the spindle is not moving
Switch action
CAUTlON :
Before plugging in the tool, always check to see that the switch actuates properly and
returns tothe
"OFF" position when the rear of the switch lever is depressed
To switch on, depress the rear of the
switch lever and push it forward. Then
depress the front of the switch lever to
lock it.
6

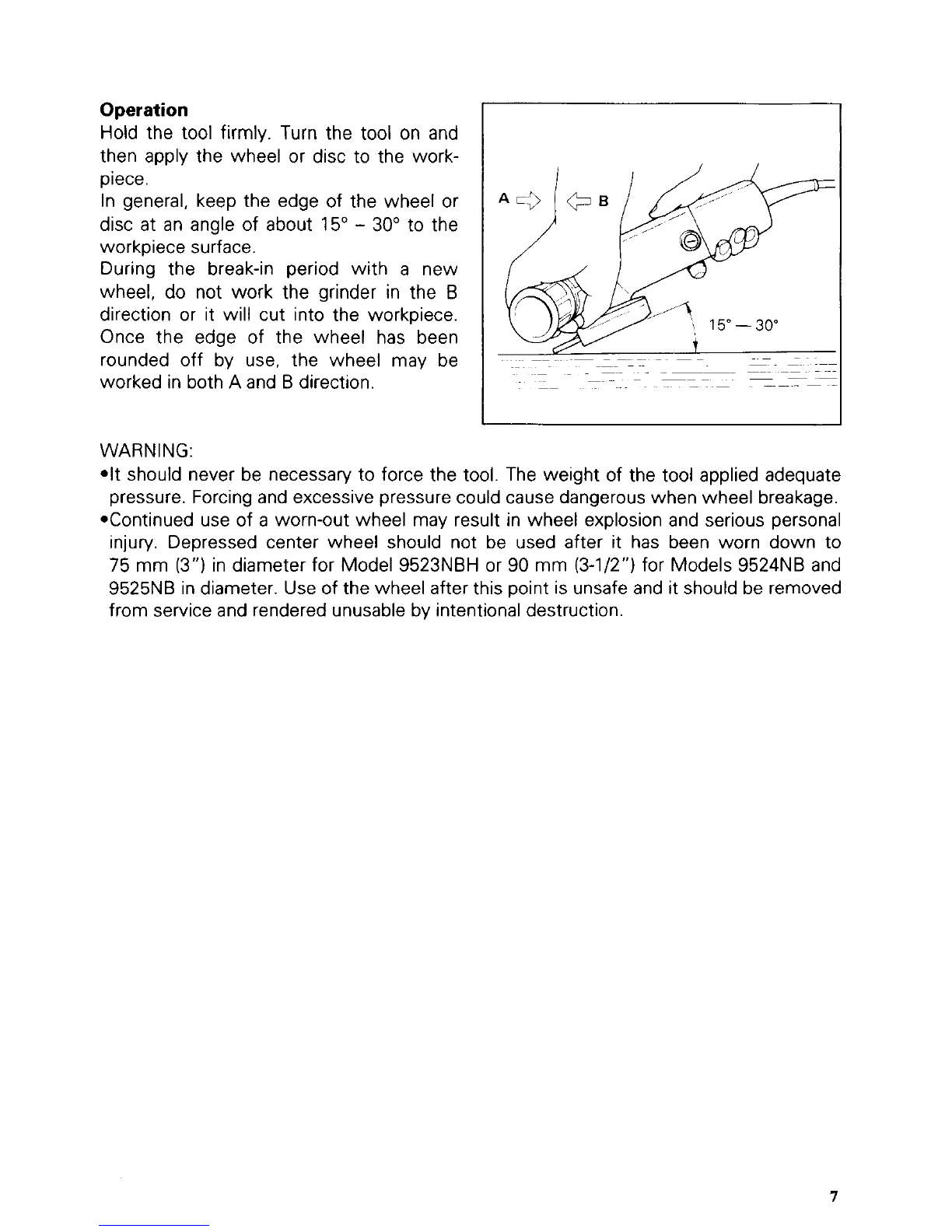

Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to the work-
piece.
In general, keep the edge of the wheel or
disc
at an angle of about 15" - 30" to the
workpiece surface.
During the break-in period with
a new
wheel, do not work the grinder in the
B
direction or it will cut into the workpiece.
Once the edge of the wheel has been
rounded off by use, the wheel may be
worked in both A and Bdirection.
1 I
WARN I NG :
*It should never be necessary to force the tool. The weight of the tool applied adequate
pressure. Forcingand excessive pressure could causedangerouswhen wheel breakage.
Continued use of
a worn-out wheel may result in wheel explosion and serious personal
injury. Depressed center wheel should not be used after it has been worn down
to
75 mm (3") in diameter for Model 9523NBH or 90 mm (3-1/2") for Models 9524NB and
9525NB in diameter. Useof the wheel after this point is unsafe and it should be removed
from service and rendered unusableby intentional destruction.
7

MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspectionor maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replacewhen they wear down to
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
-Limit mark
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
Brush zw holdercap
Screwdriver
A\
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjust-
ment should be performed by MakitaAuthorized or FactoryService Centers, always using
Makita replacementparts.
8

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified inthis
manual. The
use of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used only in the proper and intended manner.
Part No.
@@
n
SlZe Grit For Model
Owheelcover
741402 8
@Depressed center wheels
4' x 3'16' x 5r8'
Part NO
741402 n 1
741402 9 1
741402 C
4' x lI4 x 5r8"
24
741402
9AP 4' x 14 x 518'
7414258
I I C24R I
5 794332 20
794331 4A
794331 48
794331 4C
741405
2 1
741405 2P
741423
0 1
100
40
60
80
-
5" x 518" x 718" - 9525NB
7414238
I I 24 I
741424 8 1
741424 8
1
5
36
741407 8
741427 8
FLlr
Model
9523NBH
-
9524N8
24 1
C24R 1
5'X1,4 x78"
9525NB
@Inner flange
@Multi-disc
Size Part No. For Model
'j$qzj
~-1 4" x 112' x 518" 9523NBH
742038 OC
14203800
I I 100 I
4 112" x 518'' x 718" 9524NB
794332 ZE
794032 2C
794331 40
@Lock nut
Size I Part No. I For Model
9

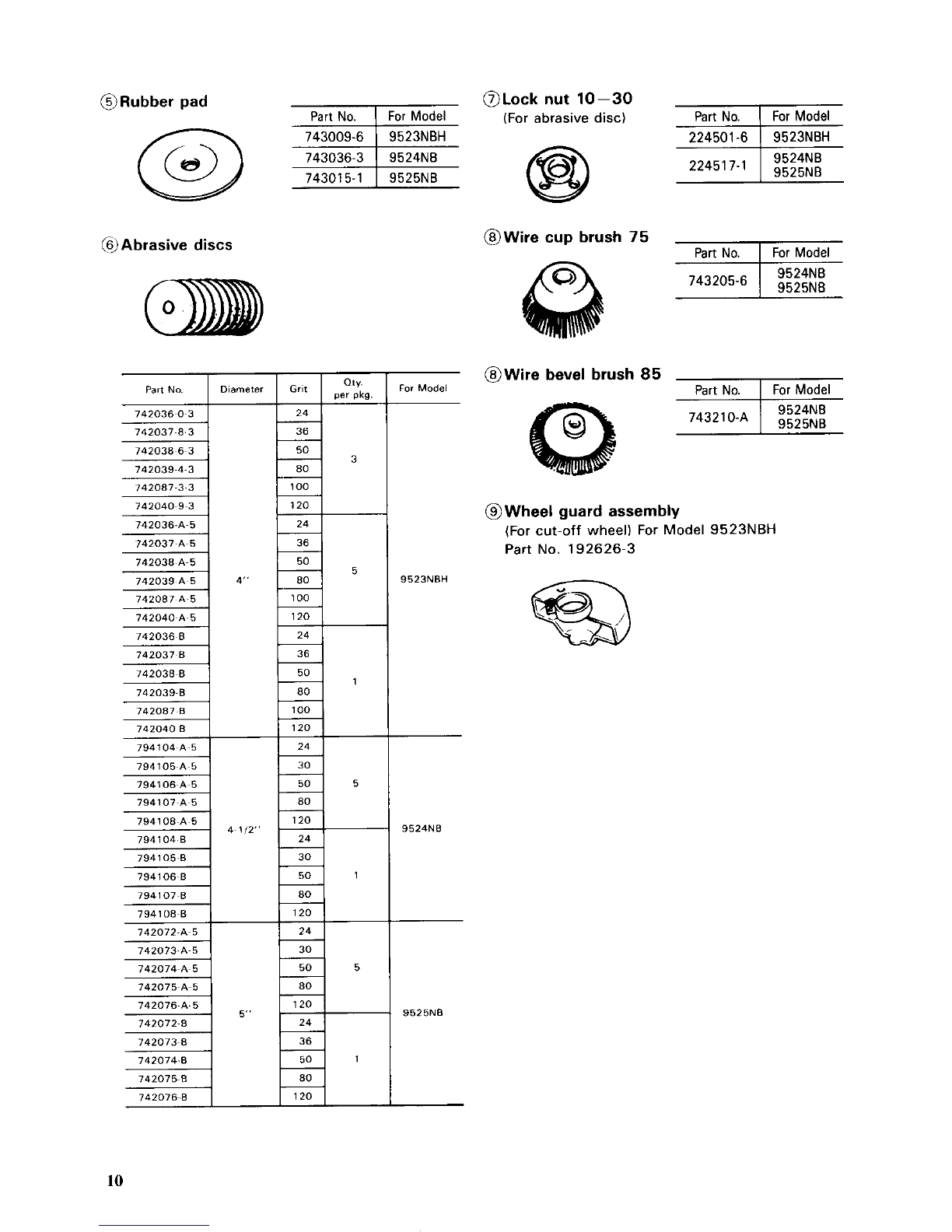

@Rubber pad
@Abrasive discs
Part No. For Model
=
Part No. I Diameter I Grit I O'"
per pb
142036 0 3 24
1420378 3 I
14208733 I
742087 A 5
142036 E
742037 8
742038 E
742039 E
742087 B I
794107 A 5 80
794104
E
794105 E
7941088 I
742076 A 5
742014-6 I
120
I 74 I
5" B5
H1 120
For Model
9523NBH
9524NE
9525NB
@Lock nut 10-30
(For abrasive disc)
@Wire cup brush 75
@lWire bevel brush 85
-
@Wheel guard assembly
(For cut-off wheel) For Model 9523NBH
Part No. 192626-3
10

@Cut-off wheel
Part No Size Grit Wheels per pkg.
724104-110
4" x 3/32" x 518" 36 10
724107-510 4" x 5/64" x 518"
46 10
For use For Model
9523NBH
For masonry and concrete.
For steel and cast iron.
Knot-Type
Wire cup brush
Stringer Bead Twist
Wire brush wheel
Full Cable Twist
Wire brush wheel
Part No. I For Model
Part
No. I For Model
Knotted Twist
Part No. For Model
* 743212-A
Wire brush wheel
Lock nut wrench
Grip
Part No. 152487-3
11

ADr.-28-'98 US
100 mm (4")
ANGLE GRINDER
Model 9523NBH
Note: The switch and other part configurations
may differ from country to country.
12

MODEL 9523NBH
I:,'," A:, DESCRIPTION
June-02-'98 US
I;,'," sD DESCRIPTION
MACHINE
~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
1
1
1
-
Tapping Screw Flanqt PT 5x25
PI" cap
CDmpresalo"
Sprlnq 8
Plrl 4
Retaining Ring S 6
Spiral Bevel Gear 11
Ball
Bedring 600022
Bearing Retamer 52
Fan 57
Baffle Plate
ARMATURE ARMATURE
IWith lt~m 12 & 131
lnbulamn Washer
Ball Bearing 60622
FIELD ASSEMBLY
Tapping Screw Bind PT 3x10
Tapping Screw CT 4x16
Switch Knob
Name
Piare
Switch Lever
Violor Housing Complete
Card Guard
MACHINE
____~
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
-
1
1
1
2
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
,
1
Compresslo" Spring 4
Cord
Rear Cover
Tdpping Screw Flange PT 4x 18
Terminal Block
I?
Slrain Relief
Tapplnrl Screw Flange PT 4x18
Switch
Carbon Brush
Holder Cap
Makila
Label
Lock Nuf 10~ 35
Inner Flange 35
Spindle Complete
Wheel Cover
Pan Head Screw M5x16
Bearing Box
Ball Beating 6201DDW
Retaining Ring R-32
Spiral Bevel Gear 36
Gear Housing Complete
Note The switch and other pail spccificdtions may differ from counfry IO country
13

Mar.-19-'98 US

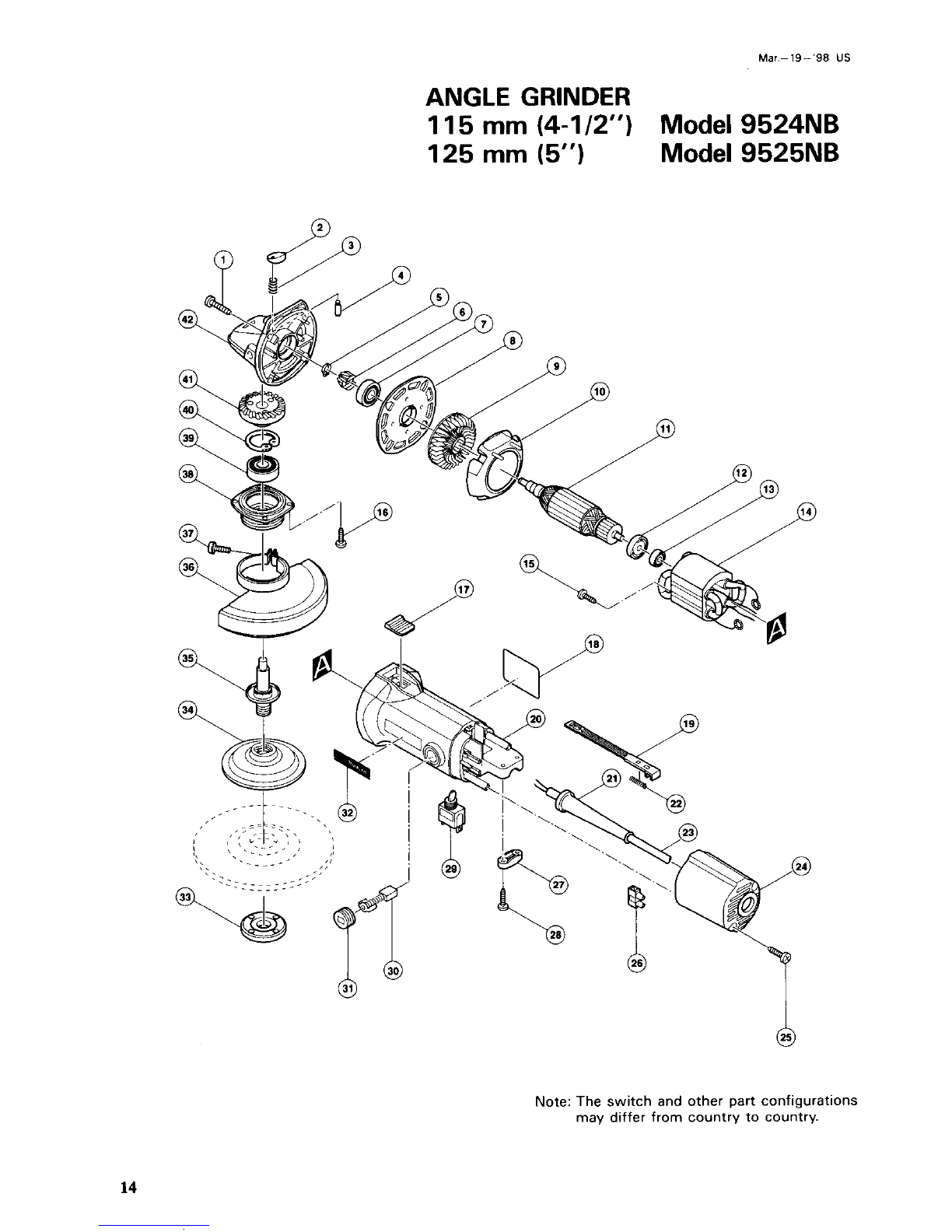

ANGLE GRINDER
115 mm (4-112") Model 9524NB
125
mm (5") Model 9525NB
Note: The switch and other part configurations
may differ from country to country.
14

MODEL 9524NB
ITEM NO
NO
USED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
I?
18
19
20
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
1
1
9525NB
OESCRIPTION
June-02-'98 US
I;,'," DESCRIPTION
Tappinq Screw Flange PT 5x25
Pin C*p
Compression Spring 8
P," 4
Rptsining Ring S 6
Spiral BeW Gca
11 For Mod91 9524NB
10 For Model 9525NB
Ball Bearinq 600022
Bparing Rptsiner 52
Fan 57
Baffle P1,lfli
ARMATURE ARMATURE
Iw8ili Ii~m 12 & 131
111~uIation Wdsher
Ball Bcilririg 60622
FIELD ASSEMBLY
Tdppinq Scrcw Bind PT 3x10
Tdpping Screw CT 4x16
Switch Knob
Name Plate
Swikh Lever
Motor Housing Complete
MACHINE
~
21
22
23
24
25
26
21
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
-
1
1
1
1
2
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
1
1
-
Cord Guard
Compression Spring 4
Cord
Rear Cover
Tapping Screw Flange PT 4x18
Terminal
Block 1P
Strain Relief
Tapping Screw Flange PT 4x18
Swifch
Carbon Brush
Holder Cap
Makita Label
Lock Nut 5/8-40
Inner Flange 82
Splndle Complete
Wheel Cover
Pan Head Screw M5x16
Bearing Box
Ball Bearing 6201DOW
Retaining Ring R-32
Spiral Bevel Gear 36
Gear HOuslng Complete
Note The Switch and uther parr SpecIfIcations may differ from country to country
15

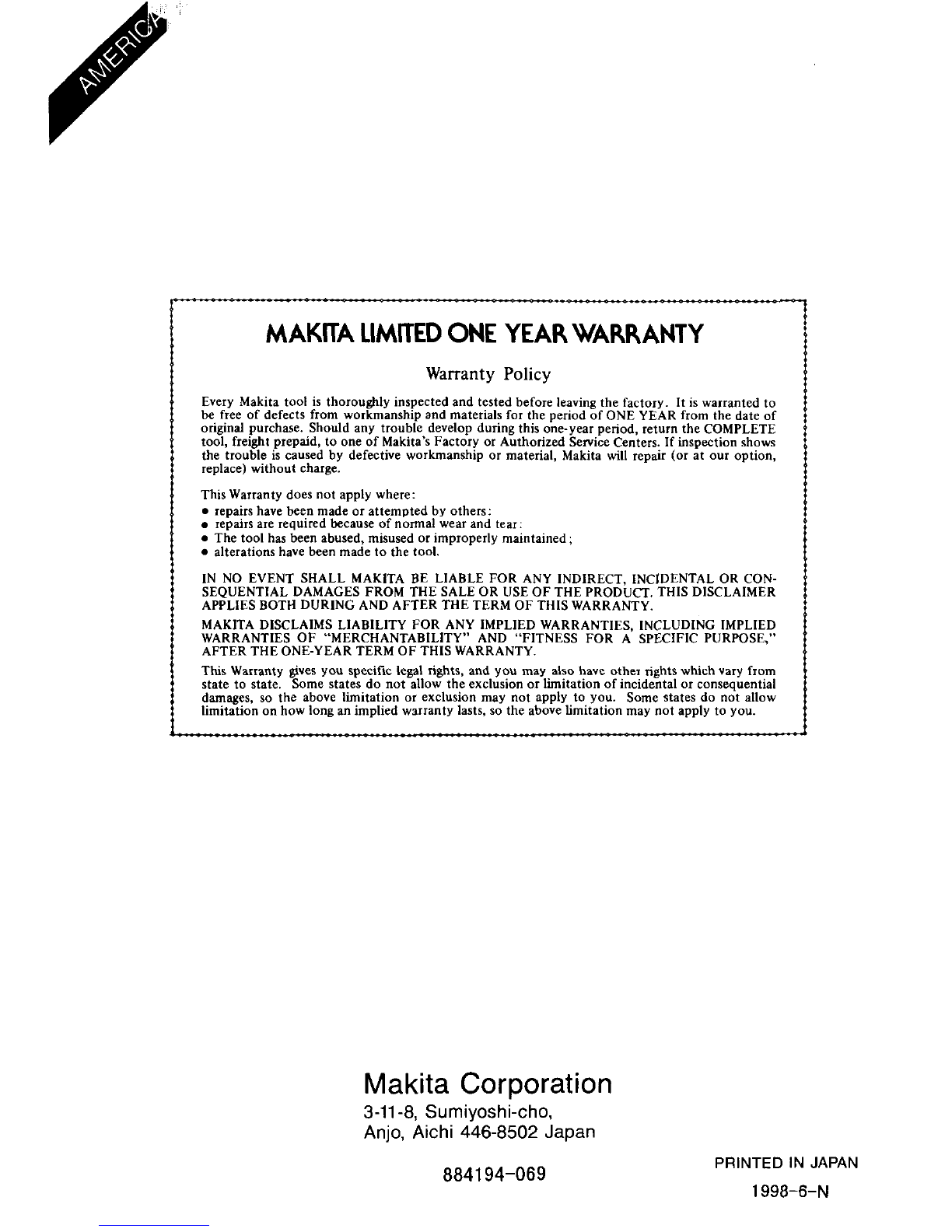

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained;
alterations have been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
T
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF THISWARRANTY.
This Warranty gives you specific legal rights, and you may
also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446-8502 Japan
884194-069
PRINTED IN JAPAN
1998-6-N
