Makita DGA402 User manual
DGA402
DGA452
EN Cordless Angle Grinder INSTRUCTION MANUAL 7
FR MANUEL D’INSTRUCTIONS 20
DE Akku-Winkelschleifer BETRIEBSANLEITUNG 34
IT Smerigliatrice angolare a
batteria ISTRUZIONI PER L’USO 49
NL Haakse accuslijpmachine GEBRUIKSAANWIJZING 64
ES Esmeriladora angular
inalámbrica
MANUAL DE
INSTRUCCIONES 78
PT Esmerilhadeira angular a
bateria MANUAL DE INSTRUÇÕES 92
DA Ledningsfri vinkelsliber BRUGSANVISNING 106
EL
119
TR KULLANMA KILAVUZU 134
2
1
2
3
Fig.1
1
2
Fig.2
1
Fig.3
1
Fig.4
1
Fig.5
1
Fig.6
Fig.7
1
2
3
Fig.8
3
1
2
3
4
Fig.9
1
2
Fig.10
Fig.11
2
3
4
1
Fig.12
1
2
Fig.13
1
2
3
4
Fig.14
1
2
3
4
Fig.15
1
2
3
Fig.16
4
1
2
4
3
Fig.17
1
Fig.18
12
Fig.19
Fig.20
1
3
2
4
Fig.21
16 mm (5/8″) 16 mm (5/8″)
11
44
23
Fig.22
11
44
23
Fig.23
11
44
23
Fig.24
5
11
44
23
Fig.25
1
Fig.26
1
Fig.27
1
Fig.28
Fig.29
Fig.30
Fig.31
Fig.32
6
Fig.33
Fig.34
Fig.35
1
2
Fig.36
1
Fig.37
12
Fig.38
1
2
Fig.39
7ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DGA402 DGA452
Max. wheel diameter 100 mm 115 mm
Max. wheel thickness 6.4 mm 7.2 mm
Spindle thread M10
Max. spindle length 18 mm 23 mm
0 11,000 min-1
Overall length with BL1840B 317 mm
Net weight 1.9 - 3.4 kg 2.1 - 3.5 kg
D.C. 18 V
-
Applicable battery cartridge and charger
BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger
DC18SH / DC18WC
residence.
WARNING: Only use the battery cartridges and chargers listed above.
Recommended cord connected power source
Symbols
operations.
Ni-MH
Li-ion
-
their adaptation to national law, waste elec-
waste, operating in accordance with the
Intended use
-
-
8ENGLISH
Noise
Model Sound pressure
level (LpA) : (dB(A))
Sound power level
(LWA) : (dB(A))
Uncertainty (K) :
(dB(A))
76 - 3
79 - 3
NOTE:
NOTE:
WARNING: Wear ear protection.
WARNING: -
ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
WARNING: Grinding thin sheets of metal or other easily vibrating structures with a large surface can
result in a total noise emission much higher (up to 15 dB) than the declared noise emission values.
Take the increased noise emission into consideration for both the risk assessment of noise exposure and
selecting adequate hearing protection.
Vibration
Work mode: surface grinding with normal side grip
Model
Vibration emission (ah, AG) : (m/s2)
Uncertainty (K) : (m/s2)
11.0 1.5
10.0 1.5
Work mode: disc sanding with normal side grip
Model
Vibration emission (ah, DS) : (m/s2)
Uncertainty (K) : (m/s2)
2.5 m/s2or less 1.5
2.5 m/s2or less 1.5
NOTE:
NOTE:
WARNING:
value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
WARNING:
Declarations of Conformity
For European countries only
9ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instructions,
power tool.
Save all warnings and instruc-
tions for future reference.
Cordless grinder safety warnings
Safety Warnings Common for Grinding, Sanding,
1.
This power tool is intended to function as a
all safety warnings, instructions, illustrations
2. Operations such as polishing are not rec-
ommended to be performed with this power
tool.
-
3. -
cally designed and recommended by the tool
manufacturer.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool.
5. The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool.
6. Threaded mounting of accessories must
match the grinder spindle thread. For acces-
7. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or acces-
sory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-
time.
8.
Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appropri-
ate, wear dust mask, hearing protectors, gloves
and workshop apron capable of stopping small
abrasive or workpiece fragments.-
9.
Keep bystanders a safe distance away from work
area. Anyone entering the work area must wear
personal protective equipment.
10. Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting tool may contact hidden
wiring. Contact with a "live" wire will also make
11. Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning
12. Do not run the power tool while carrying it at
your side.
13. Regularly clean the power tool’s air vents. The
14.
materials.
15. Do not use accessories that require liquid
coolants.
Kickback and Related Warnings
-
-
1.
position your body and arm to allow you to
resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
-
2. Never place your hand near the rotating acces-
sory.
10 ENGLISH
3. Do not position your body in the area where
power tool will move if kickback occurs.
4. Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the
accessory.
5. Do not attach a saw chain woodcarving blade
or toothed saw blade.-
1. Use only wheel types that are recommended
designed for the selected wheel.
2. The grinding surface of centre depressed
wheels must be mounted below the plane of
the guard lip.
3.
The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed towards
the operator. -
4.
Wheels must be used only for recommended
applications. For example: do not grind with the
5.
correct size and shape for your selected wheel.
6. Do not use worn down wheels from larger
power tools.
1. -
sive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
-
2. Do not position your body in line with and
behind the rotating wheel. When the wheel, at
-
3. When wheel is binding or when interrupting
tool and hold the power tool motionless until
the wheel comes to a complete stop. Never
cut while the wheel is in motion otherwise
kickback may occur. Investigate and take correc-
4. Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut.
the workpiece.
5. Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kick-
back.
6. Use extra caution when making a “pocket cut”
into existing walls or other blind areas. The
-
1. Do not use excessively oversized sanding
disc paper. Follow manufacturers recommen-
dations, when selecting sanding paper. Larger
1. Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive
load to the brush.
penetrate light clothing and/or skin.
2. If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
Additional Safety Warnings:
1.
When using depressed centre grinding wheels,
2. NEVER USE Stone Cup type wheels with this
grinder.
3. Be careful not to damage the spindle, the
lock nut. Damage to these parts could result in
wheel breakage.
4. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
5. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
6. -
form the grinding.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
9. Do not touch accessories immediately after
operation; it may be extremely hot and could
burn your skin.
10. Observe the instructions of the manufacturer
for correct mounting and use of wheels and
accessories.
11 ENGLISH
11. Handle and store wheels with care.
12. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
13.
14.
hole wheel, ensure that the thread in the wheel
is long enough to accept the spindle length.
15. Check that the workpiece is properly
supported.
16. Pay attention that the wheel continues to
17. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure opera-
tor safety.
18. Do not use the tool on any materials contain-
ing asbestos.
19.
the dust collecting wheel guard required by
domestic regulation.
20. Cutting discs must not be subjected to any
lateral pressure.
21. Do not use cloth work gloves during operation.
22. Make sure there are no electrical cables, water
pipes, gas pipes etc. that could cause a hazard
if damaged by use of the tool.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
Do not touch the terminals with any con-
ductive material.
Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
-
-
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
-
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.
-
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
charger.
12 ENGLISH
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
before adjusting or checking function on the tool.

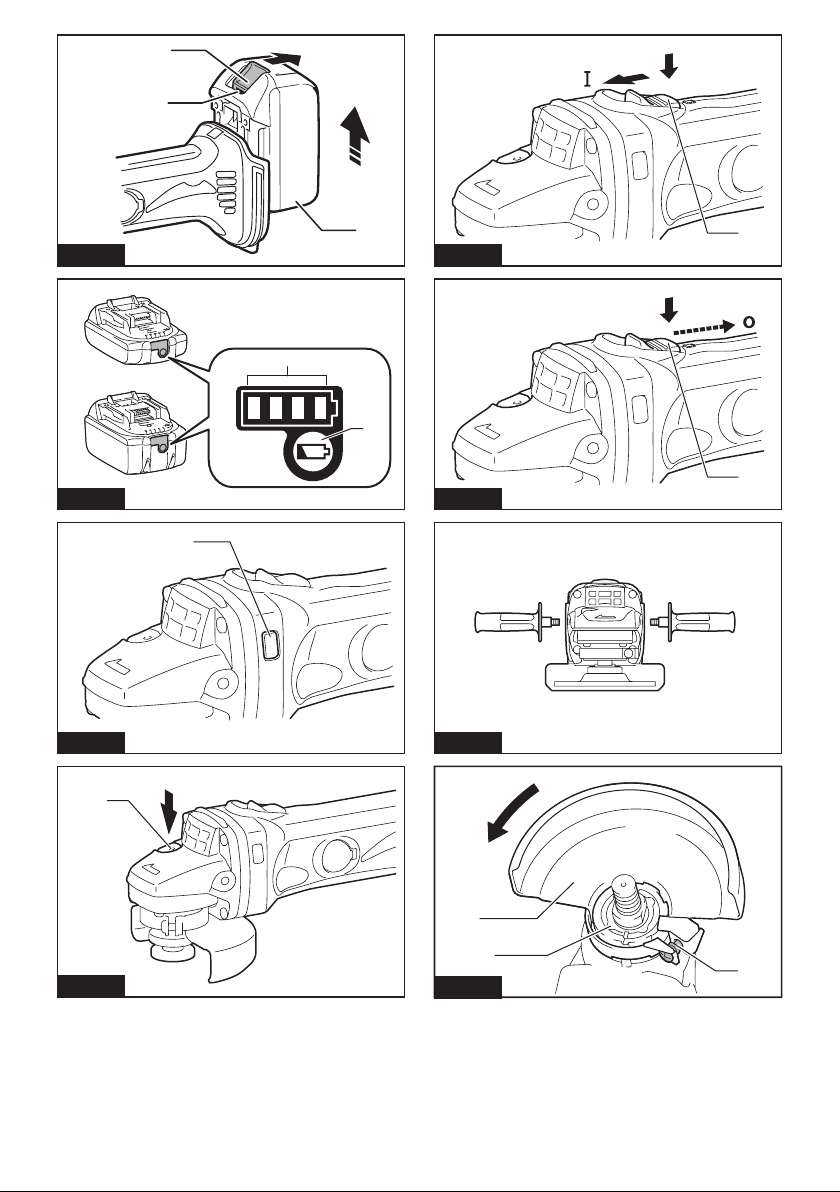

Installing or removing battery
cartridge
CAUTION:
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
cartridge.
Fig.1: 1.2.3.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen.
CAUTION: Do not install the battery cartridge
forcibly.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
-
Fig.2: 1. Indicator lamps 2.
Indicator lamps Remaining
capacity
Lighted Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
NOTE:
NOTE:
Tool / battery protection system
-
-
Overload protection
Overheat protection
tool on again.
Overdischarge protection
13 ENGLISH
Protections against other causes
halt or stop in operation.
restart.
Indication lamp with multi function
Fig.3: 1. Indication lamp
Indication lamps are located in two positions.
-
Overload protection
-
-
two seconds, the tool stops. This prevents the
Battery cartridge replacing signal
-
Accidental re-start preventive
function
-
Shaft lock
WARNING: Never actuate the shaft lock when
the spindle is moving.
the tool damage.
installing or removing accessories.
Fig.4: 1.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
slide switch actuates properly and returns to the
"OFF" position when the rear of the slide switch
is depressed.
CAUTION: Switch can be locked in "ON" posi-
tion for ease of operator comfort during extended
use. Apply caution when locking tool in "ON"
-
Fig.5: 1. Slide switch
Fig.6: 1. Slide switch
ASSEMBLY
CAUTION: Always be sure that the tool is
before adjusting or checking function on the tool.
Installing side grip (handle)
CAUTION: Always be sure that the side grip is
installed securely before operation.
Fig.7
Installing or removing wheel guard
WARNING: When using a depressed center
the closed side of the guard always points toward
the operator.
WARNING:
/ diamond wheel, be sure to use only the special
For tool with locking screw type
wheel guard
-
-
Fig.8: 1.2.3. Screw
14 ENGLISH

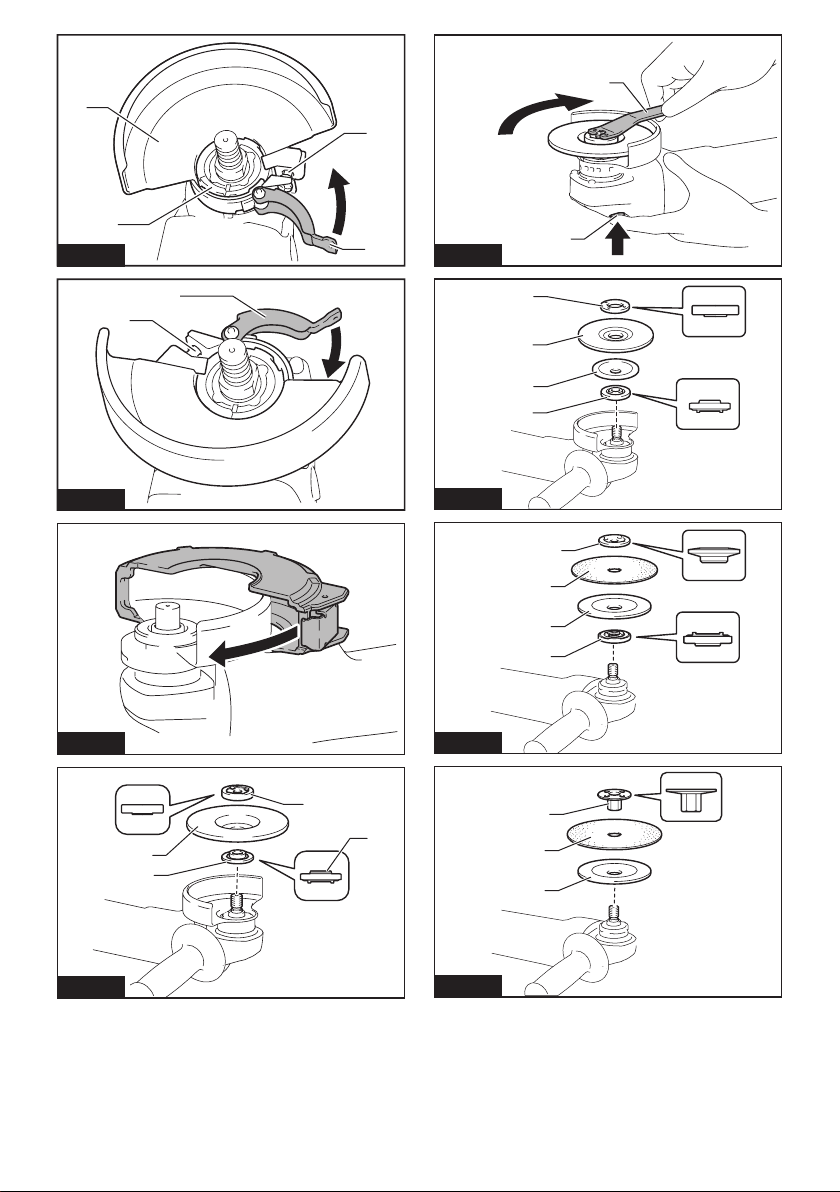

For tool with clamp lever type wheel
guard
-
-
an angle that it can protect the operator according to
work.
Fig.9: 1.2.3. Screw
4. Lever
Fig.10: 1. Screw 2. Lever
-
Clip-on cutting wheel guard
attachment
Optional accessory
NOTE:
Fig.11
Installing or removing depressed
Optional accessory
WARNING: When using a depressed center
on the tool so that the closed side of the guard
always points toward the operator.
WARNING: Make sure that the mounting part
Fig.12: 1.2. Depressed center wheel
3.4.
Fig.13: 1.2.
in reverse.
Optional accessory
WARNING: Always use supplied guard when
Fig.14: 1.2.3.
4.
Installing or removing abrasive disc
Optional accessory
NOTE:-
Fig.15: 1.2.
3.4.
1.
2.
3. -
4.
wrench.
reverse.
Fig.16: 1.2.
3.
1.
2. -
3.
wrench.
reverse.
Super Flange
Optional accessory
15 ENGLISH
Installing or removing Ezynut
Optional accessory
Only for tools with M14 spindle thread.
CAUTION: Do not use Ezynut with Super
thread cannot be retained by the spindle.
Fig.17: 1.2.3.
4. Spindle
Fig.18: 1.
NOTE:
Fig.19: 1.2. Notch
Fig.20
wheel
Optional accessory
WARNING:
/ diamond wheel, be sure to use only the special
WARNING:
grinding.
Fig.21: 1.2.-
mond wheel 3.4.
depressed center wheel.
Fig.22: 1.2.
3.
4. Inner
When installing the diamond wheel:
Fig.23: 1.2.
3.
4.
Fig.24: 1.2.
3.
4. Inner
When installing the diamond wheel:
Fig.25: 1.2.
3.
4.
Installing wire cup brush
Optional accessory
CAUTION: Do not use wire cup brush that
is damaged, or which is out of balance.
Fig.26: 1.
Installing wire wheel brush
Optional accessory
CAUTION: Do not use wire wheel brush that
is damaged, or which is out of balance.
CAUTION: ALWAYS use guard with wire
inside guard.
Fig.27: 1.
Installing hole cutter
Optional accessory
-
plied wrench.
Fig.28: 1.
Installing dust collecting wheel
Optional accessory
Fig.29
NOTE:-
16 ENGLISH
OPERATION
WARNING: It should never be necessary to
force the tool.-
WARNING: ALWAYS replace wheel if tool is
dropped while grinding.
WARNING: NEVER hit the workpiece with the
wheel.
WARNING: Avoid bouncing and snagging
the wheel, especially when working corners,
sharp edges etc.
WARNING: NEVER use tool with wood cutting
blades and other saw blades.
CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Always wear safety goggles or a
face shield during operation.
CAUTION:
the tool and wait until the wheel has come to a
complete stop before putting the tool down.
CAUTION:
one hand on housing and the other on the side
grip (handle).
NOTE:
operation.
Grinding and sanding operation
Fig.30
workpiece.
diamond wheel
Optional accessory
WARNING: Do not "jam" the wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
WARNING: Do not start the cutting operation
in the workpiece. Let the wheel reach full speed
and carefully enter into the cut moving the tool
forward over the workpiece surface. The wheel
started in the workpiece.
WARNING: During cutting operations, never
change the angle of the wheel.-
-
WARNING: A diamond wheel shall be oper-
ated perpendicular to the material being cut.
wheel
Fig.31
Usage example: operation with diamond wheel
Fig.32

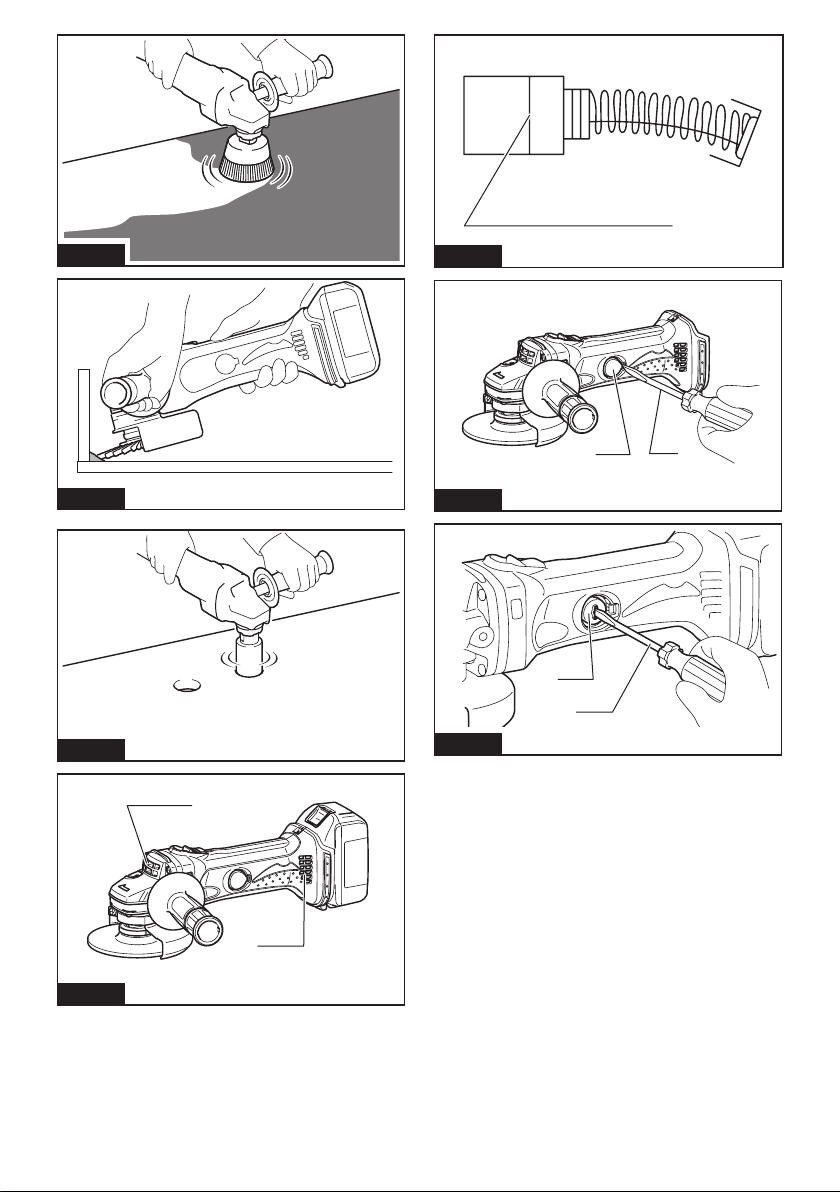

Operation with wire cup brush
Optional accessory
CAUTION: Check operation of wire cup brush
by running tool with no load, insuring that no one
is in front of or in line with wire cup brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when using
the wire cup brush.
Usage example: operation with wire cup brush
Fig.33
17 ENGLISH
Operation with wire wheel brush
Optional accessory
CAUTION: Check operation of wire wheel
brush by running tool with no load, insuring that
no one is in front of or in line with the wire wheel
brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when
using wire wheel brush.
Usage example: operation with wire wheel brush
Fig.34
Operation with hole cutter
Optional accessory
CAUTION: Check operation of the hole cutter
by running the tool with no load, insuring that no
one is in front of the hole cutter.
NOTICE: Do not tilt the tool during operation. It
Usage example: operation with hole cutter
Fig.35
MAINTENANCE
CAUTION: Always be sure that the tool is
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Air vent cleaning
Fig.36: 1.2. Inhalation vent
Replacing carbon brushes
Fig.37: 1. Limit mark
1.
Fig.38: 1. Holder cap cover 2. Screwdriver
2.
caps.
3.
Fig.39: 1.2. Screwdriver
4.
18 ENGLISH
COMBINATION OF APPLICATIONS AND
ACCESSORIES
Optional accessory
CAUTION: Using the tool with incorrect guards can cause risks as follows.
• -
piece causing poor control.
• -
mond wheels, there is an increased risk of exposure to rotating wheels, emitted sparks and particles,
as well as exposure to wheel fragments in the event of wheel burst.
• -
mond wheels, the wheel guard may interfere with the workpiece causing poor control.
• -
the guard leading to breaking of wires.
•
reduces a risk of exposure to dust.
•
1
2
5
22
12
4
3
7
10
13
33
14 2
17 3
16
15
16
17
19
20
3
18
8
5656
56
56
9
11
-Application 100 mm model 115 mm model
1 - Side grip
2 -
3 -
4Grinding / Sanding
5 -
6 - -
7 -
8Grinding
9 -
10 Sanding
11 -
12
19 ENGLISH
-Application 100 mm model 115 mm model
13
14
15 -
16
17
18 -
19 -
20 Diamond wheel
- -
NOTE:
NOTE:
NOTE:
NOTE:
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
-
Center.
NOTE:
20 FRANÇAIS
FRANÇAIS (Instructions originales)
SPÉCIFICATIONS
Modèle : DGA402 DGA452
100 mm 115 mm
6,4 mm 7,2 mm
M10
18 mm 23 mm
0 11 000 min-1
avec BL1840B 317 mm
1,9 - 3,4 kg 2,1 - 3,5 kg
Tension nominale 18 V CC
Batterie et chargeur applicables
Batterie BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
DC18SH / DC18WC
AVERTISSEMENT : N’utilisez que les batteries et les chargeurs répertoriés ci-dessus.
Source d’alimentation connectée par cordon recommandée
-
Symboles
Lire le mode d’emploi.
Ni-MH
Li-ion
-
-
-
son adaptation à la législation nationale,
-
mentations en matière de protection de
l’environnement.
-
Other manuals for DGA402
7
This manual suits for next models
4
Table of contents
Languages:
Other Makita Grinder manuals
Makita
Makita 9558NBR User manual
Makita
Makita GA7080 User manual
Makita
Makita GAG07 User manual
Makita
Makita GA7010C User manual
Makita
Makita DGD800 User manual
Makita
Makita DGA419 User manual
Makita
Makita GA7050 User manual
Makita
Makita 9564HR User manual
Makita
Makita 9565H User manual
Makita
Makita GD0603 User manual
Makita
Makita GA004G User manual
Makita
Makita GA9061 User manual
Makita
Makita GD0603 User manual
Makita
Makita GA036GZ User manual
Makita
Makita 9556NB User manual
Makita
Makita GA7020 Quick start guide
Makita
Makita DGA452 User manual
Makita
Makita GD0602 User manual
Makita
Makita DGA468 User manual
Makita
Makita GD0800C User manual
