EN Cordless Angle Grinder INSTRUCTION MANUAL 7
FR Meuleuse d’Angle sans Fil MANUEL D’INSTRUCTIONS 18
DE Akku-Winkelschleifer BETRIEBSANLEITUNG 31
IT Smerigliatrice angolare a
batteria ISTRUZIONI PER L’USO 44
NL Haakse accuslijpmachine GEBRUIKSAANWIJZING 57
ES Esmeriladora Angular
Inalámbrica
MANUAL DE
INSTRUCCIONES 69
PT Esmerilhadeira Angular a
Bateria MANUAL DE INSTRUÇÕES 81
DA Ledningsfri vinkelsliber BRUGSANVISNING 93
EL 
  105
TR  KULLANMA KILAVUZU 118

2
3
1
1

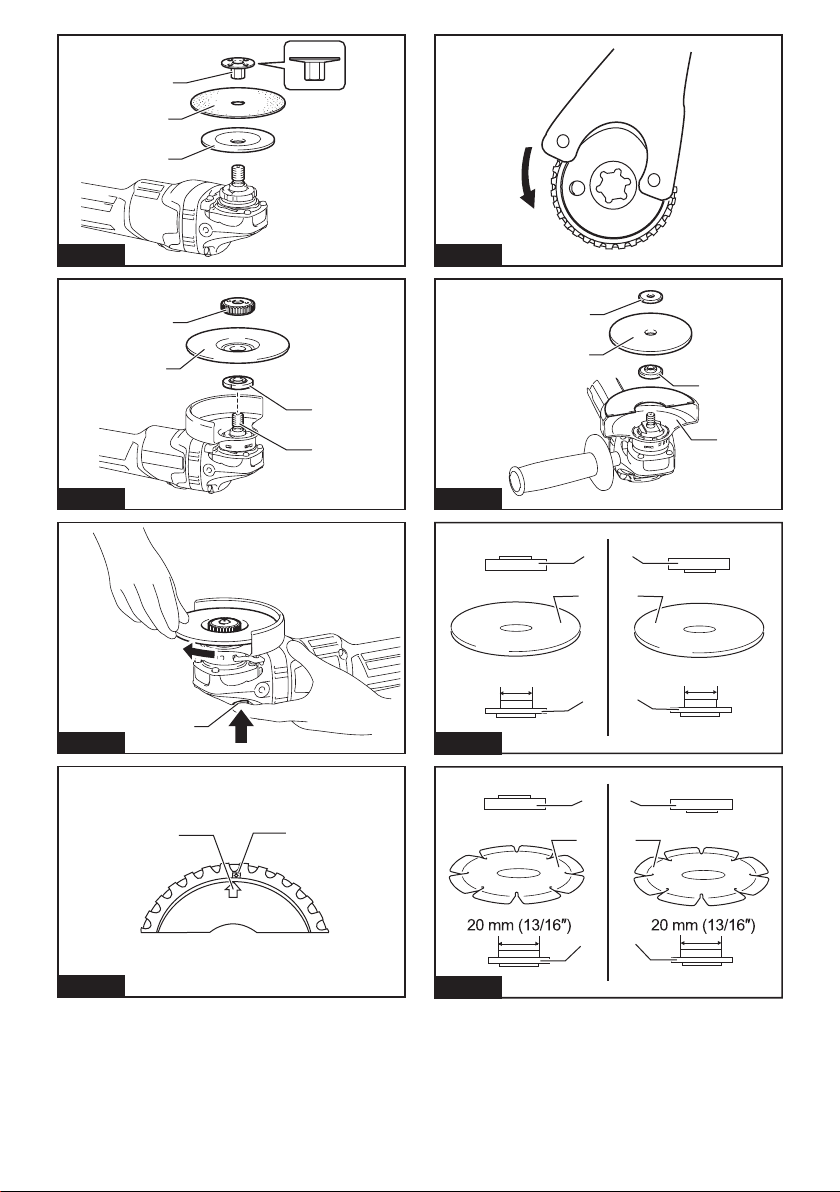

Fig.1
1
2
Fig.2
1
Fig.3
1
Fig.4
Fig.5
1
2
3
Fig.6
2

2
B
1
A
B
Fig.7
2
B
1
A
B
B
C
C
Fig.8
2
3
4
1
Fig.9
1
2
Fig.10
1
2
3
4
Fig.11
1
2
3
4
Fig.12
3

1
2
3
Fig.13
1
2
4
3
Fig.14
1
Fig.15
12
Fig.16
Fig.17
1
3
2
4
Fig.18
16 mm (5/8″) 16 mm (5/8″)
11
44
23
Fig.19
11
44
23
Fig.20
4

11
44
23
Fig.21
11
44
23
Fig.22
1
Fig.23
1
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
5

Fig.29
1
2
Fig.30
1
Fig.31
1
2
5
22
11
12
4
3
5
6
7
8
9
10
13
3
14
5
3
Fig.32
6

7ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: GA003G GA004G GA005G GA006G GA007G GA008G
Wheel diameter 100 mm

115 mm

125 mm

100mm

115 mm

125 mm

Max. wheel thickness 6.4 mm 7.2 mm 6.4 mm 7.2 mm
Spindle thread M10 

M10 

 8,500 min-1
Overall length with BL4025 398 mm
with BL4040 410 mm
Net weight 2.8 -
3.6 kg
2.9 -
3.8 kg
2.9 -
3.9 kg
2.7 -
3.6 kg
2.8 - 3.8 kg
Rated voltage D.C. 36 V - 40 V max
 
without notice.
 󰀨
 󰀨-

Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025* / BL4040* / BL4050F*

Charger 
 
residence.
WARNING: Only use the battery cartridges and chargers listed above.

Recommended cord connected power source
 
 
• Before using the cord connected power source, read instruction and cautionary markings on them.
Intended use
The tool is intended for grinding, sanding and cutting of
metal and stone materials without the use of water.
Noise

Model Sound pressure
level (LpA) : (dB(A))
Sound power level
(LWA) : (dB(A))
Uncertainty (K) :
(dB(A))
 81 92 3
 81 92 3
 81 92 3
 81 92 3
 81 92 3
 81 92 3

8ENGLISH
NOTE:

NOTE:
WARNING: Wear ear protection.
WARNING: 󰀨-
ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
󰀨
Vibration

Work mode: surface grinding with normal side grip
Model Vibration emission (ah, AG) : (m/s2) Uncertainty (K) : (m/s2)
 5.0 1.5
 5.5 1.5
 6.5 1.5
 5.0 1.5
 5.5 1.5
 6.5 1.5
Work mode: surface grinding with anti vibration side grip
Model Vibration emission (ah, AG) : (m/s2) Uncertainty (K) : (m/s2)
 5.5 1.5
 5.5 1.5
 5.5 1.5
 5.5 1.5
 5.5 1.5
 5.5 1.5
Work mode: disc sanding with normal side grip
Model Vibration emission (ah, AG) : (m/s2) Uncertainty (K) : (m/s2)
 2.5 m/s2or less 1.5
 2.5 m/s2or less 1.5
 2.5 1.5
 2.5 m/s2or less 1.5
 2.5 m/s2or less 1.5
 2.5 1.5
Work mode: disc sanding with anti vibration side grip
Model Vibration emission (ah, AG) : (m/s2) Uncertainty (K) : (m/s2)
 2.5 m/s2or less 1.5
 2.5 m/s2or less 1.5
 3.0 1.5
 2.5 m/s2or less 1.5
 2.5 m/s2or less 1.5
 3.0 1.5
NOTE:

NOTE:

9ENGLISH
WARNING: 󰀨
value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
󰀨
WARNING:
󰀨
EC Declaration of Conformity
For European countries only

to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-

with this power tool. Failure to follow all instructions


Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your


Cordless grinder safety warnings
Safety Warnings Common for Grinding, Sanding,
󰀨
1. This power tool is intended to function as a
󰀨
Read all safety warnings, instructions, illus-

power tool. Failure to follow all instructions listed


2. Operations such as polishing are not rec-
ommended to be performed with this power
tool. Operations for which the power tool was not
designed may create a hazard and cause per-

3. -
cally designed and recommended by the tool
manufacturer.

safe operation.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool.

5. The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories

6. Threaded mounting of accessories must
match the grinder spindle thread. For acces-



mounting hardware of the power tool will run out of

of control.
7. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or acces-
sory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-

time.
8. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appro-
priate, wear dust mask, hearing protectors,
gloves and workshop apron capable of stop-
ping small abrasive or workpiece fragments.





cause hearing loss.
9. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.


area of operation.
10. Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting tool may contact hidden
wiring. Contact with a "live" wire will also make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
11. Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning

power tool out of your control.
12. Do not run the power tool while carrying it at
your side.
accessory could snag your clothing, pulling the

13. Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.

10 ENGLISH
14. 
materials. Sparks could ignite these materials.
15. Do not use accessories that require liquid
coolants.
may result in electrocution or shock.
Kickback and Related Warnings

-

rotating accessory which in turn causes the uncon-



the workpiece, the edge of the wheel that is entering into the
pinch point can dig into the surface of the material causing

toward or away from the operator, depending on direction





1. 
position your body and arm to allow you to
resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
-

2. Never place your hand near the rotating acces-
sory.
3. Do not position your body in the area where
power tool will move if kickback occurs.

to the wheel’s movement at the point of snagging.
4. Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the
accessory.
have a tendency to snag the rotating accessory

5. Do not attach a saw chain woodcarving blade
or toothed saw blade.-


󰀨
1. Use only wheel types that are recommended

designed for the selected wheel. Wheels for


2.
The grinding surface of centre depressed wheels
must be mounted below the plane of the guard lip.


3. The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed towards
the operator. The guard helps to protect the operator

wheel and sparks that could ignite clothing.
4. Wheels must be used only for recommended appli-
cations. For example: do not grind with the side of
󰀨󰀨
peripheral grinding, side forces applied to these wheels
may cause them to shatter.
5. 
correct size and shape for your selected wheel.

󰀨
󰀨
6. Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool



󰀨
1. 󰀨-
sive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel

-

2. Do not position your body in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
-
ning wheel and the power tool directly at you.
3. When wheel is binding or when interrupting
󰀨
tool and hold the power tool motionless until
the wheel comes to a complete stop. Never
󰀨
cut while the wheel is in motion otherwise
kickback may occur. Investigate and take correc-

4. Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut.

the workpiece.
5. Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kick-
back. Large workpieces tend to sag under their

workpiece near the line of cut and near the edge

6. Use extra caution when making a “pocket cut”
into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, elec-


1. Do not use excessively oversized sanding
disc paper. Follow manufacturers recommen-
dations, when selecting sanding paper. Larger

pad presents a laceration hazard and may cause


Operations:
1. Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive
load to the brush.
penetrate light clothing and/or skin.
2. If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel

and centrifugal forces.

11 ENGLISH
Additional Safety Warnings:
1. When using depressed centre grinding wheels,

wheels.
2. NEVER USE Stone Cup type wheels with this
grinder. This grinder is not designed for these
types of wheels and the use of such a product

3. Be careful not to damage the spindle, the

lock nut. Damage to these parts could result in
wheel breakage.
4. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
5. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
6. -
form the grinding.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
9. Do not touch accessories immediately after
operation; it may be extremely hot and could
burn your skin.
10. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.
11. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
12. 
13. 
hole wheel, ensure that the thread in the wheel
is long enough to accept the spindle length.
14. Check that the workpiece is properly
supported.
15. Pay attention that the wheel continues to
󰀨
16. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure opera-
tor safety.
17. Do not use the tool on any materials contain-
ing asbestos.
18. 󰀨
the dust collecting wheel guard required by
domestic regulation.
19. Cutting discs must not be subjected to any
lateral pressure.
20. Do not use cloth work gloves during operation.


21. Make sure there are no electrical cables, water
pipes, gas pipes etc. that could cause a hazard
if damaged by use of the tool.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper the battery
cartridge.
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
 Do not touch the terminals with any con-
ductive material.
 Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
 Do not expose battery cartridge to water
or rain.
A battery short can cause a large current

breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn

8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a

9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.

-

-


national regulations.
󰀨

around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.

12 ENGLISH
12. Use the batteries only with the products

-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or

17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction

18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.



also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
󰀨
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION: 󰀨
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-

cartridge.
󰀨


Fig.1: 1. Red indicator 2. Button 3. Battery cartridge




it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as

CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,

you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is

Indicating the remaining battery capacity
-

light up for a few seconds.
Fig.2: 1. Indicator lamps 2.
Indicator lamps Remaining
capacity
Lighted 󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the


may have
malfunctioned.

13 ENGLISH
NOTE: Depending on the conditions of use and the
󰀨
from the actual capacity.
NOTE:

Tool / battery protection system
-
󰀨
-

placed under one of the following conditions:
Overload protection


automatically stops without any indication. In this sit-
󰀨

tool on to restart.
Overheat protection
-

Overdischarge protection



Releasing protection lock
When the protection system works repeatedly, the tool
is locked.
In this situation, the tool does not start even if turning
󰀨


Shaft lock

installing or removing accessories.
Fig.3: 1. Shaft lock
NOTICE: Never actuate the shaft lock when the
spindle is moving.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
slide switch actuates properly and returns to the
"OFF" position when the rear of the slide switch
is depressed.
CAUTION: Switch can be locked in "ON" posi-
tion for ease of operator comfort during extended
use. Apply caution when locking tool in "ON"

To start the tool, slide the slide switch toward the “I

For continuous operation, press the front of the slide
switch to lock it.
To stop the tool, press the rear of the slide switch, then

Fig.4: 1. Slide switch
Accidental re-start preventive
function




position.
Active Feedback sensing
Technology
The tool electronically detects situations where the

󰀨
further rotation of the spindle (it does not prevent

󰀨
cause of sudden drop in the rotation speed, and then
turn the tool on.
Soft start feature
Soft start feature reduces starting reaction.
Electric brake
Only for model GA003G / GA004G / GA005G
󰀨


the switch still on.
ASSEMBLY
CAUTION: Always be sure that the tool is
󰀨
before adjusting or checking function on the tool.
Installing side grip (handle)
CAUTION: Always be sure that the side grip is
installed securely before operation.
Screw the side grip securely on the position of the tool

Fig.5

14 ENGLISH
Installing or removing wheel guard
WARNING: When using a depressed center


the closed side of the guard always points toward
the operator.
WARNING: Make sure that the wheel guard is
securely locked by the lock lever with one of the
holes on the wheel guard.
WARNING: 󰀨
/ diamond wheel, be sure to use only the special
󰀨





󰀨
wheel
1. While pushing the lock lever, mount the wheel
guard with the protrusions on the wheel guard aligned

Fig.6: 1. Lock lever 2. Notch 3.
2. 


Fig.7: 1. Wheel guard 2.
NOTE:
Otherwise, you cannot push the wheel guard
completely.
3. While keeping the lock lever and wheel guard

toward C, and then, change the angle of the wheel


the wheel guard, and then release the lock lever to lock
the wheel guard.
Fig.8: 1. Wheel guard 2.
NOTE:
you cannot rotate the wheel guard.
To remove wheel guard, follow the installation proce-
dure in reverse.
Installing or removing depressed

Optional accessory
WARNING: When using a depressed center

on the tool so that the closed side of the guard
always points toward the operator.
CAUTION: Make sure that the mounting part









Fig.9: 1. Lock nut 2. Depressed center wheel
3.4. Mounting part

that the spindle cannot revolve, then use the lock nut
wrench and securely tighten clockwise.
Fig.10: 1. Lock nut wrench 2. Shaft lock
To remove the wheel, follow the installation procedure
in reverse.

Optional accessory
WARNING: Always use supplied guard when
 Wheel can shatter during
use and guard helps to reduce chances of personal

Fig.11: 1. Lock nut 2. Flex wheel 3. Back up pad
4.


accessories page in this manual.
Installing or removing abrasive disc
Optional accessory
NOTE:-


Fig.12: 1. Sanding lock nut 2.
3.4.
1. 
2. 
3. -
ing lock nut onto the spindle.
4. 
tighten the sanding lock nut clockwise with the lock nut
wrench.
To remove the disc, follow the installation procedure in
reverse.

15 ENGLISH

Fig.13: 1. Sanding lock nut 2.
3.
1. 
2. -
ing lock nut onto the spindle.
3. 
tighten the sanding lock nut clockwise with the lock nut
wrench.
To remove the disc, follow the installation procedure in
reverse.
Installing or removing Ezynut
Optional accessory
CAUTION:



Fig.14: 1.2.3.
4. Spindle


Fig.15: 1. Shaft lock



loosen.
Fig.16: 1.2. Notch
Fig.17
NOTE:
as the arrow points the notch. Otherwise a lock nut


󰀨
wheel
Optional accessory
WARNING: 󰀨
/ diamond wheel, be sure to use only the special
󰀨



WARNING: 󰀨
grinding.
Fig.18: 1. Lock nut 2.󰀨-
mond wheel 3.4. Wheel guard
󰀨

depressed center wheel.
The direction for mounting the lock nut and the



󰀨
Fig.19: 1. Lock nut 2.󰀨
3.
󰀨4. Inner

When installing the diamond wheel:
Fig.20: 1. Lock nut 2. Diamond wheel (Thinner than
3. Diamond wheel (4 mm
4.

model
󰀨
Fig.21: 1. Lock nut 2.󰀨
3.
󰀨4. Inner

When installing the diamond wheel:
Fig.22: 1. Lock nut 2. Diamond wheel (Thinner than
3. Diamond wheel (4 mm
4.
Installing wire cup brush
Optional accessory
CAUTION: Do not use brush that is damaged,
or which is out of balance.


Fig.23: 1.

upside down allowing easy access to spindle.
Remove any accessories on spindle. Thread wire cup

Installing wire wheel brush
Optional accessory
CAUTION: Do not use wire wheel brush that
is damaged, or which is out of balance. Use of


CAUTION: ALWAYS use guard with wire

inside guard. Wheel can shatter during use and

Fig.24: 1.

upside down allowing easy access to spindle.
Remove any accessories on spindle. Thread wire wheel


16 ENGLISH
OPERATION
WARNING: It should never be necessary to
force the tool. The weight of the tool applies ade-


WARNING: ALWAYS replace wheel if tool is
dropped while grinding.
WARNING: NEVER bang or hit grinding disc
or wheel onto work.
WARNING: Avoid bouncing and snagging
the wheel, especially when working corners,
sharp edges etc. This can cause loss of control and

WARNING: NEVER use tool with wood cutting
blades and other saw blades.


CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Always wear safety goggles or a
face shield during operation.
CAUTION: 󰀨
the tool and wait until the wheel has come to a
complete stop before putting the tool down.
CAUTION: 
one hand on housing and the other on the side
grip (handle).
Grinding and sanding operation
Fig.25
Turn the tool on and then apply the wheel or disc to the
workpiece.
In general, keep the edge of the wheel or disc at an


work the grinder in forward direction or it may cut into

󰀨

󰀨
diamond wheel
Optional accessory
WARNING: Do not "jam" the wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel



motor may occur.
WARNING: Do not start the cutting operation
in the workpiece. Let the wheel reach full speed
and carefully enter into the cut moving the tool
forward over the workpiece surface. The wheel

started in the workpiece.
WARNING: During cutting operations, never
change the angle of the wheel.-
󰀨
-

WARNING: A diamond wheel shall be oper-
ated perpendicular to the material being cut.
󰀨
wheel
Fig.26
Usage example: operation with diamond wheel
Fig.27
Operation with wire cup brush
Optional accessory
CAUTION: Check operation of brush by run-
ning tool with no load, insuring that no one is in
front of or in line with brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when using
the wire cup brush. It may lead to premature

Usage example: operation with wire cup brush
Fig.28
Operation with wire wheel brush
Optional accessory
CAUTION: Check operation of wire wheel
brush by running tool with no load, insuring that
no one is in front of or in line with the wire wheel
brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when
using wire wheel brush. It may lead to premature

Usage example: operation with wire wheel brush
Fig.29

17 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
󰀨
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.

-

using Makita replacement parts.
Air vent cleaning

Regularly clean the tool's air vents or whenever the


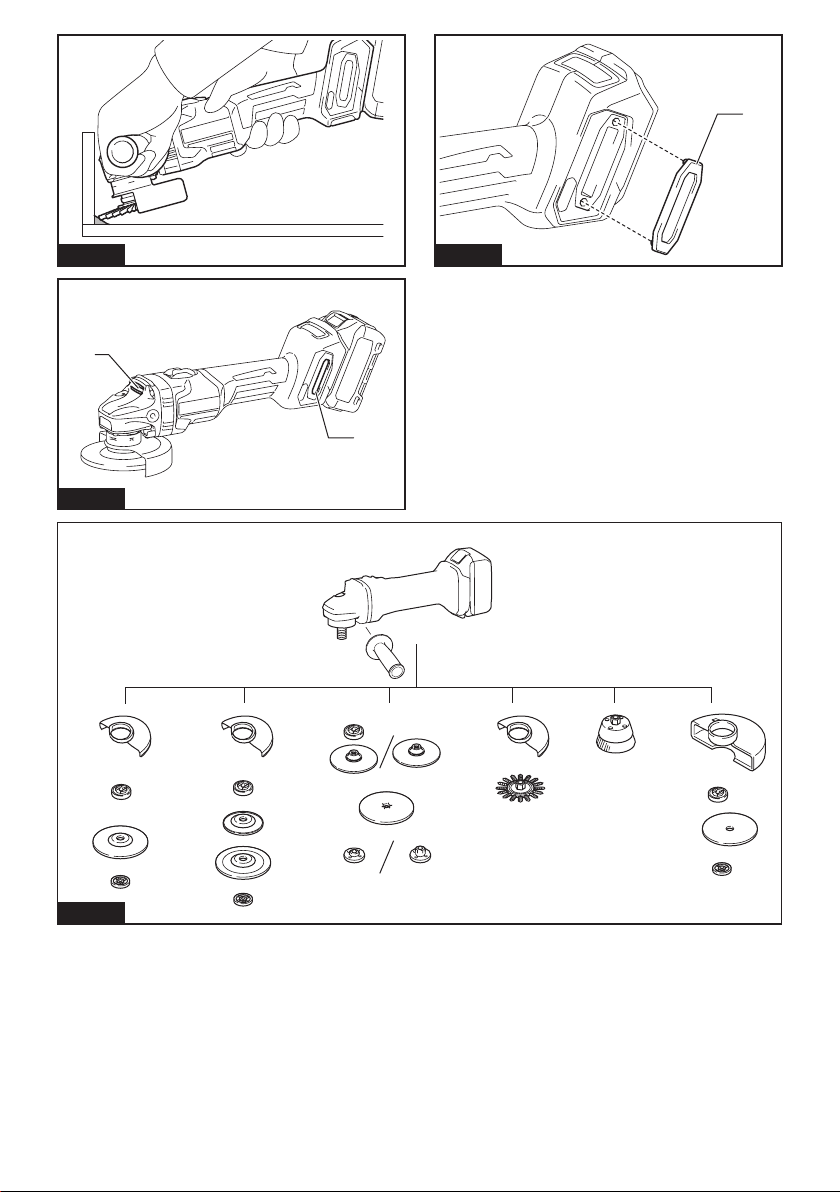

Fig.30: 1.2. Inhalation vent
Remove the dust cover from inhalation vent and clean it
for smooth air circulation.
Fig.31: 1. Dust cover
NOTICE: Clean out the dust cover when it is
clogged with dust or foreign matters. Continuing
operation with a clogged dust cover may damage the
tool.
OPTIONAL ACCESSORIES
CAUTION: These accessories or attachments are recommended for use with your Makita tool spec-

Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
 
Fig.32
-  
1Grip 36
2
3
4Depressed center wheel / Flap disc
5Lock nut
6Back up pad
7Flex wheel
8  
9
10 Sanding lock nut
11 
12 
13 󰀨
14 󰀨
-Lock nut wrench
NOTE:

NOTE:󰀨
country to country.

18 FRANÇAIS
FRANÇAIS (Instructions originales)
SPÉCIFICATIONS
Modèle : GA003G GA004G GA005G GA006G GA007G GA008G
Diamètre de meule 100 mm

115 mm

125 mm

100 mm

115 mm

125 mm

Épaisseur max. de la meule 6,4 mm 7,2 mm 6,4 mm 7,2 mm
Filetage de l’axe M10 

M10 

 8 500 min-1
Longueur totale avec BL4025 398 mm
avec BL4040 410 mm
 2,8 -
3,6 kg
2,9 -
3,8 kg
2,9 -
3,9 kg
2,7 -
3,6 kg
2,8 - 3,8 kg
Tension nominale 36 V - 40 V c.c. max.
 

 
 󰀨

Batterie et chargeur applicables
Batterie BL4020 / BL4025* / BL4040* / BL4050F*
* : Batterie recommandée
Chargeur 
 
résidez.
AVERTISSEMENT : N’utilisez que les batteries et les chargeurs répertoriés ci-dessus. L’utilisation

Source d’alimentation connectée par cordon recommandée
 
• La ou les sources d’alimentation connectées par cordon répertoriées ci-dessus peuvent ne pas être dispo-

 
inscrits dessus.
Utilisations
L’outil est conçu pour le meulage, le ponçage et la coupe
de matériaux en métal ou en pierre sans utiliser d’eau.
Bruit

Modèle Niveau de pression
sonore (LpA) : (dB (A))
Niveau de puissance
sonore (LWA) : (dB (A))
Incertitude (K) :
(dB (A))
 81 92 3
 81 92 3
 81 92 3
 81 92 3
 81 92 3
 81 92 3

19 FRANÇAIS
NOTE :
standard et peuvent être utilisées pour comparer les outils entre eux.
NOTE :
de l’exposition.
AVERTISSEMENT : Portez un serre-tête antibruit.
AVERTISSEMENT : 󰀨
la ou des valeurs déclarées, suivant la façon dont l’outil est utilisé, particulièrement selon le type de pièce
usinée.
AVERTISSEMENT : Les mesures de sécurité à prendre pour protéger l’utilisateur doivent être basées
sur une estimation de l’exposition dans des conditions réelles d’utilisation (en tenant compte de toutes
les composantes du cycle d’utilisation, comme par exemple le moment de sa mise hors tension, lorsqu’il
tourne à vide et le moment de son déclenchement).
Vibrations

Mode de travail : meulage de surfaces avec poignée latérale normale
Modèle Émission de vibrations (ah, AG) : (m/s2) Incertitude (K) : (m/s2)
 5,0 1,5
 5,5 1,5
 6,5 1,5
 5,0 1,5
 5,5 1,5
 6,5 1,5
Mode de travail : meulage de surfaces avec poignée latérale anti-vibration
Modèle Émission de vibrations (ah, AG) : (m/s2) Incertitude (K) : (m/s2)
 5,5 1,5
 5,5 1,5
 5,5 1,5
 5,5 1,5
 5,5 1,5
 5,5 1,5
Mode de travail : ponçage au disque avec poignée latérale normale
Modèle Émission de vibrations (ah, AG) : (m/s2) Incertitude (K) : (m/s2)
 2,5 m/s2ou moins 1,5
 2,5 m/s2ou moins 1,5
 2,5 1,5
 2,5 m/s2ou moins 1,5
 2,5 m/s2ou moins 1,5
 2,5 1,5
Mode de travail : ponçage au disque avec poignée latérale anti-vibration
Modèle Émission de vibrations (ah, AG) : (m/s2) Incertitude (K) : (m/s2)
 2,5 m/s2ou moins 1,5
 2,5 m/s2ou moins 1,5
 3,0 1,5
 2,5 m/s2ou moins 1,5
 2,5 m/s2ou moins 1,5
 3,0 1,5

20 FRANÇAIS
NOTE :
standard et peuvent être utilisées pour comparer les outils entre eux.
NOTE :
de l’exposition.
AVERTISSEMENT : 󰀨-
rente de la ou des valeurs déclarées, suivant la façon dont l’outil est utilisé, particulièrement selon le type
de pièce usinée.
AVERTISSEMENT : Les mesures de sécurité à prendre pour protéger l’utilisateur doivent être basées
sur une estimation de l’exposition dans des conditions réelles d’utilisation (en tenant compte de toutes
les composantes du cycle d’utilisation, comme par exemple le moment de sa mise hors tension, lorsqu’il
tourne à vide et le moment de son déclenchement).
AVERTISSEMENT :

󰀨
Déclaration de conformité CE
Pour les pays européens uniquement


CONSIGNES DE
SÉCURITÉ
Consignes de sécurité générales
pour outils électriques
AVERTISSEMENT : Veuillez lire les
consignes de sécurité, instructions, illustrations

électrique. Le non-respect de toutes les instructions
-

Conservez toutes les mises en
garde et instructions pour réfé-
rence ultérieure.


-

Consignes de sécurité pour

Consignes de sécurité communes aux travaux de
meulage, ponçage, brossage métallique ou tronçon-
nage abrasif :
1. Cet outil électrique est conçu pour être uti-
lisé en tant que meuleuse, ponceuse, brosse
métallique ou outil de tronçonnage. Veuillez
lire les consignes de sécurité, instructions,
-
pagnent cet outil électrique. Le non-respect de



2. 󰀨
polissage avec cet outil électrique.


n’a pas été conçu.
3. N’utilisez pas d’accessoires qui n’ont pas été

fabricant de l’outil. Même si un accessoire peut


4. La vitesse nominale de l’accessoire doit être
au moins égale à la vitesse maximum inscrite
sur l’outil électrique. Les accessoires tournant

casser et voler en éclats.
5. Le diamètre extérieur et l’épaisseur de l’ac-
cessoire ne doivent pas dépasser la capacité
nominale de l’outil électrique. Les accessoires
de taille incorrecte ne peuvent être protégés ou

6. 
correspondre à celui de l’axe de la meuleuse.
Pour les accessoires montés à l’aide de






7. N’utilisez jamais un accessoire endommagé.
Avant chaque utilisation, assurez-vous que
la meule abrasive est exempte de copeaux et

déchirée ou trop usée, ou que la brosse métal-


un accessoire, assurez-vous qu’il n’est pas
endommagé ou bien remplacez l’accessoire

accessoire, assurez-vous que personne, y
compris vous-même, ne se trouve dans la
trajectoire de l’accessoire en rotation et faites
tourner l’outil électrique à vitesse à vide maxi-
male pendant une minute. Les accessoires

de cette période d’essai.
