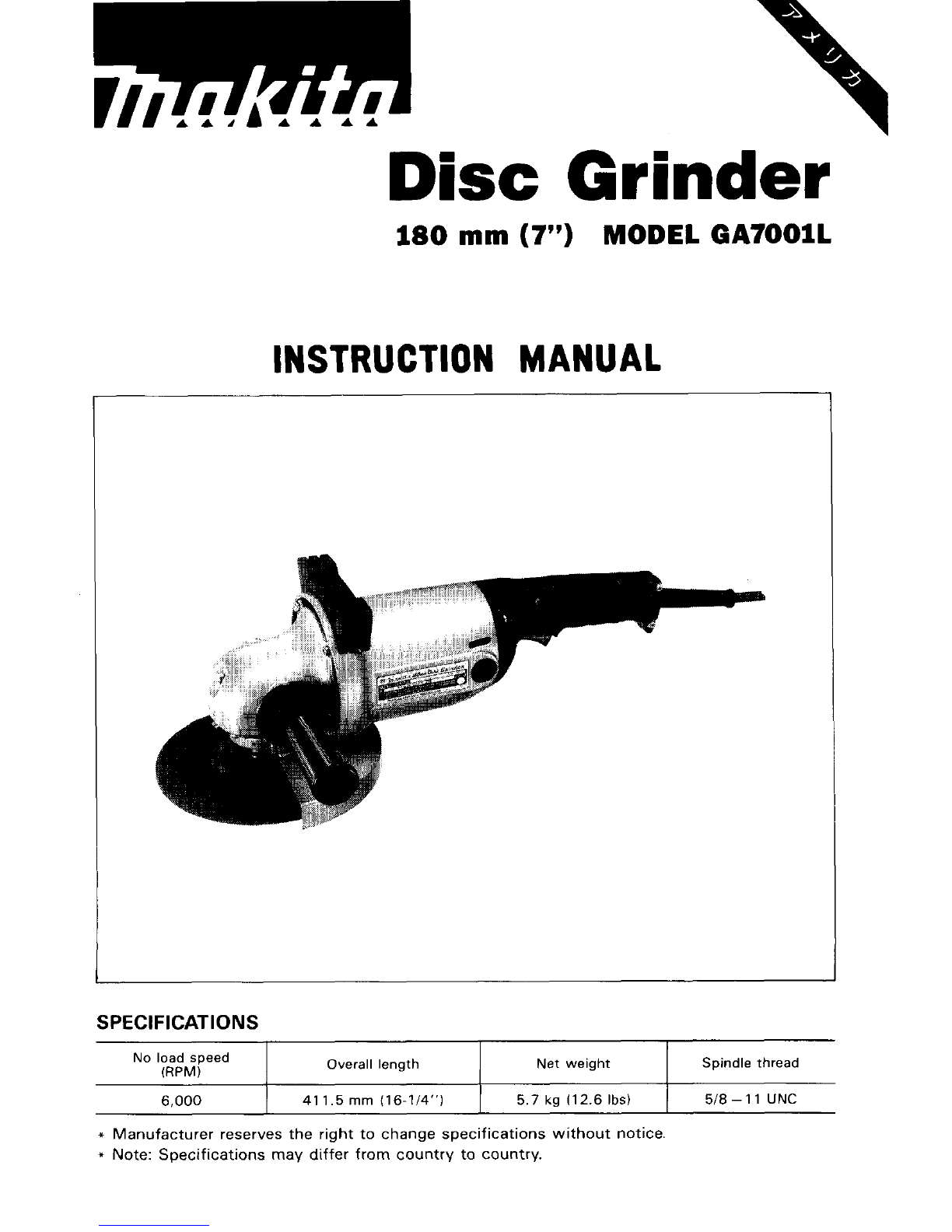

Makita GA700lL User manual

Disc Grinder
411.5 mm (16-114")
6,000
180 mm (7") MODEL GA700lL
5.7 kg 112.6 Ibs)
518 - 11 UNC
INSTRUCTION MANUAL
SPEC IF I CAT I 0 N S
No load speed
(RPM)
Overall length
I Net weight
I Spindle thread

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools torain.
Don't use tool
in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. When not in use, toolsshould be stored in dry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will dothejob better andsafer atthe ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't usetoolfor purposenotintended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESSPROPERLY. Don't wear loose clothingorjewelry. They canbe caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operationis
dusty.
9. DON'T ABUSE CORD. Nevercarry tool by cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspect tool cords periodically and
if damaged, have repaired by
authorized service facility. Inspectextension cords periodically and replace
if damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, before servicing, andwhenchanging
accessories, such as blades, bits, cutters.
2

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from toolbeforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry tool withfinger onswitch.
Be sure switch is OFF when plugging in.
16. EXTENSION CORDS. Make sure your extension cord is
in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the currentyour product will draw. An undersized cord will cause a drop in
line voltage resultingin loss of power and overheating. Table 1 shows the
correct size to use depending oncord lengthand nameplateampere rating.
If in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1
MINIMUM GAGE FOR CORD SETS
Ampere Rating
More Not More
Than Than
I
Total Length of Cord in Feet
0 - 25 26 - 50 51 - 100 101 - 150
AWG
0- 6
6
- 10
10
- 12
12
- 16
18 16 14
16 16 14 12
14 12
Not Recommended
18 16 ;: 1 12
3

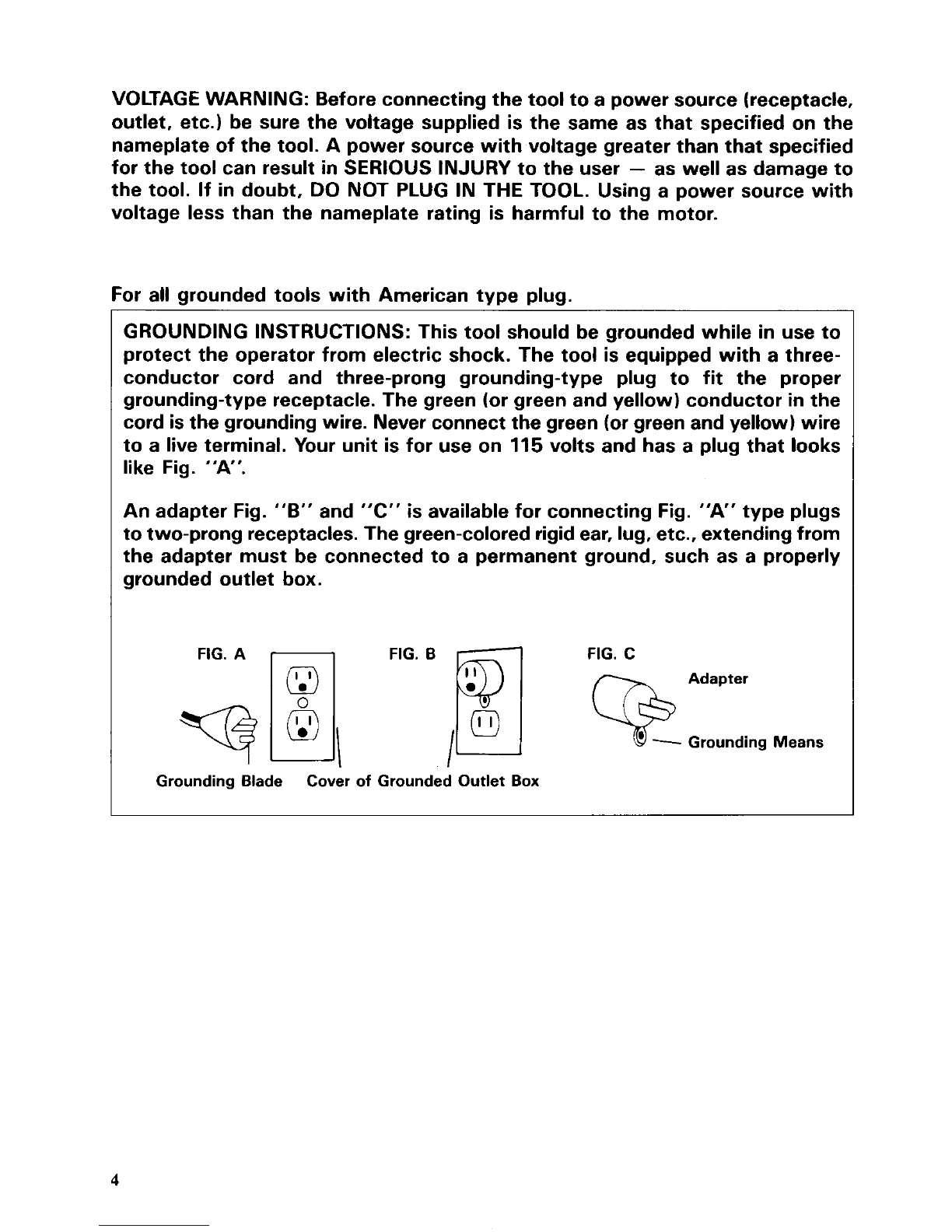

VOLTAGE WARNING: Before connectingthe tooltoa powersource (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool.
A power source withvoltage greater than that specified
for the tool can result
in SERIOUS INJURYtothe user - as well as damage to
the tool.
If in doubt, DO NOT PLUG INTHE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
For all grounded tools
with American type plug.
GROUNDING INSTRUCTIONS: This tool should be grounded while in use to
protect the operator from electric shock. The tool is equipped
with a three-
conductor cord and three-prong grounding-type plug to
fit the proper
grounding-typereceptacle. The green (orgreen and yellow)conductor
in the
cord isthe grounding wire. Never connectthe green (orgreenandyellow) wire
to a live terminal. Your
unit isfor use on 115 volts and has a plug that looks
like Fig.
"A'.
Anadapter Fig. "6" and "C" isavailable for connecting Fig. "A' type plugs
totwo-prongreceptacles.The green-coloredrigidear,
lug, etc., extendingfrom
the adapter must be connected to a permanent ground, such as a properly
grounded outlet box.
Grounding Blade Cover
of Grounded Outlet Box
FIG. C
A Adapter
- Grounding Mea
4

ADDITIONAL SAFETY RULES
1. Keep guards in place.
2. Useonly wheels havinga maximumoperating speedatleast as highas "No
Load RPM" markedonthe tool's nameplate. When using depressed center
wheels, be sure to use only fiberglass-reinforced wheels.
3. Check the wheel carefully for cracks or damage before operation. Replace
cracked or damaged wheel immediately.
4. Use only flanges specified for this tool.
5. Be careful not to damage the spindle, the flange (especially the installing
surface) or the lock nut. Damage to these parts could result in wheel
breakage.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Make sure the wheel is not contacting the workpiece before the switch is
turned on.
9. Before using the tool on an actual workpiece, let it runfor a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced wheel.
IO. Use the specified surface of the wheel to perform the grinding.
11. Watch out for flying sparks. Holdthe tool so that sparks fly away from you
12. Do not leave the tool running. Operate the tool only when hand-held.
13. Do nottouchthe workpieceimmediately after operation; it may beextremely
and other persons or flammable materials.
hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

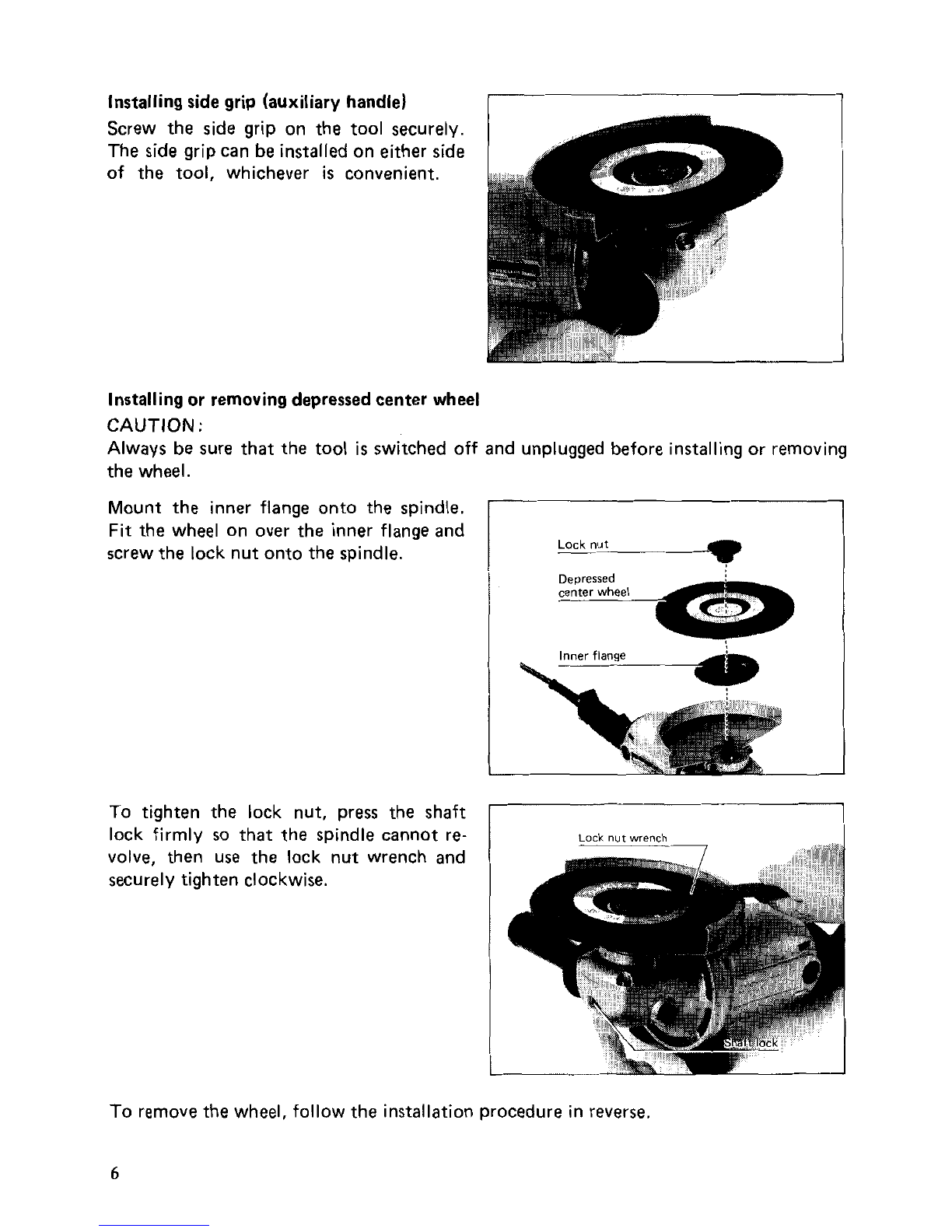

Installingside grip (auxiliary handle)
Screw the side grip on the tool securely.
The side gripcan be installedon either side
of the tool, whichever
is convenient.
Installingor removingdepressed center wheel
CAUTION
:
Always be sure that the tool is switched off and unplugged beforeinstallingor removing
the wheel.
Mount the inner flange onto the spindle.
Fit the wheel on over the inner flange and
screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft
lock firmly
so that the spindle cannot re-
volve, then use the lock nut wrench and
securely tighten clockwise.
Lock nut
Lock nut wrench I
To remove the wheel, follow the installationprocedure in reverse.
6

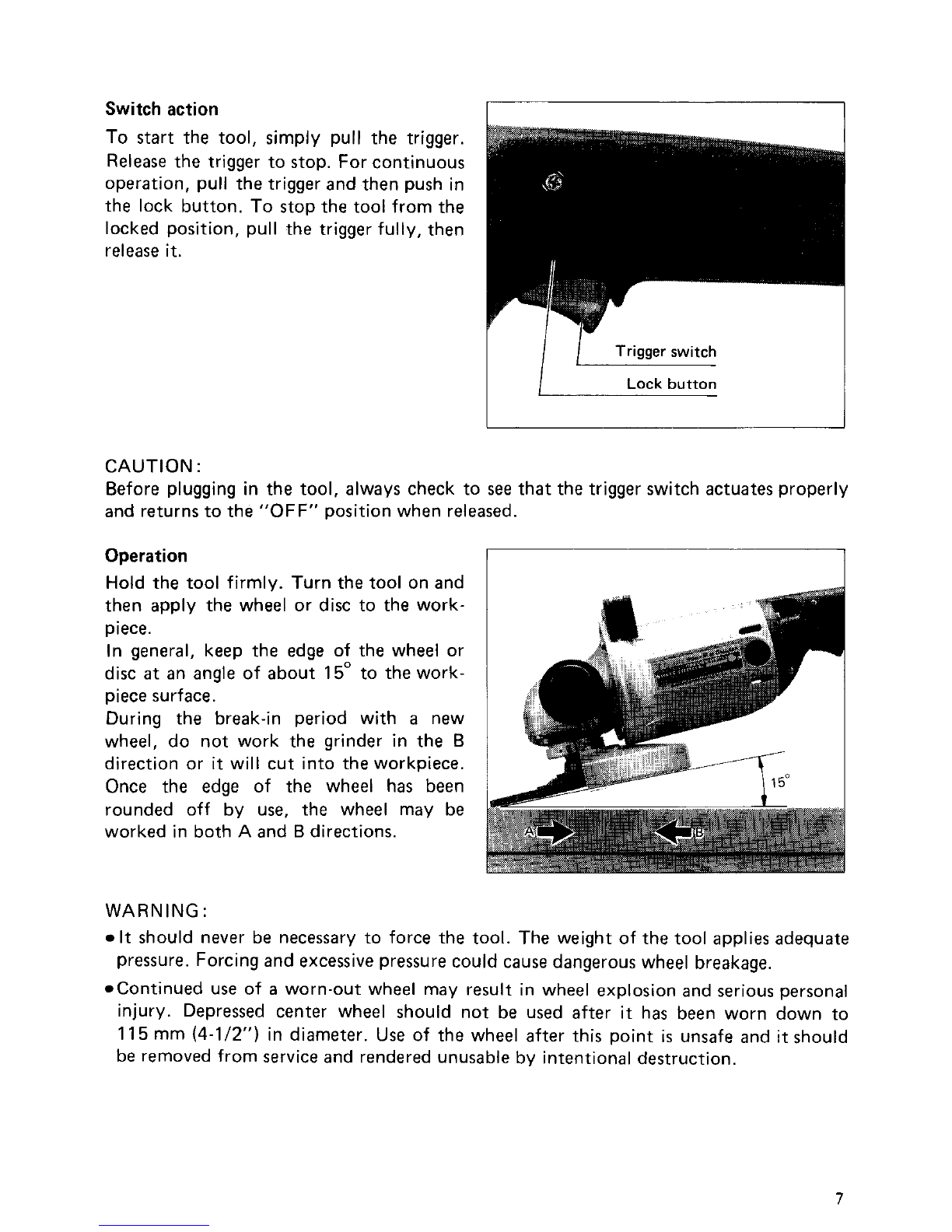

Switch action
Trigger switch
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returnstothe
"OFF" positionwhen released.
Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to the work-
piece.
In general, keep the edge of the wheel or
disc
at an angle of about 15" to the work-
piece surface.
During the break-in period with
a new
wheel, do not work the grinder in the B
direction or
it will cut into the workpiece.
Once the edge of the wheel has been
rounded off by use, the wheel may be
worked in both
A and B directions.
WARNING:
It should never be necessary to force the tool. The weight of the tool applies adequate
pressure. Forcingand excessive pressurecouldcause dangerous wheel breakage.
Continued use of a worn-out wheel may result in wheel explosion and serious personal
injury. Depressed center wheel should not be used after
it has been worn down to
11 5 mm (4-1/2") in diameter. Use of the wheel after this point is unsafe and it should
be removedfromservice and rendered unusableby intentional destruction.
7

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspectionor maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to
the limitmark. Keepthecarbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holdercaps.
/ Limit mark
Scre wd r we r
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always usingMakita replacementparts.
8

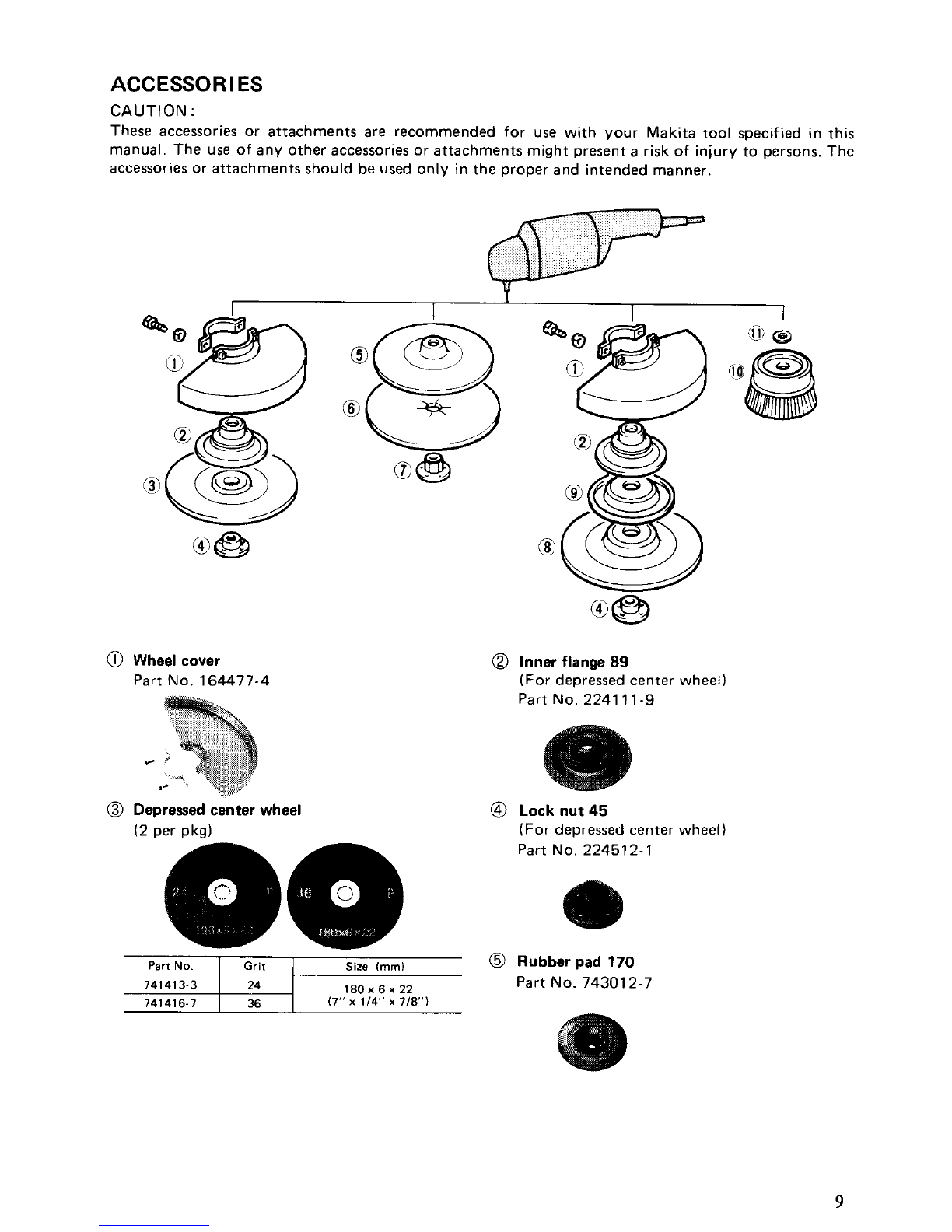

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessoriesor attachmentsmight present a risk of injury to persons. The
accessoriesor attachmentsshould
be used only inthe proper and intended manner.
741413 3
741416
7
@ Wheel cover
Part No. 164477-4
24 180 x 6 x 22 Part No. 743012-7
36
(7" x 1/4' x 7/8')
@ Depressedcenter wheel
(2per pkd
@ Inner flange 89
(Fordepressed center wheel)
Part No. 224111 -9
@ Lock nut45
(Fordepressed center wheel)
Part No. 224512-1
9

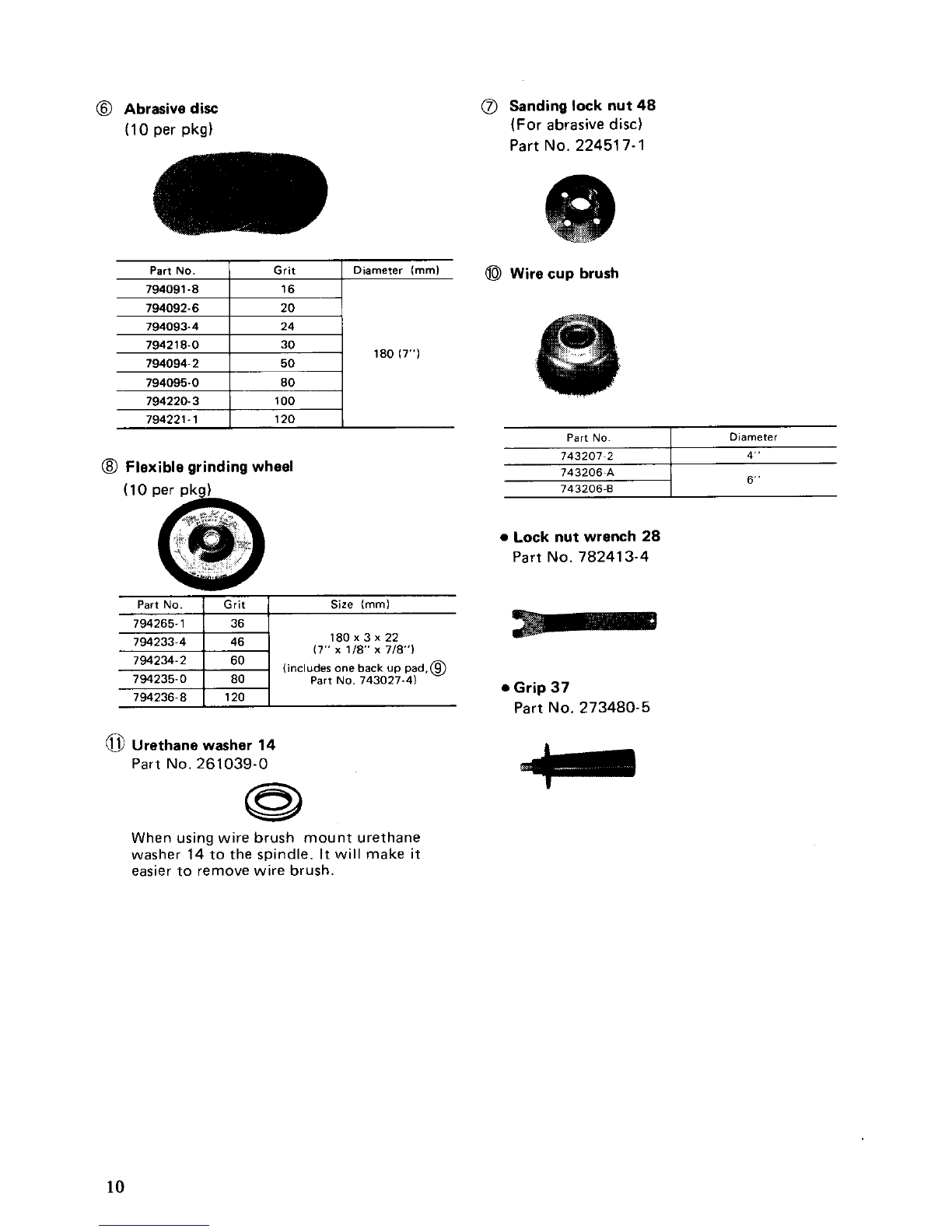

@ Abrasive disc
(10per pkg)
Part No. Grit
794091-8 16
794092-6 20
794093-4 24
794218-0 30
794094-2 50
794095-0
80
794220-3 100
794221-1 120
Diameter
lmml
180 17")
0 Sanding lock nut 48
(For abrasive disc)
Part No. 224517-1
@J Wire cup brush
@ Flexiblegrinding wheel
0 Lock nut wrench 28
Part No. 782413-4
794265-1 I 36 I
180x 3 x 22
17" x 1/8" x 7/8")
(includes one back up pad,@
794235-0 Part
No, 743027-4)
0 Urethane washer 14
Part No. 261039-0
0 Grip 37
Part No. 273480-5
When using wire brush mount urethane
washer 14 to the spindle. Itwill make it
easier to remove wire brush.
10

Jan.-26-90 US
180 mm (7")
DISC GRINDER
Model GA7001L
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
11

MODEL GA7001L Jan 26-90 US
AtD DESCRIPTION A:D DESCRIPTION
MA1
1
2
3
4
6
7
8
9
10
11
12
13
14
15
-
16
11
18
19
20
21
22
23
24
25
26
27
28
29
NE
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
1
1
1
1
-
Retaining Ring R- 12
Pm 6
Compression Spring 1
Pan Head Screw M5x22 IWith Washer)
Gear Housing
0 Ring 36
Retaining Ring S - 11
Ring 11
Spiral Bevel
Gear 17
Ball Bearing 6301LLB
Plate
Woodruff Key 4
Fan 100
ARMATURE ASSEMBLY
IWith Item 14 - 171
Dust Seal 10
Ball Bearing 6200LB
FIELD ASSEMBLY
Handle Set IWith Item 551
Rubber Pin 4
Pan Head Screw M4xB IWith Warherl
Pan
Head Screw M5x65 IWith Washer & Bond1
Motor
Housing
Insulation Washer
Retaining Ring S-17
Spiral Bevel Gear 58
Retaining Ring R-40
Ball Bearing 6203LLB
0 Rinq 40
MACHINE
~
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
47
48
49
50
51
52
53
54
55
56
57
00
-
1
1
1
1
1
4
2
1
1
1
1
1
1
2
2
2
1
1
2
2
4
3
1
1
1
1
1
1
-
Flat Washer 28
Felt Ring 25
Spindle
Woodruff Key 4
Pan Head Screw M5xl8 IWith Washer)
Pan Head Screw M5x16
Spring
Washer 5
Wheel Cover Holder
Wheel
Cover
Inner Flange
Lock Nu:
Name
Plate
Rivet
0-5
Carbon Brush
Brush Holder Cap
Switch
Strain Relief
Pan Head Screw M4x10 IWith Washer)
Pan Head Screw M4xlB IWith Washer)
Pan Head Screw M5x22 IWith Washer1
Pan Head Screw M4x25 IWith Washer]
Cod
Cord
Guard
Handle Set IWith Item 191
Hex Socket Head Bolt M6x25 IWith Washerl
Spring Washer 6
Grip 31
Bearing BOX
Note The switch and other part specifications may Uiffer from country to country
f
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free
of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused
by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty
does not apply where:
repairs have been made or attempted by others:
e repairs are required because of normal wear and tear
e The tool has been abused, misused or improperly maintained ;
e alterations have been made tothe tool.
IN NO LVFNT SIIALL HAKITA Bi LIABLE FOR ANY INDIRtCT. IXCIDthTAL OK CON
SI QUkNTIAL DAMAGI
S FROM THF SALL OR USL Ol THI PKODU(T lHlS
DISC LAlMt R
APPLltS
BOrH DURIUG AND AI TER THtTFRM 01 THIS WARRAXTY
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives
YOU specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow
long an implied warranty lasts, so the above limitation may not apply to you.
t
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883271D064 PRINTED INJAPAN
1995 -3-N
