Makita 9015A User manual

5” GRINDER (W/Brake & Clutch)AC/DC
Model 9015A(MJ)
04-2002

2 Model 9015A
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
1416449-8 1Pin Cap
2233089-5 1Compression Spring 12
3266173-1 4Tapping Screw 5X30
4*1Gear Housing Com.
5941152-7 1Flat Washer 6
6226755-1 1Spiral Bevel Gear 12
183317-7 1Spiral Bevel Gear Set
(Includes Item 6 & 45)
8211131-2 1Ball Bearing 6001DDW
9317433-5 1Gear Housing Cover
10 240010-7 1Fan 70
11 516411-4 1Armature Assy (Includes Item 10,
12 & 13)
12 681644-1 1Insulation Washer
13 210005-4 1Ball Bearing 608DDW
14 416448-0 1Baffle Plate
15 265995-6 4Tapping Screw 4X18
16 183274-9 1Handle Set
17 522851-6 1Field Assy [Includes Items 24(1pc)
& 33(1pc)]
18 266029-8 2Tapping Screw 5X65
19 183159-9 1Motor Housing (Includes Item 21
& 2X643708-9 -Brush Holder 5-11)
20 *4Screw
21 819001-5 2Makita Label
22 643750-0 2Brush Holder Cap
23 191979-7 2Carbon Brush CB-311(2pcs/Set)
24 654020-2 2Ring Terminal
25 654532-5 1Terminal Block 1P
26 651055-4 1Switch AC/DC
27 417313-6 1Switch Base
28 417314-4 1Switch Lever
29 265995-6 2Tapping Screw 4X18
30 687063-9 1Strain Relief
31 664213-3 1Cord With Plug 2P-16-2.5M
32 682505-8 1Cord Guard 10-90
33 654501-6 2Connector P-1.25
34 251391-4 1P.H. Screw M5X16
35 344942-1 1Labyrinth Ring
37 152684-1 1Spindle Com. (Includes Item 35)
38 317396-5 1Bearing Box
39 442126-6 1Gasket
40 211236-8 1Ball Bearing 6002DDW
41 962151-6 1Retaining Ring R-32
42 324077-4 1Lock Sleeve
43 233905-1 1Lock Spring 17
44 267757-8 1Lock Washer
45 227404-3 Spiral Bevel Gear 33
183317-7 1Spiral Bevel Gear Set
(Includes Item 6 & 45)
46 253215-0 1Flat Washer 8
47 961004-6 1Retaining Ring S-8
49 256446-0 1Pin 6
50 931303-0 1Hex. Nut M6
51 654509-0 1Closed End Terminal 2-SD

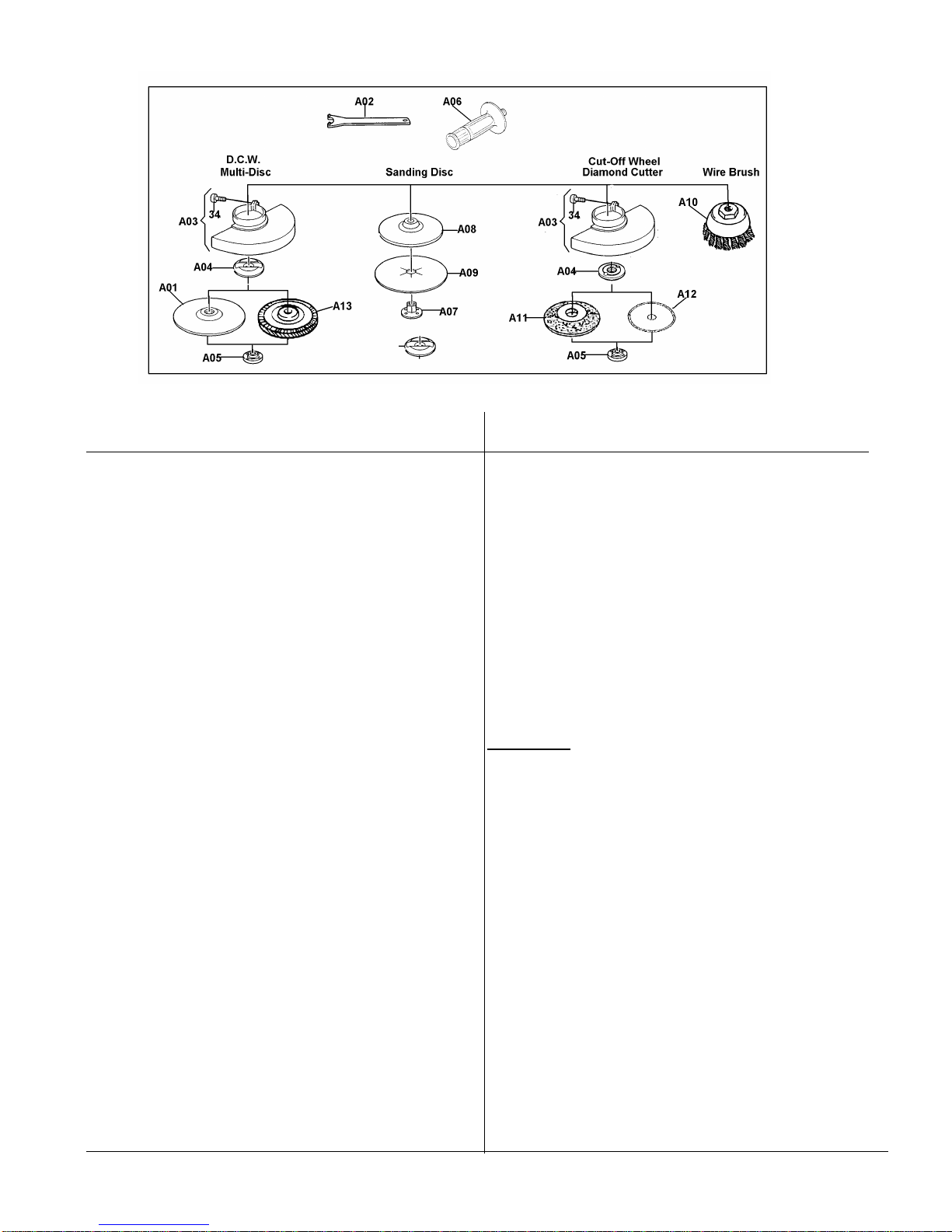

Accessories
A01 - - - - - 15" Depressed Center Wheel
(See Catalogue for Details)
A02 782412-6 1Lock Nut Wrench 28
A03 125097-9 1Wheel Cover Assy
(Includes Item 34)
A04 224368-2 1Inner Flange 45 (Type 1) (For
D.C.W., Multi Disc. C.O.W. &
Diamond Wheel)
224378-9 1Inner Flange 45 (Type 2) (For
D.C.W., Multi Disc. C.O.W. &
Diamond Wheel)
*When replacing Inner Flange make sure to use same Type
of Lock Nut
A05 224566-8 1Lock Nut 5/8” - 45 (Type 1) (For
D.C.W., Multi Disc, C.O.W.,
Diamond Wheel)
224568-4 1Lock Nut 5/8” - 45 (Type 2)(For
D.C.W., Multi Disc, C.O.W.,
Diamond Wheel)
*When replacing Lock Nut make sure to use same Type
of Inner Flange

3 Model 9015A
A06 152492-0 1Grip 36 Com.
A07 224517-1 1Lock Nut 48 (For Abrasive Disc)
A08 743015-1 1Rubber Pad (For 5" Abrasive Disc)
A09 - - - - - 15" Abrasive Disc
(See Catalogue for Details)
A10 - - - - - 1Wire Cup Brush
(See Catalogue for Details)
A11 - - - - - 15" C.O.W.
(See Catalogue for Details)
A12 - - - - - 15” Diamond Wheel
(See Catalogue for Details)
A13 - - - - - 15" Multi-Disc
(See Catalogue for Details)
Item No. Description Type 1 Type 2
4Gear Housing Com. 159995-5 153374-9
(Includes 212043-2 - Needle Bearing 810)
(Items 1, 2 & 49 - NOT INCLUDED)
20 Screw 266027-2 - Tapping Screw CT 5X16 265096-0 - P.H. Screw M5X16
Serial # ~ 2125E 2126E ~
Above parts are completely interchangeable as a set.
SERVICE CHANGES
1. Change on Tapping Screws for securing Bearing Box to Gear Housing
* SEE SERVICE CHANGES
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
