Makita 6901D User manual

Cordless Impact Driver
Dimensions
(C x W x HI
Capacities No load Impacts Max
speed per tightening torque
Machine screw and
bolt IRPM) minute (Note 1)
MODEL 6901D
MODEL 6901DW
With Fast Charger
Net
weight
INSTRUCTION MANUAL
Battery Cartridge 9100
SPEC IF I CAT1 0 N S
Model DC9700 Fast Charger
Voltage 1 Charging time 1 Input I output
9.6 V 1 1 Hr. 1 A.C. only 50Hz - 60Hz 1 D.C. 7.2V. 9.6V
~~
Note 1 After tightening high tensile bolt MlOFllT for 3 seconds while using a fully charged battery cartridge
* Manufacturer reserves the right to change specifications without notice
Note Specifications may differ from country to country

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not inuse, tools should be stored indry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob better andsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to
do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing or jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry toolby cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspect
tool cords periodicallyand if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When notinuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysandadjusting wrenches are removedfromtool beforeturning
it on.
15. AVOID UNINTENTIONAL STARTING.Don't carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging
in.
16. OUTDOOR USE EXTENSION CORDS.Whentool isusedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what youare doing, usecommon sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Beforefurther use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properlyand performitsintended function. Check for alignment of
movingparts, bindingofmovingparts, breakageof parts, mounting,
and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identical replacement parts.
VOLTAGE WARNING: Beforeconnectingthetool
to a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source
with voltage greater than that specified
for the tool can result
in SERIOUS INJURY to the user - as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet) 25 50
AWG Size of Cord 18 18
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
100 150
18 16
SAVE THESE INSTRUCTIONS - This manual
12. To reduce risk of electric shock, unplug charger from outlet beforeattemp-
ting any maintenance or cleaning. Turning off controls will not reduce this
risk.
4

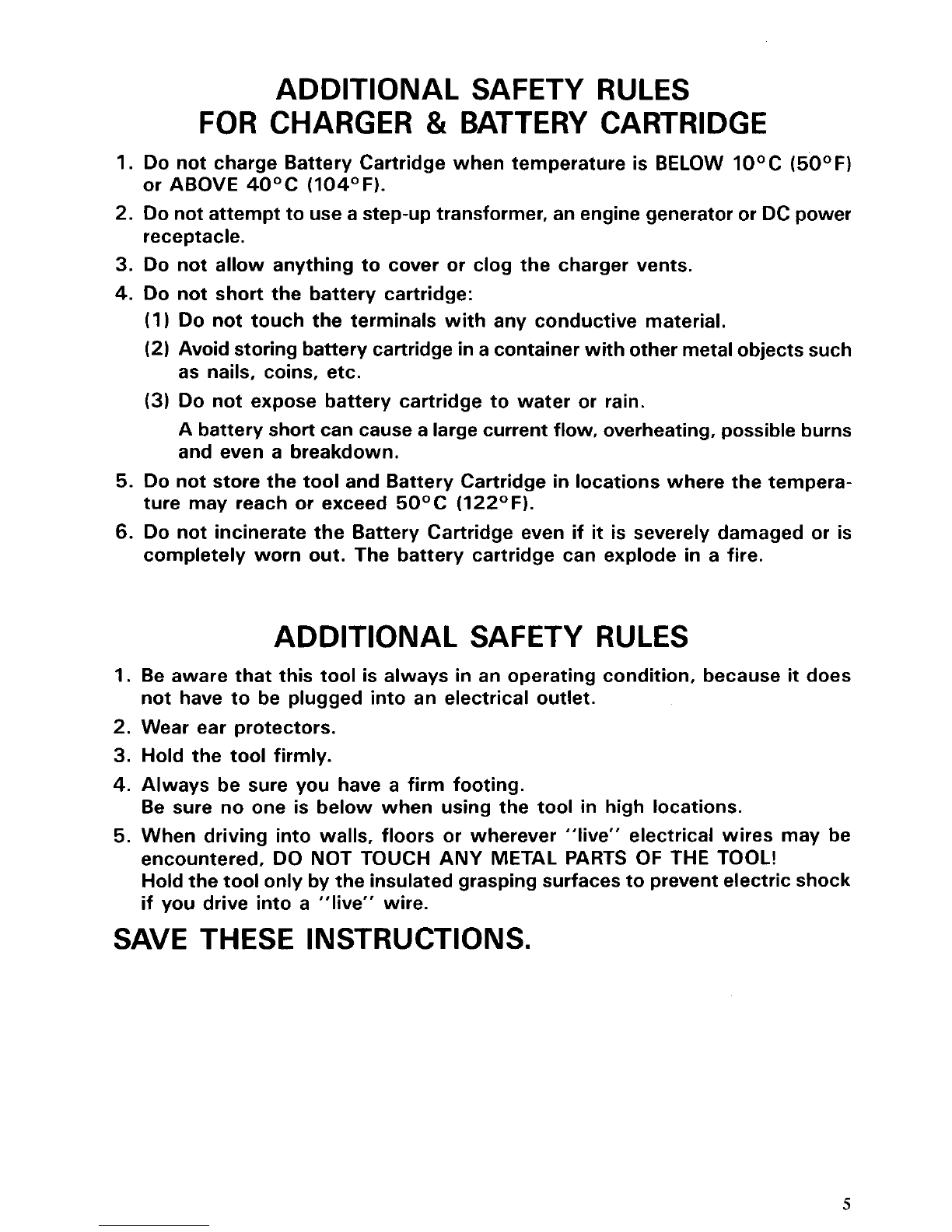

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do notattempt to use astep-uptransformer, anengine generator or DC power
or ABOVE 4OoC (104OF).
receptacle.
3. Do not allow anything to cover or clog the charger vents.
4. Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing batterycartridge in acontainer withother metalobjects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A batteryshort can cause a large current flow, overheating, possible burns
and even
a breakdown.
5. Do not store the tooland Battery Cartridge in locations where the tempera-
6. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Wear ear protectors.
3. Hold the tool firmly.
4. Always be sure you have a firm footing.
Be sure no one is below when using the tool
in high locations.
5. When driving into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe toolonly by the insulatedgrasping surfacestopreventelectric shock
if you drive into a "live" wire.
not have to be plugged into an electrical outlet.
SAVE THESE INSTRUCTIONS.
5

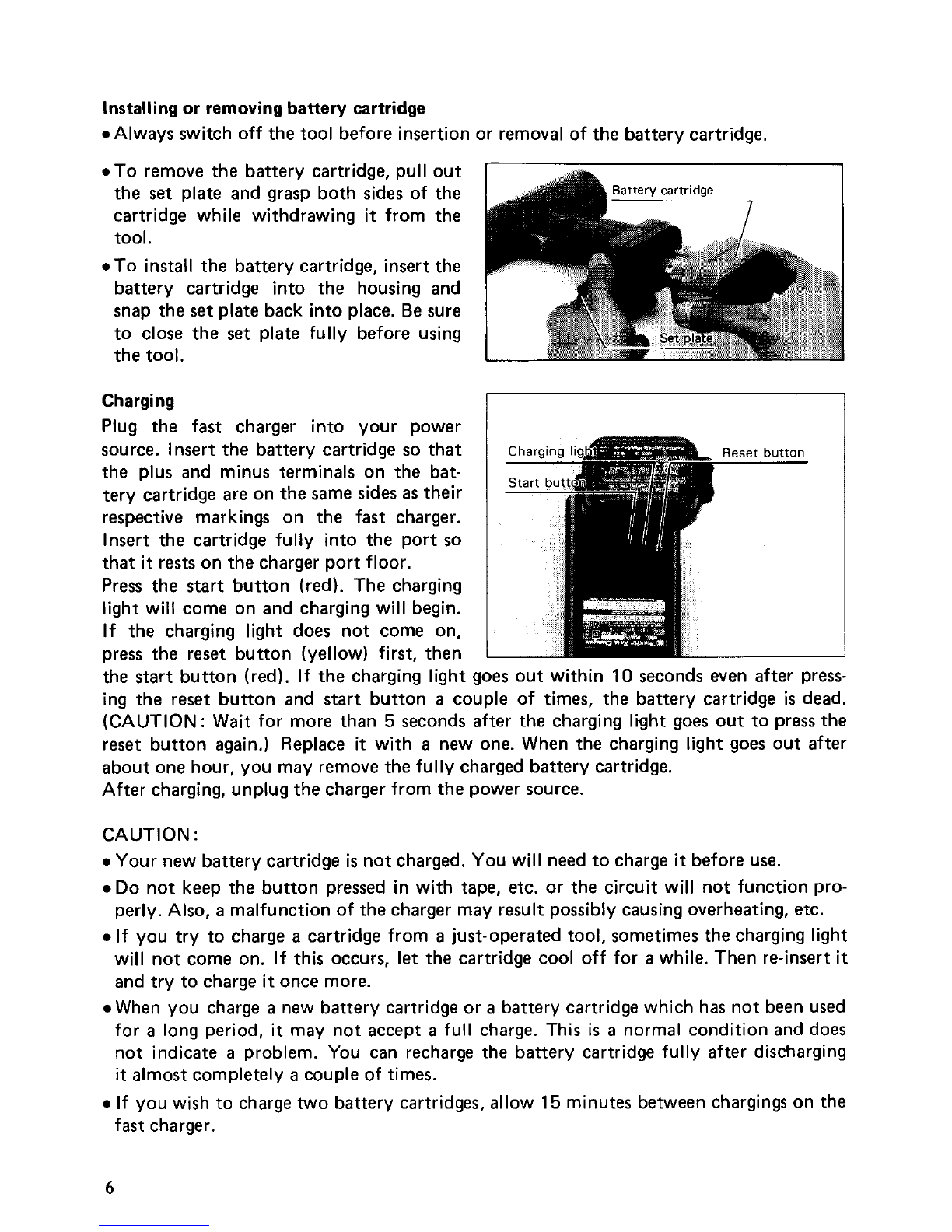

Installingor removingbattery cartridge
.Always switch off the tool before insertionor removalof the batterycartridge.
*To remove the battery cartridge, pull out
the
set plate and grasp both sides of the
cartridge while withdrawing
it from the
tool.
0 To install the batterycartridge, insert the
battery cartridge into the housing and
snap the
set plate back into place. Be sure
to close the
set plate fully before using
the tool.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger port floor.
Press the start button (red). The charging
light will come on and charging will begin.
If the charging light does not come on,
press the reset button (yellow) first, then
button
the start button (red). If the charging light goes out within 10 seconds even after press-
ing the reset button and start button
a couple of times, the battery cartridge is dead.
(CAUTION
: Wait for more than 5 seconds after the charging light goes out to press the
reset button again.) Replace
it with a new one. When the charging light goes out after
about one hour, you may removethe fully charged battery cartridge.
After charging, unplugthe charger from the power source.
CAUTION:
0 Your new batterycartridge is notcharged. You will need tocharge it before use.
.Do not keep the button pressed in with tape, etc. or the circuit will not function pro-
perly.Also,
a malfunction of the charger may result possibly causing overheating, etc.
0 If you try to charge a cartridge from a just-operatedtool, sometimesthe charging light
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert it
and try to charge it once more.
When you charge a new battery cartridgeor a batterycartridge which has not been used
for a long period, it may not accept a full charge. This is a normal conditionand does
not indicate
a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If you wish to charge two battery cartridges,allow 15 minutes betweenchargings on the
fast charger.
6

Installing or removing driver bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removingthe bit.
Slide the
sleeve toward the motor and in-
sert the bit into the
sleeve as far as it will
go. Then release the
sleeve to secure the
bit.
To remove the bit, slide the sleeve toward
the motor and pullthe bitout firmly.
NOTE
:
If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its
original position and the bit will not be secured. In this case, try re-inserting the bit
accordingto the instructionsabove.
CAUTION:
Before inserting the battery cartridge into the tool, always check to
see that the trigger
switch actuatesproperly and returns to the
"OFF" position when released.
Reversingswitch action
This tool has a reversingswitch to change
the direction
of rotation. Slide the revers-
ing switch to the right for clockwise rota-
tion or
to the left for counterclockwise.
CAUTION
:
0 Always check the direction of rotation before operation.
*Use the reversing switch only when the tool comes to
a complete stop. Changing the
direction of rotation before the tool stops may ruinthe tool.
7

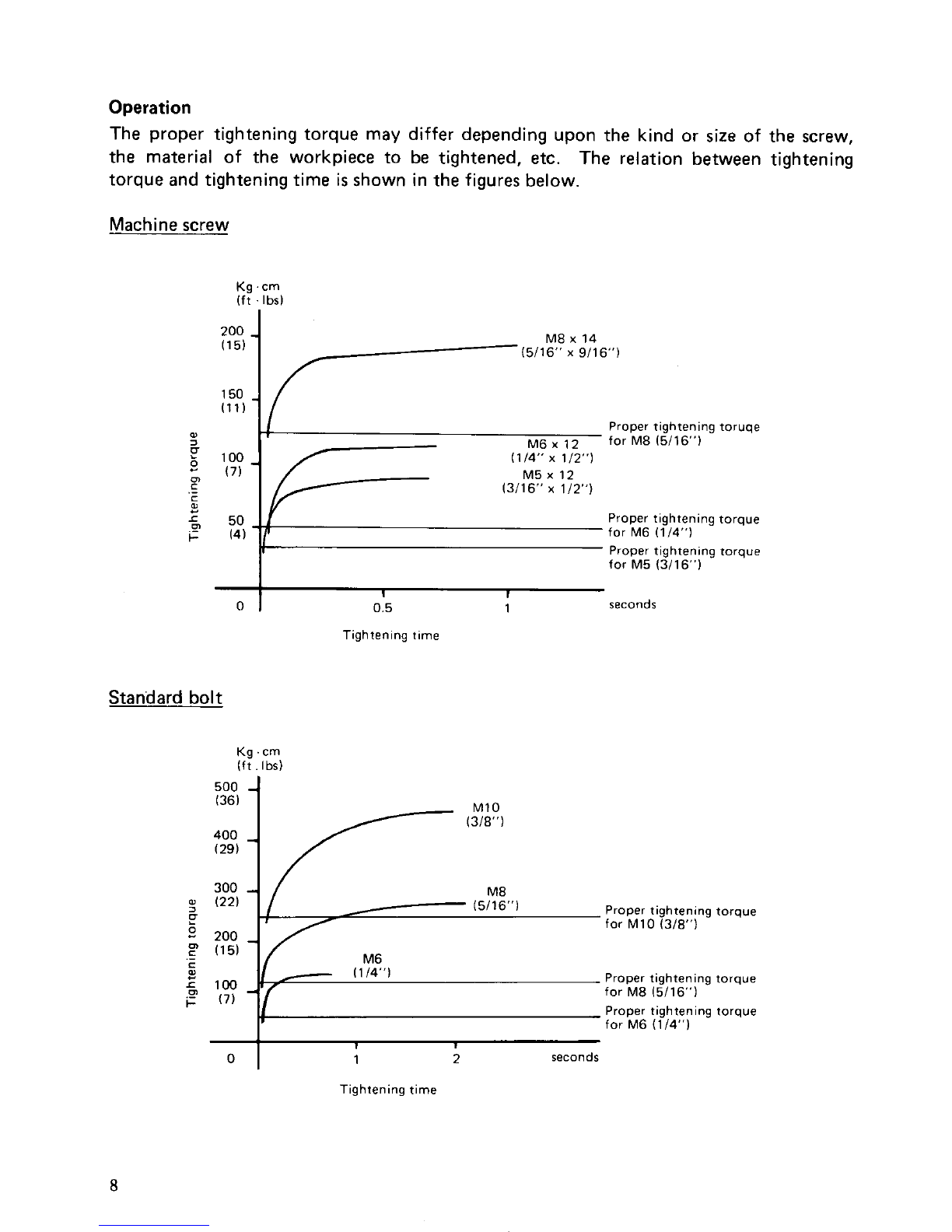

Operation
The proper tightening torque may differ depending upon the kind or size of the screw,
the material of the workpiece to be tightened, etc. The relation between tightening
torque and tightening time
is shown in the figures below.
+ (4)
0
Machine screw
for M6 (1/4")
Proper tightening torque
for M5 (3/16")
1 I
05 1 seconds
Kg
. cm
Ift
. lbsl
Standard bolt
Kg . cm
(ft
. Ibs)
500 -
(36) M10
(3/8")
M8
(5/16"1 Proper tightenlng torque
for M10 (3/8")
Proper tightening torque
for M8 (5116")
Proper tightening torque
for
M6 (1/4")
1
0 1 2 seconds
Tightening time
8

Hold the tool firmly and place the point of the driver bit in the screw head. Apply for-
ward pressure tothe tool to
the extent that the bit will not slip off the screw and turn the
tool on to start operation.
NOTE
:
Use the proper bitfor the head of the screw that you wish touse.
Hold the tool pointed straight at the screw.
If you tighten the screw for a time longer than shown inthe figures above, the screw or
the point of the driver bit may be overstressed, stripped, damaged, etc. Beforestarting
your job, always perform
a test operation to determine the proper tightening time for
your screw. When tightening
a standard screw in a steel plate, the proper tightening
torque can be obtained in an extremely short time (approx.
0.1 -- 0.2 seconds). Turn
the tool off
as soon as the impact sound is heard.
The tightening torque
is affected by a wide variety of factors including the following.
After tightening, always check the torque with
a torque wrench.
1. When the battery cartridge is discharged almost completely, voltage will drop and the
tighteningtorque will
be reduced.
2. Driver bitor socket bit
*Failure to use the correct
size driver bit or socket bit will cause a reduction in the
tighteningtorque.
3. Bolt
Even though the torque coefficient and the class of bolt are the same, the proper
*Even though the diameters of bolts are the same, the proper tightening torque will
4. The manner of holding the tool or the material of driving position to be tightened will
tightening torque will differ accordingto the diameter of bolt.
differ according tothe torque coefficient, the
class of boltand the bolt length.
affect the torque.
CAUTION
:
If the tool is operated continuously until the battery cartridge has discharged, allow the
tool to rest for
15 minutes before proceedingwith a fresh battery.
9

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection
or maintenance.
To maintain product SAFETY and RELlABlLITY, repairs, maintenance
or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
10

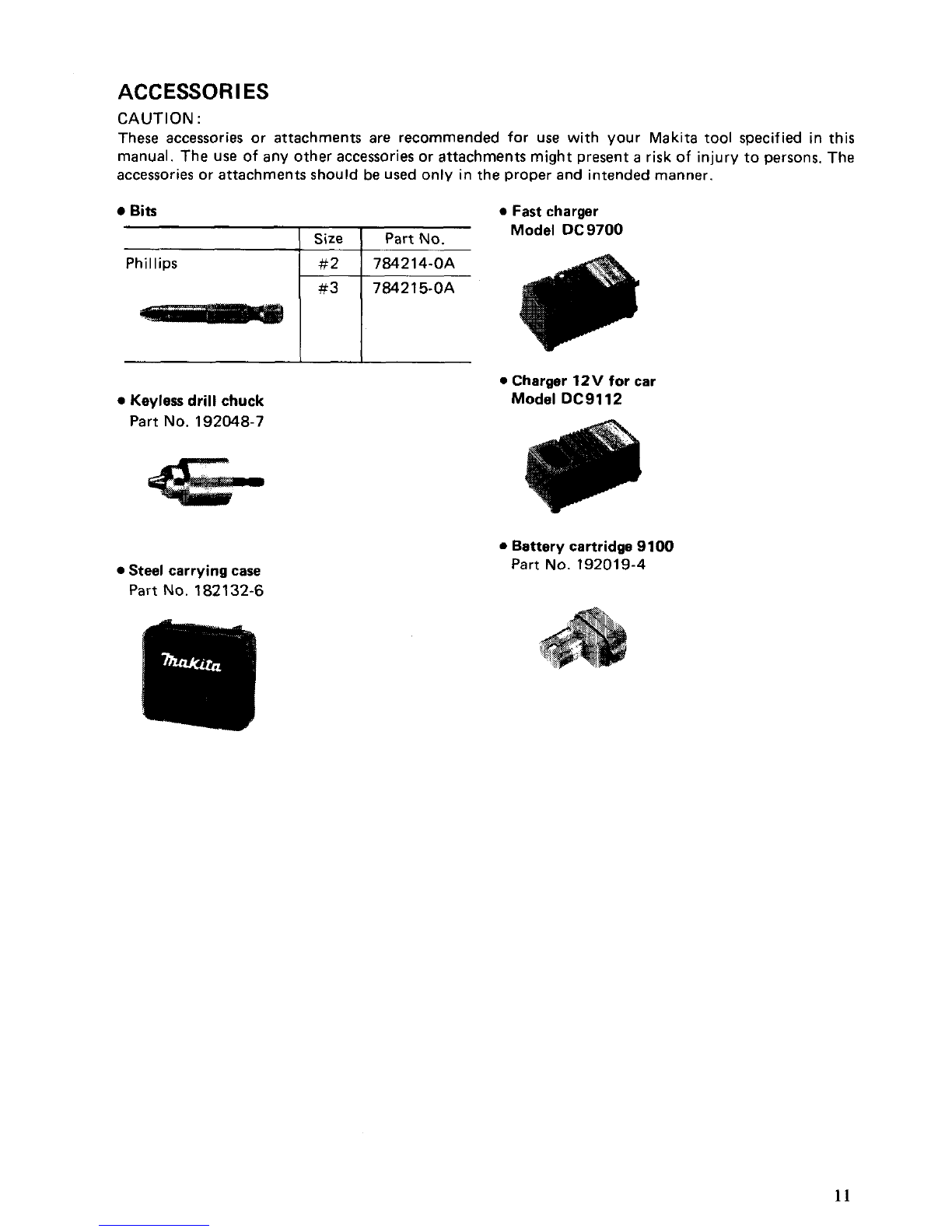

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories
or attachments might present a risk of injury to persons. The
accessoriesor attachments should be used only in the proper and intended manner.
Bits
1 Size Part NO.
Phillips
0 Keylessdrill chuck
Part No. 192048-7
0 Steel carrying case
Part No. 182132-6
0 Fast charger
Model DC9700
0 Charger 12V for car
Model
DC9112
0 Battery cartridge 9100
Part No. 192019-4
11

Jan.-l8-'89 EN
CORDLESS IMPACT DRIVER
Model 6901D
Note: The switch and other part configurations
may differ from country to country.
12

MODEL 6901D Jan.-l8-'89 EN
1 1 Name Plate
2 1 Housing Set IWith Item 211
3 1 Switch Lever
4 1 Switch
5 1 Switch
6 1 Set Plate
7 1 DC Motor 9 6 V
8 1 Spindle
9 2 Steel Ball 5 6
10 1 COmDreSSlOn SPrV 24
11 1 HBmmer
12 1
Anvil
13 1 Steel Ball 3 5
14 1 Flat Washer 14
'7;'," $.& DESCRIPTION
15 1
16 1
17 1
18 1
19
1
20 1
21 1
22 8
23 1
24 1
25
1
26 1
27 1
28 1
Rubber Washer 20
Sleeve 14
011 Seal 14
Compression Spring 13
Sleeve
Retaining Ring S- 12
Housing Set IWith Item 21
Tapping Screw 4x20
Pan Head Screw M4x20 (With Washer)
Gear Complete 15-51
Plane Bearing 4
Plane Bearing 4
Battery 9100
1 Battery Holder
13

8’
r 1

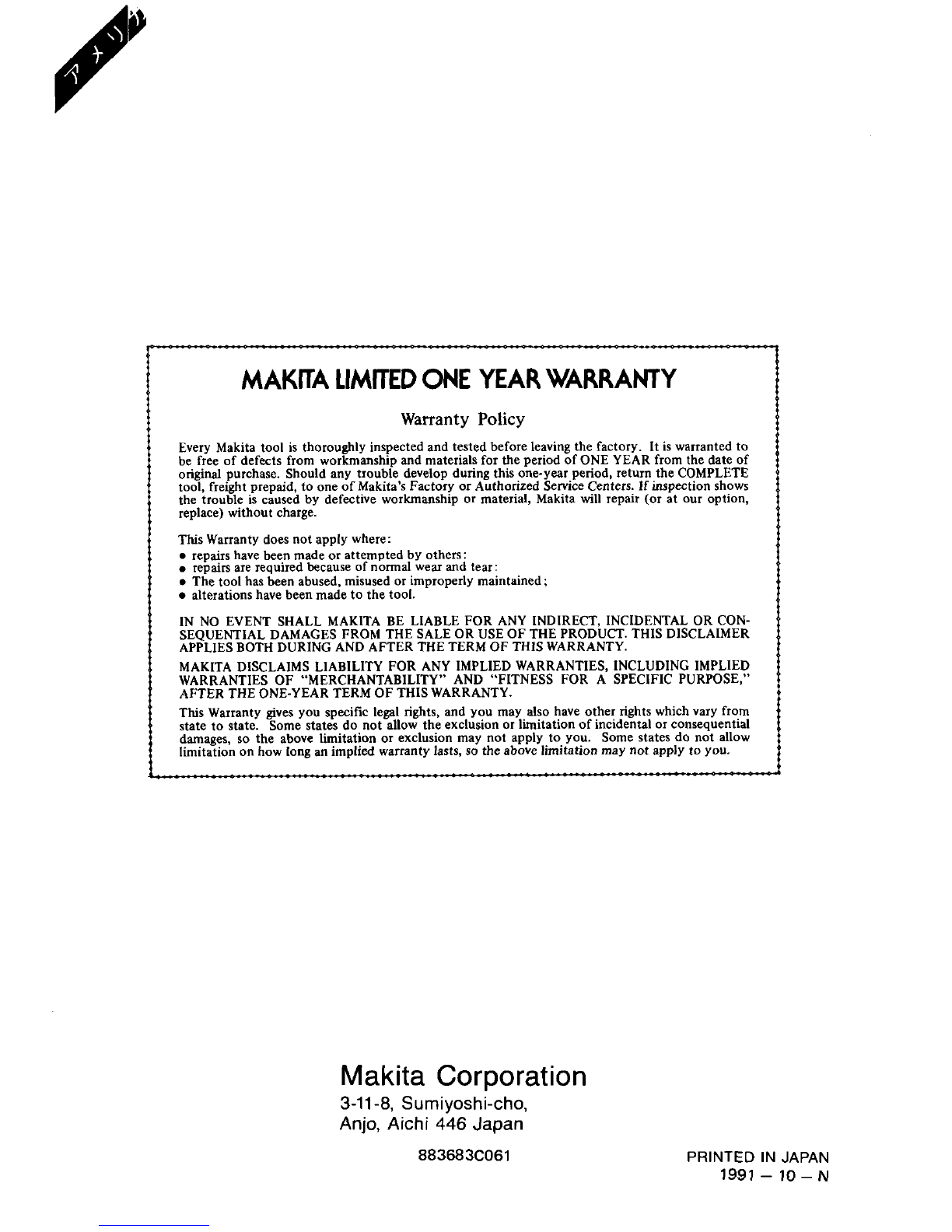

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspectionshows
the trouble is caused by defective workmanship or material, Makita will repair
(or at our option,
replace) without charge.
This Warranty does not apply where:
e repairs have been made or attempted by others:
e repairs are required because of normal wear and tear:
e The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF THISWARRANTY.
This Warranty gjves you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidentalor consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883683C061
PRINTED IN JAPAN
1991 - 10 - N
