12V - 1/2" IMPACT WRENCH KIT Model 6918DWD (MJ)
09-2003

2 Model 6918DWD
Item Part No.
No. No. Used Description
1183237-5 1Housing Set (Includes Items 7 & 44)
2911003-8 1P.H. Screw M3x6
3265995-6 6Tapping Screw 4X18
4416079-5 1F/R Change Lever
5911143-2 1P.H. Screw M4X22
6651989-1 1Switch
7263024-9 1Rubber Pin 4
8256176-3 1Pin 2.5
10 687085-9 1Holder
11 654168-0 1Spring Terminal (+)
12 654169-8 1Spring Terminal (-)
13 652038-7 2P.H. Screw M3X8
17 151946-4 1Hammer Case Com.
18 265999-8 4Tapping Screw 4X25
19 261116-8 1Nylon Washer 18
21 323893-1 1Anvil
22 323997-9 1Hammer
23 216001-0 25->24 Steel Ball 3.5
24 267175-0 1Flat Washer 24
25 233274-0 1Compression Spring 25
26 *1Washer
27 *1Spindle
28 226336-1 2Spur Gear 22
29 256253-1 2Pin 5
30 267212-0 1Flat Washer 12
31 227001-5 1Internal Gear 51
32 216011-7 2Steel Ball 5.6
33 211140-1 1Ball Bearing 6901LLB
34 417269-3 1Internal Gear Case
35 632965-4 1Yoke Unit
36 619057-6 1Armature
37 638103-6 1EndbellCom. (Includes
2X654069-2 - Receptacle)
(Old 632969-6)
Item Part No.
No. No. Used Description
38 193466-2 2Carbon Brush CB-434 (2pcs/Set)
(Old 191975-5)
39 643933-2 2Holder Cap
40 689096-0 1Felt Spacer
41 266170-7 1Tapping Screw ST3X8
42 231907-1 1Ring Spring 10
43 819063-3 1MakitaLabel
44 263024-9 1Rubber Pin 4
45 322045-1 1Clip
46 323675-1 1Pin 4
47 655000-B 1Plug for Cigarette Lighter
48 344798-2 1Set Plate (Option)

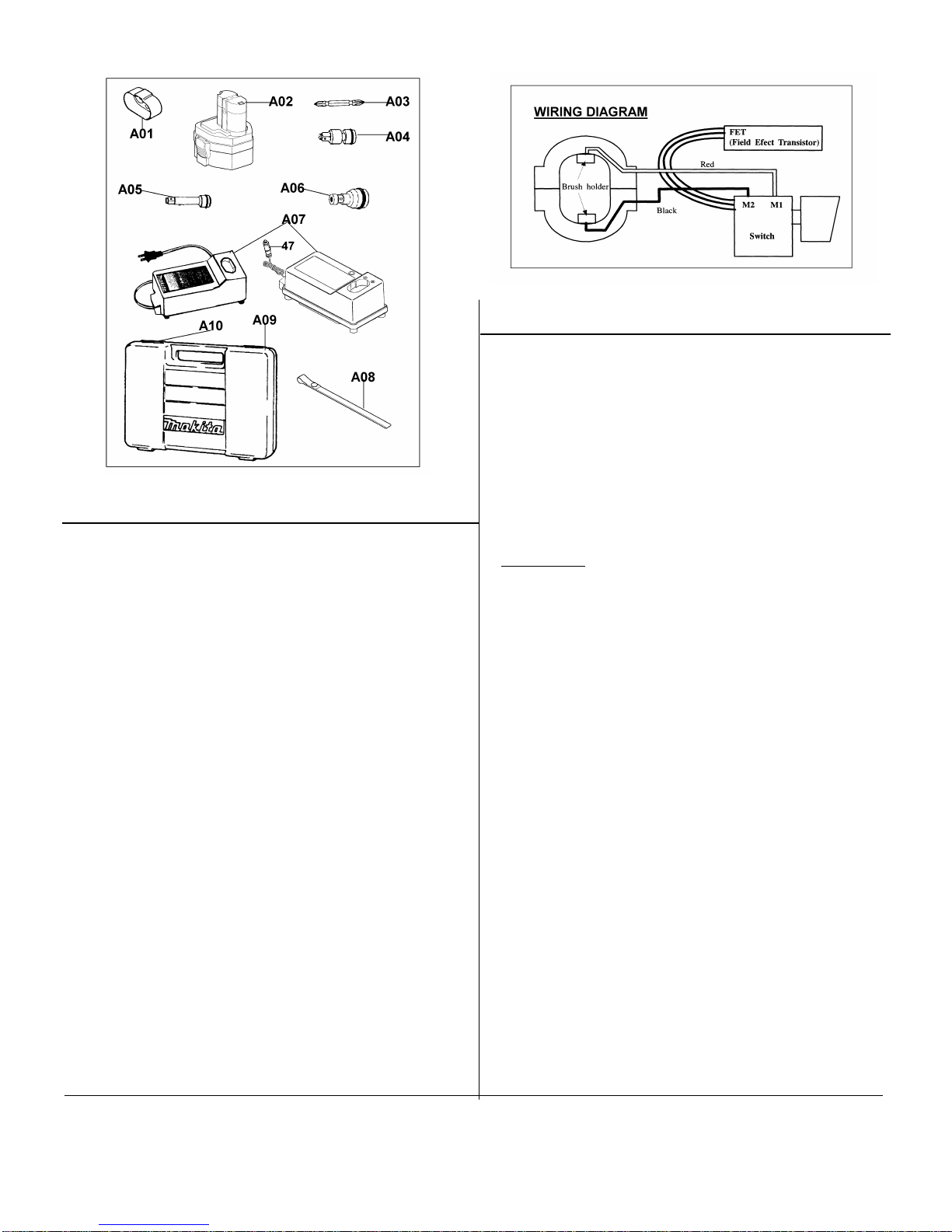

Accessories
A01 414938-7 1Battery Cover
A02 193157-5 112V NI-MH Battery 1234 (2.6Ah)
A03 784202-3 1Phillips Bit 2-45
784203-1 1Phillips Bit 2-65
A04 134877-2 1Universal Joint 1/2" Large (12.7)
(Includes Pin 4 - 256187-8)
134878-0 1Universal Joint 1/2" Small (12.7)
(Includes Pin 4 - 256187-8 & Ring
Spring 10 - 231907-1)
A05 134874-8 1Extension Bar 12.7 Assy
(Includes Pin 4 - 256187-8)
A06 134873-0 1Bit Adaptor Assy(Includes O Ring
22 - 213370-0, Pin 4 - 256095-3 &
Sleeve 322434-0 --> 324420-7)
A07 DC1411 1DC1411 Fast Charger For 7.2V ~
14.4V & 1.3Ah ~ 3.0Ah Ni-Cad &
Ni-MH Batteries
DC1422 DC1422 Automotive Charger For
7.2V ~ 14.4V & 1.3Ah ~ 3.0Ah
Ni-Cad & Ni-MH Batteries
(Includes Item 47)
A08 193122-4 1Shoulder Strap Set (Option)
A09 824635-1 1Plastic Carrying Set (Includes
Item A10)(Old 824489-6)
A10 186347-7 1Slide Latch Set
*SEE SERVICE CHANGES
REPAIR TOOL
1R045 - Gear Extractor (Large)

3 Model 6918DWD
SERVICE CHANGES
1. Change on Spindle and Washer.
Item No. Description Type 1 Type 2
26 Washer 267175-0 (Flat Washer 24) 267766-7 (Cup Washer 14)
27 Spindle 323994-5 324220-5
Serial # ~ 10851E 10852E ~
Above parts are completely interchangeable as a set.
