Makita 6935FDWAE User manual

08-2004
14.4V IMPACT DRIVER W/LED LIGHT
Model 6935FDWAE(MCA)

2 Model 6935FDWAE
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
1183773-1 1Housing Set (Includes Item 45)
3266130-9 8Tapping Screw Bind PT 3X16
4266007-8 1Tapping Screw Bind PT 3X10
5416079-5 1F/R Change Lever
6638326-6 1Switch Unit
7263024-9 1Rubber Pin 4
8687085-9 1Holder
9654253-9 1Spring Terminal (Plus)
10 654254-7 1Spring Terminal (Minus)
11 231951-8 1Ring Spring 11
12 267085-1 1Flat Washer 12
13 233005-7 1Compression Spring 13
14 324420-7 1Sleeve
15 421847-3 1Bumper
16 153808-2 1Hammer Case Com
17 261108-7 1Nylon Washer 14
18 216001-0 2Steel Ball 3.5
19 324432-0 1Anvil M
20 324359-4 1Hammer
21 216001-0 24 Steel Ball 3.5
22 267175-0 1Flat Washer 24
23 233381-9 1Compression Spring 25
24 267766-7 1Cup Washer 14
25 216011-7 2Steel Ball 5.6
26 226336-1 2Spur Gear 22
27 324220-5 1Spindle
28 256253-1 2Pin 5
29 267212-0 1Flat Washer 12
30 257254-2 1Ring 41
31 227112-6 1Internal Gear 51
32 211150-8 1Ball Bearing 6901ZZ
33 213620-3 1O Ring 46
34 911516-9 4P.H. Screw M4x12
35 317597-5 1Internal Gear Case
36 638155-7 1Yoke Unit
37 619134-4 1Armature
38 638156-5 1Endbell Com
39 193466-2 2Carbon Brush CB-434 (2pcs/Set)
40 643933-2 2Brush Holder Cap
41 689096-0 1FET Spacer
42 266170-7 1Tapping Screw ST3X8
43 266130-9 1Tapping Screw Bind PT 3X16
44 313118-1 1Stopper
45 819720-3 1Makita Label
47 263024-9 1Rubber Pin 4

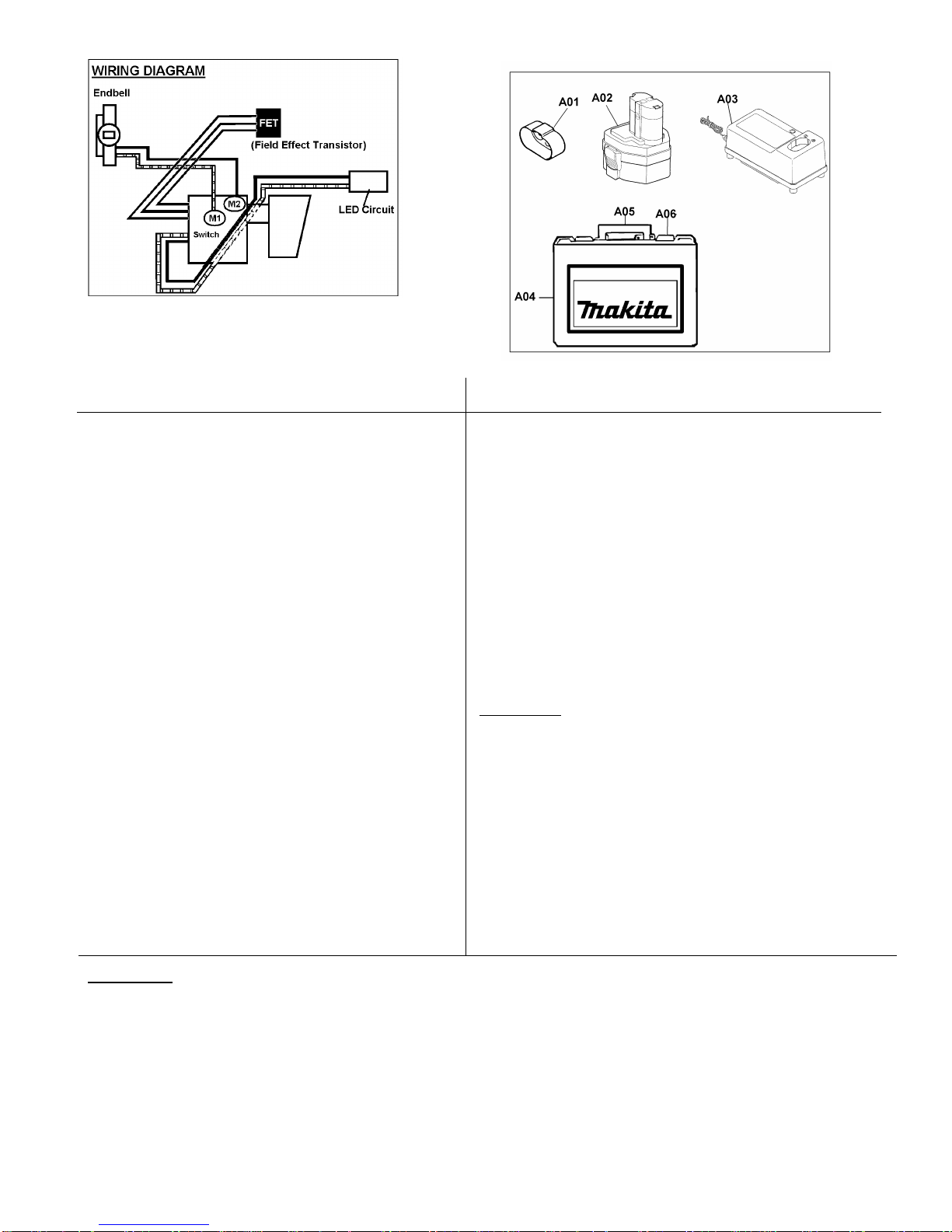

Accessories
A01 414938-7 1Battery Cover
A02 192600-1 114.4V Ni-Cad Battery 1422 W/Clip
(2.0Ah) (For other Batteries,
See Catalogue)
A03 DC1414 1Charger DC1414 for Ni-Cad &
Ni-MH 7.2V ~ 14.4V 1.3 ~ 3.0Ah
Batteries
A04 183763-4 1Plastic Carrying Case
(Includes 324207-7 - Shaft &
Items A05 & A06)
A05 417723-7 1Handle
A06 417724-5 2Latch
Service Tools
042017-7A - Makita Grease N No. 2 100g (3.5oz)
1R045 - Gear Extractor, Large
